TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
11PTO; Shaft, PTO Drive, 20 Spline Front, 25 Spline Rear, 40'';When replacing C5NN7A684A (81805444) W/E4NN7A684AA (83948847) also use E1NNN777AB (83936827).
-
1A1RETAINER; Plate, PTO Drive
-
1B1BALL BEARING; Bearing, PTO Drive Plate
-
1C6SCREW; Cap, HH, G8, Self-Locking, 9/16''-18 x 2-5/8''
-
21SHAFT; Input
-
21SHAFT; Transmission Input, W/Dual Power
-
31SNAP RING 2.03'' OD; RING, SNAP, , Main Drive 2.03'' OD
-
41SHAFT; Assy., Main, 30 & 16 Teeth, 8 Speed;No Longer Serviced.
-
41SHAFT; Assy., Main, 30 & 16 Teeth, 7 Speed;No Longer Serviced.
-
41SHAFT; Assy., Main, 30 & 18 Teeth, W/PTO, 5000, U.S.;When replacing C5NN7C094C &/or C5NN7N339D(81805076), both parts must be replaced W/C9NN7C094B(81822959) & E9NN7N315AA(83990392), OR E6NN7N315AA(83960029)(Depending on year), as a Set. See Service Bulletin 8-74/, 3T.
-
41SHAFT; Assy., Main, 30 & 18 Teeth, W/PTO, 5000, U.K.;When used on Tractors prior to 10-70/, also use C9NN7N315B(81822962), 8 Speed, U.K..
-
41SHAFT; Assy., Main, 30 & 18 Teeth, W/PTO, 7 Speed, U.K.
-
41MAIN SHAFT; Shaft Assy., Transmission Main, 30 & 18 Teeth, W/Independent PTO, W/Dual Power, 5000;When replacing D2NN7C094B(81826585) W/E2NN7C094DA(83946977) also use C5NN7N064C(81813761).
-
41SHAFT; Assy., Main, 30 & 18 Teeth, L/PTO, 5000
-
41SHAFT; Assy., Transmission Main, 29 & 18 Teeth, W/Independent PTO, W/Dual Power, 7000;When replacing D0NN7C094A (81823632) the Coupling D2NN7106B (81826589) must also be used.
-
41SHAFT; Assy., Transmission Main, 29 & 18 Teeth, W/Independent PTO, L/Dual Power, 7000;When replacing D0NN7C094A (81823632) the Coupling D2NN7106B (81826589) must also be used.
-
51CUP PLUG 1.57''; PLUG, CUP, , Main Shaft, Skidded Units, U.K. 1.57''
-
61BALL BEARING 64.9mm ID x 100mm OD x 18mm W; Bearing, Main Shaft, 5000;When replacing D2NN7C094B(81826585) W/E2NN7C094DA(83946977) also use C5NN7N064C(81813761).
-
6A1BEARING, ROLLER, CYL 62.74mm ID x 25.4mm W; Bearing, Cone & Roller Assy., Main Shaft Front, 7000
-
6B1BEARING CUP 62.7507 mm ID x 100.0252 mm OD x 25.603 mm; BEARING, CUP, Main Shaft Front Bearing, 7000
-
71OIL SEAL M58.72 x 79.37 x 9.5/8 Thk; SEAL, SHAFT, , Assy, Input M58.72 x 79.37 x 9.5/8 Thk
-
81SEAL 30.26mm ID x 39.7mm OD x 6.35mm Thk; Oil Seal Assy., PTO Drive Shaft
-
91GASKET; Gasket, Clutch Release Bearing Plate
-
101PLATE; Assy., Clutch Release Bearing Support, W/Hole for Lift Fork;No Longer Serviced.
-
101PLATE; Assy., Bearing Support, L/Common Sump
-
101PLATE; Assy., Includes: Ref. 11 & 11A
-
112PIN 3/8'' x 11/16''; Dowel 3/8'' x 11/16''
-
11A1PLUG M16, Tapered; Clutch Release Bearing Support Plate
-
127SCREW; Cap, HH, G5, Self-Locking, 3/8''-16 x 1-1/8''
-
127BOLT BOLT M10X25 FULL 10.9 ZND; Screw, Cap, HH, CL 10.9, M10 x 1.5 x 25, Plate Assy to Case, W/Dual Power
-
1O-RING 0.139'' Thk x 4.609'' ID, -247, Cl 5, 75 Duro; Use W/D2NN7N054A 4.625'' ID x .139'' Thk
-
131GASKET; Clutch Bearing Hub Support, 5000
-
13ARSHIM; .0030''-.0765mm, 7000
-
13ARSHIM; Bearing Hub, .0050''-.127mm, 7000
-
13ARSHIM; Bearing Hub, .0120''-.3048mm, 7000
-
141SUPPORT; Clutch Release Bearing Hub, 5000
-
141SUPPORT; Clutch Release Bearing Hub, 7000
-
155LOCK BOLT Hex, 7/16''-14 x 1 1/8'', G5; BOLT, LOCK, Hex, 7/16''-14 x 1 1/8'', G5
-
161BEARING ASSY 55 mm ID x 100 mm OD x 21 mm; ., Main Shaft, 5000;When replacing D2NN7C094B(81826585) W/E2NN7C094DA(83946977) also use C5NN7N064C(81813761).
-
16A1BEARING, ROLLER, CYL 55mm ID x 21.95mm W; Bearing, Cone & Roller Assy., Main Shaft Rear, 7000
-
16B1BEARING CUP 100mm OD x 17.83mm W; Bearing, Cup, Main Shaft Rear, 7000
-
16C1BEARING WASHER; Ring, Main Shaft Bearing Retaining, 7000
-
171SNAP RING; Lock Ring, Main Shaft Bearing
-
181COUPLING 16T; Countershaft Sliding Gear, 21 Teeth, 5000
-
181COUPLING; 5-6 County Commercial;NHNA Only.;No Longer Serviced.
-
181COUPLING 16T; Transmission Countershaft, 21 Teeth, 7000;When replacing C7NN7016E also use D2NN7C094D (81827385) Shaft, W/Dual Power or D2NN7C094E Shaft,L/Dual Power.
-
191GEAR; Countershaft Secondary, 5000
-
191GEAR 16 T/35 T/16 T; Countershaft Secondary, 5000 16 T/35 T/16 T
-
191GEAR; Countershaft Secondary, 7000
-
201BALL BEARING 60mm ID x 110mm OD x 22mm W; Countershaft Bearing Assy, Front
-
211RING 4.63'' OD; Lock, Countershaft Front 4.63'' OD
-
221BALL BEARING; Countershaft Bearing Assy., Rear, 5000
-
221BEARING ASSY; Countershaft Bearing Assy., Rear, 7000
-
231GASKET; Output Shaft Bearing Retainer
-
241COVER PLATE; Retainer, Output Shaft, L/Dual Power, 5000
-
241SHAFT; Retainer, Output Shaft, W/Dual Power, 5000
-
241RETAINER; Output Shaft, W/Dual Power, 7000
-
252PIN; Dowel, 1/2'' x 13/16''
-
2610SCREW; Cap, HH, G5, 3/8''-16 x 1-1/8''
-
271SEAL; Assy., PTO Countershaft, 5000
-
282SNAP RING 3.03'' OD; RING, SNAP, , PTO Countershaft Bearing 3.03'' OD
-
291BALL BEARING; Bearing, PTO Drive Shaft Front
-
301CIRCLIP; Ring, Lock, PTO Drive Shaft
-
311COUNTERSHAFT; Transmission, 5000;When used to replace C9NN7111B(81822960), must also order D0NN7N048A, D0NN7N047A, & E6NN7N071BA(83959999).
-
311COUNTERSHAFT; Transmission, W/ or L/Dual Power, 7000
-
1SLOTTED PIN 3/8'' x 1 1/8'', Slotted; PIN, SLOTTED, 3/8'' x 1-1/8'', Countershaft, W/Dual Power
-
321BEARING ASSY 53.988 mm ID x 98.45 mm OD x 21.204 mm; Bearing, Cone & Roller Assy., Transmission Countershaft
-
331BEARING CUP 98.42mm OD x 17.83mm W; Cup, Countershaft
-
341GEAR SET; Gear Assy., 2nd Speed, 43 & 28 Teeth, L/Dual Power
-
341GEAR; Assy., 2nd. Speed, W/Independent PTO, W/Dual Power
-
361COUPLING; Connector & Coupling, Gear Shift Sliding, Matched
-
371GEAR; Assy., Reverse, 30 & 28 Teeth, 8 Speed
-
371GEAR; Assy., Reverse, 30 & 28 Teeth, 7 Speed
-
371GEAR; Assy., Reverse, 32 & 28 Teeth, 8 Speed
-
371GEAR; Assy., Reverse, 32 & 28 Teeth, 7 Speed
-
371GEAR; Assy., Reverse, 32 & 28 Teeth, W/Dual Power
-
392THRUST WASHER 45.77mm ID x 63.5mm OD x 1.4mm Thk; Main Shaft 1.81'' x 2.50'' x .055'' Thk
-
401GEAR; Assy., 1st. Speed, 49 & 28 Teeth, 8 Speed;No Longer Serviced.
-
401GEAR; Assy., 1st Speed, 49 & 28 Teeth, 7 Speed;No Longer Serviced.
-
401GEAR SET; Gear Assy., 1st Speed, 46 & 28 Teeth, 8 Speed
-
401GEAR SET; Gear Assy., 1st Speed, 46 & 28 Teeth, 7 Speed
-
401GEAR; Assy., 1st Speed, 46 & 28 Teeth, W/Dual Power
-
421SPLINED COUPLING; Connector & Coupling, Gear Shift Sliding, 5000
-
421GEAR SET; Connector & Coupling, Gear Shift Sliding, 7000
-
431GEAR; Assy., Main, 3rd. Speed, 35 Teeth;When replacing C5NN7C094C and/or C5NN7N339D(81805076), both must be replaced W/C9NN7C094B(81822959) & C9NN7N315B (81822962)as a set. See Service Bulletin 4T, 8-71.
-
431GEAR; Assy., Main, 3rd. Speed, 35 Teeth, 5000;When replacing C5NN7C094C and/or C5NN7N339D(81805076), both must be replaced W/C9NN7C094B(81822959) & C9NN7N315B (81822962)as a set. See Service Bulletin 4T, 8-71.
-
431GEAR; Assy., Main, 3rd. Speed, 7000;No Longer Serviced.
-
431GEAR; Assy., Transmission, Main, 3rd. Speed, W/DP, 5000
-
431GEAR SET; Gear Assy., Transmission, Main, 3rd. Speed, W/DP, 7000
-
451WASHER; Main Drive Shaft Thrust, 5000
-
451WASHER; Main Countershaft Thrust, 7000
-
461SNAP RING #156, Ext; Ring, Snap, , Main Shaft, 5000 #156, Ext
-
461SNAP RING #118, Ext; Ring, Snap, , 7000 #118, Ext
-
471BEARING ASSY; ., PTO Rear, Upper Shaft, 5000 Replaces C5NNN755A
-
471BEARING ASSY 29.99mm ID x 72.03mm OD x 19mm W; ., Countershaft Front, 7000
-
481HYD CONNECTOR; Coupling & Shaft Assy., Gear Shift Sliding, Replaces C5NN7N071B;No Longer Serviced.
-
481COUPLING; & Shaft Assy., Gear Shift Sliding, 5000
-
481COUPLING; & Shaft Assy., Gear Shift Sliding, 7000
-
481COUPLING; & Shaft Assy., Gear Shift Sliding, W/Dual Power
-
49ARBEARING ASSY 25 mm ID x 51.988 mm OD x 16.307 mm; Cup, Secondary Output Shaft, 2.047 OD, 5000
-
491BEARING CUP 19.063 mm ID x 54 mm OD x 22.43 mm; Bearing, Cup, Secondary Output Shaft, 7000;Required W/ Ref. 31, E6NN7111AA(83960001).
-
49ARBEARING CUP 19.063 mm ID x 54 mm OD x 22.43 mm; Bearing, Cup, Secondary Output Shaft, W/Dual Power, 5000-7000
-
501BEARING ASSY 25 mm ID x 51.988 mm OD x 16.307 mm; Bearing, Cone & Roller Assy., Output Shaft, 1.00 ID, 5000
-
501BEARING ASSY 19.063 mm ID x 54 mm OD x 22.43 mm; Bearing, Cone & Roller Assy., Output Shaft, .75 ID, 7000;Required W/ Ref. 31, E6NN7111AA(83960001).
-
50ARBEARING ASSY 19.063 mm ID x 54 mm OD x 22.43 mm; Bearing, Cone & Roller Assy., Output Shaft, W/Dual Power, 5000-7000
-
511GEAR; Assy., Output Shaft
-
511GEAR; Assy., Output Shaft, W/Dual Power
-
531THRUST WASHER; Washer, Output Shaft Thrust, 1.688'' (42.88mm) ID
-
531WASHER; Output Shaft Thrust, 1.755'' (44.577mm) ID
-
541BEARING ASSY; Bearing, Cone & Roller Assy., Output Shaft
-
541BEARING ASSY 1.625'' ID x 2.892'' OD x 0.778''; Bearing, Cone & Roller Assy., Output Shaft
-
55ARSHIM .003'' Thk; (.0762mm), Output Shaft .003'' Thk
-
55ARSHIM 91.95mm ID x 128.67mm OD x 0.13mm Thk; (.127 mm), Output Shaft .005'' Thk
-
55ARSHIM 91.95mm ID x 128.67mm OD x 0.08mm Thk; (.305 mm), Output Shaft .012'' Thk
-
561RETAINER; Transmission Output Shaft Bearing, 5000;No Longer Serviced.
-
561HOUSING; Retainer, Output Shaft Bearing, 5000-7000
-
571CUP;
-
571CUP;
-
581SEAL; Assy.
-
594SCREW; Cap, HH, G5, Self-Locking, 3/8''-16 x 1''
-
601SHAFT; Reverse Idler Gear, 3.88'' Long, Hollow;No Longer Serviced.
-
601SHAFT; Reverse Idler Gear, 3.50'' Long
-
611GEAR; Assy., Reverse Idler, 33 Teeth, 8 Speed, 5000
-
611GEAR; Assy., Reverse Idler, 33 Teeth, 7 Speed, 5000
-
611GEAR; Assy., Reverse Idler, 31 Teeth, 8 Speed, 5000
-
611GEAR; Assy., Reverse Idler, 31 Teeth, 7 Speed, 5000
-
611GEAR; Assy., Transmission Reverse Idler Shaft, W/Dual Power, 5000-7000
-
611GEAR; Assy., Transmission Reverse Idler Shaft, 7000
-
631BOLT; Reverse Idler Shaft
-
631BOLT; Reverse Idler Shaft
-
641LOCKING TAB; Tab, Reverse Idler Shaft Bolt
-
651GEAR; & Bushing Assy., Pump Idler Gear;Tractors prior to 5-71/ also supply (1) each C9NN7N085A(81822276), C9NN7N071B(81824350) & WAA4221A(81854761).
-
661WASHER; Hydraulic Pump Idler Gear Thrust, 5000
-
671WASHER; Hydraulic Pump Drive Idler Retainer
-
671WASHER; Hydraulic Pump Drive Idler Gear
-
671WASHER; Hydraulic Pump Drive Idler Gear, W/Flat
-
681SNAP RING; Ring, Snap, Ext, 2.250''
-
691KIT; Bearing Transmission Overhaul, Includes Ref. 6, 16, 20, 29, 32, 33, 47, 49, 50, 54 & 57
Select All
Select
Ref.
1Qty
1Availability
Part #
E4NN7A684AADescription
PTO; Shaft, PTO Drive, 20 Spline Front, 25 Spline Rear, 40'';When replacing C5NN7A684A (81805444) W/E4NN7A684AA (83948847) also use E1NNN777AB (83936827).Img
Alts
Select
Ref.
1BQty
1Availability
Part #
F0NNN779AADescription
BALL BEARING; Bearing, PTO Drive PlateImg
Alts
Select
Ref.
1CQty
6Availability
Part #
43172S36Description
SCREW; Cap, HH, G8, Self-Locking, 9/16''-18 x 2-5/8''Img
Alts
Select
Ref.
2Qty
1Availability
Part #
D2NN7017ADescription
SHAFT; Transmission Input, W/Dual PowerImg
Alts
Select
Ref.
3Qty
1Availability
Part #
C5NN7N064CDescription
SNAP RING 2.03'' OD; RING, SNAP, , Main Drive 2.03'' ODImg
Alts
Select
Ref.
4Qty
1Availability
Part #
C5NN7C094ADescription
SHAFT; Assy., Main, 30 & 16 Teeth, 8 Speed;No Longer Serviced.Img
Alts
Select
Ref.
4Qty
1Availability
Part #
C5NN7C094ADescription
SHAFT; Assy., Main, 30 & 16 Teeth, 7 Speed;No Longer Serviced.Img
Alts
Select
Ref.
4Qty
1Availability
Part #
C9NN7C094BDescription
SHAFT; Assy., Main, 30 & 18 Teeth, W/PTO, 5000, U.S.;When replacing C5NN7C094C &/or C5NN7N339D(81805076), both parts must be replaced W/C9NN7C094B(81822959) & E9NN7N315AA(83990392), OR E6NN7N315AA(83960029)(Depending on year), as a Set. See Service Bulletin 8-74/, 3T.Img
Alts
Select
Ref.
4Qty
1Availability
Part #
C9NN7C094BDescription
SHAFT; Assy., Main, 30 & 18 Teeth, W/PTO, 5000, U.K.;When used on Tractors prior to 10-70/, also use C9NN7N315B(81822962), 8 Speed, U.K..Img
Alts
Select
Ref.
4Qty
1Availability
Part #
C9NN7C094BDescription
SHAFT; Assy., Main, 30 & 18 Teeth, W/PTO, 7 Speed, U.K.Img
Alts
Select
Ref.
4Qty
1Availability
Part #
E7NN7C094AADescription
MAIN SHAFT; Shaft Assy., Transmission Main, 30 & 18 Teeth, W/Independent PTO, W/Dual Power, 5000;When replacing D2NN7C094B(81826585) W/E2NN7C094DA(83946977) also use C5NN7N064C(81813761).Img
Alts
Select
Ref.
4Qty
1Availability
Part #
D0NN7R057ADescription
SHAFT; Assy., Main, 30 & 18 Teeth, L/PTO, 5000Img
Alts
Select
Ref.
4Qty
1Availability
Part #
E2NN7C094AADescription
SHAFT; Assy., Transmission Main, 29 & 18 Teeth, W/Independent PTO, W/Dual Power, 7000;When replacing D0NN7C094A (81823632) the Coupling D2NN7106B (81826589) must also be used.Img
Alts
Select
Ref.
4Qty
1Availability
Part #
E2NN7C094BADescription
SHAFT; Assy., Transmission Main, 29 & 18 Teeth, W/Independent PTO, L/Dual Power, 7000;When replacing D0NN7C094A (81823632) the Coupling D2NN7106B (81826589) must also be used.Img
Alts
Select
Ref.
5Qty
1Availability
Part #
83957024Description

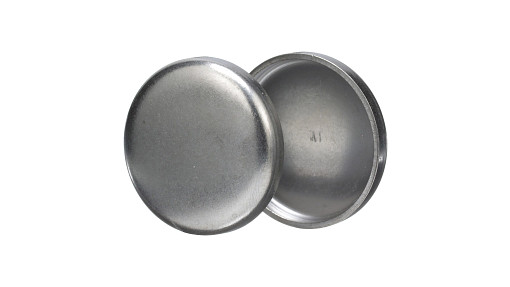

CUP PLUG 1.57''; PLUG, CUP, , Main Shaft, Skidded Units, U.K. 1.57''Img
Alts
Select
Ref.
6Qty
1Availability
Part #
81804635Description
BALL BEARING 64.9mm ID x 100mm OD x 18mm W; Bearing, Main Shaft, 5000;When replacing D2NN7C094B(81826585) W/E2NN7C094DA(83946977) also use C5NN7N064C(81813761).Img
Alts
Select
Ref.
6AQty
1Availability
Part #
81823621Description

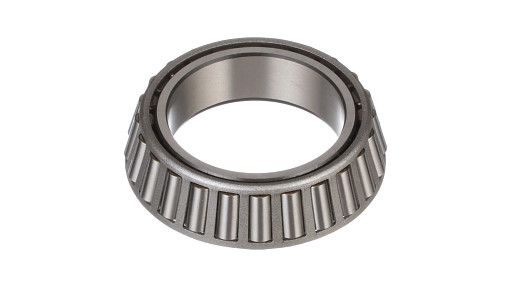

BEARING, ROLLER, CYL 62.74mm ID x 25.4mm W; Bearing, Cone & Roller Assy., Main Shaft Front, 7000Img
Alts
Select
Ref.
6BQty
1Availability
Part #
D0NN7R066ADescription
BEARING CUP 62.7507 mm ID x 100.0252 mm OD x 25.603 mm; BEARING, CUP, Main Shaft Front Bearing, 7000Img
Alts
Select
Ref.
7Qty
1Availability
Part #
D9NN7048BADescription
OIL SEAL M58.72 x 79.37 x 9.5/8 Thk; SEAL, SHAFT, , Assy, Input M58.72 x 79.37 x 9.5/8 ThkImg
Alts
Select
Ref.
8Qty
1Availability
Part #
81801990Description

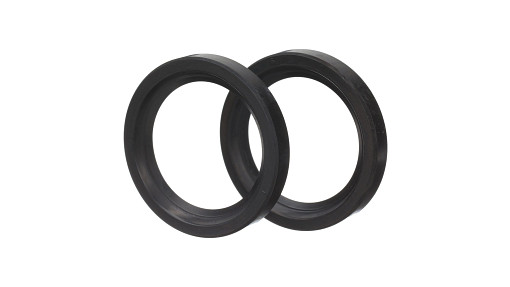

SEAL 30.26mm ID x 39.7mm OD x 6.35mm Thk; Oil Seal Assy., PTO Drive ShaftImg
Alts
Select
Ref.
9Qty
1Availability
Part #
E6NN7N057AADescription
GASKET; Gasket, Clutch Release Bearing PlateImg
Alts
Select
Ref.
10Qty
1Availability
Part #
C5NN7N054BDescription
PLATE; Assy., Clutch Release Bearing Support, W/Hole for Lift Fork;No Longer Serviced.Img
Alts
Select
Ref.
10Qty
1Availability
Part #
C7NN7N054ADescription
PLATE; Assy., Bearing Support, L/Common SumpImg
Alts
Select
Ref.
10Qty
1Availability
Part #
D8NN7N054BADescription
PLATE; Assy., Includes: Ref. 11 & 11AImg
Alts
Select
Ref.
11Qty
2Availability
Part #
73269SDescription
PIN 3/8'' x 11/16''; Dowel 3/8'' x 11/16''Img
Alts
Select
Ref.
11AQty
1Availability
Part #

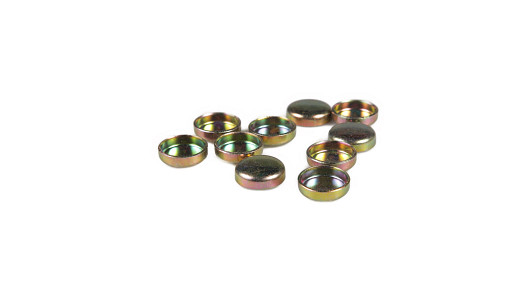

14328501Description
PLUG M16, Tapered; Clutch Release Bearing Support PlateImg
Alts
Select
Ref.
12Qty
7Availability
Part #
46009S36Description
SCREW; Cap, HH, G5, Self-Locking, 3/8''-16 x 1-1/8''Img
Alts
Select
Ref.
12Qty
7Availability
Part #

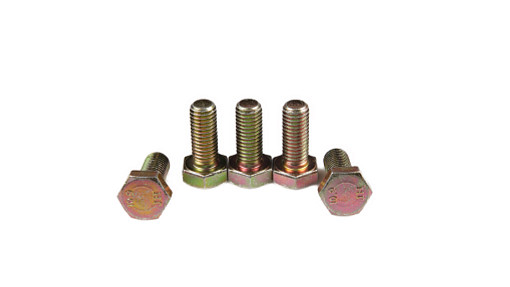

9846677Description
BOLT BOLT M10X25 FULL 10.9 ZND; Screw, Cap, HH, CL 10.9, M10 x 1.5 x 25, Plate Assy to Case, W/Dual PowerImg
Alts
Select
Ref.
Qty
1Availability
Part #
87090S94Description
O-RING 0.139'' Thk x 4.609'' ID, -247, Cl 5, 75 Duro; Use W/D2NN7N054A 4.625'' ID x .139'' ThkImg
Alts
Select
Ref.
13Qty
1Availability
Part #
E7NN7N051AADescription
GASKET; Clutch Bearing Hub Support, 5000Img
Alts
Select
Ref.
13Qty
ARAvailability
Part #
D0NN7R064ADescription
SHIM; .0030''-.0765mm, 7000Img
Alts
Select
Ref.
13Qty
ARAvailability
Part #
D0NN7R064BDescription
SHIM; Bearing Hub, .0050''-.127mm, 7000Img
Alts
Select
Ref.
13Qty
ARAvailability
Part #
D0NN7R064CDescription
SHIM; Bearing Hub, .0120''-.3048mm, 7000Img
Alts
Select
Ref.
14Qty
1Availability
Part #
C5NN7N541BDescription
SUPPORT; Clutch Release Bearing Hub, 5000Img
Alts
Select
Ref.
14Qty
1Availability
Part #
D0NN7N541ADescription
SUPPORT; Clutch Release Bearing Hub, 7000Img
Alts
Select
Ref.
15Qty
5Availability
Part #
46051S36Description
LOCK BOLT Hex, 7/16''-14 x 1 1/8'', G5; BOLT, LOCK, Hex, 7/16''-14 x 1 1/8'', G5Img
Alts
Select
Ref.
16Qty
1Availability
Part #
C7NN7118BDescription
BEARING ASSY 55 mm ID x 100 mm OD x 21 mm; ., Main Shaft, 5000;When replacing D2NN7C094B(81826585) W/E2NN7C094DA(83946977) also use C5NN7N064C(81813761).Img
Alts
Select
Ref.
16AQty
1Availability
Part #

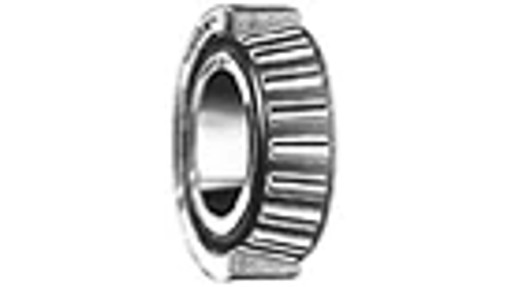

81823622Description
BEARING, ROLLER, CYL 55mm ID x 21.95mm W; Bearing, Cone & Roller Assy., Main Shaft Rear, 7000Img
Alts
Select
Ref.
16BQty
1Availability
Part #

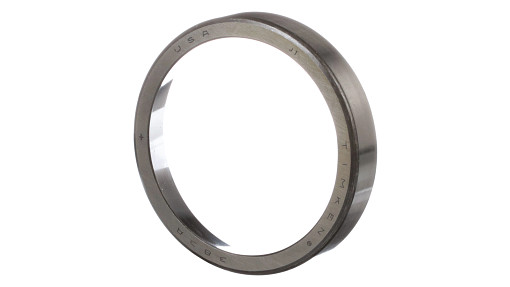

81823627Description
BEARING CUP 100mm OD x 17.83mm W; Bearing, Cup, Main Shaft Rear, 7000Img
Alts
Select
Ref.
16CQty
1Availability
Part #
D0NN7K281ADescription
BEARING WASHER; Ring, Main Shaft Bearing Retaining, 7000Img
Alts
Select
Ref.
17Qty
1Availability
Part #
E1ADKN77014Description
SNAP RING; Lock Ring, Main Shaft BearingImg
Alts
Select
Ref.
18Qty
1Availability
Part #
E0NN7106BADescription
COUPLING 16T; Countershaft Sliding Gear, 21 Teeth, 5000Img
Alts
Select
Ref.
18Qty
1Availability
Part #
6F7055BDescription
COUPLING; 5-6 County Commercial;NHNA Only.;No Longer Serviced.Img
Alts
Select
Ref.
18Qty
1Availability
Part #
E0NN7106BADescription
COUPLING 16T; Transmission Countershaft, 21 Teeth, 7000;When replacing C7NN7016E also use D2NN7C094D (81827385) Shaft, W/Dual Power or D2NN7C094E Shaft,L/Dual Power.Img
Alts
Select
Ref.
19Qty
1Availability
Part #
C5NN7113BDescription
GEAR; Countershaft Secondary, 5000Img
Alts
Select
Ref.
19Qty
1Availability
Part #
C9NN7113BDescription
GEAR 16 T/35 T/16 T; Countershaft Secondary, 5000 16 T/35 T/16 TImg
Alts
Select
Ref.
19Qty
1Availability
Part #
D0NN7113CDescription
GEAR; Countershaft Secondary, 7000Img
Alts
Select
Ref.
20Qty
1Availability
Part #
20141040Description
BALL BEARING 60mm ID x 110mm OD x 22mm W; Countershaft Bearing Assy, FrontImg
Alts
Select
Ref.
21Qty
1Availability
Part #
C5NN7N160ADescription
RING 4.63'' OD; Lock, Countershaft Front 4.63'' ODImg
Alts
Select
Ref.
22Qty
1Availability
Part #
C5NN7127ADescription
BALL BEARING; Countershaft Bearing Assy., Rear, 5000Img
Alts
Select
Ref.
22Qty
1Availability
Part #
D0NN7127ADescription
BEARING ASSY; Countershaft Bearing Assy., Rear, 7000Img
Alts
Select
Ref.
23Qty
1Availability
Part #
C5NN7086ADescription
GASKET; Output Shaft Bearing RetainerImg
Alts
Select
Ref.
24Qty
1Availability
Part #
C5NN7049EDescription
COVER PLATE; Retainer, Output Shaft, L/Dual Power, 5000Img
Alts
Select
Ref.
24Qty
1Availability
Part #
F0NN7049AADescription
SHAFT; Retainer, Output Shaft, W/Dual Power, 5000Img
Alts
Select
Ref.
24Qty
1Availability
Part #
D3NN7049ADescription
RETAINER; Output Shaft, W/Dual Power, 7000Img
Alts
Select
Ref.
26Qty
10Availability
Part #
304703S36Description
SCREW; Cap, HH, G5, 3/8''-16 x 1-1/8''Img
Alts
Select
Ref.
27Qty
1Availability
Part #
E62GE9Description
SEAL; Assy., PTO Countershaft, 5000Img
Alts
Select
Ref.
28Qty
2Availability
Part #
957E790Description
SNAP RING 3.03'' OD; RING, SNAP, , PTO Countershaft Bearing 3.03'' ODImg
Alts
Select
Ref.
29Qty
1Availability
Part #
E75GE9Description
BALL BEARING; Bearing, PTO Drive Shaft FrontImg
Alts
Select
Ref.
30Qty
1Availability
Part #

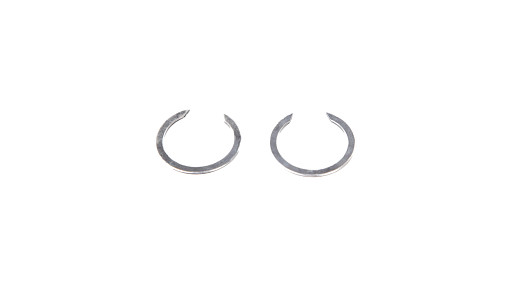

81805006Description
CIRCLIP; Ring, Lock, PTO Drive ShaftImg
Alts
Select
Ref.
31Qty
1Availability
Part #
E6NN7111AADescription
COUNTERSHAFT; Transmission, 5000;When used to replace C9NN7111B(81822960), must also order D0NN7N048A, D0NN7N047A, & E6NN7N071BA(83959999).Img
Alts
Select
Ref.
31Qty
1Availability
Part #
D2NN7111BDescription
COUNTERSHAFT; Transmission, W/ or L/Dual Power, 7000Img
Alts
Select
Ref.
Qty
1Availability
Part #
306326S2Description
SLOTTED PIN 3/8'' x 1 1/8'', Slotted; PIN, SLOTTED, 3/8'' x 1-1/8'', Countershaft, W/Dual PowerImg
Alts
Select
Ref.
32Qty
1Availability
Part #
C7NN7N431BDescription
BEARING ASSY 53.988 mm ID x 98.45 mm OD x 21.204 mm; Bearing, Cone & Roller Assy., Transmission CountershaftImg
Alts
Select
Ref.
33Qty
1Availability
Part #
86691Description
BEARING CUP 98.42mm OD x 17.83mm W; Cup, CountershaftImg
Alts
Select
Ref.
34Qty
1Availability
Part #
E6NN7N101AADescription
GEAR SET; Gear Assy., 2nd Speed, 43 & 28 Teeth, L/Dual PowerImg
Alts
Select
Ref.
34Qty
1Availability
Part #
E6NN7N101BADescription
GEAR; Assy., 2nd. Speed, W/Independent PTO, W/Dual PowerImg
Alts
Select
Ref.
36Qty
1Availability
Part #
E6NN7N072BADescription
COUPLING; Connector & Coupling, Gear Shift Sliding, MatchedImg
Alts
Select
Ref.
37Qty
1Availability
Part #
C5NN7N012ADescription
GEAR; Assy., Reverse, 30 & 28 Teeth, 8 SpeedImg
Alts
Select
Ref.
37Qty
1Availability
Part #
C5NN7N012ADescription
GEAR; Assy., Reverse, 30 & 28 Teeth, 7 SpeedImg
Alts
Select
Ref.
37Qty
1Availability
Part #
E6NN7N012AADescription
GEAR; Assy., Reverse, 32 & 28 Teeth, 8 SpeedImg
Alts
Select
Ref.
37Qty
1Availability
Part #
E6NN7N012AADescription
GEAR; Assy., Reverse, 32 & 28 Teeth, 7 SpeedImg
Alts
Select
Ref.
37Qty
1Availability
Part #
E6NN7N012BADescription
GEAR; Assy., Reverse, 32 & 28 Teeth, W/Dual PowerImg
Alts
Select
Ref.
39Qty
2Availability
Part #

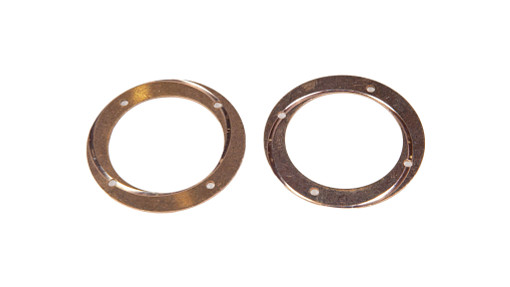

81804625Description
THRUST WASHER 45.77mm ID x 63.5mm OD x 1.4mm Thk; Main Shaft 1.81'' x 2.50'' x .055'' ThkImg
Alts
Select
Ref.
40Qty
1Availability
Part #
C5NN7N100ADescription
GEAR; Assy., 1st. Speed, 49 & 28 Teeth, 8 Speed;No Longer Serviced.Img
Alts
Select
Ref.
40Qty
1Availability
Part #
C5NN7N100ADescription
GEAR; Assy., 1st Speed, 49 & 28 Teeth, 7 Speed;No Longer Serviced.Img
Alts
Select
Ref.
40Qty
1Availability
Part #
E6NN7N100AADescription
GEAR SET; Gear Assy., 1st Speed, 46 & 28 Teeth, 8 SpeedImg
Alts
Select
Ref.
40Qty
1Availability
Part #
E6NN7N100AADescription
GEAR SET; Gear Assy., 1st Speed, 46 & 28 Teeth, 7 SpeedImg
Alts
Select
Ref.
40Qty
1Availability
Part #
E6NN7N100BADescription
GEAR; Assy., 1st Speed, 46 & 28 Teeth, W/Dual PowerImg
Alts
Select
Ref.
42Qty
1Availability
Part #
E6NN7N072AADescription
SPLINED COUPLING; Connector & Coupling, Gear Shift Sliding, 5000Img
Alts
Select
Ref.
42Qty
1Availability
Part #
D2NN7N072ADescription
GEAR SET; Connector & Coupling, Gear Shift Sliding, 7000Img
Alts
Select
Ref.
43Qty
1Availability
Part #
E9NN7N315AADescription
GEAR; Assy., Main, 3rd. Speed, 35 Teeth;When replacing C5NN7C094C and/or C5NN7N339D(81805076), both must be replaced W/C9NN7C094B(81822959) & C9NN7N315B (81822962)as a set. See Service Bulletin 4T, 8-71.Img
Alts
Select
Ref.
43Qty
1Availability
Part #
E6NN7N315AADescription
GEAR; Assy., Main, 3rd. Speed, 35 Teeth, 5000;When replacing C5NN7C094C and/or C5NN7N339D(81805076), both must be replaced W/C9NN7C094B(81822959) & C9NN7N315B (81822962)as a set. See Service Bulletin 4T, 8-71.Img
Alts
Select
Ref.
43Qty
1Availability
Part #
D0NN7N315ADescription
GEAR; Assy., Main, 3rd. Speed, 7000;No Longer Serviced.Img
Alts
Select
Ref.
43Qty
1Availability
Part #
E6NN7N315BADescription
GEAR; Assy., Transmission, Main, 3rd. Speed, W/DP, 5000Img
Alts
Select
Ref.
43Qty
1Availability
Part #
D2NN7N315ADescription
GEAR SET; Gear Assy., Transmission, Main, 3rd. Speed, W/DP, 7000Img
Alts
Select
Ref.
45Qty
1Availability
Part #
C5NN7N034BDescription
WASHER; Main Drive Shaft Thrust, 5000Img
Alts
Select
Ref.
45Qty
1Availability
Part #
D0NN7N034CDescription
WASHER; Main Countershaft Thrust, 7000Img
Alts
Select
Ref.
46Qty
1Availability
Part #
86503781Description
SNAP RING #156, Ext; Ring, Snap, , Main Shaft, 5000 #156, ExtImg
Alts
Select
Ref.
46Qty
1Availability
Part #
167080Description
SNAP RING #118, Ext; Ring, Snap, , 7000 #118, ExtImg
Alts
Select
Ref.
47Qty
1Availability
Part #
D0NNN755BDescription
BEARING ASSY; ., PTO Rear, Upper Shaft, 5000 Replaces C5NNN755AImg
Alts
Select
Ref.
47Qty
1Availability
Part #
D0NN7118CDescription
BEARING ASSY 29.99mm ID x 72.03mm OD x 19mm W; ., Countershaft Front, 7000Img
Alts
Select
Ref.
48Qty
1Availability
Part #
C7NN7N071DDescription
HYD CONNECTOR; Coupling & Shaft Assy., Gear Shift Sliding, Replaces C5NN7N071B;No Longer Serviced.Img
Alts
Select
Ref.
48Qty
1Availability
Part #
C9NN7N071BDescription
COUPLING; & Shaft Assy., Gear Shift Sliding, 5000Img
Alts
Select
Ref.
48Qty
1Availability
Part #

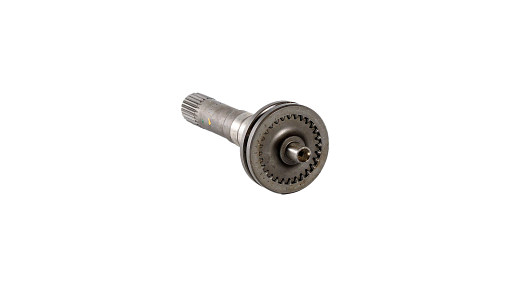

E6NN7N071BADescription
COUPLING; & Shaft Assy., Gear Shift Sliding, 7000Img
Alts
Select
Ref.
48Qty
1Availability
Part #
E6NN7N071BADescription
COUPLING; & Shaft Assy., Gear Shift Sliding, W/Dual PowerImg
Alts
Select
Ref.
49Qty
ARAvailability
Part #
C5NN7N044ADescription
BEARING ASSY 25 mm ID x 51.988 mm OD x 16.307 mm; Cup, Secondary Output Shaft, 2.047 OD, 5000Img
Alts
Select
Ref.
49Qty
1Availability
Part #
D0NN7N048ADescription
BEARING CUP 19.063 mm ID x 54 mm OD x 22.43 mm; Bearing, Cup, Secondary Output Shaft, 7000;Required W/ Ref. 31, E6NN7111AA(83960001).Img
Alts
Select
Ref.
49Qty
ARAvailability
Part #
D0NN7N048ADescription
BEARING CUP 19.063 mm ID x 54 mm OD x 22.43 mm; Bearing, Cup, Secondary Output Shaft, W/Dual Power, 5000-7000Img
Alts
Select
Ref.
50Qty
1Availability
Part #
C5NN7N044ADescription
BEARING ASSY 25 mm ID x 51.988 mm OD x 16.307 mm; Bearing, Cone & Roller Assy., Output Shaft, 1.00 ID, 5000Img
Alts
Select
Ref.
50Qty
1Availability
Part #
D0NN7N047ADescription
BEARING ASSY 19.063 mm ID x 54 mm OD x 22.43 mm; Bearing, Cone & Roller Assy., Output Shaft, .75 ID, 7000;Required W/ Ref. 31, E6NN7111AA(83960001).Img
Alts
Select
Ref.
50Qty
ARAvailability
Part #
D0NN7N047ADescription
BEARING ASSY 19.063 mm ID x 54 mm OD x 22.43 mm; Bearing, Cone & Roller Assy., Output Shaft, W/Dual Power, 5000-7000Img
Alts
Select
Ref.
51Qty
1Availability
Part #
E6NN7145AADescription
GEAR; Assy., Output Shaft, W/Dual PowerImg
Alts
Select
Ref.
53Qty
1Availability
Part #
C5NN7A385ADescription
THRUST WASHER; Washer, Output Shaft Thrust, 1.688'' (42.88mm) IDImg
Alts
Select
Ref.
53Qty
1Availability
Part #
C9NN7A385ADescription
WASHER; Output Shaft Thrust, 1.755'' (44.577mm) IDImg
Alts
Select
Ref.
54Qty
1Availability
Part #
C5NN7N042ADescription
BEARING ASSY; Bearing, Cone & Roller Assy., Output ShaftImg
Alts
Select
Ref.
54Qty
1Availability
Part #
WAA4221ADescription
BEARING ASSY 1.625'' ID x 2.892'' OD x 0.778''; Bearing, Cone & Roller Assy., Output ShaftImg
Alts
Select
Ref.
55Qty
ARAvailability
Part #
C5NN7N135ADescription
SHIM .003'' Thk; (.0762mm), Output Shaft .003'' ThkImg
Alts
Select
Ref.
55Qty
ARAvailability
Part #

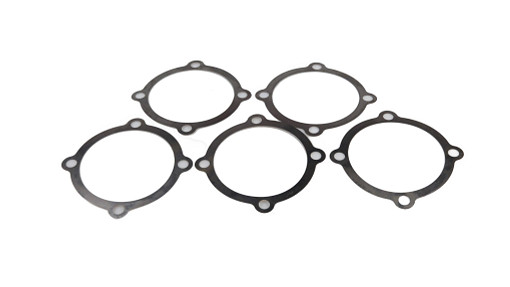

81804789Description
SHIM 91.95mm ID x 128.67mm OD x 0.13mm Thk; (.127 mm), Output Shaft .005'' ThkImg
Alts
Select
Ref.
55Qty
ARAvailability
Part #
81804790Description
SHIM 91.95mm ID x 128.67mm OD x 0.08mm Thk; (.305 mm), Output Shaft .012'' ThkImg
Alts
Select
Ref.
56Qty
1Availability
Part #
C7NN7049DDescription
RETAINER; Transmission Output Shaft Bearing, 5000;No Longer Serviced.Img
Alts
Select
Ref.
56Qty
1Availability
Part #

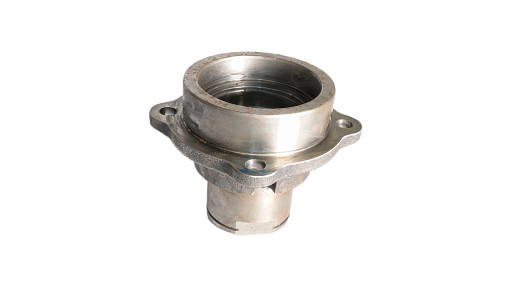

C9NN7049CDescription
HOUSING; Retainer, Output Shaft Bearing, 5000-7000Img
Alts
Select
Ref.
59Qty
4Availability
Part #
46008S36Description
SCREW; Cap, HH, G5, Self-Locking, 3/8''-16 x 1''Img
Alts
Select
Ref.
60Qty
1Availability
Part #
C5NN7140ADescription
SHAFT; Reverse Idler Gear, 3.88'' Long, Hollow;No Longer Serviced.Img
Alts
Select
Ref.
60Qty
1Availability
Part #
C7NN7140CDescription
SHAFT; Reverse Idler Gear, 3.50'' LongImg
Alts
Select
Ref.
61Qty
1Availability
Part #
C5NN7141ADescription
GEAR; Assy., Reverse Idler, 33 Teeth, 8 Speed, 5000Img
Alts
Select
Ref.
61Qty
1Availability
Part #
C5NN7141ADescription
GEAR; Assy., Reverse Idler, 33 Teeth, 7 Speed, 5000Img
Alts
Select
Ref.
61Qty
1Availability
Part #
81813479Description
GEAR; Assy., Reverse Idler, 31 Teeth, 8 Speed, 5000Img
Alts
Select
Ref.
61Qty
1Availability
Part #
81813479Description
GEAR; Assy., Reverse Idler, 31 Teeth, 7 Speed, 5000Img
Alts
Select
Ref.
61Qty
1Availability
Part #
D2NN7141ADescription
GEAR; Assy., Transmission Reverse Idler Shaft, W/Dual Power, 5000-7000Img
Alts
Select
Ref.
61Qty
1Availability
Part #
D2NN7141ADescription
GEAR; Assy., Transmission Reverse Idler Shaft, 7000Img
Alts
Select
Ref.
64Qty
1Availability
Part #
C5NN7N010ADescription
LOCKING TAB; Tab, Reverse Idler Shaft BoltImg
Alts
Select
Ref.
65Qty
1Availability
Part #
D9NNN883AADescription
GEAR; & Bushing Assy., Pump Idler Gear;Tractors prior to 5-71/ also supply (1) each C9NN7N085A(81822276), C9NN7N071B(81824350) & WAA4221A(81854761).Img
Alts
Select
Ref.
66Qty
1Availability
Part #
C5NNN635ADescription
WASHER; Hydraulic Pump Idler Gear Thrust, 5000Img
Alts
Select
Ref.
67Qty
1Availability
Part #
D9NNN637AADescription
WASHER; Hydraulic Pump Drive Idler RetainerImg
Alts
Select
Ref.
67Qty
1Availability
Part #
D9NNN637AADescription
WASHER; Hydraulic Pump Drive Idler GearImg
Alts
Select
Ref.
67Qty
1Availability
Part #
D9NNN637AADescription
WASHER; Hydraulic Pump Drive Idler Gear, W/FlatImg
Alts
Select
Ref.
68Qty
1Availability
Part #
97720S36Description
SNAP RING; Ring, Snap, Ext, 2.250''Img
Alts
Select
Ref.
69Qty
1Availability
Part #
EDPN7118ADescription
KIT; Bearing Transmission Overhaul, Includes Ref. 6, 16, 20, 29, 32, 33, 47, 49, 50, 54 & 57Img
Alts
