335 - 3 CYL UTILITY TRACT... 05 - REAR AXLE 04C01 - CENTER HOUSING & ...
04C01 - CENTER HOUSING & RELATED PARTS - 2600, 3600, 231, 531, 233, 333, 335
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    E0NN4032DB
    SUMP; Differential Center Housing Assy., Includes: Ref. 2 thru 3A; (Prod Date) From 01-Jan-1975
  • 2
    2
    C5NN2N477A
    BUSHING; Brake Pedal Shaft; (Prod Date) From 01-Jan-1975
  • 3
    1
    81814235
    PIN; Flow Control Valve; (Prod Date) From 01-Jan-1975
  • 3A
    1
    376636S
    PLUG; Cup, .887-.885 OD; (Prod Date) From 01-Jan-1975
  • 4
    1
    87709S2
    PLUG; Square Hd., 1/4''-18 NPT; (Prod Date) From 01-Jan-1975
  • 5
    1
    263136
    MAGNETIC PLUG Sq. Soc, 3/4'' - 14 NPTF; PLUG, MAGNETIC, , Drain Sq. Soc, 3/4''-14 NPTF; (Prod Date) From 01-Jan-1975
  • 6
    1
    86569738
    GASKET 0.2mm Thk; (SN Break) Between Housing and Transmission; (Prod Date) From 01-Jan-1975
  • 8
    4
    280963
    NUT Nut, 1/2-20 GR 5 ZND; G5, 1/2''-20; (Prod Date) From 01-Jan-1975
  • 9
    2
    88848
    BOLT Hex, 1/2'' - 20 x 2'', Gr 5; Screw, Cap, HH, G5, 1/2''-20 x 2''; (Prod Date) From 01-Jan-1975
  • 10
    2
    304880S36
    SCREW; Cap, HH, G5, 1/2''-20 x 2-3/8''; (Prod Date) From 01-Jan-1975
  • 12
    6
    50456
    NUT 7/16''-20, G5; NUT, G5, 7/16''-20; (Prod Date) From 01-Jan-1975
  • 13
    1
    304816S36
    SCREW; Cap, HH, G5, 7/16''-20 x 1-7/8''; (Prod Date) From 01-Jan-1975
  • 14
    2
    304782S36
    BOLT; Screw, Cap, HH, G5, 7/16''-20 x 1-5/8'', NH-E; (Prod Date) From 01-Jan-1975
  • 15
    3
    304863S36
    SCREW; Cap, HH, G5, 7/16''-20 x 2-1/4'', Center Housing to Transmission Case; (Prod Date) From 01-Jan-1975
  • 17
    1
    E7NN502AA
    GASKET; Hydraulic Lift Cover; (Prod Date) From 01-Jan-1975
  • 18
    1
    957E4033A
    COVER; Housing Top, L/Hydraulic Lift; (Prod Date) From 01-Jan-1975
  • 19
    13
    304724S36
    BOLT Hex, 7/16''-14 x 1 1/4'', G5; Screw, Cap, HH, G5, 7/16''-14 x 1-1/4'', L/Hydraulic Lift; (Prod Date) From 01-Jan-1975
  • 20
    1
    C5NN4N032A
    BOLT; Housing Breather Bolt Assy., L/Hydraulic Lift; (Prod Date) From 01-Jan-1975
  • 21
    1
    128359
    O-RING 15.6mm ID x 1.78mm Thk, NBR; -016, 70 Duro, .614'' ID x .070'' Thk, Pressure Passage Plug, L/Hydraulic Lift, 1.048 I.D.; (Prod Date) From 01-Jan-1975
  • 22
    1
    351667S36
    PLUG; Pressure, Hydraulic Power Lift Oil Passage, L/Hydraulic Lift; (Prod Date) From 01-Jan-1975
  • 23
    1
    370352S
    PLUG; Intake, Hydraulic Power Lift, Oil Passage, L/Hydraulic Lift; (Prod Date) From 01-Jan-1975
  • 24
    1
    D3NNB497A
    SEAL; Plug, Hydraulic Power Lift, Oil Passage, L/Hydraulic Lift; (Prod Date) From 01-Jan-1975
  • 25
    1
    D3NN4N206A
    PLUG; Hydraulic Power Lift, Oil Passage, L/Hydraulic Lift; (Prod Date) From 01-Jan-1975
  • 26
    1
    C5NNN949A
    GASKET; Valve Assy. to Center Housing; (Prod Date) From 01-Jan-1975
  • 27
    1
    C5NNN943A
    COVER; Valve Opening; (Prod Date) From 01-Jan-1975
  • 28
    4
    304668S36
    BOLT Hex, 7/16''-14 x 7/8'', G5, Full Thd; HH, G5, 7/16''-14 x 7/8'', L/Hydraulic Lift; (Prod Date) From 01-Jan-1975
  • 29
    1
    E84GF9
    OIL SEAL 8.18mm ID x 13.46mm OD x 2.13mm Thk; Hydraulic Lift Oil Passage, L/Hydraulic Lift, 5/16''; (Prod Date) From 01-Jan-1975
  • 30
    AR
    55692S2
    NUT; Lock, G5, 5/16''-24; (Prod Date) From 01-Jan-1975
  • 31
    1
    38308S36
    SCREW Pan Hd, 5/16'' - 24 x 1 1/8''; Pan Hd, 5/16''-24 x 1-1/8'', L/Hydraulic Lift; (Prod Date) From 01-Jan-1975
  • 34
    1
    D9NN7037AA
    GASKET; Housing Filler Plug, Use W/D8NN4032SA; (Prod Date) From 01-Jan-1975
  • 34
    1
    E7NN7N009AB
    COPPER WASHER; Gasket, Copper, 1-3/8'' ID x 1-7/8'' OD, Use W/E0NN4032DA; (Prod Date) From 01-Jan-1975
  • 35
    1
    957E7010
    PLUG; Housing Filler, 1-5/8''-12, Use W/D8NN4032SA; (Prod Date) From 01-Jan-1975
  • 35
    1
    E0NN4281AA
    PLUG 1 3/8''-12; Use W/E0NN4032DA 1 3/8''-12; (Prod Date) From 01-Jan-1975
  • 36
    2
    C5NN4885C
    GASKET; .006/.008 (.1524/.2032mm) Thick, Housing to Center Housing; (Prod Date) From 01-Jan-1975
  • 36
    2
    C5NN4885D
    GASKET; .011/.013 (.2794/.3302mm) Thick, Housing to Center Housing; (Prod Date) From 01-Jan-1975
  • 36
    1
    C5NN4885E
    GASKET; .015/.017 (.381/.4318mm) Thick, Housing to Center Housing; (Prod Date) From 01-Jan-1975
  • 37
    1
    E5NN4N021BB
    GASKET; Handbrake Opening Cover; (Prod Date) From 01-Jan-1975
  • 38
    1
    C5NN4N020A
    COVER; Handbrake Opening; (Prod Date) From 01-Jan-1975
  • 39
    4
    87909
    BOLT Hex, 1/2'' - 13 x 1'', Gr 5; (Prod Date) From 01-Jan-1975
  • 40
    1
    C5NN4N023A
    PLATE; Center Differential Housing Side; (Prod Date) From 01-Jan-1975
  • 41
    1
    81818209

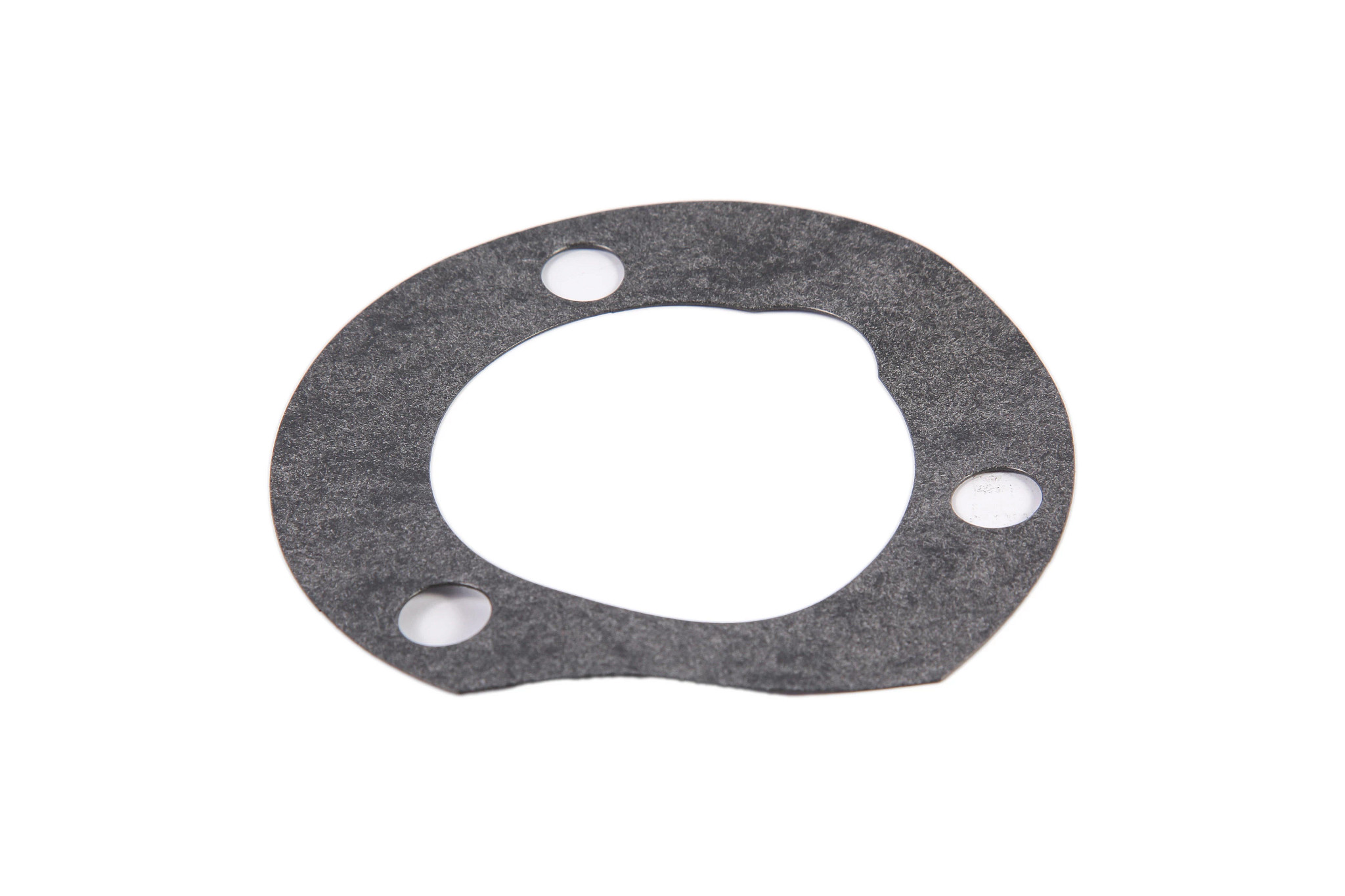

    GASKET 0.51mm Thk; PTO Shift Plate; (Prod Date) From 01-Jan-1975
  • 3
    304668S36
    BOLT Hex, 7/16''-14 x 7/8'', G5, Full Thd; HH, G5, 7/16''-14 x 7/8''; (Prod Date) From 01-Jan-1975
  • 42
    1
    81801907
    GASKET 0.51mm Thk; PTO Cover; (Prod Date) From 01-Jan-1975
  • 43
    1
    C5NNP700A
    COVER; PTO Opening; (Prod Date) From 01-Jan-1975
  • 44
    1
    D4NN4N177A
    TUBE; Indicator Tube Assy., W/Cab; (Prod Date) From 01-Apr-1976
  • 44
    1
    83930777
    TIRE TUBE; Tube, 2600, 3600 W/FWD & Q/Cab; (Prod Date) From 01-Jan-1980
  • 45
    1
    87515S
    ELBOW 5/16'' Inverted Flare; W/Cab 5/16'' Inverted Flare; (Prod Date) From 01-Apr-1976
  • 46
    1
    D4NN4N124A
    INDICATOR; Oil Level Indicator Assy., W/Cab; (Prod Date) From 01-Apr-1976
