TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
11TANK; Tank Assy., Fuel, 1.97'' Tall Neck, Replaces P/N C5NN-9002-H, Except 3400, 3500;When replacing prior level 9002 Tank Assy., W/E3NN-9002 Level, also order: (1)E3NN-9A316-CA(83943961), (1)E3NN-13N850-AA(83943965), (1)D5NN-14N031-B(83918682), (5)54677-S100(83918056).
-
11TANK; Tank Assy., Fuel, W/Cab, 3055
-
11FUEL TANK; Tank Assy., Fuel, 3-1/4'' Tall Neck, 3400, 4410;No Longer Serviced.
-
11FUEL TANK; Tank Assy., Fuel, 3500, 3550, 4100, 4400, 4500;When replacing prior level 9002 Tank Assy., W/E3NN-9002 Level, also order: (1)E3NN-9A316-CA(83943961), (1)E3NN-13N850-AA(83943965), (1)D5NN-14N031-B(83918682), (5)54677-S100(83918056).
-
11TANK; SPARE PART Tank Assy., Fuel, 4200;No Longer Serviced.;NHNA Only.
-
11FUEL TANK; Tank Assy., Fuel, 5000
-

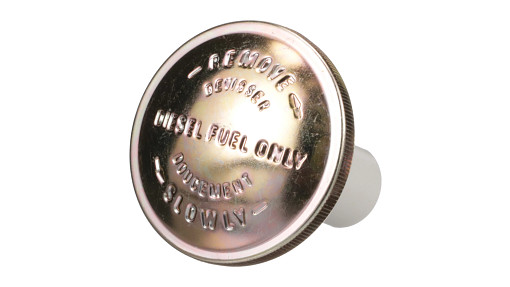

21CAP; Cap Assy., Fuel Tank Filler
-
31ENTRETOISE; Spacer, Mounting, .06 x 1 x 1 (1.524 x 25.4 x 25.4mm)
-
4ARLOCK WASHER Ext Tooth, 5/16''; Washer, Lock, Ext T, 5/16''
-
5ARWASHER 5/16'' SAE; Washer, SAE, 5/16''
-

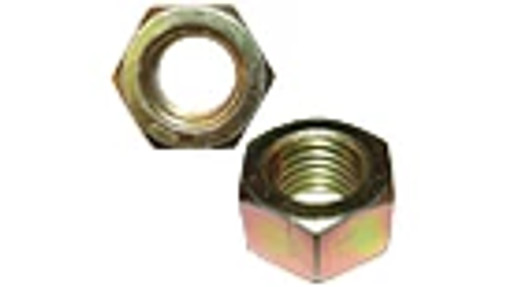

6ARNUT 5/16'' - 18, Gr 5; Nut, G5, 5/16''-18
-

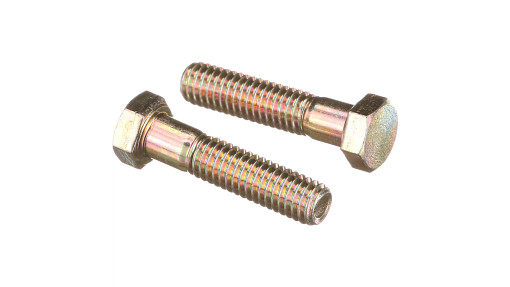

7ARBOLT Hex, 5/16'' - 18 1'', Full Thd, Gr 5; BOLT, Hex, 5/16''-18 x 1'', G5, Full Thd
-
91DRAINCOCK/TAP SUPPLY; Tap & Screen Assy., Fuel Control, Includes: Ref. 10 thru 15
-

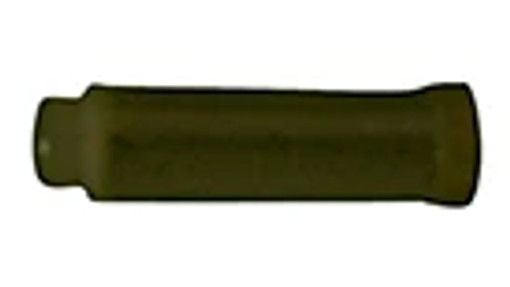

101FILTER; Filter, Fuel Control Tap
-
111SHUT-OFF VALVE; Valve & Seal Assy., Tap, 1/2''-20, Includes: Ref. 12
-
121O-RING 0.07'' Thk x 0.239'' ID, -10, Cl 5, 75 Duro; O-Ring, .239'' ID x .070'' Thk, Valve Seal
-
151SPRING; Retainer, Tap Valve
-
161TUBE; Tube Assy., Tank to Filter, Single Filter, Except 3500, 3550
-
161TUBE; Tube Assy., Tank to Filter, Single Filter, 4110, 4410
-
161TUBE; Tube Assy., Tank to Filter, Dual Filter, Except 3500 & 3550
-
161TUBE; Tube Assy., Tank to Filter, Dual Filter, 2000;NH-E Only
-
161TUBE; Tube Assy., Tank to Filter, Dual Filter, 4110
-
161TUBE; Tube Assy., Tank to Filter, Except 4110 & 4200
-
161TUBE; Tube Assy., Tank to Filter, 3500
-
161FUEL TUBE 0.252'' OD; Tube Assy., Tank to Filter, Except 4110, 4200, 3550, 4100, 4400
-
161TUBE; Tube Assy., Tank to Filter, 4200;NHNA Only.;No Longer Serviced.
-
161RIGID TUBE; Tube Assy., Tank to Filter, 4200;NHNA Only.;No Longer Serviced.
-
161TUBE; Tube Assy., Tank to Filter, Single Filter, 5100
-
161TUBE; Tube Assy., Tank to Filter, Dual Filter
-
161PIPE; Tube Assy., Tank to Filter, 5200;NHNA Only.;No Longer Serviced.
-
161TUBE; Tube Assy., Tank to Filter, Dual Filter, 5100, Includes: Ref. 17 & 18
-
171FERRULE; Ferrule, Tubing, 1/4'', Tube to Filter, Replaces P/N EB-9242-A
-
181NUT; Nut, Tubing, 1/4'', Replaces P/N EB-9243-A
-
191COVER; Head, Dual Fuel Filter
-
19A1COVER; Head, Single Fuel Filter
-
202LOCK WASHER 3/8 0.381 CST ZND; WASHER, LOCK, 3/8''
-
212WASHER 0.41'' ID x 0.81'' OD x 0.07'' Thk; Washer, SAE, 3/8''
-
222BOLT; Bolt, HH, 3/8''-16 x 1-5/8''
-
24ARFUEL FILTER; Kit, Fuel Filter Element, Includes: Ref. 24A & 24B
-
24A1SEALING RING; Gasket, Fuel Filter Element, Upper
-
24B1SEALING RING 77.8mm ID x 84.8mm OD x 3mm Thk; Gasket, Fuel Filter Element, Lower
-
1O-RING; O-Ring, .312'' ID x .070'' Thk
-
1O-RING; O-Ring, .562'' ID x .070'' Thk
-
251BOWL; Bowl, Fuel Filter Sediment, W/Single Filter
-
25A1BOWL; Bowl, Fuel Filter Sediment, W/Single Filter (SIMMS)
-
25B1/2STUD; Retainer & Stud Assy., Filter Bowl, Glass;No Longer Serviced NHNA.
-
25C1/2WASHER; Seal, Filter Center Bolt, Use W/CFPN-9162-A
-

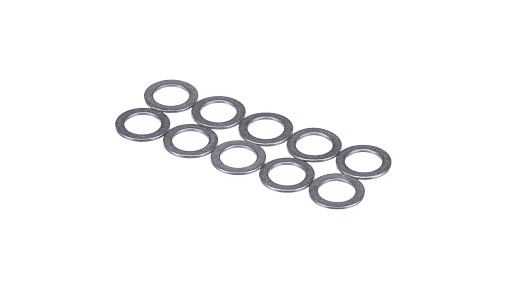

261WASHER 10.15mm ID x 14.4mm OD x 1mm Thk; Washer, M10.1 Flat (CAV), With Single Filter
-
262WASHER 10.15mm ID x 14.4mm OD x 1mm Thk; Washer, M10.1 Flat (CAV), With Dual Filter
-
26A1SEALING WASHER; Washer, Filter Air Vent Screw, W/Single Filter
-
271/2SCREW M10 x 1.5 x 17.50mm; Plug, M10 x 1.5 Hex Hd. (CAV)
-
271SCREW M10 x 1.5 x 17.50mm; Screw, Fuel Filter Air Vent
-
27A1PLUG Hex, 5/16'' - 24 x 7/16''; Plug, 5/16'' - 24 (Filter Air Bleed Hole) Hex Hd. (SIMMS), With Single Filter
-
281WASHER; Washer M6.5 Flat Aluminum (CAV), With Single Filter
-
282WASHER; Washer M6.5 Flat Aluminum (CAV), With Dual Filter
-
281WASHER 6.4mm ID x 17.02mm OD x 1.52mm Thk; Washer (Bolt Seal) (CAV), With Single Filter
-
28A1O-RING; O-Ring, .312'' ID x .070'' Thk, (SIMMS), With Single Filter
-
28A1O-RING 0.07'' Thk x 0.239'' ID, -10, Cl 5, 75 Duro; O-Ring, .239'' ID x .070'' Thk, (CAV), With Single Filter
-
291BOLT; Bolt, 1/4'' - 20 x 2-1/8'' Hex Hd. (CAV) With Single Filter
-
292BOLT; Bolt, 1/4'' - 20 x 2-1/8'' Hex Hd. (CAV) With Dual Filter
-
291BOLT; Bolt, 1/4'' - 20 x 2-1/8'' (Element Retaining) (CAV), With Single Filter
-
29A1BOLT; Bolt, Fuel Filter Center (SIMMS), W/Single Filter
-
29B1WASHER; Washer, Filter Center Bolt (SIMMS) With Single Filter
-
301WASHER 13.08mm ID x 22.49mm OD x 1.52mm Thk; Washer 1/2'' (CAV)
-
30A1WASHER 13.08mm ID x 22.49mm OD x 1.52mm Thk; Washer 1/2'' (SIMMS), With Single Filter
-

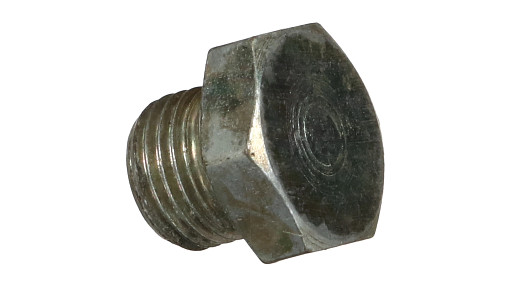

311PLUG; Plug, 1/2'' - 20 Hex Hd., (U.S.);NHNA Only.
-
311PLUG; Plug, 1/2'' - 20 Hex Hd., (U.K.-Antwerp);NH-E Only
-
31A1/2WASHER; Washer 11/32'' I.D. Flat
-

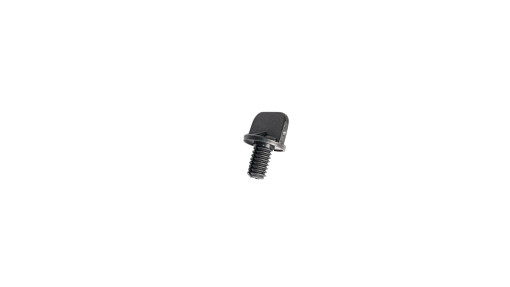

31B1/2PLUG; Screw, Tumb, 5/16''-18 x 1/2'', (W/Glass Bowl)
-
31C1PLUG; Plug, Filter (Bowl Drain), With Single Filter
-
31C2PLUG; Plug, Filter (Bowl Drain), (Use with CFPN-9162-A Bowl & Stud Assy.) With Dual Filter
-
31D1PLUG; Plug, Fuel Filter Drain, With Single Filter
-
31E1CAP; Cap, (Bowl Drain) (SIMMS), With Single Filter
-
321TUBE; Tube Assy., Fuel Filter Outlet, W/Dual Filter
-
321TUBE; Tube Assy., Fuel Filter Outlet, 5000
-

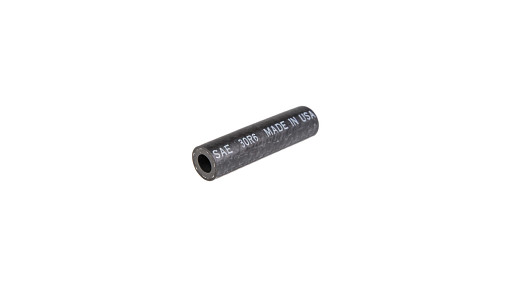

332FUEL HOSE 8.00 mm ID x 63.50 mm , SAE 30R6 Per SAE J30; Tube
-
331FUEL HOSE 8.00 mm ID x 63.50 mm , SAE 30R6 Per SAE J30; Tube, 5000
-
344HOSE CLAMP 11 x 17mm; CLAMP, HOSE, 11 x 17mm
-
342HOSE CLAMP 11 x 17mm; CLAMP, HOSE, , 5000 11 x 17mm
-
351TUBE; Tube Assy., Pump Inlet, (W/Dual Filter);No Longer Serviced NH-E.
-
35A1PIPE; Tube Assy, Filter to Pump (Single Filter) Except 5000
-
35A1TUBE; Tube Assy, Filter to Pump (Single Filter), 5000
-
35A1FUEL TUBE 0.315'' OD x 4.05'' L; Tube
-
361TUBE; Tube Assy., Pump Outlet (W/Dual Filters)
-
361PIPE 0.312'' OD; Tube Assy, Pump Outlet (W/Single Filter) Except 5000 (Repl. D0NN-9C330-A)
-
362O-RING 0.072'' Thk x 0.414'' ID, -905, Cl 6, 90 Duro; O-Ring, 5-1, 90 Duro, .414'' ID x .072'' Thk
-
361TUBE; Tube Assy, Pump to Dual Filter (1 Piece), 5000
-
361TUBE; Tube Assy, Pump Outlet (W/Single Filter) Banjo, 5000
-
361PIPE; Tube Assy, Pump to Dual Filter (1 Piece) Except 5000 (U.K.-Ant.)
-
372WASHER 13.08mm ID x 22.49mm OD x 1.52mm Thk; Washer 1/2'' (CAV)
-
381BOLT; Bolt, 1/2'' - 20 x 23.5mm Fluid Type (Banjo)
-
391TUBE; Tube Assy, Fuel Filter Inlet, (W/Dual Filter)
-
403SLEEVE; Sleeve, 5/16'' Ball (Ferrule)
-
411TUBE NUT 16 mm Length; Nut (5/8'') Tubing (Sleeve & Nut are part of Tube Assemblies 9A274, 9C520, 9A322)
-
421SPARE PART; Pump Assy, Fuel Injection, Refer to Fig. 9E1
-
433WASHER 7.94mm ID x 16mm OD x 1.52mm Thk; Washer, 11/32''
-

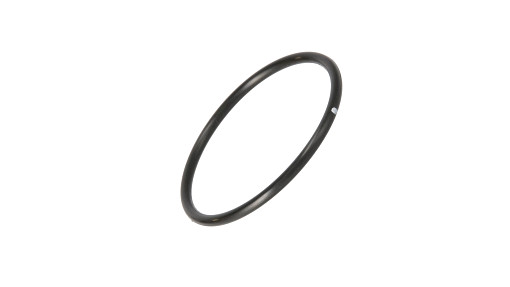

451O-RING 0.139'' Thk x 2.234'' ID, -228, Cl 5, 75 Duro; O-Ring, 2.234'' ID x .139'' Thk
-
443BOLT Hex Hd 5/16''-24 x 1''; Bolt, HH, Locking, 5/16''-24 x 1''
-
461GEAR; Gear Assy., Fuel Injection Pump, Includes: Gear & Ref. 46A
-
46A1PIN 1/4'' x 5/16''; Pin, Dowel, 1/4'' x 5/16'';No Longer Serviced NH-E.
-

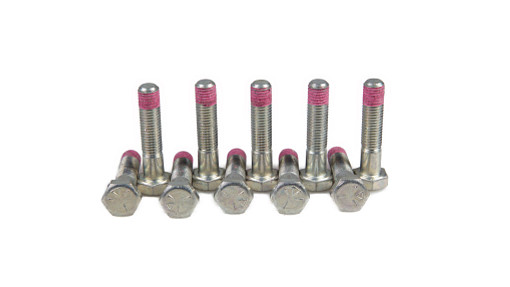

473BOLT Hex Hd 5/16''-24 x 5/8'', G8; Screw, Cap, HH, G8, Self-Locking, 5/16''-24 x 5/8''
-

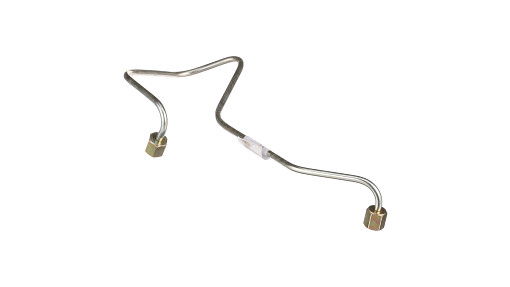

481TUBE; Tube Assy., #1 Cylinder, Replaces P/N C5NE-9A555-A, 2000
-
481TUBE; Tube Assy., #1 Cylinder, Replaces P/N C5NE-9A555-A, 3000
-
481TUBE; Tube Assy., #1 Cylinder, Replaces P/N C5NE-9A555-A, 4000
-
481HYD TUBE; Tube Assy., #1 Cylinder, Replaces P/N C7NN-9A555-F, 3000 & 4000
-
481HYD TUBE; Tube Assy., #1 Cylinder, Replaces P/N C7NN-9A555-F, 3000 & 4000
-
481PIPE; Tube Assy., #1 Cylinder, 5000 2000-3000-4000
-
491TUBE; Tube Assy., #2 Cylinder
-
491PIPE; Tube Assy., #2 Cylinder, 5000
-
501TUBE; Tube Assy., #3 Cylinder, 2000-3000-4000
-
501PIPE; Tube Assy., #3 Cylinder, 5000
-
501PIPE; Tube Assy., #4 Cylinder, 5000
-
511HYDRAULIC VALVE; Valve Assy., Fuel Pump Injector;P/N C5NN-9N022-A(81815263) & D4NN-9N022-A(83903040) must be used together. May be used when fluctuating RPM's are encountered under light Engine load conditions.;No Longer Serviced NH-E.
-
511HYD CONNECTOR; Connector, #1 Injector Tube;No Longer Serviced.
-
522HYD CONNECTOR; Connector, #2 & #3 Injector, Banjo
-
538WASHER; Washer, 3/8'' (9.65mm) I.D., 1/2'' (12.7mm) O.D.
-
542HYDRAULIC VALVE; Valve Assy., Fuel Pump Injector;P/N C5NN-9N022-A(81815263) & D4NN-9N022-A(83903040) must be used together. May be used when fluctuating RPM's are encountered under light Engine load conditions.
-
551TUBE; Tube Assy., Pump Leak-Off
-
562WASHER 10.15mm ID x 14.4mm OD x 1mm Thk; Washer, Flat, M10.1
-
571BOLT; Bolt, M10 x 1.5 x 19mm Fluid Type
-
581CLAMP; Clamp, Fuel Tube, Upper, 2000-3000-4000
-
581CLAMP; Clamp, Fuel Tube, Upper, 5000;No Longer Serviced.
-
591INSERT 6mm ID; Insert, Fuel Tube Clamp, Rubber, 2000-3000-4000
-
591INSERT; Insert, Fuel Tube Clamp, Rubber, 5000;No Longer Serviced NH-E.
-
601PLATE; Plate, Fuel Tube Clamp, 2000-3000-4000
-
601PLATE; Plate, Fuel Tube Clamp, 5000;No Longer Serviced.
-
611CLAMP; Clamp, Fuel Tube, Lower;No Longer Serviced.
-
622SCREW; Screw & Washer Assy., #10-32 x 1-1/8'';Use W/SIMMS Injector 65/9-71
-
633CORE-FUEL INJECTOR FUEL INJECTOR; Injector Assy., Fuel, U.K.-Antwerp, 2000, Includes: Ref. 64 thru 77
-
633FUEL SYSTEM INJECTOR; Injector Assy., Fuel, U.K.-Antwerp, 2000, Includes: Ref. 64 thru 77
-
633FUEL SYSTEM INJECTOR; Injector Assy., Fuel, Replaces P/N C7NN-9F593-BB, 4000, Includes: Ref. 64 thru 77;No Longer Serviced NH-E.
-
633CORE-FUEL INJECTOR FUEL INJECTOR; Injector Assy., Fuel, Replaces P/N C7NN-9F593-BB, 4000, Includes: Ref. 64 thru 77;No Longer Serviced NH-E.
-
633REMAN-FUEL INJECTOR FUEL INJECTOR; Remanufactured Injector
-
633CORE-FUEL INJECTOR FUEL INJECTOR; Return Number
-
634CORE-FUEL INJECTOR FUEL INJECTOR; Injector Assy., Fuel, U.S., 2000, 3000, 5000, Includes: Ref. 64 thru 77
-
634FUEL SYSTEM INJECTOR; Injector Assy., Fuel, U.S., 2000, 3000, 5000, Includes: Ref. 64 thru 77
-
634REMAN-FUEL INJECTOR FUEL INJECTOR; 5000 Series Tractors, All 4 Cylinder, All 1/65 to 1/75
-
634CORE-FUEL INJECTOR FUEL INJECTOR; Return Number
-
633CORE-FUEL INJECTOR FUEL INJECTOR; Injector Assy., Fuel, 3000, Includes: Ref. 64 thru 77
-
633FUEL SYSTEM INJECTOR; Injector Assy., Fuel, 3000, Includes: Ref. 64 thru 77
-
633REMAN-FUEL INJECTOR FUEL INJECTOR; 2000, 3000, 4000, Series Tractors, All 3 Cylinder, All 1/65 - 1/75
-
63CORE-FUEL INJECTOR FUEL INJECTOR; Return Number
-
643FUEL SYSTEM INJECTOR; Holder Assy., Injector Nozzle, Includes: Ref. 65 thru 71;No Longer Serviced NH-E.
-
653/4NUT; Nut, Holder Cap;Use with CAV Injector, 65/;No Longer Serviced NHNA.
-
653NUT; Nut, Injector Cap;Use W/SIMMS Injector 65/9-71
-
663/4NUT; Nut, Injector Spring Cap
-
673PLATE; Plate, Injector Spring;Use W/CAV Injector 65/;No Longer Serviced.
-
673/4PLATE; Plate, Injector Spring;Use W/CAV Injector 65/
-
673/4SHIM; Shim, Injector;Use W/CAV Injector 65/;No Longer Serviced NHNA.
-
683/4SPRING; Spring, Injector;Use W/CAV Injector 65/
-
693SPINDLE; Spindle Assy., Fuel Filter;No Longer Serviced NHNA.
-
693/4SPINDLE; Spindle Assy., Injector;Use W/SIMMS Injector 65/9-71;No Longer Serviced NHNA.
-
703/4NUT; Nut, Injector Nozzle
-
71ARPIN; Pin, Dowel, .116 x .394;Use W/SIMMS Injector 65/9-71;No Longer Serviced.
-
713DOWEL; Pin, Body Locating;Use W/CAV Injector 65/;No Longer Serviced.
-
71ARPIN; Pin, Dowel, .115 x .394;Use W/CAV Injector 65/;No Longer Serviced.
-
71ARPIN; Pin, Dowel, .114 x .394;No Longer Serviced.
-
3SHIM; Shim, Nozzle, 3/8'' Flat, Use W/Simms Injector
-
723NOZZLE; Nozzle Assy., Fuel Injector, 2000-3000-5000
-
723/4NOZZLE; Nozzle Assy., Fuel Injector, 4000
-
733/4WASHER 21.2mm ID x 25mm OD x 1.42mm Thk; Washer, Flat, 13/16''
-
743/4WASHER; Washer, Injector Adaptor Seal
-
753HYD CONNECTOR; Connector, Use W/Simms Injector;No Longer Serviced NH-E.
-
766/8SEALING WASHER; Washer, Flat, Leak-Off Fitting, Replaces P/N C5NE-9G546-A
-
773/4BOLT; Bolt, Leak-Off Tube
-
783/4SEAL; Seal, Injector
-
793/4SEALING WASHER 9.22mm ID x 17.27mm OD x 1.64mm Thk; Washer, Injector Sealing
-

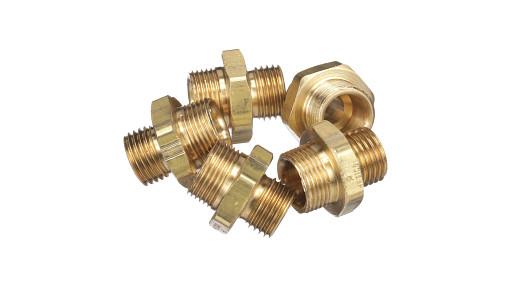

2FITTING 9/16''-24 x 1/2''-20 O-Ring; FITTING, , Connector 9/16''-24 x 1/2''-20 O-Ring
-
806/8NUT 5/16''-24, G5; Nut, G5, 5/16''-24
-
2FITTING 9/16''-24 x 1/2''-20 O-Ring; FITTING, , Connector 9/16''-24 x 1/2''-20 O-Ring
-
816/8STUD; Stud, Screw, 5/16''-18-24 x 1.88
-
823NOT SERVICED; Fitting, Banjo, 3/16'';Not Serviced
-
834FUEL HOSE; Hose, Injector Leak-Off, 4-7/8'' Lg., Cut to 3'' Tank Return & 1st Banjo Fitting
-
8311FUEL HOSE; Hose, Injector Leak-Off, 4-7/8'' Lg., Leak-Off tube Assy. to Fuel Return Tube
-
83A1FUEL TUBE 0.25'' OD; Tube Assy., Leak-Off, Complete, U.K.-Antwerp, 2000-3000-4000
-
83A1FUEL TUBE 0.25'' OD; Tube Assy., Leak-Off, Complete, U.S., 2000-3000-4000
-
83A1FUEL TUBE 0.25'' OD; Tube Assy., Fuel Injection Leak-Off, Complete, Replaces P/N D2NN-9A564-G, 5000
-
847HOSE CLAMP 11 x 17mm; CLAMP, HOSE, , Replaces P/N 377931-S43 11 x 17mm
-
842HOSE CLAMP 11 x 17mm; CLAMP, HOSE, , Replaces P/N 377931-S43 11 x 17mm
-
861TUBE; Tube Assy., Return to Tank, Except 4200 (Replaces C5NN9A337H)
-
861TUBE; Tube Assy., Return to Tank, 4200;NHNA Only.;No Longer Serviced.
-
872HOSE CLAMP 11 x 17mm; CLAMP, HOSE, 11 x 17mm
-
901CLIP; Clip, Fuel Return Tube
-
911STEEL PLATE; Plate, Sender Gauge Hole, L/Fuel Gauge, U.K., 2000;NH-E Only;No Longer Serviced.
-
92190 ELBOW 5/16'' x 1/2''-20, Flareless; Elbow, 90?, 5/16'', Flareless, 1/2''-20
-
932O-RING 0.072'' Thk x 0.414'' ID, -905, Cl 6, 90 Duro; O-Ring, 5-1, 90 Duro, .414'' ID x .072'' Thk
-
942FITTING 9/16''-24 x 1/2''-20 O-Ring; FITTING, , Connector 9/16''-24 x 1/2''-20 O-Ring
-
1SPARE PART; Kit, Third Pressurizing Valve, U.S., 4000, Includes, Parts Listed Below;Order Components;NHNA Only.
-
1HYD TUBE; Tube
-
1HYDRAULIC VALVE; Valve
-
1TUBE; Tube
-
1HYD CONNECTOR; Fittingr, 38.5mm L
-
1TUBE; Tube
-
1WASHER; Washer
Select All
Select
Ref.
1Qty
1Availability
Part #
E3NN9002ABDescription
TANK; Tank Assy., Fuel, 1.97'' Tall Neck, Replaces P/N C5NN-9002-H, Except 3400, 3500;When replacing prior level 9002 Tank Assy., W/E3NN-9002 Level, also order: (1)E3NN-9A316-CA(83943961), (1)E3NN-13N850-AA(83943965), (1)D5NN-14N031-B(83918682), (5)54677-S100(83918056).Img
Alts
Select
Ref.
1Qty
1Availability
Part #
E3NN9002DADescription
TANK; Tank Assy., Fuel, W/Cab, 3055Img
Alts
Select
Ref.
1Qty
1Availability
Part #
C5NN9002ADDescription
FUEL TANK; Tank Assy., Fuel, 3-1/4'' Tall Neck, 3400, 4410;No Longer Serviced.Img
Alts
Select
Ref.
1Qty
1Availability
Part #
E3NN9002KBDescription
FUEL TANK; Tank Assy., Fuel, 3500, 3550, 4100, 4400, 4500;When replacing prior level 9002 Tank Assy., W/E3NN-9002 Level, also order: (1)E3NN-9A316-CA(83943961), (1)E3NN-13N850-AA(83943965), (1)D5NN-14N031-B(83918682), (5)54677-S100(83918056).Img
Alts
Select
Ref.
1Qty
1Availability
Part #
C5NN9002ALDescription
TANK; SPARE PART Tank Assy., Fuel, 4200;No Longer Serviced.;NHNA Only.Img
Alts
Select
Ref.
1Qty
1Availability
Part #
D8NN9002HADescription
FUEL TANK; Tank Assy., Fuel, 5000Img
Alts
Select
Ref.
2Qty
1Availability
Part #
83961128Description
CAP; Cap Assy., Fuel Tank FillerImg
Alts
Select
Ref.
3Qty
1Availability
Part #
C5NN9N071ADescription
ENTRETOISE; Spacer, Mounting, .06 x 1 x 1 (1.524 x 25.4 x 25.4mm)Img
Alts
Select
Ref.
4Qty
ARAvailability
Part #
280278Description
LOCK WASHER Ext Tooth, 5/16''; Washer, Lock, Ext T, 5/16''Img
Alts
Select
Ref.
5Qty
ARAvailability
Part #
87362Description
WASHER 5/16'' SAE; Washer, SAE, 5/16''Img
Alts
Select
Ref.
6Qty
ARAvailability
Part #
9635082Description
NUT 5/16'' - 18, Gr 5; Nut, G5, 5/16''-18Img
Alts
Select
Ref.
7Qty
ARAvailability
Part #
9635884Description
BOLT Hex, 5/16'' - 18 1'', Full Thd, Gr 5; BOLT, Hex, 5/16''-18 x 1'', G5, Full ThdImg
Alts
Select
Ref.
9Qty
1Availability
Part #
E2NN9N024AADescription
DRAINCOCK/TAP SUPPLY; Tap & Screen Assy., Fuel Control, Includes: Ref. 10 thru 15Img
Alts
Select
Ref.
10Qty
1Availability
Part #
D9NN9N187AADescription
FILTER; Filter, Fuel Control TapImg
Alts
Select
Ref.
11Qty
1Availability
Part #
E2NN9N200AADescription
SHUT-OFF VALVE; Valve & Seal Assy., Tap, 1/2''-20, Includes: Ref. 12Img
Alts
Select
Ref.
12Qty
1Availability
Part #
49886Description

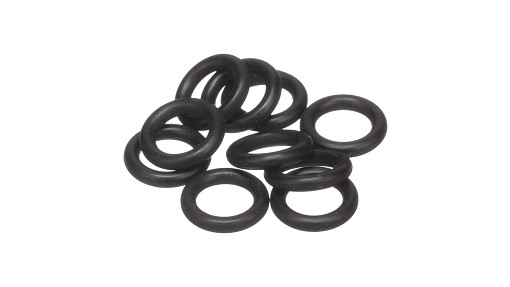

O-RING 0.07'' Thk x 0.239'' ID, -10, Cl 5, 75 Duro; O-Ring, .239'' ID x .070'' Thk, Valve SealImg
Alts
Select
Ref.
15Qty
1Availability
Part #
D1NN9N084ADescription
SPRING; Retainer, Tap ValveImg
Alts
Select
Ref.
16Qty
1Availability
Part #

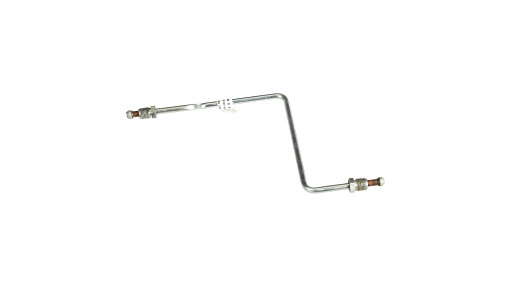

D0NN9323ADescription
TUBE; Tube Assy., Tank to Filter, Single Filter, Except 3500, 3550Img
Alts
Select
Ref.
16Qty
1Availability
Part #
D0NN9323ADescription
TUBE; Tube Assy., Tank to Filter, Single Filter, 4110, 4410Img
Alts
Select
Ref.
16Qty
1Availability
Part #

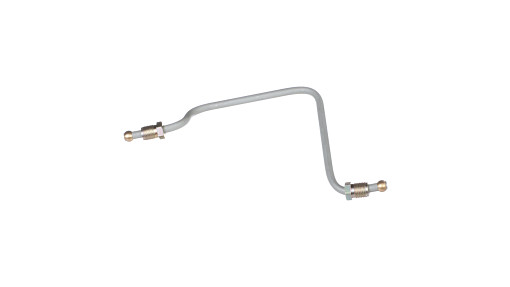

C5NN9323DDescription
TUBE; Tube Assy., Tank to Filter, Dual Filter, Except 3500 & 3550Img
Alts
Select
Ref.
16Qty
1Availability
Part #
C5NN9323DDescription
TUBE; Tube Assy., Tank to Filter, Dual Filter, 2000;NH-E OnlyImg
Alts
Select
Ref.
16Qty
1Availability
Part #
C5NN9323DDescription
TUBE; Tube Assy., Tank to Filter, Dual Filter, 4110Img
Alts
Select
Ref.
16Qty
1Availability
Part #
C5NN9323FDescription
TUBE; Tube Assy., Tank to Filter, Except 4110 & 4200Img
Alts
Select
Ref.
16Qty
1Availability
Part #
C5NN9323FDescription
TUBE; Tube Assy., Tank to Filter, 3500Img
Alts
Select
Ref.
16Qty
1Availability
Part #
D9NN9323AADescription
FUEL TUBE 0.252'' OD; Tube Assy., Tank to Filter, Except 4110, 4200, 3550, 4100, 4400Img
Alts
Select
Ref.
16Qty
1Availability
Part #
C5NN9323KDescription
TUBE; Tube Assy., Tank to Filter, 4200;NHNA Only.;No Longer Serviced.Img
Alts
Select
Ref.
16Qty
1Availability
Part #
C7NN9323CDescription
RIGID TUBE; Tube Assy., Tank to Filter, 4200;NHNA Only.;No Longer Serviced.Img
Alts
Select
Ref.
16Qty
1Availability
Part #
D2NN9323ADescription
TUBE; Tube Assy., Tank to Filter, Single Filter, 5100Img
Alts
Select
Ref.
16Qty
1Availability
Part #
D2NN9323ADescription
TUBE; Tube Assy., Tank to Filter, Dual FilterImg
Alts
Select
Ref.
16Qty
1Availability
Part #
D4NN9323ADescription
PIPE; Tube Assy., Tank to Filter, 5200;NHNA Only.;No Longer Serviced.Img
Alts
Select
Ref.
16Qty
1Availability
Part #
D2NN9323BDescription
TUBE; Tube Assy., Tank to Filter, Dual Filter, 5100, Includes: Ref. 17 & 18Img
Alts
Select
Ref.
17Qty
1Availability
Part #
119987ESDescription
FERRULE; Ferrule, Tubing, 1/4'', Tube to Filter, Replaces P/N EB-9242-AImg
Alts
Select
Ref.
18Qty
1Availability
Part #
117757S36Description
NUT; Nut, Tubing, 1/4'', Replaces P/N EB-9243-AImg
Alts
Select
Ref.
19Qty
1Availability
Part #
C5NE9165BDescription
COVER; Head, Dual Fuel FilterImg
Alts
Select
Ref.
19AQty
1Availability
Part #
C5NE9165CDescription
COVER; Head, Single Fuel FilterImg
Alts
Select
Ref.
20Qty
2Availability
Part #
80680Description
LOCK WASHER 3/8 0.381 CST ZND; WASHER, LOCK, 3/8''Img
Alts
Select
Ref.
21Qty
2Availability
Part #
87016Description
WASHER 0.41'' ID x 0.81'' OD x 0.07'' Thk; Washer, SAE, 3/8''Img
Alts
Select
Ref.
22Qty
2Availability
Part #
354452S36Description
BOLT; Bolt, HH, 3/8''-16 x 1-5/8''Img
Alts
Select
Ref.
24Qty
ARAvailability
Part #
83937061Description
FUEL FILTER; Kit, Fuel Filter Element, Includes: Ref. 24A & 24BImg
Alts
Select
Ref.
24AQty
1Availability
Part #
D8NN9D325BADescription
SEALING RING; Gasket, Fuel Filter Element, UpperImg
Alts
Select
Ref.
24BQty
1Availability
Part #

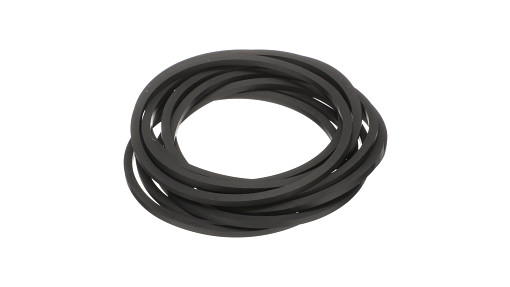

83914036Description
SEALING RING 77.8mm ID x 84.8mm OD x 3mm Thk; Gasket, Fuel Filter Element, LowerImg
Alts
Select
Ref.
Qty
1Availability
Part #
87006S92Description
O-RING; O-Ring, .312'' ID x .070'' ThkImg
Alts
Select
Ref.
Qty
1Availability
Part #
87014S92Description
O-RING; O-Ring, .562'' ID x .070'' ThkImg
Alts
Select
Ref.
25Qty
1Availability
Part #
C7NN9162BDescription
BOWL; Bowl, Fuel Filter Sediment, W/Single FilterImg
Alts
Select
Ref.
25AQty
1Availability
Part #
C7NN9N044ADescription
BOWL; Bowl, Fuel Filter Sediment, W/Single Filter (SIMMS)Img
Alts
Select
Ref.
25BQty
1/2Availability
Part #
C5NN9N023ADescription
STUD; Retainer & Stud Assy., Filter Bowl, Glass;No Longer Serviced NHNA.Img
Alts
Select
Ref.
25CQty
1/2Availability
Part #

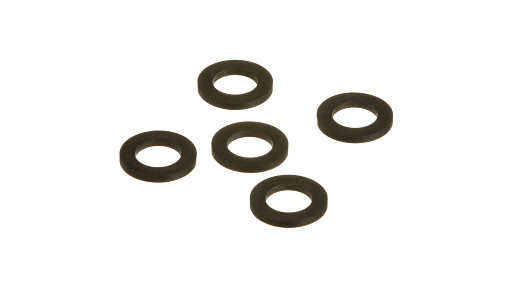

9918124Description
WASHER; Seal, Filter Center Bolt, Use W/CFPN-9162-AImg
Alts
Select
Ref.
26Qty
1Availability
Part #
D1NN9N025ADescription
WASHER 10.15mm ID x 14.4mm OD x 1mm Thk; Washer, M10.1 Flat (CAV), With Single FilterImg
Alts
Select
Ref.
26Qty
2Availability
Part #
D1NN9N025ADescription
WASHER 10.15mm ID x 14.4mm OD x 1mm Thk; Washer, M10.1 Flat (CAV), With Dual FilterImg
Alts
Select
Ref.
26AQty
1Availability
Part #
380428SDescription
SEALING WASHER; Washer, Filter Air Vent Screw, W/Single FilterImg
Alts
Select
Ref.
27Qty
1/2Availability
Part #
D1NN9N026ADescription
SCREW M10 x 1.5 x 17.50mm; Plug, M10 x 1.5 Hex Hd. (CAV)Img
Alts
Select
Ref.
27Qty
1Availability
Part #
D1NN9N026ADescription
SCREW M10 x 1.5 x 17.50mm; Screw, Fuel Filter Air VentImg
Alts
Select
Ref.
27AQty
1Availability
Part #

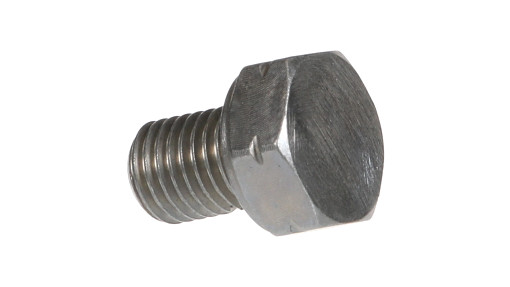

C5NN9N026ADescription
PLUG Hex, 5/16'' - 24 x 7/16''; Plug, 5/16'' - 24 (Filter Air Bleed Hole) Hex Hd. (SIMMS), With Single FilterImg
Alts
Select
Ref.
28Qty
1Availability
Part #
C5NE9F278ADescription
WASHER; Washer M6.5 Flat Aluminum (CAV), With Single FilterImg
Alts
Select
Ref.
28Qty
2Availability
Part #
C5NE9F278ADescription
WASHER; Washer M6.5 Flat Aluminum (CAV), With Dual FilterImg
Alts
Select
Ref.
28Qty
1Availability
Part #
81833781Description
WASHER 6.4mm ID x 17.02mm OD x 1.52mm Thk; Washer (Bolt Seal) (CAV), With Single FilterImg
Alts
Select
Ref.
28AQty
1Availability
Part #
87006S92Description
O-RING; O-Ring, .312'' ID x .070'' Thk, (SIMMS), With Single FilterImg
Alts
Select
Ref.
28AQty
1Availability
Part #
49886Description
O-RING 0.07'' Thk x 0.239'' ID, -10, Cl 5, 75 Duro; O-Ring, .239'' ID x .070'' Thk, (CAV), With Single FilterImg
Alts
Select
Ref.
29Qty
1Availability
Part #

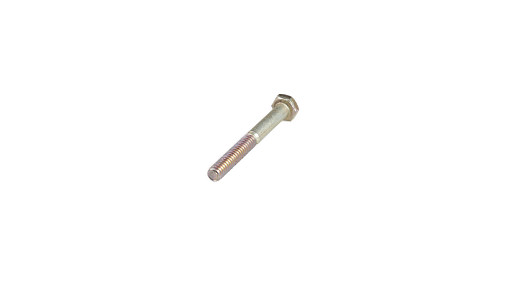

337505Description
BOLT; Bolt, 1/4'' - 20 x 2-1/8'' Hex Hd. (CAV) With Single FilterImg
Alts
Select
Ref.
29Qty
2Availability
Part #
337505Description
BOLT; Bolt, 1/4'' - 20 x 2-1/8'' Hex Hd. (CAV) With Dual FilterImg
Alts
Select
Ref.
29Qty
1Availability
Part #
337505Description
BOLT; Bolt, 1/4'' - 20 x 2-1/8'' (Element Retaining) (CAV), With Single FilterImg
Alts
Select
Ref.
29AQty
1Availability
Part #
D2NN9N090ADescription
BOLT; Bolt, Fuel Filter Center (SIMMS), W/Single FilterImg
Alts
Select
Ref.
29BQty
1Availability
Part #
D2NN9D317ADescription
WASHER; Washer, Filter Center Bolt (SIMMS) With Single FilterImg
Alts
Select
Ref.
30Qty
1Availability
Part #
D2NN9N083ADescription
WASHER 13.08mm ID x 22.49mm OD x 1.52mm Thk; Washer 1/2'' (CAV)Img
Alts
Select
Ref.
30AQty
1Availability
Part #
D2NN9N083ADescription
WASHER 13.08mm ID x 22.49mm OD x 1.52mm Thk; Washer 1/2'' (SIMMS), With Single FilterImg
Alts
Select
Ref.
31Qty
1Availability
Part #
D1NN9N086ADescription
PLUG; Plug, 1/2'' - 20 Hex Hd., (U.S.);NHNA Only.Img
Alts
Select
Ref.
31Qty
1Availability
Part #
D1NN9N086ADescription
PLUG; Plug, 1/2'' - 20 Hex Hd., (U.K.-Antwerp);NH-E OnlyImg
Alts
Select
Ref.
31AQty
1/2Availability
Part #
D1NN9N083ADescription
WASHER; Washer 11/32'' I.D. FlatImg
Alts
Select
Ref.
31BQty
1/2Availability
Part #
81825360Description
PLUG; Screw, Tumb, 5/16''-18 x 1/2'', (W/Glass Bowl)Img
Alts
Select
Ref.
31CQty
1Availability
Part #

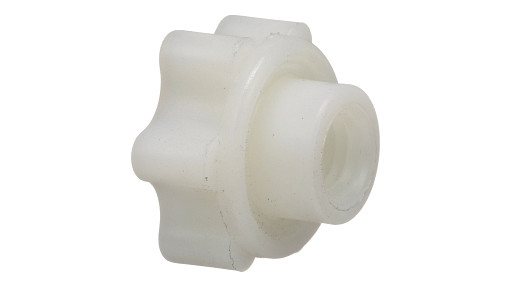

C5NE9K024ADescription
PLUG; Plug, Filter (Bowl Drain), With Single FilterImg
Alts
Select
Ref.
31CQty
2Availability
Part #
C5NE9K024ADescription
PLUG; Plug, Filter (Bowl Drain), (Use with CFPN-9162-A Bowl & Stud Assy.) With Dual FilterImg
Alts
Select
Ref.
31DQty
1Availability
Part #
81825360Description
PLUG; Plug, Fuel Filter Drain, With Single FilterImg
Alts
Select
Ref.
31EQty
1Availability
Part #
C5NE9E334ADescription
CAP; Cap, (Bowl Drain) (SIMMS), With Single FilterImg
Alts
Select
Ref.
32Qty
1Availability
Part #
C5NE9A274CDescription
TUBE; Tube Assy., Fuel Filter Outlet, W/Dual FilterImg
Alts
Select
Ref.
32Qty
1Availability
Part #
C5NE9A274CDescription
TUBE; Tube Assy., Fuel Filter Outlet, 5000Img
Alts
Select
Ref.
33Qty
2Availability
Part #
E3NN9288AADescription
FUEL HOSE 8.00 mm ID x 63.50 mm , SAE 30R6 Per SAE J30; TubeImg
Alts
Select
Ref.
33Qty
1Availability
Part #
E3NN9288AADescription
FUEL HOSE 8.00 mm ID x 63.50 mm , SAE 30R6 Per SAE J30; Tube, 5000Img
Alts
Select
Ref.
34Qty
4Availability
Part #
82012717Description
HOSE CLAMP 11 x 17mm; CLAMP, HOSE, 11 x 17mmImg
Alts
Select
Ref.
34Qty
2Availability
Part #
82012717Description
HOSE CLAMP 11 x 17mm; CLAMP, HOSE, , 5000 11 x 17mmImg
Alts
Select
Ref.
35Qty
1Availability
Part #
C5NE9C520FDescription
TUBE; Tube Assy., Pump Inlet, (W/Dual Filter);No Longer Serviced NH-E.Img
Alts
Select
Ref.
35AQty
1Availability
Part #
D5NN9C330ADescription
PIPE; Tube Assy, Filter to Pump (Single Filter) Except 5000Img
Alts
Select
Ref.
35AQty
1Availability
Part #
D2NN9N575BDescription
TUBE; Tube Assy, Filter to Pump (Single Filter), 5000Img
Alts
Select
Ref.
35AQty
1Availability
Part #
E3NN9C330CBDescription
FUEL TUBE 0.315'' OD x 4.05'' L; TubeImg
Alts
Select
Ref.
36Qty
1Availability
Part #
C5NE9D546ADescription
TUBE; Tube Assy., Pump Outlet (W/Dual Filters)Img
Alts
Select
Ref.
36Qty
1Availability
Part #
E0NN9B273EADescription
PIPE 0.312'' OD; Tube Assy, Pump Outlet (W/Single Filter) Except 5000 (Repl. D0NN-9C330-A)Img
Alts
Select
Ref.
36Qty
2Availability
Part #
129270Description
O-RING 0.072'' Thk x 0.414'' ID, -905, Cl 6, 90 Duro; O-Ring, 5-1, 90 Duro, .414'' ID x .072'' ThkImg
Alts
Select
Ref.
36Qty
1Availability
Part #
D2NN9B273ADescription
TUBE; Tube Assy, Pump to Dual Filter (1 Piece), 5000Img
Alts
Select
Ref.
36Qty
1Availability
Part #

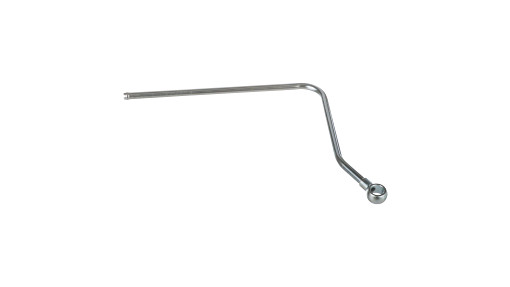

D2NN9D546BDescription
TUBE; Tube Assy, Pump Outlet (W/Single Filter) Banjo, 5000Img
Alts
Select
Ref.
36Qty
1Availability
Part #
D2NN9B273BDescription
PIPE; Tube Assy, Pump to Dual Filter (1 Piece) Except 5000 (U.K.-Ant.)Img
Alts
Select
Ref.
37Qty
2Availability
Part #
D2NN9N083ADescription
WASHER 13.08mm ID x 22.49mm OD x 1.52mm Thk; Washer 1/2'' (CAV)Img
Alts
Select
Ref.
38Qty
1Availability
Part #
377503S43Description
BOLT; Bolt, 1/2'' - 20 x 23.5mm Fluid Type (Banjo)Img
Alts
Select
Ref.
39Qty
1Availability
Part #
C5NE9A274CDescription
TUBE; Tube Assy, Fuel Filter Inlet, (W/Dual Filter)Img
Alts
Select
Ref.
40Qty
3Availability
Part #
96H9242Description
SLEEVE; Sleeve, 5/16'' Ball (Ferrule)Img
Alts
Select
Ref.
41Qty
1Availability
Part #
379440S43Description
TUBE NUT 16 mm Length; Nut (5/8'') Tubing (Sleeve & Nut are part of Tube Assemblies 9A274, 9C520, 9A322)Img
Alts
Select
Ref.
42Qty
1Availability
Part #
REFERENCEDescription
SPARE PART; Pump Assy, Fuel Injection, Refer to Fig. 9E1Img
Alts
Select
Ref.
43Qty
3Availability
Part #
83925582Description
WASHER 7.94mm ID x 16mm OD x 1.52mm Thk; Washer, 11/32''Img
Alts
Select
Ref.
45Qty
1Availability
Part #
510185Description
O-RING 0.139'' Thk x 2.234'' ID, -228, Cl 5, 75 Duro; O-Ring, 2.234'' ID x .139'' ThkImg
Alts
Select
Ref.
44Qty
3Availability
Part #
82855493Description
BOLT Hex Hd 5/16''-24 x 1''; Bolt, HH, Locking, 5/16''-24 x 1''Img
Alts
Select
Ref.
46Qty
1Availability
Part #
E3NN9F588AADescription
GEAR; Gear Assy., Fuel Injection Pump, Includes: Gear & Ref. 46AImg
Alts
Select
Ref.
46AQty
1Availability
Part #
387349SDescription
PIN 1/4'' x 5/16''; Pin, Dowel, 1/4'' x 5/16'';No Longer Serviced NH-E.Img
Alts
Select
Ref.
47Qty
3Availability
Part #
42974S36Description
BOLT Hex Hd 5/16''-24 x 5/8'', G8; Screw, Cap, HH, G8, Self-Locking, 5/16''-24 x 5/8''Img
Alts
Select
Ref.
48Qty
1Availability
Part #
C5NE9A555DDescription
TUBE; Tube Assy., #1 Cylinder, Replaces P/N C5NE-9A555-A, 2000Img
Alts
Select
Ref.
48Qty
1Availability
Part #
C5NE9A555DDescription
TUBE; Tube Assy., #1 Cylinder, Replaces P/N C5NE-9A555-A, 3000Img
Alts
Select
Ref.
48Qty
1Availability
Part #
C5NE9A555DDescription
TUBE; Tube Assy., #1 Cylinder, Replaces P/N C5NE-9A555-A, 4000Img
Alts
Select
Ref.
48Qty
1Availability
Part #
C7NN9A555GDescription
HYD TUBE; Tube Assy., #1 Cylinder, Replaces P/N C7NN-9A555-F, 3000 & 4000Img
Alts
Select
Ref.
48Qty
1Availability
Part #
C7NN9A555GDescription
HYD TUBE; Tube Assy., #1 Cylinder, Replaces P/N C7NN-9A555-F, 3000 & 4000Img
Alts
Select
Ref.
48Qty
1Availability
Part #
D2NN9A555ADescription
PIPE; Tube Assy., #1 Cylinder, 5000 2000-3000-4000Img
Alts
Select
Ref.
49Qty
1Availability
Part #
C5NE9A556DDescription
TUBE; Tube Assy., #2 CylinderImg
Alts
Select
Ref.
49Qty
1Availability
Part #
D2NN9A556ADescription
PIPE; Tube Assy., #2 Cylinder, 5000Img
Alts
Select
Ref.
50Qty
1Availability
Part #
C5NE9A557EDescription
TUBE; Tube Assy., #3 Cylinder, 2000-3000-4000Img
Alts
Select
Ref.
50Qty
1Availability
Part #
D2NN9A557ADescription
PIPE; Tube Assy., #3 Cylinder, 5000Img
Alts
Select
Ref.
50Qty
1Availability
Part #
D2NN9A558ADescription
PIPE; Tube Assy., #4 Cylinder, 5000Img
Alts
Select
Ref.
51Qty
1Availability
Part #
C5NN9N022ADescription
HYDRAULIC VALVE; Valve Assy., Fuel Pump Injector;P/N C5NN-9N022-A(81815263) & D4NN-9N022-A(83903040) must be used together. May be used when fluctuating RPM's are encountered under light Engine load conditions.;No Longer Serviced NH-E.Img
Alts
Select
Ref.
51Qty
1Availability
Part #
C7NN9N282ADescription
HYD CONNECTOR; Connector, #1 Injector Tube;No Longer Serviced.Img
Alts
Select
Ref.
52Qty
2Availability
Part #
377517S15Description
HYD CONNECTOR; Connector, #2 & #3 Injector, BanjoImg
Alts
Select
Ref.
53Qty
8Availability
Part #
81820799Description
WASHER; Washer, 3/8'' (9.65mm) I.D., 1/2'' (12.7mm) O.D.Img
Alts
Select
Ref.
54Qty
2Availability
Part #
D4NN9N022ADescription
HYDRAULIC VALVE; Valve Assy., Fuel Pump Injector;P/N C5NN-9N022-A(81815263) & D4NN-9N022-A(83903040) must be used together. May be used when fluctuating RPM's are encountered under light Engine load conditions.Img
Alts
Select
Ref.
55Qty
1Availability
Part #
C5NE9A593ADescription
TUBE; Tube Assy., Pump Leak-OffImg
Alts
Select
Ref.
56Qty
2Availability
Part #
D1NN9N025ADescription
WASHER 10.15mm ID x 14.4mm OD x 1mm Thk; Washer, Flat, M10.1Img
Alts
Select
Ref.
57Qty
1Availability
Part #
377502S43Description
BOLT; Bolt, M10 x 1.5 x 19mm Fluid TypeImg
Alts
Select
Ref.
58Qty
1Availability
Part #
C5NE9C344DDescription
CLAMP; Clamp, Fuel Tube, Upper, 2000-3000-4000Img
Alts
Select
Ref.
58Qty
1Availability
Part #
D2NN9C334ADescription
CLAMP; Clamp, Fuel Tube, Upper, 5000;No Longer Serviced.Img
Alts
Select
Ref.
59Qty
1Availability
Part #
C5NE9E320BDescription
INSERT 6mm ID; Insert, Fuel Tube Clamp, Rubber, 2000-3000-4000Img
Alts
Select
Ref.
59Qty
1Availability
Part #
D2NN9E320ADescription
INSERT; Insert, Fuel Tube Clamp, Rubber, 5000;No Longer Serviced NH-E.Img
Alts
Select
Ref.
60Qty
1Availability
Part #
C5NE9C333ADescription
PLATE; Plate, Fuel Tube Clamp, 2000-3000-4000Img
Alts
Select
Ref.
60Qty
1Availability
Part #
D2NN9C333ADescription
PLATE; Plate, Fuel Tube Clamp, 5000;No Longer Serviced.Img
Alts
Select
Ref.
61Qty
1Availability
Part #
C5NE9E299DDescription
CLAMP; Clamp, Fuel Tube, Lower;No Longer Serviced.Img
Alts
Select
Ref.
62Qty
2Availability
Part #
355122S36Description
SCREW; Screw & Washer Assy., #10-32 x 1-1/8'';Use W/SIMMS Injector 65/9-71Img
Alts
Select
Ref.
63Qty
3Availability
Part #
D4NN9F593ARCDescription
CORE-FUEL INJECTOR FUEL INJECTOR; Injector Assy., Fuel, U.K.-Antwerp, 2000, Includes: Ref. 64 thru 77Img
Alts
Select
Ref.
63Qty
3Availability
Part #
D0NN9F593ADescription
FUEL SYSTEM INJECTOR; Injector Assy., Fuel, U.K.-Antwerp, 2000, Includes: Ref. 64 thru 77Img
Alts
Select
Ref.
63Qty
3Availability
Part #
C5NE9F593CDescription
FUEL SYSTEM INJECTOR; Injector Assy., Fuel, Replaces P/N C7NN-9F593-BB, 4000, Includes: Ref. 64 thru 77;No Longer Serviced NH-E.Img
Alts
Select
Ref.
63Qty
3Availability
Part #
C9NN9F593BRCDescription
CORE-FUEL INJECTOR FUEL INJECTOR; Injector Assy., Fuel, Replaces P/N C7NN-9F593-BB, 4000, Includes: Ref. 64 thru 77;No Longer Serviced NH-E.Img
Alts
Select
Ref.
63Qty
3Availability
Part #
C5NE9F593CRDSDescription
REMAN-FUEL INJECTOR FUEL INJECTOR; Remanufactured InjectorImg
Alts
Select
Ref.
63Qty
3Availability
Part #
C5NE9F593CRCDescription
CORE-FUEL INJECTOR FUEL INJECTOR; Return NumberImg
Alts
Select
Ref.
63Qty
4Availability
Part #
D4NN9F593ARCDescription
CORE-FUEL INJECTOR FUEL INJECTOR; Injector Assy., Fuel, U.S., 2000, 3000, 5000, Includes: Ref. 64 thru 77Img
Alts
Select
Ref.
63Qty
4Availability
Part #
D0NN9F593ADescription
FUEL SYSTEM INJECTOR; Injector Assy., Fuel, U.S., 2000, 3000, 5000, Includes: Ref. 64 thru 77Img
Alts
Select
Ref.
63Qty
4Availability
Part #
D0NN9F593ARDSDescription
REMAN-FUEL INJECTOR FUEL INJECTOR; 5000 Series Tractors, All 4 Cylinder, All 1/65 to 1/75Img
Alts
Select
Ref.
63Qty
4Availability
Part #
D0NN9F593ARCDescription
CORE-FUEL INJECTOR FUEL INJECTOR; Return NumberImg
Alts
Select
Ref.
63Qty
3Availability
Part #
D4NN9F593ARCDescription
CORE-FUEL INJECTOR FUEL INJECTOR; Injector Assy., Fuel, 3000, Includes: Ref. 64 thru 77Img
Alts
Select
Ref.
63Qty
3Availability
Part #
D0NN9F593ADescription
FUEL SYSTEM INJECTOR; Injector Assy., Fuel, 3000, Includes: Ref. 64 thru 77Img
Alts
Select
Ref.
63Qty
3Availability
Part #
D0NN9F593ARDSDescription
REMAN-FUEL INJECTOR FUEL INJECTOR; 2000, 3000, 4000, Series Tractors, All 3 Cylinder, All 1/65 - 1/75Img
Alts
Select
Ref.
6Qty
3Availability
Part #
D0NN9F593ARCDescription
CORE-FUEL INJECTOR FUEL INJECTOR; Return NumberImg
Alts
Select
Ref.
64Qty
3Availability
Part #
C5NE9F595ADescription
FUEL SYSTEM INJECTOR; Holder Assy., Injector Nozzle, Includes: Ref. 65 thru 71;No Longer Serviced NH-E.Img
Alts
Select
Ref.
65Qty
3/4Availability
Part #
C5NE9H510ADescription
NUT; Nut, Holder Cap;Use with CAV Injector, 65/;No Longer Serviced NHNA.Img
Alts
Select
Ref.
65Qty
3Availability
Part #
E1ADDN993196BDescription
NUT; Nut, Injector Cap;Use W/SIMMS Injector 65/9-71Img
Alts
Select
Ref.
66Qty
3/4Availability
Part #
C5NE9F540ADescription
NUT; Nut, Injector Spring CapImg
Alts
Select
Ref.
67Qty
3Availability
Part #
C5NN9N519ADescription
PLATE; Plate, Injector Spring;Use W/CAV Injector 65/;No Longer Serviced.Img
Alts
Select
Ref.
67Qty
3/4Availability
Part #
D1NN9N519ADescription
PLATE; Plate, Injector Spring;Use W/CAV Injector 65/Img
Alts
Select
Ref.
67Qty
3/4Availability
Part #
C5NE9H511ADescription
SHIM; Shim, Injector;Use W/CAV Injector 65/;No Longer Serviced NHNA.Img
Alts
Select
Ref.
68Qty
3/4Availability
Part #
C5NE9F537ADescription
SPRING; Spring, Injector;Use W/CAV Injector 65/Img
Alts
Select
Ref.
69Qty
3Availability
Part #
C5NE9G508BDescription
SPINDLE; Spindle Assy., Fuel Filter;No Longer Serviced NHNA.Img
Alts
Select
Ref.
69Qty
3/4Availability
Part #
E0NN9G508AADescription
SPINDLE; Spindle Assy., Injector;Use W/SIMMS Injector 65/9-71;No Longer Serviced NHNA.Img
Alts
Select
Ref.
70Qty
3/4Availability
Part #
D1NN9K549ADescription
NUT; Nut, Injector NozzleImg
Alts
Select
Ref.
71Qty
ARAvailability
Part #
380409SDescription
PIN; Pin, Dowel, .116 x .394;Use W/SIMMS Injector 65/9-71;No Longer Serviced.Img
Alts
Select
Ref.
71Qty
3Availability
Part #
E174CL9Description
DOWEL; Pin, Body Locating;Use W/CAV Injector 65/;No Longer Serviced.Img
Alts
Select
Ref.
71Qty
ARAvailability
Part #
380410SDescription
PIN; Pin, Dowel, .115 x .394;Use W/CAV Injector 65/;No Longer Serviced.Img
Alts
Select
Ref.
71Qty
ARAvailability
Part #
380419SDescription
PIN; Pin, Dowel, .114 x .394;No Longer Serviced.Img
Alts
Select
Ref.
Qty
3Availability
Part #
2701E9K548Description
SHIM; Shim, Nozzle, 3/8'' Flat, Use W/Simms InjectorImg
Alts
Select
Ref.
72Qty
3Availability
Part #
D0NN9E527ADescription
NOZZLE; Nozzle Assy., Fuel Injector, 2000-3000-5000Img
Alts
Select
Ref.
72Qty
3/4Availability
Part #
C5NE9E527CDescription
NOZZLE; Nozzle Assy., Fuel Injector, 4000Img
Alts
Select
Ref.
73Qty
3/4Availability
Part #
D1NN9R524ADescription
WASHER 21.2mm ID x 25mm OD x 1.42mm Thk; Washer, Flat, 13/16''Img
Alts
Select
Ref.
74Qty
3/4Availability
Part #
C5NE9G547ADescription
WASHER; Washer, Injector Adaptor SealImg
Alts
Select
Ref.
75Qty
3Availability
Part #
379764SDescription
HYD CONNECTOR; Connector, Use W/Simms Injector;No Longer Serviced NH-E.Img
Alts
Select
Ref.
76Qty
6/8Availability
Part #
380428SDescription
SEALING WASHER; Washer, Flat, Leak-Off Fitting, Replaces P/N C5NE-9G546-AImg
Alts
Select
Ref.
77Qty
3/4Availability
Part #
D1NN9R523ADescription
BOLT; Bolt, Leak-Off TubeImg
Alts
Select
Ref.
79Qty
3/4Availability
Part #
81806142Description

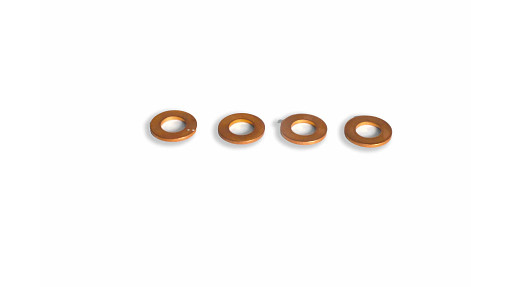

SEALING WASHER 9.22mm ID x 17.27mm OD x 1.64mm Thk; Washer, Injector SealingImg
Alts
Select
Ref.
Qty
2Availability
Part #
83947824Description
FITTING 9/16''-24 x 1/2''-20 O-Ring; FITTING, , Connector 9/16''-24 x 1/2''-20 O-RingImg
Alts
Select
Ref.
80Qty
6/8Availability
Part #
86629539Description
NUT 5/16''-24, G5; Nut, G5, 5/16''-24Img
Alts
Select
Ref.
Qty
2Availability
Part #
83947824Description
FITTING 9/16''-24 x 1/2''-20 O-Ring; FITTING, , Connector 9/16''-24 x 1/2''-20 O-RingImg
Alts
Select
Ref.
81Qty
6/8Availability
Part #
380583S36Description
STUD; Stud, Screw, 5/16''-18-24 x 1.88Img
Alts
Select
Ref.
82Qty
3Availability
Part #
NSDescription
NOT SERVICED; Fitting, Banjo, 3/16'';Not ServicedImg
Alts
Select
Ref.
83Qty
4Availability
Part #
E3NN9G577AADescription
FUEL HOSE; Hose, Injector Leak-Off, 4-7/8'' Lg., Cut to 3'' Tank Return & 1st Banjo FittingImg
Alts
Select
Ref.
83Qty
11Availability
Part #
E3NN9G577AADescription
FUEL HOSE; Hose, Injector Leak-Off, 4-7/8'' Lg., Leak-Off tube Assy. to Fuel Return TubeImg
Alts
Select
Ref.
83AQty
1Availability
Part #
D9NN9A564GBDescription

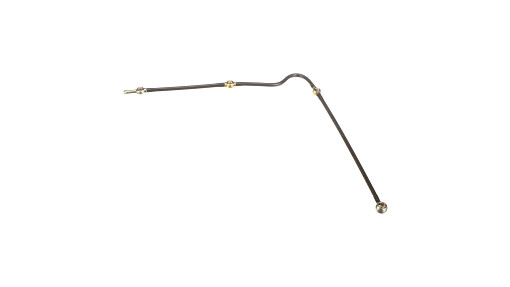

FUEL TUBE 0.25'' OD; Tube Assy., Leak-Off, Complete, U.K.-Antwerp, 2000-3000-4000Img
Alts
Select
Ref.
83AQty
1Availability
Part #
D9NN9A564GBDescription
FUEL TUBE 0.25'' OD; Tube Assy., Leak-Off, Complete, U.S., 2000-3000-4000Img
Alts
Select
Ref.
83AQty
1Availability
Part #
D9NN9A564EBDescription
FUEL TUBE 0.25'' OD; Tube Assy., Fuel Injection Leak-Off, Complete, Replaces P/N D2NN-9A564-G, 5000Img
Alts
Select
Ref.
84Qty
7Availability
Part #
82012717Description
HOSE CLAMP 11 x 17mm; CLAMP, HOSE, , Replaces P/N 377931-S43 11 x 17mmImg
Alts
Select
Ref.
84Qty
2Availability
Part #
82012717Description
HOSE CLAMP 11 x 17mm; CLAMP, HOSE, , Replaces P/N 377931-S43 11 x 17mmImg
Alts
Select
Ref.
86Qty
1Availability
Part #
81817020Description
TUBE; Tube Assy., Return to Tank, Except 4200 (Replaces C5NN9A337H)Img
Alts
Select
Ref.
86Qty
1Availability
Part #
C7NN9A337BDescription
TUBE; Tube Assy., Return to Tank, 4200;NHNA Only.;No Longer Serviced.Img
Alts
Select
Ref.
87Qty
2Availability
Part #
82012717Description
HOSE CLAMP 11 x 17mm; CLAMP, HOSE, 11 x 17mmImg
Alts
Select
Ref.
91Qty
1Availability
Part #
81814743Description
STEEL PLATE; Plate, Sender Gauge Hole, L/Fuel Gauge, U.K., 2000;NH-E Only;No Longer Serviced.Img
Alts
Select
Ref.
92Qty
1Availability
Part #
390025SDescription
90 ELBOW 5/16'' x 1/2''-20, Flareless; Elbow, 90?, 5/16'', Flareless, 1/2''-20Img
Alts
Select
Ref.
93Qty
2Availability
Part #
129270Description
O-RING 0.072'' Thk x 0.414'' ID, -905, Cl 6, 90 Duro; O-Ring, 5-1, 90 Duro, .414'' ID x .072'' ThkImg
Alts
Select
Ref.
94Qty
2Availability
Part #
83947824Description
FITTING 9/16''-24 x 1/2''-20 O-Ring; FITTING, , Connector 9/16''-24 x 1/2''-20 O-RingImg
Alts
Select
Ref.
Qty
1Availability
Part #
309801Description
SPARE PART; Kit, Third Pressurizing Valve, U.S., 4000, Includes, Parts Listed Below;Order Components;NHNA Only.Img
Alts
Select
Ref.
Qty
1Availability
Part #
377517S15Description
HYD CONNECTOR; Fittingr, 38.5mm LImg
Alts
