TABLE OF CONTENTS
DIAGRAM
PART LIST
EFFACER TOUT
Sélectionner Tout
Ref.
Qté
N° de pièce
Alts
Description
-
11VILEBREQUIN; 4.4 Stroke
-
11CORE-CRANKSHAFT CRANKSHAFT; 4.2 Stroke
-
11CRANKSHAFT; 4.2 Stroke
-
11REMAN-CRANKSHAFT CRANKSHAFT; Reman For New P/N 87800469 Used In 4.2 Stroke, 3 Cyl. Engines Reman Crankshaft Does Not Come With Main or Rod Bearings Due to The Selection of Bearing Specific to Tapered Or Straight Connecting Rods. Bearing Will Need To Be Purchased After Reman Crankshaft Has Been Receiver And Journal/Bearing Size Determined.
-
11CORE-CRANKSHAFT CRANKSHAFT; Return Number
-
21PULLEY; Diesel
-
21PULLEY; Gas
-
21PULLEY; 340B Diesel
-
31KEY; 5/16'' x 3/8'' x 2.86''
-
31CLE; 5/16'' x 3/8'' x 1.17''
-
41RONDELLE 19.68mm ID x 59.689mm OD x 8.13mm Thk; Flat, 3/4''
-
51BOLT Hex, 3/4'' - 16 x 1 3/4'', Gr 5; Cap, HH, G5, 3/4''-16 x 1-3/4''
-
5A1SPACER;
-
61SLINGER 44.96mm ID x 84.329mm OD x 0.889mm Thk; Slinger
-
71SEAL;
-
81SEAL;
-
91GEAR;
-
101MOYEU; Includes: Ref. 11 & 12, 340A, 340B, 540, 545
-
114BLOCK; Bushing, 340A, 340B, 540, 545
-
124BLOCK; 340A, 340B, 540, 545
-
134RONDELLE FREIN 7/16''; WASHER, LOCK, 7/16''
-
144VIS Hex, 7/16'' - 14 x 1 1/2'', Gr 5;
-
153KIT; Liner, Main Bearing, Standard, Red
-
153KIT; Liner, Main Bearing, Standard, Blue
-
153SET OF STD MAIN BRGS; Kit, Liner, Main Bearing, .002'' (.0508mm) U/S
-
153KIT; Liner, Main Bearing, .010'' (.254mm) U/S
-
153SET OF STD MAIN BRGS; Kit, Liner, Main Bearing, .020'' (.508mm) U/S
-
153KIT; Liner, Main Bearing, .030'' (.762mm) U/S
-
153SET OF STD MAIN BRGS; Kit, Liner, Main Bearing, .040'' (1.016mm) U/S
-
153CRANKSHAFT BEARING Standard; Kit, Liner, Main Bearing, Standard
-
153CRANKSHAFT BEARING .002'' (.051mm) U/S; Kit, Liner, Main Bearing, .002'' (.0508mm) U/S, Green
-
153COUSSINET VILEBREQUI .010'' (.254mm) U/S; Kit, Liner, Main Bearing, .010'' (.254mm) U/S, White
-
153COUSSINET VILEBREQUI .020'' (.508mm) U/S; Kit, Liner, Main Bearing, .020'' (.508mm) U/S
-
153COUSSINET VILEBREQUI .030'' (.762mm) U/S; Kit, Liner, Main Bearing, .030'' (.762mm) U/S
-
153COUSSINET VILEBREQUI .040'' (1.016mm) U/S; Kit, Liner, Main Bearing, .040'' (1.016mm) U/S
-
161KIT; Liner, Thrust Bearing, Standard, Red
-
161KIT; Liner, Thrust Bearing, Standard, Blue
-
161KIT; Liner, Thrust Bearing, .002'' (.0508mm) U/S
-
161KIT; Liner, Thrust Bearing, .010'' (.254mm) U/S
-
161JEU DEMI-COUSSINETS; Kit, Liner, Thrust Bearing, .020'' (.508mm) U/S
-
161KIT; Liner, Thrust Bearing, .030'' (.762mm) U/S
-
161KIT; Liner, Thrust Bearing, .040'' (1.02mm) U/S
-
161COUSSINET VILEBREQUI Standard; Kit, Liner, Thrust Bearing, Standard
-
161COUSSINET VILEBREQUI .002'' (.051mm) U/S; Kit, Liner, Thrust Bearing, .002'' (.0508mm) U/S, Green
-
161COUSSINET VILEBREQUI .010'' (.254mm) U/S; Kit, Liner, Thrust Bearing, .010'' (.254mm) U/S, White
-
161COUSSINET VILEBREQUI .020'' (.508mm) U/S; Kit, Liner, Thrust Bearing, .020'' (.508mm) U/S
-
161COUSSINET VILEBREQUI .030'' (.762mm) U/S; Kit, Liner, Thrust Bearing, .030'' (.762mm) U/S
-
161COUSSINET VILEBREQUI .040'' (1.016mm) U/S; Kit, Liner, Thrust Bearing, .040'' (1.016mm) U/S
-
172SEAL; Crankshaft, Rear
-
181SEAL 120.6mm ID x 141.12mm OD x 11.91mm Thk; Crankshaft, Rear
-
191VOLANT D'INERTIE; Flywheel, 11'' (279.4mm) 340A, 340B, Includes: Ref. 20 & 21
-
191VOLANT MOTEUR; Flywheel, Torque Converter, 545 Diesel, Includes: Ref. 20 & 21
-
191VOLANT MOTEUR; Flywheel, Torque Converter, 545 Gas, Includes: Ref. 20 & 21
-
191VOLANT MOTEUR; Flywheel, 13'' Clutch (330.2mm) 340A, 340B, 445, 545 Gas, Includes: Ref. 20 & 21
-
191VOLANT MOTEUR; Flywheel, 13'' Clutch (330.2mm) 445, 540, 545 Diesel, Includes: Ref. 20 & 21
-
191VOLANT MOTEUR; Flywheel, 13'' Clutch(330.2mm) 340A, 340B Diesel, Includes: Ref. 20 & 21
-
191VOLANT D'INERTIE; Flywheel, 4 x 4 Power Reverse, 445, 540A, 545, Includes: Ref. 20 & 21
-
201COURONNE DENTEE; Gear, 162T, Gas
-
201COURONNE DENTEE; Gear, 128T, Diesel
-
216VIS Hex, 9/16'' - 18 x 1 5/8'', Gr 8; Cap, HH, G8, Self-Locking, 9/16''-18 x 1-5/8'', 13'' Clutch
-
216ERGOT D'ARRET Hex, 9/16'' - 18 x 2 1/8'', Gr 8; Screw, Cap, HH, G8, Self-Locking, 9/16''-18 x 2-1/8'', Torque Converter
Sélectionner Tout
Select
Ref.
1Qté
1Disponibilité
N° de pièce
F0NN6300MADescription
VILEBREQUIN; 4.4 StrokeImg
Alts
Select
Ref.
1Qté
1Disponibilité
N° de pièce
F0NN6300NACDescription
CORE-CRANKSHAFT CRANKSHAFT; 4.2 StrokeImg
Alts
Select
Ref.
1Qté
1Disponibilité
N° de pièce
87800469RDescription
REMAN-CRANKSHAFT CRANKSHAFT; Reman For New P/N 87800469 Used In 4.2 Stroke, 3 Cyl. Engines Reman Crankshaft Does Not Come With Main or Rod Bearings Due to The Selection of Bearing Specific to Tapered Or Straight Connecting Rods. Bearing Will Need To Be Purchased After Reman Crankshaft Has Been Receiver And Journal/Bearing Size Determined.Img
Alts
Select
Ref.
1Qté
1Disponibilité
N° de pièce
87800469CDescription
CORE-CRANKSHAFT CRANKSHAFT; Return NumberImg
Alts
Select
Ref.
3Qté
1Disponibilité
N° de pièce
C9NN6N250ADescription

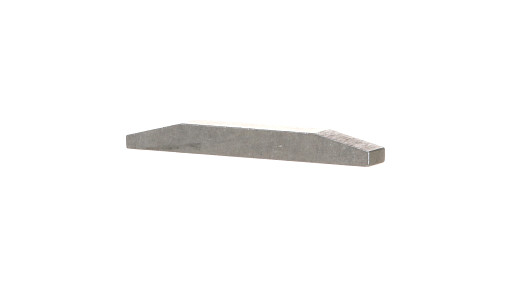

KEY; 5/16'' x 3/8'' x 2.86''Img
Alts
Select
Ref.
3Qté
1Disponibilité
N° de pièce
F0NN6N300AADescription

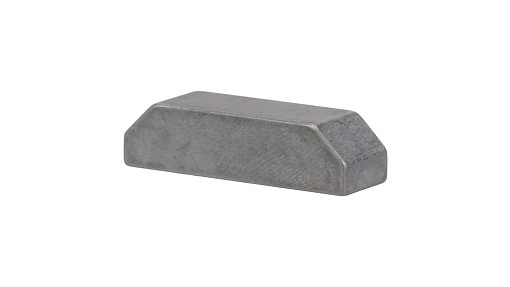

CLE; 5/16'' x 3/8'' x 1.17''Img
Alts
Select
Ref.
4Qté
1Disponibilité
N° de pièce
83990589Description

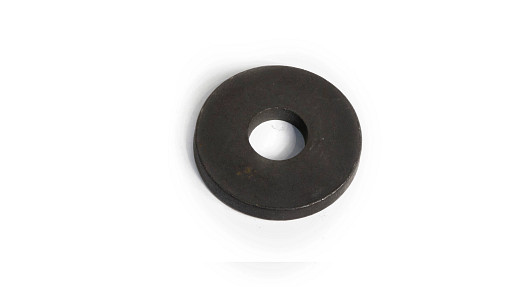

RONDELLE 19.68mm ID x 59.689mm OD x 8.13mm Thk; Flat, 3/4''Img
Alts
Select
Ref.
5Qté
1Disponibilité
N° de pièce

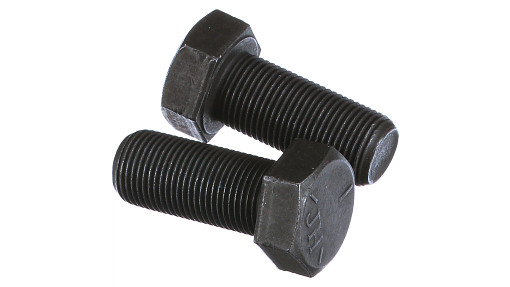

82895561Description
BOLT Hex, 3/4'' - 16 x 1 3/4'', Gr 5; Cap, HH, G5, 3/4''-16 x 1-3/4''Img
Alts
Select
Ref.
6Qté
1Disponibilité
N° de pièce
C5NE6310BDescription

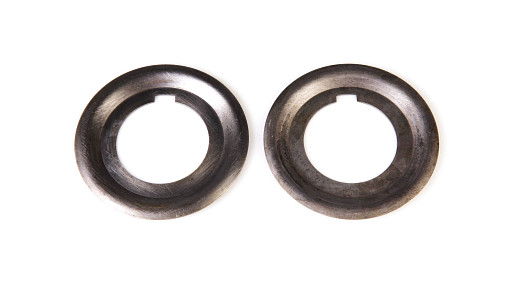

SLINGER 44.96mm ID x 84.329mm OD x 0.889mm Thk; SlingerImg
Alts
Select
Ref.
10Qté
1Disponibilité
N° de pièce
86509731Description
MOYEU; Includes: Ref. 11 & 12, 340A, 340B, 540, 545Img
Alts
Select
Ref.
11Qté
4Disponibilité
N° de pièce
86509732Description
BLOCK; Bushing, 340A, 340B, 540, 545Img
Alts
Select
Ref.
12Qté
4Disponibilité
N° de pièce
86509732Description
BLOCK; 340A, 340B, 540, 545Img
Alts
Select
Ref.
13Qté
4Disponibilité
N° de pièce
81547Description
RONDELLE FREIN 7/16''; WASHER, LOCK, 7/16''Img
Alts
Select
Ref.
14Qté
4Disponibilité
N° de pièce
9637916Description
VIS Hex, 7/16'' - 14 x 1 1/2'', Gr 5;Img
Alts
Select
Ref.
15Qté
3Disponibilité
N° de pièce

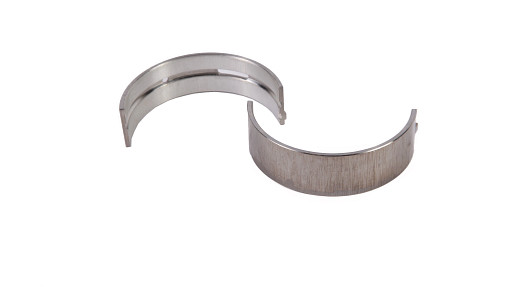

87790355Description
KIT; Liner, Main Bearing, Standard, RedImg
Alts
Select
Ref.
15Qté
3Disponibilité
N° de pièce

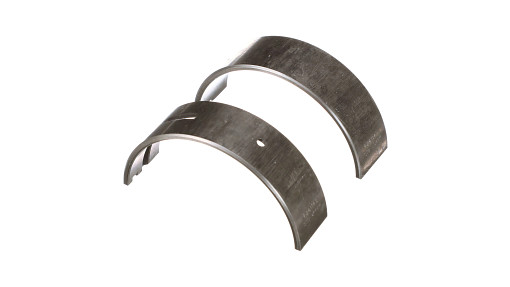

87790356Description
KIT; Liner, Main Bearing, Standard, BlueImg
Alts
Select
Ref.
15Qté
3Disponibilité
N° de pièce
87790357Description
SET OF STD MAIN BRGS; Kit, Liner, Main Bearing, .002'' (.0508mm) U/SImg
Alts
Select
Ref.
15Qté
3Disponibilité
N° de pièce
87790358Description
KIT; Liner, Main Bearing, .010'' (.254mm) U/SImg
Alts
Select
Ref.
15Qté
3Disponibilité
N° de pièce
87790359Description
SET OF STD MAIN BRGS; Kit, Liner, Main Bearing, .020'' (.508mm) U/SImg
Alts
Select
Ref.
15Qté
3Disponibilité
N° de pièce
87790360Description
KIT; Liner, Main Bearing, .030'' (.762mm) U/SImg
Alts
Select
Ref.
15Qté
3Disponibilité
N° de pièce

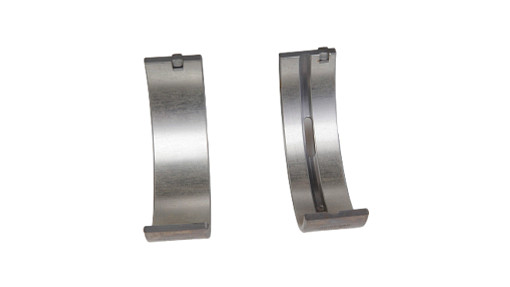

87790361Description
SET OF STD MAIN BRGS; Kit, Liner, Main Bearing, .040'' (1.016mm) U/SImg
Alts
Select
Ref.
15Qté
3Disponibilité
N° de pièce

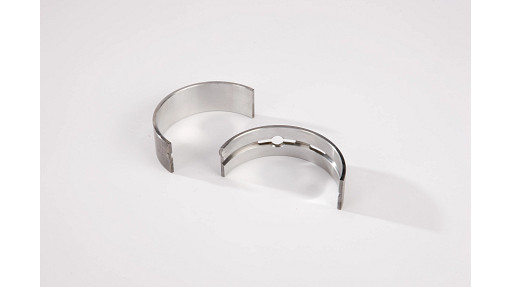

87790260Description
CRANKSHAFT BEARING Standard; Kit, Liner, Main Bearing, StandardImg
Alts
Select
Ref.
15Qté
3Disponibilité
N° de pièce
87790261Description
CRANKSHAFT BEARING .002'' (.051mm) U/S; Kit, Liner, Main Bearing, .002'' (.0508mm) U/S, GreenImg
Alts
Select
Ref.
15Qté
3Disponibilité
N° de pièce
87790262Description

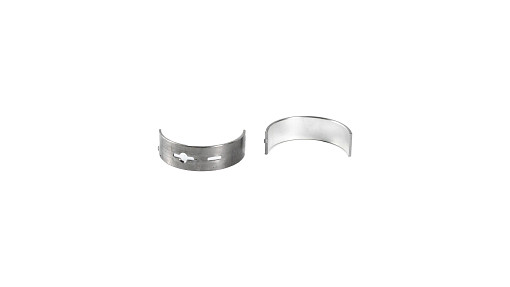

COUSSINET VILEBREQUI .010'' (.254mm) U/S; Kit, Liner, Main Bearing, .010'' (.254mm) U/S, WhiteImg
Alts
Select
Ref.
15Qté
3Disponibilité
N° de pièce
87790263Description

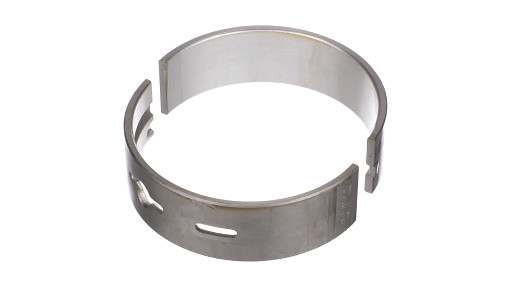

COUSSINET VILEBREQUI .020'' (.508mm) U/S; Kit, Liner, Main Bearing, .020'' (.508mm) U/SImg
Alts
Select
Ref.
15Qté
3Disponibilité
N° de pièce

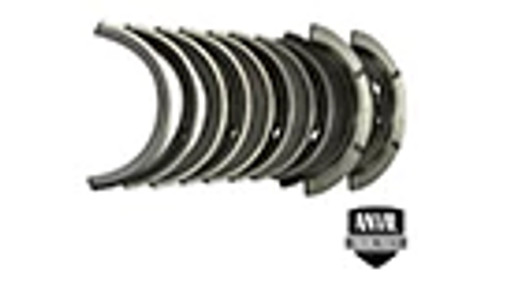

87790264Description
COUSSINET VILEBREQUI .030'' (.762mm) U/S; Kit, Liner, Main Bearing, .030'' (.762mm) U/SImg
Alts
Select
Ref.
15Qté
3Disponibilité
N° de pièce
87790265Description
COUSSINET VILEBREQUI .040'' (1.016mm) U/S; Kit, Liner, Main Bearing, .040'' (1.016mm) U/SImg
Alts
Select
Ref.
16Qté
1Disponibilité
N° de pièce
87790488Description

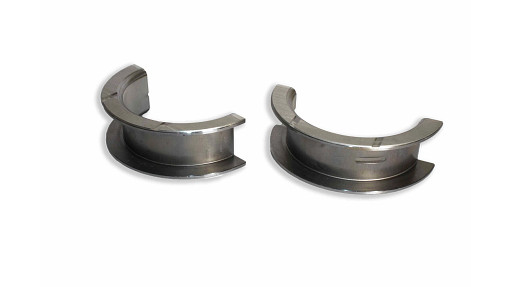

KIT; Liner, Thrust Bearing, Standard, RedImg
Alts
Select
Ref.
16Qté
1Disponibilité
N° de pièce
87790489Description
KIT; Liner, Thrust Bearing, Standard, BlueImg
Alts
Select
Ref.
16Qté
1Disponibilité
N° de pièce
87790490Description
KIT; Liner, Thrust Bearing, .002'' (.0508mm) U/SImg
Alts
Select
Ref.
16Qté
1Disponibilité
N° de pièce
87790491Description

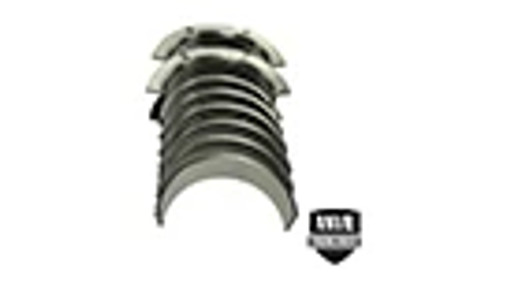

KIT; Liner, Thrust Bearing, .010'' (.254mm) U/SImg
Alts
Select
Ref.
16Qté
1Disponibilité
N° de pièce
87790492Description

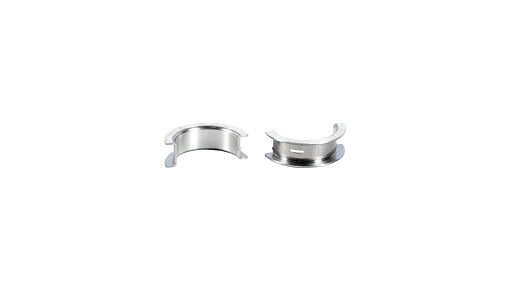

JEU DEMI-COUSSINETS; Kit, Liner, Thrust Bearing, .020'' (.508mm) U/SImg
Alts
Select
Ref.
16Qté
1Disponibilité
N° de pièce
87790493Description
KIT; Liner, Thrust Bearing, .030'' (.762mm) U/SImg
Alts
Select
Ref.
16Qté
1Disponibilité
N° de pièce
87790494Description
KIT; Liner, Thrust Bearing, .040'' (1.02mm) U/SImg
Alts
Select
Ref.
16Qté
1Disponibilité
N° de pièce
87790266Description

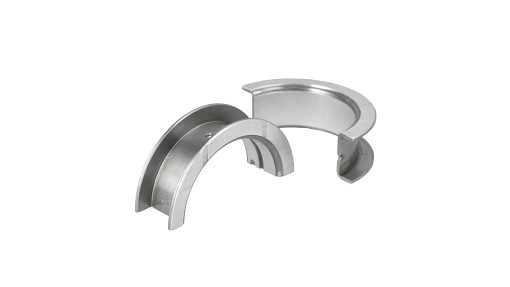

COUSSINET VILEBREQUI Standard; Kit, Liner, Thrust Bearing, StandardImg
Alts
Select
Ref.
16Qté
1Disponibilité
N° de pièce
87790267Description
COUSSINET VILEBREQUI .002'' (.051mm) U/S; Kit, Liner, Thrust Bearing, .002'' (.0508mm) U/S, GreenImg
Alts
Select
Ref.
16Qté
1Disponibilité
N° de pièce
87790268Description

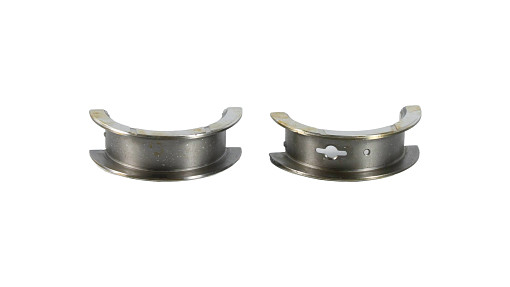

COUSSINET VILEBREQUI .010'' (.254mm) U/S; Kit, Liner, Thrust Bearing, .010'' (.254mm) U/S, WhiteImg
Alts
Select
Ref.
16Qté
1Disponibilité
N° de pièce
87790269Description

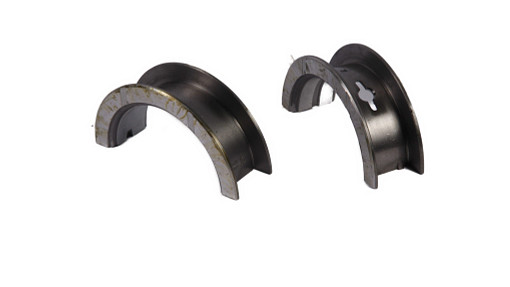

COUSSINET VILEBREQUI .020'' (.508mm) U/S; Kit, Liner, Thrust Bearing, .020'' (.508mm) U/SImg
Alts
Select
Ref.
16Qté
1Disponibilité
N° de pièce
87790270Description
COUSSINET VILEBREQUI .030'' (.762mm) U/S; Kit, Liner, Thrust Bearing, .030'' (.762mm) U/SImg
Alts
Select
Ref.
16Qté
1Disponibilité
N° de pièce
87790271Description
COUSSINET VILEBREQUI .040'' (1.016mm) U/S; Kit, Liner, Thrust Bearing, .040'' (1.016mm) U/SImg
Alts
Select
Ref.
17Qté
2Disponibilité
N° de pièce
E4NN6336ABDescription

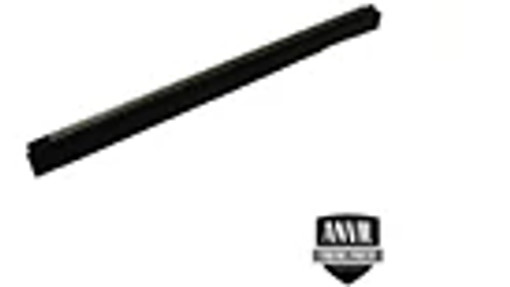

SEAL; Crankshaft, RearImg
Alts
Select
Ref.
18Qté
1Disponibilité
N° de pièce
83955247Description
SEAL 120.6mm ID x 141.12mm OD x 11.91mm Thk; Crankshaft, RearImg
Alts
Select
Ref.
19Qté
1Disponibilité
N° de pièce
C7NN6375BDescription
VOLANT D'INERTIE; Flywheel, 11'' (279.4mm) 340A, 340B, Includes: Ref. 20 & 21Img
Alts
Select
Ref.
19Qté
1Disponibilité
N° de pièce
C5NE6375ACDescription
VOLANT MOTEUR; Flywheel, Torque Converter, 545 Diesel, Includes: Ref. 20 & 21Img
Alts
Select
Ref.
19Qté
1Disponibilité
N° de pièce
C5NE6375ATDescription
VOLANT MOTEUR; Flywheel, Torque Converter, 545 Gas, Includes: Ref. 20 & 21Img
Alts
Select
Ref.
19Qté
1Disponibilité
N° de pièce
C5NE6375BBDescription
VOLANT MOTEUR; Flywheel, 13'' Clutch (330.2mm) 340A, 340B, 445, 545 Gas, Includes: Ref. 20 & 21Img
Alts
Select
Ref.
19Qté
1Disponibilité
N° de pièce
83933422Description
VOLANT MOTEUR; Flywheel, 13'' Clutch (330.2mm) 445, 540, 545 Diesel, Includes: Ref. 20 & 21Img
Alts
Select
Ref.
19Qté
1Disponibilité
N° de pièce
E0NN6375SADescription
VOLANT MOTEUR; Flywheel, 13'' Clutch(330.2mm) 340A, 340B Diesel, Includes: Ref. 20 & 21Img
Alts
Select
Ref.
19Qté
1Disponibilité
N° de pièce
E0NN6375AADescription
VOLANT D'INERTIE; Flywheel, 4 x 4 Power Reverse, 445, 540A, 545, Includes: Ref. 20 & 21Img
Alts
Select
Ref.
20Qté
1Disponibilité
N° de pièce
C5NE6384BDescription

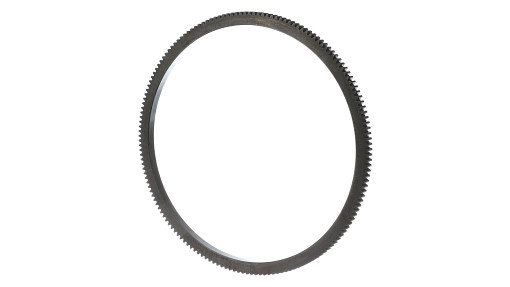

COURONNE DENTEE; Gear, 162T, GasImg
Alts
Select
Ref.
20Qté
1Disponibilité
N° de pièce

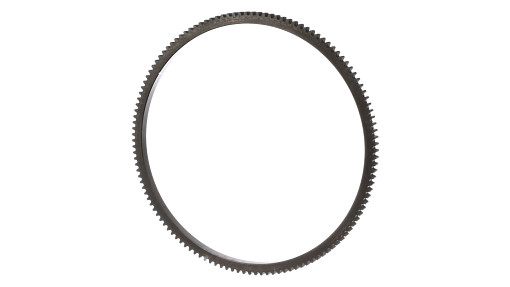

83949153Description
COURONNE DENTEE; Gear, 128T, DieselImg
Alts
Select
Ref.
21Qté
6Disponibilité
N° de pièce

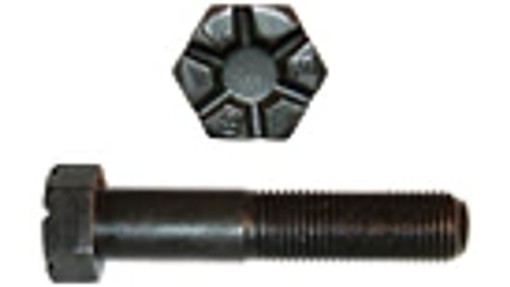

83909956Description
VIS Hex, 9/16'' - 18 x 1 5/8'', Gr 8; Cap, HH, G8, Self-Locking, 9/16''-18 x 1-5/8'', 13'' ClutchImg
Alts
Select
Ref.
21Qté
6Disponibilité
N° de pièce
83909957Description
ERGOT D'ARRET Hex, 9/16'' - 18 x 2 1/8'', Gr 8; Screw, Cap, HH, G8, Self-Locking, 9/16''-18 x 2-1/8'', Torque ConverterImg
Alts
