016 - DRIVE PULLEY & DRIVEN PULLEY HOUSING ASSEMBLIES, MODELS 14-3, 14-4, 14-50, 14-51, 14-60, 14-68, 14-77
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    F140067
    SPARE PART; V-Pulley, 1-1/8'' Spline, 9-3/4'' OD, Prior Models;No Longer Serviced
  • 1
    1
    107742
    PULLEY; V-Pulley, Large, 9-3/4'' OD;No Longer Serviced
  • 1
    1
    106051
    PULLEY; V-Pulley, Large, 8-1/2'' OD;Used On & ASN 2790 (14-68) & 6143 (14-77);No Longer Serviced
  • 2
    1
    NLS
    NO LONGER SERVICED; Bushing, Pulley, 1-1/8'' Spline, Use w/F140067 (PN 140302)
  • 2
    1
    172049
    BUSHING; Pulley, 1-3/8'' Spline, Use w/106051 & 107742
  • 2
    1
    172619
    ADAPTER; Bushing, Pulley, 1-1/8'' Spline, Use w/106051 & 107742
  • 3
    3
    PL
    PROCURE LOCALLY; Bolt, HH, 7/16''-14 x 1-3/4''
  • 5
    1
    140022F
    SET OF BELTS; Kit, V-Belt, 54, Matched Set of 2
  • 6
    1
    140407
    GUARD; Belt, Except 14-77
  • 6A
    1
    148192
    GUARD; Weld Assy., Belt, 14-77;No Longer Serviced
  • 7
    1
    140432
    HOUSING; Pulley Housing Assy., Includes: Ref. 8
  • 8
    2
    72063

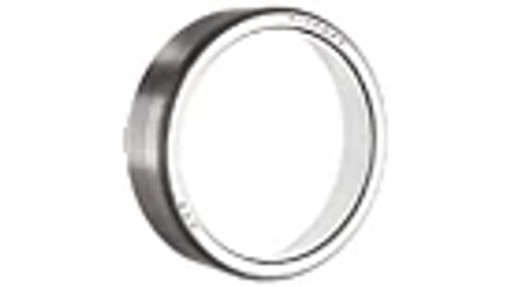

    BEARING CUP 63.5mm OD x 15.88mm W; Bearing, Cup, Tappered Roller, .625'' Thk x 2-1/2'' OD
  • 9
    1
    87921S8
    LUBE NIPPLE; Fitting, Lube, 45?, 1/4''-28 x 13/16''
  • 10
    2
    87782S8
    PLUG; Hex, Pipe, 3/4''-14, Pulley Housing
  • 11
    1
    140221
    ADJUSTMENT SCREW Hex, 5/8'' - 18 x 3 1/4'', Full Thd; Bolt, Hex, 5/8''-18 x 3-1/4'', Belt Tension Adjusting, Except 14-77
  • 11
    1
    148320
    BOLT; Hex, 5/8''-18 x 3-1/4'', Belt Tension Adjusting, 14-77
  • 13
    1
    NLS
    NO LONGER SERVICED; Shaft, Pulley Housing
  • 14
    2
    86609936
    BEARING CONE 30.21mm ID x 20.64mm W; Bearing, Cone, Pulley Housing Shaft
  • 15
    1
    140193
    SEAL RETAINER; Shield, Pulley Housing Oil
  • 16
    1
    140337
    OIL SEAL; Seal, Pulley Housing Shaft Bearing Oil
  • 17
    1
    140065
    WASHER; V-Pulley, Small Driven
  • 18
    1
    PL
    PROCURE LOCALLY; Pin, Clevis, 1/4'' x 1-15/16
  • 19
    1
    PL
    PROCURE LOCALLY; Pin, Cotter, 3/32'' x 5/8''
