11SUPPORT; Weld Assy., Gearbox
-
110BOLT Hex, 3/8'' - 16 x 1'', Gr 5;
-
110WASHER 10.3mm ID x 22.2mm OD x 2.7mm Thk, HTS, ZND; (3/8'') M10 x 22.2 x 2.87 Thk, HT
-
18NUT 3/8'' - 16, Gr 5; G5, 3/8''-16
-
21GEARBOX; Assy., 540 Rpm, Refer to Fig. 5 for Component Breakdown
-
24BOLT Hex, 1/2'' - 13 x 1'', Gr 5;
-
24WASHER 0.56'' ID x 1.38'' OD x 0.11'' Thk;
-
24LOCK WASHER 1/20.507 CST ZND; WASHER, LOCK, 1/2''
-
21INDICATOR; Gearbox Assy., 1000 Rpm, Refer to Fig. 5 for Component Breakdown;No Longer Serviced
-
24BOLT Hex, 1/2'' - 13 x 1'', Gr 5;
-
24WASHER 0.56'' ID x 1.38'' OD x 0.11'' Thk;
-
24LOCK WASHER 1/20.507 CST ZND; WASHER, LOCK, 1/2''
-
31PROCURE LOCALLY; Collar, Refer to Fig. 5 for Component Breakdown
-
4ARWASHER 1-13/32'' ID x 2.00'' OD x .0299'' Thk;
-
51HUB; Sheave;Used on & BSN 360712
-
51LUBE NIPPLE FITTING LUBE 1/4-28 SPCL TAP; Nipple, Lube, Straight, 1/4''-28
-
51WOODRUFF KEY #25, 5/16'' x 1 1/2'', HT;
-
61PULLEY 251.46mm OD; Sheave Assy.
-
64BOLT Hex, 1/2'' - 13 x 1'', Gr 5; Used on & BSN 360712
-
64LOCK WASHER 1/20.507 CST ZND; WASHER, LOCK, 1/2'';Used on & BSN 360712
-
64BOLT 1/2'' - 13 x 1-1/4'', Full Thd, Gr 5; Used on & ASN 360713
-
64WASHER 0.56'' ID x 1.38'' OD x 0.11'' Thk; Used on & ASN 360713
-
64LOCK WASHER 1/20.507 CST ZND; WASHER, LOCK, 1/2'';Used on & ASN 360713
-
64NUT 1/2''-13, G5; Used on & ASN 360713
-
74SPRING Compression, 11.91mm OD x 25.4mm L; Clutch;Used on & BSN 360712
-
84PIN 12.7mm OD x 35mm L; Clutch, 1/2'' x 1-3/8'';Used on & BSN 360712
-
91HOSE; Weld Assy., Includes: (2) Ref. 10;Used on & BSN 360712
-
91LUBE NIPPLE FITTING LUBE 1/4-28 SPCL TAP; Nipple, Lube, Straight, 1/4''-28
-
102BUSHING 35.13mm ID x 41.34mm OD x 19.05mm L; Used on & BSN 360712
-
11ARWASHER; Special
-
121SPACER;
-
131COVER;
-
134CARRIAGE BOLT Sq Nk, 1/2'' - 13 x 1 1/4'', Gr 5, Full Thd; Bolt, Carriage, G5, 1/2''-13 x 1-1/4''
-
134WASHER 0.56'' ID x 1.38'' OD x 0.11'' Thk;
-
134LOCK WASHER 1/20.507 CST ZND; WASHER, LOCK, 1/2''
-
134NUT 1/2''-13, G5;
-
14ARLID; Special
-
151BALL BEARING 28.6mm ID x 62mm OD x 23.8mm W; Bearing, Ball
-
162FLANGED BEARING 4'' OD x 0.4375''; Flangette
-
163CARRIAGE BOLT Short Nk, 3/8'' - 16 x 1'', Gr 5; BOLT, CARRIAGE, Short NK, 3/8''-16 x 1'', G5
-
163LOCK WASHER 3/8 0.381 CST ZND; WASHER, LOCK, 3/8''
-
163NUT 3/8'' - 16, Gr 5; G5, 3/8''-16
-
171COLLAR 28.6mm ID x 44.45mm OD x 16mm W; Bearing Lock
-
181GUARD; Weld Assy.
-
182CARRIAGE BOLT Short Nk, 3/8'' - 16 x 1'', Gr 5; BOLT, CARRIAGE, Short NK, 3/8''-16 x 1'', G5
-
182BOLT Hex, 3/8'' - 16 x 7/8'', Gr 5, Full Thd; Screw, Cap, HH, G5, 3/8''-16 x 7/8''
-
184RONDELLE 0.44'' ID x 1'' OD x 0.08'' Thk;
-
184LOCK WASHER 3/8 0.381 CST ZND; WASHER, LOCK, 3/8''
-
182NUT 3/8'' - 16, Gr 5; G5, 3/8''-16
-
191CHAIN; Assy., Lower Roll Drive, RC 60, 90 Pitches
-
19ARLINK Chain, 19.05mm Pitch; Link, Chain, Roller, RC 60
-
19AROFFSET LINK; Link, Offset, RC 60
-
19ARCONNECTING LINK; Link, Connecting, Roller, RC 60, Spring Style
-
201CHAINE; Roller, RC 60, 52 Pitches, Upper Roll Drive
-
20ARLINK Chain, 19.05mm Pitch; Link, Chain, Roller, RC 60
-
20AROFFSET LINK; Link, Offset, RC 60
-
20ARCONNECTING LINK; Link, Connecting, Roller, RC 60, Spring Style
-
211HUB; & Sprocket Weld Assy.;Used on & ASN 360713
-
211WOODRUFF KEY #25, 5/16'' x 1 1/2'', HT;
-
221PLATE; Pole Mount Assy.
-
231EMBLEM; Slow Moving Decal
-
232SCREW Truss HD, #10 - 24 x 1/2'';
-
232NUT #10-24;
-
241WOODRUFF KEY #25, 5/16'' x 1 1/2'', HT;
Select All
Select
Ref.
1Qty
10Availability
Part #
88206Description
BOLT Hex, 3/8'' - 16 x 1'', Gr 5;Img
Alts
Select
Ref.
1Qty
10Availability
Part #
285072Description
WASHER 10.3mm ID x 22.2mm OD x 2.7mm Thk, HTS, ZND; (3/8'') M10 x 22.2 x 2.87 Thk, HTImg
Alts
Select
Ref.
1Qty
8Availability
Part #
9628503Description
NUT 3/8'' - 16, Gr 5; G5, 3/8''-16Img
Alts
Select
Ref.
2Qty
1Availability
Part #
216563Description
GEARBOX; Assy., 540 Rpm, Refer to Fig. 5 for Component BreakdownImg
Alts
Select
Ref.
2Qty
4Availability
Part #
87909Description
BOLT Hex, 1/2'' - 13 x 1'', Gr 5;Img
Alts
Select
Ref.
2Qty
4Availability
Part #
80700Description
WASHER 0.56'' ID x 1.38'' OD x 0.11'' Thk;Img
Alts
Select
Ref.
2Qty
4Availability
Part #
80679Description
LOCK WASHER 1/20.507 CST ZND; WASHER, LOCK, 1/2''Img
Alts
Select
Ref.
2Qty
1Availability
Part #
216579Description
INDICATOR; Gearbox Assy., 1000 Rpm, Refer to Fig. 5 for Component Breakdown;No Longer ServicedImg
Alts
Select
Ref.
2Qty
4Availability
Part #
87909Description
BOLT Hex, 1/2'' - 13 x 1'', Gr 5;Img
Alts
Select
Ref.
2Qty
4Availability
Part #
80700Description
WASHER 0.56'' ID x 1.38'' OD x 0.11'' Thk;Img
Alts
Select
Ref.
2Qty
4Availability
Part #
80679Description
LOCK WASHER 1/20.507 CST ZND; WASHER, LOCK, 1/2''Img
Alts
Select
Ref.
3Qty
1Availability
Part #
PLDescription
PROCURE LOCALLY; Collar, Refer to Fig. 5 for Component BreakdownImg
Alts
Select
Ref.
4Qty
ARAvailability
Part #
58630Description

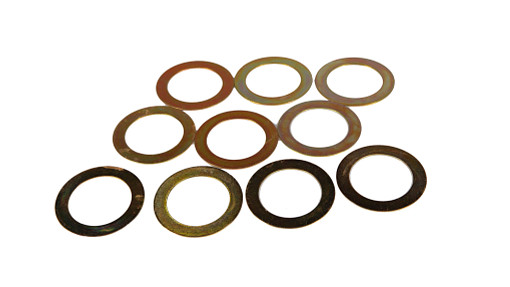

WASHER 1-13/32'' ID x 2.00'' OD x .0299'' Thk;Img
Alts
Select
Ref.
5Qty
1Availability
Part #
221127Description
HUB; Sheave;Used on & BSN 360712Img
Alts
Select
Ref.
5Qty
1Availability
Part #
87414Description
LUBE NIPPLE FITTING LUBE 1/4-28 SPCL TAP; Nipple, Lube, Straight, 1/4''-28Img
Alts
Select
Ref.
5Qty
1Availability
Part #
117997Description

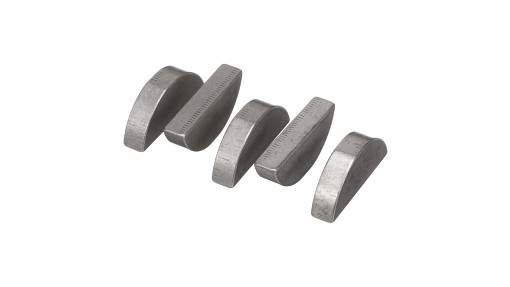

WOODRUFF KEY #25, 5/16'' x 1 1/2'', HT;Img
Alts
Select
Ref.
6Qty
1Availability
Part #
221126Description

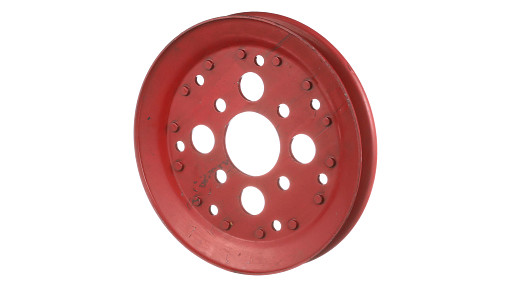

PULLEY 251.46mm OD; Sheave Assy.Img
Alts
Select
Ref.
6Qty
4Availability
Part #
87909Description
BOLT Hex, 1/2'' - 13 x 1'', Gr 5; Used on & BSN 360712Img
Alts
Select
Ref.
6Qty
4Availability
Part #
80679Description
LOCK WASHER 1/20.507 CST ZND; WASHER, LOCK, 1/2'';Used on & BSN 360712Img
Alts
Select
Ref.
6Qty
4Availability
Part #
87670Description
BOLT 1/2'' - 13 x 1-1/4'', Full Thd, Gr 5; Used on & ASN 360713Img
Alts
Select
Ref.
6Qty
4Availability
Part #
80700Description
WASHER 0.56'' ID x 1.38'' OD x 0.11'' Thk; Used on & ASN 360713Img
Alts
Select
Ref.
6Qty
4Availability
Part #
80679Description
LOCK WASHER 1/20.507 CST ZND; WASHER, LOCK, 1/2'';Used on & ASN 360713Img
Alts
Select
Ref.
6Qty
4Availability
Part #
280431Description
NUT 1/2''-13, G5; Used on & ASN 360713Img
Alts
Select
Ref.
7Qty
4Availability
Part #
29840Description
SPRING Compression, 11.91mm OD x 25.4mm L; Clutch;Used on & BSN 360712Img
Alts
Select
Ref.
8Qty
4Availability
Part #
29860Description
PIN 12.7mm OD x 35mm L; Clutch, 1/2'' x 1-3/8'';Used on & BSN 360712Img
Alts
Select
Ref.
9Qty
1Availability
Part #
217300Description
HOSE; Weld Assy., Includes: (2) Ref. 10;Used on & BSN 360712Img
Alts
Select
Ref.
9Qty
1Availability
Part #
87414Description
LUBE NIPPLE FITTING LUBE 1/4-28 SPCL TAP; Nipple, Lube, Straight, 1/4''-28Img
Alts
Select
Ref.
10Qty
2Availability
Part #
222939Description
BUSHING 35.13mm ID x 41.34mm OD x 19.05mm L; Used on & BSN 360712Img
Alts
Select
Ref.
13Qty
4Availability
Part #
87868Description
CARRIAGE BOLT Sq Nk, 1/2'' - 13 x 1 1/4'', Gr 5, Full Thd; Bolt, Carriage, G5, 1/2''-13 x 1-1/4''Img
Alts
Select
Ref.
13Qty
4Availability
Part #
80700Description
WASHER 0.56'' ID x 1.38'' OD x 0.11'' Thk;Img
Alts
Select
Ref.
13Qty
4Availability
Part #
80679Description
LOCK WASHER 1/20.507 CST ZND; WASHER, LOCK, 1/2''Img
Alts
Select
Ref.
15Qty
1Availability
Part #
45882Description

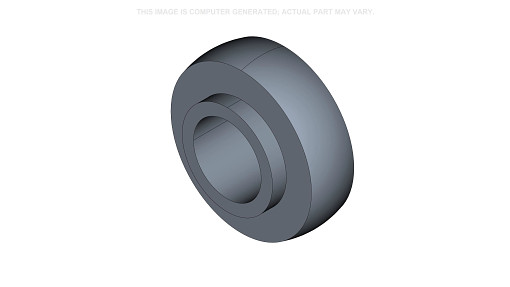

BALL BEARING 28.6mm ID x 62mm OD x 23.8mm W; Bearing, BallImg
Alts
Select
Ref.
16Qty
2Availability
Part #
182937Description
FLANGED BEARING 4'' OD x 0.4375''; FlangetteImg
Alts
Select
Ref.
16Qty
3Availability
Part #
88682Description
CARRIAGE BOLT Short Nk, 3/8'' - 16 x 1'', Gr 5; BOLT, CARRIAGE, Short NK, 3/8''-16 x 1'', G5Img
Alts
Select
Ref.
16Qty
3Availability
Part #
80680Description
LOCK WASHER 3/8 0.381 CST ZND; WASHER, LOCK, 3/8''Img
Alts
Select
Ref.
16Qty
3Availability
Part #
9628503Description
NUT 3/8'' - 16, Gr 5; G5, 3/8''-16Img
Alts
Select
Ref.
17Qty
1Availability
Part #
45876Description

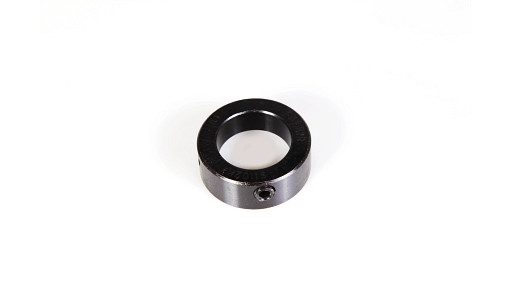

COLLAR 28.6mm ID x 44.45mm OD x 16mm W; Bearing LockImg
Alts
Select
Ref.
18Qty
2Availability
Part #
88682Description
CARRIAGE BOLT Short Nk, 3/8'' - 16 x 1'', Gr 5; BOLT, CARRIAGE, Short NK, 3/8''-16 x 1'', G5Img
Alts
Select
Ref.
18Qty
2Availability
Part #
280643Description
BOLT Hex, 3/8'' - 16 x 7/8'', Gr 5, Full Thd; Screw, Cap, HH, G5, 3/8''-16 x 7/8''Img
Alts
Select
Ref.
18Qty
4Availability
Part #
80702Description
RONDELLE 0.44'' ID x 1'' OD x 0.08'' Thk;Img
Alts
Select
Ref.
18Qty
4Availability
Part #
80680Description
LOCK WASHER 3/8 0.381 CST ZND; WASHER, LOCK, 3/8''Img
Alts
Select
Ref.
18Qty
2Availability
Part #
9628503Description
NUT 3/8'' - 16, Gr 5; G5, 3/8''-16Img
Alts
Select
Ref.
19Qty
1Availability
Part #
144466Description
CHAIN; Assy., Lower Roll Drive, RC 60, 90 PitchesImg
Alts
Select
Ref.
19Qty
ARAvailability
Part #
86595251Description
LINK Chain, 19.05mm Pitch; Link, Chain, Roller, RC 60Img
Alts
Select
Ref.
19Qty
ARAvailability
Part #
86595275Description

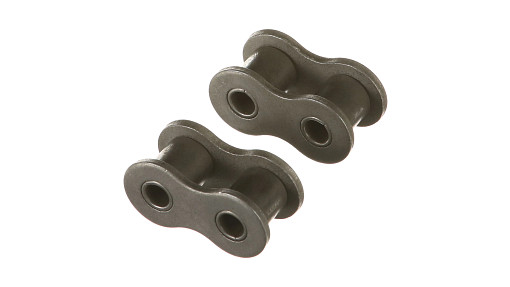

OFFSET LINK; Link, Offset, RC 60Img
