010 - FUEL TANK & FUEL LINES
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    6
    244358
    HOSE CLIP 0.44'' - 0.78''; Clamp, Hose, 22.5-9.5
  • 2
    1
    V6982
    INSERT; Barbed, 1/4''
  • 3
    1
    V108805
    INSERT; Barbed, 90? Male 3/8''
  • 4
    4
    9804261
    FLANGE BOLT Hex, M10 x 25mm, Full Thd, Cl 8.8; Flg Hd, CL 8.8, M10 x 1.5 x 25
  • 5
    4
    86512554
    LOCK NUT M10 x 1.5, Cl 10; Nut, Lock, CL10, M10 x 1.5
  • 6
    1
    9790280
    HOSE; Hose, SAE 30R6, 1120mm
  • 7
    1
    9790486
    HOSE; SAE 30R6, 1120mm
  • 8
    1
    V88258
    FUEL TANK; Tank Fuel
  • 9
    1
    V71610
    CAP; Filter, W/Breather
  • 10
    1
    V103664
    GUARD; Splash
  • 11
    5

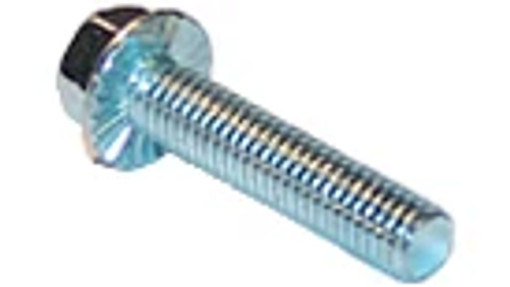

    86512167
    SERRATED BOLT Hex Flg, #10-24 x 1/2'', Serr; Screw, Flange,, HH, #10-24 UNC x .30
  • 12
    1
    V88216
    SENDER UNIT; Sender, Fuel Level
  • 13
    1
    V56020
    GASKET; Sender
  • 14
    1
    V100648
    ELBOW; 90? Street, 1/8''-27 PTF Brass
  • 15
    1
    V20396
    PLUG; 1/2''-14 NPT;Not Serviced
  • 16
    1

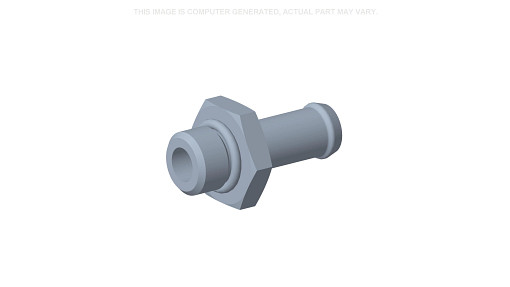

    9702356
    HYD CONNECTOR; Adapter, Male, W/O-Ring
  • 17
    1
    V84169
    CLIP; Clamp, 11.1 Dia.
  • 18
    1
    V22032
    CLIP; Clamp, 17.5 Dia.
  • 19
    1
    V43738
    SCREW; Cap, M6-1 x 16
  • 20
    1
    86511444
    FLANGE NUT Hex, M6 x 1;
  • 22
    4
    9804258
    FLANGE BOLT Hex, M8 x 1.25 x 20mm, Cl 8.8;
  • 23
    2

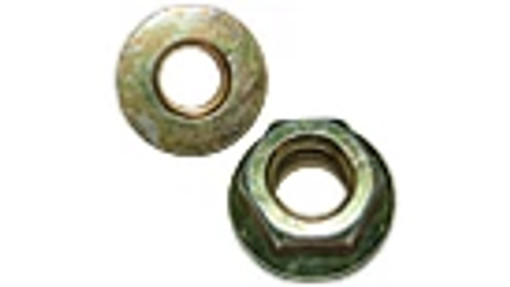

    86050303
    NUT; Lock, Flg, Prevailing Torque, CL 10, M8 x 1.25
  • 24
    1
    9702230
    BRACKET; Support
