FR9080 - FORAGE HARVESTER... 00 - GENERAL 00.00FR219[01] - MAINTENA...
00.00FR219[01] - MAINTENANCE PARTS, SPOUT - WEAR PLATES & DEFLECTOR
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    84462153
    WEAR PLATE; STANDARD SPOUT; (SN Break) Up to C549
  • 1
    1
    87629935
    WEAR PLATE; STANDARD SPOUT; (SN Break) Up to F550573
  • 1
    1
    87693538
    WEAR PLATE; STANDARD SPOUT; (SN Break) From D574
  • 1
    1
    84160317
    WEAR PLATE; PART OF DIA;FOR HEAVY DUTY ONLY;STANDARD SPOUT
  • 2
    1
    84462156
    WEAR PLATE; STANDARD SPOUT; (SN Break) Up to C549
  • 2
    1
    87628663
    WEAR PLATE; STANDARD SPOUT; (SN Break) Up to F550733
  • 2
    1
    84246330
    WEAR PLATE; STANDARD SPOUT; (SN Break) From D734
  • 3
    2
    84462031
    WEAR PLATE; STANDARD SPOUT; (SN Break) Up to C549
  • 3
    2
    87629322
    WEAR PLATE; STANDARD SPOUT; (SN Break) From D550
  • 4
    1
    87600493
    WEAR PLATE; SHORT SPOUT; (SN Break) Up to C573
  • 4
    1
    87693540
    WEAR PLATE; (SN Break) From D574
  • 4
    1
    84160311
    WEAR PLATE; FOR HEAVY DUTY ONLY;SHORT SPOUT;PART OF DIA
  • 5
    2
    87614162
    WEAR PLATE; SHORT SPOUT; (SN Break) Up to C597
  • 5
    2
    87484488
    WEAR PLATE; SHORT SPOUT; (SN Break) From D598
  • 6
    1
    84453824

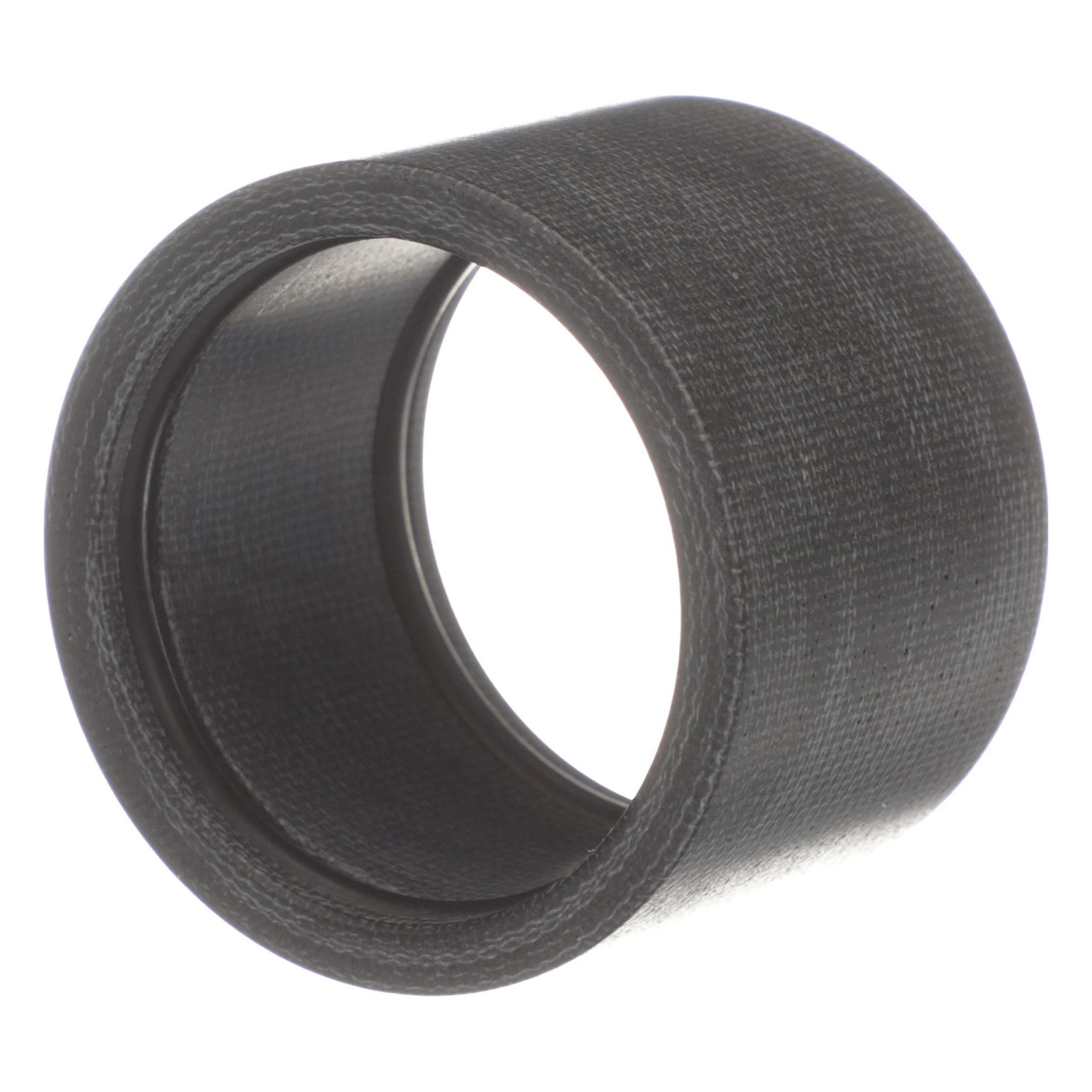

    SLEEVE 45.31mm ID x 55.19mm OD x 40mm L;
  • 7
    1
    84453026
    DEFLECTOR; FOR CORN ONLY; (SN Break) Up to C619
  • 7
    1
    84122034

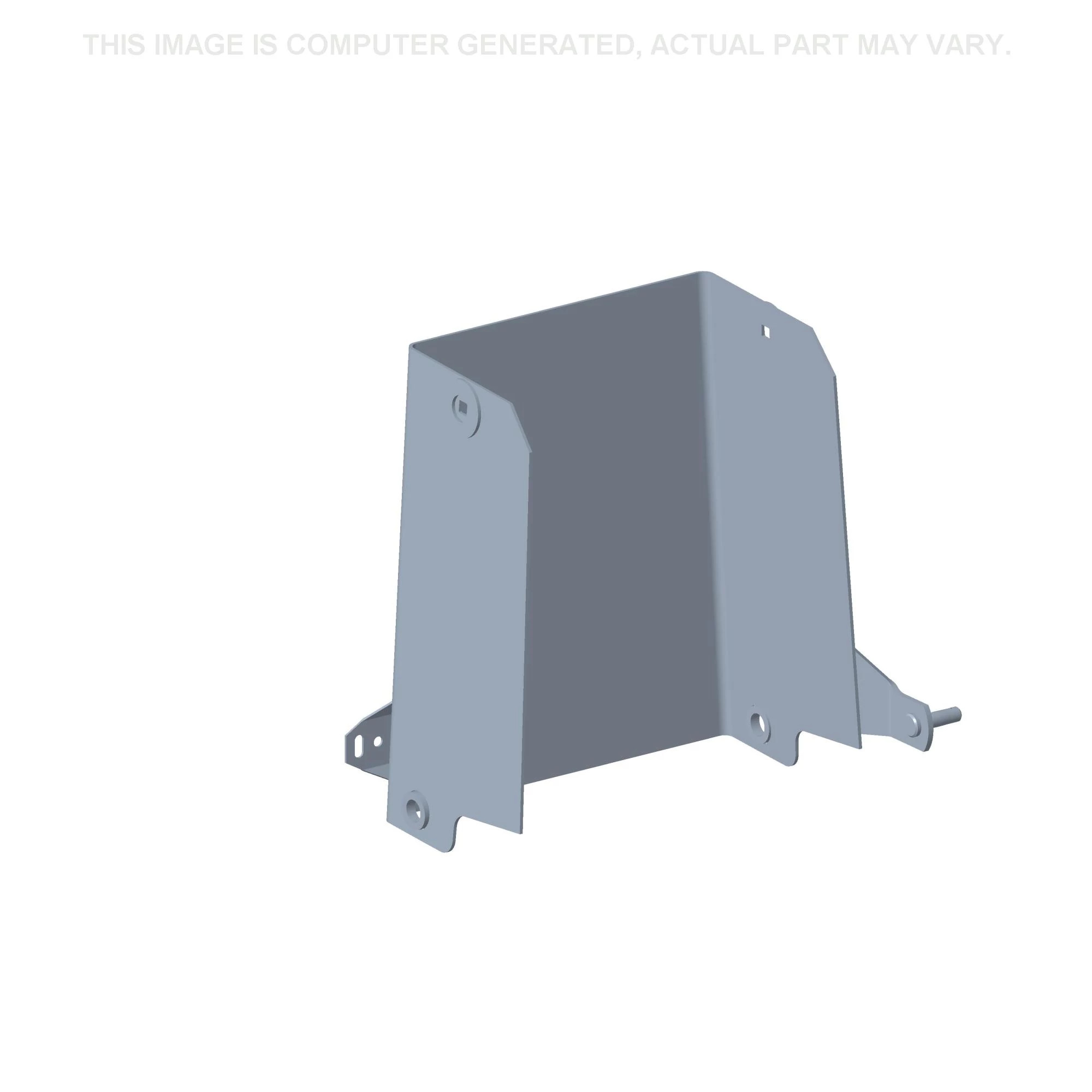

    DEFLECTOR; FOR CORN ONLY;FOR 50 YEARS UNITS, SPECIAL EDITION ONLY; (SN Break) From D620
  • 7
    1
    84452921
    DEFLECTOR; FOR GRASS ONLY; (SN Break) Up to C619
  • 7
    1
    84122206

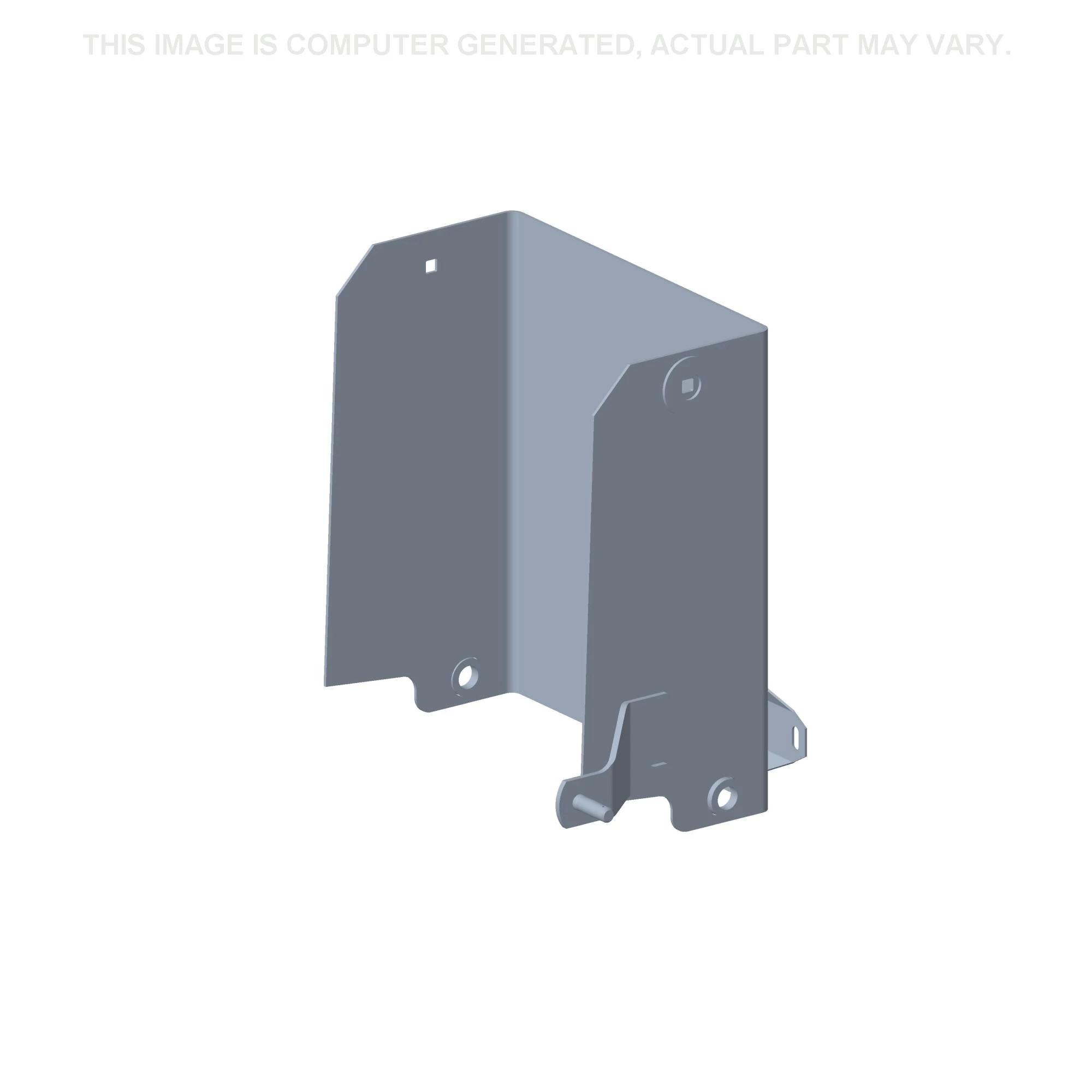

    DEFLECTOR; FOR GRASS ONLY; (SN Break) From D620
  • 7
    1
    84352228
    DEFLECTOR; FOR GRASS ONLY;FOR 50 YEARS UNITS, SPECIAL EDITION ONLY
  • 8
    1
    84453037
    DEFLECTOR; FOR CORN ONLY; (SN Break) Up to C619
  • 8
    1
    84122042

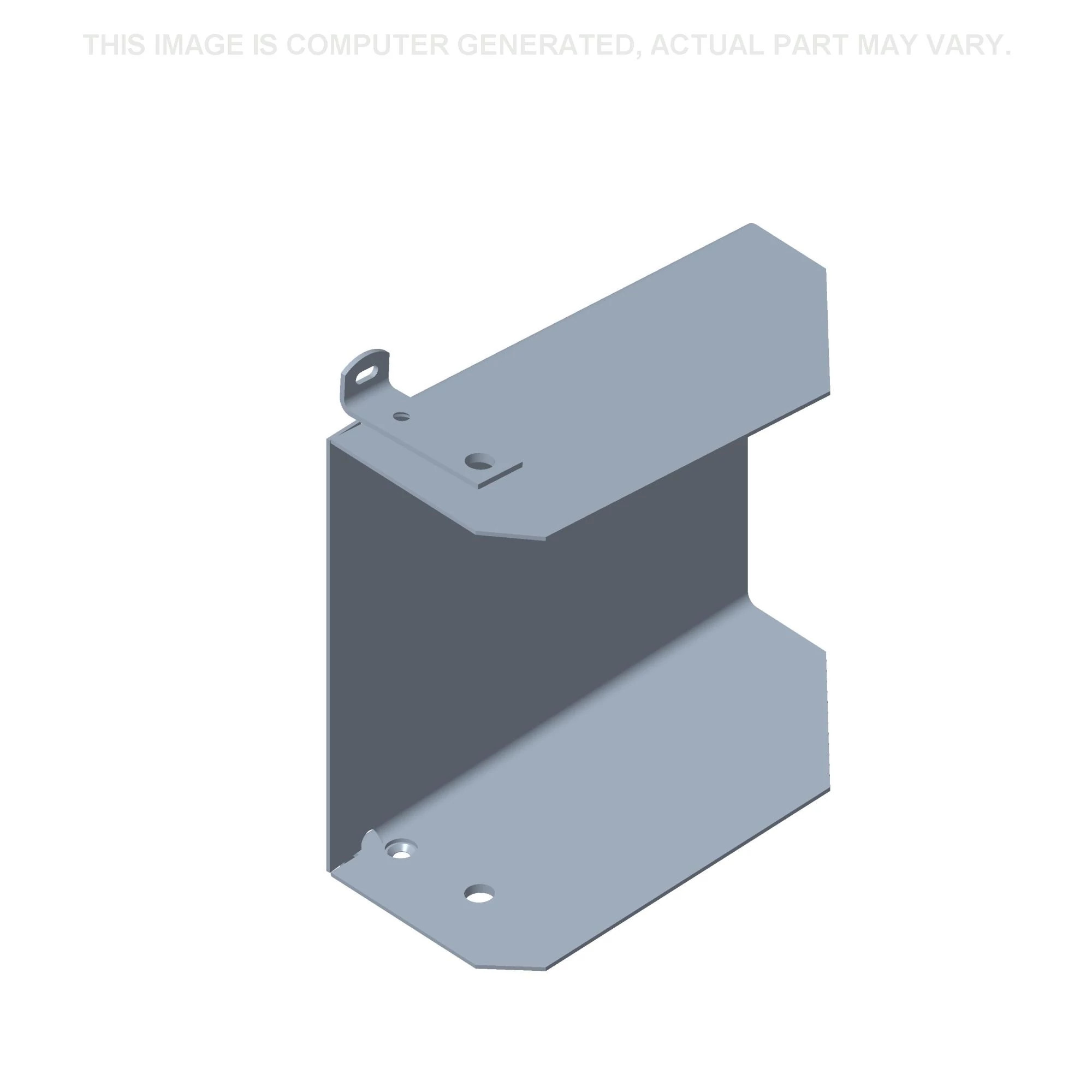

    DEFLECTOR; FOR CORN ONLY; (SN Break) From D620
  • 8
    1
    84352244

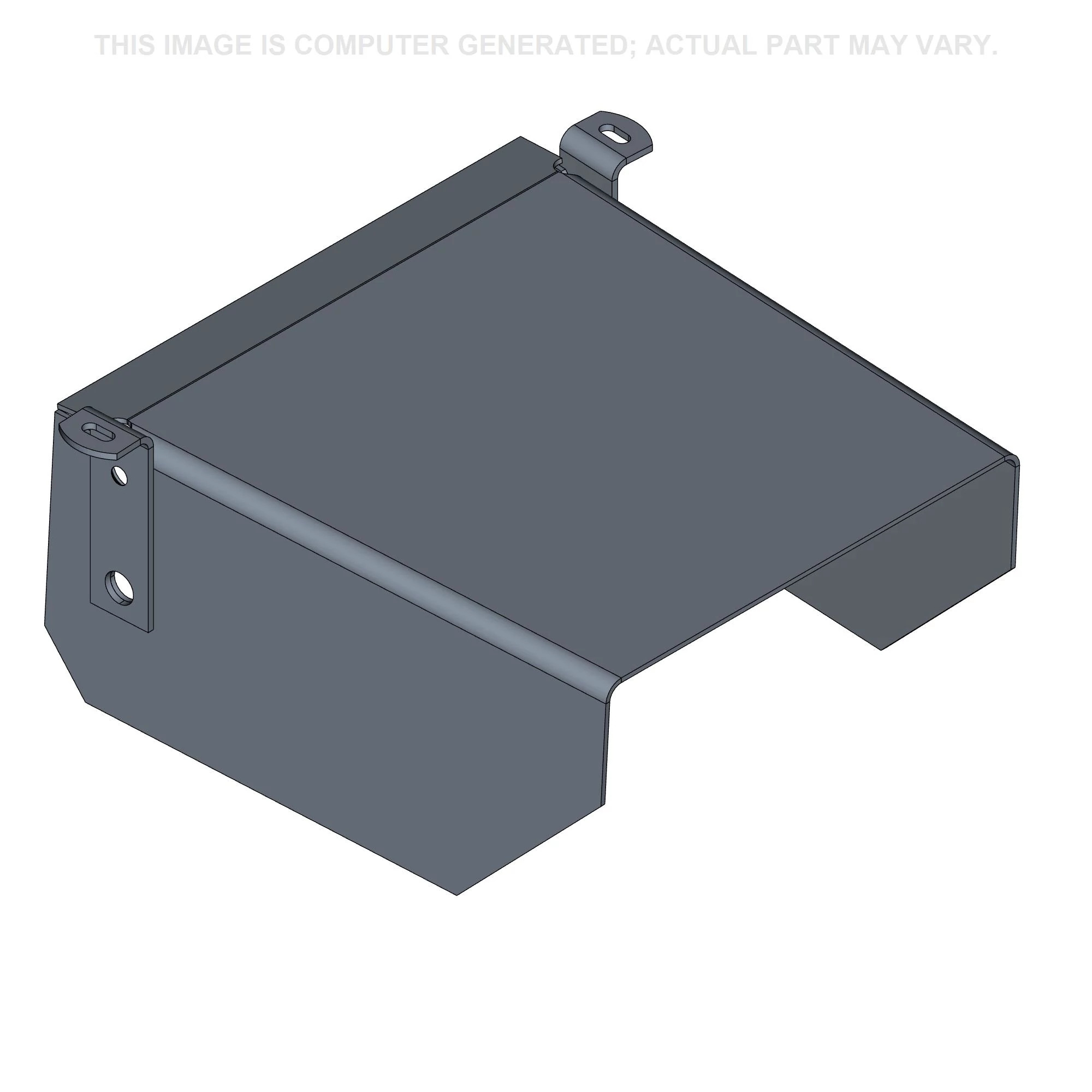

    DEFLECTOR; FOR CORN ONLY;FOR 50 YEARS UNITS, SPECIAL EDITION ONLY
  • 8
    1
    84452928
    DEFLECTOR; FOR GRASS ONLY; (SN Break) Up to C619
  • 8
    1
    84122208

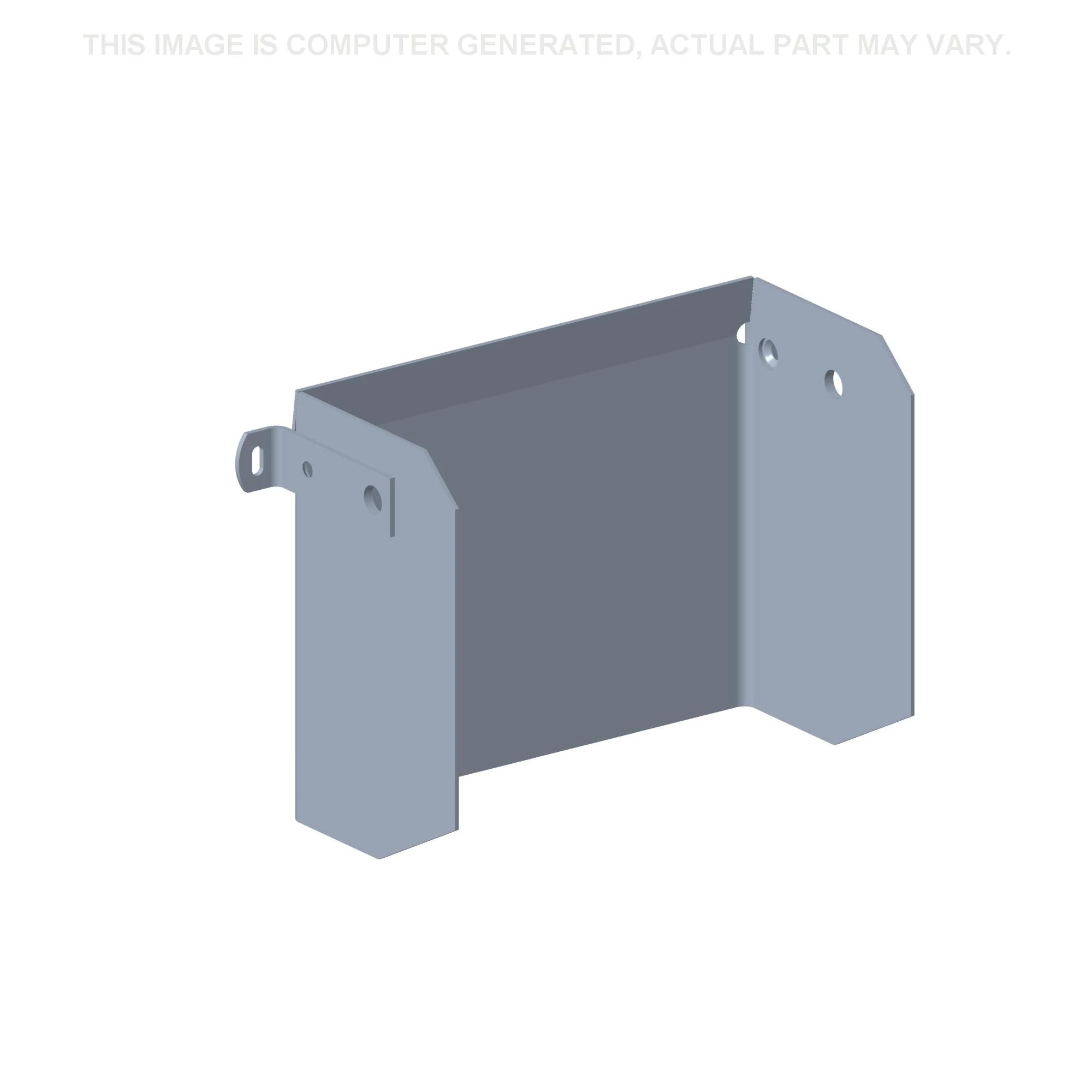

    DEFLECTOR; FOR GRASS ONLY; (SN Break) From D620
  • 8
    1
    84352227
    DEFLECTOR; FOR GRASS ONLY;FOR 50 YEARS UNITS, SPECIAL EDITION ONLY
  • 9
    2
    86516632

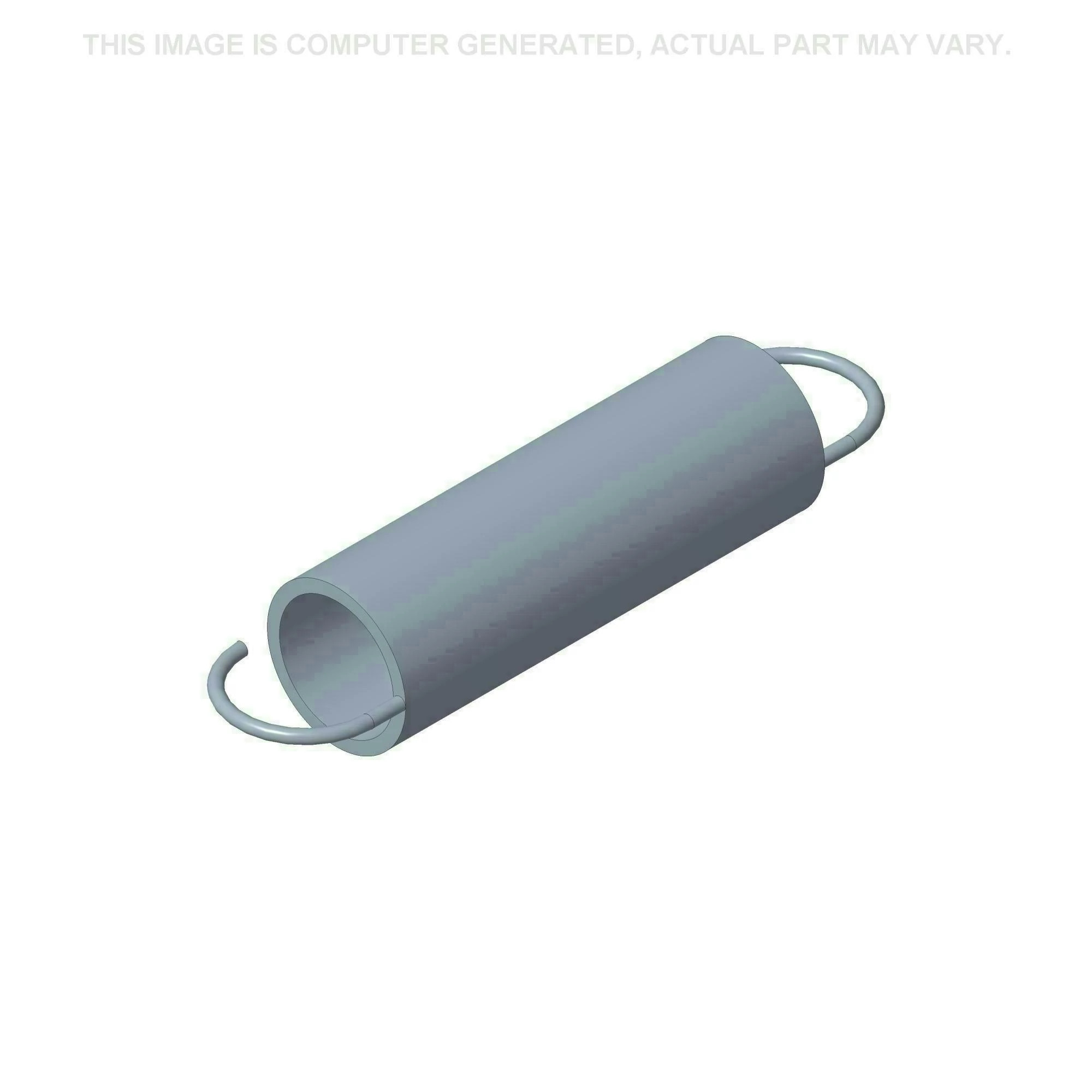

    SPRING Extension, 1-3/8'' OD x 6-9/16'' L; (SN Break) Up to C549
  • 9
    2
    9818115
    SPRING; (SN Break) From D550
  • 10
    12
    300383
    BOLT Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd, ZND;
  • 11
    12
    140045
    BELLEVILLE WASHER 10mm ID x 22mm OD x 1.6mm Thk;
  • 12
    10
    86507486
    CARRIAGE BOLT M8 x 1.25 x 20mm, Cl 8.8;
  • 13
    10
    322358
    BELLEVILLE WASHER M8 Bolt Size x 18mm OD x 1.4mm Thk;
  • 14
    10
    9706690
    NUT Hex, M8 x 1.25, Cl 8, ZND;
  • 15
    2
    84452842
    BEARING HOUSING;
  • 16
    1
    84285959
    SPOUT EXTENTION KIT; WEAR PLATES;FOR HEAVY DUTY ONLY;STANDARD SPOUT
  • 16
    1
    84285960
    SPOUT EXTENTION KIT; WEAR PLATES;FOR HEAVY DUTY ONLY;SHORT SPOUT
  • 16
    1
    84111171

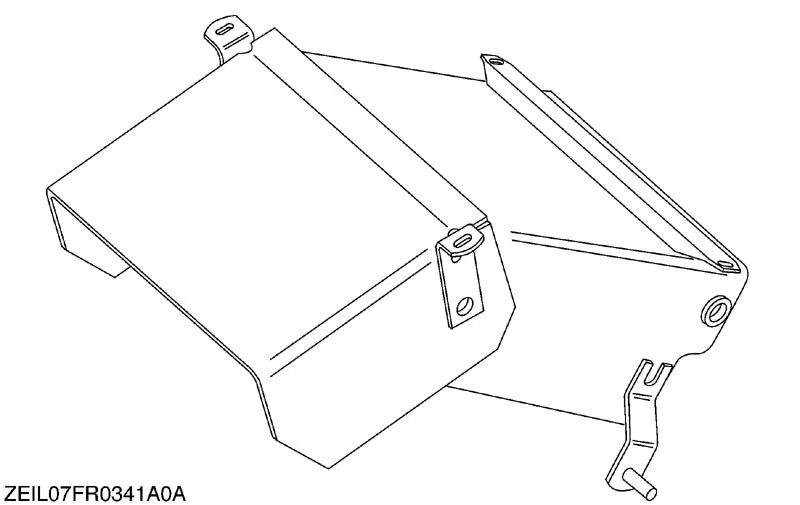

    DIA KIT, HARVESTER; SPOUT DEFLECTOR - GRASS
  • 16
    1
    84111172

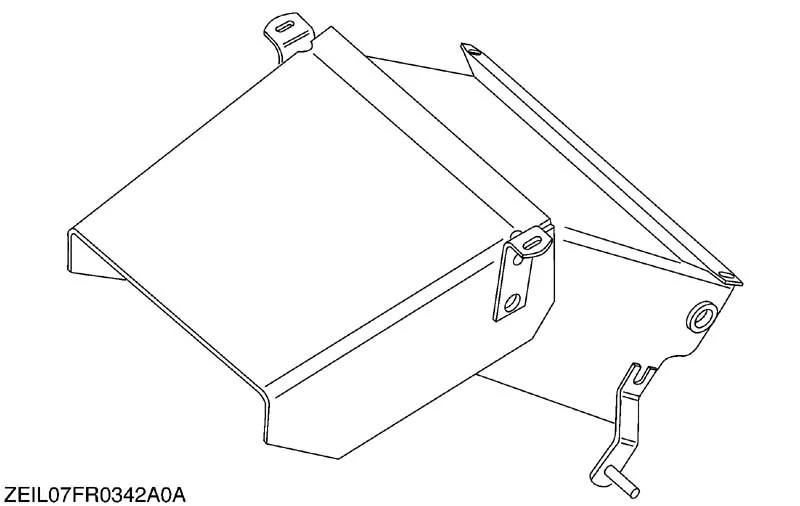

    DIA KIT, HARVESTER; SPOUT DEFLECTOR - MAIZE
  • 16
    1
    87694958
    DIA KIT, HARVESTER; SPOUT EXTENSION KIT
  • 16
    1
    84546148
    DIA KIT, HARVESTER; CARBID WEAR LINER KIT - SHORT SPOUT
  • 16
    1
    84546147
    DIA KIT, HARVESTER; CARBID WEAR LINER KIT - STANDARD SPOUT
