026 - CYLINDER, CRANKSHAFT, & PISTON PARTS
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    BS395989
    CYLINDER; Assy., Except 0862,130202,130292
  • 1
    1
    BS391979
    CYLINDER; Assy., Except 0862, 1062,130202,130292
  • 1
    1
    BS395990
    HYDRAULIC CYLINDER; Cylinder Assy., 1672, 3037-1862, 3039, 3143,130202,130292
  • 1
    1
    BS395994
    HYDRAULIC CYLINDER; Cylinder Assy., 1636, 1894, 2199, Includes: Cylinder & Ref. 2 thru 8 130202,130292
  • 2
    1
    BS231079
    BUSHING; Governor Crank, 1/4'' ID,130202,130292
  • 3
    1
    BS211117
    GEAR; Cam,130202
  • 3
    1
    BS212733
    GEAR; Cam, 1672, 3037, 2199, 3143,130202
  • 3
    1
    BS211284
    GEAR; Cam,130292
  • 4
    1
    BS391737
    GEAR; Governor,130202,130292
  • 5
    1
    BS221551
    WASHER; 7/32 ID x 11/16 OD,130202,130292
  • 6
    2
    BS260642
    TAPPET; Valve, Tappet,130202,130292
  • 7
    1
    BS397085C
    CRANKSHAFT; Except 0862,130202,130292
  • 7
    1
    BS492088
    CRANKSHAFT; 1672, 3037-1862,3039,3143,130202,130292
  • 7
    1
    BS397096
    CRANKSHAFT; 1894, 2199, 0862, 1062,130202,130292
  • 7A
    1
    BS261696
    GEAR; Timing, 1672, 3037-1862, 1894, 3039, 2199, 3413,130202,130292
  • 7A
    1
    BS261696
    GEAR; Timing, 1636,130202
  • 1
    BS230978
    PIN; Timing Gear Crankshaft,130202,130292
  • 8
    1
    BS91539
    KEY; Square,130202,130292
  • 9
    1
    BS299430
    ROD; Assy., Includes: Rod & Ref. 10 thru 13,130202,130292
  • 10
    1
    BS221890
    SPARE PART; Dipper, Connecting Rod,130202,130292
  • 11
    1
    BS221876
    BRACKET; Locking,130202,130292
  • 11A
    1
    BS222282
    LOCK; Washer, 1636,130292
  • 12
    1
    BS92296
    SCREW; 1/4-28 x 1-5/32,130202,130292
  • 13
    1
    BS298904
    PISTON ASSY; ., Standard,130202,130292
  • 13
    1
    BS298905
    PISTON ASSY; ., OS, .010'',130202,130292
  • 13
    1
    BS298906
    PISTON; Assy., OS, .020'',130202,130292
  • 13
    1
    BS298907
    PISTON ASSY; ., OS, .030'',Includes: Piston & Ref. 14 thru 16 130202,130292
  • 14
    1
    BS298982
    SET,PISTON RINGS+0.4; Ring Set, Standard, 130202,130292
  • 14
    1
    BS298983
    SET,PISTON RINGS+0.4; Ring Set, OS, .010'',130202,130292
  • 14
    1
    BS298984
    SET, PISTON RINGS; Ring Set, OS, .020'',130202,130292
  • 14
    1
    BS298985
    SET PISTON RINGS+0.8; Ring Set, OS, .030'',130202,130292
  • 14
    1
    BS299742
    SET,PISTON RINGS+0.4; Ring Set, Standard, Chrome,130202
  • 15
    1
    BS26026
    LOCK; Pin, Piston,130202,130292
  • 16
    1
    BS298909
    PIN; Assy., Piston, Standard,130202,130292
  • 16
    1
    BS298908
    PISTON PIN +0.5; Pin Assy., Piston, OS, .005'', Includes: Pin & Ref. 17 thru 32 130202,130292
  • 2
    BS26026
    LOCK; Pin, Piston,130202,130292
  • 17
    1
    BS221511
    SHIELD; Cylinder, Except 0862,130202,130292
  • 17
    1
    BS223110
    SHIELD; Cylinder, 0862,130202
  • 17
    1
    BS223110
    SHIELD; Cylinder, 1062, 1636, 1894, 2199,130202,130292
  • 18
    1
    BS93042
    SCREW; Hex, Shield Mounting, #8-32 x 7/16,130202,130292
  • 18
    1
    BS93490
    SCREW; Shield Mounting, 3037, 3039, 2199,130202,130292
  • 18
    1
    BS93158
    SCREW; Shield Mounting, 3143,130202
  • 19
    AR
    BS63709
    GUIDE; Exhaust Valve or Intake on 3037, 1894, 3039,130202,130292
  • 19
    1
    BS63709
    GUIDE; Intake, 2199, 3143,130202
  • 19A
    1
    BS231348
    GUIDE; Exhaust Valve, 3037, 3039, 3143,130202,130292
  • 19A
    1
    BS262001
    GUIDE; Exhaust Valve, 1894, 2199,130202,130292
  • 20
    1
    BS211172
    VALVE SEAT; Seat, Exhaust Valve,130202,130292
  • 21
    1
    BS211787
    VALVE SEAT; Seat, Intake Valve,130202,130292
  • 22
    1
    BS211119
    STD EXHAUST VALVE; Valve, Exhaust,130202,130292
  • 23
    1
    BS261044
    OVERSIZE INLET VALVE; Valve, Intake,130202,130292
  • 24
    1
    BS260552
    SPRING; Intake Valve,130202,130292
  • 25
    1
    BS26478
    SPRING; Exhaust,130202,130292
  • 26
    2
    BS93312
    RETAINER; Valve Spring,130202,130292
  • 27
    1
    BS93708
    CLIP; Retainer, Ground Wire Lead to Cylinder Rib 0862, 1062,130202,130292
  • 28
    1
    BS272157C
    GASKET; Cylinder Head,130202,130292;Included in Gasket Kit, BS-397145
  • 29
    1
    BS211542
    CYLINDER HEAD; Head, Cylinder,130202,130292
  • 30
    1
    BS221512
    COVER; Cylinder,130202,130292
  • 31
    1
    BS220884
    SWITCH; Stop, 0015, 1672,130202
  • 32
    AR
    BS94679
    SCREW Hex Cyl Hd, 5/16'' - 18 x 2 15/32''; Hex, Cylinder Hd, 5/16-18 x 2-15/13'' 130202,130292
  • 33
    AR
    BS93368
    SCREW; Cylinder Hd, 2-3/32 Long,130202,130292
  • 34
    1
    86548826
    SPARK PLUG; Plug, Spark, Resistor Type,130202,130292
  • 34
    1
    86523938
    SPARK PLUG; Plug, Spark, Resistor Type, 1636, 1894, 3143 130202,130292
  • 35
    1
    BS66538
    ELBOW; Plug, Spark, Elbow, 0862, 1062, 2199,130202,130292
  • 36
    1
    BS231077
    CRANK; Governor,130202,130292
  • 37
    1
    BS93307
    RETAINER; ''E''-Ring,130202,130292
  • 38
    1
    86508425
    WASHER; Governor Lever, 1/4'' ID,130202,130292
  • 39
    1
    BS93306
    PIN; Cotter,130202,130292
  • 40
    1
    BS230749
    SPACER; Governor Crank,130202,130292
  • 41
    1
    80775
    DRAIN PLUG 1/4'' - 18 NPT; Plug, Pipe, Square Hd, Standard, 1/4''0862, 1062, 1636, 1894, 2199, 3143,130202,130292
  • 41
    1
    BS93448
    PLUG; Pipe, Hex Socket, 0015, 0895, 1672, 1862, 3039 130202,130292
  • 42
    1
    BS490374
    LEVER; Assy., Governor,130202,130292
  • 42
    1
    BS490374
    LEVER; Assy., Governor, 3037, 3039, 3143 Included: Lever & Ref. 43 & 44,130202,130292
  • 43
    1
    BS92613
    BOLT; Governor Lever,130202,130292

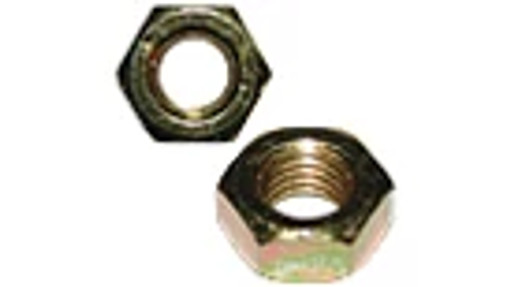

  • 44
    1
    87304
    NUT #10-24; 130202, 130292 #10-24
  • 45
    1
    280299
    WASHER 0.19'' ID x 0.44'' OD x 0.05'' Thk; Governor Lever, 130202,130292 #8, 3/16'' x 3/8'' x .05'' Thk
  • 46
    1
    BS260661
    CONNECTING LINK; Link, Governor, Prior to Code 80052900,130202,130292
  • 46
    1
    BS261558
    LINK; Governor, After Code 80052900 1062, 1672, 1636, 1862, 1894, 2199,130202,130292
  • 46
    1
    BS262280
    CONNECTING LINK; Link, Governor, 3037, 3039, 3143,130202,130292
  • 47
    1
    BS260478
    SPRING; Governor Link,130202,130292
  • 48
    1
    BS297602
    COVER; Assy., Crankcase,130202
  • 48
    1
    BS298183
    COVER; Assy., Included: Cover & Ref. 49 thru 51,130292
  • 49
    1
    BS270080
    GASKET; Standard, .015'' Thick,130202,130292;Included in Gasket Kit, BS-397145
  • 49
    1
    BS270125
    GASKET; .005'' Thick,130202,130292;Included in Gasket Kit, BS-397145
  • 49
    1
    BS270126
    GASKET; .009'' Thick,130202,130292;Included in Gasket Kit, BS-397145
  • 50
    1
    270107
    WIPER SEAL; Seal, Oil,130202,130292
  • 50
    1
    BS391484
    SEAL PROTECTION; Seal, Oil, Auxiliary PTO Shaft,130292
  • 51
    1
    BS66768
    PLUG; Oil Filler,130202,130292
  • 52
    AR
    87716
    BOLT 1/4''-20 x 1-1/4'', Cl 5; HH, G5, 1/4''-20 x 1-1/4'', Crankcase Cover Mounting, 130202,130292
  • 52
    AR
    BS94682
    SCREW 1/4'' - 20 x 1 1/4''; Crankcase Cover Mounting, 2199, 3143,130202
  • 53
    1
    BS297603
    BUSHING; Crankcase Cover, Includes: Ref. 50, Oil Seal 130202,130292
  • 1
    BS397145
    GASKET; Kit, Includes: Gaskets below 130202,130292;Included in Gasket Kit, BS-397145
  • 1
    BS272157C
    GASKET; Cylinder Hd,130202,130292
  • 1
    BS270080
    GASKET; Cylinder Hd, .015'',130202,130292
  • 1
    BS270125
    GASKET; Crankcase Cover, .005'',130202,130292
  • 1
    BS270126
    GASKET; Crankcase Cover, .009'', 130202,130292
  • 1
    BS27549
    GASKET; Valve Cover,130202,130292
  • 1
    BS27355
    GASKET; Carburetor Mounting,130202,130292
  • 1
    BS272409C
    GASKET; Fuel Tank Mounting,130202,130292
  • 54
    1
    BS398838
    GROUND CABLE; Wire, Ground, 1894,130292
  • 54
    1
    BS398808
    RETAINING WIRE; Wire, Ground, 3037, 3039, 2199, 3143,130292
  • 54
    1
    BS298693
    GROUND CABLE; Wire, Ground, 1636,130292
