010 - UPRIGHT ASSEMBLIES - 13-56,13-57,13-58,13-59,13-65,13-66,13-73,13-76,13-77,13-84,13-106,13-134,13-135,13-136,13-142,13-143,13-182,13-183,13-184,13-185,13-239,13-240
TABLE OF CONTENTS
DIAGRAM
PART LIST
ALLE LÖSCHEN
Seriennummerfenster
Erstellungsdatum
Alle auswählen
Ref.
Menge
Teilenummer
Alts
Beschreibung
  • 1
    8
    103658
    AUFHÄNGUNG; Gang Support, Models 13-56, 13-58, 13-66, 13-77, 13-135, 13-143, 13-185 & 13-239, No Longer Serviced
  • 1
    4
    103658
    AUFHÄNGUNG; Gang Support, Models 13-57, 13-59, 13-65, 13-76, 13-106, 13-134, 13-142, 13-182, 13-183 & 13-240, No Longer Serviced
  • 1
    6
    103658
    AUFHÄNGUNG; Gang Support, Models 13-73, 13-84, 13-136 & 13-184, No Longer Serviced
  • 2
    8
    131605
    RADSCHRAUBE; U-Bolt, 3/4''-10, Hanger to Tool Bar, Models 13-56, 13-58, 13-66, 13-77, 13-135, 13-143, 13-185 & 13-239
  • 2
    4
    131605
    RADSCHRAUBE; U-Bolt, 3/4''-10, Hanger to Tool Bar, Models 13-57, 13-59, 13-65, 13-76, 13-106, 13-134, 13-142, 13-182, 13-183 & 13-240
  • 2
    6
    131605
    RADSCHRAUBE; U-Bolt, 3/4''-10, Hanger to Tool Bar, Models 13-73, 13-84, 13-136 & 13-184
  • 2
    8
    NLS
    NO LONGER SERVICED; 3/4''-10, Hanger to Tool Bar, Model 13-239 Only, No Longer Serviced
  • 2
    4
    107310
    U-SCHRAUBE; 3/4''-10, Hanger to Tool Bar, Model 13-240 Only, No Longer Serviced
  • 3
    16
    87340
    SICHERUNGSSCHEIBE Helical Spring, 0.759'' ID, CST, ZND; WASHER, LOCK, 3/4'', Hanger to Tool Bar, Models 13-56, 13-58, 13-66, 13-77, 13-135, 13-143, 13-185 & 13-239, Replaces 34813S7 & 34813S36
  • 3
    8
    87340
    LOCK WASHER Helical Spring, 0.759'' ID, CST, ZND; WASHER, LOCK, 3/4'', Hanger to Tool Bar, Models 13-57, 13-59, 13-65, 13-76, 13-106, 13-134, 13-142, 13-182, 13-183 & 13-240, Replaces 34813S7 & 34813S36
  • 3
    12
    87340
    LOCK WASHER Helical Spring, 0.759'' ID, CST, ZND; WASHER, LOCK, 3/4'', Hanger to Tool Bar, Models 13-73, 13-84, 13-136 & 13-184, Replaces 34813S7 & 34813S36

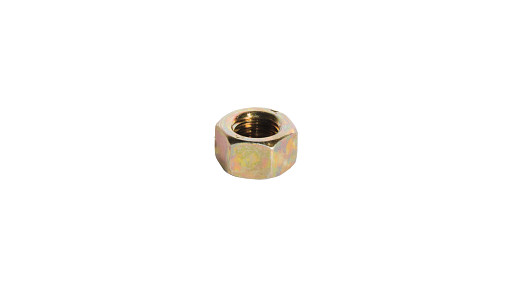

  • 4
    16
    280954
    NUT 3/4'' - 10, Gr 5; G5, 3/4''-10, Hanger to Tool Bar, Models 13-56, 13-58, 13-66, 13-77, 13-135, 13-143, 13-185 & 13-239, Replaces 34674S8 & 34674S36
  • 4
    8
    280954
    NUT 3/4'' - 10, Gr 5; G5, 3/4''-10, Hanger to Tool Bar, Models 13-57, 13-59, 13-65, 13-76, 13-106, 13-134, 13-142, 13-182, 13-183 & 13-240, Replaces 34674S8 & 34674S36
  • 4
    12
    280954
    NUT 3/4'' - 10, Gr 5; G5, 3/4''-10, Hanger to Tool Bar, Models 13-73, 13-84, 13-136 & 13-184, Replaces 34674S8 & 34674S36
  • 5
    8
    131618
    BUSHING; Bearing, Hanger to Rockershaft, Models 13-56, 13-58, 13-66, 13-77, 13-135, 13-143, 13-185 & 13-239, No Longer Serviced
  • 5
    4
    131618
    BUSHING; Bearing, Hanger to Rockershaft, Models 13-57, 13-59, 13-65, 13-76, 13-106, 13-134, 13-142, 13-182, 13-183 & 13-240, No Longer Serviced
  • 5
    6
    131618
    BUSHING; Bearing, Hanger to Rockershaft, Models 13-73, 13-84, 13-136 & 13-184, No Longer Serviced
  • 6
    7
    133387
    SPARE PART; Link Weld Assy., Upper, Models 13-56, 13-58, 13-66, 13-77, 13-135, 13-143, 13-185 & 13-239, No Longer Serviced
  • 6
    3
    133387
    PIECE DETACHEE; Link Weld Assy., Upper, Models 13-57, 13-59, 13-65, 13-76, 13-106, 13-134, 13-142, 13-182, 13-183 & 13-240, No Longer Serviced
  • 6
    5
    133387
    PIECE DETACHEE; Link Weld Assy., Upper, Models 13-73, 13-84, 13-136 & 13-184, No Longer Serviced
  • 7
    1
    133392
    COMMANDE; Link Weld Assy., Upper Offset, All Models, No Longer Serviced
  • 9
    8
    88693
    VIS Hex, 5/8'' - 11 x 2-3/4'', Gr 5; Screw, Cap, HH, G5, 5/8''-11 x 2-3/4'', Links to Uprights, Models 13-56, 13-58, 13-66, 13-77, 13-135, 13-143, 13-185 & 13-239, No Longer Serviced
  • 9
    4
    88693
    SCHRAUBE Hex, 5/8'' - 11 x 2-3/4'', Gr 5; Screw, Cap, HH, G5, 5/8''-11 x 2-3/4'', Links to Uprights, Models 13-57, 13-59, 13-65, 13-76, 13-106, 13-134, 13-142, 13-182, 13-183 & 13-240, No Longer Serviced
  • 9
    6
    88693
    SCHRAUBE Hex, 5/8'' - 11 x 2-3/4'', Gr 5; Screw, Cap, HH, G5, 5/8''-11 x 2-3/4'', Links to Uprights, Models 13-73, 13-84, 13-136 & 13-184, No Longer Serviced
  • 10
    8
    131684
    DISTANZSTÜCK; .656'' ID x 1.12'' OD x 1.03'', Links to Uprights, Models 13-56, 13-58, 13-66, 13-77, 13-135, 13-143, 13-185 & 13-239, No Longer Serviced
  • 10
    4
    131684
    DISTANZSTÜCK; .656'' ID x 1.12'' OD x 1.03'', Links to Uprights, Models 13-57, 13-59, 13-65, 13-76, 13-106, 13-134, 13-142, 13-182, 13-183 & 13-240, No Longer Serviced
  • 10
    6
    131684
    DISTANZSTÜCK; .656'' ID x 1.12'' OD x 1.03'', Links to Uprights, Models 13-73, 13-84, 13-136 & 13-184, No Longer Serviced
  • 11
    16
    87365
    UNTERLEGSCHEIBE 0.66'' ID x 1.31'' OD x 0.1'' Thk; SAE, 5/8'', Links to Uprights, Models 13-56, 13-58, 13-66, 13-77, 13-135, 13-143, 13-185 & 13-239, Replaces 44742S8
  • 11
    8
    87365
    UNTERLEGSCHEIBE 0.66'' ID x 1.31'' OD x 0.1'' Thk; SAE, 5/8'', Links to Uprights, Models 13-57, 13-59, 13-65, 13-76, 13-106, 13-134, 13-142, 13-182, 13-183 & 13-240, Replaces 44742S8
  • 11
    12
    87365
    UNTERLEGSCHEIBE 0.66'' ID x 1.31'' OD x 0.1'' Thk; SAE, 5/8'', Links to Uprights, Models 13-73, 13-84, 13-136 & 13-184, Replaces 44742S8
  • 12
    8
    86729275
    SICHERUNGSSCHEIBE 5/8'' ID x 0.634'' OD x .156'' Thk CST ZND; Washer, Lock, , Links to Uprights, Models 13-56, 13-58, 13-66, 13-77, 13-135, 13-143, 13-185 & 13-239 5/8''
  • 12
    4
    86729275
    SICHERUNGSSCHEIBE 5/8'' ID x 0.634'' OD x .156'' Thk CST ZND; Washer, Lock, , Links to Uprights, Models 13-57, 13-59, 13-65, 13-76, 13-106, 13-134, 13-142, 13-182, 13-183 & 13-240 5/8''
  • 12
    6
    86729275
    SICHERUNGSSCHEIBE 5/8'' ID x 0.634'' OD x .156'' Thk CST ZND; Washer, Lock, , Links to Uprights, Models 13-73, 13-84, 13-136 & 13-184 5/8''
  • 13
    8
    280374
    MUTTER Hex, 5/8'' - 11, Gr 5; G5, 5/8''-11, Links to Uprights, Models 13-56, 13-58, 13-66, 13-77, 13-135, 13-143, 13-185 & 13-239
  • 13
    4
    280374
    NUT Hex, 5/8'' - 11, Gr 5; G5, 5/8''-11, Links to Uprights, Models 13-57, 13-59, 13-65, 13-76, 13-106, 13-134, 13-142, 13-182, 13-183 & 13-240
  • 13
    6
    280374
    NUT Hex, 5/8'' - 11, Gr 5; G5, 5/8''-11, Links to Uprights, Models 13-73, 13-84, 13-136 & 13-184
  • 14
    8
    130142
    CHAIN; Roller, RC 100, 58 Pitches, Lower, Model 13-239 Only
  • 14
    4
    130142
    CHAIN; Roller, RC 100, 58 Pitches, Lower, Model 13-240 Only
  • 15
    16
    NLS
    NO LONGER SERVICED; Bolt, Special, 7/8''-14 x 2-5/16'', Links to Hanger & Uprights, Models 13-56, 13-58, 13-66, 13-77, 13-135, 13-143, 13-185 & 13-239, No Longer Serviced
  • 15
    8
    NLS
    NO LONGER SERVICED; Bolt, Special, 7/8''-14 x 2-5/16'', Links to Hanger & Uprights, Models 13-57, 13-59, 13-65, 13-76, 13-106, 13-134, 13-142, 13-182, 13-183 & 13-240, No Longer Serviced
  • 15
    12
    NLS
    NO LONGER SERVICED; Bolt, Special, 7/8''-14 x 2-5/16'', Links to Hanger & Uprights, Models 13-73, 13-84, 13-136 & 13-184, No Longer Serviced

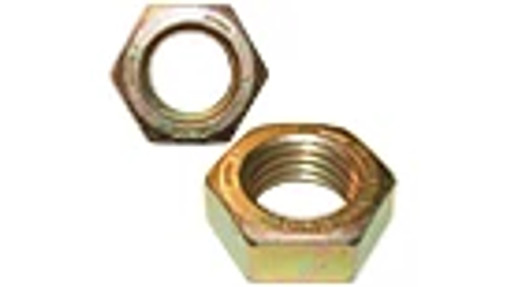

  • 16
    16
    87315
    JAM NUT Jam, 7/8''-14, G2; Jam, G2, 7/8''-14, Links to Hanger & Uprights, Models 13-56, 13-58, 13-66, 13-77, 13-135, 13-143, 13-185 & 13-239
  • 16
    8
    87315
    JAM NUT Jam, 7/8''-14, G2; Jam, G2, 7/8''-14, Links to Hanger & Uprights, Models 13-57, 13-59, 13-65, 13-76, 13-106, 13-134, 13-142, 13-182, 13-183 & 13-240
  • 16
    12
    87315
    JAM NUT Jam, 7/8''-14, G2; Jam, G2, 7/8''-14, Links to Hanger & Uprights, Models 13-73, 13-84, 13-136 & 13-184
  • 17
    15
    80710
    LUBE NIPPLE 1/8'' - 27 Dryseal PTF; NIPPLE, LUBE, , Links to Hanger & Uprights, Models 13-56, 13-58, 13-66, 13-77, 13-135, 13-143, 13-185 & 13-239, Replaces 87901S8 1/8''-27 x .66 lg
  • 17
    7
    80710
    BOQUILLA DE LUBRICAC 1/8'' - 27 Dryseal PTF; NIPPLE, LUBE, , Links to Hanger & Uprights, Models 13-57, 13-59, 13-65, 13-76, 13-106, 13-134, 13-142, 13-182, 13-183 & 13-240, Replaces 87901S8 1/8''-27 x .66 lg
  • 17
    11
    80710
    BOQUILLA DE LUBRICAC 1/8'' - 27 Dryseal PTF; NIPPLE, LUBE, , Links to Hanger & Uprights, Models 13-73, 13-84, 13-136 & 13-184, Replaces 87901S8 1/8''-27 x .66 lg

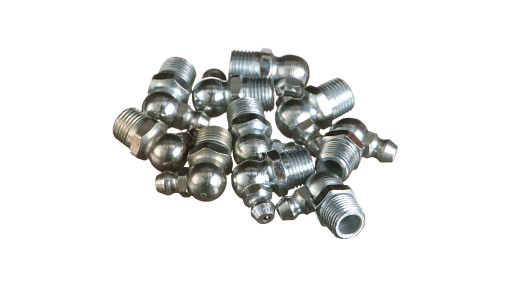

  • 17
    1
    80719
    SCHMIERNIPPEL 1/8'' NPT; Nipple, Lube, 90?, 1/8'' NPT x .84'' lg, L.H. Inside Hanger, All Models, No Longer Serviced
  • 18
    6
    131611
    RAD; Upright, Beam, R.H., Models 13-56, 13-58, 13-66, 13-77, 13-135, 13-143, 13-185 & 13-239, No Longer Serviced
  • 18
    2
    131611
    WHEEL; Upright, Beam, R.H., Models 13-57, 13-59, 13-65, 13-76, 13-106, 13-134, 13-142, 13-182, 13-183 & 13-240, No Longer Serviced
  • 18
    4
    131611
    WHEEL; Upright, Beam, R.H., Models 13-73, 13-84, 13-136 & 13-184, No Longer Serviced
  • 19
    6
    131610
    PIECE DETACHEE; Upright, Beam, L.H., Models 13-56, 13-58, 13-66, 13-77, 13-135, 13-143, 13-185 & 13-239, No Longer Serviced
  • 19
    2
    131610
    PIECE DETACHEE; Upright, Beam, L.H., Models 13-57, 13-59, 13-65, 13-76, 13-106, 13-134, 13-142, 13-182, 13-183 & 13-240, No Longer Serviced
  • 19
    4
    131610
    PIECE DETACHEE; Upright, Beam, L.H., Models 13-73, 13-84, 13-136 & 13-184, No Longer Serviced
  • 21
    1
    132632
    ERSATZTEIL; Upright, Beam, R.H., Inner R.H., All Models, No Longer Serviced
  • 21A
    1
    132633
    ERSATZTEIL; Upright, Beam, L.H., Inner R.H., All Models, No Longer Serviced

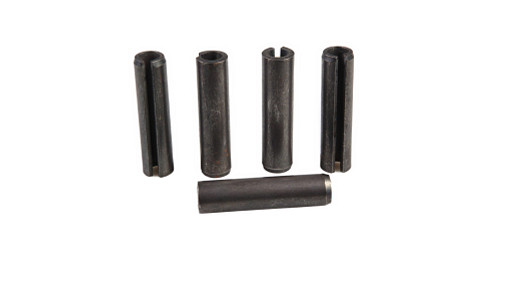

  • 21A
    1
    130054
    PIN M13 x 55, Slotted; Upright, Beam, R.H., Inner L.H., All Models, No Longer Serviced
  • 23
    15
    130205
    DISTANZSTÜCK; .49'' ID x .68'' OD x 1.015'', Beam to Upright, Models 13-56, 13-58, 13-66, 13-77, 13-135, 13-143, 13-185 & 13-239, No Longer Serviced
  • 23
    7
    130205
    DISTANZSTÜCK; .49'' ID x .68'' OD x 1.015'', Beam to Upright, Models 13-57, 13-59, 13-65, 13-76, 13-106, 13-134, 13-142, 13-182, 13-183 & 13-240, No Longer Serviced
  • 23
    11
    130205
    DISTANZSTÜCK; .49'' ID x .68'' OD x 1.015'', Beam to Upright, Models 13-73, 13-84, 13-136 & 13-184, No Longer Serviced
  • 24
    15
    81547
    LOCK WASHER 7/16''; WASHER, LOCK, , Beam to Upright, Models 13-56, 13-58, 13-66, 13-77, 13-135, 13-143, 13-185 & 13-239 7/16''
  • 24
    7
    81547
    LOCK WASHER 7/16''; WASHER, LOCK, , Beam to Upright, Models 13-57, 13-59, 13-65, 13-76, 13-106, 13-134, 13-142, 13-182, 13-183 & 13-240 7/16''
  • 24
    11
    81547
    LOCK WASHER 7/16''; WASHER, LOCK, , Beam to Upright, Models 13-73, 13-84, 13-136 & 13-184, Replaces 34808S7 & 34808S7 7/16''
  • 26
    4
    130133
    HANDLE; Beam, 37-3/4'', Models 13-239 & 13-240, No Longer Serviced
  • 27
    2
    133469
    SPARE PART; Beam, 32-1/8'', Models 13-56, 13-58, 13-66, 13-73, 13-77, 13-84, 13-135, 13-136, 13-143, 13-184, 13-185 & 13-239, No Longer Serviced
  • 27
    4
    133469
    SPARE PART; Beam, 32-1/'', Models 13-57, 13-59, 13-65, 13-76, 13-106, 13-134, 13-142, 13-182, 13-183 & 13-240, No Longer Serviced
  • 28
    16
    280119
    BOLT Hex, 5/8'' - 11 x 3-1/2'', Gr 5; HH, G5, 5/8''-11 x 3-1/2'', Beam to Upright, Models 13-56, 13-58, 13-66, 13-77, 13-135, 13-143, 13-185 & 13-239, No Longer Serviced
  • 28
    8
    280119
    BOLT Hex, 5/8'' - 11 x 3-1/2'', Gr 5; HH, G5, 5/8''-11 x 3-1/2'', Beam to Upright, Models 13-57, 13-59, 13-65, 13-76, 13-106, 13-134, 13-142, 13-182, 13-183 & 13-240, No Longer Serviced
  • 28
    12
    9827853
    BOLT Hex, 5/8'' - 11 x 3 1/4'', Gr 5; HH, 5/8''-11 x 3-1/2'', Beam to Upright, Models 13-73, 13-84, 13-136 & 13-184, No Longer Serviced
  • 30
    16
    280374
    NUT Hex, 5/8'' - 11, Gr 5; G5, 5/8''-11, Beam to Upright, Models 13-56, 13-58, 13-66, 13-77, 13-135, 13-143, 13-185 & 13-239
  • 30
    8
    280374
    NUT Hex, 5/8'' - 11, Gr 5; G5, 5/8''-11, Beam to Upright, Models 13-57, 13-59, 13-65, 13-76, 13-106, 13-134, 13-142, 13-182, 13-183 & 13-240
  • 30
    12
    280374
    NUT Hex, 5/8'' - 11, Gr 5; G5, 5/8''-11, Beam to Upright, Models 13-73, 13-84, 13-136 & 13-184
  • 32
    2
    NS
    NOT SERVICED; Arm Assy., Gang Rod Lift, Models 13-56, 13-58, 13-66, 13-77, 13-135, 13-143, 13-185 & 13-239, Replaces 131725
  • 32
    4
    NS
    NOT SERVICED; Arm Assy., Gang Rod Lift, Models 13-57, 13-59, 13-65, 13-76, 13-106, 13-134, 13-142, 13-182, 13-183 & 13-240, Replaces 131725
  • 32
    6
    NS
    NOT SERVICED; Arm Assy., Gang Rod Lift, Models 13-73, 13-84, 13-136 & 13-184, Replaces 131725
  • 33
    2
    BFEA31724
    TRUNNION; Models 13-56, 13-58, 13-66, 13-77, 13-135, 13-143, 13-185 & 13-239, Replaces 131724, No Longer Serviced
  • 33
    4
    BFEA31724
    TRUNNION; Models 13-57, 13-59, 13-65, 13-76, 13-106, 13-134, 13-142, 13-182, 13-183 & 13-240, Replaces 131724, No Longer Serviced
  • 33
    6
    BFEA31724
    TRUNNION; Models 13-73, 13-84, 13-136 & 13-184, Replaces 131724, No Longer Serviced
  • 34
    6
    NSS
    NOT SOLD SEPARAT; Rivet, 7/16'' x 1-1/8'', Models 13-56, 13-58, 13-66, 13-77, 13-135, 13-143, 13-185 & 13-239, Not Serviced Separately
  • 34
    4
    NSS
    NOT SOLD SEPARAT; Rivet, 7/16'' x 1-1/8'', Models 13-57, 13-59, 13-65, 13-76, 13-106, 13-134, 13-142, 13-182, 13-183 & 13-240, Not Serviced Separately
  • 35
    8
    131620
    PLATE; Lift Arm to Rockshaft, Models 13-56, 13-58, 13-66, 13-77, 13-135, 13-143, 13-185 & 13-239, No Longer Serviced
  • 35
    4
    131620
    PLATE; Lift Arm to Rockshaft, Models 13-57, 13-59, 13-65, 13-76, 13-106, 13-134, 13-142, 13-182, 13-183 & 13-240, No Longer Serviced
  • 35
    6
    131620
    PLATE; Lift Arm to Rockshaft, Models 13-73, 13-84, 13-136 & 13-184, No Longer Serviced
  • 36
    8
    131621
    BOLT; U-Bolt, 7/16''-14, Lift Arm to Rockshaft, Models 13-56, 13-58, 13-66, 13-77, 13-135, 13-143, 13-185 & 13-239
  • 36
    4
    131621
    BOLT; U-Bolt, 7/16''-14, Lift Arm to Rockshaft, Models 13-57, 13-59, 13-65, 13-76, 13-106, 13-134, 13-142, 13-182, 13-183 & 13-240
  • 36
    6
    131621
    BOLT; U-Bolt, 7/16''-14, Lift Arm to Rockshaft, Models 13-73, 13-84, 13-136 & 13-184
  • 37
    16
    81547
    LOCK WASHER 7/16''; WASHER, LOCK, , Lift Arm to Rockshaft, Models 13-56, 13-58, 13-66, 13-77, 13-135, 13-143, 13-185 & 13-239 7/16''
  • 37
    8
    81547
    LOCK WASHER 7/16''; WASHER, LOCK, , Lift Arm to Rockshaft, Models 13-57, 13-59, 13-65, 13-76, 13-106, 13-134, 13-142, 13-182, 13-183 & 13-240 7/16''
  • 37
    12
    81547
    LOCK WASHER 7/16''; WASHER, LOCK, , Lift Arm to Rockshaft, Models 13-73, 13-84, 13-136 & 13-184 7/16''
  • 6
    131685
    SPINDLE; Shackle, Models 13-56, 13-58, 13-66 & 13-77, No Longer Serviced
  • 12
    74071S8
    ERSATZTEIL; Pin, Clevis, 7/16'' x 2-31/64'', Chain to Arm & Clevis to Lower Links, Models 13-56, 13-58, 13-66 & 13-77, No Longer Serviced
  • 6
    44730S8
    UNTERLEGSCHEIBE; 7/16'', Chain to Arm & Clevis to Lower Links, Models 13-56, 13-58, 13-66 & 13-77, No Longer Serviced

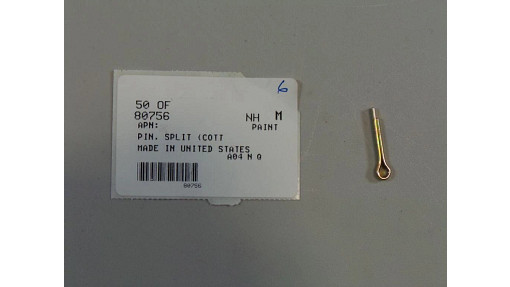

  • 12
    80756
    SPLINT 1/8'' x 3/4''; PIN, SPLIT (COTTER), , Chain to Arm & Clevis to Lower Links, Models 13-56, 13-58, 13-66 & 13-77, Replaces 72017S8 1/8'' x 3/4''
  • 43
    2/8
    132248
    STANGE; Beam Lift, Models 13-56, 13-58, 13-66, 13-77, 13-135, 13-143, 13-185 & 13-239, No Longer Serviced
  • 43
    4
    132248
    STANGE; Beam Lift, Models 13-57, 13-59, 13-65, 13-76, 13-106, 13-134, 13-142, 13-182, 13-183 & 13-240, No Longer Serviced
  • 43
    6
    132248
    STANGE; Beam Lift, Models 13-73, 13-84, 13-136 & 13-184, No Longer Serviced

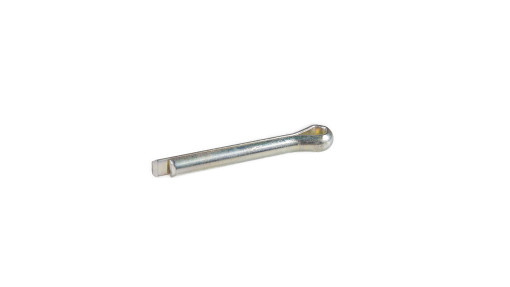

  • 44
    4/16
    81812862
    SPLINT; Pin, Split Cotter, 3/16'' x 1-1/4'', Rod to Arm Assy. & Lower Link, Models 13-56, 13-58, 13-66, 13-77, 13-135, 13-143, 13-185 & 13-239, No Longer Serviced
  • 44
    8
    81812862
    SPLINT; Pin, Split Cotter, 3/16'' x 1-1/4'', Rod to Arm Assy. & Lower Link, Models 13-57, 13-59, 13-65, 13-76, 13-106, 13-134, 13-142, 13-182, 13-183 & 13-240, No Longer Serviced
  • 44
    12
    81812862
    SPLINT; Pin, Split Cotter, 3/16'' x 1-1/4'', Rod to Arm Assy. & Lower Link, Models 13-73, 13-84, 13-136 & 13-184, No Longer Serviced
  • 45
    2
    132076
    FEDER; Models 13-56, 13-58, 13-66, 13-77, 13-135, 13-143, 13-185 & 13-239
  • 45
    4
    132076
    FEDER; Models 13-57, 13-59, 13-65, 13-76, 13-106, 13-134, 13-142, 13-182, 13-183 & 13-240
  • 45
    6
    132076
    FEDER; Models 13-73, 13-84, 13-136 & 13-184
  • 46
    4/12
    114121
    HALTERING; Collar, Spring to Rod, Models 13-56, 13-58, 13-66, 13-77, 13-135, 13-143, 13-185 & 13-239, No Longer Serviced
  • 46
    8
    114121
    HALTERING; Collar, Spring to Rod, Models 13-57, 13-59, 13-65, 13-76, 13-106, 13-134, 13-142, 13-182, 13-183 & 13-240, No Longer Serviced
  • 46
    12
    114121
    HALTERING; Collar, Spring to Rod, Models 13-73, 13-84, 13-136 & 13-184, No Longer Serviced
  • 48
    4
    133462
    STANGE; Gang, Lock, Model 13-239 Only, No Longer Serviced
  • 48
    2
    133462
    STANGE; Gang, Lock, Model 13-240 Only, No Longer Serviced
  • 49
    4
    133470
    SCHILD; Plate, Gang, Lock, Model 13-239 Only, No Longer Serviced
  • 49
    2
    133470
    SCHILD; Plate, Gang, Lock, Model 13-240 Only, No Longer Serviced
  • 4
    128133
    SCHRAUBE; Spacer, Model 13-239 Only
  • 2
    128133
    BOLT; Spacer, Model 13-240 Only
  • 4
    80299
    WASHER 0.69'' ID x 1.75'' OD x 0.13'' Thk; Model 13-239 Only 5/8''
  • 2
    80299
    WASHER 0.69'' ID x 1.75'' OD x 0.13'' Thk; Model 13-240 Only 5/8''
  • 50
    4
    280374
    NUT Hex, 5/8'' - 11, Gr 5; G5, 5/8''-11, Model 13-239 Only
  • 50
    2
    280374
    NUT Hex, 5/8'' - 11, Gr 5; G5, 5/8''-11, Model 13-240 Only

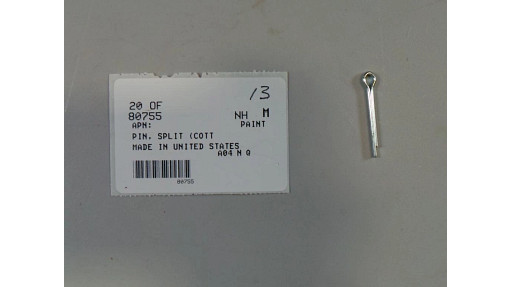

  • 4
    80755
    COTTER PIN PIN COTTER 1/8 X 1 STL ZND; PIN, SPLIT (COTTER), , Model 13-239 Only, Replaces 72035S8 1/8'' x 1'' L
  • 2
    80755
    SPLINT PIN COTTER 1/8 X 1 STL ZND; PIN, SPLIT (COTTER), , Model 13-240 Only, Replaces 72035S8 1/8'' x 1'' L
Alle auswählen

Select

Ref.

1

Menge

8

Verfügbarkeit

Teilenummer

103658

Beschreibung

AUFHÄNGUNG; Gang Support, Models 13-56, 13-58, 13-66, 13-77, 13-135, 13-143, 13-185 & 13-239, No Longer Serviced


Alts

Select

Ref.

1

Menge

4

Verfügbarkeit

Teilenummer

103658

Beschreibung

AUFHÄNGUNG; Gang Support, Models 13-57, 13-59, 13-65, 13-76, 13-106, 13-134, 13-142, 13-182, 13-183 & 13-240, No Longer Serviced


Alts

Select

Ref.

1

Menge

6

Verfügbarkeit

Teilenummer

103658

Beschreibung

AUFHÄNGUNG; Gang Support, Models 13-73, 13-84, 13-136 & 13-184, No Longer Serviced


Alts

Select

Ref.

2

Menge

8

Verfügbarkeit

Teilenummer

131605

Beschreibung

RADSCHRAUBE; U-Bolt, 3/4''-10, Hanger to Tool Bar, Models 13-56, 13-58, 13-66, 13-77, 13-135, 13-143, 13-185 & 13-239


Alts

Select

Ref.

2

Menge

4

Verfügbarkeit

Teilenummer

131605

Beschreibung

RADSCHRAUBE; U-Bolt, 3/4''-10, Hanger to Tool Bar, Models 13-57, 13-59, 13-65, 13-76, 13-106, 13-134, 13-142, 13-182, 13-183 & 13-240


Alts

Select

Ref.

2

Menge

6

Verfügbarkeit

Teilenummer

131605

Beschreibung

RADSCHRAUBE; U-Bolt, 3/4''-10, Hanger to Tool Bar, Models 13-73, 13-84, 13-136 & 13-184


Alts

Select

Ref.

2

Menge

8

Verfügbarkeit

Teilenummer

NLS

Beschreibung

NO LONGER SERVICED; 3/4''-10, Hanger to Tool Bar, Model 13-239 Only, No Longer Serviced


Alts

Select

Ref.

2

Menge

4

Verfügbarkeit

Teilenummer

107310

Beschreibung

U-SCHRAUBE; 3/4''-10, Hanger to Tool Bar, Model 13-240 Only, No Longer Serviced


Alts

Select

Ref.

3

Menge

16

Verfügbarkeit

Teilenummer

87340

Beschreibung

SICHERUNGSSCHEIBE Helical Spring, 0.759'' ID, CST, ZND; WASHER, LOCK, 3/4'', Hanger to Tool Bar, Models 13-56, 13-58, 13-66, 13-77, 13-135, 13-143, 13-185 & 13-239, Replaces 34813S7 & 34813S36


Alts

Select

Ref.

3

Menge

8

Verfügbarkeit

Teilenummer

87340

Beschreibung

LOCK WASHER Helical Spring, 0.759'' ID, CST, ZND; WASHER, LOCK, 3/4'', Hanger to Tool Bar, Models 13-57, 13-59, 13-65, 13-76, 13-106, 13-134, 13-142, 13-182, 13-183 & 13-240, Replaces 34813S7 & 34813S36


Alts

Select

Ref.

3

Menge

12

Verfügbarkeit

Teilenummer

87340

Beschreibung

LOCK WASHER Helical Spring, 0.759'' ID, CST, ZND; WASHER, LOCK, 3/4'', Hanger to Tool Bar, Models 13-73, 13-84, 13-136 & 13-184, Replaces 34813S7 & 34813S36


Alts

Select

Ref.

4

Menge

16

Verfügbarkeit

Teilenummer

280954

Beschreibung

NUT 3/4'' - 10, Gr 5; G5, 3/4''-10, Hanger to Tool Bar, Models 13-56, 13-58, 13-66, 13-77, 13-135, 13-143, 13-185 & 13-239, Replaces 34674S8 & 34674S36


Alts

Select

Ref.

4

Menge

8

Verfügbarkeit

Teilenummer

280954

Beschreibung

NUT 3/4'' - 10, Gr 5; G5, 3/4''-10, Hanger to Tool Bar, Models 13-57, 13-59, 13-65, 13-76, 13-106, 13-134, 13-142, 13-182, 13-183 & 13-240, Replaces 34674S8 & 34674S36


Alts

Select

Ref.

4

Menge

12

Verfügbarkeit

Teilenummer

280954

Beschreibung

NUT 3/4'' - 10, Gr 5; G5, 3/4''-10, Hanger to Tool Bar, Models 13-73, 13-84, 13-136 & 13-184, Replaces 34674S8 & 34674S36


Alts

Select

Ref.

5

Menge

8

Verfügbarkeit

Teilenummer

131618

Beschreibung

BUSHING; Bearing, Hanger to Rockershaft, Models 13-56, 13-58, 13-66, 13-77, 13-135, 13-143, 13-185 & 13-239, No Longer Serviced


Alts

Select

Ref.

5

Menge

4

Verfügbarkeit

Teilenummer

131618

Beschreibung

BUSHING; Bearing, Hanger to Rockershaft, Models 13-57, 13-59, 13-65, 13-76, 13-106, 13-134, 13-142, 13-182, 13-183 & 13-240, No Longer Serviced


Alts

Select

Ref.

5

Menge

6

Verfügbarkeit

Teilenummer

131618

Beschreibung

BUSHING; Bearing, Hanger to Rockershaft, Models 13-73, 13-84, 13-136 & 13-184, No Longer Serviced


Alts

Select

Ref.

6

Menge

7

Verfügbarkeit

Teilenummer

133387

Beschreibung

SPARE PART; Link Weld Assy., Upper, Models 13-56, 13-58, 13-66, 13-77, 13-135, 13-143, 13-185 & 13-239, No Longer Serviced


Alts

Select

Ref.

6

Menge

3

Verfügbarkeit

Teilenummer

133387

Beschreibung

PIECE DETACHEE; Link Weld Assy., Upper, Models 13-57, 13-59, 13-65, 13-76, 13-106, 13-134, 13-142, 13-182, 13-183 & 13-240, No Longer Serviced


Alts

Select

Ref.

6

Menge

5

Verfügbarkeit

Teilenummer

133387

Beschreibung

PIECE DETACHEE; Link Weld Assy., Upper, Models 13-73, 13-84, 13-136 & 13-184, No Longer Serviced


Alts

Select

Ref.

7

Menge

1

Verfügbarkeit

Teilenummer

133392

Beschreibung

COMMANDE; Link Weld Assy., Upper Offset, All Models, No Longer Serviced


Alts

Select

Ref.

9

Menge

8

Verfügbarkeit

Teilenummer

88693

Beschreibung

VIS Hex, 5/8'' - 11 x 2-3/4'', Gr 5; Screw, Cap, HH, G5, 5/8''-11 x 2-3/4'', Links to Uprights, Models 13-56, 13-58, 13-66, 13-77, 13-135, 13-143, 13-185 & 13-239, No Longer Serviced


Alts

Select

Ref.

9

Menge

4

Verfügbarkeit

Teilenummer

88693

Beschreibung

SCHRAUBE Hex, 5/8'' - 11 x 2-3/4'', Gr 5; Screw, Cap, HH, G5, 5/8''-11 x 2-3/4'', Links to Uprights, Models 13-57, 13-59, 13-65, 13-76, 13-106, 13-134, 13-142, 13-182, 13-183 & 13-240, No Longer Serviced


Alts

Select

Ref.

9

Menge

6

Verfügbarkeit

Teilenummer

88693

Beschreibung

SCHRAUBE Hex, 5/8'' - 11 x 2-3/4'', Gr 5; Screw, Cap, HH, G5, 5/8''-11 x 2-3/4'', Links to Uprights, Models 13-73, 13-84, 13-136 & 13-184, No Longer Serviced


Alts

Select

Ref.

10

Menge

8

Verfügbarkeit

Teilenummer

131684

Beschreibung

DISTANZSTÜCK; .656'' ID x 1.12'' OD x 1.03'', Links to Uprights, Models 13-56, 13-58, 13-66, 13-77, 13-135, 13-143, 13-185 & 13-239, No Longer Serviced


Alts

Select

Ref.

10

Menge

4

Verfügbarkeit

Teilenummer

131684

Beschreibung

DISTANZSTÜCK; .656'' ID x 1.12'' OD x 1.03'', Links to Uprights, Models 13-57, 13-59, 13-65, 13-76, 13-106, 13-134, 13-142, 13-182, 13-183 & 13-240, No Longer Serviced


Alts

Select

Ref.

10

Menge

6

Verfügbarkeit

Teilenummer

131684

Beschreibung

DISTANZSTÜCK; .656'' ID x 1.12'' OD x 1.03'', Links to Uprights, Models 13-73, 13-84, 13-136 & 13-184, No Longer Serviced


Alts

Select

Ref.

11

Menge

16

Verfügbarkeit

Teilenummer

87365

Beschreibung

UNTERLEGSCHEIBE 0.66'' ID x 1.31'' OD x 0.1'' Thk; SAE, 5/8'', Links to Uprights, Models 13-56, 13-58, 13-66, 13-77, 13-135, 13-143, 13-185 & 13-239, Replaces 44742S8


Alts

Select

Ref.

11

Menge

8

Verfügbarkeit

Teilenummer

87365

Beschreibung

UNTERLEGSCHEIBE 0.66'' ID x 1.31'' OD x 0.1'' Thk; SAE, 5/8'', Links to Uprights, Models 13-57, 13-59, 13-65, 13-76, 13-106, 13-134, 13-142, 13-182, 13-183 & 13-240, Replaces 44742S8


Alts

Select

Ref.

11

Menge

12

Verfügbarkeit

Teilenummer

87365

Beschreibung

UNTERLEGSCHEIBE 0.66'' ID x 1.31'' OD x 0.1'' Thk; SAE, 5/8'', Links to Uprights, Models 13-73, 13-84, 13-136 & 13-184, Replaces 44742S8


Alts

Select

Ref.

12

Menge

8

Verfügbarkeit

Teilenummer

86729275

Beschreibung

SICHERUNGSSCHEIBE 5/8'' ID x 0.634'' OD x .156'' Thk CST ZND; Washer, Lock, , Links to Uprights, Models 13-56, 13-58, 13-66, 13-77, 13-135, 13-143, 13-185 & 13-239 5/8''


Alts

Select

Ref.

12

Menge

4

Verfügbarkeit

Teilenummer

86729275

Beschreibung

SICHERUNGSSCHEIBE 5/8'' ID x 0.634'' OD x .156'' Thk CST ZND; Washer, Lock, , Links to Uprights, Models 13-57, 13-59, 13-65, 13-76, 13-106, 13-134, 13-142, 13-182, 13-183 & 13-240 5/8''


Alts

Select

Ref.

12

Menge

6

Verfügbarkeit

Teilenummer

86729275

Beschreibung

SICHERUNGSSCHEIBE 5/8'' ID x 0.634'' OD x .156'' Thk CST ZND; Washer, Lock, , Links to Uprights, Models 13-73, 13-84, 13-136 & 13-184 5/8''


Alts

Select

Ref.

13

Menge

8

Verfügbarkeit

Teilenummer

280374

Beschreibung

MUTTER Hex, 5/8'' - 11, Gr 5; G5, 5/8''-11, Links to Uprights, Models 13-56, 13-58, 13-66, 13-77, 13-135, 13-143, 13-185 & 13-239


Alts

Select

Ref.

13

Menge

4

Verfügbarkeit

Teilenummer

280374

Beschreibung

NUT Hex, 5/8'' - 11, Gr 5; G5, 5/8''-11, Links to Uprights, Models 13-57, 13-59, 13-65, 13-76, 13-106, 13-134, 13-142, 13-182, 13-183 & 13-240


Alts

Select

Ref.

13

Menge

6

Verfügbarkeit

Teilenummer

280374

Beschreibung

NUT Hex, 5/8'' - 11, Gr 5; G5, 5/8''-11, Links to Uprights, Models 13-73, 13-84, 13-136 & 13-184


Alts

Select

Ref.

14

Menge

8

Verfügbarkeit

Teilenummer

130142

Beschreibung

CHAIN; Roller, RC 100, 58 Pitches, Lower, Model 13-239 Only


Alts

Select

Ref.

14

Menge

4

Verfügbarkeit

Teilenummer

130142

Beschreibung

CHAIN; Roller, RC 100, 58 Pitches, Lower, Model 13-240 Only


Alts

Select

Ref.

15

Menge

16

Verfügbarkeit

Teilenummer

NLS

Beschreibung

NO LONGER SERVICED; Bolt, Special, 7/8''-14 x 2-5/16'', Links to Hanger & Uprights, Models 13-56, 13-58, 13-66, 13-77, 13-135, 13-143, 13-185 & 13-239, No Longer Serviced


Alts

Select

Ref.

15

Menge

8

Verfügbarkeit

Teilenummer

NLS

Beschreibung

NO LONGER SERVICED; Bolt, Special, 7/8''-14 x 2-5/16'', Links to Hanger & Uprights, Models 13-57, 13-59, 13-65, 13-76, 13-106, 13-134, 13-142, 13-182, 13-183 & 13-240, No Longer Serviced


Alts

Select

Ref.

15

Menge

12

Verfügbarkeit

Teilenummer

NLS

Beschreibung

NO LONGER SERVICED; Bolt, Special, 7/8''-14 x 2-5/16'', Links to Hanger & Uprights, Models 13-73, 13-84, 13-136 & 13-184, No Longer Serviced


Alts

Select

Ref.

16

Menge

16

Verfügbarkeit

Teilenummer

87315

Beschreibung

JAM NUT Jam, 7/8''-14, G2; Jam, G2, 7/8''-14, Links to Hanger & Uprights, Models 13-56, 13-58, 13-66, 13-77, 13-135, 13-143, 13-185 & 13-239


Alts

Select

Ref.

16

Menge

8

Verfügbarkeit

Teilenummer

87315

Beschreibung

JAM NUT Jam, 7/8''-14, G2; Jam, G2, 7/8''-14, Links to Hanger & Uprights, Models 13-57, 13-59, 13-65, 13-76, 13-106, 13-134, 13-142, 13-182, 13-183 & 13-240


Alts

Select

Ref.

16

Menge

12

Verfügbarkeit

Teilenummer

87315

Beschreibung

JAM NUT Jam, 7/8''-14, G2; Jam, G2, 7/8''-14, Links to Hanger & Uprights, Models 13-73, 13-84, 13-136 & 13-184


Alts

Select

Ref.

17

Menge

15

Verfügbarkeit

Teilenummer

80710

Beschreibung

LUBE NIPPLE 1/8'' - 27 Dryseal PTF; NIPPLE, LUBE, , Links to Hanger & Uprights, Models 13-56, 13-58, 13-66, 13-77, 13-135, 13-143, 13-185 & 13-239, Replaces 87901S8 1/8''-27 x .66 lg


Alts

Select

Ref.

17

Menge

7

Verfügbarkeit

Teilenummer

80710

Beschreibung

BOQUILLA DE LUBRICAC 1/8'' - 27 Dryseal PTF; NIPPLE, LUBE, , Links to Hanger & Uprights, Models 13-57, 13-59, 13-65, 13-76, 13-106, 13-134, 13-142, 13-182, 13-183 & 13-240, Replaces 87901S8 1/8''-27 x .66 lg


Alts

Select

Ref.

17

Menge

11

Verfügbarkeit

Teilenummer

80710

Beschreibung

BOQUILLA DE LUBRICAC 1/8'' - 27 Dryseal PTF; NIPPLE, LUBE, , Links to Hanger & Uprights, Models 13-73, 13-84, 13-136 & 13-184, Replaces 87901S8 1/8''-27 x .66 lg


Alts

Select

Ref.

17

Menge

1

Verfügbarkeit

Teilenummer

80719

Beschreibung

SCHMIERNIPPEL 1/8'' NPT; Nipple, Lube, 90?, 1/8'' NPT x .84'' lg, L.H. Inside Hanger, All Models, No Longer Serviced


Alts

Select

Ref.

18

Menge

6

Verfügbarkeit

Teilenummer

131611

Beschreibung

RAD; Upright, Beam, R.H., Models 13-56, 13-58, 13-66, 13-77, 13-135, 13-143, 13-185 & 13-239, No Longer Serviced


Alts

Select

Ref.

18

Menge

2

Verfügbarkeit

Teilenummer

131611

Beschreibung

WHEEL; Upright, Beam, R.H., Models 13-57, 13-59, 13-65, 13-76, 13-106, 13-134, 13-142, 13-182, 13-183 & 13-240, No Longer Serviced


Alts

Select

Ref.

18

Menge

4

Verfügbarkeit

Teilenummer

131611

Beschreibung

WHEEL; Upright, Beam, R.H., Models 13-73, 13-84, 13-136 & 13-184, No Longer Serviced


Alts

Select

Ref.

19

Menge

6

Verfügbarkeit

Teilenummer

131610

Beschreibung

PIECE DETACHEE; Upright, Beam, L.H., Models 13-56, 13-58, 13-66, 13-77, 13-135, 13-143, 13-185 & 13-239, No Longer Serviced


Alts

Select

Ref.

19

Menge

2

Verfügbarkeit

Teilenummer

131610

Beschreibung

PIECE DETACHEE; Upright, Beam, L.H., Models 13-57, 13-59, 13-65, 13-76, 13-106, 13-134, 13-142, 13-182, 13-183 & 13-240, No Longer Serviced


Alts

Select

Ref.

19

Menge

4

Verfügbarkeit

Teilenummer

131610

Beschreibung

PIECE DETACHEE; Upright, Beam, L.H., Models 13-73, 13-84, 13-136 & 13-184, No Longer Serviced


Alts

Select

Ref.

21

Menge

1

Verfügbarkeit

Teilenummer

132632

Beschreibung

ERSATZTEIL; Upright, Beam, R.H., Inner R.H., All Models, No Longer Serviced


Alts

Select

Ref.

21A

Menge

1

Verfügbarkeit

Teilenummer

132633

Beschreibung

ERSATZTEIL; Upright, Beam, L.H., Inner R.H., All Models, No Longer Serviced


Alts

Select

Ref.

21A

Menge

1

Verfügbarkeit

Teilenummer

130054

Beschreibung

PIN M13 x 55, Slotted; Upright, Beam, R.H., Inner L.H., All Models, No Longer Serviced


Alts

Select

Ref.

23

Menge

15

Verfügbarkeit

Teilenummer

130205

Beschreibung

DISTANZSTÜCK; .49'' ID x .68'' OD x 1.015'', Beam to Upright, Models 13-56, 13-58, 13-66, 13-77, 13-135, 13-143, 13-185 & 13-239, No Longer Serviced


Alts

Select

Ref.

23

Menge

7

Verfügbarkeit

Teilenummer

130205

Beschreibung

DISTANZSTÜCK; .49'' ID x .68'' OD x 1.015'', Beam to Upright, Models 13-57, 13-59, 13-65, 13-76, 13-106, 13-134, 13-142, 13-182, 13-183 & 13-240, No Longer Serviced


Alts

Select

Ref.

23

Menge

11

Verfügbarkeit

Teilenummer

130205

Beschreibung

DISTANZSTÜCK; .49'' ID x .68'' OD x 1.015'', Beam to Upright, Models 13-73, 13-84, 13-136 & 13-184, No Longer Serviced


Alts

Select

Ref.

24

Menge

15

Verfügbarkeit

Teilenummer

81547

Beschreibung

LOCK WASHER 7/16''; WASHER, LOCK, , Beam to Upright, Models 13-56, 13-58, 13-66, 13-77, 13-135, 13-143, 13-185 & 13-239 7/16''


Alts

Select

Ref.

24

Menge

7

Verfügbarkeit

Teilenummer

81547

Beschreibung

LOCK WASHER 7/16''; WASHER, LOCK, , Beam to Upright, Models 13-57, 13-59, 13-65, 13-76, 13-106, 13-134, 13-142, 13-182, 13-183 & 13-240 7/16''


Alts

Select

Ref.

24

Menge

11

Verfügbarkeit

Teilenummer

81547

Beschreibung

LOCK WASHER 7/16''; WASHER, LOCK, , Beam to Upright, Models 13-73, 13-84, 13-136 & 13-184, Replaces 34808S7 & 34808S7 7/16''


Alts

Select

Ref.

26

Menge

4

Verfügbarkeit

Teilenummer

130133

Beschreibung

HANDLE; Beam, 37-3/4'', Models 13-239 & 13-240, No Longer Serviced


Alts

Select

Ref.

27

Menge

2

Verfügbarkeit

Teilenummer

133469

Beschreibung

SPARE PART; Beam, 32-1/8'', Models 13-56, 13-58, 13-66, 13-73, 13-77, 13-84, 13-135, 13-136, 13-143, 13-184, 13-185 & 13-239, No Longer Serviced


Alts

Select

Ref.

27

Menge

4

Verfügbarkeit

Teilenummer

133469

Beschreibung

SPARE PART; Beam, 32-1/'', Models 13-57, 13-59, 13-65, 13-76, 13-106, 13-134, 13-142, 13-182, 13-183 & 13-240, No Longer Serviced


Alts

Select

Ref.

28

Menge

16

Verfügbarkeit

Teilenummer

280119

Beschreibung

BOLT Hex, 5/8'' - 11 x 3-1/2'', Gr 5; HH, G5, 5/8''-11 x 3-1/2'', Beam to Upright, Models 13-56, 13-58, 13-66, 13-77, 13-135, 13-143, 13-185 & 13-239, No Longer Serviced


Alts

Select

Ref.

28

Menge

8

Verfügbarkeit

Teilenummer

280119

Beschreibung

BOLT Hex, 5/8'' - 11 x 3-1/2'', Gr 5; HH, G5, 5/8''-11 x 3-1/2'', Beam to Upright, Models 13-57, 13-59, 13-65, 13-76, 13-106, 13-134, 13-142, 13-182, 13-183 & 13-240, No Longer Serviced


Alts

Select

Ref.

28

Menge

12

Verfügbarkeit

Teilenummer

9827853

Beschreibung

BOLT Hex, 5/8'' - 11 x 3 1/4'', Gr 5; HH, 5/8''-11 x 3-1/2'', Beam to Upright, Models 13-73, 13-84, 13-136 & 13-184, No Longer Serviced


Alts

Select

Ref.

30

Menge

16

Verfügbarkeit

Teilenummer

280374

Beschreibung

NUT Hex, 5/8'' - 11, Gr 5; G5, 5/8''-11, Beam to Upright, Models 13-56, 13-58, 13-66, 13-77, 13-135, 13-143, 13-185 & 13-239


Alts

Select

Ref.

30

Menge

8

Verfügbarkeit

Teilenummer

280374

Beschreibung

NUT Hex, 5/8'' - 11, Gr 5; G5, 5/8''-11, Beam to Upright, Models 13-57, 13-59, 13-65, 13-76, 13-106, 13-134, 13-142, 13-182, 13-183 & 13-240


Alts

Select

Ref.

30

Menge

12

Verfügbarkeit

Teilenummer

280374

Beschreibung

NUT Hex, 5/8'' - 11, Gr 5; G5, 5/8''-11, Beam to Upright, Models 13-73, 13-84, 13-136 & 13-184


Alts

Select

Ref.

32

Menge

2

Verfügbarkeit

Teilenummer

NS

Beschreibung

NOT SERVICED; Arm Assy., Gang Rod Lift, Models 13-56, 13-58, 13-66, 13-77, 13-135, 13-143, 13-185 & 13-239, Replaces 131725


Alts

Select

Ref.

32

Menge

4

Verfügbarkeit

Teilenummer

NS

Beschreibung

NOT SERVICED; Arm Assy., Gang Rod Lift, Models 13-57, 13-59, 13-65, 13-76, 13-106, 13-134, 13-142, 13-182, 13-183 & 13-240, Replaces 131725


Alts

Select

Ref.

32

Menge

6

Verfügbarkeit

Teilenummer

NS

Beschreibung

NOT SERVICED; Arm Assy., Gang Rod Lift, Models 13-73, 13-84, 13-136 & 13-184, Replaces 131725


Alts

Select

Ref.

33

Menge

2

Verfügbarkeit

Teilenummer

BFEA31724

Beschreibung

TRUNNION; Models 13-56, 13-58, 13-66, 13-77, 13-135, 13-143, 13-185 & 13-239, Replaces 131724, No Longer Serviced


Alts

Select

Ref.

33

Menge

4

Verfügbarkeit

Teilenummer

BFEA31724

Beschreibung

TRUNNION; Models 13-57, 13-59, 13-65, 13-76, 13-106, 13-134, 13-142, 13-182, 13-183 & 13-240, Replaces 131724, No Longer Serviced


Alts

Select

Ref.

33

Menge

6

Verfügbarkeit

Teilenummer

BFEA31724

Beschreibung

TRUNNION; Models 13-73, 13-84, 13-136 & 13-184, Replaces 131724, No Longer Serviced


Alts

Select

Ref.

34

Menge

6

Verfügbarkeit

Teilenummer

NSS

Beschreibung

NOT SOLD SEPARAT; Rivet, 7/16'' x 1-1/8'', Models 13-56, 13-58, 13-66, 13-77, 13-135, 13-143, 13-185 & 13-239, Not Serviced Separately


Alts

Select

Ref.

34

Menge

4

Verfügbarkeit

Teilenummer

NSS

Beschreibung

NOT SOLD SEPARAT; Rivet, 7/16'' x 1-1/8'', Models 13-57, 13-59, 13-65, 13-76, 13-106, 13-134, 13-142, 13-182, 13-183 & 13-240, Not Serviced Separately


Alts

Select

Ref.

35

Menge

8

Verfügbarkeit

Teilenummer

131620

Beschreibung

PLATE; Lift Arm to Rockshaft, Models 13-56, 13-58, 13-66, 13-77, 13-135, 13-143, 13-185 & 13-239, No Longer Serviced


Alts

Select

Ref.

35

Menge

4

Verfügbarkeit

Teilenummer

131620

Beschreibung

PLATE; Lift Arm to Rockshaft, Models 13-57, 13-59, 13-65, 13-76, 13-106, 13-134, 13-142, 13-182, 13-183 & 13-240, No Longer Serviced


Alts

Select

Ref.

35

Menge

6

Verfügbarkeit

Teilenummer

131620

Beschreibung

PLATE; Lift Arm to Rockshaft, Models 13-73, 13-84, 13-136 & 13-184, No Longer Serviced


Alts

Select

Ref.

36

Menge

8

Verfügbarkeit

Teilenummer

131621

Beschreibung

BOLT; U-Bolt, 7/16''-14, Lift Arm to Rockshaft, Models 13-56, 13-58, 13-66, 13-77, 13-135, 13-143, 13-185 & 13-239


Alts

Select

Ref.

36

Menge

4

Verfügbarkeit

Teilenummer

131621

Beschreibung

BOLT; U-Bolt, 7/16''-14, Lift Arm to Rockshaft, Models 13-57, 13-59, 13-65, 13-76, 13-106, 13-134, 13-142, 13-182, 13-183 & 13-240


Alts

Select

Ref.

36

Menge

6

Verfügbarkeit

Teilenummer

131621

Beschreibung

BOLT; U-Bolt, 7/16''-14, Lift Arm to Rockshaft, Models 13-73, 13-84, 13-136 & 13-184


Alts

Select

Ref.

37

Menge

16

Verfügbarkeit

Teilenummer

81547

Beschreibung

LOCK WASHER 7/16''; WASHER, LOCK, , Lift Arm to Rockshaft, Models 13-56, 13-58, 13-66, 13-77, 13-135, 13-143, 13-185 & 13-239 7/16''


Alts

Select

Ref.

37

Menge

8

Verfügbarkeit

Teilenummer

81547

Beschreibung

LOCK WASHER 7/16''; WASHER, LOCK, , Lift Arm to Rockshaft, Models 13-57, 13-59, 13-65, 13-76, 13-106, 13-134, 13-142, 13-182, 13-183 & 13-240 7/16''


Alts

Select

Ref.

37

Menge

12

Verfügbarkeit

Teilenummer

81547

Beschreibung

LOCK WASHER 7/16''; WASHER, LOCK, , Lift Arm to Rockshaft, Models 13-73, 13-84, 13-136 & 13-184 7/16''


Alts

Select

Ref.

Menge

6

Verfügbarkeit

Teilenummer

131685

Beschreibung

SPINDLE; Shackle, Models 13-56, 13-58, 13-66 & 13-77, No Longer Serviced


Alts

Select

Ref.

Menge

12

Verfügbarkeit

Teilenummer

74071S8

Beschreibung

ERSATZTEIL; Pin, Clevis, 7/16'' x 2-31/64'', Chain to Arm & Clevis to Lower Links, Models 13-56, 13-58, 13-66 & 13-77, No Longer Serviced


Alts

Select

Ref.

Menge

6

Verfügbarkeit

Teilenummer

44730S8

Beschreibung

UNTERLEGSCHEIBE; 7/16'', Chain to Arm & Clevis to Lower Links, Models 13-56, 13-58, 13-66 & 13-77, No Longer Serviced


Alts

Select

Ref.

Menge

12

Verfügbarkeit

Teilenummer

80756

Beschreibung

SPLINT 1/8'' x 3/4''; PIN, SPLIT (COTTER), , Chain to Arm & Clevis to Lower Links, Models 13-56, 13-58, 13-66 & 13-77, Replaces 72017S8 1/8'' x 3/4''


Alts

Select

Ref.

43

Menge

2/8

Verfügbarkeit

Teilenummer

132248

Beschreibung

STANGE; Beam Lift, Models 13-56, 13-58, 13-66, 13-77, 13-135, 13-143, 13-185 & 13-239, No Longer Serviced


Alts

Select

Ref.

43

Menge

4

Verfügbarkeit

Teilenummer

132248

Beschreibung

STANGE; Beam Lift, Models 13-57, 13-59, 13-65, 13-76, 13-106, 13-134, 13-142, 13-182, 13-183 & 13-240, No Longer Serviced


Alts

Select

Ref.

43

Menge

6

Verfügbarkeit

Teilenummer

132248

Beschreibung

STANGE; Beam Lift, Models 13-73, 13-84, 13-136 & 13-184, No Longer Serviced


Alts

Select

Ref.

44

Menge

4/16

Verfügbarkeit

Teilenummer

81812862

Beschreibung

SPLINT; Pin, Split Cotter, 3/16'' x 1-1/4'', Rod to Arm Assy. & Lower Link, Models 13-56, 13-58, 13-66, 13-77, 13-135, 13-143, 13-185 & 13-239, No Longer Serviced


Alts

Select

Ref.

44

Menge

8

Verfügbarkeit

Teilenummer

81812862

Beschreibung

SPLINT; Pin, Split Cotter, 3/16'' x 1-1/4'', Rod to Arm Assy. & Lower Link, Models 13-57, 13-59, 13-65, 13-76, 13-106, 13-134, 13-142, 13-182, 13-183 & 13-240, No Longer Serviced


Alts

Select

Ref.

44

Menge

12

Verfügbarkeit

Teilenummer

81812862

Beschreibung

SPLINT; Pin, Split Cotter, 3/16'' x 1-1/4'', Rod to Arm Assy. & Lower Link, Models 13-73, 13-84, 13-136 & 13-184, No Longer Serviced


Alts

Select

Ref.

45

Menge

2

Verfügbarkeit

Teilenummer

132076

Beschreibung

FEDER; Models 13-56, 13-58, 13-66, 13-77, 13-135, 13-143, 13-185 & 13-239


Alts

Select

Ref.

45

Menge

4

Verfügbarkeit

Teilenummer

132076

Beschreibung

FEDER; Models 13-57, 13-59, 13-65, 13-76, 13-106, 13-134, 13-142, 13-182, 13-183 & 13-240


Alts

Select

Ref.

45

Menge

6

Verfügbarkeit

Teilenummer

132076

Beschreibung

FEDER; Models 13-73, 13-84, 13-136 & 13-184


Alts

Select

Ref.

46

Menge

4/12

Verfügbarkeit

Teilenummer

114121

Beschreibung

HALTERING; Collar, Spring to Rod, Models 13-56, 13-58, 13-66, 13-77, 13-135, 13-143, 13-185 & 13-239, No Longer Serviced


Alts

Select

Ref.

46

Menge

8

Verfügbarkeit

Teilenummer

114121

Beschreibung

HALTERING; Collar, Spring to Rod, Models 13-57, 13-59, 13-65, 13-76, 13-106, 13-134, 13-142, 13-182, 13-183 & 13-240, No Longer Serviced


Alts

Select

Ref.

46

Menge

12

Verfügbarkeit

Teilenummer

114121

Beschreibung

HALTERING; Collar, Spring to Rod, Models 13-73, 13-84, 13-136 & 13-184, No Longer Serviced


Alts

Select

Ref.

48

Menge

4

Verfügbarkeit

Teilenummer

133462

Beschreibung

STANGE; Gang, Lock, Model 13-239 Only, No Longer Serviced


Alts

Select

Ref.

48

Menge

2

Verfügbarkeit

Teilenummer

133462

Beschreibung

STANGE; Gang, Lock, Model 13-240 Only, No Longer Serviced


Alts

Select

Ref.

49

Menge

4

Verfügbarkeit

Teilenummer

133470

Beschreibung

SCHILD; Plate, Gang, Lock, Model 13-239 Only, No Longer Serviced


Alts

Select

Ref.

49

Menge

2

Verfügbarkeit

Teilenummer

133470

Beschreibung

SCHILD; Plate, Gang, Lock, Model 13-240 Only, No Longer Serviced


Alts

Select

Ref.

Menge

4

Verfügbarkeit

Teilenummer

128133

Beschreibung

SCHRAUBE; Spacer, Model 13-239 Only


Alts

Select

Ref.

Menge

2

Verfügbarkeit

Teilenummer

128133

Beschreibung

BOLT; Spacer, Model 13-240 Only


Alts

Select

Ref.

Menge

4

Verfügbarkeit

Teilenummer

80299

Beschreibung

WASHER 0.69'' ID x 1.75'' OD x 0.13'' Thk; Model 13-239 Only 5/8''


Alts

Select

Ref.

Menge

2

Verfügbarkeit

Teilenummer

80299

Beschreibung

WASHER 0.69'' ID x 1.75'' OD x 0.13'' Thk; Model 13-240 Only 5/8''


Alts

Select

Ref.

50

Menge

4

Verfügbarkeit

Teilenummer

280374

Beschreibung

NUT Hex, 5/8'' - 11, Gr 5; G5, 5/8''-11, Model 13-239 Only


Alts

Select

Ref.

50

Menge

2

Verfügbarkeit

Teilenummer

280374

Beschreibung

NUT Hex, 5/8'' - 11, Gr 5; G5, 5/8''-11, Model 13-240 Only


Alts

Select

Ref.

Menge

4

Verfügbarkeit

Teilenummer

80755

Beschreibung

COTTER PIN PIN COTTER 1/8 X 1 STL ZND; PIN, SPLIT (COTTER), , Model 13-239 Only, Replaces 72035S8 1/8'' x 1'' L


Alts

Select

Ref.

Menge

2

Verfügbarkeit

Teilenummer

80755

Beschreibung

SPLINT PIN COTTER 1/8 X 1 STL ZND; PIN, SPLIT (COTTER), , Model 13-240 Only, Replaces 72035S8 1/8'' x 1'' L


Alts
