TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
11TIGE; -Pivot
-
21RESSORT;
-
31DEFLECTEUR; BELOW SN T05ZB0001
-
31GOULOTTE; Deflector;SN T05ZB0001 & ABOVE MZ16H
-
3A1DECAL; -Danger
-
3B2STOP; Kicker
-
3C4PROCURE LOCALLY; Screw - PPH;93-0231
-
41GUARD; Guide-Belt, Deck LH;Not Illustrated
-
55VIS;
-
61GUARD; Guide-Belt, Deck RH
-
72PROCURER LOCALEMENT; Nut-Lock, Nl;3296-16
-
82PROCURER LOCALEMENT; Washer-Flat;3256-1
-
91RACCORD HYDRAULIQUE; Fitting-Washout
-
101JOINT TORIQUE;
-
111ACCOUPLEMENT RAPIDE FEM.; Connector-Hose
-
128PIN; -Hair
-
1310WASHER; -Hardened
-
142CONNECTING LINK; Link-HOC, Adjusting
-
154ROD; - Hanger
-
171MOWER DECK; 42'' Deck
-
171MOWER DECK; 42'' Deck;SN T05ZB0001 & ABOVE MZ16H
-
171MOWER DECK; 42'' Deck;SN T06ZB0001 & ABOVE MZ16H
-
17A1DECAL; -Shield Danger
-
17B1DECAL; -Def lector Danger
-
17C1DECAL; -Danger
-
17D1DECAL; - Belt Routing
-
17E1DECAL; -Danger
-
229PROCURE LOCALLY; Nut-Flange;32128-25
-
232WASHER; -Pivot
-
242BRACKET; Trunnion-HOC
-
252BOLT; -Shoulder;7-0030
-
262SCREW; -CARR;3229-1
-
272PROCURE LOCALLY; Washer-Flat;3256-25
-
272PROCURE LOCALLY; Washer-Hardened {1-809107};SN T06ZB0001 & ABOVE MZ16H
-
282PROCURE LOCALLY; Nut-Lock Nl;3296-38
-
291BAFFLE ASSY.; Baffle - Rear
-
291BAFFLE; - Rear;SN T06ZB0001 & ABOVE MZ16H
-
301RING; Blow Out Side
-
311LOCK NUT; Nut-Lock, Nl;3296-39
-
327SCREW; -HH;322-2
-
332PROCURE LOCALLY; Nut-Hex;3219-4
-
421RING; Deck Ring Kit Includes: Ref. 43-46
-
432RING; Blow Out, Side
-
442RING; Blow Out, Side
-
4512SCREW; --HH;321-3
-
4612LOCK NUT; Nut-Lock;3296-42
-
491O-RING; 106-8745
-
512LOCK WASHER; Washer Flat;3256-23
-
528PROCURE LOCALLY; Washer-Flat;3256-4
-
532BOLT; Wheel;Kawasaki FH580V-CS13-R
-
542RIM; Wheel-Gage;SN T06ZB0001 & ABOVE MZ16H
-
551BRACKET; Gage Wheel, Front LH;SN T06ZB0001 & ABOVE MZ16H
-
561BRACKET; Gage Wheel, Front RH;SN T06ZB0001 & ABOVE MZ16H
-
571O-RING; SN T06ZB0001 & ABOVE MZ16H
Select All
Select
Ref.
3Qty
1Availability
Part #
TR106D8739Description
DEFLECTEUR; BELOW SN T05ZB0001Img
Alts
Select
Ref.
3Qty
1Availability
Part #
TR93D0317Description
GOULOTTE; Deflector;SN T05ZB0001 & ABOVE MZ16HImg
Alts
Select
Ref.
3CQty
4Availability
Part #
PLDescription
PROCURE LOCALLY; Screw - PPH;93-0231Img
Alts
Select
Ref.
4Qty
1Availability
Part #
TR88D4030Description
GUARD; Guide-Belt, Deck LH;Not IllustratedImg
Alts
Select
Ref.
7Qty
2Availability
Part #
PLDescription
PROCURER LOCALEMENT; Nut-Lock, Nl;3296-16Img
Alts
Select
Ref.
8Qty
2Availability
Part #
PLDescription
PROCURER LOCALEMENT; Washer-Flat;3256-1Img
Alts
Select
Ref.
9Qty
1Availability
Part #
TR95D2747Description
RACCORD HYDRAULIQUE; Fitting-WashoutImg
Alts
Select
Ref.
11Qty
1Availability
Part #
TR95D3270Description
ACCOUPLEMENT RAPIDE FEM.; Connector-HoseImg
Alts
Select
Ref.
14Qty
2Availability
Part #
TR88D5570D03Description
CONNECTING LINK; Link-HOC, AdjustingImg
Alts
Select
Ref.
17Qty
1Availability
Part #
TR108D6104Description
MOWER DECK; 42'' Deck;SN T05ZB0001 & ABOVE MZ16HImg
Alts
Select
Ref.
17Qty
1Availability
Part #
TR110D1896Description
MOWER DECK; 42'' Deck;SN T06ZB0001 & ABOVE MZ16HImg
Alts
Select
Ref.
22Qty
9Availability
Part #
PLDescription
PROCURE LOCALLY; Nut-Flange;32128-25Img
Alts
Select
Ref.
27Qty
2Availability
Part #
PLDescription
PROCURE LOCALLY; Washer-Flat;3256-25Img
Alts
Select
Ref.
27Qty
2Availability
Part #
PLDescription
PROCURE LOCALLY; Washer-Hardened {1-809107};SN T06ZB0001 & ABOVE MZ16HImg
Alts
Select
Ref.
28Qty
2Availability
Part #
PLDescription
PROCURE LOCALLY; Nut-Lock Nl;3296-38Img
Alts
Select
Ref.
29Qty
1Availability
Part #
TR106D6983D03Description
BAFFLE ASSY.; Baffle - RearImg
Alts
Select
Ref.
29Qty
1Availability
Part #
TR108D8513D03Description
BAFFLE; - Rear;SN T06ZB0001 & ABOVE MZ16HImg
Alts
Select
Ref.
31Qty
1Availability
Part #
TR3296D39Description
LOCK NUT; Nut-Lock, Nl;3296-39Img
Alts
Select
Ref.
42Qty
1Availability
Part #
TR110D6509Description
RING; Deck Ring Kit Includes: Ref. 43-46Img
Alts
Select
Ref.
51Qty
2Availability
Part #
TR3256D23Description
LOCK WASHER; Washer Flat;3256-23Img
Alts
Select
Ref.
52Qty
8Availability
Part #
PLDescription
PROCURE LOCALLY; Washer-Flat;3256-4Img
Alts
Select
Ref.
53Qty
2Availability
Part #
TR56D6591Description

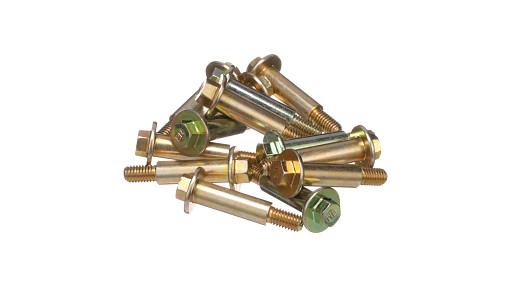

BOLT; Wheel;Kawasaki FH580V-CS13-RImg
Alts
Select
Ref.
54Qty
2Availability
Part #
TR701756Description
RIM; Wheel-Gage;SN T06ZB0001 & ABOVE MZ16HImg
Alts
Select
Ref.
55Qty
1Availability
Part #
TR106D8702D03Description
BRACKET; Gage Wheel, Front LH;SN T06ZB0001 & ABOVE MZ16HImg
Alts
Select
Ref.
56Qty
1Availability
Part #
TR106D8701D03Description
BRACKET; Gage Wheel, Front RH;SN T06ZB0001 & ABOVE MZ16HImg
Alts
Select
Ref.
57Qty
1Availability
Part #
TR106D8745Description
O-RING; SN T06ZB0001 & ABOVE MZ16HImg
Alts
