TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
11MOWER DECK; DECK;44'' - 9828539
-
11CUTTER BOX; DECK;GT65;48'' - 9828540;PART IS NO LONGER SERVICED ORDER 715699026 THRU WHOLEGOODS;EUROPE - PART IS NO LONGER AVAILABLE THRU SERVICE PARTS - ORDER 725837016 THRU WHOLEGOODS; (Prod Date) Between 01-Jan-1992 and 30-Sep-1994
-
11MOWER DECK; DECK 48'' - 9828540;48'' - 9828540;PART IS NO LONGER SERVICED ORDER 715699026 THRU WHOLEGOODS;EUROPE - PART IS NO LONGER AVAILABLE THRU SERVICE PARTS - ORDER 725837016 THRU WHOLEGOODS; (Prod Date) From 01-Oct-1994
-
23SHAFT;
-
34ROLLER;
-
48LOCK WASHER 10.2mm ID x 18.1mm OD x 2.2mm Thk; WASHER, LOCK, M10
-
54NUT; Cap
-
61SHAFT;
-
72COLLAR;
-
82BRACKET;
-
94BOLT Hex, M10 x 1.5 x 25mm, Full Thd, Cl 8.8, ZND; HH, CL 8.8, M10 x 1.5 x 25
-
106PIN;
-
104PIN; Used On & ASN TN03692;48'' - 9828540
-
116SPRING;
-
126PIN 4mm OD x 36mm L, Slotted; PIN, Spring 4 x 35
-
114SPRING; Used On & ASN TN03692;48'' - 9828540
-
124PIN 4mm OD x 36mm L, Slotted; PIN, Spring 4 x 35;Used On & ASN TN03692;48'' - 9828540
-
131COVER; CHUTE ASSEMBLY
-
141SPRING;
-
151SHAFT;
-
162SLOTTED PIN 10mm OD x 30mm L, Slotted; PIN, SLOTTED, M4 x 20
-
174BOLT Hex, M8 x 1.25 x 20mm, Full Thd, Cl 8.8, ZND; BOLT, HH, CL 8.8, M8 x 1.25 x 20
-
184LOCK WASHER 5/16'' ID x 19/32'' OD x 1/8'' Thk; Washer, Lock, 5/16''
-
201SUPPORT; IDLER ARM ASSEMBLY Includes: 2 of Ref. 21;48'' - 9828540
-
191NUT M8 x 1.25, Cl 8;
-
201ARM; IDLER ARM ASSEMBLY Includes: 2 of Ref. 21;44'' - 9828539
-
212BUSHING;
-

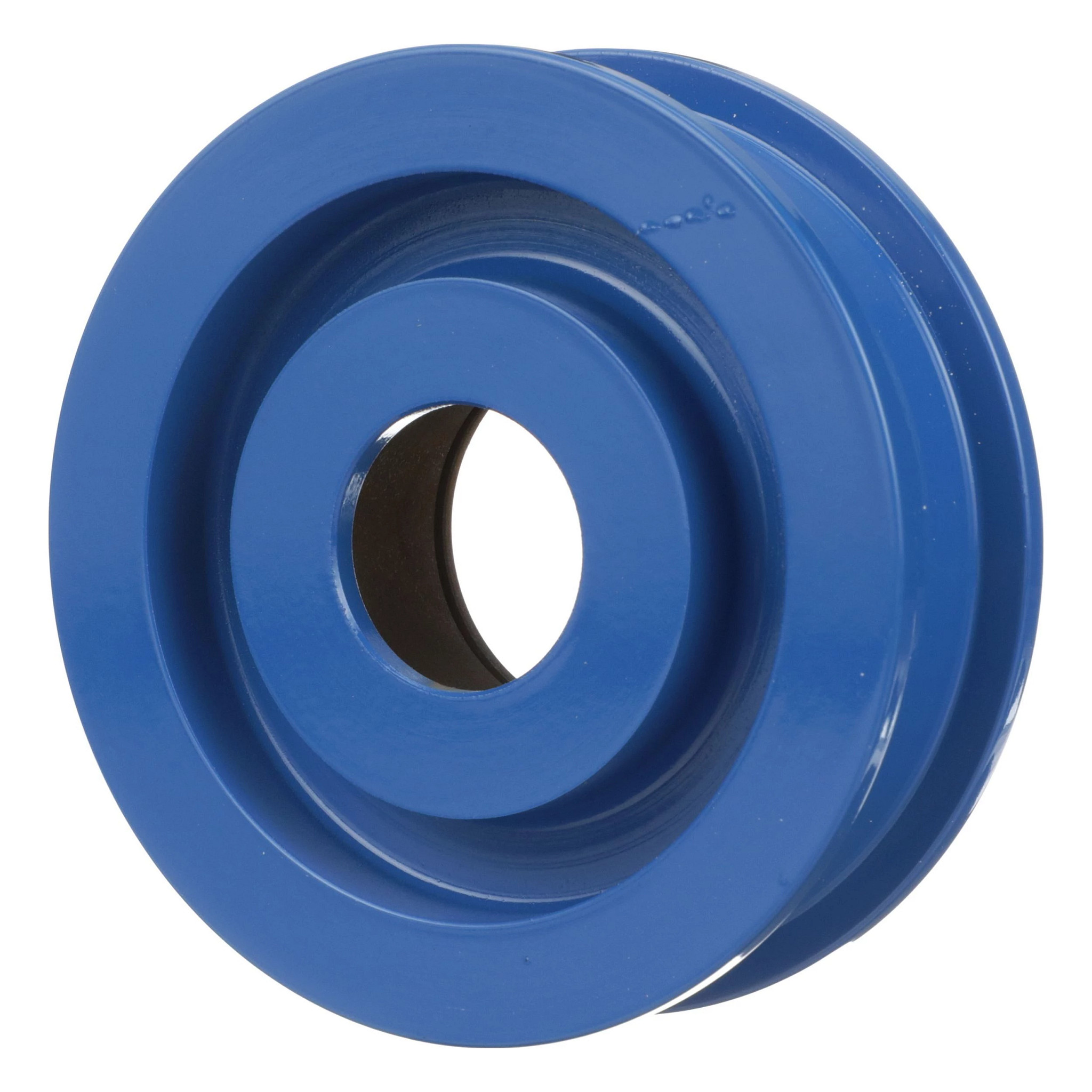

221PULLEY; Tension
-
232BALL BEARING 17mm ID x 40mm OD x 12mm W; BEARING, BALL
-
241CIRCLIP M40, Int, PHC;
-
251SNAP RING M17, Ext, PHC; RING, Snap 17
-
261SPRING;
-
271ROD; 48'' - 9828540
-
271ROD; 44'' - 9828539
-
282NUT; M10, P 1-25
-
291ARM; Gauge Wheel, R.H.
-

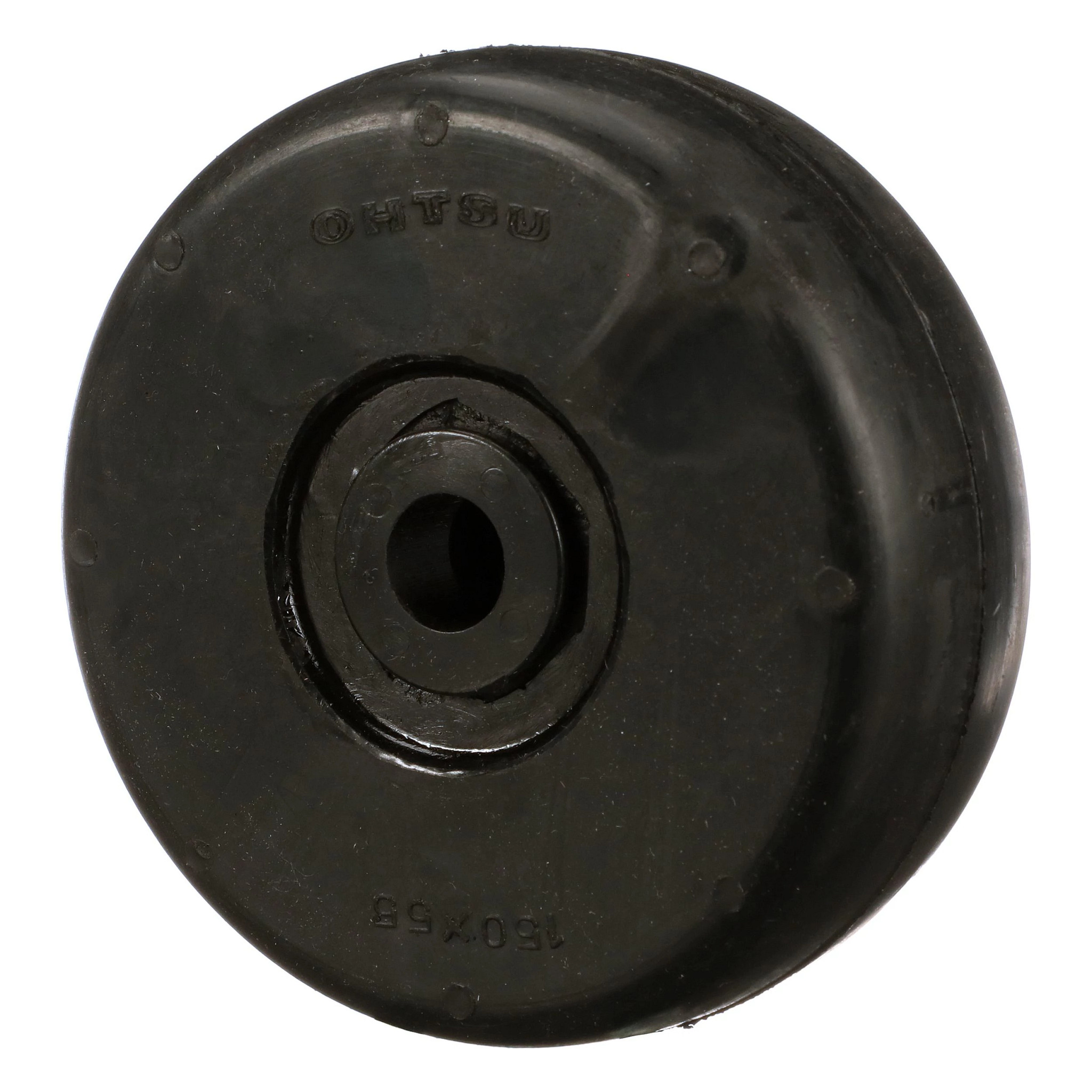

302WHEEL ASSY; WHEEL, Gauge
-
314DRIVE BUSHING; BUSHING
-
322LUBE NIPPLE M6 x .075; NIPPLE, LUBE, M6 x .075
-
332WASHER 21mm ID x 37mm OD x 3mm Thk, CST, ZND; M20 x 37 x 3
-
343SPACER;
-
352COTTER PIN; PIN
-
362PROCURE LOCALLY; PIN, Hair
-
371ARM; Gauge Wheel, L.H.
-
382SUPPORT; LINK, Rear Lift
-
382SUPPORT; LINK, Rear Lift;Used BSN TN03691;48'' - 9828540
-
392SPRING;
-
402SPINDLE M5 x 40; PIN, ROLL, M5 x 40
-
412PIN;
-
422WASHER WASHER 10.5 X 20 X 2 MM CST ZND; M10
-
432PROCURE LOCALLY; PIN, Hair
-
441SHAFT;
-
454WASHER; 10
-
464LOCK PIN 5mm OD x 30mm L, Slotted; PIN, Spring, 5 x 30
-
472PIN;
-
472PIN; Used BSN TN03691;48'' - 9828540
-
484WASHER 13mm ID x 28.5mm OD x 2.7mm Thk; 44'' - 9828539
-
484WASHER 13mm ID x 28.5mm OD x 2.7mm Thk; 48'' - 9828540
-
482WASHER 13mm ID x 28.5mm OD x 2.7mm Thk; Used On & ASN TN03692;48'' - 9828540
-
492COTTER PIN; PIN, Cotter
-
502ROD;
-
511CONNECTING LINK; LINK, Front Lift, R.H.
-
511UNIVERSAL JOINT; LINK, Rear Lift, R.H.;ASN TN03691 , 48'' ONLY
-
521CONNECTING LINK; LINK, Front Lift, L.H.
-
521UNIVERSAL JOINT; LINK, Front Lift, L.H.;ASN TN03691 , 48'' ONLY
-
532ROD; Lift
-
542PIN;
-
542PIN; 48'' - 9828540;Used BSN TN03691
-
552PIN;
-
552PIN; ASN TN03691 , 48'' ONLY
-
562COTTER PIN; PIN, Hair
-
562COTTER PIN; PIN, Hair;48'' - 9828540;Used BSN TN03691
-
572CLEVIS;
-
582NUT Hex, M12 x 1.25, Cl 10, ZND; CL 12, M12 x 1.25;44'' - 9828539
-
582NUT Hex, M12 x 1.25, Cl 10, ZND; CL 12, M12 x 1.25;Used BSN TN03691;48'' - 9828540
Select All
Ref.
1Qty
1Availability
Part #
SBA638101651Description
CUTTER BOX; DECK;GT65;48'' - 9828540;PART IS NO LONGER SERVICED ORDER 715699026 THRU WHOLEGOODS;EUROPE - PART IS NO LONGER AVAILABLE THRU SERVICE PARTS - ORDER 725837016 THRU WHOLEGOODS; (Prod Date) Between 01-Jan-1992 and 30-Sep-1994Img
Alts
Ref.
1Qty
1Availability
Part #
SBA638102160Description
MOWER DECK; DECK 48'' - 9828540;48'' - 9828540;PART IS NO LONGER SERVICED ORDER 715699026 THRU WHOLEGOODS;EUROPE - PART IS NO LONGER AVAILABLE THRU SERVICE PARTS - ORDER 725837016 THRU WHOLEGOODS; (Prod Date) From 01-Oct-1994Img
Alts
Ref.
4Qty
8Availability
Part #
140028Description
LOCK WASHER 10.2mm ID x 18.1mm OD x 2.2mm Thk; WASHER, LOCK, M10Img
Alts
Ref.
9Qty
4Availability
Part #
43139Description
BOLT Hex, M10 x 1.5 x 25mm, Full Thd, Cl 8.8, ZND; HH, CL 8.8, M10 x 1.5 x 25Img
Alts
Ref.
10Qty
4Availability
Part #
SBA642250011Description
PIN; Used On & ASN TN03692;48'' - 9828540Img
Alts
Ref.
12Qty
6Availability
Part #
9510330Description
PIN 4mm OD x 36mm L, Slotted; PIN, Spring 4 x 35Img
Alts
Ref.
11Qty
4Availability
Part #
SBA498211360Description
SPRING; Used On & ASN TN03692;48'' - 9828540Img
Alts
Ref.
12Qty
4Availability
Part #
9510330Description
PIN 4mm OD x 36mm L, Slotted; PIN, Spring 4 x 35;Used On & ASN TN03692;48'' - 9828540Img
Alts
Ref.
16Qty
2Availability
Part #
9511933Description
SLOTTED PIN 10mm OD x 30mm L, Slotted; PIN, SLOTTED, M4 x 20Img
Alts
Ref.
17Qty
4Availability
Part #
120104Description
BOLT Hex, M8 x 1.25 x 20mm, Full Thd, Cl 8.8, ZND; BOLT, HH, CL 8.8, M8 x 1.25 x 20Img
Alts
Ref.
18Qty
4Availability
Part #
80681Description
LOCK WASHER 5/16'' ID x 19/32'' OD x 1/8'' Thk; Washer, Lock, 5/16''Img
Alts
Ref.
20Qty
1Availability
Part #
SBA632020010Description
SUPPORT; IDLER ARM ASSEMBLY Includes: 2 of Ref. 21;48'' - 9828540Img
Alts
Ref.
20Qty
1Availability
Part #
SBA632020030Description
ARM; IDLER ARM ASSEMBLY Includes: 2 of Ref. 21;44'' - 9828539Img
Alts
Ref.
23Qty
2Availability
Part #
362804Description
BALL BEARING 17mm ID x 40mm OD x 12mm W; BEARING, BALLImg
Alts
Ref.
25Qty
1Availability
Part #
370016Description
SNAP RING M17, Ext, PHC; RING, Snap 17Img
Alts
Ref.
32Qty
2Availability
Part #
SBA060610000Description
LUBE NIPPLE M6 x .075; NIPPLE, LUBE, M6 x .075Img
Alts
Ref.
33Qty
2Availability
Part #
86511327Description
WASHER 21mm ID x 37mm OD x 3mm Thk, CST, ZND; M20 x 37 x 3Img
Alts
Ref.
38Qty
2Availability
Part #
SBA642510180Description
SUPPORT; LINK, Rear Lift;Used BSN TN03691;48'' - 9828540Img
Alts
Ref.
40Qty
2Availability
Part #
SBA030309010Description
SPINDLE M5 x 40; PIN, ROLL, M5 x 40Img
Alts
Ref.
42Qty
2Availability
Part #
86511323Description
WASHER WASHER 10.5 X 20 X 2 MM CST ZND; M10Img
Alts
Ref.
46Qty
4Availability
Part #
393871Description
LOCK PIN 5mm OD x 30mm L, Slotted; PIN, Spring, 5 x 30Img
Alts
Ref.
47Qty
2Availability
Part #
SBA031311225Description
PIN; Used BSN TN03691;48'' - 9828540Img
Alts
Ref.
48Qty
4Availability
Part #
378245Description
WASHER 13mm ID x 28.5mm OD x 2.7mm Thk; 44'' - 9828539Img
Alts
Ref.
48Qty
4Availability
Part #
378245Description
WASHER 13mm ID x 28.5mm OD x 2.7mm Thk; 48'' - 9828540Img
Alts
Ref.
48Qty
2Availability
Part #
378245Description
WASHER 13mm ID x 28.5mm OD x 2.7mm Thk; Used On & ASN TN03692;48'' - 9828540Img
Alts
Ref.
51Qty
1Availability
Part #
SBA642500470Description
CONNECTING LINK; LINK, Front Lift, R.H.Img
Alts
Ref.
51Qty
1Availability
Part #
SBA642500020Description
UNIVERSAL JOINT; LINK, Rear Lift, R.H.;ASN TN03691 , 48'' ONLYImg
Alts
Ref.
52Qty
1Availability
Part #
SBA642500490Description
CONNECTING LINK; LINK, Front Lift, L.H.Img
Alts
Ref.
52Qty
1Availability
Part #
SBA642500010Description
UNIVERSAL JOINT; LINK, Front Lift, L.H.;ASN TN03691 , 48'' ONLYImg
Alts
Ref.
54Qty
2Availability
Part #
SBA642250090Description
PIN; 48'' - 9828540;Used BSN TN03691Img
Alts
Ref.
56Qty
2Availability
Part #
SBA031100012Description
COTTER PIN; PIN, Hair;48'' - 9828540;Used BSN TN03691Img
Alts
Ref.
58Qty
2Availability
Part #

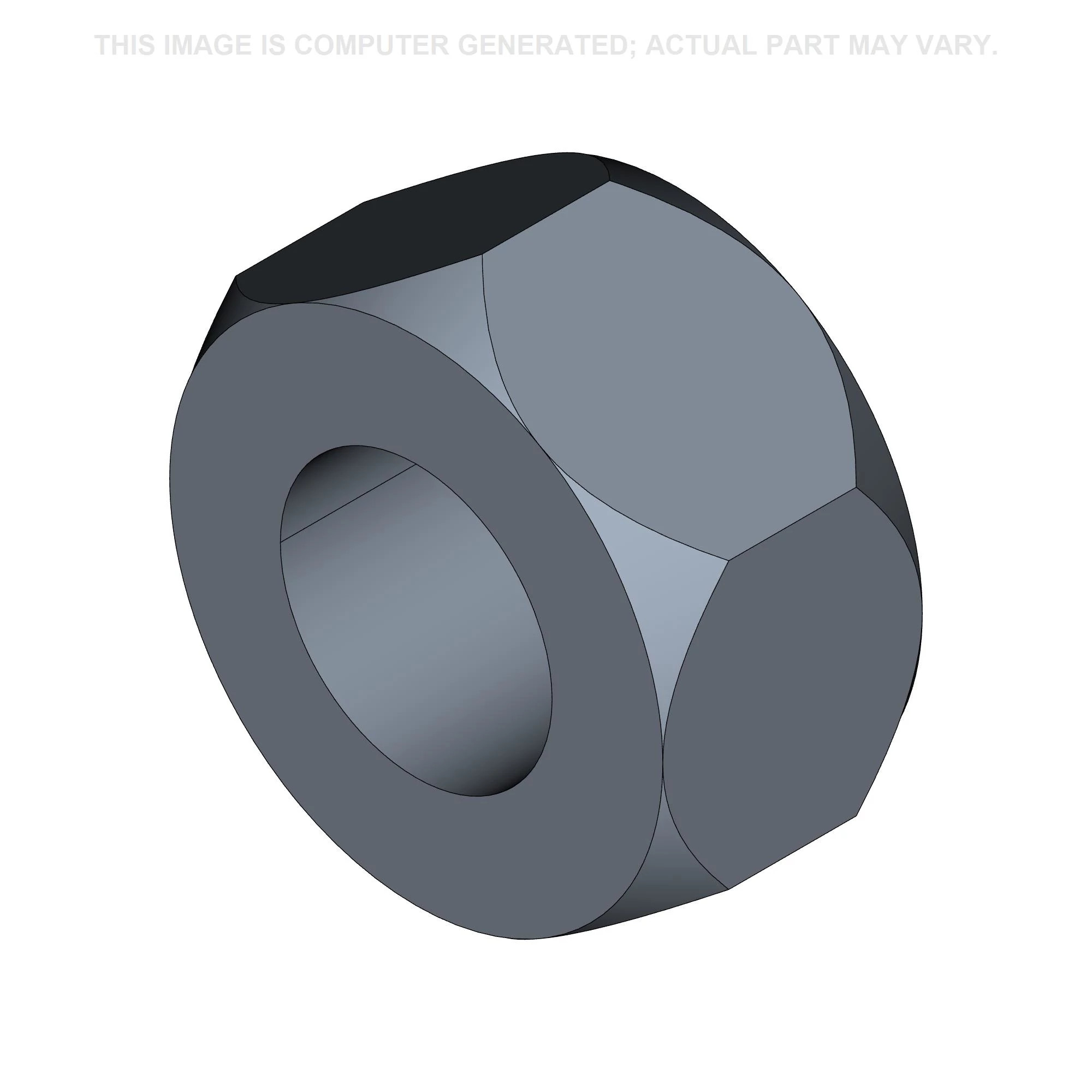

379752Description
NUT Hex, M12 x 1.25, Cl 10, ZND; CL 12, M12 x 1.25;44'' - 9828539Img
Alts
Ref.
58Qty
2Availability
Part #
379752Description
NUT Hex, M12 x 1.25, Cl 10, ZND; CL 12, M12 x 1.25;Used BSN TN03691;48'' - 9828540Img
Alts
