049A - UNIVERSAL ASSEMBLY - P.T.O 42'' SNOW THROWER (ON & ASN WY07477)
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    BER657998
    FLEXIBLE JOINT; UNIVERSAL ASSEMBLY, P.T.O. Includes: Ref. 1 thru 12; (Prod Date) Between 01-Jun-1988 and 31-Dec-1991
  • 1
    1
    BER658424
    PTO; SHAFT ASSEMBLY, Male Half Includes: Ref. 2 thru 8; (Prod Date) Between 01-Jun-1988 and 31-Dec-1991
  • 2
    1

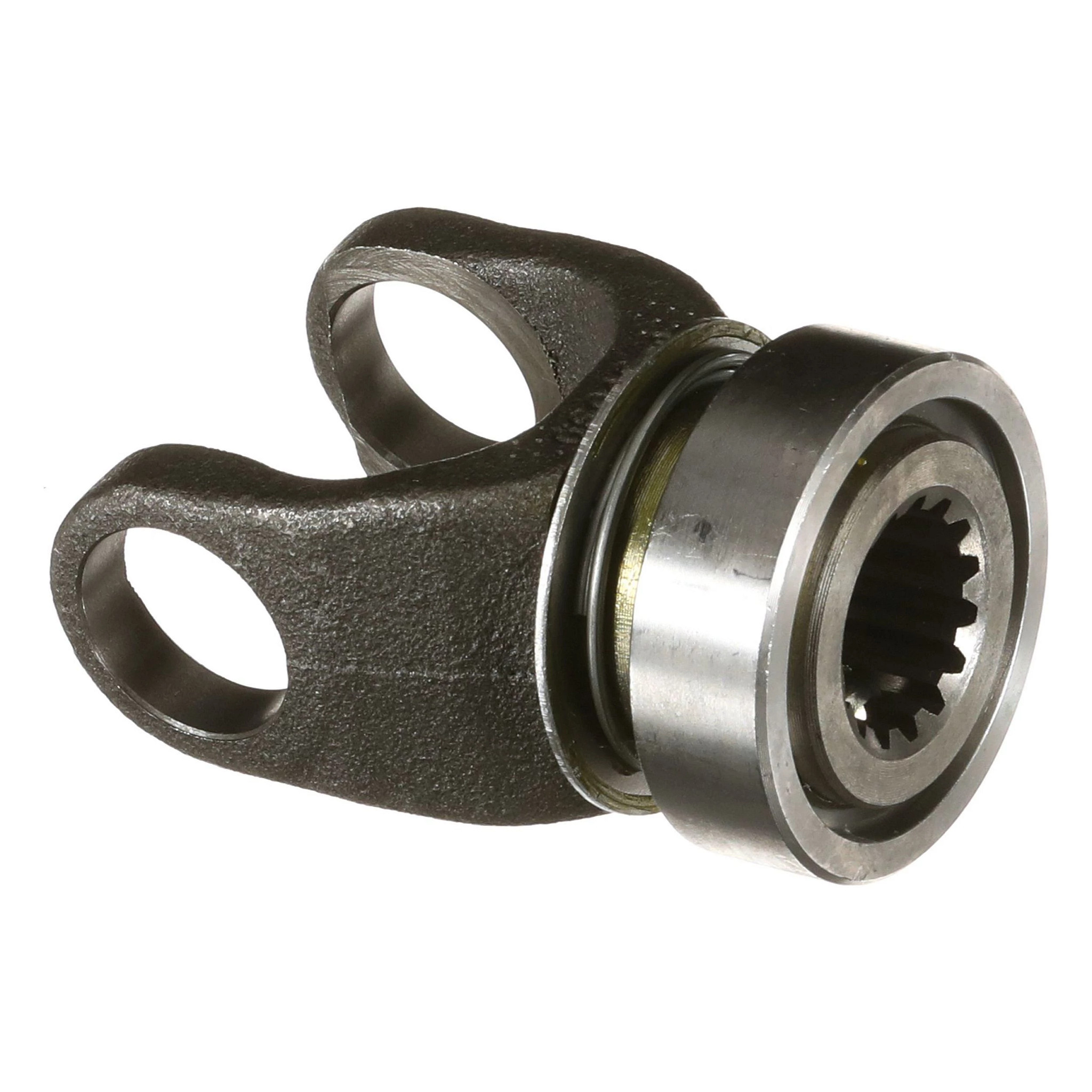

    BER658251
    YOKE; ASSEMBLY, Quick Disconnect Includes: Ref. 3; (Prod Date) Between 01-Jun-1988 and 31-Dec-1991
  • 3
    1
    BER658113
    SET OF PARTS; KIT, Repair-Spring Lock Yoke; (Prod Date) Between 01-Jun-1988 and 31-Dec-1991
  • 4
    2
    BER654478
    REPAIR KIT; KIT, Universal Cross & Bearing; (Prod Date) Between 01-Jun-1988 and 31-Dec-1991
  • 5
    1
    BER657594
    SHAFT; & YOKE ASSEMBLY, Male; (Prod Date) Between 01-Jun-1988 and 31-Dec-1991
  • 6
    2
    BER658114
    RETAINER; Bearing; (Prod Date) Between 01-Jun-1988 and 31-Dec-1991
  • 7
    2
    BER658115
    BEARING ASSY; BEARING, Nylon; (Prod Date) Between 01-Jun-1988 and 31-Dec-1991
  • 8
    1
    BER658427
    SHIELD; Outer - Plastic; (Prod Date) Between 01-Jun-1988 and 31-Dec-1991
  • 9
    1
    BER658409
    PTO SHAFT; SHAFT ASSEMBLY, Female Half Includes: Ref. 10 thru 12; (Prod Date) Between 01-Jun-1988 and 31-Dec-1991
  • 10
    1
    BER658390
    INNER SHIELD; SHIELD, Inner Plastic; (Prod Date) Between 01-Jun-1988 and 31-Dec-1991
  • 11
    1
    BER657593
    PTO SHAFT; SHAFT & YOKE ASSEMBLY, Female; (Prod Date) Between 01-Jun-1988 and 31-Dec-1991
  • 12
    1
    BER655740
    YOKE; (1'' Dia. Hole); (Prod Date) Between 01-Jun-1988 and 31-Dec-1991
  • 1
    BER656781
    DECAL; (Prod Date) Between 01-Jun-1988 and 31-Dec-1991
Select All

Select

Ref.

Qty

1

Availability

Part #

BER657998

Description

FLEXIBLE JOINT; UNIVERSAL ASSEMBLY, P.T.O. Includes: Ref. 1 thru 12; (Prod Date) Between 01-Jun-1988 and 31-Dec-1991


Alts

Select

Ref.

1

Qty

1

Availability

Part #

BER658424

Description

PTO; SHAFT ASSEMBLY, Male Half Includes: Ref. 2 thru 8; (Prod Date) Between 01-Jun-1988 and 31-Dec-1991


Alts

Select

Ref.

2

Qty

1

Availability

Part #

BER658251

Description

YOKE; ASSEMBLY, Quick Disconnect Includes: Ref. 3; (Prod Date) Between 01-Jun-1988 and 31-Dec-1991


Alts

Select

Ref.

3

Qty

1

Availability

Part #

BER658113

Description

SET OF PARTS; KIT, Repair-Spring Lock Yoke; (Prod Date) Between 01-Jun-1988 and 31-Dec-1991


Alts

Select

Ref.

4

Qty

2

Availability

Part #

BER654478

Description

REPAIR KIT; KIT, Universal Cross & Bearing; (Prod Date) Between 01-Jun-1988 and 31-Dec-1991


Alts

Select

Ref.

5

Qty

1

Availability

Part #

BER657594

Description

SHAFT; & YOKE ASSEMBLY, Male; (Prod Date) Between 01-Jun-1988 and 31-Dec-1991


Alts

Select

Ref.

6

Qty

2

Availability

Part #

BER658114

Description

RETAINER; Bearing; (Prod Date) Between 01-Jun-1988 and 31-Dec-1991


Alts

Select

Ref.

7

Qty

2

Availability

Part #

BER658115

Description

BEARING ASSY; BEARING, Nylon; (Prod Date) Between 01-Jun-1988 and 31-Dec-1991


Alts

Select

Ref.

8

Qty

1

Availability

Part #

BER658427

Description

SHIELD; Outer - Plastic; (Prod Date) Between 01-Jun-1988 and 31-Dec-1991


Alts

Select

Ref.

9

Qty

1

Availability

Part #

BER658409

Description

PTO SHAFT; SHAFT ASSEMBLY, Female Half Includes: Ref. 10 thru 12; (Prod Date) Between 01-Jun-1988 and 31-Dec-1991


Alts

Select

Ref.

10

Qty

1

Availability

Part #

BER658390

Description

INNER SHIELD; SHIELD, Inner Plastic; (Prod Date) Between 01-Jun-1988 and 31-Dec-1991


Alts

Select

Ref.

11

Qty

1

Availability

Part #

BER657593

Description

PTO SHAFT; SHAFT & YOKE ASSEMBLY, Female; (Prod Date) Between 01-Jun-1988 and 31-Dec-1991


Alts

Select

Ref.

12

Qty

1

Availability

Part #

BER655740

Description

YOKE; (1'' Dia. Hole); (Prod Date) Between 01-Jun-1988 and 31-Dec-1991


Alts

Select

Ref.

Qty

1

Availability

Part #

BER656781

Description

DECAL; (Prod Date) Between 01-Jun-1988 and 31-Dec-1991


Alts
