PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
1SPARE PART; Transaxle Assy., Complete, Model 2352
-
11LEVER; Shift
-
21SNAP RING 1.375'', Int, #137; Ring, Snap, 1.375'', Int, #137
-
31RING; Quad
-
41PIN; Pin, Roll
-
51HOUSING; Shift Lever
-
61RETAINER; Keeper, Shift Lever
-
81ROD; Shift Rod Assy. Includes: Ref. 9 thru 12 & 24
-
91SPRING;
-
101BALL BEARING 4.76mm OD; Steel, 3/16''
-
111FORK; Shifter
-
121ROD; Shifter, 3rd & 4th
-
131ROD; Shift Rod Assy. Includes: Ref. 9 thru 11 & 14
-
141ROD; Shifter, Low
-
152HALF SHAFT; Axle, 15-9/64'' Lg.
-
166THRUST WASHER; Washer, Thrust
-
174PROCURE LOCALLY; Bolt, Cap, HH, 1/4''-20 x 2-1/2''
-
184PROCURE LOCALLY; Washer, Lock, 1/4''
-
191RING GEAR; Ring, Gear
-
201PIN; Drive
-
211BLOCK; Drive
-
221BEVEL PINION; Pin, Bevel
-
231SHAFT; Brake Shaft & Gear Assy.
-
242SNAP RING #50, Ext; Ring, Snap, #50, Ext
-
251SPARE PART; Pinion Shaft & Bearing Assy. Includes: Ref. 26
-
261BEARING ASSY; Bearing
-
271GEAR; Cluster Assy. Includes: Ref. 28
-
281BUSHING;
-
291STOP; Shifter
-
301GASKET; Case & Cover
-
311GASKET; Shift Lever Housing
-
321GEAR; Shifter, 3rd & 4th
-
331GEAR; Shifter, 1st, 2nd & Reverse
-
341BEVEL GEAR; Gear, Bevel
-
351GEAR; Idler
-
361GEAR; Cluster Assy. Includes: Ref. 28
-
371SPACER;
-
381SNAP RING #75, Ext; Ring, Snap, #75, Ext
-
391SHAFT; Input
-
401GEAR; Spur, Input Shaft
-
412THRUST WASHER; Washer, Thrust
-
421SEAL PROTECTION; Oil Seal & Retainer Assy. Includes: Ref. 45
-
431GEAR; Output
-
441DRIVE PINION; Pinion, Output
-
452SEAL; Oil
-
462HOUSING; Axle
-
471COVER; Transaxle Cover Assy., R.H. Includes: Ref. 54, 55, 57, 59 & 63
-
481CASE; Transaxle Cover Assy., L.H. Includes: Ref. 54, 55, 57 & 63
-
498PROCURE LOCALLY; Screw, Cap, Socket Hd., 1/4''-20 x 3/4''
-
501PROCURE LOCALLY; Pin, Dowel
-
514PROCURE LOCALLY; Screw, HH, 5/16''-18 x 1''
-
521PLUG; Drain, Magnetic
-
534PROCURE LOCALLY; Washer, Lock, Split, 3/8''
-
542BEARING ASSY; Bearing, Needle
-
554NEEDLE BEARING; Bearing, Needle
-
561BEARING ASSY; Bearing, Ball
-
572BEARING ASSY; Bearing, Needle
-
582BALL BEARING 25.39mm ID x 50.8mm OD x 15.13mm W; Bearing, Ball
-
591BEARING ASSY; Bearing, Needle
-
601OIL SEAL; Oil
-
611WASHER;
-
621SHAFT; & Pinion Assy.
-
632NEEDLE BEARING Needle, 44.45mm ID x 53.98mm OD x 19.3mm W; Bearing, Needle
-
641SHAFT; Reverse Idler
-
651SPACER; Reverse Idler
-
661IDLER; Reverse
-
671GEAR; Spur, 22T
-
682THRUST BEARING 0.883'' ID x 1.427'' OD x 0.078''; Bearing, Thrust
-
691CARRIER; Differential Carrier Assy., L.H. Includes: Ref. 71
-
701CARRIER; Differential Carrier Assy., R.H. Includes: Ref. 71
-
711BUSHING;
-
722O-RING;
-
731THRUST WASHER; Washer, Thrust
-
741THRUST WASHER; Washer, Thrust
-
751NOT SERVICED; Plug, Pipe
-
762SPARE PART; Race, Thrust
-
772WASHER;
Select All
Select
Ref.
Qty
1Availability
Part #
TEC794321Description
SPARE PART; Transaxle Assy., Complete, Model 2352Img
Alts
Select
Ref.
2Qty
1Availability
Part #
86629584Description
SNAP RING 1.375'', Int, #137; Ring, Snap, 1.375'', Int, #137Img
Alts
Select
Ref.
6Qty
1Availability
Part #
TEC784094Description
RETAINER; Keeper, Shift LeverImg
Alts
Select
Ref.
8Qty
1Availability
Part #
TEC784054Description
ROD; Shift Rod Assy. Includes: Ref. 9 thru 12 & 24Img
Alts
Select
Ref.
10Qty
1Availability
Part #
9672608Description
BALL BEARING 4.76mm OD; Steel, 3/16''Img
Alts
Select
Ref.
13Qty
1Availability
Part #
TEC784056Description
ROD; Shift Rod Assy. Includes: Ref. 9 thru 11 & 14Img
Alts
Select
Ref.
15Qty
2Availability
Part #
TEC774335Description
HALF SHAFT; Axle, 15-9/64'' Lg.Img
Alts
Select
Ref.
16Qty
6Availability
Part #
TEC780042Description
THRUST WASHER; Washer, ThrustImg
Alts
Select
Ref.
17Qty
4Availability
Part #
PLDescription
PROCURE LOCALLY; Bolt, Cap, HH, 1/4''-20 x 2-1/2''Img
Alts
Select
Ref.
18Qty
4Availability
Part #
PLDescription
PROCURE LOCALLY; Washer, Lock, 1/4''Img
Alts
Select
Ref.
23Qty
1Availability
Part #
TEC776029ADescription
SHAFT; Brake Shaft & Gear Assy.Img
Alts
Select
Ref.
24Qty
2Availability
Part #
86514147Description

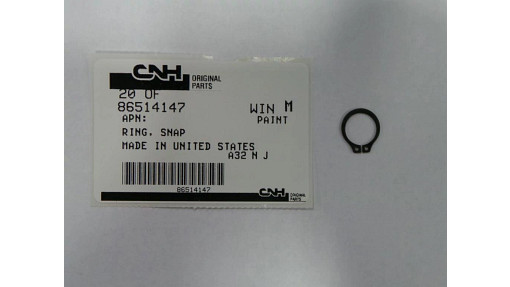

SNAP RING #50, Ext; Ring, Snap, #50, ExtImg
Alts
Select
Ref.
25Qty
1Availability
Part #
TEC776189ADescription
SPARE PART; Pinion Shaft & Bearing Assy. Includes: Ref. 26Img
Alts
Select
Ref.
27Qty
1Availability
Part #
TEC778034Description
GEAR; Cluster Assy. Includes: Ref. 28Img
Alts
Select
Ref.
31Qty
1Availability
Part #
TEC788022ADescription
GASKET; Shift Lever HousingImg
Alts
Select
Ref.
33Qty
1Availability
Part #
TEC778020Description
GEAR; Shifter, 1st, 2nd & ReverseImg
Alts
Select
Ref.
36Qty
1Availability
Part #
TEC778049Description
GEAR; Cluster Assy. Includes: Ref. 28Img
Alts
Select
Ref.
38Qty
1Availability
Part #
195621Description
SNAP RING #75, Ext; Ring, Snap, #75, ExtImg
Alts
Select
Ref.
41Qty
2Availability
Part #
TEC780052Description
THRUST WASHER; Washer, ThrustImg
Alts
Select
Ref.
42Qty
1Availability
Part #
TEC788021Description
SEAL PROTECTION; Oil Seal & Retainer Assy. Includes: Ref. 45Img
Alts
Select
Ref.
44Qty
1Availability
Part #
TEC776028Description
DRIVE PINION; Pinion, OutputImg
Alts
Select
Ref.
47Qty
1Availability
Part #
TEC772040Description
COVER; Transaxle Cover Assy., R.H. Includes: Ref. 54, 55, 57, 59 & 63Img
Alts
Select
Ref.
48Qty
1Availability
Part #
TEC770012Description
CASE; Transaxle Cover Assy., L.H. Includes: Ref. 54, 55, 57 & 63Img
Alts
Select
Ref.
49Qty
8Availability
Part #
PLDescription
PROCURE LOCALLY; Screw, Cap, Socket Hd., 1/4''-20 x 3/4''Img
Alts
Select
Ref.
51Qty
4Availability
Part #
PLDescription
PROCURE LOCALLY; Screw, HH, 5/16''-18 x 1''Img
Alts
Select
Ref.
53Qty
4Availability
Part #
PLDescription
PROCURE LOCALLY; Washer, Lock, Split, 3/8''Img
Alts
Select
Ref.
54Qty
2Availability
Part #
TEC780049Description
BEARING ASSY; Bearing, NeedleImg
Alts
Select
Ref.
55Qty
4Availability
Part #
TR1540Description
NEEDLE BEARING; Bearing, NeedleImg
Alts
Select
Ref.
57Qty
2Availability
Part #
TEC780047Description
BEARING ASSY; Bearing, NeedleImg
Alts
Select
Ref.
58Qty
2Availability
Part #
149051Description
BALL BEARING 25.39mm ID x 50.8mm OD x 15.13mm W; Bearing, BallImg
Alts
Select
Ref.
59Qty
1Availability
Part #
TEC780046Description
BEARING ASSY; Bearing, NeedleImg
Alts
Select
Ref.
63Qty
2Availability
Part #
706065Description

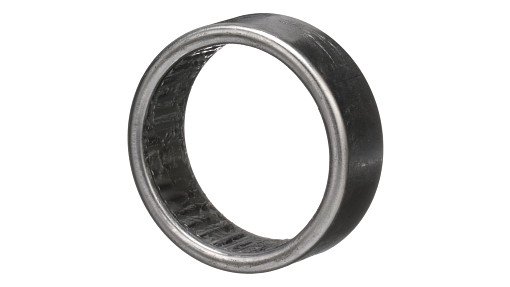

NEEDLE BEARING Needle, 44.45mm ID x 53.98mm OD x 19.3mm W; Bearing, NeedleImg
