034 - INSTRUMENT PANEL & FRAME L/POWER STEERING
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
Select All

Select

Ref.

1

Qty

1

Availability

Part #

SBA436600012

Description

FRAME; SUB FRAME


Alts

Select

Ref.

1

Qty

1

Availability

Part #

SBA436600050

Description

FRAME; SUB FRAME


Alts

Select

Ref.

2

Qty

4

Availability

Part #

N602569S36

Description

BOLT; Screw, HH, W/Washer, CL 8.8, M10 x 1.5 x 20


Alts

Select

Ref.

3

Qty

1

Availability

Part #

SBA408400020

Description

PLATE;


Alts

Select

Ref.

3

Qty

1

Availability

Part #

SBA408400131

Description

PLATTE;


Alts

Select

Ref.

4

Qty

1

Availability

Part #

SBA408400030

Description

PLATTE;


Alts

Select

Ref.

5

Qty

1

Availability

Part #

SBA408400040

Description

PLATTE;


Alts

Select

Ref.

6

Qty

3

Availability

Part #

SBA011310610

Description

SCHRAUBE; M6 x 10


Alts

Select

Ref.

7

Qty

2

Availability

Part #

SBA462350110

Description

HALTERUNG;


Alts

Select

Ref.

8

Qty

4

Availability

Part #

SBA011310612

Description

SCHRAUBE M. UNVERLIE Hex, M6 x 12, Cl 8.8; SCREW, CAPTIVE WASHER, Hex, M6 x 12, Cl 8.8


Alts

Select

Ref.

9

Qty

14

Availability

Part #

9824259

Description

UNTERLEGSCHEIBE 6.4mm ID x 12mm OD x 1.6mm Thk, CST, ZND; M6


Alts

Select

Ref.

10

Qty

2

Availability

Part #

SBA498130020

Description

FILZDICHTUNG; FELT


Alts

Select

Ref.

11

Qty

1

Availability

Part #

SBA498130031

Description

FILZDICHTUNG; FELT


Alts

Select

Ref.

12

Qty

2

Availability

Part #

SBA498130040

Description

FILZDICHTUNG; FELT


Alts

Select

Ref.

13

Qty

1

Availability

Part #

SBA498130060

Description

FILZDICHTUNG; FELT, 20x20x360


Alts

Select

Ref.

14

Qty

3

Availability

Part #

SBA498130060

Description

FILZDICHTUNG; FELT, 20x20x370


Alts

Select

Ref.

15

Qty

1

Availability

Part #

SBA498130071

Description

FILZDICHTUNG; FELT


Alts

Select

Ref.

16

Qty

1

Availability

Part #

SBA498130080

Description

FILZDICHTUNG; FELT


Alts

Select

Ref.

17

Qty

1

Availability

Part #

SBA498221130

Description

FEDER;


Alts

Select

Ref.

18

Qty

1

Availability

Part #

SBA498110550

Description

GUMMIBUCHSE; RUBBER


Alts

Select

Ref.

19

Qty

1

Availability

Part #

SBA498110560

Description

GUMMIBUCHSE; RUBBER


Alts

Select

Ref.

20

Qty

1

Availability

Part #

SBA497860200

Description

BUCHSE;


Alts

Select

Ref.

21

Qty

1

Availability

Part #

SBA498110680

Description

TÜLLE; Rubber


Alts

Select

Ref.

22

Qty

1

Availability

Part #

SBA185306091

Description

WARNLEUCHTE; GLOW SIGNAL


Alts

Select

Ref.

22A

Qty

1

Availability

Part #

SBA498460140

Description

TAPPO;


Alts

Select

Ref.

23

Qty

1

Availability

Part #

SBA385604640

Description

CABLAGGIO;


Alts

Select

Ref.

24

Qty

1

Availability

Part #

SBA385100730

Description

SPIA; LAMP ASSEMBLY


Alts

Select

Ref.

24

Qty

1

Availability

Part #

SBA385100950

Description

WARNING LIGHT; LAMP ASSEMBLY Includes: 25


Alts

Select

Ref.

25

Qty

4

Availability

Part #

SBA385120030

Description

BULB;


Alts

Select

Ref.

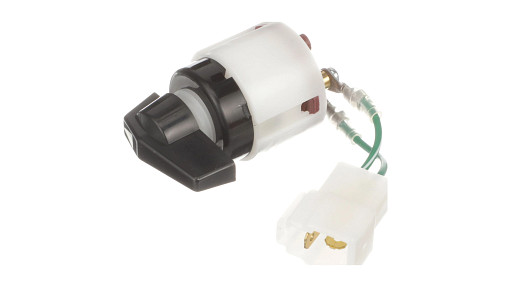

26

Qty

1

Availability

Part #

SBA385201070

Description

FLASHER SWITCH; SWITCH ASSEMBLY


Alts

Select

Ref.

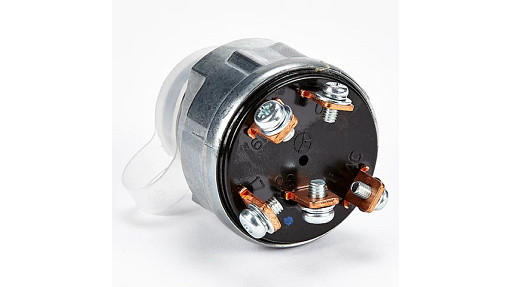

27

Qty

1

Availability

Part #

SBA485220190

Description

IGNITION SWITCH; SWITCH ASSEMBLY Includes: 28 & 29


Alts

Select

Ref.

28

Qty

1

Availability

Part #

9849079

Description

IGNITION KEY; KEY


Alts

Select

Ref.

29

Qty

1

Availability

Part #

SBA385800011

Description

CACHE-POUSSIERE; CAP, Key


Alts

Select

Ref.

30

Qty

1

Availability

Part #

SBA385604630

Description

FAISCEAU ELECTRIQUE;


Alts

Select

Ref.

30

Qty

1

Availability

Part #

SBA385604810

Description

FAISCEAU ELECTRIQUE;


Alts

Select

Ref.

31

Qty

1

Availability

Part #

SBA485450010

Description

TACHYMETRE; ASSEMBLY


Alts

Select

Ref.

32

Qty

1

Availability

Part #

SBA385350240

Description

CABLE; SHAFT, Flexible


Alts

Select

Ref.

33

Qty

1

Availability

Part #

SBA185516061

Description

REGOLATORE DI TENSIO; REGULATOR


Alts

Select

Ref.

34

Qty

2

Availability

Part #

SBA011150625

Description

BULLONE; M6 x 30


Alts

Select

Ref.

35

Qty

2

Availability

Part #

SBA385230091

Description

RELÈ;


Alts

Select

Ref.

36

Qty

2

Availability

Part #

SBA011140612

Description

BULLONE; M6 x 12


Alts

Select

Ref.

37

Qty

1

Availability

Part #

SBA462750012

Description

QUADRO STRUMENTI; L.H.;LGT14D


Alts

Select

Ref.

37

Qty

1

Availability

Part #

SBA462750080

Description

QUADRO STRUMENTI; L.H.;LGT14D ON & ASN T003097;LGT16D


Alts

Select

Ref.

37

Qty

1

Availability

Part #

SBA462750130

Description

QUADRO STRUMENTI; L.H.


Alts

Select

Ref.

38

Qty

2

Availability

Part #

SBA399110660

Description

MORSETTO;


Alts

Select

Ref.

39

Qty

2

Availability

Part #

86511829

Description

VITE Phil Pan Hd, M6 x 16mm, Cl 4.8, Full Thd; Pan Hd, CL 4.8, M6 x 1 x 16


Alts

Select

Ref.

40

Qty

1

Availability

Part #

SBA462750022

Description

QUADRO STRUMENTI; R.H.;LGT14D


Alts

Select

Ref.

40

Qty

1

Availability

Part #

SBA462750110

Description

INSTRUMENTENTAFEL; R.H.;LGT14D ON & ASN T003097;LGT16D


Alts

Select

Ref.

40

Qty

1

Availability

Part #

SBA462750140

Description

INSTRUMENTENTAFEL; R.H.


Alts

Select

Ref.

41

Qty

1

Availability

Part #

SBA462760030

Description

INSTRUMENTENTAFEL; Lower


Alts

Select

Ref.

41

Qty

1

Availability

Part #

SBA462760080

Description

INSTRUMENTENTAFEL; Lower


Alts

Select

Ref.

42

Qty

1

Availability

Part #

SBA498110581

Description

STÜTZE; RUBBER


Alts

Select

Ref.

43

Qty

1

Availability

Part #

SBA462810011

Description

INSTRUMENTENTAFEL; Upper


Alts

Select

Ref.

44

Qty

4

Availability

Part #

SBA499480400

Description

SCHRAUBE;


Alts

Select

Ref.

45

Qty

2

Availability

Part #

SBA060610000

Description

SCHMIERNIPPEL M6 x .075; NIPPLE, LUBE, M6 x .075


Alts

Select

Ref.

46

Qty

7

Availability

Part #

SBA011150612

Description

SCHRAUBE; M6 x 12


Alts

Select

Ref.

47

Qty

2

Availability

Part #

86508568

Description

SCHRAUBE Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd; BOLT, Hex, M6 x 16, Cl 8.8, Full Thd


Alts

Select

Ref.

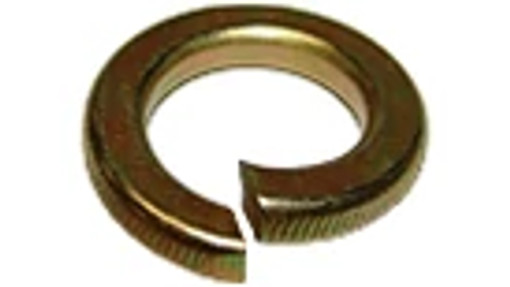

48

Qty

4

Availability

Part #

86517328

Description

SICHERUNGSSCHEIBE 6.1mm ID x 11.8mm OD x 1.7mm Thk; Washer, Lock, M6


Alts

Select

Ref.

49

Qty

2

Availability

Part #

15896221

Description

MUTTER Hex, M6 x 1, Cl 10, ZND;


Alts

Select

Ref.

50

Qty

4

Availability

Part #

SBA499340430

Description

UNTERLEGSCHEIBE;


Alts

Select

Ref.

51

Qty

1

Availability

Part #

SBA385270061

Description

ANZEIGE; METER, Fuel (Optional)


Alts

Select

Ref.

52

Qty

1

Availability

Part #

SBA011511025

Description

SCHRAUBE M. UNVERLIE Hex, M10 x 25, G5; SCREW, CAPTIVE WASHER, Hex, M10 x 25, G5;Included In Fuel Gauge Kit, Refer to Group 9-1


Alts

Select

Ref.

53

Qty

1

Availability

Part #

SBA436310400

Description

PLATTE;


Alts

Select

Ref.

54

Qty

6

Availability

Part #

SBA015140616

Description

SCHRAUBE; M6 x 16


Alts

Select

Ref.

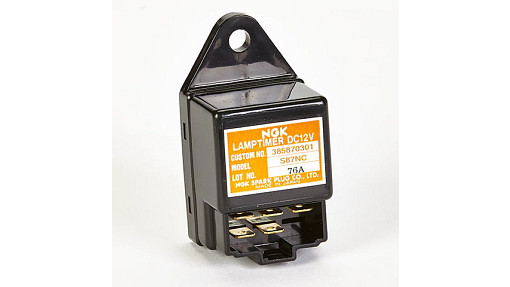

55

Qty

1

Availability

Part #

SBA385870301

Description

TIMER 12V; CONTROLLER, Glow Plug


Alts

Select

Ref.

56

Qty

1

Availability

Part #

SBA399111960

Description

KLEMME;


Alts

Select

Ref.

57

Qty

1

Availability

Part #

SBA011140616

Description

SCHRAUBE; M6 x 16


Alts

Select

Ref.

57

Qty

4

Availability

Part #

SBA011150612

Description

SCHRAUBE; M6 x 12


Alts
