061 - RIGHT ANGLE DRIVE ASSEMBLY, 09JC-9734 71/75 & 09JC-9844 76/, TILL ER, 36'' JAC-121613
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
Select All

Select

Ref.

1

Qty

1

Availability

Part #

JAC535033

Description

HOUSING; Gearbox


Alts

Select

Ref.

2

Qty

1

Availability

Part #

JAC546162

Description

COVER; Gearbox


Alts

Select

Ref.

3

Qty

1

Availability

Part #

JAC546163

Description

GASKET; Cover


Alts

Select

Ref.

4

Qty

1

Availability

Part #

JAC519008

Description

GEAR SET; Consists of 2 gears


Alts

Select

Ref.

Qty

1

Availability

Part #

JAC519008

Description

ENSEMBLE ENGRENAGE; Gear, Bevel, Lg. Shaft End;No Longer Serviced


Alts

Select

Ref.

6

Qty

1

Availability

Part #

JAC546170

Description

ARBRE; Input, Short


Alts

Select

Ref.

7

Qty

1

Availability

Part #

JAC352836

Description

ARBRE; Output, Lg.;No Longer Serviced


Alts

Select

Ref.

8

Qty

2

Availability

Part #

JAC342563

Description

ROULEMENT; Bearing, Roller, Gear End


Alts

Select

Ref.

9

Qty

2

Availability

Part #

JAC546167

Description

BEARING; Roller;No Longer Serviced


Alts

Select

Ref.

10

Qty

2

Availability

Part #

JAC546168

Description

SEAL; Oil


Alts

Select

Ref.

11

Qty

3

Availability

Part #

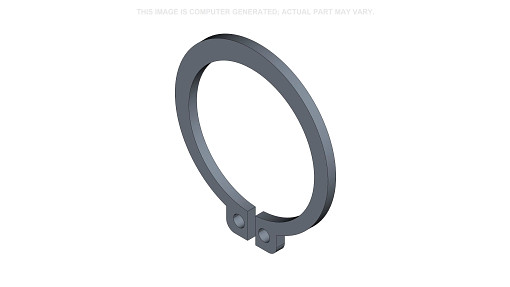

129164

Description

SNAP RING #75, Ext; Ring, Snap, #75, Ext


Alts

Select

Ref.

12

Qty

2

Availability

Part #

JAC546169

Description

KEY; No Longer Serviced


Alts

Select

Ref.

13

Qty

4

Availability

Part #

PL

Description

PROCURE LOCALLY; Bolt


Alts

Select

Ref.

14

Qty

1

Availability

Part #

PL

Description

PROCURE LOCALLY; Screw, Set, Square Hd., Cup Point, 1/4''-20 x .5''


Alts

Select

Ref.

15

Qty

1

Availability

Part #

JAC352835

Description

SPACER; Collar, Seal Retainer


Alts
