11FRAME; Plunger Latch
-
2CARRIAGE BOLT Sq Nk, 1/2'' - 13 x 1-1/2'', Gr 5, Full Thd;
-
2WASHER; Washer, Plain, 1/2''
-
2LOCK WASHER 9/16'';
-
2NUT 1/2''-13, G5;
-
22NUT 1/2''-13, G5;
-
31NO LONGER SERVICED; Plunger Latch
-
41COTTER PIN 3/16'' OD x 1-1/2'' OAL;
-
51LATCH; Plunger
-
61NO LONGER SERVICED; Adjusting
-
71ROD; Control, Latch
-
1NUT 3/8'' - 16, Gr 5;
-
1COTTER PIN 1/8'' x 3/4'';
-
81SPRING;
-
91SPINDLE; Knotter Trip;Used On & ASN 83024, When Ordering 39307 For Replacement On Balers Between SN's 83024 & 84790 Order(1) 39307, (1) 39014, & (1) 80734
-
1LUBE NIPPLE FITTING LUBE 1/4-28 SPCL TAP;
-
2COTTER PIN M5 x 25;
-
9A1SHAFT; SPARE PART Knotter Trip;Used On & BSN 83023, When Ordering 39131 For Replacement On Balers BSN 83023 Order (1) 39131, (1) 39014, & (1) 80734
-
1LOCK WASHER 5/16'' ID x 19/32'' OD x 1/8'' Thk;
-
1NUT 5/16'' - 18, Gr 5;
-
111GUIDE; Follower, Cam;Used On & BSN 83023, When Ordering 39131 For Replacement On Balers BSN 83023 Order (1) 39131, (1) 39014, & (1) 80734
-
121BUSHING; Spacer;Used On & BSN 83023, When Ordering 39131 For Replacement On Balers BSN 83023 Order (1) 39131, (1) 39014, & (1) 80734
-
1PIN; Screw, Cap, HH, 3/8'' x 1-3/4'';No Longer Serviced
-
1WASHER 0.41'' ID x 0.81'' OD x 0.07'' Thk;
-
1LOCK WASHER 3/8 0.381 CST ZND;
-
1NUT 3/8'' - 16, Gr 5;
-
131NO LONGER SERVICED; Lever {39131};Used On & BSN 83023, When Ordering 39131 For Replacement On Balers BSN 83023 Order (1) 39131, (1) 39014, & (1) 80734
-
1LUBE NIPPLE FITTING LUBE 1/4-28 SPCL TAP;
-
141CAM FOLLOWER Ball, 31.8 mm OD x 15.9 mm; Roller, Cam
-
1LOCK NUT Hex, 3/8'' - 24;
-
151WASHER; Used On & BSN 83023, When Ordering 39131 For Replacement On Balers BSN 83023 Order (1) 39131, (1) 39014, & (1) 80734
-
161STOP; Knotter
-
1LOCK WASHER 5/16'' ID x 19/32'' OD x 1/8'' Thk;
-
1NUT 5/16'' - 18, Gr 5;
-
171SPRING; ''S''
-
181SPRING;
-
191SPRING;
-
202DOG; SPARE PART
-
212LOCK NUT; Spring, Dog
-
232COTTER PIN 1/8'' x 1 1/2'';
-
241NO LONGER SERVICED; Twine
-
1LOCK WASHER 3/8 0.381 CST ZND;
-
1BLOCK; Finger, Twine
-
2COTTER PIN 1/8'' x 3/4'';
-
261FINGER; Twine
-
1LOCK WASHER 3/8 0.381 CST ZND;
-
271CONNECTING LINK; Finger, Twine, Short
-
1BLOCK; Finger, Twine
-
2COTTER PIN 1/8'' x 3/4'';
-
281NUT; Twine Finger Lever
-
1LUBE NIPPLE FITTING LUBE 1/4-28 SPCL TAP;
-
291SUPPORT; Lever, Finger, Twine
-
1BOLT Hex, 3/8'' - 16 x 1 1/4'', Gr 5;
-
1HOSE; Screw, Cap, HH, 3/8'' x 1-3/4''
-
1WASHER 0.41'' ID x 0.81'' OD x 0.07'' Thk;
-
2LOCK WASHER 3/8 0.381 CST ZND;
-
1NUT 3/8'' - 16, Gr 5;
-
1NUT 3/8'' - 24, Gr 5;
-
301NO LONGER SERVICED; Stop, Finger, Twine;11600
-
1BOLT Hex, 3/8'' - 16 x 1'', Gr 5;
-
1LOCK WASHER 3/8 0.381 CST ZND;
-
1NUT 3/8'' - 16, Gr 5;
-
311SPRING; Used On & ASN 83024, When Ordering 39307 For Replacement On Balers Between SN's 83024 & 84790 Order(1) 39307, (1) 39014, & (1) 80734
-
31A1SPRING; Used On & BSN 83023, When Ordering 39131 For Replacement On Balers BSN 83023 Order (1) 39131, (1) 39014, & (1) 80734
-
1LOCK NUT PREVAILING TORQUE, 3/8'' - 16, Gr C, Directional;
Select All
Ref.
Qty
2Availability
Part #
280420Description
CARRIAGE BOLT Sq Nk, 1/2'' - 13 x 1-1/2'', Gr 5, Full Thd;Img
Alts
Ref.
9Qty
1Availability
Part #
39307Description
SPINDLE; Knotter Trip;Used On & ASN 83024, When Ordering 39307 For Replacement On Balers Between SN's 83024 & 84790 Order(1) 39307, (1) 39014, & (1) 80734Img
Alts
Ref.
9AQty
1Availability
Part #
29772Description
SHAFT; SPARE PART Knotter Trip;Used On & BSN 83023, When Ordering 39131 For Replacement On Balers BSN 83023 Order (1) 39131, (1) 39014, & (1) 80734Img
Alts
Ref.
Qty
1Availability
Part #
80681Description
LOCK WASHER 5/16'' ID x 19/32'' OD x 1/8'' Thk;Img
Alts
Ref.
11Qty
1Availability
Part #
36334Description
GUIDE; Follower, Cam;Used On & BSN 83023, When Ordering 39131 For Replacement On Balers BSN 83023 Order (1) 39131, (1) 39014, & (1) 80734Img
Alts
Ref.
12Qty
1Availability
Part #
36335Description
BUSHING; Spacer;Used On & BSN 83023, When Ordering 39131 For Replacement On Balers BSN 83023 Order (1) 39131, (1) 39014, & (1) 80734Img
Alts
Ref.
Qty
1Availability
Part #
80326Description
PIN; Screw, Cap, HH, 3/8'' x 1-3/4'';No Longer ServicedImg
Alts
Ref.
Qty
1Availability
Part #
87016Description
WASHER 0.41'' ID x 0.81'' OD x 0.07'' Thk;Img
Alts
Ref.
13Qty
1Availability
Part #
NLSDescription
NO LONGER SERVICED; Lever {39131};Used On & BSN 83023, When Ordering 39131 For Replacement On Balers BSN 83023 Order (1) 39131, (1) 39014, & (1) 80734Img
Alts
Ref.
14Qty
1Availability
Part #
40714Description
CAM FOLLOWER Ball, 31.8 mm OD x 15.9 mm; Roller, CamImg
Alts
Ref.
15Qty
1Availability
Part #
26382Description

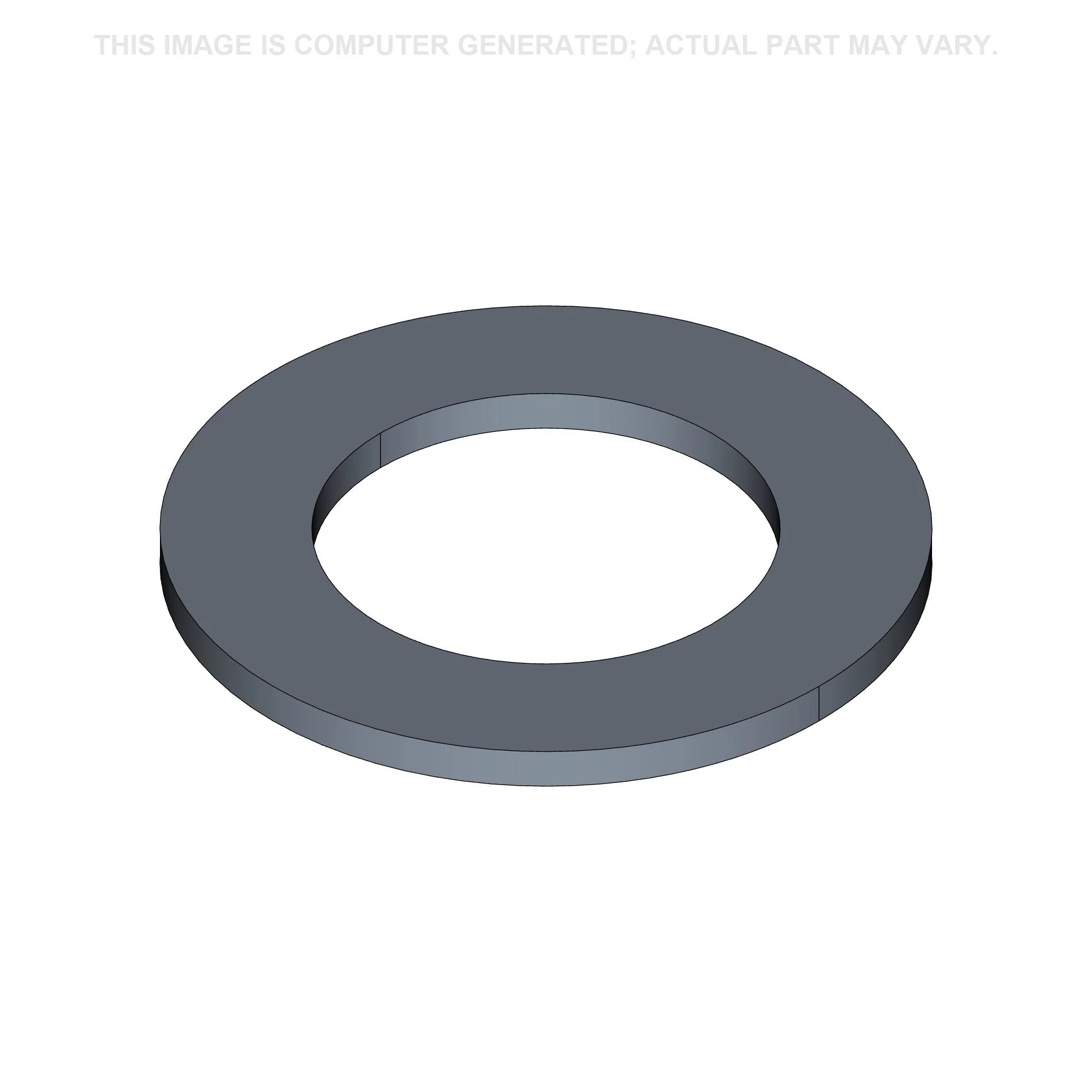

WASHER; Used On & BSN 83023, When Ordering 39131 For Replacement On Balers BSN 83023 Order (1) 39131, (1) 39014, & (1) 80734Img
