TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
12CLEVIS; Bar, Clevis
-
2BOLT Hex, 5/8'' - 11 x 6'', Gr 5; Screw, Cap, HH, G5, 5/8''-11 x 6''
-
1BOLT Hex, 5/8'' - 11 x 4-1/2'', Gr 5; HH, G5, 5/8''-11 x 4-1/2''
-
1BOLT Hex, 5/8'' - 11 x 4'', Gr 5; HH, G5, 5/8''-11 x 4''
-
2LOCK NUT 5/8'' - 11, Gr C; Nut, Lock, GC, 5/8''-11
-
22SPACER; Long Tongue
-
22SPACER; Short Tongue
-
31SUPPORT; Short Tongue
-
41TONGUE; Long;Used on & BSN 660590
-
41TONGUE; Long;Used on & ASN 660591
-
41TONGUE; Short, Not Illustrated
-
1BOLT Hex, 3/4''- 10 x 5 1/2'', Gr 5; Screw, Cap, HH, G5, 3/4''-10 x 5-1/2''
-
5WASHER 0.81'' ID x 1.47'' OD x 0.13'' Thk; SAE, 3/4''
-
1NUT 3/4'' - 10, Gr C; Nut, Lock, GC, 3/4''-10
-
51LEVER; Long Tongue
-
1BOLT Hex, 3/8'' - 16 x 1 1/4'', Gr 5;
-
1WASHER 0.41'' ID x 0.81'' OD x 0.07'' Thk; SAE, 3/8''
-
1LOCK NUT PREVAILING TORQUE, 3/8'' - 16, Gr C, Directional; Nut, Lock, GC, 3/8''-16
-
61PIN; Latch
-
71VIS Hex, 3/8'' - 16 x 3'', Gr 5; Used W/ 680113 Hex, 3/8''-16 x 3'', G5
-
1CONTRE-ECROU PREVAILING TORQUE, 3/8'' - 16, Gr C, Directional; Nut, Lock, GC, 3/8''-16
-
71VIS Hex, 5/16''- 18 x 3'', Gr 5; Used W/ 851968 Hex, 5/16''-18 x 3'', G5
-
1LOCK NUT 5/16'' - 18, Gr C; NUT, LOCK, , Used W/ 851968 5/16''-18, GC
-
81ROPE; 1/4'' x 15' Lg.
-
91RESSORT;
-
101MAILLON DE RACCORD; Link, Latch
-
111GUIDE; Long Tongue
-
111GUIDE; Short Tongue
-
1LUBE NIPPLE 45 Degree, 1/4'' NPT x 4/5'' L, Drive; Fitting, Lube, Self-Tapping, 1/4''-28 x 7/8'', 45?
-
2BOLT 1/2''-13 x 1.813'' OAL, Gr 5;
-
4WASHER 13.1mm ID x 25.4mm OD x 3.68mm Thk; (33/64'' ID x 1'' OD x .135'' Thk) M13 x 25 x 3.5, HT
-
2LOCK NUT 1/2'' - 13, Gr C; Nut, Lock, GC, 1/2''-13
-
121SUPPORT; Bottom, Long Tongue
-
121SUPPORT; Short Tongue
-
2BOLT Hex, 1/2'' - 13 x 6'', Gr 5; Screw, Cap, HH, 1/2''-20 x 6''
-
2LOCK NUT 1/2'' - 13, Gr C; Nut, Lock, GC, 1/2''-13
-
131COLLAR;
-
1GROOVED PIN 7.94mm OD x 63.5mm L; Pin, Grooved, 5/16'' x 2 1/2'', Type A
-
141JACK; Includes: Ref. 15 - 24
-
151BODY; Jack, 3-Joint PTO
-
151TUBE; Jack, 2-Joint PTO
-
1LUBE NIPPLE FITTING LUBE 1/4-28 SPCL TAP; Nipple, Lube, Straight, 1/4''-28
-
161TUBE; Jack Tube, Inside
-
171VIS DE BEQUILLE; Jack Screw
-
1GOUPILLE DE BLOCAGE 5.05mm OD x 22.22mm L, Slotted; Pin, 3/16'' x 7/8'', Slotted
-
ARRONDELLE 19.45mm ID x 34.9mm OD x 2.59mm Thk; 3/4'' x .135'' Thk.
-
1LOCK PIN 6.35mm OD x 38.1mm L, Slotted; Pin, , Used W/ 218784 1/4'' x 1 1/2'', Slotted
-
1COTTER PIN 3/16'' OD x 1-1/4'' OAL; Pin, Split (Cotter), 3/16'' x 1-1/4''
-
181WASHER 22mm ID x 38mm OD x 1.5mm Thk; Thrust, Nylon, M20
-
191WASHER 0.81'' ID x 2'' OD x 0.15'' Thk;
-
201SPRING;
-
211PIN; Jack, 9/16'' x 2-7/8''
-
1SLOTTED PIN 1/8'' OD x 1'' OAL; PIN, SLOTTED, 1/8'' x 1''
-
221BRACKET;
-
231U-BOLT; G2, 1/4''-20 x 2-1/2''
-
2NUT 1/4''-20; Nut, Lock, 1/4''-20, GC
-
241SPRING CLIP; Clip, Spring
-
1BOLT Hex, 1/4''-20 x 1/2'', Gr 5; Screw, Cap, HH, G5, 1/4''-20 x 1/2''
-
1ECROU A RESSORT Tinn, U, 1/4''-20; Nut, Speed, 1/4''-20
-
251CRANKSHAFT; Crank, 3 Joint PTO
-
251CRANKED HANDLE; Crank, 2 Joint PTO
-
1SHEAR BOLT; Cap, HH, G5, 3/8''-16 x 2''
-
2PODKŁADKA 0.44'' ID x 1'' OD x 0.08'' Thk;
-
1PRZECIWNAKRĘTKA PREVAILING TORQUE, 3/8'' - 16, Gr C, Directional; Nut, Lock, GC, 3/8''-16
-
261ŁAŃCUCH; Safely Tow Chain
-
1KIT; Safety Tow Chain
Select All
Select
Ref.
Qty
2Availability
Part #
88264Description
BOLT Hex, 5/8'' - 11 x 6'', Gr 5; Screw, Cap, HH, G5, 5/8''-11 x 6''Img
Alts
Select
Ref.
Qty
1Availability
Part #

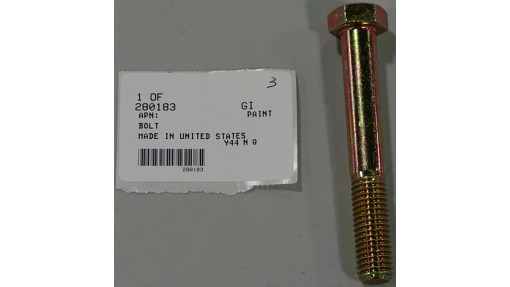

280183Description
BOLT Hex, 5/8'' - 11 x 4-1/2'', Gr 5; HH, G5, 5/8''-11 x 4-1/2''Img
Alts
Select
Ref.
Qty
1Availability
Part #

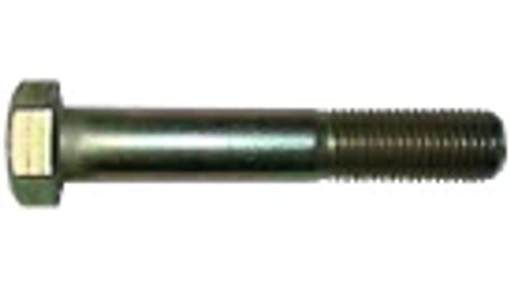

86977740Description
BOLT Hex, 5/8'' - 11 x 4'', Gr 5; HH, G5, 5/8''-11 x 4''Img
Alts
Select
Ref.
Qty
2Availability
Part #
85700693Description
LOCK NUT 5/8'' - 11, Gr C; Nut, Lock, GC, 5/8''-11Img
Alts
Select
Ref.
4Qty
1Availability
Part #
627183Description
TONGUE; Long;Used on & BSN 660590Img
Alts
Select
Ref.
4Qty
1Availability
Part #
699665Description
TONGUE; Long;Used on & ASN 660591Img
Alts
Select
Ref.
Qty
1Availability
Part #
86507002Description
BOLT Hex, 3/4''- 10 x 5 1/2'', Gr 5; Screw, Cap, HH, G5, 3/4''-10 x 5-1/2''Img
Alts
Select
Ref.
Qty
5Availability
Part #

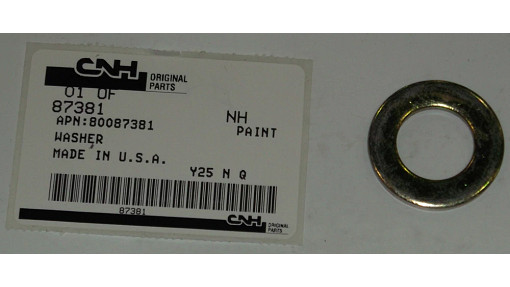

87381Description
WASHER 0.81'' ID x 1.47'' OD x 0.13'' Thk; SAE, 3/4''Img
Alts
Select
Ref.
Qty
1Availability
Part #
280375Description
NUT 3/4'' - 10, Gr C; Nut, Lock, GC, 3/4''-10Img
Alts
Select
Ref.
Qty
1Availability
Part #
88011Description
BOLT Hex, 3/8'' - 16 x 1 1/4'', Gr 5;Img
Alts
Select
Ref.
Qty
1Availability
Part #
87016Description
WASHER 0.41'' ID x 0.81'' OD x 0.07'' Thk; SAE, 3/8''Img
Alts
Select
Ref.
Qty
1Availability
Part #
88902Description
LOCK NUT PREVAILING TORQUE, 3/8'' - 16, Gr C, Directional; Nut, Lock, GC, 3/8''-16Img
Alts
Select
Ref.
7Qty
1Availability
Part #
280161Description
VIS Hex, 3/8'' - 16 x 3'', Gr 5; Used W/ 680113 Hex, 3/8''-16 x 3'', G5Img
Alts
Select
Ref.
Qty
1Availability
Part #
88902Description
CONTRE-ECROU PREVAILING TORQUE, 3/8'' - 16, Gr C, Directional; Nut, Lock, GC, 3/8''-16Img
Alts
Select
Ref.
7Qty
1Availability
Part #
88731Description
VIS Hex, 5/16''- 18 x 3'', Gr 5; Used W/ 851968 Hex, 5/16''-18 x 3'', G5Img
Alts
Select
Ref.
Qty
1Availability
Part #
280736Description
LOCK NUT 5/16'' - 18, Gr C; NUT, LOCK, , Used W/ 851968 5/16''-18, GCImg
Alts
Select
Ref.
10Qty
1Availability
Part #
712644Description
MAILLON DE RACCORD; Link, LatchImg
Alts
Select
Ref.
Qty
1Availability
Part #
87569Description
LUBE NIPPLE 45 Degree, 1/4'' NPT x 4/5'' L, Drive; Fitting, Lube, Self-Tapping, 1/4''-28 x 7/8'', 45?Img
Alts
Select
Ref.
Qty
4Availability
Part #
65319Description
WASHER 13.1mm ID x 25.4mm OD x 3.68mm Thk; (33/64'' ID x 1'' OD x .135'' Thk) M13 x 25 x 3.5, HTImg
Alts
Select
Ref.
Qty
2Availability
Part #
88871Description
LOCK NUT 1/2'' - 13, Gr C; Nut, Lock, GC, 1/2''-13Img
Alts
Select
Ref.
Qty
2Availability
Part #
86000020Description

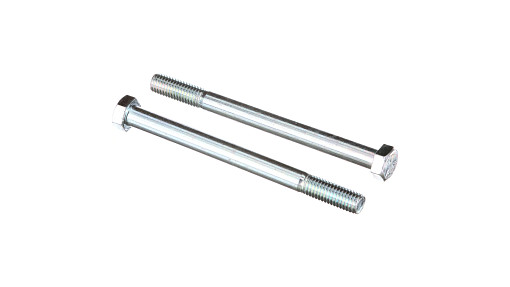

BOLT Hex, 1/2'' - 13 x 6'', Gr 5; Screw, Cap, HH, 1/2''-20 x 6''Img
Alts
Select
Ref.
Qty
2Availability
Part #
88871Description
LOCK NUT 1/2'' - 13, Gr C; Nut, Lock, GC, 1/2''-13Img
Alts
Select
Ref.
Qty
1Availability
Part #

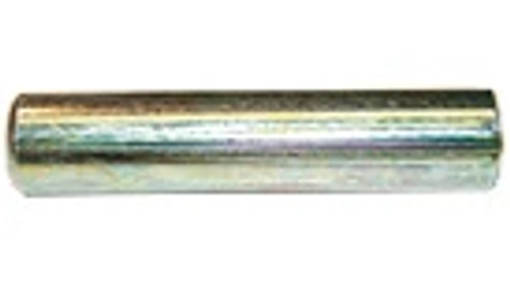

81824Description
GROOVED PIN 7.94mm OD x 63.5mm L; Pin, Grooved, 5/16'' x 2 1/2'', Type AImg
Alts
Select
Ref.
Qty
1Availability
Part #
87414Description
LUBE NIPPLE FITTING LUBE 1/4-28 SPCL TAP; Nipple, Lube, Straight, 1/4''-28Img
Alts
Select
Ref.
Qty
1Availability
Part #
87336Description
GOUPILLE DE BLOCAGE 5.05mm OD x 22.22mm L, Slotted; Pin, 3/16'' x 7/8'', SlottedImg
Alts
Select
Ref.
Qty
ARAvailability
Part #

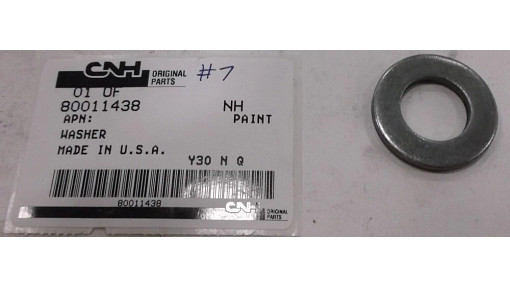

80011438Description
RONDELLE 19.45mm ID x 34.9mm OD x 2.59mm Thk; 3/4'' x .135'' Thk.Img
Alts
Select
Ref.
Qty
1Availability
Part #
87406Description
LOCK PIN 6.35mm OD x 38.1mm L, Slotted; Pin, , Used W/ 218784 1/4'' x 1 1/2'', SlottedImg
Alts
Select
Ref.
Qty
1Availability
Part #

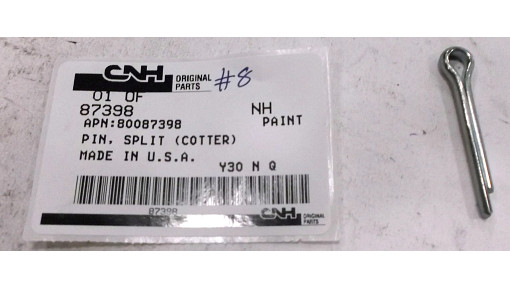

87398Description
COTTER PIN 3/16'' OD x 1-1/4'' OAL; Pin, Split (Cotter), 3/16'' x 1-1/4''Img
Alts
Select
Ref.
18Qty
1Availability
Part #

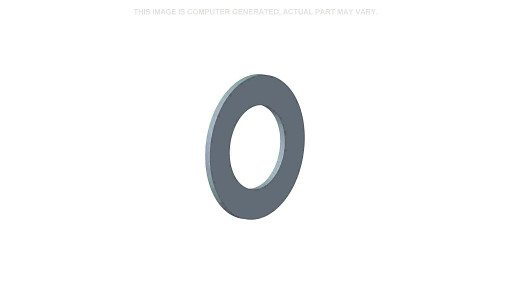

50600Description
WASHER 22mm ID x 38mm OD x 1.5mm Thk; Thrust, Nylon, M20Img
Alts
Select
Ref.
19Qty
1Availability
Part #
86511191Description
WASHER 0.81'' ID x 2'' OD x 0.15'' Thk;Img
Alts
Select
Ref.
Qty
1Availability
Part #
87455Description
SLOTTED PIN 1/8'' OD x 1'' OAL; PIN, SLOTTED, 1/8'' x 1''Img
Alts
Select
Ref.
Qty
2Availability
Part #
280129Description
NUT 1/4''-20; Nut, Lock, 1/4''-20, GCImg
Alts
Select
Ref.
Qty
1Availability
Part #
88542Description
BOLT Hex, 1/4''-20 x 1/2'', Gr 5; Screw, Cap, HH, G5, 1/4''-20 x 1/2''Img
Alts
Select
Ref.
Qty
1Availability
Part #

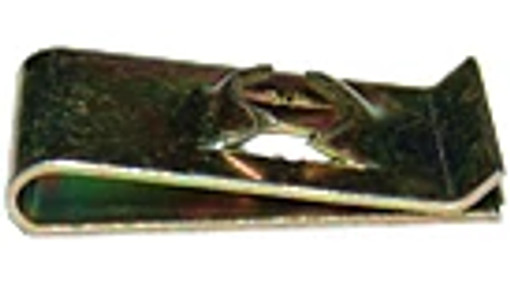

86521425Description
ECROU A RESSORT Tinn, U, 1/4''-20; Nut, Speed, 1/4''-20Img
Alts
Select
Ref.
25Qty
1Availability
Part #
770391Description
CRANKED HANDLE; Crank, 2 Joint PTOImg
Alts
Select
Ref.
Qty
1Availability
Part #
87790098Description
SHEAR BOLT; Cap, HH, G5, 3/8''-16 x 2''Img
Alts
Select
Ref.
Qty
2Availability
Part #
80702Description
PODKŁADKA 0.44'' ID x 1'' OD x 0.08'' Thk;Img
Alts
Select
Ref.
Qty
1Availability
Part #
88902Description
PRZECIWNAKRĘTKA PREVAILING TORQUE, 3/8'' - 16, Gr C, Directional; Nut, Lock, GC, 3/8''-16Img
Alts
