678 - NH ROUND BALER (02/... 00 - COMPLETE MACHINE 061 - NET WRAP, KNIFE
061 - NET WRAP, KNIFE
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    8
    412430
    CARRIAGE BOLT Sq Nk, M8 x 1.25 x 16mm, Cl 8.8, Full Thd;
  • 2
    1
    9844940
    PLATE; LH Side
  • 3
    8
    86505868
    SERRATED NUT Hex, M8 x 1.25, Cl 8;
  • 4
    1
    86636772
    PLATE; LH
  • 5
    4
    274249
    SERRATED BOLT Hex, M10 x 20mm;
  • 6
    1
    86636773
    PLATE; Bearing Mount, RH
  • 7
    1
    86636999
    PLATE; RH Side
  • 8
    1
    80679
    LOCK WASHER 1/20.507 CST ZND;
  • 9
    1
    80700
    WASHER 0.56'' ID x 1.38'' OD x 0.11'' Thk;
  • 10
    6
    120104
    BOLT Hex, M8 x 1.25 x 20mm, Full Thd, Cl 8.8, ZND;
  • 11
    6
    80664
    WASHER 0.38'' ID x 0.88'' OD x 0.08'' Thk;
  • 12
    2
    9844943
    STOP;
  • 13
    4
    86508568
    BOLT Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8, ZND;
  • 14
    8
    80701
    WASHER 0.31'' ID x 0.73'' OD x 0.07'' Thk;
  • 15
    4
    353308
    NUT Hex, M6 x 1, Cl 8, ZND;
  • 16
    1
    86570963
    SHIELD; Canvas
  • 17
    1
    86567187
    PLATE;
  • 18
    4
    9806864

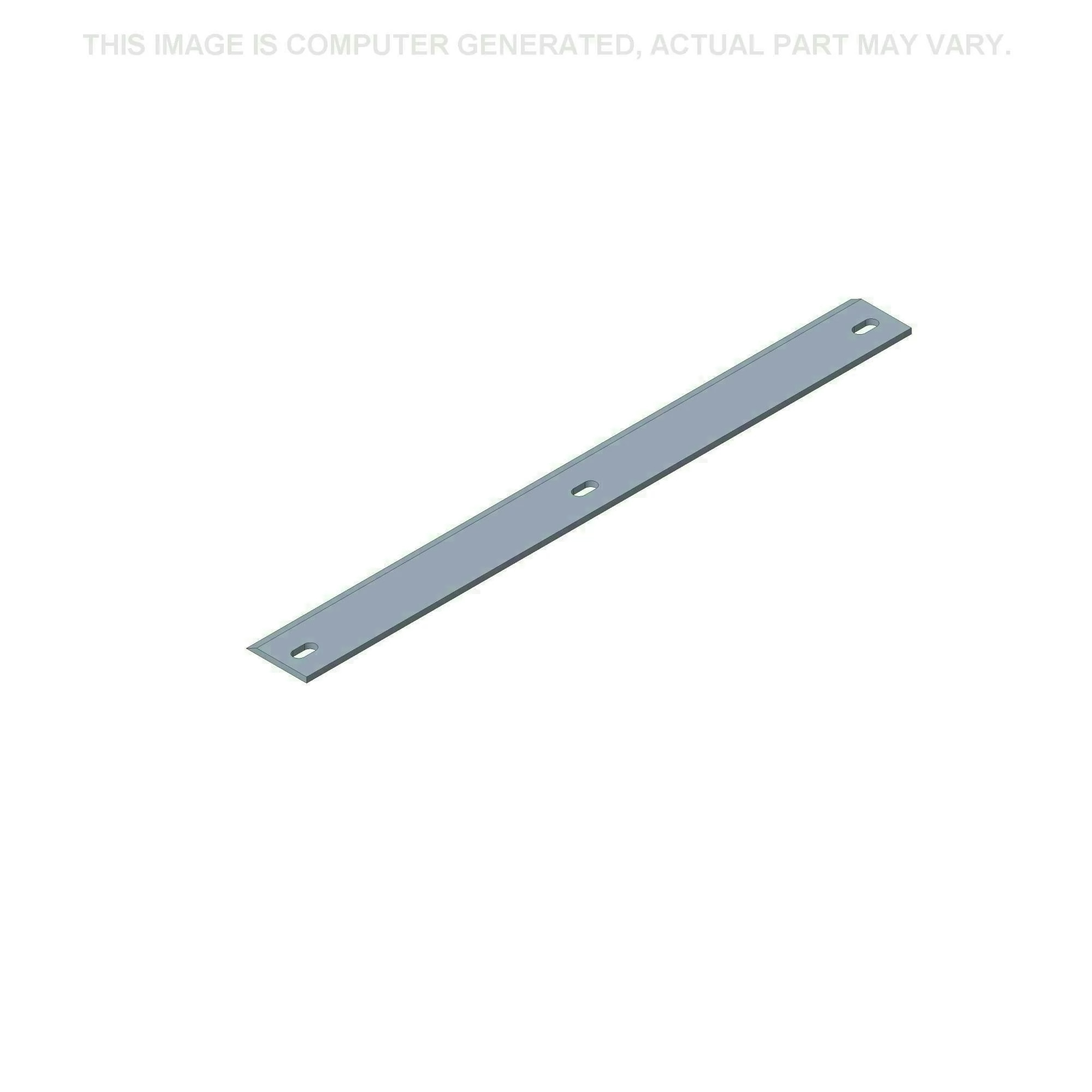

    KNIFE 382mm L x 38.1mm W x 3.4mm Thk;
  • 19
    1
    9829260
    SUPPORT; Knife
  • 20
    2
    86504967
    DRIVE BUSHING 19.16mm ID x 25.48mm OD x 12.7mm L;
  • 21
    12
    9706703
    CARRIAGE BOLT Sht Sq Nk, M6 x 1 x 20mm, Cl 8.8, Full Thd;
  • 22
    12
    80682
    LOCK WASHER 1/4'';
  • 24
    1
    9822099
    SHAFT; Hub
  • 25
    1
    9706687
    BOLT Hex, M12 x 1.75 x 30mm, Full Thd, Cl 8.8, ZND;
  • 23
    12
    15896221
    NUT Hex, M6 x 1, Cl 10, ZND;
