BR7060 - NH ROUND BALER (... 00 - GENERAL 00.00BR310 - MAINTENANCE ...
00.00BR310 - MAINTENANCE PARTS, 1.8 M WIDE PICK-UP REEL
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description

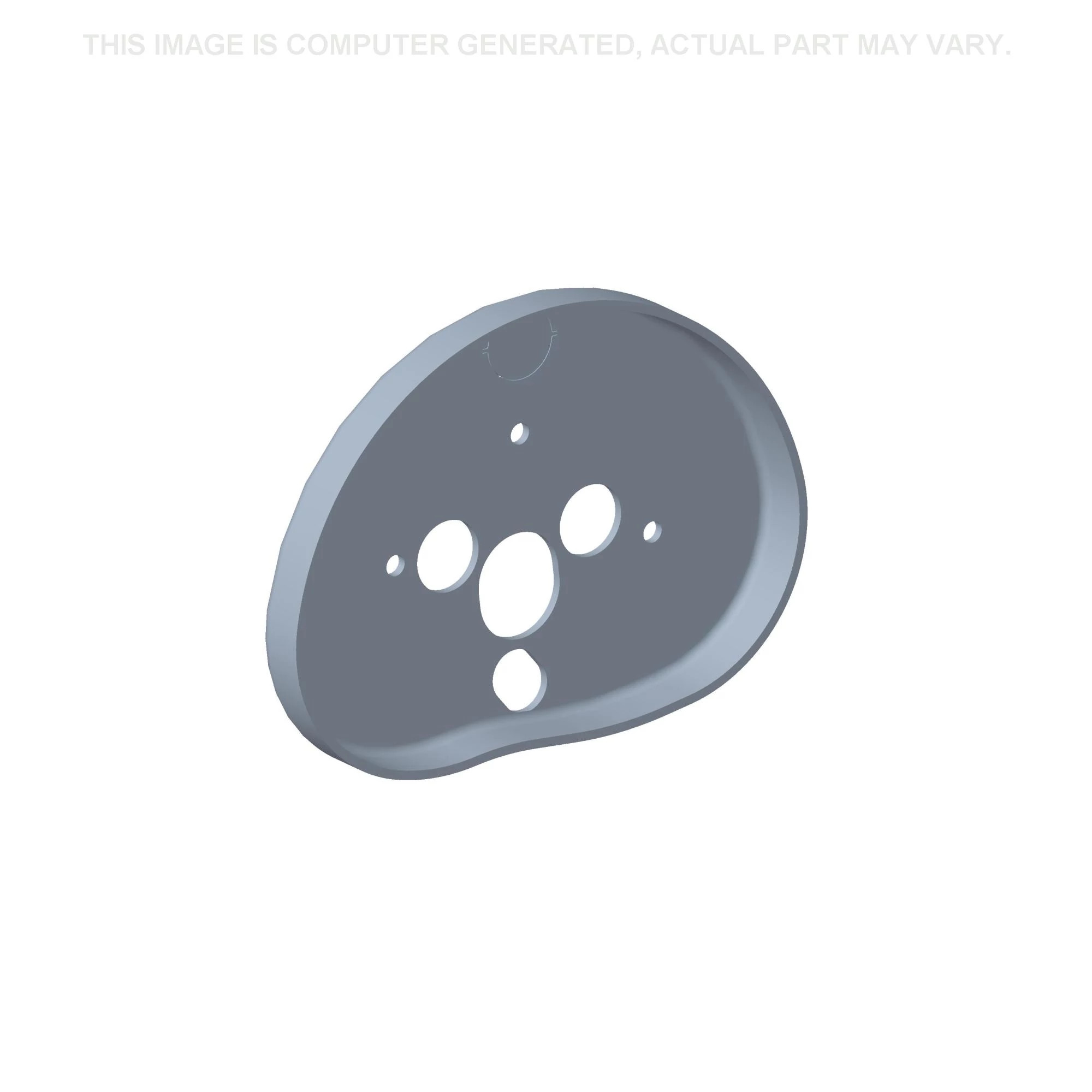

  • 1
    1
    87059146
    CAM; RH, Outer;WITH ROTOR, EUROPE & R.O.W.
  • 1
    1
    87036227
    CAM; RH, Outer

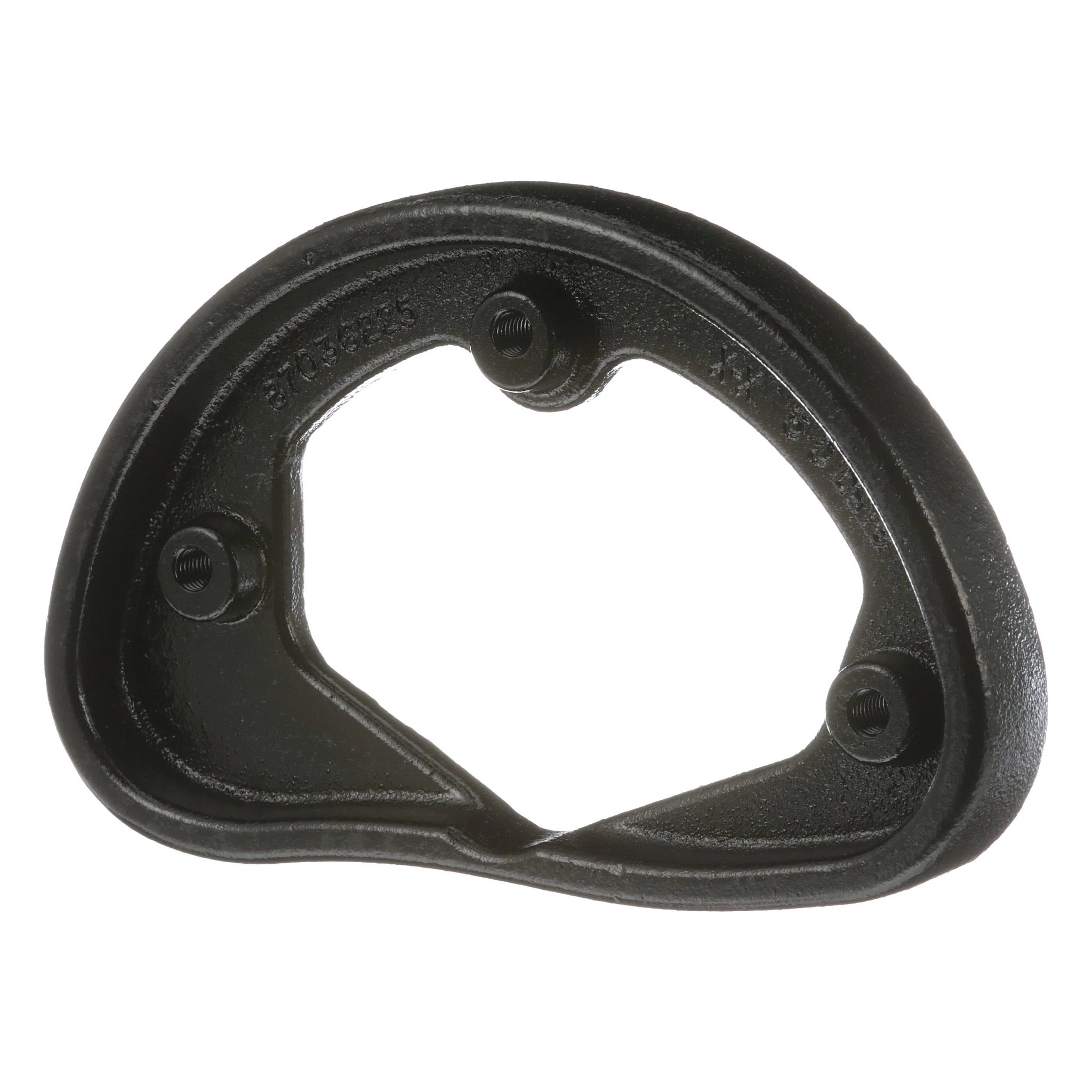

  • 2
    1
    87059147
    CAM; RH, Inner;WITH ROTOR, EUROPE & R.O.W.
  • 2
    1
    87036226
    CAM; RH, Inner

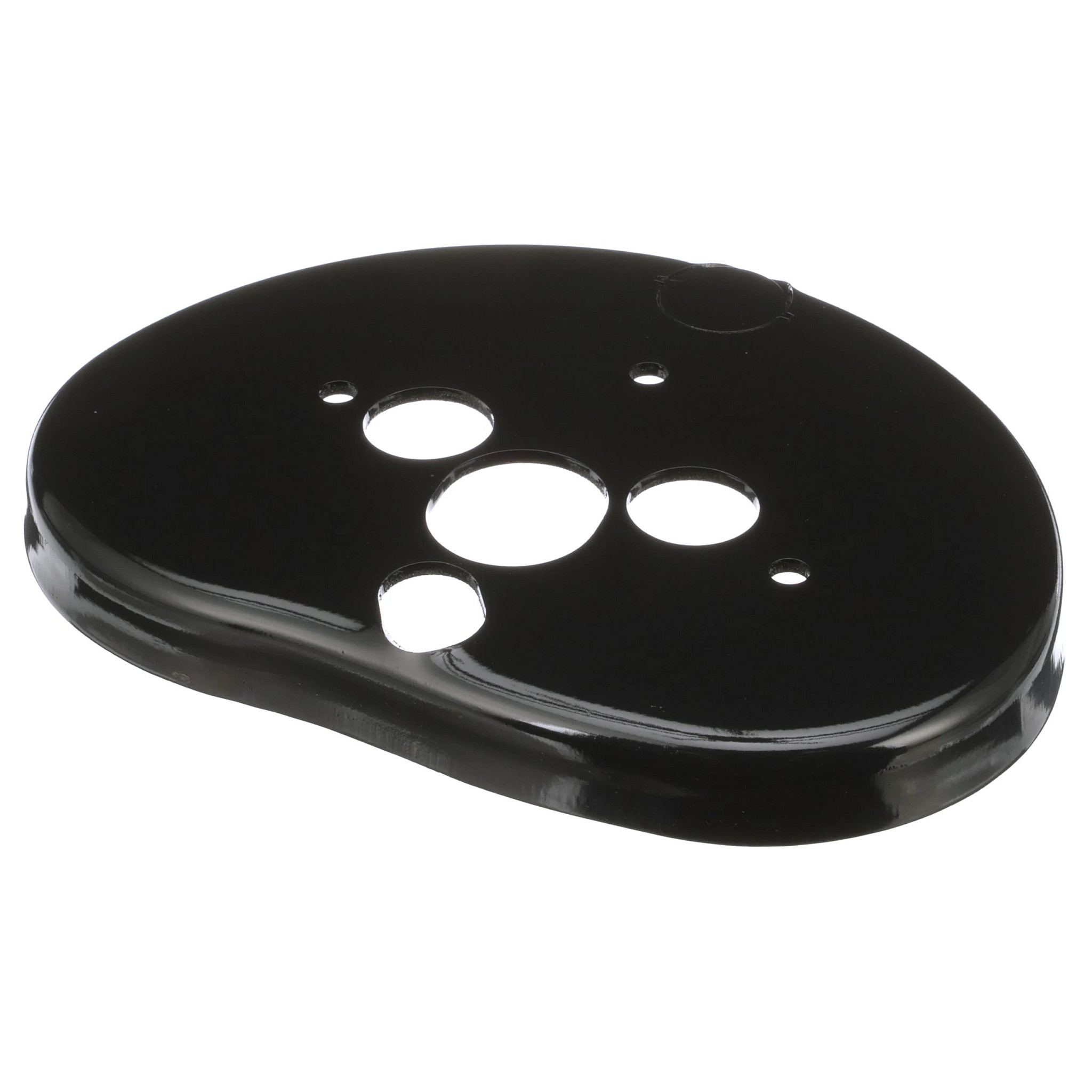

  • 3
    1
    87641735
    CAM; LH, Outer;WITH ROTOR, EUROPE & R.O.W.
  • 3
    1
    87032200
    CAM; LH, Outer
  • 4
    1
    87641736
    CAM; LH, Inner;WITH ROTOR, EUROPE & R.O.W.
  • 4
    1
    87032003
    CAM; LH, Inner
  • 5
    4
    84350126
    CAM FOLLOWER Ball, 38.1mm OD x 19mm W; SINGLE CAM PICK-UP
  • 5
    8
    84350126
    CAM FOLLOWER Ball, 38.1mm OD x 19mm W; DUAL CAM PICK-UP
  • 6
    8
    703960
    WASHER; 1-1/4'' OD, Hardened;SINGLE CAM PICK-UP
  • 6
    16
    87642988
    WASHER 13.08mm ID x 31.8mm OD x 1.5mm Thk; 1-1/4'' OD, Hardened;DUAL CAM PICK-UP - BETWEEN P.I.N. Y7N032117 & Y8N0388893
  • 6
    16
    703960
    WASHER; 1-1/4'' OD, Hardened
  • 7
    4
    88130
    NUT 1/2''-20, GC; SINGLE CAM PICK-UP
  • 7
    8
    88130
    NUT 1/2''-20, GC; DUAL CAM PICK-UP
  • 8
    12
    54695
    BEARING HOUSING 47.24mm ID, 10.3mm Holes, 74.68mm Holes Diam;
  • 9
    12
    54770
    BALL BEARING 27.33mm ID x 47.092mm OD x 12.827mm W; SINGLE CAM PICK-UP
  • 9
    12
    86641856
    BEARING ASSY Ball, 27.1mm ID x 47mm OD x 25.4mm W; DUAL CAM PICK-UP - BETWEEN P.I.N. Y7N032117 & Y8N0388893
  • 9
    8
    86641856
    BEARING ASSY Ball, 27.1mm ID x 47mm OD x 25.4mm W; WITH ROTOR, EUROPE & R.O.W.;DUAL CAM PICK-UP - P.I.N. Y8N0388894 & AFTER

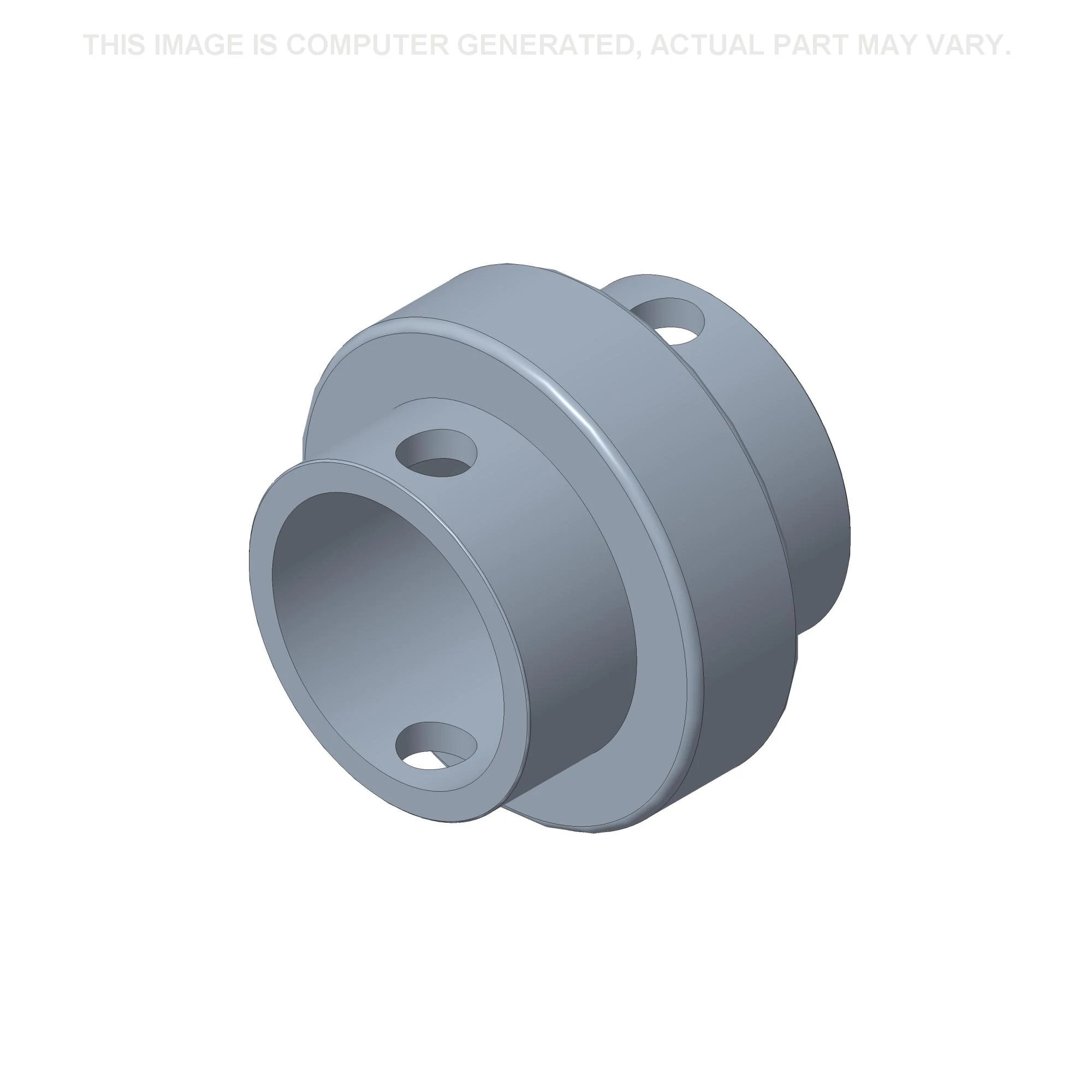

  • 10
    4
    87056792
    BEARING ASSY 27.3mm ID x 47.09mm OD x 12.83mm W; WITH ROTOR, EUROPE & R.O.W.;DUAL CAM PICK-UP - P.I.N. Y8N0388894 & AFTER
  • 11
    12
    136521
    COTTER PIN 5.7mm OD x 44.45mm L; Hardened, 1/4'' x 1-3/4''

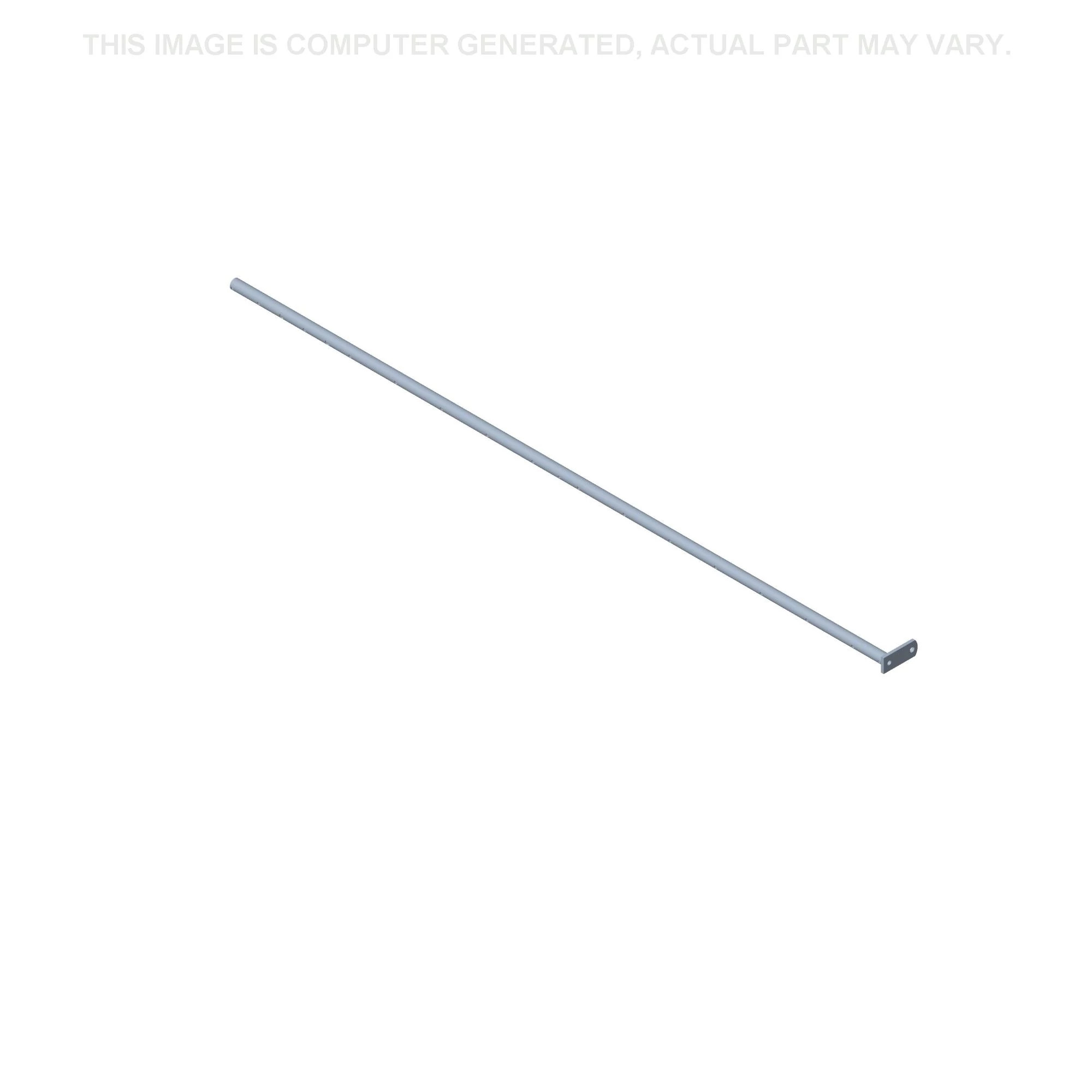

  • 12
    4
    87040882
    ARM; LH;SINGLE CAM PICK-UP;DUAL CAM PICK-UP - BETWEEN P.I.N. Y7N032117 & Y8N0388893

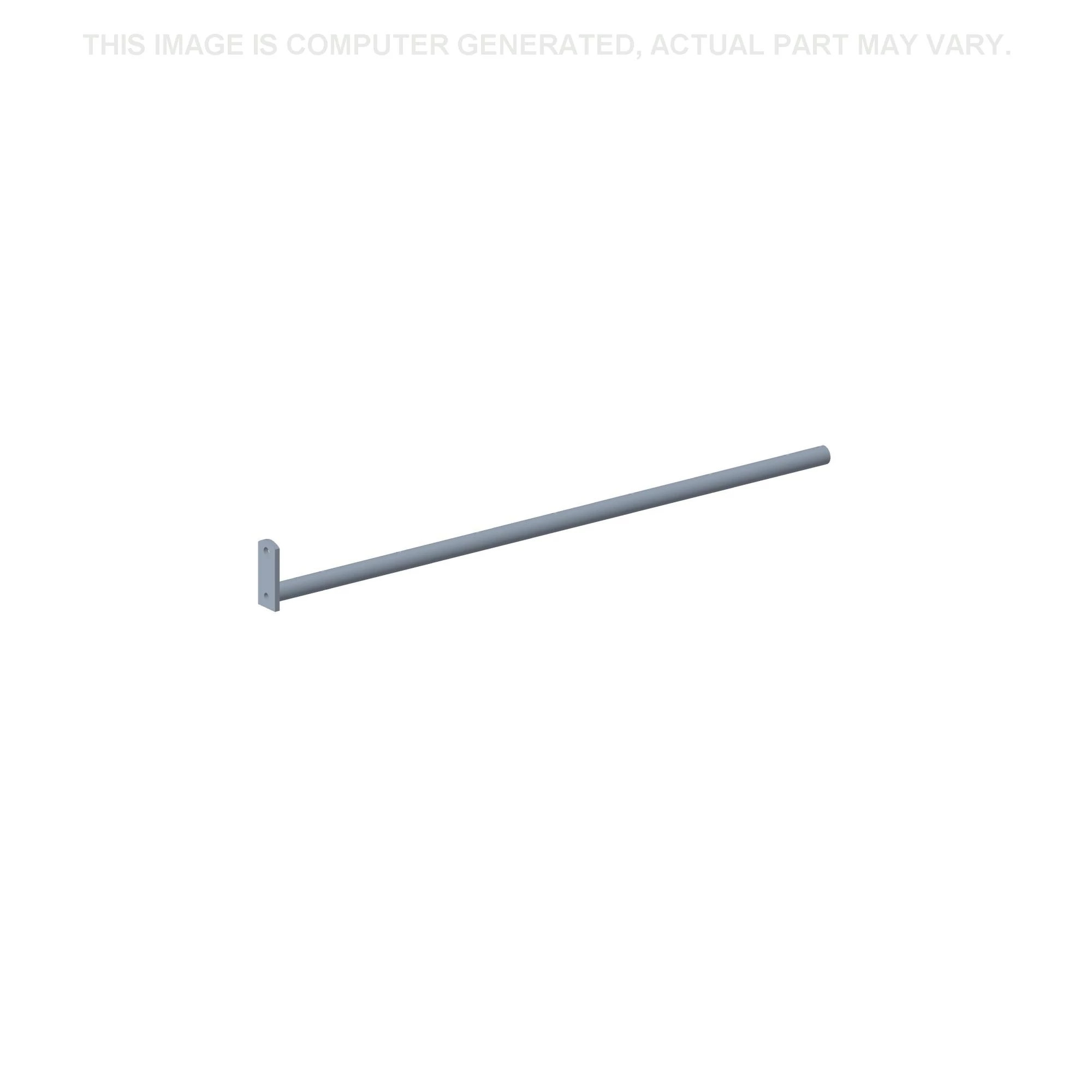

  • 12
    4
    87732735
    ARM; LH;WITH ROTOR, EUROPE & R.O.W.;DUAL CAM PICK-UP - P.I.N. Y8N0388894 & AFTER
  • 13
    4
    87023410
    TINE BAR 300.5mm L; RH;DUAL CAM PICK-UP - BETWEEN P.I.N. Y7N032117 & Y8N0388893

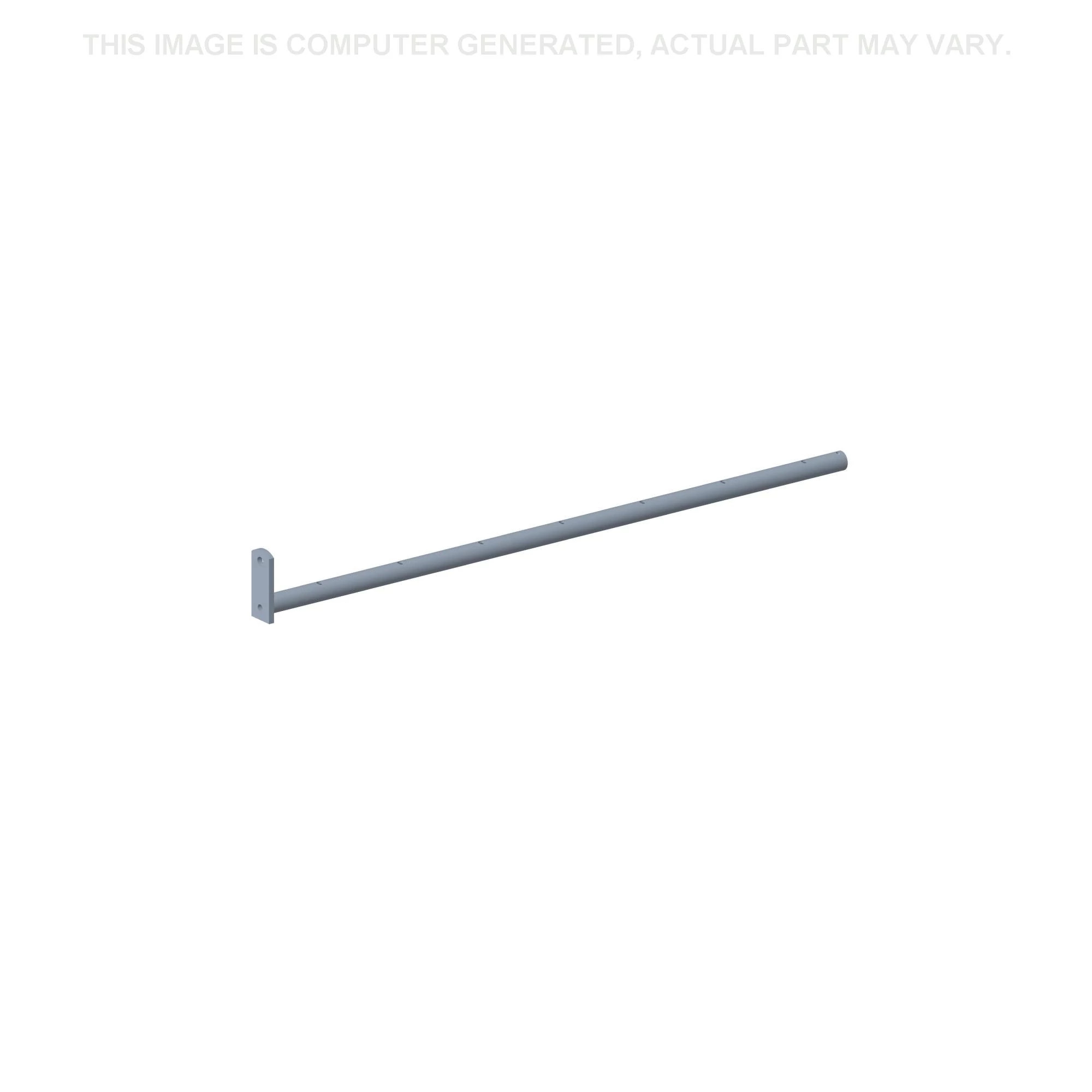

  • 13
    4
    87732736
    ARM; RH;WITH ROTOR, EUROPE & R.O.W.;DUAL CAM PICK-UP - P.I.N. Y8N0388894 & AFTER
  • 14
    56
    87394242
    TORSION SPRING Coiled, 2 Prong, 186.5mm L, Dark Grey; Pick-up, Curved, Black, Premium, Optional;EUROPE & R.O.W.;DUAL CAM PICK-UP - BETWEEN P.I.N. Y7N032117 & Y8N0388893
  • 14
    56
    87394242
    TORSION SPRING Coiled, 2 Prong, 186.5mm L, Dark Grey; Pick-up, Curved, Black, Premium, Optional;EUROPE & R.O.W.;DUAL CAM PICK-UP - P.I.N. Y8N0388894 & AFTER
  • 14
    56
    87394242
    TORSION SPRING Coiled, 2 Prong, 186.5mm L, Dark Grey; Pick-up, Curved, Black, Premium, Optional;WITH ROTOR, EUROPE & R.O.W.
  • 14
    56
    87394243
    TORSION SPRING Coiled, 2 Prong, 186.5mm L, Yellow; Pick-up, Curved, Yellow, Premium, Standard;SINGLE CAM PICK-UP
  • 14
    56
    87394243
    TORSION SPRING Coiled, 2 Prong, 186.5mm L, Yellow; Pick-up, Curved, Yellow, Premium, Standard;NORTH AMERICA;DUAL CAM PICK-UP - BETWEEN P.I.N. Y7N032117 & Y8N0388893
  • 14
    56
    87394243
    TORSION SPRING Coiled, 2 Prong, 186.5mm L, Yellow; Pick-up, Curved, Yellow, Premium, Standard;NORTH AMERICA;DUAL CAM PICK-UP - P.I.N. Y8N0388894 & AFTER
  • 14
    56
    87607074
    TINE Coiled, 2 Prong, 186.5mm L, Dark Grey; Pick-up, Curved, Black, Economy, Optional;SINGLE CAM PICK-UP
  • 14
    56
    87607074
    TINE Coiled, 2 Prong, 186.5mm L, Dark Grey; Pick-up, Curved, Black, Economy, Optional;NORTH AMERICA & EUROPE & R.O.W.;DUAL CAM PICK-UP - BETWEEN P.I.N. Y7N032117 & Y8N0388893
  • 15
    56
    84427925
    SUPPORT; Pick-up tine
  • 15
    56
    86627654
    SPACER Tooth Spacer; Pick-up tine;DUAL CAM PICK-UP - BETWEEN P.I.N. Y7N032117 & Y8N0388893

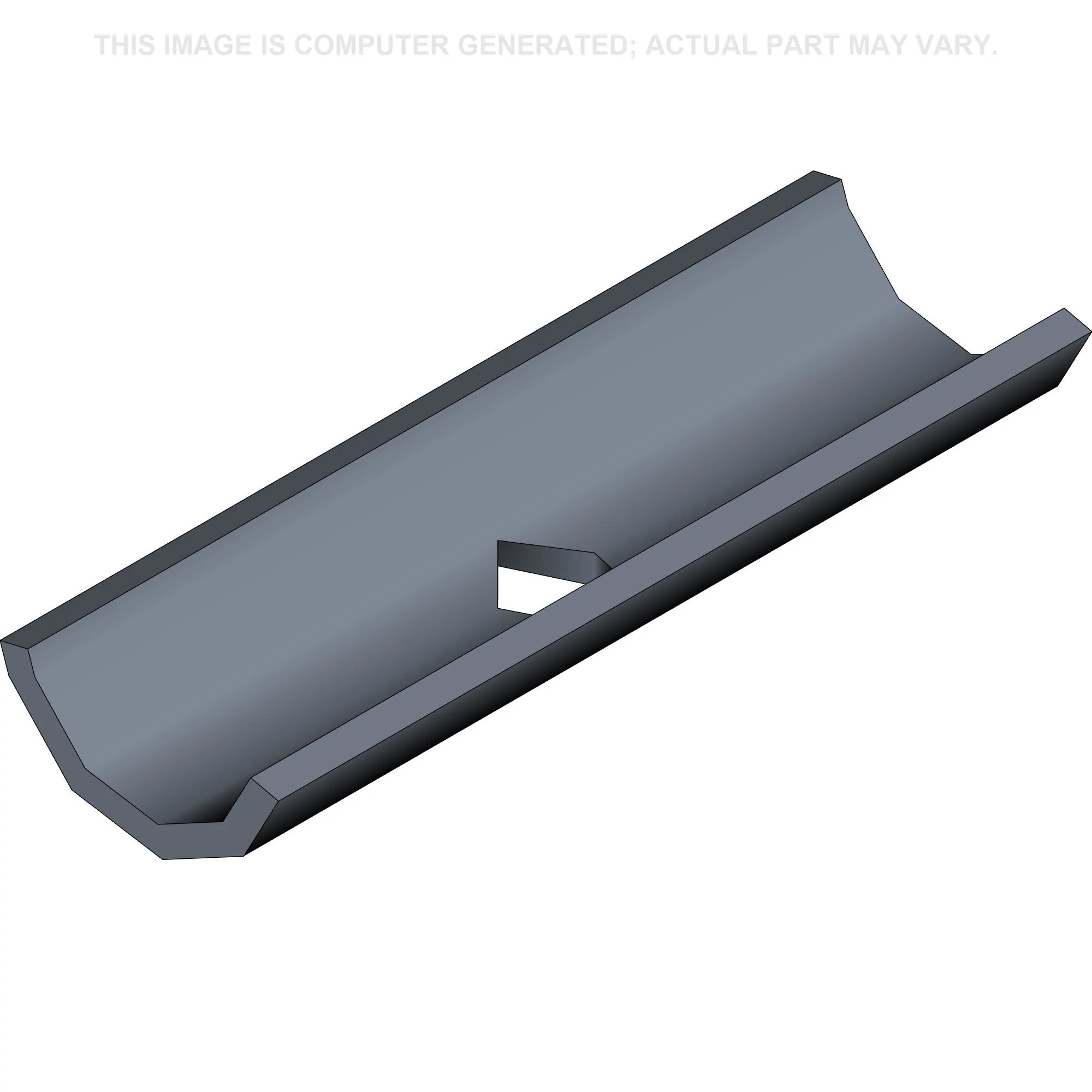

  • 16
    56
    134921
    BRACKET; Pick-up tine
  • 16
    56
    87643386
    BRACKET; Pick-up tine;DUAL CAM PICK-UP - BETWEEN P.I.N. Y7N032117 & Y8N0388893
  • 17
    56
    130891
    BOLT Tine, 5/16'' - 18 x 2''; Pick-up tine, Special
  • 17
    56
    87642989
    BOLT Tine, 5/16'' - 18 x 2''; Pick-up tine, Special;DUAL CAM PICK-UP - BETWEEN P.I.N. Y7N032117 & Y8N0388893
  • 18
    56
    86629544
    LOCK NUT 5/16'' - 18, GR B;
  • 18
    56
    280736
    LOCK NUT 5/16'' - 18, Gr C; SINGLE CAM PICK-UP
