TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
2BUCKET CYLINDER Double Acting, 25.4mm Rod, 439.67mm Stroke; Cylinder Assy., Bucket, 1-1/2'' Dia., 1120,1220 Tractors;7106
-
2NO LONGER SERVICED; Cylinder Assy., Bucket, 1-3/4'' Dia., (9600654) With Spanner Wrench End Caps 1320,1520, 1720,1920 Tractors Includes: Ref. 1 thru 8;7108;Replaced by 86608110 Bucket Cylinder, Refer to Fig. 006A for Detail
-
11HYDRAULIC CYLINDER 38.1mm Bore Dia; Tube Assy., Cylinder;7106
-
11CYLINDER 44.45mm Bore Dia; Tube Assy., Cylinder
-
21NUT; Hex Lock, G8, 3/4''-16
-

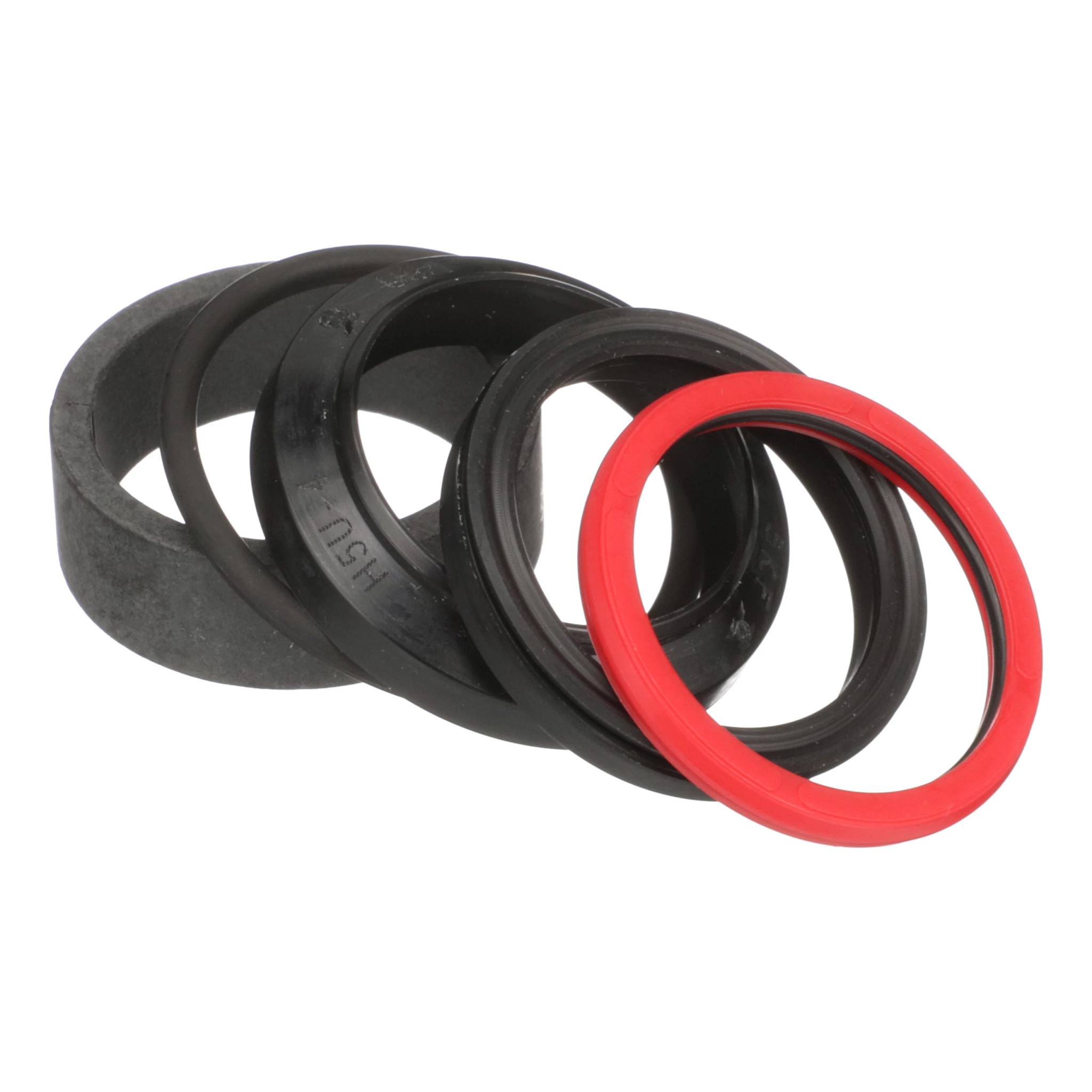

31SEAL KIT; Piston;7106
-
31PISTON; 7108
-
41CYLINDER HEAD; Head, Cylinder;7106
-
41CYLINDER HEAD; Head, Cylinder;7108, Use With Kit 9600671
-
51PLATE; Nut, Bearing, 1-3/8''-16, Shown in Art
-

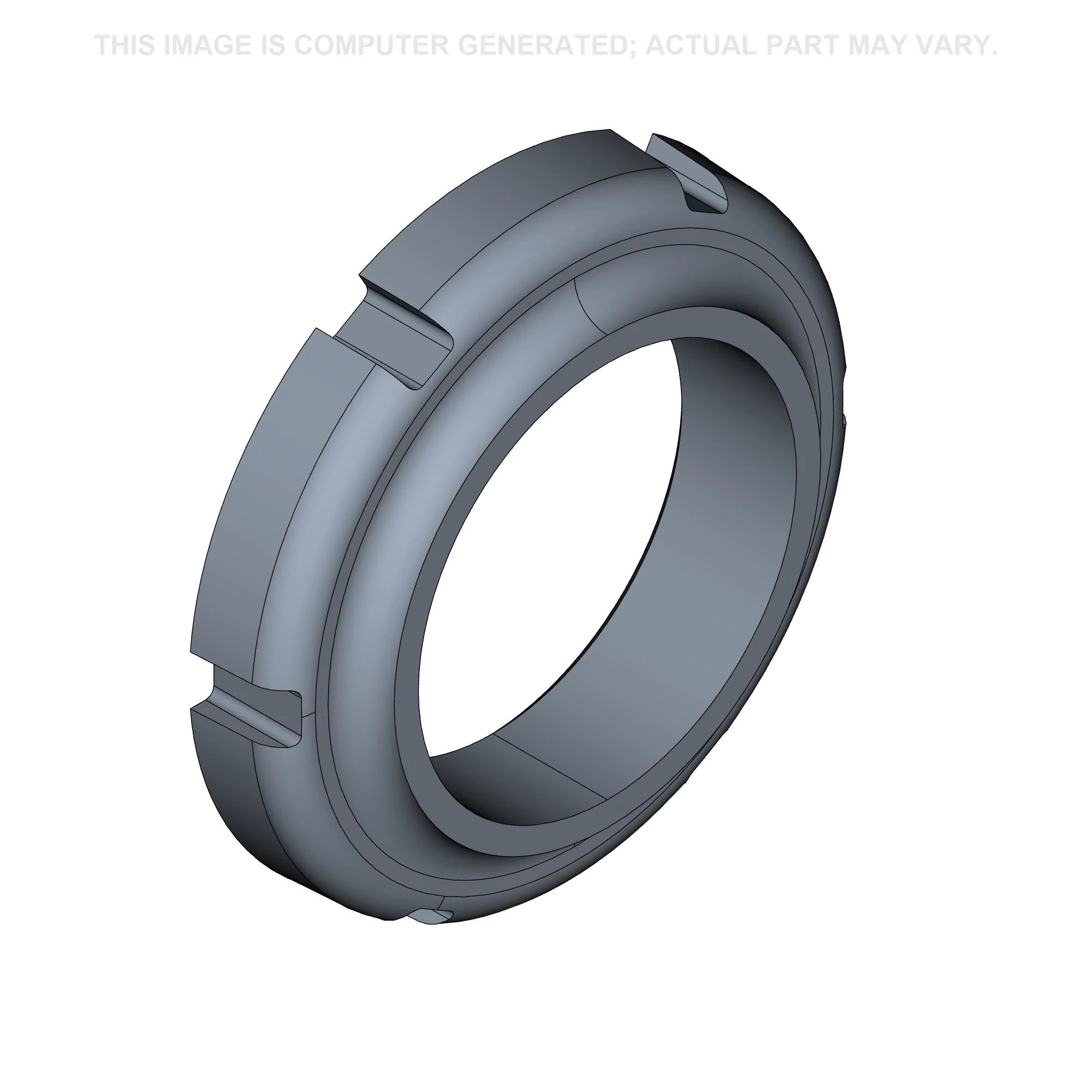

51NUT; Stake, 1-1/2''-16, Not Shown
-

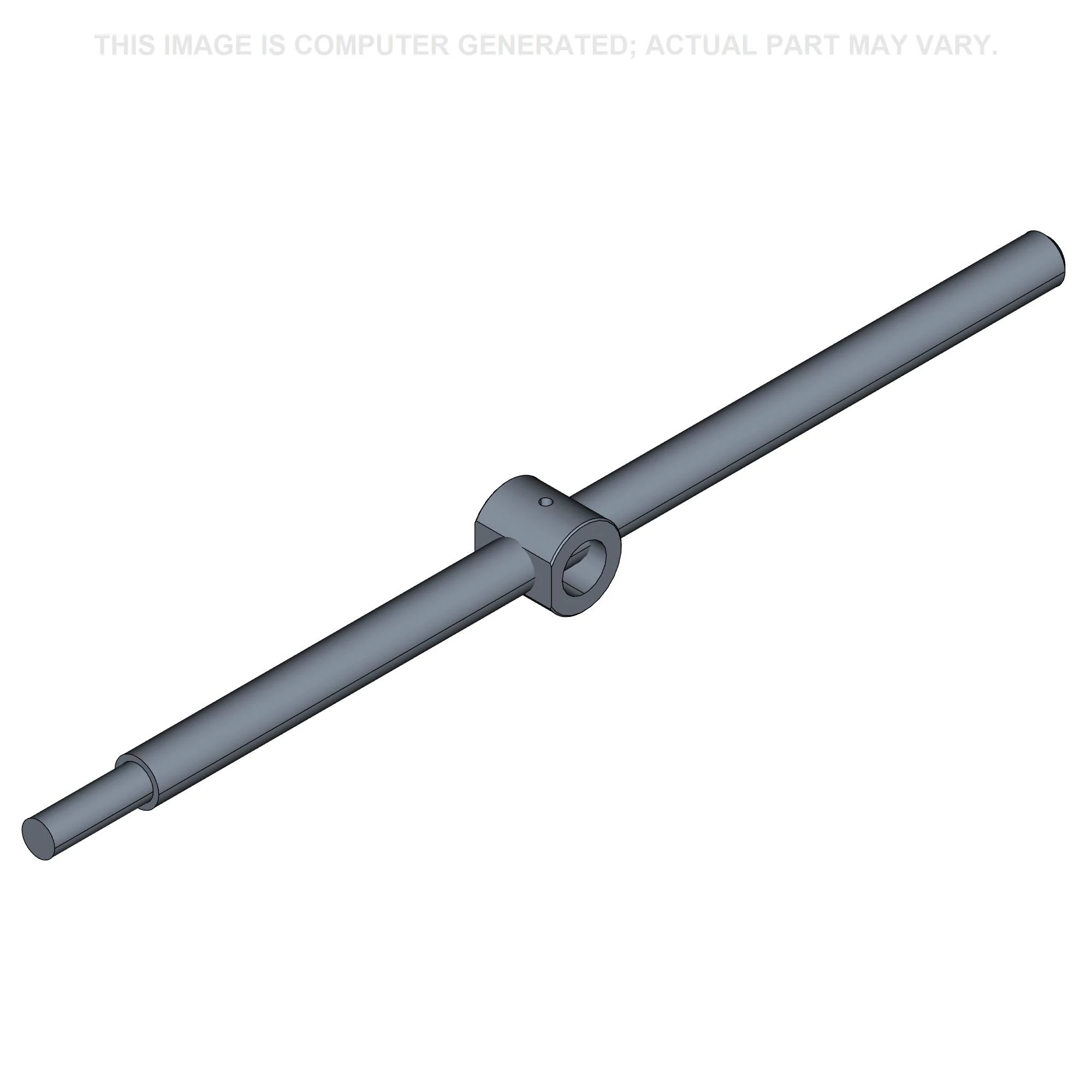

61ROD; Assy., Cylinder, 1'' Dia.
-
72PROCURE LOCALLY; Fitting, Lube, 1/4''-28
-
81SEAL KIT; Kit, Cylinder Repair;7106
-
81REPAIR KIT; Kit, Cylinder Repair Components of Kits Not Serviced Separately;7108, Must update Cylinder Head to 9616371
Select All
Ref.
Qty
2Availability
Part #
86608113Description
BUCKET CYLINDER Double Acting, 25.4mm Rod, 439.67mm Stroke; Cylinder Assy., Bucket, 1-1/2'' Dia., 1120,1220 Tractors;7106Img
Alts
Ref.
Qty
2Availability
Part #
NLSDescription
NO LONGER SERVICED; Cylinder Assy., Bucket, 1-3/4'' Dia., (9600654) With Spanner Wrench End Caps 1320,1520, 1720,1920 Tractors Includes: Ref. 1 thru 8;7108;Replaced by 86608110 Bucket Cylinder, Refer to Fig. 006A for DetailImg
Alts
Ref.
1Qty
1Availability
Part #
9600398Description
HYDRAULIC CYLINDER 38.1mm Bore Dia; Tube Assy., Cylinder;7106Img
Alts
Ref.
1Qty
1Availability
Part #
9600660Description
CYLINDER 44.45mm Bore Dia; Tube Assy., CylinderImg
Alts
Ref.
4Qty
1Availability
Part #

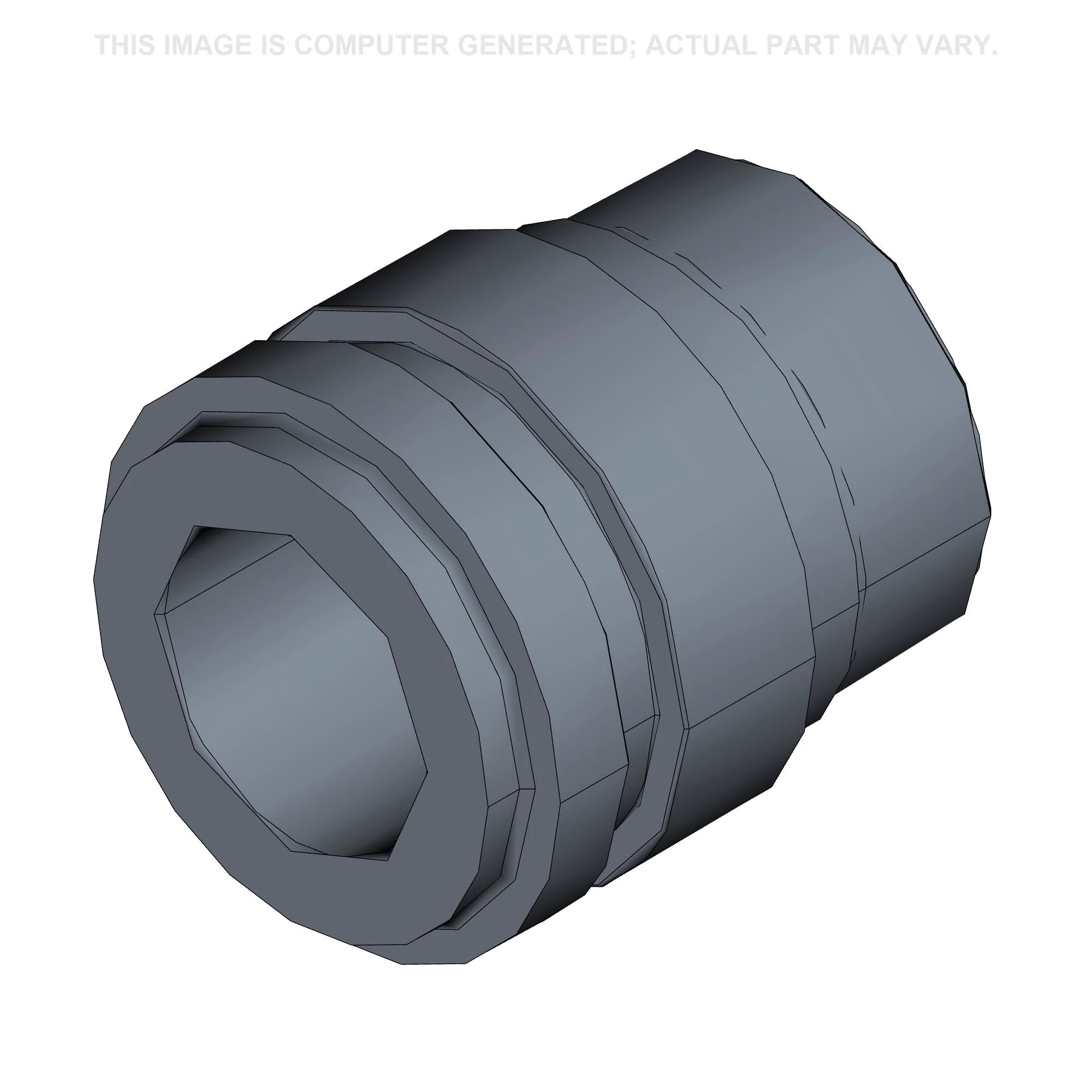

9616371Description
CYLINDER HEAD; Head, Cylinder;7108, Use With Kit 9600671Img
Alts
Ref.
5Qty
1Availability
Part #
596216Description
PLATE; Nut, Bearing, 1-3/8''-16, Shown in ArtImg
Alts
Ref.
8Qty
1Availability
Part #

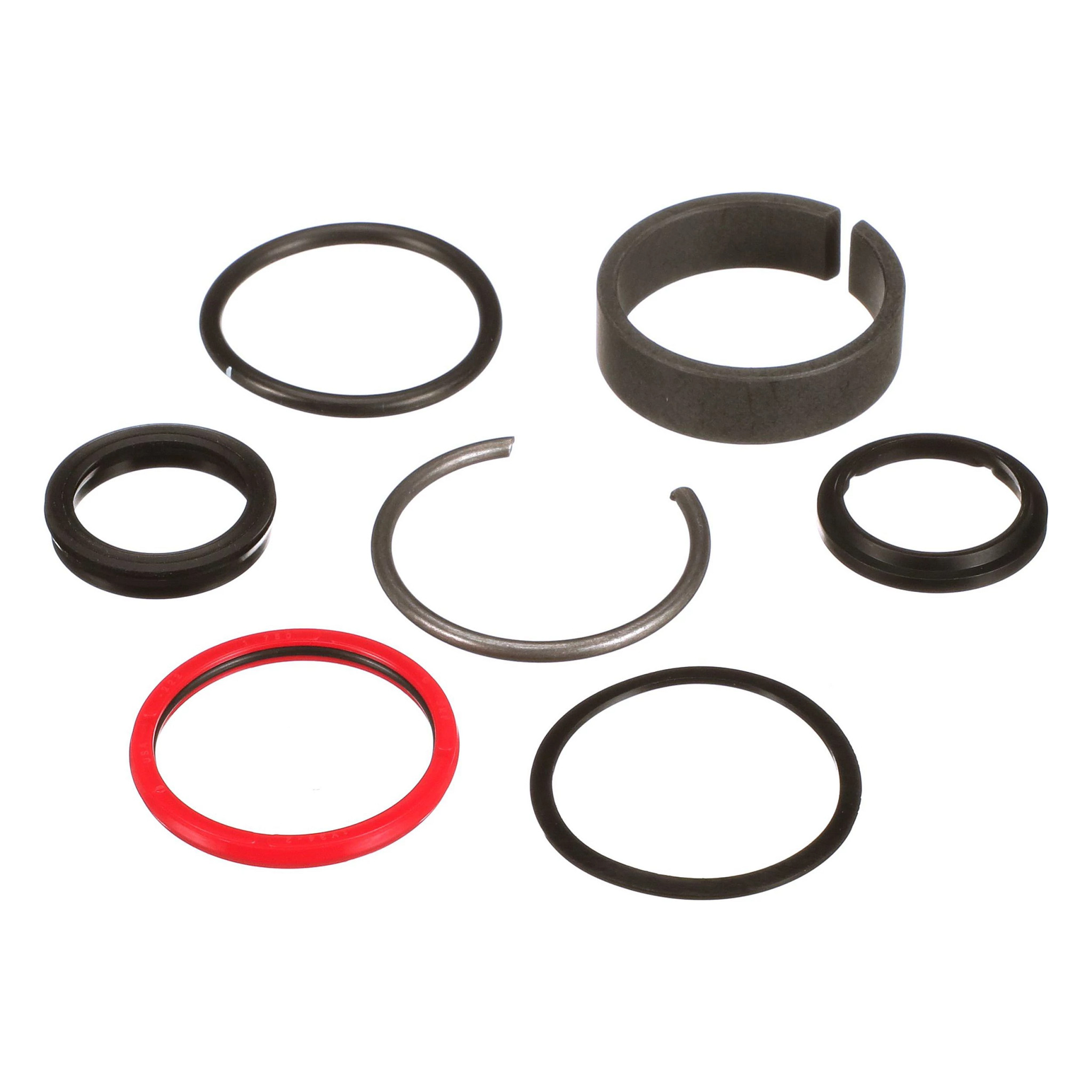

9600671Description
REPAIR KIT; Kit, Cylinder Repair Components of Kits Not Serviced Separately;7108, Must update Cylinder Head to 9616371Img
Alts
