220 - TRANSAXLE TRANSFER GEAR BOX, 4 WHEEL DRIVE, TRANSMISSION SERIAL NO. 16249203 AND AFTER
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    A168942
    HOUSING; ASSEMBLY - transfer gearbox (Matched Set), Includes: Ref. 1 - 6
  • 1
    1
    NSS
    NOT SOLD SEPARAT; HOUSING - transfer gearbox (Order A168942) (Reference No. A168934)
  • 2
    1
    NSS
    NOT SOLD SEPARAT; COVER - transfer gearbox (Order A168942) (Reference No. A168922)
  • 4
    2
    A55459
    PIN; - dowel; (SN Break) Between cover and housing
  • 5
    3
    26-624
    BOLT Hex, 3/8'' - 16 x 1-1/2'', Gr 8; - hex, 3/8 NC x 1-1/2 inch, Grade 8
  • 6
    3
    92-6
    LOCK WASHER 3/8'';
  • 7
    2
    26-624
    BOLT Hex, 3/8'' - 16 x 1-1/2'', Gr 8; - hex, 3/8 NC x 1-1/2 inch, Grade 8
  • 8
    2
    92-6
    LOCK WASHER 3/8'';
  • 9
    1
    221-411
    ELBOW 90 Degree, 1/8''-27, NPT; Street, gearbox cover 90?, 1/8''-27, NPT
  • 10
    1
    A12928
    BREATHER; - transfer gearbox
  • 11
    2
    A153248
    STUD; - transfer gearbox mounting, 4-13/16 inch
  • 12
    2
    92-6
    LOCK WASHER 3/8'';
  • 13
    2
    129-103
    NUT Hex, 3/8'' - 16, Gr 5; NUT, 3/8''-16, G5
  • 14
    4
    13-830
    BOLT Hex, 1/2'' - 13 x 1-7/8'', Gr 5;
  • 15
    4
    92-8
    LOCK WASHER 1/2'';
  • 16
    2
    166-87
    BOLT Flg, 1/2'' - 13 x 1 1/2'', Gr 8; - 12 point head, 1/2 NC x 1-1/2 inch
  • 17
    1
    A156286
    NEEDLE BEARING Needle, 38.1mm ID x 47.63mm OD x 25.4mm W; BEARING - idler gear, front
  • 18
    1
    A29540
    PIN; - dowel, transmission housing
  • 19
    1
    221-4
    DRAIN PLUG Sq Hd, 1/2''-14 NPTF; PLUG - square head, 1/2 inch PT
  • 20
    1
    A156248
    GASKET; GASKET - transmission housing to transfer gearbox
  • 23
    1
    A157228
    OIL SEAL; - input gear oil
  • 24
    1
    A31234
    RING; - bearing to gearbox retaining
  • 25
    UAR
    CASA27117
    SNAP RING; RING - retaining, 0.096 inch (2.44 mm)
  • 25
    UAR
    A27118
    SNAP RING; RING - retaining, 0.0975 inch (2.47 mm)
  • 25
    UAR
    A27119
    SNAP RING; RING - retaining, 0.099 inch (2.52 mm)
  • 25
    UAR
    A27116
    SNAP RING; RING - retaining, 0.109 inch (2.78 mm)
  • 26
    2
    A21266
    BALL BEARING 55mm ID x 100mm OD x 21mm W; BEARING - input gear
  • 27
    1
    A31234
    RING; - bearing to gearbox retaining
  • 28
    1
    A179007
    PINION; GEAR - input, 14 teeth
  • 34
    1
    F7356
    NEEDLE BEARING Needle, 38.1mm ID x 47.63mm OD x 22.23mm W; BEARING - idler gear, rear

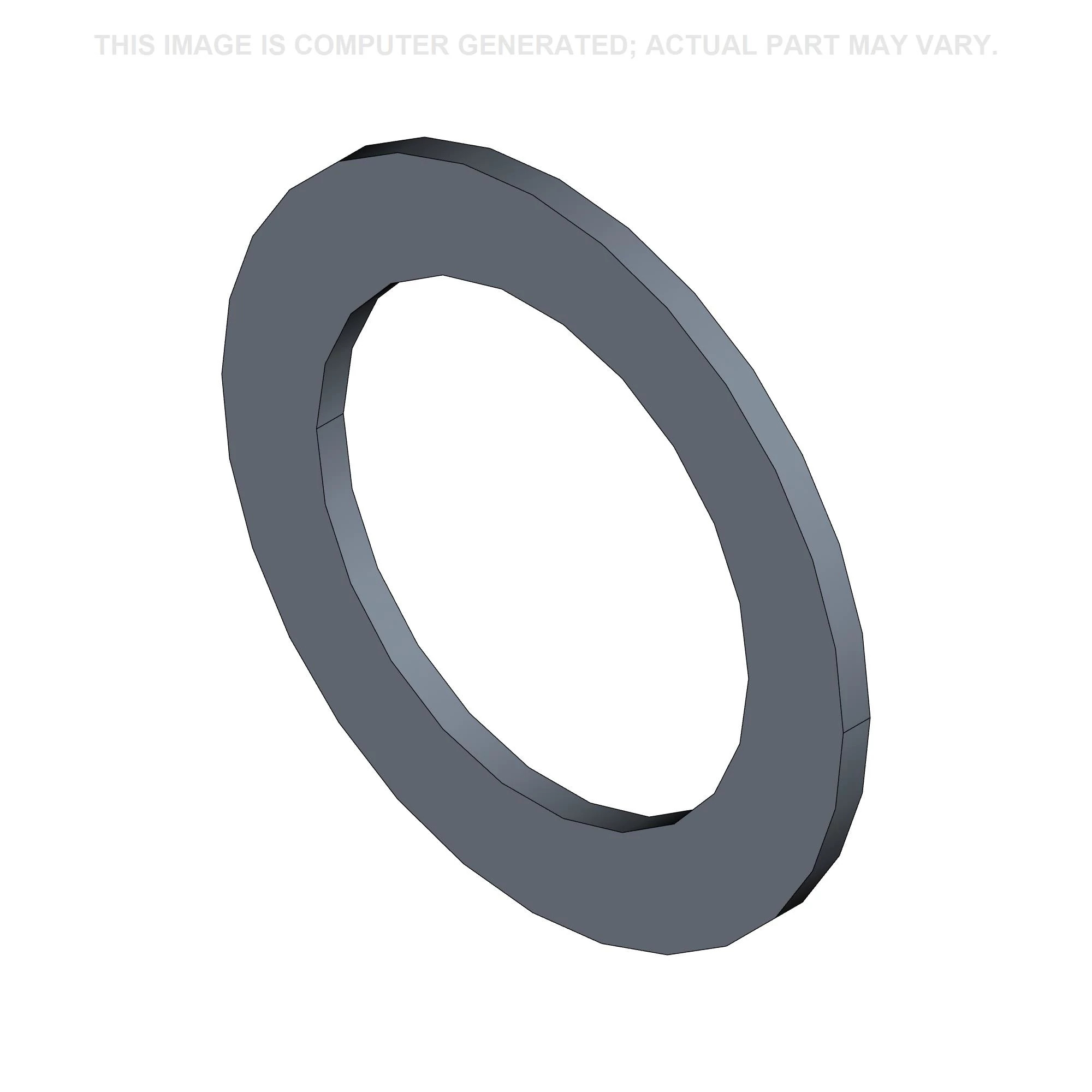

  • 35
    4
    A54031
    WASHER 38.15mm ID x 55.3mm OD x 2.41mm Thk; - idler gear thrust

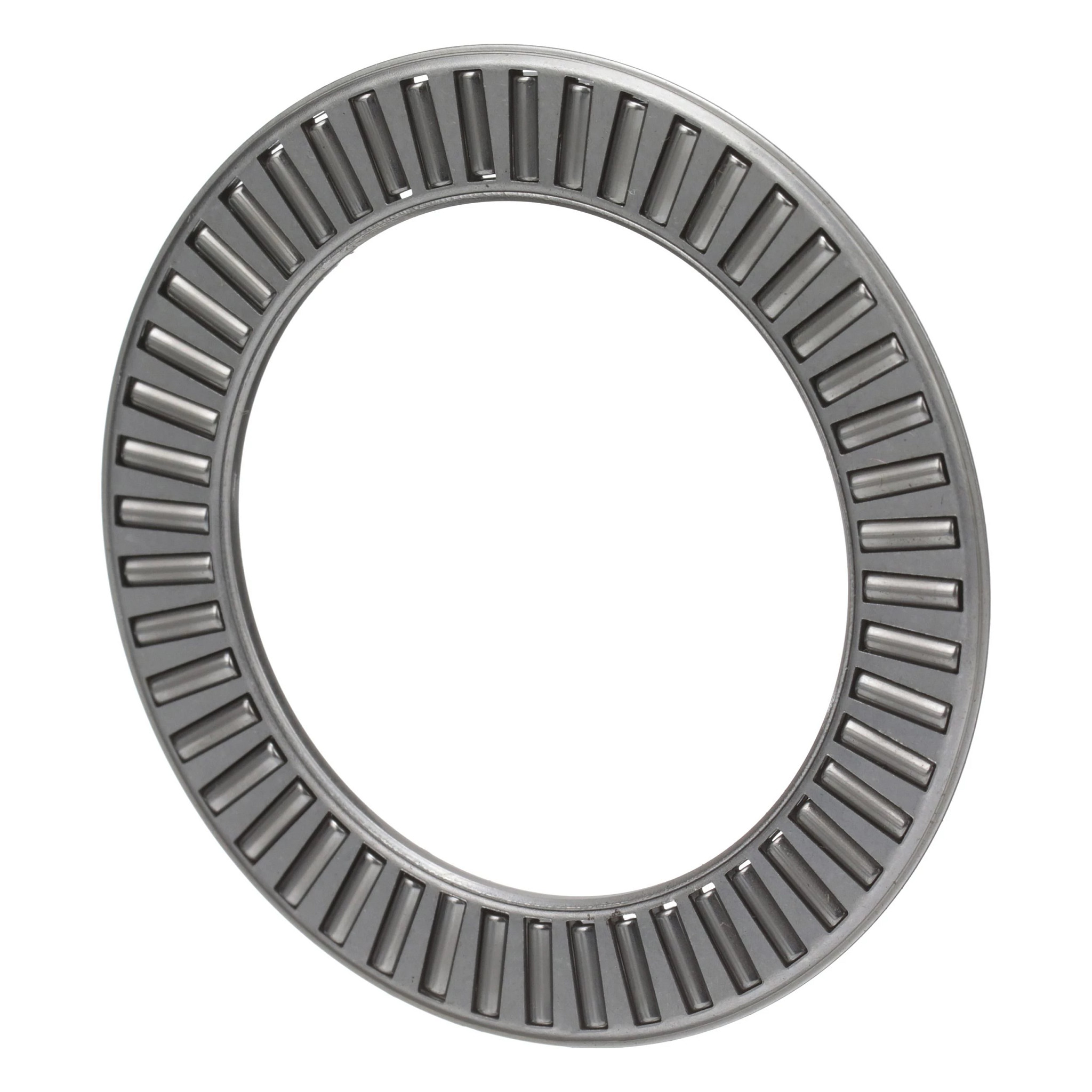

  • 36
    2
    T41022
    THRUST BEARING 38.215mm ID x 55.175mm OD x1.9815mm W; BEARING - idler gear thrust

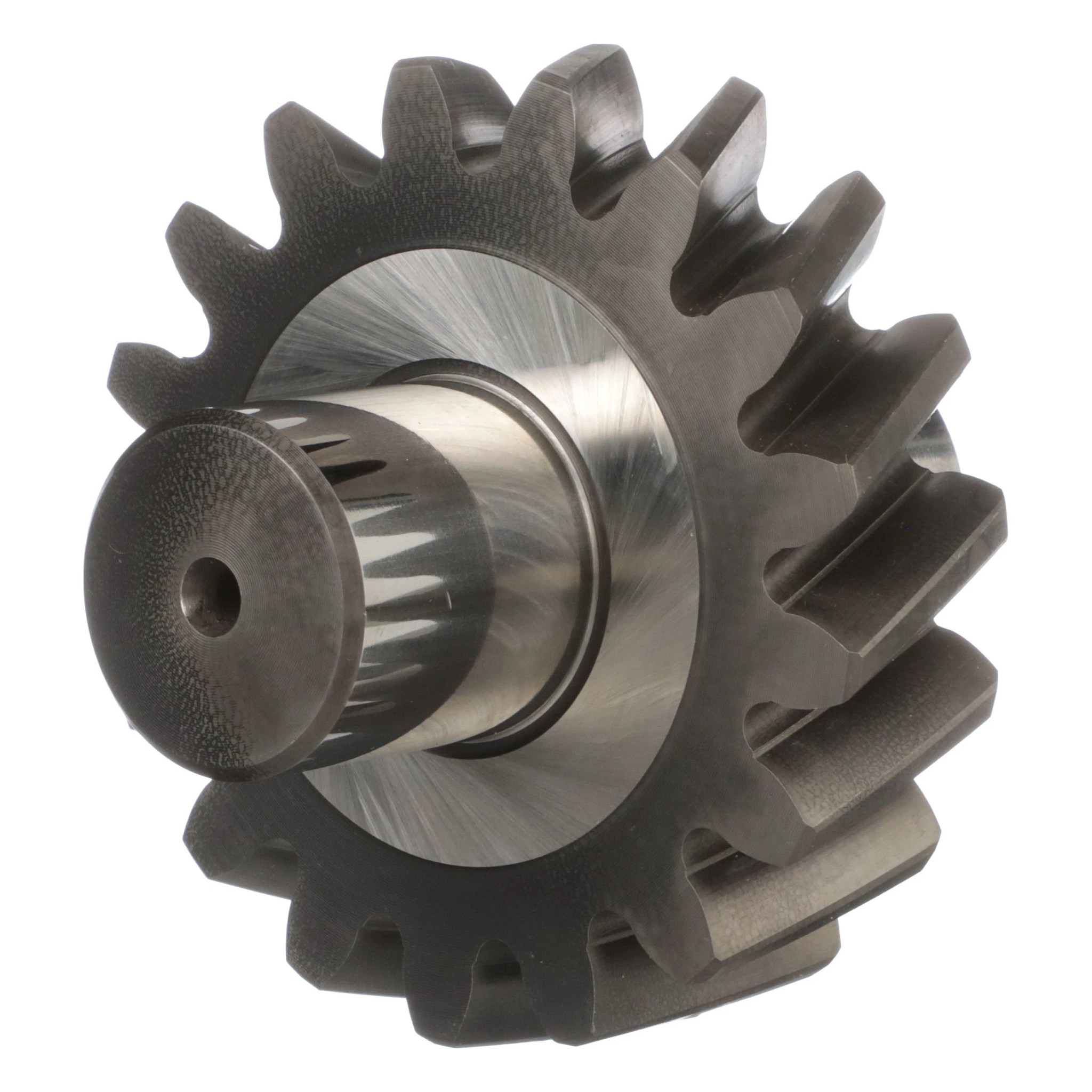

  • 37
    1
    A156256
    GEAR; - idler, 17 teeth

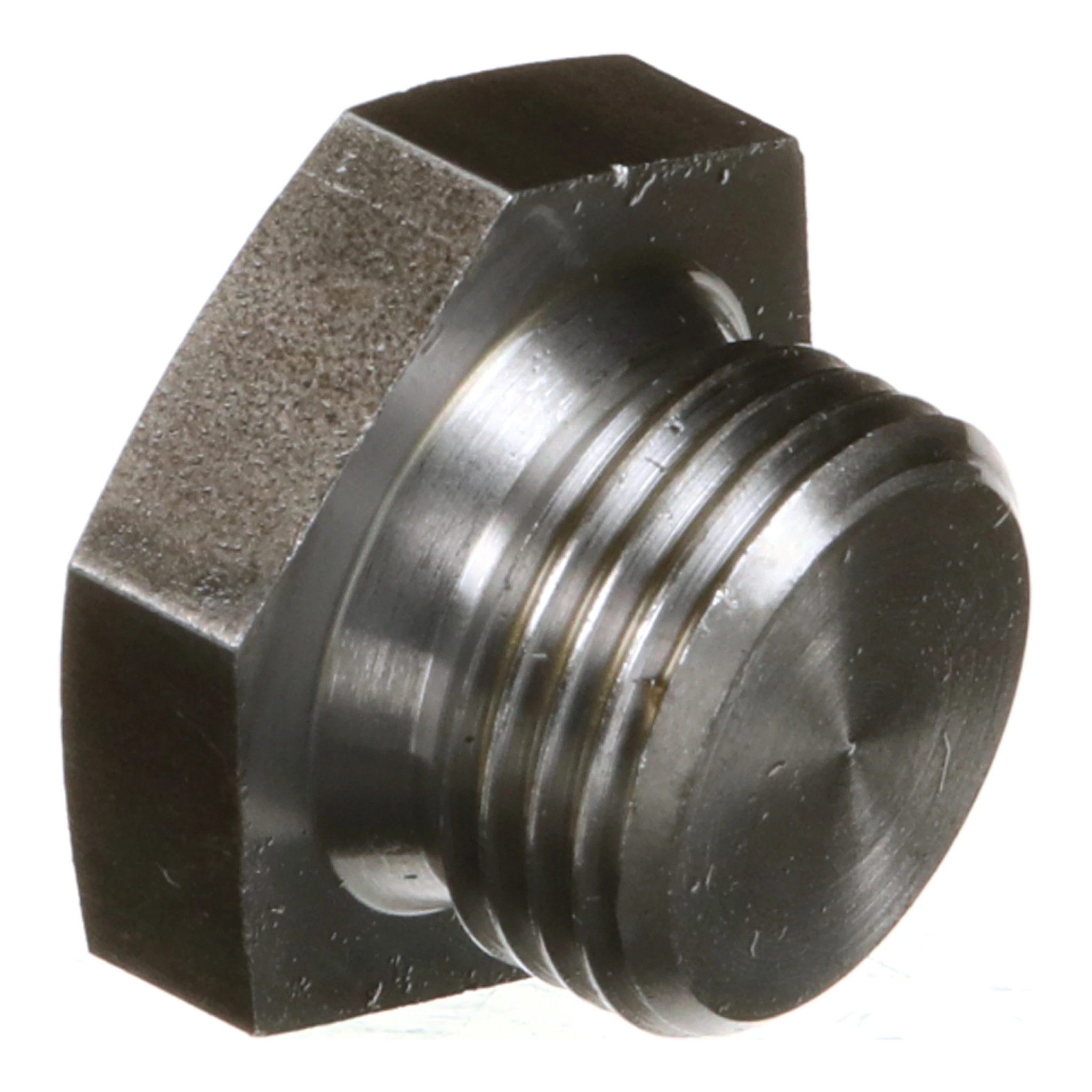

  • 38
    1
    A140222
    PLUG; - transfer gearbox drain
  • 39
    1
    A58608
    GASKET; - drain plug
  • 40
    1
    A179006
    SHAFT; SPLINE - stub
  • 41
    1
    A179155
    O-RING 1.171'' ID x 1.449'' OD x 0.139''; - sealing
  • 42
    1
    A179071
    OIL SEAL; - oil
  • 43
    1
    A140169
    SNAP RING #106, 1.000'', Ext; RING - snap
