-INSTRUCTION; MAIN BRAKE VALVE TO ACCUMULATOR
-
11BRAKE VALVE; Main, See Figure 07-08
-
2290 ELBOW 1-3/16'' - 12 Male ORFS x M27 x 2 Male ORB; Incl. 3, 4
-
31O-RING 0.07'' Thk x 0.739'' ID, -18, Cl 6, 90 Duro; Face Seal
-
41O-RING 2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro; Boss Seal
-
51HOSE; 419 mm (16 - 1/2 in), Front Accumulator
-
61HOSE; 580 mm (22 - 7/8 in), Rear Accumulator
-
7145 ELBOW 45 Degree Elbow, 11/16'' - 16 Male ORFS x M16 x 1.5 Male ORB; Incl. 8, 9
-
81O-RING 0.07'' Thk x 0.364'' ID, -12, Cl 6, 90 Duro; Face Seal
-
91O-RING 2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro; Boss Seal
-
101HOSE; 316 mm (12 - 7/16 in), Parking Brake Accumulator
-
111NUT 11/16'' - 16; M10
-
11A1O-RING 0.07'' Thk x 0.364'' ID, -12, Cl 6, 90 Duro; Face Seal
-
121TUBE 19.05 mm OD x 330, 665 mm L; Front Brake Accumulator
-
131HYD TUBE 19.05 mm OD x 809, 320 mm L; Rear Brake Accumulator
-
144BLOCK;
-
153BOLT Hex, M10 x 1.5 x 110mm, Cl 10.9;
-
163PLATE;
-
171BOLT Hex, M10 x 1.5 x 130mm, Cl 10.9;
-
189WASHER 11mm ID x 20mm OD x 2mm Thk;
-
193LOCK NUT M10 x 1.5, Cl 8;
-
202O-RING 0.07'' Thk x 0.739'' ID, -18, Cl 6, 90 Duro; Face Seal
-
212HYD CONNECTOR 1-3/16'' - 12 Male ORFS x M27 x 2 Male ORB; Incl. 22, 23
-
221O-RING 0.07'' Thk x 0.739'' ID, -18, Cl 6, 90 Duro; Face Seal
-
231O-RING 2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro; Boss Seal
-
242O-RING 0.07'' Thk x 0.301'' ID, -11, Cl 6, 90 Duro; Face Seal
-
252CLAMP 167mm - 175mm;
-
262PLATE;
-
272ACCUMULATOR 210 Bar, 2.8L; Service Brake
-
284BOLT Hex, M8 x 1.25 x 45mm, Cl 10.9;
-
298WASHER 9mm ID x 20mm OD x 1.6mm Thk;
-
304LOCK NUT M8 x 1.25, Cl 8.8;
-
311ACCUMULATOR 210 Bar, 0.16L; Parking Brake
-
322BOLT Hex, M10 x 1.5 x 140mm, Cl 10.9;
-
331HYD TUBE 15.88 mm OD x 608, 313 mm L; Fan Supply Plated
-
341HYD TUBE 15.88 mm OD x 540, 250 mm L; Brake Supply Plated
Select All
Select
Ref.
Qty
-Availability
Part #
REFDescription
INSTRUCTION; MAIN BRAKE VALVE TO ACCUMULATORImg
Alts
Select
Ref.
1Qty
1Availability
Part #
8603087Description

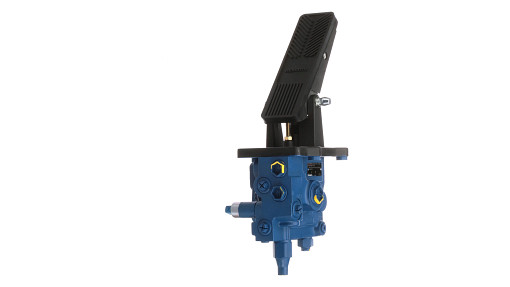

BRAKE VALVE; Main, See Figure 07-08Img
Alts
Select
Ref.
2Qty
2Availability
Part #
700-307Description
90 ELBOW 1-3/16'' - 12 Male ORFS x M27 x 2 Male ORB; Incl. 3, 4Img
Alts
Select
Ref.
3Qty
1Availability
Part #
238-6018Description
O-RING 0.07'' Thk x 0.739'' ID, -18, Cl 6, 90 Duro; Face SealImg
Alts
Select
Ref.
4Qty
1Availability
Part #
637-64236Description
O-RING 2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro; Boss SealImg
Alts
Select
Ref.
5Qty
1Availability
Part #
8500197Description
HOSE; 419 mm (16 - 1/2 in), Front AccumulatorImg
Alts
Select
Ref.
6Qty
1Availability
Part #
8500198Description
HOSE; 580 mm (22 - 7/8 in), Rear AccumulatorImg
Alts
Select
Ref.
7Qty
1Availability
Part #
700-374Description

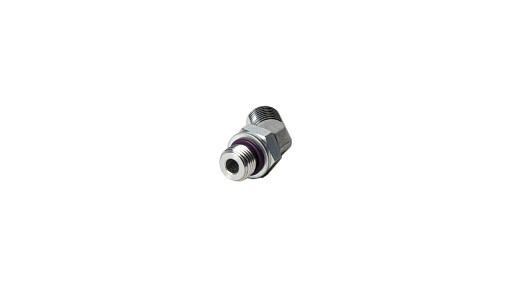

45 ELBOW 45 Degree Elbow, 11/16'' - 16 Male ORFS x M16 x 1.5 Male ORB; Incl. 8, 9Img
