TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
11SPACER; Pivot Pin
-
3BOLT 1/2'' - 13 x 1-1/4'', Full Thd, Gr 5;
-
3WASHER 0.53'' ID x 1.06'' OD x 0.1'' Thk; SAE, 1/2''
-
3LOCK WASHER 1/20.507 CST ZND; WASHER, LOCK, 1/2''
-
21SUPPORT; Weld Assy., Pivot Arm
-
31BALL BEARING 25.4mm ID x 52mm OD x 15mm W; Bearing, Ball
-
41COLLAR; Bearing
-
1SET SCREW 1/4'' - 20 x 1/4''; Screw, Set, HS, Cup Pt, 1/4''-20 x 1/4''
-
51GASKET;
-
61BEARING CAP 2.187'' ID x 4.25'' OD x 0.25''; Cap, Bearing
-
1LUBE NIPPLE FITTING LUBE 1/4-28 SPCL TAP; Nipple, Lube, Straight, 1/4''-28
-
2BOLT Hex, 3/8'' - 16 x 1'', Gr 5;
-
2LOCK WASHER 3/8 0.381 CST ZND; WASHER, LOCK, 3/8''
-
71YOKE; Weld Assy., Includes: Ref. 8
-
81BUSHING 12.75mm ID x 25.4mm OD x 21.44mm L;
-
91HUB; Assy., Includes: Ref. 10 & 11
-
101BEARING CUP 77.7mm OD x 15.08mm Thk; Bearing, Cup
-
112BEARING CUP 59.16mm OD x 11.81mm W; Cup, Roller Bearing
-
122BEARING, ROLLER, CYL 0.7505'' ID x 1.825'' OD x 0.655''; Cone, Roller Bearing
-
132BEARING CUP 45.26mm OD x 12.06mm W; Cup, Roller Bearing
-
142COVER; Cap, Bearing
-
2LUBE NIPPLE 90 Degree, 1/4'' NPT x 3/4'' L, Drive; NIPPLE, LUBE, 90?, 1/4'' NPT x .75'' lg, Drive
-
4BOLT Hex, 5/8'' - 11 x 1-1/2'', Gr 5; Screw, Cap, HH, G5, 5/8''-11 x 1-1/2''
-
4LOCK WASHER 3/8 0.381 CST ZND; WASHER, LOCK, 3/8''
-
15ARSHIM .005'' Thk;
-
15ARSHIM .0075 Thk; .0075'' Thk
-
15ARSHIM;
-
161BEARING, ROLLER, CYL 45.26mm ID x 19.84mm W; Bearing, Cone, Tapered, Roller
-
172BEARING CONE 31.75mm ID x 16.76mm W; Cone, Roller Bearing
-
172BEARING ASSY; Value, Cone, Roller Bearing
-
181WASHER 19.84mm ID x 44.45mm OD x 6.655mm Thk; 1''
-
191SLOTTED NUT 3/4''-16; Nut, Slotted, G2, 3/4''-16
-
202COTTER PIN 1/8'' OD x 1-1/4'' OAL; PIN, SPLIT (COTTER), 1/8'' x 1-1/4''
-
211HUB CAP; Cap, Hub
-
221SPINDLE; Shaft, Wobble
-
231SHEAVE;
-
6HEX SOC SCREW Flat Hd, CSK, 3/8'' - 24 x 3/4''; Screw, Cap, HS, Flat Hd, 3/8''-24 x 3/4''
-
241IDLER WHEEL; Idler Assy.
-
251CARRIAGE BOLT Short NK, 5/8''-11 x 2 3/4'', G5; Bolt, Carriage, Short Neck, G5, 5/8''-11 x 2-3/4''
-
ARWASHER 16.28mm ID x 38.35mm OD x 4.11mm Thk; Hardened, 5/8''
-
1LOCK WASHER 5/8'' ID x 0.634'' OD x .156'' Thk CST ZND; Washer, Lock, 5/8''
-
1NUT Hex, 5/8'' - 11, Gr 5; G5, 5/8''-11
-
261SUPPORT; Weld Assy., Bearing, Includes: Ref. 11 & Bearing Cup 287066
-
1PIPE 1/8'' NPT x 1/8'' NPT; Line, Grease
-
1COUPLING 1/8'' - 27 NPT x 1/8'' - 27 NPT; Pipe, 1/8''
-
1LUBE NIPPLE 45 Degree, 1/8'' NPT x 7/8'' lg; Fitting, Lube, 45?, 1/8''
-
1BOLT Hex, 5/8'' - 18 x 3 1/2'', Gr 5; Screw, Cap, HH, G5, 5/8''-18 x 3-1/2''
-
3BOLT Hex, 5/8'' - 18 x 2'', Gr 5; Screw, Cap, HH, G5, 5/8'' NF x 2''
-
2BOLT 1/2''-13 x 1.813'' OAL, Gr 5;
-
2WASHER 0.53'' ID x 1.06'' OD x 0.1'' Thk; SAE, 1/2''
-
4LOCK WASHER 5/8'' ID x 0.634'' OD x .156'' Thk CST ZND; Washer, Lock, 5/8''
-
2LOCK WASHER 1/20.507 CST ZND; WASHER, LOCK, 1/2''
-
2NUT 5/8'' - 18, Gr 5; G5, 5/8''-18
-
2NUT 1/2''-13, G5;
-
271BEARING CUP 85.02mm OD x 13.49mm W; Roller Bearing
-
27A1BEARING CUP 82.58mm OD x 16.51mm W; Cup, Roller Bearing, Used in Ref. 26 Grease Line 287906
-
281BEARING CONE 50.8mm ID x 17.46mm W; Cone, Roller Bearing
-
28A1ROLLER BEARING 50.8mm ID x 22.23mm W; Cone, Roller Bearing, Used w/Bearing Cup 287066
-
291WASHER .766'' ID x 1.075'' OD;
-
301SLOTTED NUT 3/4'' x 16; Hex, Slotted, 1'' NF
-
311DUST CAP; Cap, Hub, Replaces 28702
-
321KNIFE; Assy., USR Includes: Ref 33 - 40
-
321KNIFE; Assy., Smooth, Includes: Ref. 33, 35, 36A & 37 thru 43;No Longer Serviced
-
331KNIFE HEAD; Head, Knife, w/Bushing, Includes: Ref. 34
-
1BOLT Hex, 1/2'' - 20 x 3'', Gr 5; Screw, Cap, HH, G5, 1/2''-20 x 3''
-
1LOCK WASHER 1/20.507 CST ZND; WASHER, LOCK, 1/2''
-
1NUT Nut, 1/2-20 GR 5 ZND; G5, 1/2''-20
-
341BUSHING 12.7mm ID x 46.15mm OD x 43.1mm L; Rubber, Knife Head
-
351KNIFE; back, Not Recommended as a Field Service Item;No Longer Serviced
-
3635KNIFE SECTION; Section, Knife, Underserr
-
36A35KNIFE SECTION; Section, Knife, Smooth
-
371KNIFE SECTION; Half-section
-
3863RIVET Button, 5.33mm OD x 15.75mm L; Button Hd, #5-1/2, 7/32''x 5/8''
-
394RIVET Button, 8.28mm OD x 23.8mm L; Button Hd, #5-1/2 , 7/32''x 15/16''
-
405RIVET Button, 8.28mm OD x 30.2mm L; Button Hd, #5-1/2, 7/32''x 1-3/16''
-
411KNIFE CLIP; Clip, High Knife
-
2CARRIAGE BOLT Sq Nk, 7/16'' - 14 x 1 1/2'', Gr 5; Bolt, Carriage, G5, 7/16''-14 x 1-1/2''
-
2NUT 7/16''-14, G5;
-
428KNIFE CLIP; Clip, Low Knife
-
16CARRIAGE BOLT Sq Nk, 7/16'' - 14 x 1 1/2'', Gr 5; Bolt, Carriage, G5, 7/16''-14 x 1-1/2''
-
16NUT 7/16''-14, G5;
-
4318GUARD; Sickle
-
18CARRIAGE BOLT Sq Nk, 7/16'' - 14 x 1 1/4'', Gr 5, Full Thd; Bolt, Carriage, G5, 7/16''-14 x 1-1/4''
-
18NUT 7/16''-14, G5;
-
4418GUARD; Assy., Shear;Ref. 44 132146, Shear Guard Assy., an optional item to be used in lieu of Ref. 43 when plugging occurs in extremely thick crops W/dead or wet undergrowth. Additional holddown clips should be installed when using 132146 Shear Guards.
-
18CARRIAGE BOLT Sq Nk, 7/16'' - 14 x 1 1/4'', Gr 5, Full Thd; Bolt, Carriage, G5, 7/16''-14 x 1-1/4''
-
18NUT 7/16''-14, G5;
-
4536PLATE; Shear
-
36RIVET; Countersunk Hd, #5, 1/2'' x 7/8''
Select All
Select
Ref.
Qty
3Availability
Part #
87670Description
BOLT 1/2'' - 13 x 1-1/4'', Full Thd, Gr 5;Img
Alts
Select
Ref.
Qty
3Availability
Part #
87364Description
WASHER 0.53'' ID x 1.06'' OD x 0.1'' Thk; SAE, 1/2''Img
Alts
Select
Ref.
Qty
3Availability
Part #
80679Description
LOCK WASHER 1/20.507 CST ZND; WASHER, LOCK, 1/2''Img
Alts
Select
Ref.
3Qty
1Availability
Part #
134130Description

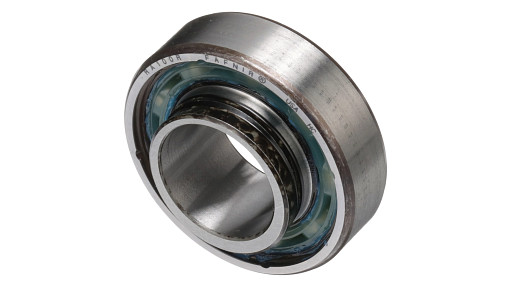

BALL BEARING 25.4mm ID x 52mm OD x 15mm W; Bearing, BallImg
Alts
Select
Ref.
Qty
1Availability
Part #
80430Description

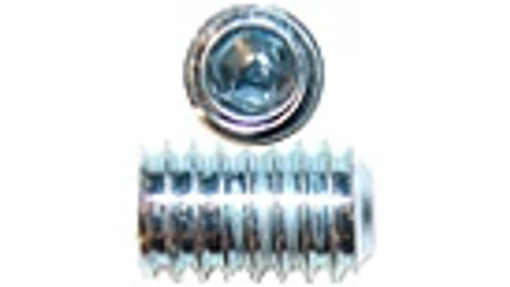

SET SCREW 1/4'' - 20 x 1/4''; Screw, Set, HS, Cup Pt, 1/4''-20 x 1/4''Img
Alts
Select
Ref.
6Qty
1Availability
Part #
134485Description

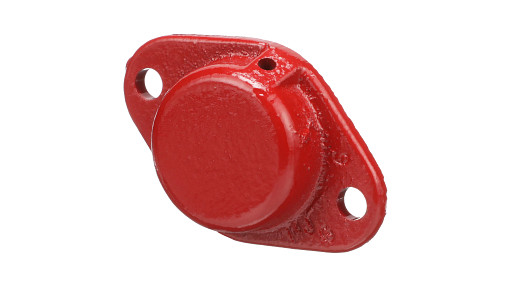

BEARING CAP 2.187'' ID x 4.25'' OD x 0.25''; Cap, BearingImg
Alts
Select
Ref.
Qty
1Availability
Part #
87414Description
LUBE NIPPLE FITTING LUBE 1/4-28 SPCL TAP; Nipple, Lube, Straight, 1/4''-28Img
Alts
Select
Ref.
Qty
2Availability
Part #
80680Description
LOCK WASHER 3/8 0.381 CST ZND; WASHER, LOCK, 3/8''Img
Alts
Select
Ref.
7Qty
1Availability
Part #
134144Description
YOKE; Weld Assy., Includes: Ref. 8Img
Alts
Select
Ref.
8Qty
1Availability
Part #
127637Description

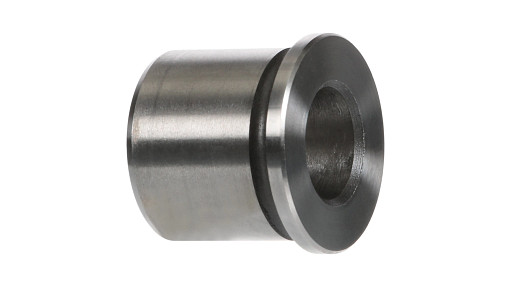

BUSHING 12.75mm ID x 25.4mm OD x 21.44mm L;Img
Alts
Select
Ref.
9Qty
1Availability
Part #
130682Description
HUB; Assy., Includes: Ref. 10 & 11Img
Alts
Select
Ref.
10Qty
1Availability
Part #
67526Description
BEARING CUP 77.7mm OD x 15.08mm Thk; Bearing, CupImg
Alts
Select
Ref.
11Qty
2Availability
Part #
36723Description
BEARING CUP 59.16mm OD x 11.81mm W; Cup, Roller BearingImg
Alts
Select
Ref.
12Qty
2Availability
Part #
67372Description
BEARING, ROLLER, CYL 0.7505'' ID x 1.825'' OD x 0.655''; Cone, Roller BearingImg
Alts
Select
Ref.
13Qty
2Availability
Part #
36725Description

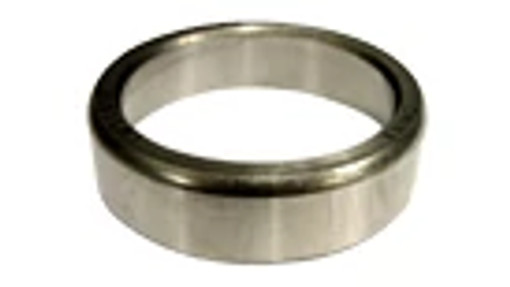

BEARING CUP 45.26mm OD x 12.06mm W; Cup, Roller BearingImg
Alts
Select
Ref.
Qty
2Availability
Part #
87415Description
LUBE NIPPLE 90 Degree, 1/4'' NPT x 3/4'' L, Drive; NIPPLE, LUBE, 90?, 1/4'' NPT x .75'' lg, DriveImg
Alts
Select
Ref.
Qty
4Availability
Part #
88062Description
BOLT Hex, 5/8'' - 11 x 1-1/2'', Gr 5; Screw, Cap, HH, G5, 5/8''-11 x 1-1/2''Img
Alts
Select
Ref.
Qty
4Availability
Part #
80680Description
LOCK WASHER 3/8 0.381 CST ZND; WASHER, LOCK, 3/8''Img
Alts
Select
Ref.
16Qty
1Availability
Part #
67527Description
BEARING, ROLLER, CYL 45.26mm ID x 19.84mm W; Bearing, Cone, Tapered, RollerImg
Alts
Select
Ref.
17Qty
2Availability
Part #
36726Description
BEARING CONE 31.75mm ID x 16.76mm W; Cone, Roller BearingImg
Alts
Select
Ref.
17Qty
2Availability
Part #
84356153GVDescription

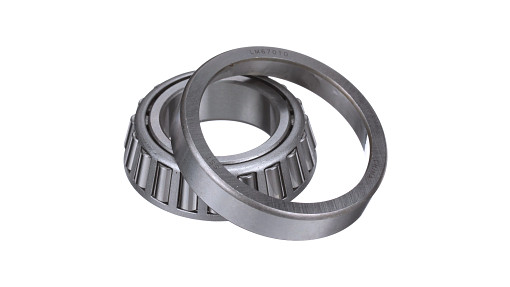

BEARING ASSY; Value, Cone, Roller BearingImg
Alts
Select
Ref.
18Qty
1Availability
Part #
86900798Description
WASHER 19.84mm ID x 44.45mm OD x 6.655mm Thk; 1''Img
Alts
Select
Ref.
19Qty
1Availability
Part #
88886Description
SLOTTED NUT 3/4''-16; Nut, Slotted, G2, 3/4''-16Img
Alts
Select
Ref.
20Qty
2Availability
Part #
87395Description
COTTER PIN 1/8'' OD x 1-1/4'' OAL; PIN, SPLIT (COTTER), 1/8'' x 1-1/4''Img
Alts
Select
Ref.
Qty
6Availability
Part #
87927Description
HEX SOC SCREW Flat Hd, CSK, 3/8'' - 24 x 3/4''; Screw, Cap, HS, Flat Hd, 3/8''-24 x 3/4''Img
Alts
Select
Ref.
25Qty
1Availability
Part #
280560Description

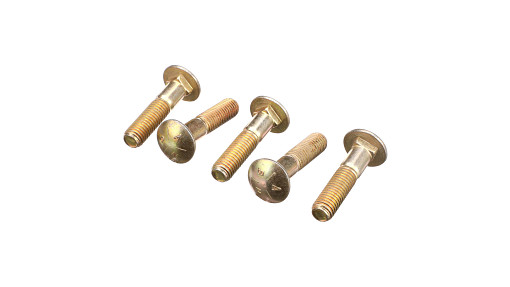

CARRIAGE BOLT Short NK, 5/8''-11 x 2 3/4'', G5; Bolt, Carriage, Short Neck, G5, 5/8''-11 x 2-3/4''Img
Alts
Select
Ref.
Qty
ARAvailability
Part #
130358Description

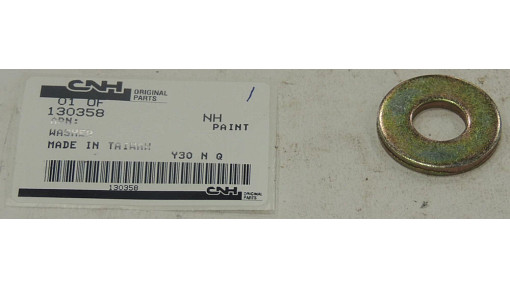

WASHER 16.28mm ID x 38.35mm OD x 4.11mm Thk; Hardened, 5/8''Img
Alts
Select
Ref.
Qty
1Availability
Part #
86729275Description
LOCK WASHER 5/8'' ID x 0.634'' OD x .156'' Thk CST ZND; Washer, Lock, 5/8''Img
Alts
Select
Ref.
Qty
1Availability
Part #
280374Description
NUT Hex, 5/8'' - 11, Gr 5; G5, 5/8''-11Img
Alts
Select
Ref.
26Qty
1Availability
Part #
287906Description
SUPPORT; Weld Assy., Bearing, Includes: Ref. 11 & Bearing Cup 287066Img
Alts
Select
Ref.
Qty
1Availability
Part #
124160Description
PIPE 1/8'' NPT x 1/8'' NPT; Line, GreaseImg
Alts
Select
Ref.
Qty
1Availability
Part #
91932Description

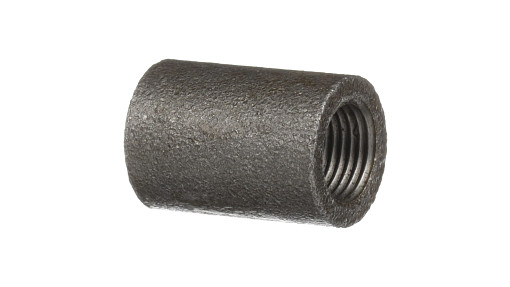

COUPLING 1/8'' - 27 NPT x 1/8'' - 27 NPT; Pipe, 1/8''Img
Alts
Select
Ref.
Qty
1Availability
Part #
80717Description

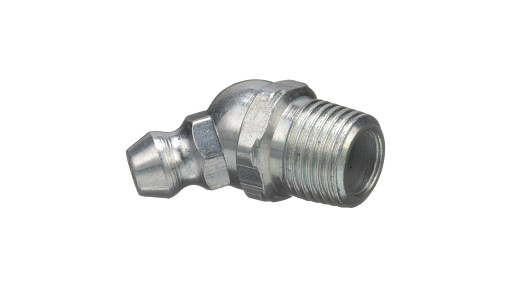

LUBE NIPPLE 45 Degree, 1/8'' NPT x 7/8'' lg; Fitting, Lube, 45?, 1/8''Img
Alts
Select
Ref.
Qty
1Availability
Part #
280340Description
BOLT Hex, 5/8'' - 18 x 3 1/2'', Gr 5; Screw, Cap, HH, G5, 5/8''-18 x 3-1/2''Img
Alts
Select
Ref.
Qty
3Availability
Part #
88439Description
BOLT Hex, 5/8'' - 18 x 2'', Gr 5; Screw, Cap, HH, G5, 5/8'' NF x 2''Img
Alts
Select
Ref.
Qty
2Availability
Part #
87364Description
WASHER 0.53'' ID x 1.06'' OD x 0.1'' Thk; SAE, 1/2''Img
Alts
Select
Ref.
Qty
4Availability
Part #
86729275Description
LOCK WASHER 5/8'' ID x 0.634'' OD x .156'' Thk CST ZND; Washer, Lock, 5/8''Img
Alts
Select
Ref.
Qty
2Availability
Part #
80679Description
LOCK WASHER 1/20.507 CST ZND; WASHER, LOCK, 1/2''Img
Alts
Select
Ref.
27Qty
1Availability
Part #
44676Description
BEARING CUP 85.02mm OD x 13.49mm W; Roller BearingImg
Alts
Select
Ref.
27AQty
1Availability
Part #
287066Description
BEARING CUP 82.58mm OD x 16.51mm W; Cup, Roller Bearing, Used in Ref. 26 Grease Line 287906Img
Alts
Select
Ref.
28Qty
1Availability
Part #
44419Description
BEARING CONE 50.8mm ID x 17.46mm W; Cone, Roller BearingImg
Alts
Select
Ref.
28AQty
1Availability
Part #
287902Description
ROLLER BEARING 50.8mm ID x 22.23mm W; Cone, Roller Bearing, Used w/Bearing Cup 287066Img
Alts
Select
Ref.
30Qty
1Availability
Part #
116311Description

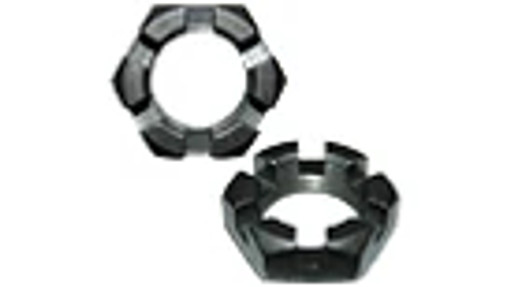

SLOTTED NUT 3/4'' x 16; Hex, Slotted, 1'' NFImg
Alts
Select
Ref.
31Qty
1Availability
Part #
249129Description
DUST CAP; Cap, Hub, Replaces 28702Img
Alts
Select
Ref.
32Qty
1Availability
Part #
134186Description
KNIFE; Assy., USR Includes: Ref 33 - 40Img
Alts
Select
Ref.
32Qty
1Availability
Part #
135954Description
KNIFE; Assy., Smooth, Includes: Ref. 33, 35, 36A & 37 thru 43;No Longer ServicedImg
Alts
Select
Ref.
33Qty
1Availability
Part #
86507377Description

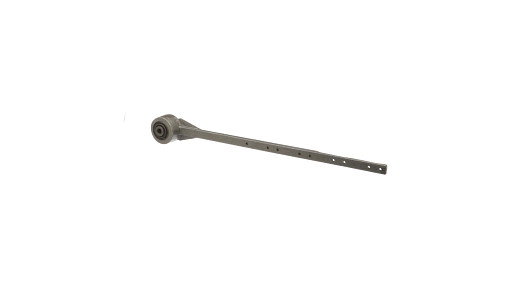

KNIFE HEAD; Head, Knife, w/Bushing, Includes: Ref. 34Img
Alts
Select
Ref.
Qty
1Availability
Part #
88849Description
BOLT Hex, 1/2'' - 20 x 3'', Gr 5; Screw, Cap, HH, G5, 1/2''-20 x 3''Img
Alts
Select
Ref.
Qty
1Availability
Part #
80679Description
LOCK WASHER 1/20.507 CST ZND; WASHER, LOCK, 1/2''Img
Alts
Select
Ref.
Qty
1Availability
Part #
280963Description
NUT Nut, 1/2-20 GR 5 ZND; G5, 1/2''-20Img
Alts
Select
Ref.
34Qty
1Availability
Part #
134182Description
BUSHING 12.7mm ID x 46.15mm OD x 43.1mm L; Rubber, Knife HeadImg
Alts
Select
Ref.
35Qty
1Availability
Part #
127611Description
KNIFE; back, Not Recommended as a Field Service Item;No Longer ServicedImg
Alts
Select
Ref.
36Qty
35Availability
Part #
29875Description
KNIFE SECTION; Section, Knife, UnderserrImg
Alts
Select
Ref.
36AQty
35Availability
Part #
26622Description
KNIFE SECTION; Section, Knife, SmoothImg
Alts
Select
Ref.
38Qty
63Availability
Part #
46436Description
RIVET Button, 5.33mm OD x 15.75mm L; Button Hd, #5-1/2, 7/32''x 5/8''Img
Alts
Select
Ref.
39Qty
4Availability
Part #
65474Description
RIVET Button, 8.28mm OD x 23.8mm L; Button Hd, #5-1/2 , 7/32''x 15/16''Img
Alts
Select
Ref.
40Qty
5Availability
Part #
130436Description

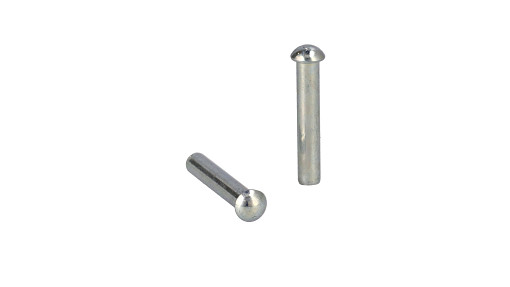

RIVET Button, 8.28mm OD x 30.2mm L; Button Hd, #5-1/2, 7/32''x 1-3/16''Img
Alts
Select
Ref.
Qty
2Availability
Part #
88586Description
CARRIAGE BOLT Sq Nk, 7/16'' - 14 x 1 1/2'', Gr 5; Bolt, Carriage, G5, 7/16''-14 x 1-1/2''Img
Alts
Select
Ref.
Qty
16Availability
Part #
88586Description
CARRIAGE BOLT Sq Nk, 7/16'' - 14 x 1 1/2'', Gr 5; Bolt, Carriage, G5, 7/16''-14 x 1-1/2''Img
Alts
Select
Ref.
Qty
18Availability
Part #
86508777Description

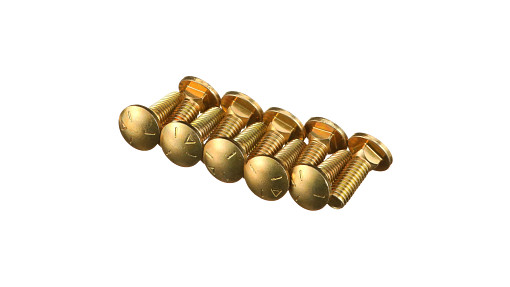

CARRIAGE BOLT Sq Nk, 7/16'' - 14 x 1 1/4'', Gr 5, Full Thd; Bolt, Carriage, G5, 7/16''-14 x 1-1/4''Img
Alts
Select
Ref.
44Qty
18Availability
Part #
86617061Description
GUARD; Assy., Shear;Ref. 44 132146, Shear Guard Assy., an optional item to be used in lieu of Ref. 43 when plugging occurs in extremely thick crops W/dead or wet undergrowth. Additional holddown clips should be installed when using 132146 Shear Guards.Img
Alts
Select
Ref.
Qty
18Availability
Part #
86508777Description
CARRIAGE BOLT Sq Nk, 7/16'' - 14 x 1 1/4'', Gr 5, Full Thd; Bolt, Carriage, G5, 7/16''-14 x 1-1/4''Img
Alts
Select
Ref.
Qty
36Availability
Part #
84864Description
RIVET; Countersunk Hd, #5, 1/2'' x 7/8''Img
Alts
