35.661.010[02] - REEL DRIVE - MECHANIC
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
Select All

Select

Ref.

1

Qty

1

Availability

Part #

47920617

Description

HYD TUBE;


Alts

Select

Ref.

2

Qty

1

Availability

Part #

47921254

Description

HYDRAULIC HOSE;


Alts

Select

Ref.

3

Qty

1

Availability

Part #

47807256

Description

SUPPORT;


Alts

Select

Ref.

4

Qty

1

Availability

Part #

84444581

Description

HYDRAULIC VALVE; Incl 5, 6


Alts

Select

Ref.

5

Qty

1

Availability

Part #

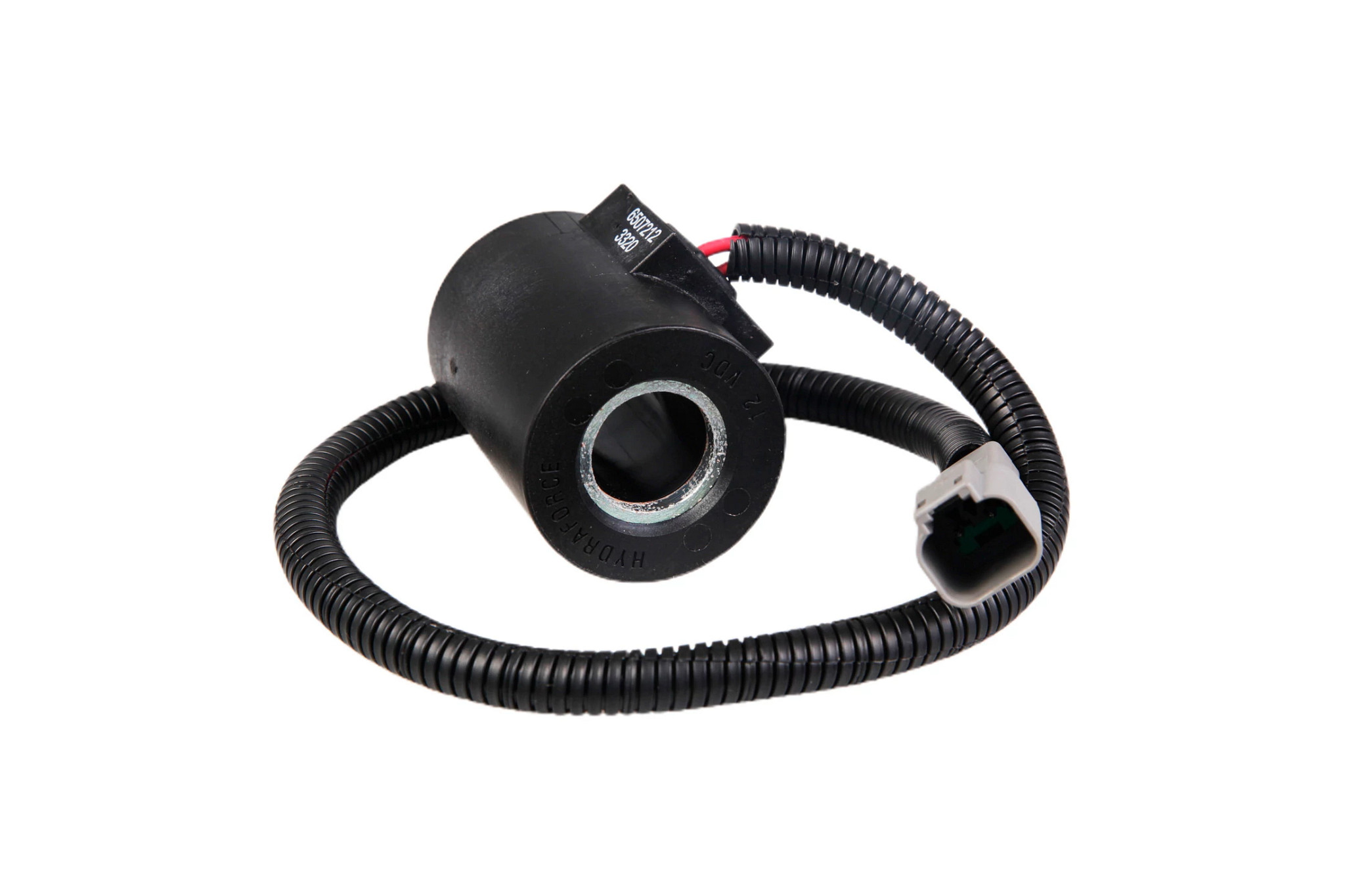

47535258

Description

VALVE;


Alts

Select

Ref.

6

Qty

1

Availability

Part #

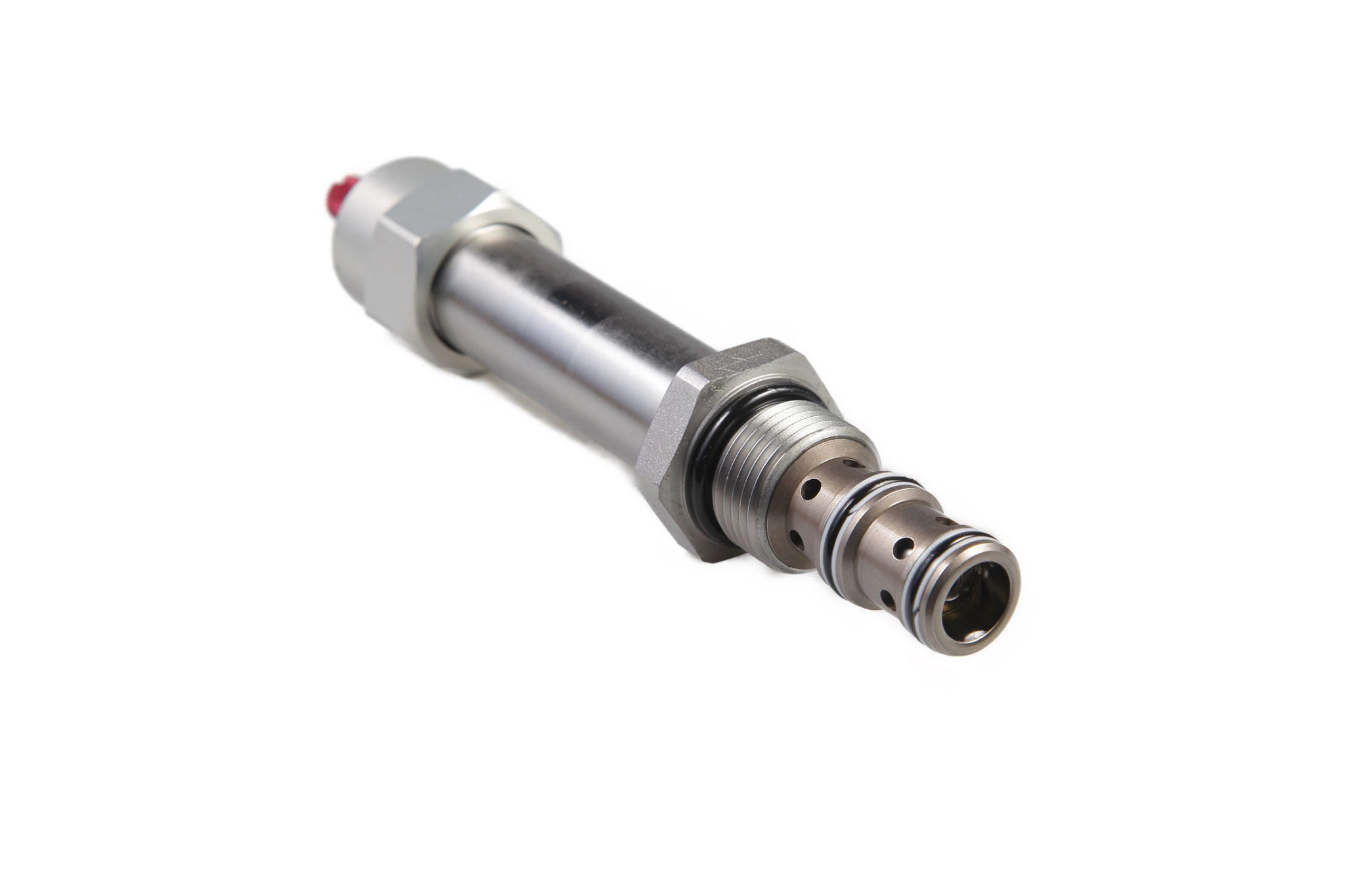

47535247

Description

KIT;


Alts

Select

Ref.

7

Qty

1

Availability

Part #

394373

Description

HYD CONNECTOR M26 x 1.5 x M18 x 1.5 ORB;


Alts

Select

Ref.

8

Qty

1

Availability

Part #

47805888

Description

HYD TUBE;


Alts

Select

Ref.

9

Qty

1

Availability

Part #

47920620

Description

BRACKET;


Alts

Select

Ref.

10

Qty

6

Availability

Part #

433007

Description

CLAMP;


Alts

Select

Ref.

11

Qty

3

Availability

Part #

433100

Description

SUPPORT;


Alts

Select

Ref.

12

Qty

9

Availability

Part #

322357

Description

BELLEVILLE WASHER M6 Bolt Size x 14mm OD x 1.3mm Thk;


Alts

Select

Ref.

13

Qty

7

Availability

Part #

120056

Description

BOLT Hex, M6 x 1 x 50mm, 18mm Thread L, Cl 8.8, ZND;


Alts

Select

Ref.

14

Qty

7

Availability

Part #

140015

Description

WASHER 6.4mm ID x 14mm OD x 1.6mm Thk;


Alts

Select

Ref.

15

Qty

4

Availability

Part #

9706755

Description

NUT Hex, M6 x 1, Cl 8, ZND;


Alts

Select

Ref.

16

Qty

2

Availability

Part #

120100

Description

BOLT Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8, ZND;


Alts

Select

Ref.

17

Qty

2

Availability

Part #

394372

Description

HYD CONNECTOR M24 x 1.5 x M18 x 1.5 ORB;


Alts

Select

Ref.

18

Qty

1

Availability

Part #

379431

Description

FITTING;


Alts

Select

Ref.

19

Qty

2

Availability

Part #

412499

Description

BOLT Hex, M6 x 1 x 100mm, Cl 8.8, Full Thd, ZND;


Alts

Select

Ref.

20

Qty

1

Availability

Part #

304967

Description

O-RING 2.5mm Thk x 20mm ID, Cl 6, 90 Duro;


Alts

Select

Ref.

21

Qty

2

Availability

Part #

120229

Description

HEX SOC SCREW M6 x 20mm, Cl 8.8;


Alts

Select

Ref.

22

Qty

4

Availability

Part #

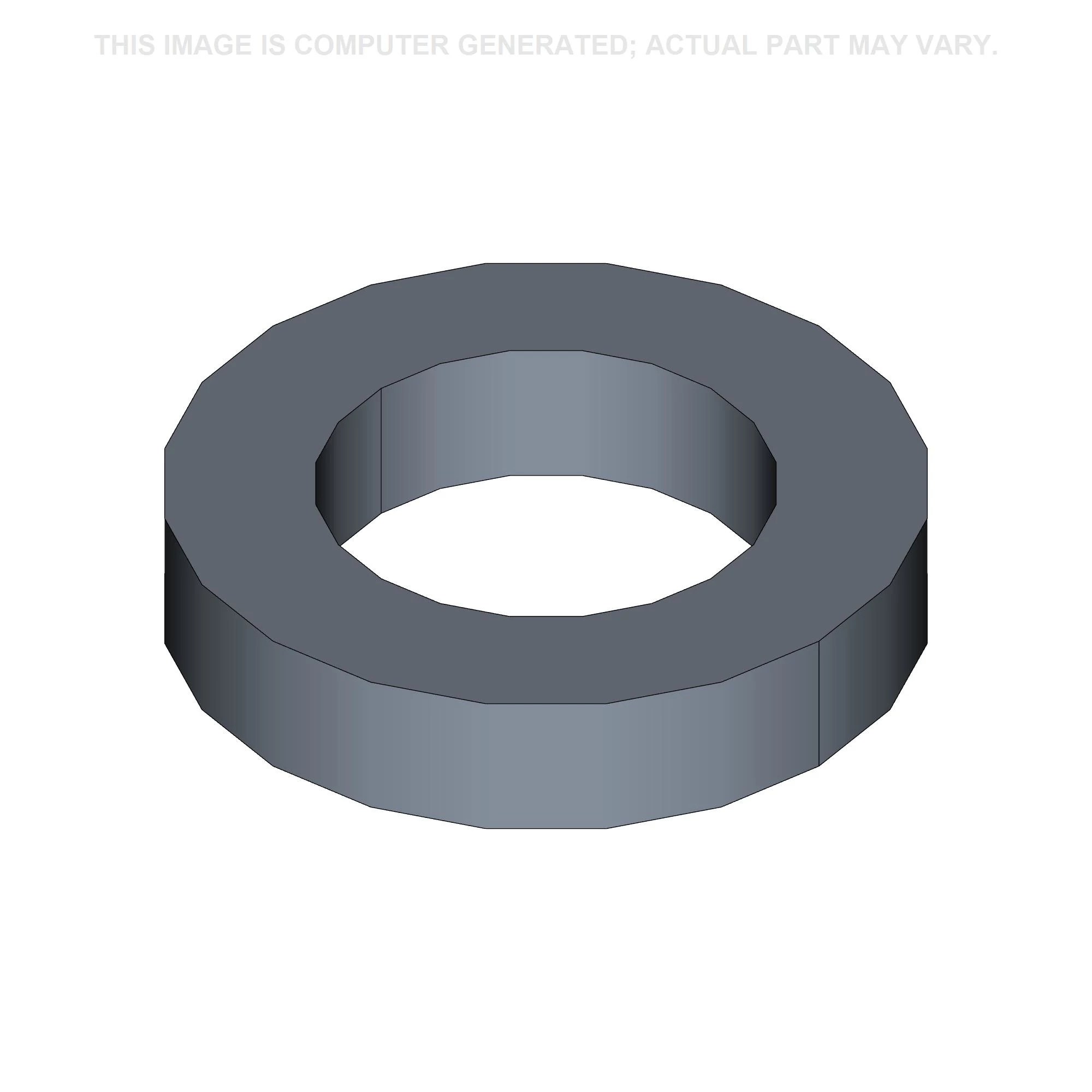

140044

Description

WASHER;


Alts

Select

Ref.

23

Qty

2

Availability

Part #

356463

Description

SCREW;


Alts

Select

Ref.

24

Qty

1

Availability

Part #

337208

Description

90 ELBOW; Incl 20 - 23


Alts

Select

Ref.

25

Qty

2

Availability

Part #

100016

Description

NUT Hex, M10 x 1.5, Cl 8, ZND;


Alts

Select

Ref.

26

Qty

2

Availability

Part #

140045

Description

BELLEVILLE WASHER 10mm ID x 22mm OD x 1.6mm Thk;


Alts

Select

Ref.

27

Qty

2

Availability

Part #

86624176

Description

WASHER Flat, 11mmID x 20mmOD x 2mm Thk, ZND;


Alts

Select

Ref.

28

Qty

2

Availability

Part #

43140

Description

BOLT Hex, M10 x 1.5 x 30mm, Full Thd, Cl 8.8, ZND;


Alts
