27.550.AQ[080] - WHEEL HUB, ASSY, BRAKES, 480/45 - 17
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
Select All

Select

Ref.

1

Qty

1

Availability

Part #

87022923

Description

SLOTTED NUT; M39X1.5 CST PLN


Alts

Select

Ref.

3

Qty

1

Availability

Part #

87022925

Description

CAP; PLTD


Alts

Select

Ref.

4

Qty

1

Availability

Part #

87036688

Description

SHIELD; I, Grease 100 OD


Alts

Select

Ref.

5

Qty

1

Availability

Part #

26799990

Description

TAPERED BEARING 55mm ID x 100mm OD x 21mm W;


Alts

Select

Ref.

6

Qty

1

Availability

Part #

84021877

Description

TAPERED BEARING Tapared Roller, 50mm ID x 80mm OD x 20mm W;


Alts

Select

Ref.

7

Qty

1

Availability

Part #

87036687

Description

SHIELD; I, Grease 80 OD


Alts

Select

Ref.

8

Qty

1

Availability

Part #

87022911

Description

OIL SEAL; 56X100.5X10


Alts

Select

Ref.

2

Qty

1

Availability

Part #

300416

Description

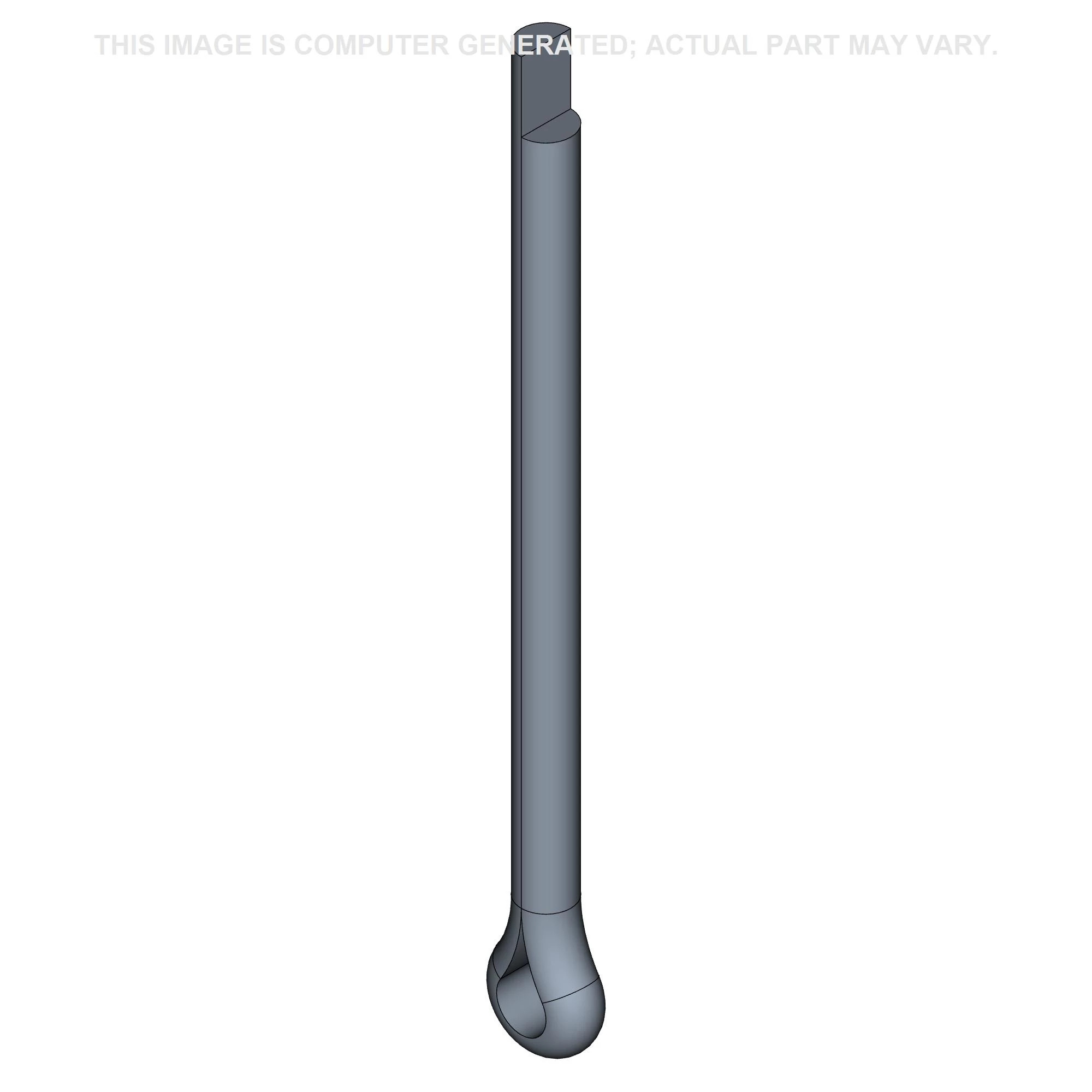

COTTER PIN M4 x 50;


Alts
