75.100.02 - HOSE CONNECTORS - AIR DRILL AND TOW BEHIND SEEDER
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    3
    86050197

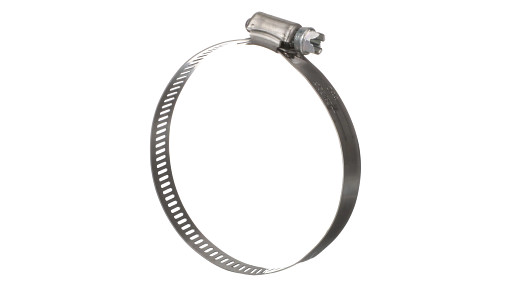

    HOSE CLAMP 58.6mm - 82.5mm, Worm Gear;
  • 2
    2
    88011
    BOLT Hex, 3/8'' - 16 x 1 1/4'', Gr 5;
  • 3
    1
    9706689
    BOLT Hex, 3/8'' - 16 x 1-3/4'', Gr 5;
  • 4
    2
    87398
    COTTER PIN 3/16'' OD x 1-1/4'' OAL;
  • 5
    1
    80012047
    BOLT Hex, 3/8'' - 16 x 4'', Grade 5;
  • 6
    2
    280736
    LOCK NUT 5/16'' - 18, Gr C;
  • 7
    6
    9637692
    NUT 3/8'' - 16, Gr B;
  • 8
    1
    280980
    NUT 7/16''-14, GC;
  • 9
    2
    87034810
    LOCK NUT 1/4''-20, GA;
  • 10
    2
    9635884
    BOLT Hex, 5/16'' - 18 1'', Full Thd, Gr 5;
  • 11
    1
    88604
    BOLT Hex, 7/16'' - 14 x 2 1/2'', Gr 5;
  • 12
    2
    87790098
    SHEAR BOLT; Hex, 3/8''-16 x 2'', G5
  • 13
    2
    3236
    SELF-TAP SCREW; 1/4''-20 x 1 1/4'' oh pi plt
  • 14
    1
    425289A1

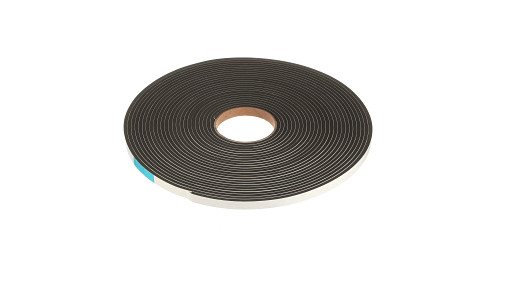

    FOAM; 1/2'' wide x 3/16'' thick - bulk
  • 15
    4
    4630
    RIVET Pop, 3/16'' x .690'';
  • 16
    2
    5625
    LATCH; clamp over center
  • 17
    2
    87325926
    WASHER 0.62'' ID x 1.12'' OD x 0.05'' Thk; 5/8'' id x 1 1/8'' 18ga
  • 18
    4
    87016560
    JAM NUT Jam, 3/8''-16, G5;
  • 19
    4
    87019495
    SNAP RING #98, Ext;
  • 20
    2
    6711
    HITCH PIN; 3/4'' x 4'' usable
  • 21
    2
    302676A1
    LINCH PIN; 4.76 mm x 31.75 mm long
  • 22
    1
    7938
    U-BOLT; ur 5/16''-18 x 1 3/8'' w x 1 5/8'' d
  • 23
    1
    GD-254
    COVER; plate hose connect
  • 24
    1
    GD-672A

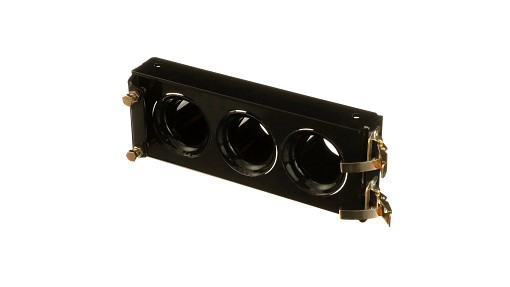

    HOLDER; quick connect 2 1/2'' female;Includes two 88011, four 87016560, two 5625 and four 4630
  • 25
    1
    GE-202
    CLAMP; for two 3/4'' couplers
  • 26
    1
    87500513
    FORK; Alignment
  • 27
    1
    DR-572
    BRACKET; hyd. / elec. mount
  • 28
    2
    DR-860
    LINK; air cart tow
  • 29
    1
    GH-601

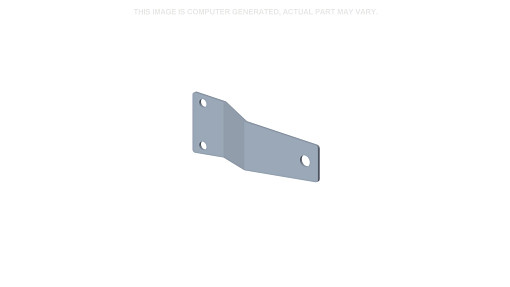

    COUPLING; hydraulic mount third line
  • 30
    2
    87420397

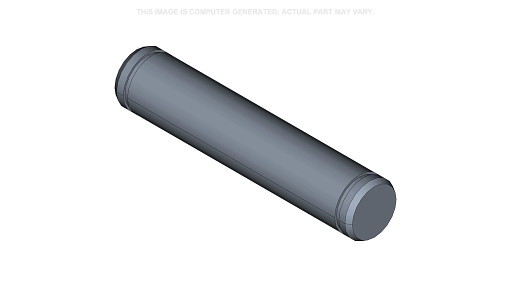

    PIN 25.4mm OD x 122mm L; 1'' x 4 3/16'' ul
  • 31
    1
    GE-519
    BRACKET; mount, quick connect
  • 32
    1
    GH-139
    BRACKET; plug support
