016 - HOUSING, DRIVE & CUTTER PARTS, 42'' & 48'' MOWERS
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    9809206
    MOWER DECK; Deck, Mower, 48'', - Complete mower deck assy.
  • 1
    1
    LB744482
    HOUSING; Cutter, W/Safety Decals;9809205, 42'' Mower
  • 1
    1
    LB744478
    HOUSING; Cutter, W/Safety Decals
  • 2
    1
    LB702851
    BRACKET; Roller
  • 3
    2
    86508748
    CARRIAGE BOLT Short Square Neck, 3/8'' - 16 x 3/4'', Gr 5; Bolt, Carriage, Short Neck, G5, 3/8''-16 x 3/4''
  • 4
    8
    PL
    PROCURE LOCALLY; Washer, Lock, 3/8''
  • 5
    8
    PL
    PROCURE LOCALLY; Nut, Hex, 3/8''-16
  • 6
    2
    LB701203
    ROLLER;
  • 7
    1
    LB701212
    SHAFT; Roller
  • 8
    2
    PL
    PROCURE LOCALLY; Pin, Cotter, 1/8'' x 3/4''
  • 9
    3
    LB710272
    HOUSING; Spindle
  • 10
    3
    LB710270
    SLEEVE;
  • 11
    6
    66967

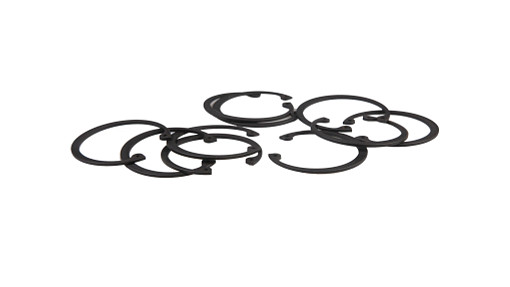

    SNAP RING 1.75'', Int, #175; Ring, Snap, 1.75'', Int, #175
  • 12
    3
    LB700496
    NEEDLE BEARING; Bearing, Upper
  • 13
    3
    LB700497
    BEARING ASSY; Bearing, Lower
  • 14
    3
    LB744691
    SPINDLE;
  • 15
    3
    PL
    PROCURE LOCALLY; Key, Woodruff, 3/16'' x 3/4''
  • 16
    12
    PL
    PROCURE LOCALLY; Screw, Cap, HH, 5/16''-18 x 1''
  • 17
    16
    PL
    PROCURE LOCALLY; Washer, Lock, 5/16''
  • 18
    16
    PL
    PROCURE LOCALLY; Nut, Hex, 5/16''-18
  • 19
    3
    LB710265
    CUTTING BLADE; Blade, 42'' Deck
  • 19
    1
    LB710265
    CUTTING BLADE; Blade, Center, 48'' Deck
  • 19
    2
    LB710266
    CUTTING BLADE; Blade, Outer, 48'' Deck
  • 20
    6
    88206
    BOLT Hex, 3/8'' - 16 x 1'', Gr 5; Screw, Cap, HH, 3/8''-16 x 1''
  • 21
    1
    LB740986
    INSULATOR; Baffle
  • 21
    1
    LB741066
    INSULATOR; Baffle
  • 22
    2
    PL
    PROCURE LOCALLY; Bolt, Carriage
  • 23
    2
    PL
    PROCURE LOCALLY; Screw, Cap, HH, 5/16''-18 x 3/4''
  • 24
    1
    LB702816
    DRIVEN PULLEY; Pulley, Drive, 42''
  • 24
    1
    LB703026
    PULLEY; Drive, 48''
  • 25
    1
    86518891
    V-BELT V-Belt, 0.66in W x 92.5in L; Drive 0.66'' W x 92.50'' L
  • 26
    2
    LB702818
    PULLEY; Blade Spindle
  • 27
    3
    LB700809
    SPACER;
  • 28
    1
    9828697
    V-BELT 0.67'' W x 94.25'' L; Deck 0.67'' W x 94.25'' L
  • 28
    1
    86514527
    V-BELT V-Belt, 0.66in W x 98in L; Deck 0.66'' W x 98.00'' L
  • 29
    3
    86511484
    NUT; Lock, Special
  • 30
    3
    80710
    LUBE NIPPLE 1/8'' - 27 Dryseal PTF; NIPPLE, LUBE, 1/8''-27 x .66 lg
  • 31
    1
    LB740987
    EXTENSION; Chute
  • 32
    1
    LB710273
    SPRING; Chute
  • 33
    1
    LB701198
    SHAFT; Chute
  • 35
    1
    LB703368
    SPRING;
  • 36
    1
    LB744499
    ARM; Idler Arm & Bearing Assy.
  • 37
    2
    LB710060
    BEARING ASSY; Bearing, Sleeve
  • 38
    1
    LB700495
    WASHER;
  • 39
    2
    LB710064
    BOLT; Special
  • 40
    1
    LB700358
    THRUST WASHER; Washer, Thrust
  • 41
    1
    LB702815
    PULLEY; Idler
  • 42
    1
    LB710063
    SPACER;
  • 43
    1
    PL
    PROCURE LOCALLY; Nut, Hex
  • 44
    1
    LB744682
    INLET MANIFOLD; Cover, L.H.
  • 44
    1
    LB744688
    INLET MANIFOLD; Cover, L.H.;9809206, 48'' Mower
  • 45
    1
    LB744681
    INLET MANIFOLD; Cover, R.H.;9809205, 42'' Mower
  • 45
    1
    LB744687
    INLET MANIFOLD; Cover, R.H.;9809206, 48'' Mower
  • 46
    1
    LB710276
    SHIELD; Guard, Drive Belt
  • 47
    4
    PL
    PROCURE LOCALLY; Screw, HH, Thread Forming
  • 48
    3
    PL
    PROCURE LOCALLY; Screw, Cap, HH, 1/4''-20 x 1/2''
  • 49
    7
    PL
    PROCURE LOCALLY; Washer, Lock, 1/4''
  • 50
    2
    LB710268
    PLUG;
  • 51
    1
    9624509
    KIT; Blade Includes: (1) 9825918 Blade & (2) 9825919 Blade;Not Illustrated
