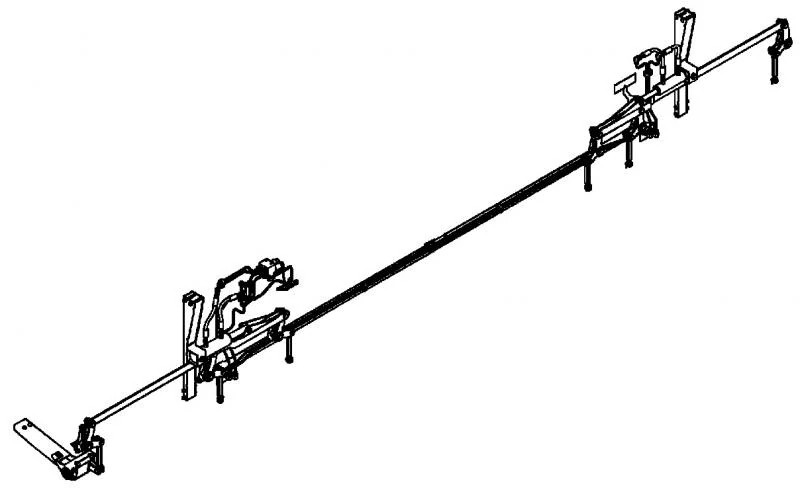

48178181 - In-Cab Cutterbar Suspension Kit - NEW HOLLAND AGRICULTURE

This Kit includes the following parts:

• Part Number
  140048
  Description
  Rondelle Belleville - 32 mm DE x 2,8 mm d'ép..
  Quantity
  2
• Part Number
  140045
  Description
  Rondelle de blocage Belleville de 10 mm (Di) x 22 mm (De) x 1,6 mm d'épaisseur.
  Quantity
  38
• Part Number
  140046
  Description
  Rondelle Belleville - 27 mm DE x 1,8 mm d'ép..
  Quantity
  7
• Part Number
  14497531
  Description
  RONDELLE.
  Quantity
  8
• Part Number
  16043224
  Description
  Boulon à tête hexagonale - Filetage complet – M8 x 16 mm L.
  Quantity
  2
• Part Number
  190003800038
  Description
  VIS.
  Quantity
  2
• Part Number
  11112424
  Description
  BULLONE.
  Quantity
  4
• Part Number
  120092
  Description
  L'anello elastico esterno si inserisce in una scanalatura all'esterno di un perno o di un albero cilindrico..
  Quantity
  2
• Part Number
  120102
  Description
  Bullone esagonale - Cl 8,8 - Filettatura completa - M6 x 1 x 40.
  Quantity
  6
• Part Number
  2975077
  Description
  Bullone esagonale - M10 x 1,5.
  Quantity
  16
• Part Number
  86511327
  Description
  Rondella - 21 mm DI x 37 mm DE x 3 mm sp..
  Quantity
  8
• Part Number
  80299
  Description
  Rondella 5/8".
  Quantity
  1
• Part Number
  84322613
  Description
  STAFFA.
  Quantity
  8
• Part Number
  86523956
  Description
  COPPIGLIA.
  Quantity
  8
• Part Number
  84323745
  Description
  SUPPORTO.
  Quantity
  2
• Part Number
  84327589
  Description
  Cutterbar Suspension Tube.
  Quantity
  1
• Part Number
  84327597
  Description
  Cutterbar Suspension Tube.
  Quantity
  1
• Part Number
  84327599
  Description
  Tuyau pour système hydraulique.
  Quantity
  4
• Part Number
  322357
  Description
  Rondelle Belleville - 14 mm DE x 1,3 mm d'ép..
  Quantity
  10
• Part Number
  322358
  Description
  Belleville Lock Washer - M8 Bolt Size x 18mm OD x 1.4mm Thick.
  Quantity
  4
• Part Number
  84328549
  Description
  BRACKET.
  Quantity
  1
• Part Number
  323866
  Description
  BOLT.
  Quantity
  8
• Part Number
  84335950
  Description
  ADJUSTING PLATE.
  Quantity
  1
• Part Number
  84335955
  Description
  ADJUSTING PLATE.
  Quantity
  1
• Part Number
  84343827
  Description
  CHANNEL.
  Quantity
  1
• Part Number
  84345689
  Description
  BRACKET.
  Quantity
  1
• Part Number
  86579672
  Description
  Hydraulic Connector - 11/16"-16 ORFS x M16 x 1.5 ORB.
  Quantity
  4
• Part Number
  337475
  Description
  Hex Nut - Cl 10 - M12.
  Quantity
  7
• Part Number
  353308
  Description
  Hex Lock Nut - M6 x 1.
  Quantity
  8
• Part Number
  86633356
  Description
  CARRIAGE BOLT.
  Quantity
  14
• Part Number
  84389900
  Description
  Indicator Decal.
  Quantity
  1
• Part Number
  370003
  Description
  External Snap Ring - M30.
  Quantity
  8
• Part Number
  87564749
  Description
  90° Elbow - 11/16"-16.
  Quantity
  3
• Part Number
  84398437
  Description
  TURNBUCKLE.
  Quantity
  8
• Part Number
  84410250
  Description
  Cutterbar Suspension Tube.
  Quantity
  1
• Part Number
  84411471
  Description
  Cutterbar Suspension Tube.
  Quantity
  1
• Part Number
  84411473
  Description
  Cutterbar Suspension Tube.
  Quantity
  1
• Part Number
  84411475
  Description
  Cutterbar Suspension Tube.
  Quantity
  1
• Part Number
  84411477
  Description
  Cutterbar Suspension Tube.
  Quantity
  1
• Part Number
  84411479
  Description
  Cutterbar Suspension Tube.
  Quantity
  1
• Part Number
  84411555
  Description
  HYDRAULIC MANIFOLD.
  Quantity
  1
• Part Number
  84412204
  Description
  Cutterbar Suspension Tube.
  Quantity
  1
• Part Number
  84416267
  Description
  ADJUSTING PLATE.
  Quantity
  1
• Part Number
  84416269
  Description
  ADJUSTING PLATE.
  Quantity
  1
• Part Number
  84424278
  Description
  Cutterbar Suspension Tube.
  Quantity
  1
• Part Number
  87010704
  Description
  BHD LOCK NUT.
  Quantity
  4
• Part Number
  84431546
  Description
  UNION.
  Quantity
  3
• Part Number
  395277
  Description
  Boulon à tête hexagonale - M12.
  Quantity
  3
• Part Number
  87016606
  Description
  RONDELLE.
  Quantity
  4
• Part Number
  87021826
  Description
  AXE DE CHAPE.
  Quantity
  1
• Part Number
  87613254
  Description
  RONDELLE.
  Quantity
  8
• Part Number
  47710020
  Description
  Plastic Bushing - 33 mm OD x 19 mm ID x 30 mm L.
  Quantity
  2
• Part Number
  412686
  Description
  Cotter Pin - 5 mm OD x 32 mm L.
  Quantity
  8
• Part Number
  412687
  Description
  COTTER PIN.
  Quantity
  4
• Part Number
  87646163
  Description
  CARRIAGE BOLT.
  Quantity
  8
• Part Number
  84126918
  Description
  Torsion Spring.
  Quantity
  1
• Part Number
  84126961
  Description
  INDICATOR.
  Quantity
  1
• Part Number
  84127229
  Description
  HYDRAULIC HOSE.
  Quantity
  4
• Part Number
  84129438
  Description
  SPACER.
  Quantity
  1
• Part Number
  430357
  Description
  Clamp - 42 mm L x 20 mm W x 12 mm H.
  Quantity
  12
• Part Number
  431941
  Description
  Support.
  Quantity
  6
• Part Number
  43362
  Description
  Hex Nut - Cl 10 - M8 x 1.25.
  Quantity
  2
• Part Number
  434097
  Description
  SUPPORT.
  Quantity
  1
• Part Number
  43874
  Description
  BOLT.
  Quantity
  2
• Part Number
  87317453
  Description
  ELBOW.
  Quantity
  4
• Part Number
  84210572
  Description
  HYDRAULIC CYLINDER.
  Quantity
  1
• Part Number
  84210573
  Description
  HYDRAULIC CYLINDER.
  Quantity
  1
• Part Number
  87364
  Description
  Washer.
  Quantity
  4
• Part Number
  87736132
  Description
  Hex Shaft - 275 mm L.
  Quantity
  1
• Part Number
  84989392
  Description
  90° Elbow - 11/16"-16 ORFS x 11/16"-16.
  Quantity
  4
• Part Number
  84235768
  Description
  ARM.
  Quantity
  1
• Part Number
  47374499
  Description
  MOUNTING PLATE.
  Quantity
  1
• Part Number
  84247642
  Description
  Ball Joint - Zinc-Plated - 80 mm L x 21 mm W x 38 mm D.
  Quantity
  8
• Part Number
  84251484
  Description
  Hex Shaft.
  Quantity
  1
• Part Number
  84252590
  Description
  Pino.
  Quantity
  4
• Part Number
  76088905
  Description
  ARRUELA PLANA.
  Quantity
  4
• Part Number
  84263584
  Description
  ESPAÇADOR.
  Quantity
  2
• Part Number
  84264006
  Description
  BROCHE.
  Quantity
  4
• Part Number
  86000441
  Description
  Contre-écrou hexagonal - M16 x 2.
  Quantity
  10
• Part Number
  84283454
  Description
  JOINT A ROTULE.
  Quantity
  8
• Part Number
  86500689
  Description
  Écrou hexagonal - M10 x 1.5.
  Quantity
  22
• Part Number
  47380710
  Description
  INSTRUCTION.
  Quantity
  1
• Part Number
  90424606
  Description
  COUDE A 90°.
  Quantity
  2
• Part Number
  90424581
  Description
  RACCORD HYDRAULIQUE.
  Quantity
  4
• Part Number
  92198649
  Description
  HALTERUNG.
  Quantity
  8
