TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
11KNOTTER; Stack, Incl 1A - 83
-
1A1SHAFT; Knotter
-
21WOODRUFF KEY #C, 5/16'' x 1 1/8'';
-
31ARM; Knotter
-
41BOLT Hex, M10 x 86.58mm, Cl 8.8;
-
41BOLT Hex, 3/8'' - 16 x 3'', Gr 5;
-
51LOCK NUT PREVAILING TORQUE, 3/8'' - 16, Gr C, Directional;
-
61BRAKE DISC;
-
71BRAKE SHOE;
-
81BRAKE SHOE;
-
92PIN 9.53mm OD x 60.2mm L;
-
103SPRING;
-
111BEARING HOUSING 1.385'' ID; RH, Incl12
-
124BUSHING 35.13mm ID x 41.34mm OD x 19.05mm L;
-
13ARWASHER 1-13/32'' ID x 2.00'' OD x .0299'' Thk;
-
142SPACER;
-
151SPACER;
-
16ARWASHER 35.81mm ID x 50.8mm OD x 1.52mm Thk;
-
172SERVICE KIT; Cam Gear, 1/4'' Keyway, Includes: Bill Hook Pinion, Worm Pinion, Cam Gear, & Instructions
-
183WASHER 1.406'' ID x 2.00'' OD;
-
192FRAME; Knotter
-
201SPACER;
-
212COLLAR;
-
221SPACER;
-
231CAM; Twine Finger
-
241SUPPORT; LH, Incl 12
-
251LUBE NIPPLE 1/4'' - 28;
-
261LEVER; Trip
-
271BOLT Hex, 3/8'' - 16 x 1 1/4'', Gr 5;
-
281SPACER;
-
291WASHER 0.41'' ID x 0.81'' OD x 0.07'' Thk;
-
301SPRING;
-
313WASHER 16.66mm ID x 27mm OD x 1.52mm Thk;
-
321LEVER 173mm L;
-
331CAM FOLLOWER Ball, 9.525mm ID x 31.75mm OD; Cam Roller
-
341WASHER 10.3mm ID x 22.2mm OD x 2.7mm Thk, HTS, ZND;
-
351NUT 3/8'' - 24, Gr 5;
-
361STOP;
-
371GEAR; 39T, Incl 38
-
381SLEEVE; Shear Bolt
-
391SHEAR BOLT 12-24 x 1 1/2'';
-
401/ARWASHER;
-
411LUBE NIPPLE 45 Degree, 1/4'' NPT x 4/5'' L, Drive;
-
421HUB; Clutch, Incl 43, 44
-
432BUSHING 35.13mm ID x 41.34mm OD x 19.05mm L;
-
441SHEAR BOLT BUSHING 5.9mm ID x 17.36mm OD x 12mm L;
-
451LATCH;
-
461CLUTCH MECHANISM; Knotter
-
471PAWL; Knotter, Incl 48 - 50
-
481SPACER; 5/8'' Long
-
481SPACER; 1/2'' Long
-
491ROLLER;
-
501RIVET Csk, 1/2'' x 1 3/8'';
-
511RIVET Csk, 1/2'' x 1 23/32'';
-
521BOLT Hex, 1/2'' - 13 x 2 1/2'', Gr 5;
-
531NUT 1/2'' - 13, Gr B;
-
541SPRING; Safety Hook
-
551COTTER PIN 3/16'' x 2'';
-
562RIVET Button, 9.53mm OD x 25.4mm L;
-
572COTTER PIN 0.125'' OD x 1.75'' L;
-
58ARSPECIAL TOOL; Knife Arm, Used for Adjusting Knife Arm;Not Illustrated
-
592SET SCREW Hex Soc, 5/16''-18 x 5/8'';
-
602JAM NUT Jam, 5/16''-18, G2;
-
614JAM NUT 3/8''-16, G2;
-
62ARWASHER 0.41'' ID x 0.81'' OD x 0.07'' Thk;
-
633NUT 1/4'' - 20, Gr B;
-
643WASHER 0.28'' ID x 0.62'' OD x 0.07'' Thk;
-
653BOLT Hex, 1/4'' - 20 x 2 1/2'', Gr 5;
-
661LUBE NIPPLE FITTING LUBE 1/4-28 SPCL TAP; Used with 24
-
661LUBE NIPPLE 1/4''-28 NPT x 1.62'' lg; Used with 11
-
672KEY; 1/4'' Sq x 2''
-
691WOODRUFF KEY 4mm x 6.5mm x 15.72mm;
-
701BOLT Hex, 5/16 - 18'' x 2'', Gr 5;
-
712LOCK WASHER 5/16'' ID x 19/32'' OD x 1/8'' Thk;
-
721NUT 5/16'' - 18, Gr 5;
-
731BOLT Hex, 5/16'' - 18 1'', Full Thd, Gr 5;
-
742WASHER; Hardened, 3/8''
-
751SQUARE BOLT 3/8'' - 16 x 3/4'', Gr 2; Indexes Latch, Ref. 45, Head Inside Hub
-
761LOCK WASHER 3/8 0.381 CST ZND;
-
771NUT 3/8'' - 16, Gr 5;
-
781BOLT Hex, 3/8'' - 24 x 3/4'', Gr 5, Full Thd; Attaches Ref. 45 Latch
-
791WOODRUFF KEY #128, 5/16'' x 2 1/8'';
-
801LOCK NUT 5/16'' - 18, GR B;
-
812BOLT M8 x 1.25 x 16mm, Cl 8.8;
-
821WOODRUFF KEY #A, 1/4'' x 7/8'';
-
832SET SCREW Sq Hd, 5/16'' - 18 x 3/4'', Cup Pt;
Select All
Select
Ref.
2Qty
1Availability
Part #
280414Description
WOODRUFF KEY #C, 5/16'' x 1 1/8'';Img
Alts
Select
Ref.
4Qty
1Availability
Part #
120073Description
BOLT Hex, M10 x 86.58mm, Cl 8.8;Img
Alts
Select
Ref.
4Qty
1Availability
Part #
280161Description
BOLT Hex, 3/8'' - 16 x 3'', Gr 5;Img
Alts
Select
Ref.
5Qty
1Availability
Part #
88902Description
LOCK NUT PREVAILING TORQUE, 3/8'' - 16, Gr C, Directional;Img
Alts
Select
Ref.
11Qty
1Availability
Part #
603438Description

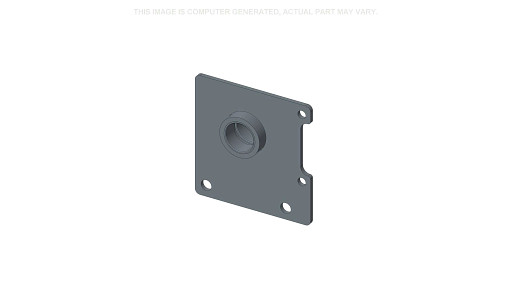

BEARING HOUSING 1.385'' ID; RH, Incl12Img
Alts
Select
Ref.
12Qty
4Availability
Part #
222939Description
BUSHING 35.13mm ID x 41.34mm OD x 19.05mm L;Img
Alts
Select
Ref.
13Qty
ARAvailability
Part #
58630Description
WASHER 1-13/32'' ID x 2.00'' OD x .0299'' Thk;Img
Alts
Select
Ref.
16Qty
ARAvailability
Part #
9800957Description

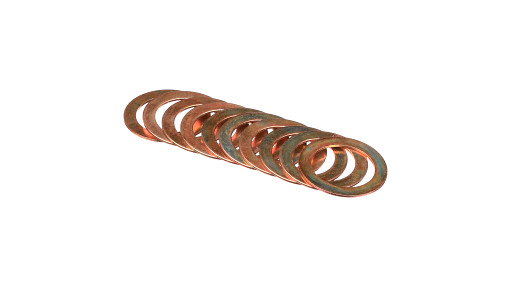

WASHER 35.81mm ID x 50.8mm OD x 1.52mm Thk;Img
Alts
Select
Ref.
17Qty
2Availability
Part #
86577790Description
SERVICE KIT; Cam Gear, 1/4'' Keyway, Includes: Bill Hook Pinion, Worm Pinion, Cam Gear, & InstructionsImg
Alts
Select
Ref.
27Qty
1Availability
Part #
88011Description
BOLT Hex, 3/8'' - 16 x 1 1/4'', Gr 5;Img
Alts
Select
Ref.
29Qty
1Availability
Part #
87016Description
WASHER 0.41'' ID x 0.81'' OD x 0.07'' Thk;Img
Alts
Select
Ref.
31Qty
3Availability
Part #
27697Description
WASHER 16.66mm ID x 27mm OD x 1.52mm Thk;Img
Alts
Select
Ref.
33Qty
1Availability
Part #
36800Description
CAM FOLLOWER Ball, 9.525mm ID x 31.75mm OD; Cam RollerImg
Alts
Select
Ref.
34Qty
1Availability
Part #
285072Description
WASHER 10.3mm ID x 22.2mm OD x 2.7mm Thk, HTS, ZND;Img
Alts
Select
Ref.
41Qty
1Availability
Part #
87569Description
LUBE NIPPLE 45 Degree, 1/4'' NPT x 4/5'' L, Drive;Img
Alts
Select
Ref.
43Qty
2Availability
Part #
222939Description
BUSHING 35.13mm ID x 41.34mm OD x 19.05mm L;Img
Alts
Select
Ref.
44Qty
1Availability
Part #
58147Description
SHEAR BOLT BUSHING 5.9mm ID x 17.36mm OD x 12mm L;Img
Alts
Select
Ref.
52Qty
1Availability
Part #
87972Description
BOLT Hex, 1/2'' - 13 x 2 1/2'', Gr 5;Img
Alts
Select
Ref.
56Qty
2Availability
Part #
710230Description

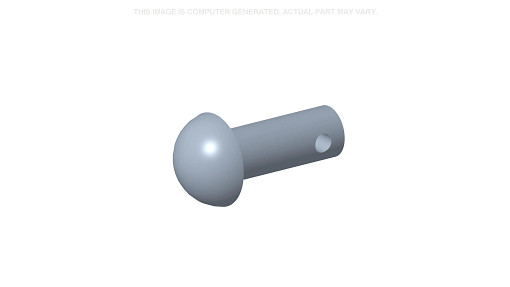

RIVET Button, 9.53mm OD x 25.4mm L;Img
Alts
Select
Ref.
57Qty
2Availability
Part #
216698Description

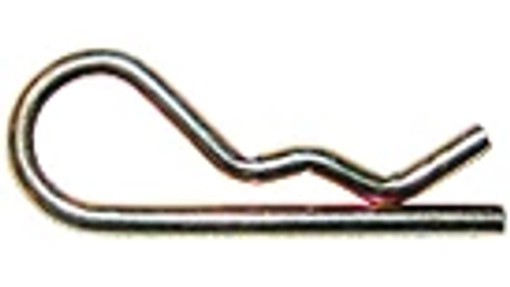

COTTER PIN 0.125'' OD x 1.75'' L;Img
Alts
Select
Ref.
58Qty
ARAvailability
Part #
638350Description
SPECIAL TOOL; Knife Arm, Used for Adjusting Knife Arm;Not IllustratedImg
Alts
Select
Ref.
59Qty
2Availability
Part #
84382Description

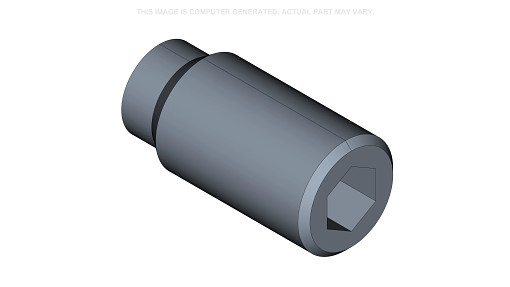

SET SCREW Hex Soc, 5/16''-18 x 5/8'';Img
Alts
Select
Ref.
62Qty
ARAvailability
Part #
87016Description
WASHER 0.41'' ID x 0.81'' OD x 0.07'' Thk;Img
Alts
Select
Ref.
64Qty
3Availability
Part #
87361Description
WASHER 0.28'' ID x 0.62'' OD x 0.07'' Thk;Img
Alts
Select
Ref.
65Qty
3Availability
Part #
87845Description
BOLT Hex, 1/4'' - 20 x 2 1/2'', Gr 5;Img
Alts
Select
Ref.
66Qty
1Availability
Part #
87414Description
LUBE NIPPLE FITTING LUBE 1/4-28 SPCL TAP; Used with 24Img
Alts
Select
Ref.
66Qty
1Availability
Part #
571382Description

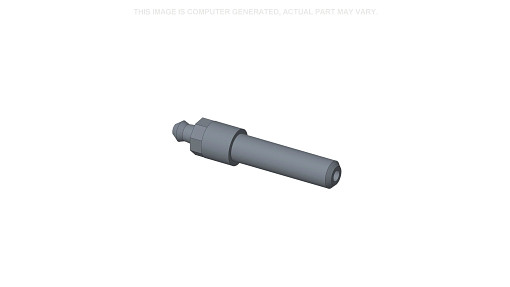

LUBE NIPPLE 1/4''-28 NPT x 1.62'' lg; Used with 11Img
Alts
Select
Ref.
69Qty
1Availability
Part #
10205810Description

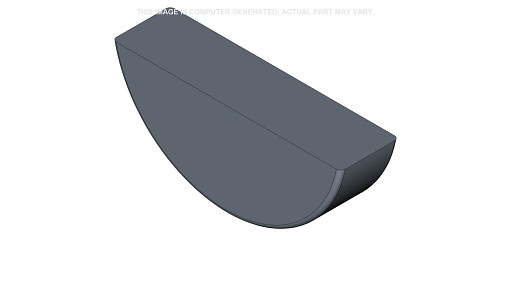

WOODRUFF KEY 4mm x 6.5mm x 15.72mm;Img
Alts
Select
Ref.
70Qty
1Availability
Part #
9636711Description
BOLT Hex, 5/16 - 18'' x 2'', Gr 5;Img
Alts
Select
Ref.
71Qty
2Availability
Part #
80681Description
LOCK WASHER 5/16'' ID x 19/32'' OD x 1/8'' Thk;Img
Alts
Select
Ref.
73Qty
1Availability
Part #
9635884Description
BOLT Hex, 5/16'' - 18 1'', Full Thd, Gr 5;Img
Alts
Select
Ref.
75Qty
1Availability
Part #
84443Description

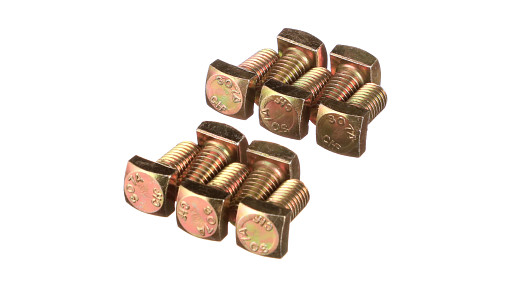

SQUARE BOLT 3/8'' - 16 x 3/4'', Gr 2; Indexes Latch, Ref. 45, Head Inside HubImg
Alts
Select
Ref.
78Qty
1Availability
Part #
280266Description
BOLT Hex, 3/8'' - 24 x 3/4'', Gr 5, Full Thd; Attaches Ref. 45 LatchImg
Alts
Select
Ref.
79Qty
1Availability
Part #
87122Description

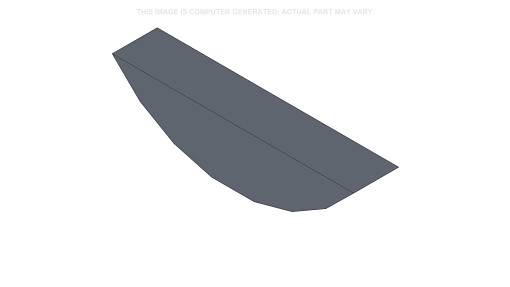

WOODRUFF KEY #128, 5/16'' x 2 1/8'';Img
Alts
Select
Ref.
82Qty
1Availability
Part #
280934Description
WOODRUFF KEY #A, 1/4'' x 7/8'';Img
Alts
Select
Ref.
83Qty
2Availability
Part #
86512812Description

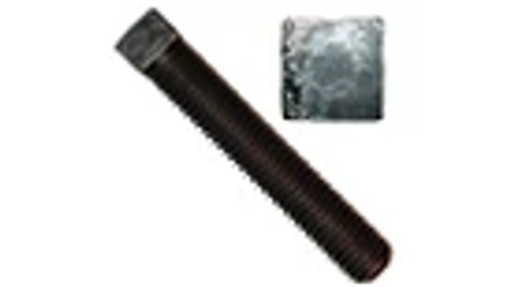

SET SCREW Sq Hd, 5/16'' - 18 x 3/4'', Cup Pt;Img
Alts
