003 - FLYWHEEL, 14-292,14-290,14-291,14-293,14-294,14-337,14-338,14-391
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    7500321
    BALER FLYWHEEL; Flywheel, Baler, 14-290 - 14-295,14-337,338
  • 2
    1
    242483
    HUB; Flywheel, 14-290 - 14-295,14-337,338
  • 3
    2

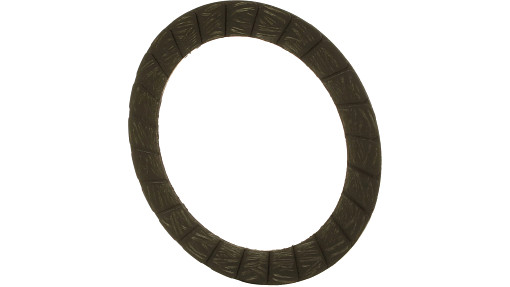

    7500651
    DISC; Clutch, 14-290 - 14-295,14-337,338
  • 4
    1
    7500197
    PLATE; Clutch Mounting, 14-292,295,391
  • 1
    7500198
    SPARE PART; Plate, Clutch Mounting, 14-290,291,293,294,337,338
  • 5
    1
    7500652
    DISC; Clutch, 14-292,295,391
  • 6
    1
    242500
    HOUSING; Roller Clutch, 14-292,295,391 Includes: Housing & Bushings below
  • 1
    NS
    NOT SERVICED; Bushing, 14-292,295
  • 1
    NS
    NOT SERVICED; Bushing, Clutch Housing, 14-292,295
  • 7
    1
    7500195
    SPARE PART; Face, Clutch, 14-292,295,391
  • 8
    3
    PL
    PROCURE LOCALLY; Screw, Set, Square Hd., 3/8'' - 16 x 1-3/4'', 14-292,295,391
  • 3
    PL
    PROCURE LOCALLY; Screw, Set, Square Hd., 3/8'' - 16 x 1'', 14-290,291,293,294,337,338
  • 9
    3
    PL
    PROCURE LOCALLY; Nut, Jam, Hex, 3/8'' - 16
  • 10
    1
    PL
    PROCURE LOCALLY; Ring, External Retaining, 14-292,295,391
  • 11
    1
    16H7675
    CLUTCH; Roller & Case, Cam, 14-292,295,391
  • 12
    1
    46810
    SNAP RING Ext, 1.288''; RING, SNAP, , 14-292,295 Ext, 1.288''
  • 13
    1
    C3AW1225A
    BEARING ASSY 1.378'' ID x 2.8346'' OD x 0.8449''; Bearing, Wheel, Rear, 14-292,295,391
  • 14
    1
    25954
    SNAP RING 2.812'', Int, #281; Ring, Snap, , 14-292, 295, 391 2.812'', Int, #281
  • 15
    1
    242498
    SHAFT; Flywheel Drive, 14-292,295,391
  • 16
    6
    PL
    PROCURE LOCALLY; Bolt, Square Hd., 3/8'' - 16 x 3-1/2'', Clutch to Flywheel Hub, 14-292,295
  • 6
    PL
    PROCURE LOCALLY; Bolt, Square Hd., 3/8'' - 16 x 2-3/4'', Clutch to Flywheel Hub, 14-290,291,293,294,337,338
  • 17
    12
    PL
    PROCURE LOCALLY; Washer, Flat, 3/8'', Clutch to Flywheel Hub, 14-290,291,292,293,294,294,337,338
  • 18
    9
    241385F
    SPRING; Flat, Clutch to Flywheel Hub, 14-290,291,292,293,294,294,337,338
  • 19
    6
    250234
    LOCK NUT; Nut, Hex, 3/8''-16, Elastic Stop, 14-290,291,292,293,294,294,337,338
  • 20
    1
    7500809
    SHIELD; Clutch, 14-292,295,391
  • 21
    3
    PL
    PROCURE LOCALLY; Bolt, Round Hd., Short Sq. Neck, 1/4'' - 20 x 5/8'', Shield to Face, 14-292,295,391
  • 22
    3
    PL
    PROCURE LOCALLY; Washer, Flat, 1/4'', Shield to Face, 14-292,295,391
  • 23
    3
    PL
    PROCURE LOCALLY; Washer, Lock, 1/4'', Shield to Face, 14-292,295,391
  • 24
    3
    PL
    PROCURE LOCALLY; Wingnut, 1/4'' - 20, Shield to Face, 14-292,295,391
  • 25
    1
    242866
    SPARE PART; Shield, Safety Clutch, 14-290,291,293,294,337,338
  • 26
    3
    242867
    SPACER; Shield, .493'' x .675'' x 1.26'', 14-290,291,293,294,337,338
  • 27
    3
    PL
    PROCURE LOCALLY; Bolt, HH, 3/8''- 16 x 1-3/4'', Shield & Spacer to Clutch, 14-290,291,293,294,337,338
  • 28
    3
    PL
    PROCURE LOCALLY; Washer, Lock, 3/8'', Shield & Spacer to Clutch, 14-290,291,293,294,337,338
