07A04[02] - CLUTCH & CLUTCH CASE - 2120 W/HSS
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
Select All

Select

Ref.

1

Qty

1

Availability

Part #

SBA320011042

Description

HOUSING; Engine T854D


Alts

Select

Ref.

1

Qty

1

Availability

Part #

SBA320011601

Description

HOUSING; Engine N844L


Alts

Select

Ref.

2

Qty

2

Availability

Part #

SBA398510010

Description

DRIVE BUSHING;


Alts

Select

Ref.

3

Qty

1

Availability

Part #

SBA012111035

Description

STUD M10 x 35; (Prod Date) Up to 28-Feb-1999


Alts

Select

Ref.

3

Qty

1

Availability

Part #

SBA012111030

Description

STUD M10 x 30; (Prod Date) From 01-Mar-1999


Alts

Select

Ref.

4

Qty

1

Availability

Part #

SBA012110855

Description

STUD M8 x 55;


Alts

Select

Ref.

5

Qty

1

Availability

Part #

SBA012111045

Description

STUD M10 x 45;


Alts

Select

Ref.

6

Qty

2

Availability

Part #

SBA398110760

Description

COVER;


Alts

Select

Ref.

7

Qty

10

Availability

Part #

SBA398460010

Description

PLUG M19;


Alts

Select

Ref.

8

Qty

1

Availability

Part #

SBA030104020

Description

PIN;


Alts

Select

Ref.

9

Qty

5

Availability

Part #

SBA011511016

Description

BOLT M10 x 16; (SN Break) Up to UV32235


Alts

Select

Ref.

9

Qty

6

Availability

Part #

SBA011511016

Description

BOLT M10 x 16; (SN Break) From UV32236


Alts

Select

Ref.

10

Qty

3

Availability

Part #

SBA011511040

Description

BOLT M10 x 40; Used with SBA320011040 Casing Assy; (Prod Date) Up to 28-Feb-1999


Alts

Select

Ref.

10

Qty

3

Availability

Part #

SBA011511045

Description

BOLT M10 x 45; Used when replacing SBA320011040 Casing Assy. with SBA320011041 Casing Assy; (Prod Date) Up to 28-Feb-1999


Alts

Select

Ref.

10

Qty

2

Availability

Part #

SBA010331250

Description

BOLT M12 x 40; (Prod Date) From 01-Mar-1999


Alts

Select

Ref.

11

Qty

1

Availability

Part #

SBA011511050

Description

BOLT M10 x 50; (Prod Date) Up to 28-Feb-1999


Alts

Select

Ref.

11

Qty

5

Availability

Part #

SBA011511050

Description

BOLT M10 x 50; (Prod Date) From 01-Mar-1999


Alts

Select

Ref.

12

Qty

2

Availability

Part #

SBA011311245

Description

BOLT; Engine T854D


Alts

Select

Ref.

12

Qty

2

Availability

Part #

SBA011311250

Description

BOLT; Emissionized Engine N844L


Alts

Select

Ref.

13

Qty

2

Availability

Part #

SBA021010010

Description

NUT M10 x 1.25;


Alts

Select

Ref.

14

Qty

2

Availability

Part #

140028

Description

LOCK WASHER 10.2mm ID x 18.1mm OD x 2.2mm Thk;


Alts

Select

Ref.

15

Qty

1

Availability

Part #

SBA010109356

Description

BOLT;


Alts

Select

Ref.

16

Qty

1

Availability

Part #

412123

Description

LOCK WASHER 13.1mm ID x 21.1mm OD x 2.55mm Thk;


Alts

Select

Ref.

17

Qty

8

Availability

Part #

SBA011511240

Description

BOLT M12 x 40;


Alts

Select

Ref.

18

Qty

1

Availability

Part #

SBA320040082

Description

CLUTCH; Incl 19 & 20


Alts

Select

Ref.

19

Qty

1

Availability

Part #

SBA320400043

Description

DISC;


Alts

Select

Ref.

20

Qty

1

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; Pressure Plate


Alts

Select

Ref.

21

Qty

6

Availability

Part #

SBA011510816

Description

BOLT M8 x 16;


Alts

Select

Ref.

22

Qty

1

Availability

Part #

SBA398560120

Description

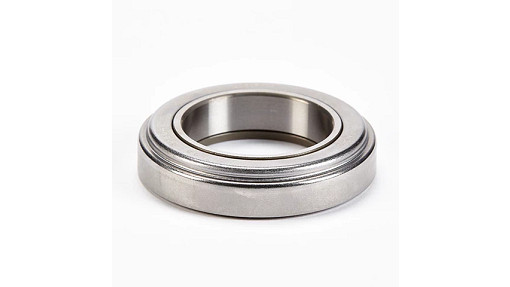

BEARING ASSY 45 mm ID x 73 mm OD x 16 mm W; Release


Alts

Select

Ref.

23

Qty

1

Availability

Part #

SBA320310400

Description

HUB; Release


Alts

Select

Ref.

24

Qty

1

Availability

Part #

SBA320200260

Description

SHAFT; Clutch


Alts

Select

Ref.

25

Qty

1

Availability

Part #

11066676

Description

CIRCLIP M18, Ext, BLO;


Alts

Select

Ref.

26

Qty

1

Availability

Part #

SBA320260030

Description

SHIFT, FORK;


Alts

Select

Ref.

27

Qty

2

Availability

Part #

SBA030300632

Description

SLOTTED PIN M6 x 32;


Alts

Select

Ref.

28

Qty

1

Availability

Part #

SBA398210070

Description

SPRING;


Alts

Select

Ref.

29

Qty

2

Availability

Part #

SBA398230020

Description

RETAINING WIRE;


Alts

Select

Ref.

30

Qty

1

Availability

Part #

SBA011511235

Description

BOLT M12 x 35;


Alts

Select

Ref.

31

Qty

1

Availability

Part #

SBA340702380

Description

PIPE;


Alts

Select

Ref.

32

Qty

6

Availability

Part #

SBA052100080

Description

O-RING;


Alts

Select

Ref.

33

Qty

2

Availability

Part #

N602550S36

Description

BOLT M8 x 1.25 x 25mm;


Alts

Select

Ref.

34

Qty

3

Availability

Part #

SBA011310625

Description

BOLT Hex, M6 x 25, Cl 8.8;


Alts

Select

Ref.

35

Qty

2

Availability

Part #

SBA010109305

Description

BOLT;


Alts

Select

Ref.

36

Qty

2

Availability

Part #

280248

Description

LOCK WASHER 9/16'';


Alts

Select

Ref.

37

Qty

3

Availability

Part #

SBA030501025

Description

BALL STUD M10 x 25 L;


Alts
