05H02 - 2-SPOOL REMOTE CONTROL VALVE & PIPING KIT, W/7108 LOADER
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    SBA340002210
    KIT; Control Valve, 1320,1520, Includes: Ref. 1A thru 60;NH-E ONLY; (Prod Date) From 01-Sep-1988
  • 1
    1
    SBA340002220
    KIT; Control Valve, 1720, Includes: Ref. 1A thru 60;NH-E ONLY; (Prod Date) From 01-Sep-1988
  • 1A
    1
    SBA340015330
    CONTROL VALVE; Valve, Control, Zexel, 1320,1520,1620,1715, Refer to Fig. 5i1 for Component Parts;No Longer Serviced; (Prod Date) Between 01-Jan-1987 and 30-Sep-1994
  • 1A
    1
    SBA340015330
    CONTROL VALVE; Valve, Control, Kayaba, 1320,1520,1620,1715, Refer to Fig. 5I1A for details; (Prod Date) From 01-Jan-1987
  • 1A
    1
    SBA340015340
    CONTROL VALVE; Valve, Control, Zexel, 1720, Refer to Fig. 5I1 for Component Parts;No Longer Serviced; (Prod Date) Between 01-Jan-1987 and 30-Sep-1994
  • 1A
    1
    SBA340015340
    CONTROL VALVE; Valve, Control, Kayaba, 1720, Refer to Fig. 5I1A for details; (Prod Date) From 01-Jan-1987
  • 2
    1
    86514022
    PIN 6.36mm OD x 16mm L, Slotted; Spring; (Prod Date) From 01-Jan-1987
  • 3
    1
    SBA030102016
    COTTER PIN; Pin, Split; (Prod Date) From 01-Jan-1987
  • 4
    1
    9824259
    WASHER 6.4mm ID x 12mm OD x 1.6mm Thk, CST, ZND; M6; (Prod Date) From 01-Jan-1987
  • 5
    1
    SBA344220440
    PLATE; (Prod Date) From 01-Jan-1987
  • 6
    1
    SBA036800012

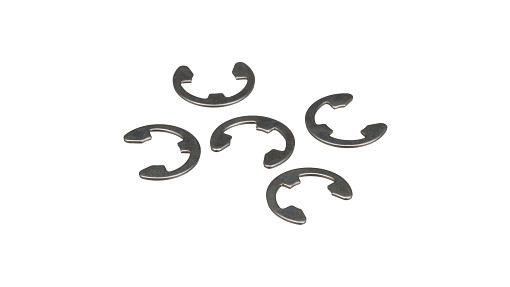

    SNAP RING; Ring, Snap; (Prod Date) From 01-Jan-1987
  • 7
    1
    SBA340080100
    LEVER; Assy. Includes: Ref. 8; (Prod Date) From 01-Jan-1987
  • 8
    2
    SBA398511270
    DRIVE BUSHING; Bushing; (Prod Date) From 01-Jan-1987
  • 9
    1
    SBA340800700
    BRACKET; (Prod Date) From 01-Jan-1987
  • 10
    3
    N602550S36
    BOLT M8 x 1.25 x 25mm; Screw, HH, W/Washer, CL 8.8, M8 x 1.25 x 25; (Prod Date) From 01-Jan-1987
  • 11
    4
    86729275
    LOCK WASHER 5/8'' ID x 0.634'' OD x .156'' Thk CST ZND; Washer, Lock, 5/8''; (Prod Date) From 01-Jan-1987
  • 12
    1
    SBA340800640
    BRACKET; 1320,1520,1620,1715; (Prod Date) From 01-Jan-1987
  • 12
    1
    SBA340800730
    BRACKET; 1720; (Prod Date) From 01-Jan-1987
  • 13
    4
    86508583
    BOLT Hex, M16 x 35mm, Cl 8.8, Full Thd; (Prod Date) From 01-Jan-1987
  • 14
    1
    SBA340330230
    COVER; (Prod Date) From 01-Jan-1987
  • 15
    5
    86511828

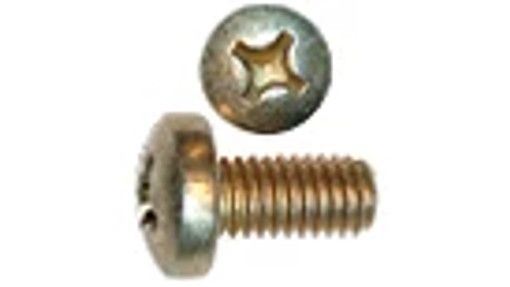

    SCREW Phillips Drive, Pan HD, M6 x 12mm, Cl 4.8; Pan Hd, CL 4.8, M6 x 1 x 12; (Prod Date) From 01-Jan-1987
  • 16
    1
    SBA340210580

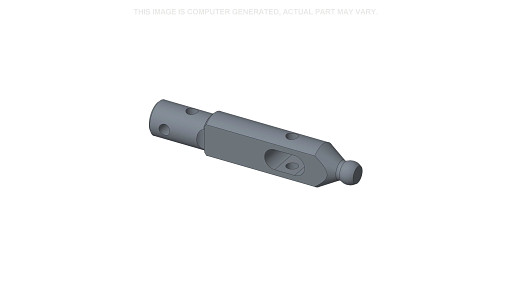

    SHAFT; (Prod Date) From 01-Jan-1987
  • 17
    2
    SBA030300632

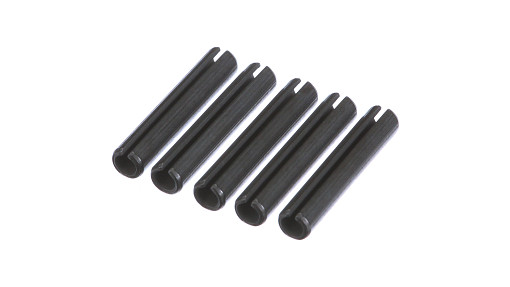

    SLOTTED PIN M6 x 32; PIN, SLOTTED, M6 x 32; (Prod Date) From 01-Jan-1987
  • 18
    1
    SBA398112750

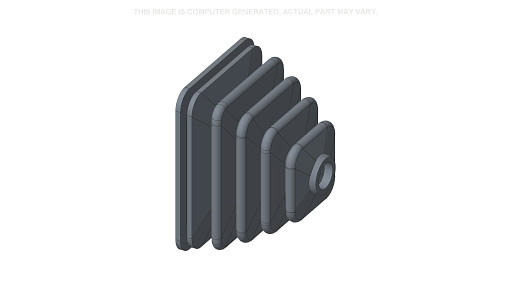

    BOOT; Rubber; (Prod Date) From 01-Jan-1987
  • 19
    1
    SBA340103670
    LEVER; Control, 1320,1520,1620,1715; (Prod Date) From 01-Jan-1987
  • 19
    1
    SBA340103700
    LEVER; Control, 1720; (Prod Date) From 01-Jan-1987
  • 20
    1
    SBA030303532
    PIN; Spring; (Prod Date) From 01-Jan-1987
  • 21
    3/2
    SBA011510820
    CAPTIVE WASHER SCREW Hex, M8 x 20, G5; SCREW, CAPTIVE WASHER, Hex, M8 x 1.25 x 20, G5; (Prod Date) From 01-Jan-1987
  • 22
    2
    86511315
    WASHER 8.4mm ID x 16mm OD x 1.8mm Thk; (Prod Date) From 01-Jan-1987
  • 23
    3
    SBA052109600
    O-RING; (Prod Date) From 01-Jan-1987
  • 24
    4
    SBA052109610
    O-RING; (Prod Date) From 01-Jan-1987
  • 25
    3
    SBA340650390
    HYD CONNECTOR; Fitting; (Prod Date) From 01-Jan-1987
  • 26
    4
    SBA340650380
    HYD CONNECTOR; Adapter; (Prod Date) From 01-Jan-1987
  • 27
    1
    SBA340700680
    TUBE; Pipe, Oil, Tank Port, 1320,1520,1620,1715; (Prod Date) From 01-Jan-1987
  • 27
    1
    SBA340701160
    TUBE; Pipe, Oil, Tank Port, 1720; (Prod Date) From 01-Jan-1987
  • 28
    1
    SBA340700710
    TUBE; Pipe, Oil, Neutral Port/Power Beyond, 1320,1520,1620,1715; (Prod Date) From 01-Jan-1987
  • 28
    1
    SBA340701100
    TUBE; Pipe, Oil, Neutral Port/Power Beyond, 1720; (Prod Date) From 01-Jan-1987
  • 29
    1
    SBA340700650
    TUBE; Pipe, Oil, Pressure Port, 1320,1520,1620,1715; (Prod Date) From 01-Jan-1987
  • 29
    1
    SBA340701130
    TUBE; Pipe, Oil, Pressure Port, 1720; (Prod Date) From 01-Jan-1987
  • 30
    3
    SBA340650360
    HYD CONNECTOR; Fitting, 1720, Use (2) for 1320,1520,1620,1715; (Prod Date) From 01-Jan-1987
  • 31
    1
    SBA340650370
    HYD CONNECTOR; Fitting, 1320,1520,1620,1715; (Prod Date) From 01-Jan-1987
  • 32
    1
    SBA340700800
    TUBE; Pipe, Oil, (B), 1320,1520,1620,1715; (Prod Date) From 01-Jan-1987
  • 32
    1
    SBA340701010
    TUBE; Pipe, Oil, (B), 1720; (Prod Date) From 01-Jan-1987
  • 33
    1
    SBA340700740
    TUBE; Pipe, Oil, (A), 1320,1520,1620,1715; (Prod Date) From 01-Jan-1987
  • 33
    1
    SBA340701040
    TUBE; Pipe, Oil, (A), 1720; (Prod Date) From 01-Jan-1987
  • 34
    1
    SBA340700770
    TUBE; Pipe, Oil, (C), 1320,1520,1620,1715; (Prod Date) From 01-Jan-1987
  • 34
    1
    SBA340701070
    TUBE; Pipe, Oil, (C), 1720; (Prod Date) From 01-Jan-1987
  • 35
    1
    SBA340700830
    TUBE; Pipe, Oil, (D), 1320,1520,1620,1715; (Prod Date) From 01-Jan-1987
  • 35
    1
    SBA340700980
    TUBE; Pipe, Oil, (D), 1720; (Prod Date) From 01-Jan-1987
  • 36
    1
    9706702
    BOLT Hex, M12 x 1.75 x 50mm, Cl 8.8, ZND; HH, CL 8.8, M12 x 1.75 x 50; (Prod Date) From 01-Jan-1987
  • 37
    1
    338413

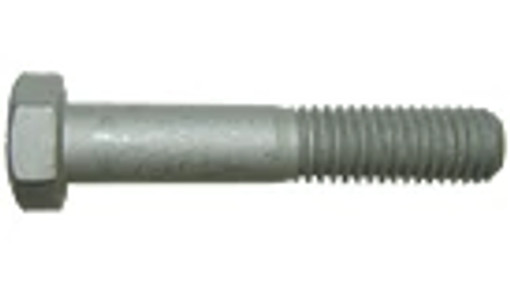

    BOLT Hex, M6 x 1 x 60mm, Cl 8.8; Bolt, M6 x 55; (Prod Date) From 01-Jan-1987
  • 38
    4/2
    SBA399112130
    CLAMP; (Prod Date) From 01-Jan-1987
  • 39
    1
    SBA398115900
    INSULATOR BLOCK; Rubber; (Prod Date) From 01-Jan-1987
  • 40
    2/1
    SBA022400006
    NUT; U-Nut, M6; (Prod Date) From 01-Jan-1987
  • 41
    4
    89706690
    NUT M8 x 1.25, Cl 8; (Prod Date) From 01-Jan-1987
  • 42
    4
    87016617
    LOCK WASHER M8; Washer, Spring, A48; (Prod Date) From 01-Jan-1987
  • 43
    1
    SBA399111040
    CLAMP; (Prod Date) From 01-Jan-1987
  • 44
    1
    SBA378114690
    GUARD; (Prod Date) From 01-Jan-1987
  • 45
    1
    SBA340800670
    BRACKET; 1320,1520,1620,1715; (Prod Date) From 01-Jan-1987
  • 45
    1
    SBA340800800
    BRACKET; 1720; (Prod Date) From 01-Jan-1987
  • 46
    2
    100016
    NUT Hex, M10 x 1.5, Cl 8, ZND; 1520, 1620, 1715 M10, Cl 8; (Prod Date) From 01-Jan-1987
  • 46
    2
    9706685
    NUT Hex, M12 x 1.75, Cl 8, ZND; 1320, 1720 M12, Cl 8; (Prod Date) From 01-Jan-1987
  • 47
    2
    412123
    LOCK WASHER 13.1mm ID x 21.1mm OD x 2.55mm Thk; WASHER, LOCK, M12 x 21 x 2.6 Thk; (Prod Date) From 01-Jan-1987
  • 48
    2
    86629541
    BOLT Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd; HH, CL 8.8, M12 x 1.75 x 40; (Prod Date) From 01-Jan-1987
  • 49
    4
    9846345
    QUICK FEMALE COUPLING; Coupler Assy. Includes: Ref. 50 & 51; (Prod Date) From 01-Jan-1987
  • 50
    4
    9846344

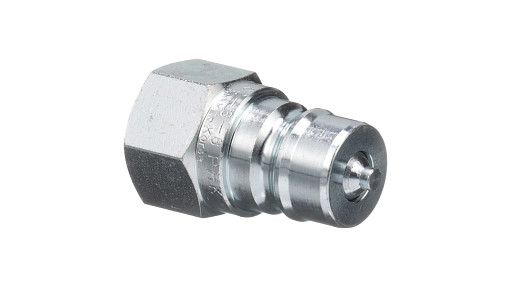

    QUICK MALE COUPLING 3/8'' NPTF; Coupler, Male; (Prod Date) From 01-Jan-1987
  • 51
    4

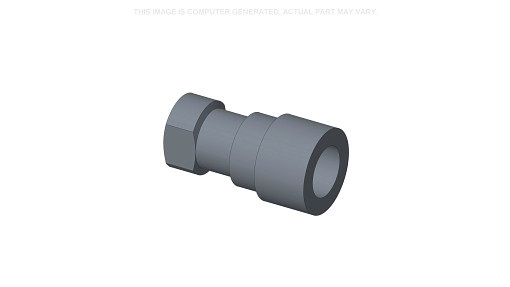

    9846343
    COUPLING 3/8'' NPTF; Female; (Prod Date) From 01-Jan-1987
  • 52
    2
    86532891
    DUST CAP; Plug, Dust, Male; (Prod Date) From 01-Jan-1987
  • 53
    2
    86532892
    DUST CAP; Cap, Dust, Female; (Prod Date) From 01-Jan-1987
  • 54
    1
    SBA390193270
    DECAL; Caution, Remote Control Valve; (Prod Date) From 01-Jan-1987
  • 55
    1
    SBA498180090
    HANDLE GRIP; Grip; (Prod Date) From 01-Jan-1987
  • 56
    1
    SBA390194350
    DECAL; Caution, Coupler Retracting; (Prod Date) From 01-Jan-1987
  • 57
    1
    SBA390194340
    DECAL; Caution, Coupler Extending; (Prod Date) From 01-Jan-1987
  • 58
    1
    SBA398230020

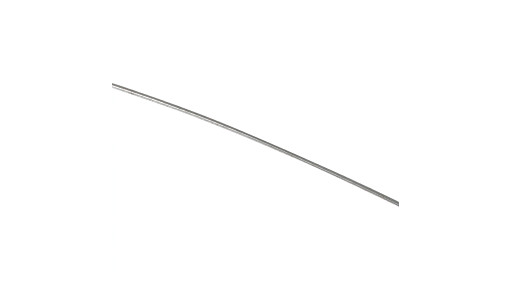

    RETAINING WIRE; Wire; (Prod Date) From 01-Jan-1987
  • 59
    1
    SBA390194370
    DECAL; Caution, Coupler Retracting; (Prod Date) From 01-Jan-1987
  • 60
    1
    SBA390194360
    DECAL; Caution, Coupler Extending; (Prod Date) From 01-Jan-1987
