05B03 - HYDRAULIC TANK, PUMP & RELATED PARTS, ASN D101171 (9480, 9680 & 9880)
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    9704044
    RADIATOR; Cooler Assy.; (Prod Date) From 01-Sep-1994
  • 2
    4
    51026
    SERRATED BOLT Hex, M8 - 1.25 x 12mm; Screw, Cap, Flg Hd, USR, CL 8.8, M8 x 1.25 x 12; (Prod Date) From 01-Sep-1994
  • 3
    1
    9790687
    HOSE; Hose Assy., 3/4'', 100R1, 2210 Lg.; (Prod Date) From 01-Sep-1994
  • 4
    1
    9790688
    HOSE; Hose Assy., 3/4'', 100R1, 2330 Lg.; (Prod Date) From 01-Sep-1994
  • 5
    2
    9790689
    HOSE 19.05mm ID x 3025mm L, SAE 100R1; Hose Assy., 3/4'', 100R1, 3025 Lg.; (Prod Date) From 01-Sep-1994
  • 6
    1
    9706959
    PLATE; Clamp Assy., Hose; (Prod Date) From 01-Sep-1994
  • 7
    2
    274251
    SERRATED BOLT Hex Serr Flg, M10 x 25mm; Flg Hd, USR, CL 8.8, M10 x 1.5 x 25; (Prod Date) From 01-Sep-1994
  • 8
    4
    43435
    FLANGE NUT Hex, M10 x 1.5; Flg, USR, M10 x 1.5; (Prod Date) From 01-Sep-1994
  • 9
    4
    9790673
    GROMMET; Wedge, Rubber; (Prod Date) From 01-Sep-1994
  • 10
    4
    86513018
    TEE 37 Degree, 1 5/16''-12 x 1 5/16''-12 Fem Sw Br; Hydraulic, Branch, Swivel, 37? Flare, 1'' Tube; (Prod Date) From 01-Sep-1994
  • 11
    1
    9707290
    FITTING; Tee, Hydraulic; (Prod Date) From 01-Sep-1994
  • 12
    2
    V91792
    HYDRAULIC VALVE; Valve, Check; (Prod Date) From 01-Sep-1994
  • 13
    1
    9707292
    TUBE; Assy., 1'' OD x 70.66'', 12 Spd. Transmission to Cooler; (Prod Date) From 01-Sep-1994
  • 13
    1
    9707291
    TUBE; Assy., 1'' OD x 106.49'', Powershift Trans. to Cooler; (Prod Date) From 01-Sep-1994
  • 14
    2
    86016700
    HYDRAULIC OIL FILTER; ., 10 Micron, Includes: Ref. 15 thru 17; (Prod Date) From 01-Sep-1994
  • 15
    1
    NSS
    NOT SOLD SEPARAT; Head Assy.; (Prod Date) From 01-Sep-1994
  • 16
    1

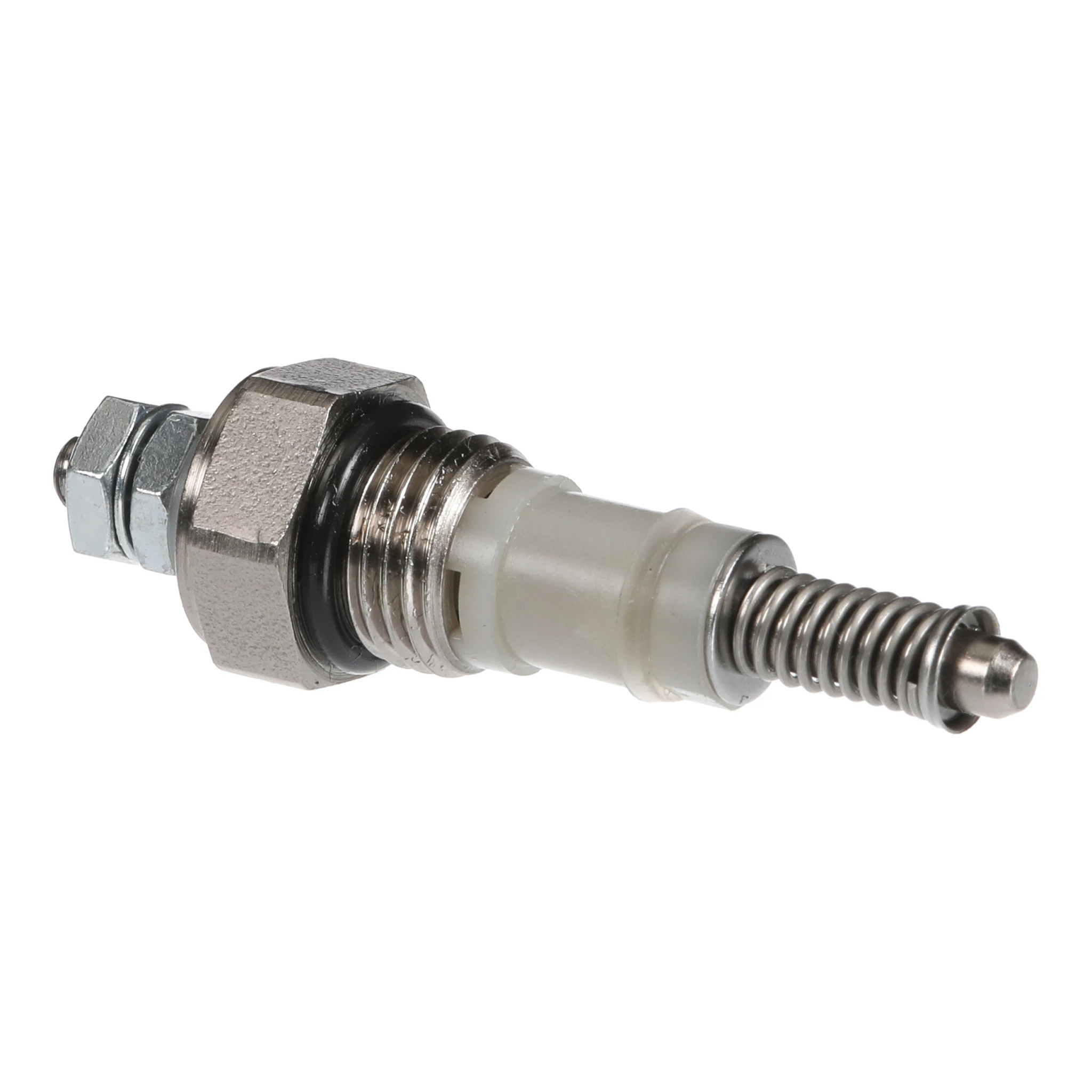

    F2NNH957BA
    INDICATOR; Assy, Electrical; (Prod Date) From 01-Sep-1994
  • 17
    1
    9706161
    HYDRAULIC OIL FILTER Spin-on, 4.77 in OD x 7.6 in L; Element, Filter; (Prod Date) From 01-Sep-1994
  • 18
    8
    29892
    PIN; Screw, Flat, HH, Serrated, 3/8''-16 UNC x 3/4'' Lg.; (Prod Date) From 01-Sep-1994
  • 19
    2
    378970
    HYD CONNECTOR; Connector, Hydraulic, Short, Includes: Ref. 74; (Prod Date) From 01-Sep-1994
  • 20
    1
    9707291
    TUBE; Assy., 1'' OD x 106.49'', Filter to 12 Spd.Transmission; (Prod Date) From 01-Sep-1994
  • 20
    1
    9707292
    TUBE; Assy., 1'' OD x 70.66'', Filter to Powershift Transmission; (Prod Date) From 01-Sep-1994
  • 21
    1
    9707289
    HYD CONNECTOR; Cross, Hydraulic; (Prod Date) From 01-Sep-1994
  • 22
    1
    86014393
    HOSE; Hose Assy, 1'', 100R1, 3800 Lg; (Prod Date) From 01-Sep-1994
  • 23
    3
    V86490
    CLIP; Zinc Plated, Clamping, 1-1/2''; (Prod Date) From 01-Sep-1994
  • 24
    7
    43138
    BOLT Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd; Hex, M10 x 20, 8.8, Full Thd; (Prod Date) From 01-Sep-1994
  • 25
    1
    9790681
    HOSE; Hose Assy., 1'', 100R1, 690 Lg.; (Prod Date) From 01-Sep-1994
  • 26
    1
    86050316
    HOSE; Hose Assy., 3/4'' x 3360 Lg.; (Prod Date) From 01-Sep-1994
  • 27
    1
    602788
    ELBOW; Hydraulic, 90?, 1'' Tube, 37? Flare to Straight Thread; (Prod Date) From 01-Sep-1994
  • 28
    1
    330346
    45 ELBOW 45 Degree, 9/16''-18, 37 Degree x 9/16''-18, O-Ring; 45?, 37? FL, O-Ring, 3/8'' Tube W/O-Ring; (Prod Date) From 01-Sep-1994
  • 29
    1
    9790698
    HOSE; Hose Assy., 3/8'', 100R1, 775 Lg.; (Prod Date) From 01-Sep-1994
  • 30
    1
    128830
    90 ELBOW 90 DEGREE, 3/4'' - 16 JIC x 3/4'' - 16 ORB; 90?, 3/4''-16, 37? x 3/4''-16, O-Ring, 1/2'' Tube; (Prod Date) From 01-Sep-1994
  • 31
    1
    86014053
    SMALL PUMP; Pump Assy., See Fig. 5D4;See Service Bulletin 4-95 - T2
  • 31
    1
    86014053R
    REMAN-HYD PUMP HYD PUMP; 9480, 9680, 9880 All ASN D101171,
  • 31
    1
    86014053C
    CORE-HYDRAULIC PUMP HYD PUMP; Return Number
  • 32
    2

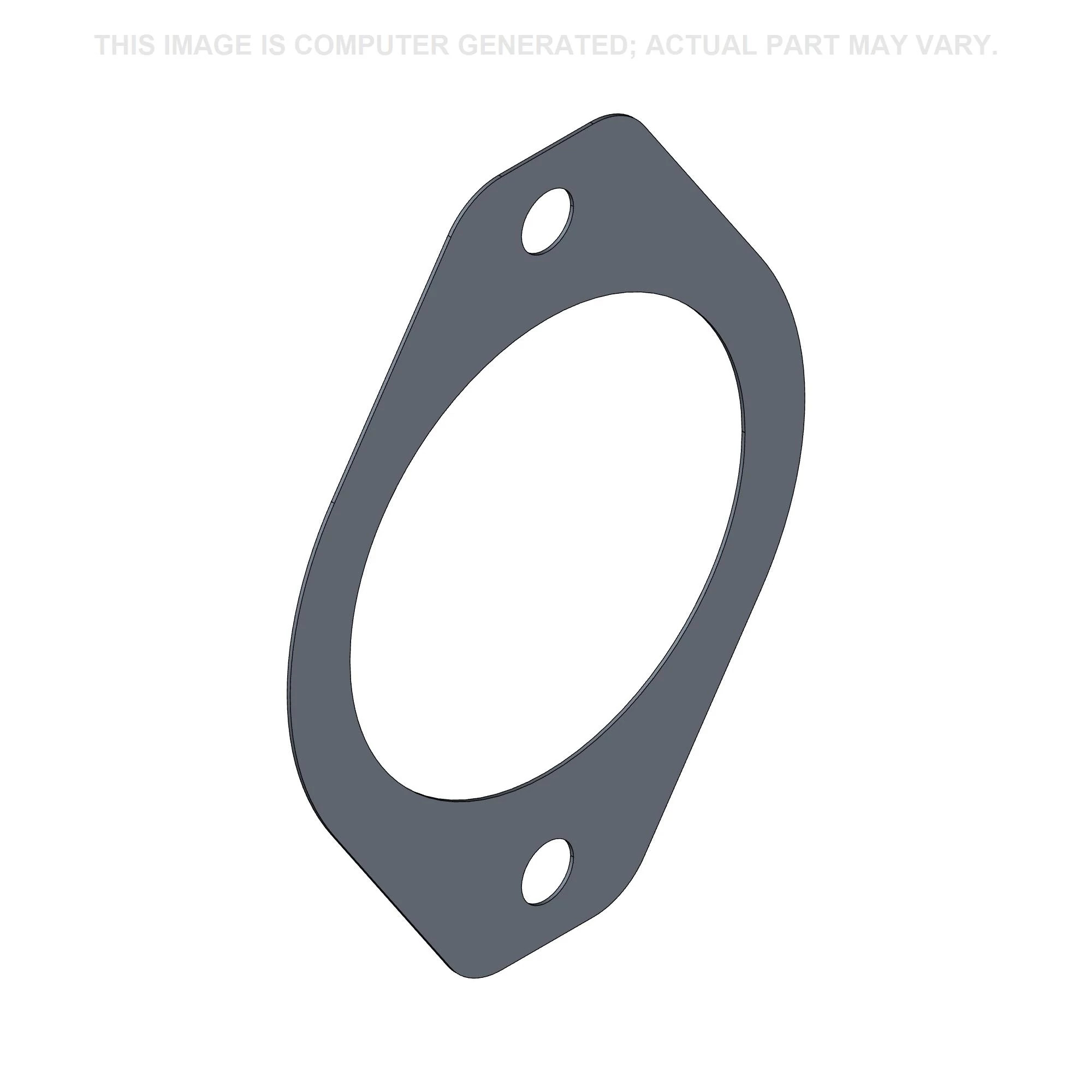

    9673036
    GASKET; Hydraulic Pump; (Prod Date) From 01-Sep-1994
  • 33
    1
    V74537
    SHIM; Hydraulic Pump; (Prod Date) From 01-Sep-1994
  • 34
    1
    86011663
    ADAPTER; Pump; (Prod Date) From 01-Sep-1994
  • 35
    2
    87972
    BOLT Hex, 1/2'' - 13 x 2 1/2'', Gr 5; Screw, Cap, HH, G5, 1/2''-13 x 2-1/2''; (Prod Date) From 01-Sep-1994
  • 36
    2
    86512371
    SERRATED NUT Flg, USR, 1/2''-13; (Prod Date) From 01-Sep-1994
  • 37
    1
    216773
    90 ELBOW 90 Degree, 7/16''-20, 37 Degree x 7/16''-20, O-Ring; 90?, Male 37? FL - Male, W/O-Ring, 1/4'' Tube; (Prod Date) From 01-Sep-1994
  • 38
    1
    9790679
    HOSE; Hose Assy., 1'' x 565 Lg.; (Prod Date) From 01-Sep-1994
  • 39
    1
    330344
    45 ELBOW 1-1/16'' - 12 JIC x 1-1/16'' - 12 ORB; Hydraulic, 45?, 3/4'' Tube, 37? Flare to Straight Thread; (Prod Date) From 01-Sep-1994
  • 40
    1
    9790702
    HOSE; Hose Assy., 3/4'' x 1500 Lg.; (Prod Date) From 01-Sep-1994
  • 41
    1
    86011662
    INSERT; 90? Hydraulic Hose; (Prod Date) From 01-Sep-1994
  • 42
    1
    86017984
    TANK; Assy., Hydraulic; (Prod Date) From 01-Sep-1994
  • 43
    1

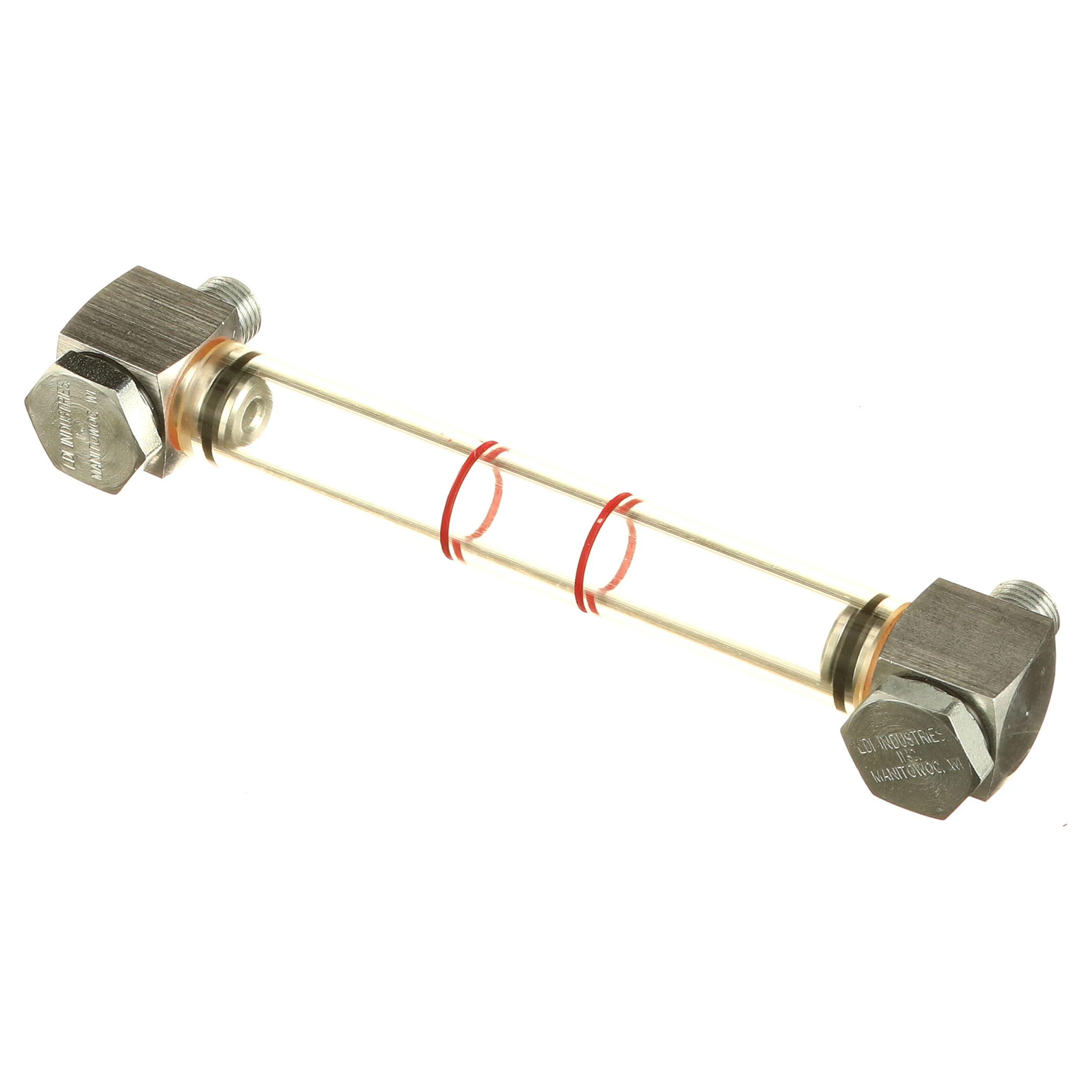

    86015914
    GAUGE; Sight Glass; (Prod Date) From 01-Sep-1994
  • 44
    1
    9706492
    CONTROL VALVE; Valve, Check; (Prod Date) From 01-Sep-1994
  • 45
    1
    163410
    HEX PLUG 1-1/16'' - 12 ORB; Hydraulic, HH, Includes: Ref. 73; (Prod Date) From 01-Sep-1994
  • 46
    2
    9707486
    BELT 50.00 mm W x 416.00 mm L; Hydraulic Tank 50.00 mm W x 416.00 mm L; (Prod Date) From 01-Sep-1994
  • 47
    4
    120090
    BOLT Hex, M16 x 2 x 50mm, Cl 8.8, Full Thd; (Prod Date) From 01-Sep-1994
  • 48
    4
    86511326
    WASHER 17mm ID x 30mm OD x 3mm Thk, CST, ZND; Steel; (Prod Date) From 01-Sep-1994
  • 49
    4
    86012007
    LOCK NUT M16 x 2, Cl 10; Nut, Lock, Insert, CL 9, M16 x 2; (Prod Date) From 01-Sep-1994
  • 50
    1
    214389
    HEX PLUG 3/4'' - 16 ORB; Hydraulic, HH, Includes Ref. 77 Hex Hd, 3/4''-16 ORB; (Prod Date) From 01-Sep-1994
  • 51
    1

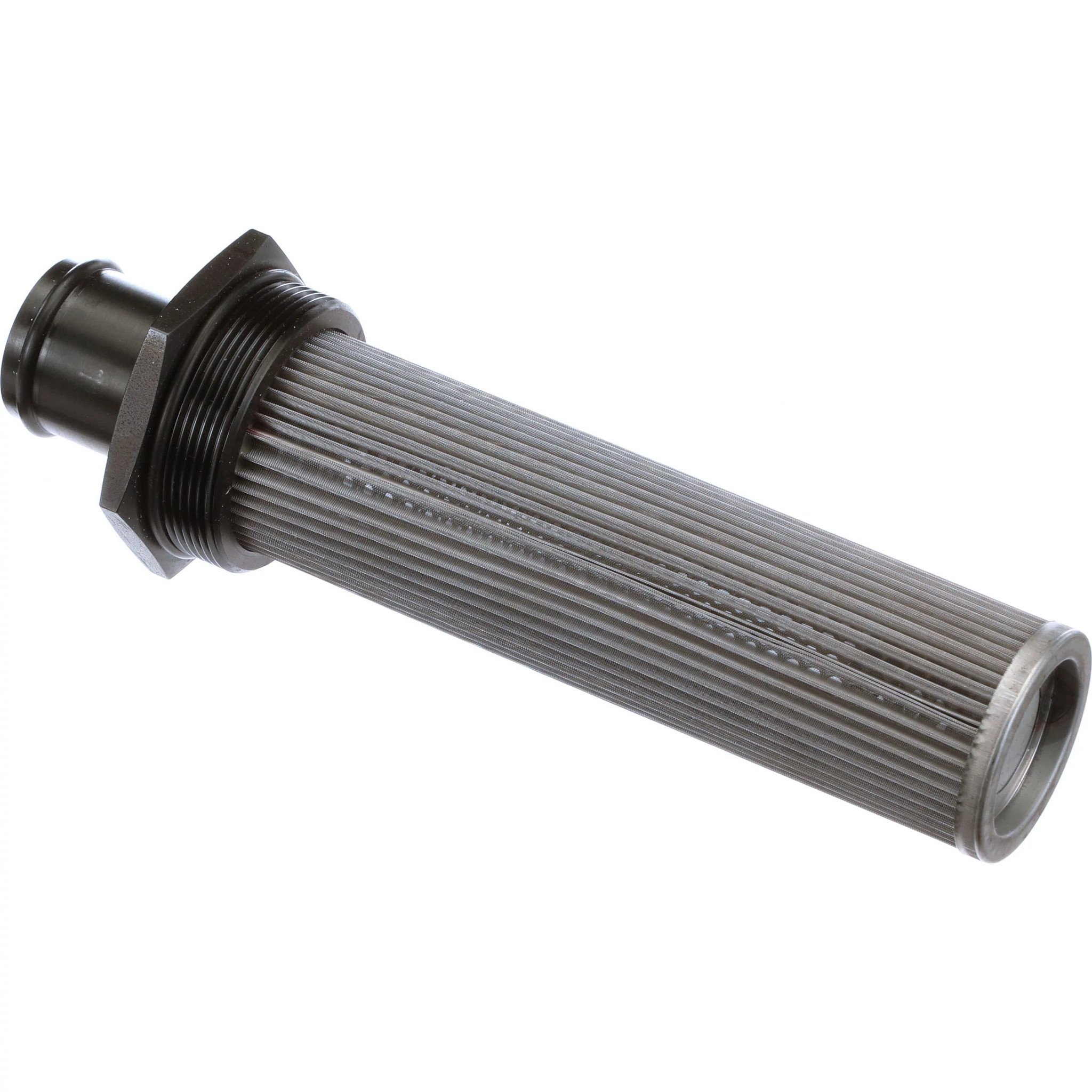

    9703991
    FILTER STRAINER; Strainer, Suction, Includes Ref. 92; (Prod Date) From 01-Sep-1994
  • 52
    4
    86050202
    HOSE CLAMP 1.59'' - 2.5'', Worm Gear; (1-9/16'' ID) #32, 1.56/2.50 Type F Worm; (Prod Date) From 01-Sep-1994
  • 53
    1
    86001622
    HYDRAULIC HOSE 38.10 mm ID x 310.00 mm; 38.10 mm ID x 310.00 mm; (Prod Date) From 01-Sep-1994
  • 54
    1
    9707273
    TUBE; Vent, Oil Tank; (Prod Date) From 01-Sep-1994
  • 55
    1
    9707064
    KIT; Breather, 3/8'' NPT; (Prod Date) From 01-Sep-1994
  • 56
    1
    86000064
    TUBE; Assy., Filler; (Prod Date) From 01-Sep-1994
  • 57
    1
    9705728
    PLUG; Cap, Filler Tube, 2''; (Prod Date) From 01-Sep-1994
  • 58
    1
    9804255
    FLANGE BOLT Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8; (Prod Date) From 01-Sep-1994
  • 59
    1
    86514335
    LOCK NUT; Nut, Lock, CL 10, M6 x 1; (Prod Date) From 01-Sep-1994
  • 60
    1
    9705719
    HYDRAULIC VALVE; Valve, Relief; (Prod Date) From 01-Sep-1994
  • 61
    1
    86512512
    HEX PLUG 7/8'' - 14 ORB; Hyd, Straight Thread, Hex O-Ring, 7/8''-14 x 1''; (Prod Date) From 01-Sep-1994
  • 62
    1
    86050292
    HYD CONNECTOR 1 5/16''-12, 37 Degree x7/8''-14, O-Ring; Adapter, Hydraulic, Straight Reducer, Includes: Ref. 74; (Prod Date) From 01-Sep-1994
  • 63
    2
    43140
    BOLT Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd; (Prod Date) From 01-Sep-1994
  • 64
    2
    43435
    FLANGE NUT Hex, M10 x 1.5; Flg, USR, M10 x 1.5; (Prod Date) From 01-Sep-1994
  • 65
    1
    9618946
    TEE 37 Degree, 1 5/16''-12 x 1 5/16''-12, Fem Sw Run; Hydraulic, Swivel, 1'' Tube, 37? Flare to Straight Thread; (Prod Date) From 01-Sep-1994
  • 66
    4
    86512926
    HYD CONNECTOR 1-5/16'' - 12 JIC x 1-1/16'' - 12 ORB; CONNECTOR, HYD, , 1'' Tube 1 5/16''-12, 37? x 1 1/16''-12, O-Ring; (Prod Date) From 01-Sep-1994
  • 67
    1
    9790682
    HOSE; Hose Assy., 1'', 100R1, 1665 Lg.; (Prod Date) From 01-Sep-1994
  • 68
    1
    9790683
    HOSE; Hose Assy., 1'', 100R1, 1130 Lg.; (Prod Date) From 01-Sep-1994
  • 69
    1
    9790686
    HOSE; Hose Assy., 3/4'', 100R9, 565 Lg.; (Prod Date) From 01-Sep-1994
  • 70
    1
    322896
    HYD CONNECTOR 1-1/16'' - 12 ORB x 1-1/16'' - 12 JIC; CONNECTOR, HYD, , Short, Incl Ref 73 1 1/16''-12, 37? x 1 1/16''-12, O-Ring; (Prod Date) From 01-Sep-1994
  • 71
    7
    86050336
    CLIP; Zinc Plated, Clamping, 15/16''; (Prod Date) From 01-Sep-1994
  • 72
    1
    43140
    BOLT Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd; (Prod Date) From 01-Sep-1994
  • 73
    3
    167266
    O-RING 0.116'' Thk x 0.924'' ID, -912, Cl 6, 90 Duro; 12-1, 90 Duro, .924 ID x .116'' Thk; (Prod Date) From 01-Sep-1994
  • 74
    7
    167268
    O-RING 0.116'' Thk x 1.171'' ID, -916, Cl 6, 90 Duro; 16-1, 90 Duro, 1.171'' ID x .116'' Thk; (Prod Date) From 01-Sep-1994
  • 75
    1
    167269
    O-RING 0.097'' Thk x 0.755'' ID, -910, Cl 6, 90 Duro; 10-1, 90 Duro, .755'' ID x .097'' Thk; (Prod Date) From 01-Sep-1994
  • 76
    1
    9617873
    O-RING 0.078'' Thk x 0.468'' ID, -906, Cl 6, 90 Duro; 6-1, 90 Duro, .468'' ID x .078'' Thk; (Prod Date) From 01-Sep-1994
  • 77
    3
    128825
    O-RING 0.087in Thk x 0.644in ID, -908, Cl 6, 90 Duro; 8-1, 90 Duro, .644'' ID x .087'' Thk; (Prod Date) From 01-Sep-1994
  • 78
    1
    851710
    BAND; Strap, Tie, Nylon; (Prod Date) From 01-Sep-1994
  • 79
    1
    84340
    ELBOW 90 Degree, 3/4''-16, 37 Degree x 1 1/16''-12, O-Ring; 3/4'', 37? Flare, 90? Elbow, Straight Thread O-Ring; (Prod Date) From 01-Sep-1994
  • 80
    1
    86050322
    HOSE; Hose Assy., 1/2'', 100R1, 1390 Lg.; (Prod Date) From 01-Sep-1994
  • 81
    2
    82039
    HEX SOC SCREW 3/8'' - 16 x 1 1/4''; Cap, HS, G8, 3/8''-16 x 1-1/4''; (Prod Date) From 01-Sep-1994
  • 82
    1
    9790690
    HOSE; Hose Assy., 5/8'' x 2800mm; (Prod Date) From 01-Sep-1994
  • 83
    1
    9790691
    HOSE 15.88mm ID x 2500mm L, SAE 100R2; Hose Assy., 5/8'' x 2500mm; (Prod Date) From 01-Sep-1994
  • 84
    1
    86507102
    HYD CONNECTOR 1-1/16'' - 12 ORB x 7/8'' - 14 JIC; Adapter, Hydraulic, Straight Reducer, Includes: Ref. 75; (Prod Date) From 01-Sep-1994
  • 85
    1
    9673015
    HYDRAULIC VALVE; Steering Valve Assy., See Fig. 3B2; (Prod Date) From 01-Sep-1994
  • 86
    1
    86001605
    BRACKET; Tail Support; (Prod Date) From 01-Sep-1994
  • 87
    1
    86512179
    SERRATED BOLT Hex Serr Flg, 1/2'' - 13 x 1 1/2''; Screw, Cap, Flg Hd, USR, 1/2''-13 x 1-1/2''; (Prod Date) From 01-Sep-1994
  • 88
    1
    86001631
    BOLT; 7/16''-20 UNF x 2'' Lg.; (Prod Date) From 01-Sep-1994
  • 89
    1
    P8070032
    WASHER; Plated, .44''; (Prod Date) From 01-Sep-1994
  • 90
    1
    50456
    NUT 7/16''-20, G5; NUT, G5, 7/16''-20; (Prod Date) From 01-Sep-1994
  • 91
    1
    570186
    O-RING 0.118'' Thk x 1.475'' ID, -920, Cl 6, 90 Duro; 90 Duro, 1.475'' ID x .118'' Thk; (Prod Date) From 01-Sep-1994
  • 92
    1
    86027398
    O-RING; (Prod Date) From 01-Sep-1994
