Ref.
Qty
Part #
Alts
Description
-
11FUEL INJECTION PUMP; Pump Assy., Fuel Injection, 8870, G210, Includes: Ref. 5 & 45;Procure repair parts from Bosch Distributor.
-
11FUEL INJECTION PUMP; Pump Assy., Fuel Injection, 8970, G240, Includes: Ref 5 & 45
-
11REMAN-FUEL INJ PUMP INJECTION PUMP; Pump Assy., Fuel Injection, 8970, G240, Includes: Ref 5 & 45
-
11CORE-INJECTION PUMP INJECTION PUMP; Pump Assy., Fuel Injection, 8970, G240, Includes: Ref 5 & 45
-
11REMAN-FUEL INJ PUMP INJECTION PUMP; Pump Assy., Fuel Injection, 8970, G240, Includes: Ref 5 & 45
-
11CORE-INJECTION PUMP INJECTION PUMP; Pump Assy., Fuel Injection, 8970, G240, Includes: Ref 5 & 45
-
21O-RING 0.139'' Thk x 3.859'' ID, -241, Cl 6, 90 Duro; 90 Duro, 3.859'' ID x .139'' Thk; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995
-
34BOLT; Knurled, 3/8''-16 x 1-1/2''; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995
-
44FLANGE NUT Flg, 3/8'' - 16; Nut, Lock, Flg, G5, 3/8''-16; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995
-
51GEAR; Injection Pump; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995
-
61PLATE; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995
-
74SCREW; Cap, HH, G8, Self-Locking, 3/8''-16 x 1-1/4''; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995
-
81BRACKET; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995
-
91BRACKET; To Cylinder Block; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995
-
104FLANGE BOLT Hex, 3/8'' - 16 x 3/4'', Gr 5; BOLT, FLANGE, , Reduced, UBS Hex, 3/8''-16 x 3/4'', G5; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995
-
111HYD CONNECTOR; Fitting, Pump Lubrication Tube; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995
-
122FLANGE BOLT Hex, 3/8'' - 16 x 3 1/4''; Bolt, Hex Flange Hd., 3/8''-16 x 3-1/4'', W/Pilot; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995
-
131BRACKET; Fuel Shut Off Control; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995
-
142BOLT Hex, 1/4'' - 20 x 3/4'', Gr 5, Full Thd; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995
-
152FLANGE NUT Flg, 1/4'' - 20; NUT LOCK, Flg, 1/4''-20; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995
-
161SOLENOID; Assy., Fuel Shut Off; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995
-
171TUBE; Assy., Boost Control to Manifold, Includes: Ref. 18; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995
-
182SLEEVE; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995
-
192FITTING; Connector; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995
-
201FUEL TUBE 0.253'' OD; Tube Assy., Pump Pilot, Includes: Ref. 21; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995
-
212FERRULE; Sleeve; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995
-
221HYD CONNECTOR; Connector; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995
-
231WASHER; Flat, Copper, .41; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995
-
241TUBE; Assy., Pump Lubrication, Includes: Ref. 21; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995
-
251FITTING; Tee; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995
-
261KIT; Filter & Primer Assy., See Fig. 9F1; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995
-
272BOLT; Cap, Flg Hd., G5, 3/8''-16 x 1''; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995
-
284O-RING 0.072'' Thk x 0.414'' ID, -905, Cl 6, 90 Duro; 5-1, 90 Duro, .414'' ID x .072'' Thk; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995
-
29290 ELBOW 5/16'' x 1/2''-20, Flareless; 90?, 5/16'', Flareless, 1/2''-20; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995
-
301FUEL TUBE 0.315'' OD x 12.52'' L; Tube Assy., Filter to Pump, Includes: Ref. 31;See Service Bulletin 1996/2 3 Fuel Filter Conversion, Before Choosing Tubes on This Figure.; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995
-
314SLEEVE 7.14mm ID x 12.3mm OD x 6.35mm L; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995
-
321FUEL TUBE 0.315'' OD x 5.99'' L; Tube Assy., Pump to Filter, Includes: Ref. 31; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995
-
332CLAMP; Tube; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995
-
341TUBE; Assy., Leak Off; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995
-
356FUEL SYSTEM INJECTOR; Injector Assy., Fuel; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995
-
366BRACKET; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995
-
3712BOLT Hex Flg, 5/16'' - 18 x 1.38''; Bolt, Reduced, Hex Flange Hd., 5/16''-18 x 1-3/8''; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995
-
386SEAL 20.6mm ID x 31.8mm OD x 13.2mm Thk; Injector; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995
-
396SEALING WASHER 7.4mm ID x 13.75mm OD x 1.6mm Thk; Washer, Sealing; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995
-
4012COPPER WASHER 6.2mm ID x 9.9mm OD x 1mm Thk; WASHER, COPPER, M6 x 10 x 1 Thk; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995
-
416BOLT; Bolt, Leak Off Connector; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995
-
421RIGID TUBE 6 mm DIA x 770 mm L; Tube & Clamp Assy.; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995
-
431PIN; Hair Spring Cotter; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995
-
441WASHER; Flat, 5mm; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995
-

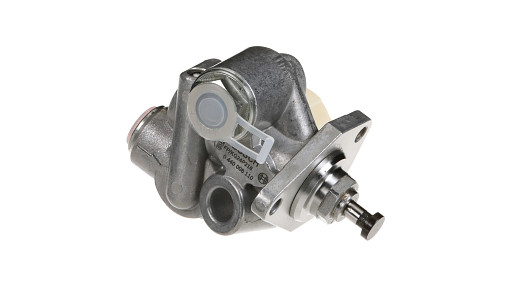

451FUEL PUMP; Pump Assy., Fuel Lift, Includes: Ref. 46; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995
-
461KIT; Filter, Lift Pump; (Prod Date) Between 01-Sep-1993 and 01-Aug-1995
-
471FITTING 9/16''-24 x 1/2''-20 O-Ring; Connector 9/16''-24 x 1/2''-20 O-Ring; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995
-
481GASKET; Fuel Lift Pump; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995
-
492GASKET 14.2mm ID x 19.9mm OD x 1.5mm Thk; Washer, Sealing; (Prod Date) Between 01-Sep-1993 and 01-Aug-1995
Select All
Select
Ref.
1Qty
1Availability
Part #
87801600Description
FUEL INJECTION PUMP; Pump Assy., Fuel Injection, 8870, G210, Includes: Ref. 5 & 45;Procure repair parts from Bosch Distributor.Img
Alts
Select
Ref.
1Qty
1Availability
Part #
87801595Description
FUEL INJECTION PUMP; Pump Assy., Fuel Injection, 8970, G240, Includes: Ref 5 & 45Img
Alts
Select
Ref.
1Qty
1Availability
Part #
87801595RDescription

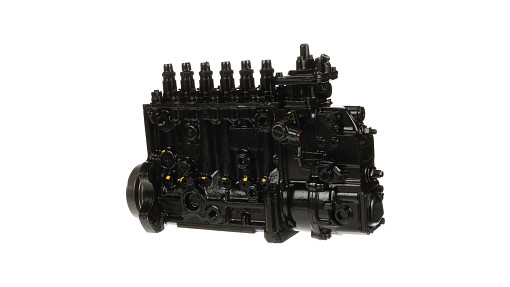

REMAN-FUEL INJ PUMP INJECTION PUMP; Pump Assy., Fuel Injection, 8970, G240, Includes: Ref 5 & 45Img
Alts
Select
Ref.
1Qty
1Availability
Part #
87801595CDescription
CORE-INJECTION PUMP INJECTION PUMP; Pump Assy., Fuel Injection, 8970, G240, Includes: Ref 5 & 45Img
Alts
Select
Ref.
1Qty
1Availability
Part #
87801595RDescription
REMAN-FUEL INJ PUMP INJECTION PUMP; Pump Assy., Fuel Injection, 8970, G240, Includes: Ref 5 & 45Img
Alts
Select
Ref.
1Qty
1Availability
Part #
87801595CDescription
CORE-INJECTION PUMP INJECTION PUMP; Pump Assy., Fuel Injection, 8970, G240, Includes: Ref 5 & 45Img
Alts
Select
Ref.
2Qty
1Availability
Part #
9823348Description

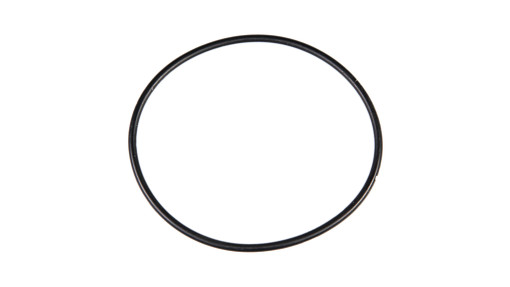

O-RING 0.139'' Thk x 3.859'' ID, -241, Cl 6, 90 Duro; 90 Duro, 3.859'' ID x .139'' Thk; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995Img
Alts
Select
Ref.
3Qty
4Availability
Part #
81876724Description

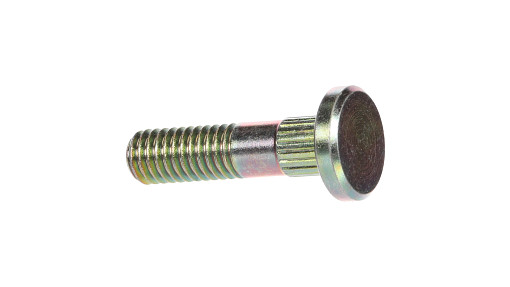

BOLT; Knurled, 3/8''-16 x 1-1/2''; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995Img
Alts
Select
Ref.
4Qty
4Availability
Part #
86521609Description
FLANGE NUT Flg, 3/8'' - 16; Nut, Lock, Flg, G5, 3/8''-16; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995Img
Alts
Select
Ref.
5Qty
1Availability
Part #
87802686Description
GEAR; Injection Pump; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995Img
Alts
Select
Ref.
6Qty
1Availability
Part #
87802687Description
PLATE; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995Img
Alts
Select
Ref.
7Qty
4Availability
Part #
43000S36Description
SCREW; Cap, HH, G8, Self-Locking, 3/8''-16 x 1-1/4''; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995Img
Alts
Select
Ref.
8Qty
1Availability
Part #
87840299Description
BRACKET; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995Img
Alts
Select
Ref.
9Qty
1Availability
Part #
87840297Description
BRACKET; To Cylinder Block; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995Img
Alts
Select
Ref.
10Qty
4Availability
Part #
83925618Description

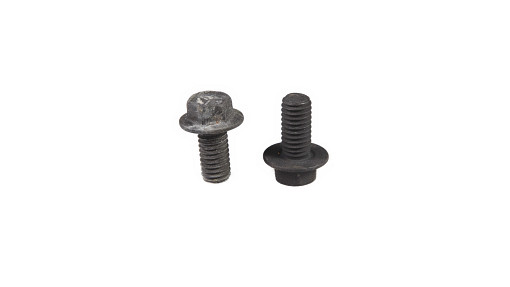

FLANGE BOLT Hex, 3/8'' - 16 x 3/4'', Gr 5; BOLT, FLANGE, , Reduced, UBS Hex, 3/8''-16 x 3/4'', G5; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995Img
Alts
Select
Ref.
11Qty
1Availability
Part #
F2NN9N970AADescription
HYD CONNECTOR; Fitting, Pump Lubrication Tube; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995Img
Alts
Select
Ref.
12Qty
2Availability
Part #
87840231Description
FLANGE BOLT Hex, 3/8'' - 16 x 3 1/4''; Bolt, Hex Flange Hd., 3/8''-16 x 3-1/4'', W/Pilot; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995Img
Alts
Select
Ref.
13Qty
1Availability
Part #
82850508Description
BRACKET; Fuel Shut Off Control; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995Img
Alts
Select
Ref.
14Qty
2Availability
Part #
9707580Description
BOLT Hex, 1/4'' - 20 x 3/4'', Gr 5, Full Thd; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995Img
Alts
Select
Ref.
15Qty
2Availability
Part #
9626558Description

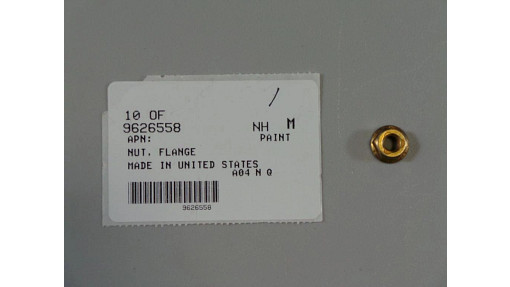

FLANGE NUT Flg, 1/4'' - 20; NUT LOCK, Flg, 1/4''-20; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995Img
Alts
Select
Ref.
16Qty
1Availability
Part #
87801213Description
SOLENOID; Assy., Fuel Shut Off; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995Img
Alts
Select
Ref.
17Qty
1Availability
Part #
81876882Description
TUBE; Assy., Boost Control to Manifold, Includes: Ref. 18; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995Img
Alts
Select
Ref.
18Qty
2Availability
Part #
E6HN9N951AADescription
SLEEVE; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995Img
Alts
Select
Ref.
19Qty
2Availability
Part #
390275SDescription
FITTING; Connector; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995Img
Alts
Select
Ref.
20Qty
1Availability
Part #
F2NN9R537ACDescription
FUEL TUBE 0.253'' OD; Tube Assy., Pump Pilot, Includes: Ref. 21; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995Img
Alts
Select
Ref.
21Qty
2Availability
Part #
81873714Description
FERRULE; Sleeve; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995Img
Alts
Select
Ref.
22Qty
1Availability
Part #
390903SDescription
HYD CONNECTOR; Connector; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995Img
Alts
Select
Ref.
23Qty
1Availability
Part #
390292SDescription
WASHER; Flat, Copper, .41; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995Img
Alts
Select
Ref.
24Qty
1Availability
Part #
F2NN9N870BBDescription
TUBE; Assy., Pump Lubrication, Includes: Ref. 21; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995Img
Alts
Select
Ref.
25Qty
1Availability
Part #
390904SDescription
FITTING; Tee; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995Img
Alts
Select
Ref.
26Qty
1Availability
Part #
86012205Description
KIT; Filter & Primer Assy., See Fig. 9F1; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995Img
Alts
Select
Ref.
27Qty
2Availability
Part #
56540S36Description
BOLT; Cap, Flg Hd., G5, 3/8''-16 x 1''; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995Img
Alts
Select
Ref.
28Qty
4Availability
Part #
129270Description
O-RING 0.072'' Thk x 0.414'' ID, -905, Cl 6, 90 Duro; 5-1, 90 Duro, .414'' ID x .072'' Thk; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995Img
Alts
Select
Ref.
29Qty
2Availability
Part #
390025SDescription
90 ELBOW 5/16'' x 1/2''-20, Flareless; 90?, 5/16'', Flareless, 1/2''-20; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995Img
Alts
Select
Ref.
30Qty
1Availability
Part #
F3NN9C330BADescription
FUEL TUBE 0.315'' OD x 12.52'' L; Tube Assy., Filter to Pump, Includes: Ref. 31;See Service Bulletin 1996/2 3 Fuel Filter Conversion, Before Choosing Tubes on This Figure.; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995Img
Alts
Select
Ref.
31Qty
4Availability
Part #
E2NN9N951AADescription

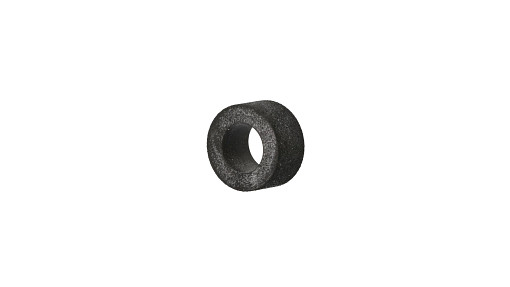

SLEEVE 7.14mm ID x 12.3mm OD x 6.35mm L; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995Img
Alts
Select
Ref.
32Qty
1Availability
Part #
F3NN9B273BADescription
FUEL TUBE 0.315'' OD x 5.99'' L; Tube Assy., Pump to Filter, Includes: Ref. 31; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995Img
Alts
Select
Ref.
33Qty
2Availability
Part #
E7NN9C334ABDescription
CLAMP; Tube; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995Img
Alts
Select
Ref.
34Qty
1Availability
Part #
81879153Description
TUBE; Assy., Leak Off; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995Img
Alts
Select
Ref.
35Qty
6Availability
Part #
F2NN9F593ABDescription
FUEL SYSTEM INJECTOR; Injector Assy., Fuel; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995Img
Alts
Select
Ref.
36Qty
6Availability
Part #
E6HZ9N944ADescription
BRACKET; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995Img
Alts
Select
Ref.
37Qty
12Availability
Part #
87840522Description

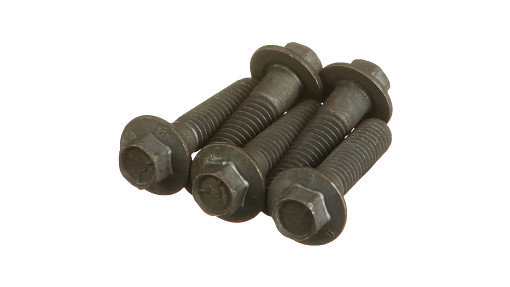

BOLT Hex Flg, 5/16'' - 18 x 1.38''; Bolt, Reduced, Hex Flange Hd., 5/16''-18 x 1-3/8''; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995Img
Alts
Select
Ref.
38Qty
6Availability
Part #
F2NN9F596AADescription
SEAL 20.6mm ID x 31.8mm OD x 13.2mm Thk; Injector; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995Img
Alts
Select
Ref.
39Qty
6Availability
Part #
81873921Description

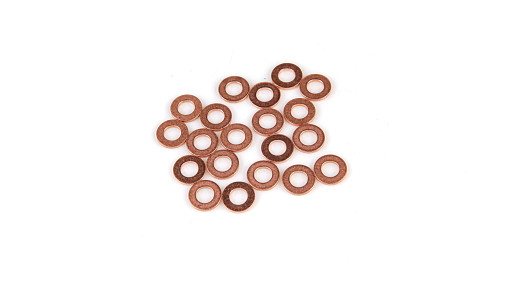

SEALING WASHER 7.4mm ID x 13.75mm OD x 1.6mm Thk; Washer, Sealing; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995Img
Alts
Select
Ref.
40Qty
12Availability
Part #
373816Description

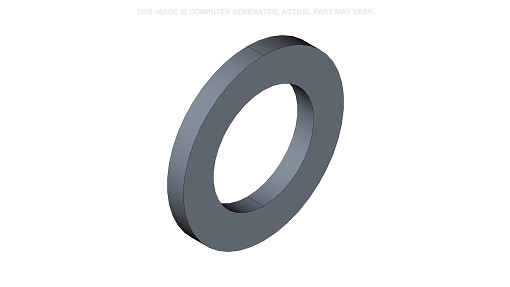

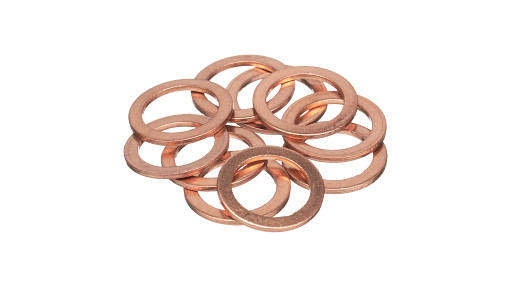

COPPER WASHER 6.2mm ID x 9.9mm OD x 1mm Thk; WASHER, COPPER, M6 x 10 x 1 Thk; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995Img
Alts
Select
Ref.
41Qty
6Availability
Part #
87800617Description

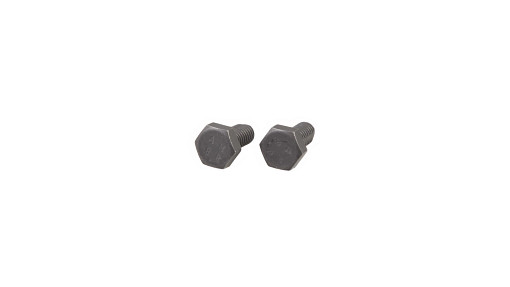

BOLT; Bolt, Leak Off Connector; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995Img
Alts
Select
Ref.
42Qty
1Availability
Part #
87802318Description
RIGID TUBE 6 mm DIA x 770 mm L; Tube & Clamp Assy.; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995Img
Alts
Select
Ref.
43Qty
1Availability
Part #
87840356Description
PIN; Hair Spring Cotter; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995Img
Alts
Select
Ref.
44Qty
1Availability
Part #
87790030Description
WASHER; Flat, 5mm; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995Img
Alts
Select
Ref.
45Qty
1Availability
Part #
87800631Description
FUEL PUMP; Pump Assy., Fuel Lift, Includes: Ref. 46; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995Img
Alts
Select
Ref.
46Qty
1Availability
Part #
87791069Description

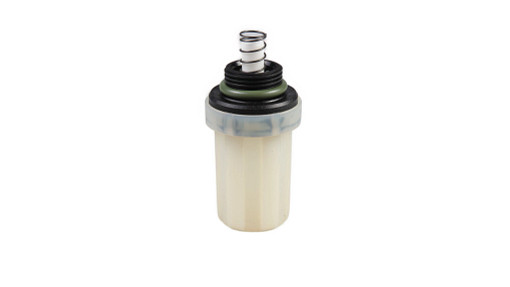

KIT; Filter, Lift Pump; (Prod Date) Between 01-Sep-1993 and 01-Aug-1995Img
Alts
Select
Ref.
47Qty
1Availability
Part #
83947824Description
FITTING 9/16''-24 x 1/2''-20 O-Ring; Connector 9/16''-24 x 1/2''-20 O-Ring; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995Img
Alts
Select
Ref.
48Qty
1Availability
Part #
87790581Description
GASKET; Fuel Lift Pump; (Prod Date) Between 01-Sep-1993 and 31-Aug-1995Img
Alts
Select
Ref.
49Qty
2Availability
Part #
691273C1Description
GASKET 14.2mm ID x 19.9mm OD x 1.5mm Thk; Washer, Sealing; (Prod Date) Between 01-Sep-1993 and 01-Aug-1995Img
Alts
