1.33.2/01[01] - IDLER CONTROLS 4WD - PIPES & SOLENOID VALVES - C5642
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
Select All

Select

Ref.

1

Qty

1

Availability

Part #

5174901

Description

VALVE;


Alts

Select

Ref.

2

Qty

2

Availability

Part #

10269501

Description

PLUG M14 x 1.5; 14 x 1.5


Alts

Select

Ref.

2

Qty

3

Availability

Part #

14326004

Description

PLUG Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC; M10 x 1.25


Alts

Select

Ref.

3

Qty

1

Availability

Part #

13550101

Description

WASHER;


Alts

Select

Ref.

4

Qty

1

Availability

Part #

5157119

Description

SPRING 11.5mm x 127mm;


Alts

Select

Ref.

5

Qty

1

Availability

Part #

98429280

Description

SEAL 20.3mm ID x 26mm OD x 1.5mm Thk;


Alts

Select

Ref.

6

Qty

1

Availability

Part #

5196410

Description

PLUG;


Alts

Select

Ref.

7

Qty

1

Availability

Part #

5164627

Description

SOLENOID; Diff. Lock


Alts

Select

Ref.

8

Qty

1

Availability

Part #

5164628

Description

SOLENOID; 4WD


Alts

Select

Ref.

9

Qty

1

Availability

Part #

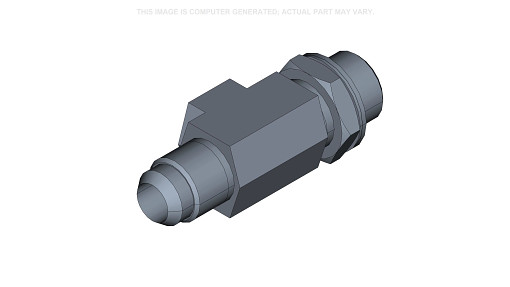

5169207

Description

HYD CONNECTOR; M18 x 1.5, 3/4''-16


Alts

Select

Ref.

10

Qty

2

Availability

Part #

14437985

Description

O-RING 15.3mm ID x 2.4mm;


Alts

Select

Ref.

11

Qty

1

Availability

Part #

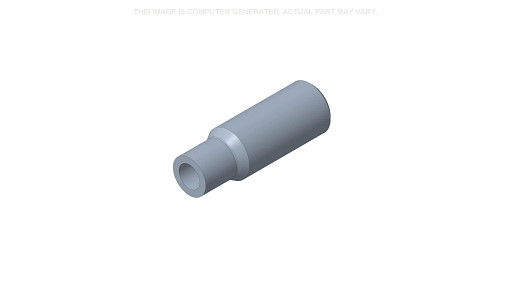

5169220

Description

HYDRAULIC VALVE; Maximum Pressure


Alts

Select

Ref.

12

Qty

4

Availability

Part #

4858606

Description

SEAL 10.2mm ID x 16mm OD x 1mm Thk;


Alts

Select

Ref.

13

Qty

1

Availability

Part #

11903817

Description

BANJO BOLT;


Alts

Select

Ref.

14

Qty

1

Availability

Part #

5169835

Description

BANJO BOLT;


Alts

Select

Ref.

15

Qty

1

Availability

Part #

5169701

Description

TUBE;


Alts

Select

Ref.

16

Qty

1

Availability

Part #

14438185

Description

O-RING 24mm ID x 3mm;


Alts

Select

Ref.

17

Qty

7

Availability

Part #

5174927

Description

PLUG;


Alts

Select

Ref.

18

Qty

1

Availability

Part #

2854292

Description

SEALING WASHER 12mm ID x 17mm OD x 1.5mm Thk; SEAL WASHER


Alts

Select

Ref.

19

Qty

1

Availability

Part #

82032837

Description

SWITCH ASSY; Oil


Alts

Select

Ref.

20

Qty

1

Availability

Part #

5162919

Description

EXTENSION;


Alts

Select

Ref.

21

Qty

1

Availability

Part #

5162915

Description

TUBE; 3/4''-16


Alts

Select

Ref.

22

Qty

1

Availability

Part #

87395974

Description

TUBE 12 mm OD; 4WD Delivery, 3/4''-16 / 12


Alts

Select

Ref.

23

Qty

1

Availability

Part #

5174926

Description

PIPE COUPLING;


Alts

Select

Ref.

24

Qty

2

Availability

Part #

5135738

Description

O-RING 0.103'' Thk x 0.674'' ID, -115, 80 Duro;


Alts

Select

Ref.

25

Qty

1

Availability

Part #

15540424

Description

BOLT Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd;


Alts

Select

Ref.

25

Qty

1

Availability

Part #

15540924

Description

BOLT Hex, M12 x 1.25 x 55mm, Cl 8.8;


Alts

Select

Ref.

26

Qty

1

Availability

Part #

14438085

Description

O-RING 19.3mm ID x 2.4mm;


Alts

Select

Ref.

27

Qty

1

Availability

Part #

5162914

Description

HYD CONNECTOR; 3/4''-16, M22 x 1.5


Alts
