F16 - HYDRAULIC EQUIPMENT (FRONT)
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    322508
    KNOB; Ground speed vari-drive
  • 2
    1
    322506
    KNOB; Header table
  • 3
    1
    322507
    KNOB; Reel drive
  • 4
    1
    370615
    LEVER; Handle
  • 5
    1
    370617
    LEVER; Handle
  • 6
    1
    370616
    LEVER; Handle
  • 7
    2
    80130046
    COTTER PIN; Roll pin
  • 8
    1
    336874
    SUPPORT;
  • 9
    5
    16043224
    BOLT Hex, M8 x 1.25 x 16mm, Full Thd, Cl 8.8, DAC;
  • 10
    22
    140016
    WASHER M8 x 16mm OD x 1.6mm Thk;
  • 11
    20
    322358
    BELLEVILLE WASHER M8 Bolt Size x 18mm OD x 1.4mm Thk; Tooth lock
  • 12
    22
    9706690
    NUT Hex, M8 x 1.25, Cl 8, ZND;
  • 13
    2
    334707
    FLANGED BEARING;
  • 14
    1
    373563
    LEVER;
  • 15
    1
    336867
    SPINDLE;
  • 16
    3
    322901
    PIN 10mm OD x 30mm L; Clevis
  • 17
    6
    130003
    COTTER PIN 3mm OD x 30mm OAL;
  • 18
    3
    373678
    YOKE; Clevis
  • 19
    1
    80378478
    ROD;
  • 20
    12
    100016
    NUT Hex, M10 x 1.5, Cl 8, ZND;
  • 21
    2
    80378477
    ROD;
  • 22
    1
    362869
    SPRING; Tension
  • 23
    3
    335040
    CLEVIS PIN M8 x 28mm OAL; Clevis pin
  • 25
    4
    80120099
    BOLT Hex, M6 x 16, 8.8;
  • 26
    4
    322357
    BELLEVILLE WASHER M6 Bolt Size x 14mm OD x 1.3mm Thk;
  • 27
    1
    80362304
    ROD;
  • 28
    2
    362308
    LEVER;
  • 29
    2
    130045
    PIN 5mm OD x 26mm L, Slotted;
  • 30
    6
    120104
    BOLT Hex, M8 x 1.25 x 20mm, Full Thd, Cl 8.8, ZND;
  • 31
    3
    140041
    WASHER M8 x 28mm OD x 3mm Thk;
  • 32
    1
    80362520
    SUPPORT;
  • 33
    AR
    335170
    PIPE UNION NUT; Coupler nut , Use As Required
  • 34
    AR
    335168
    FERRULE; Use As Required
  • 35
    3
    80334562
    HYD CONNECTOR; includes fig.33,34; (SN Break) Between 2909001 and 2916999
  • 35
    3
    394373
    HYD CONNECTOR M26 x 1.5 x M18 x 1.5 ORB; without fig.33,34; (SN Break) From 2917001
  • 36
    22
    722441
    GASKET; (SN Break) Between 2909001 and 2916999
  • 37
    1
    336875
    CONTROL VALVE; Main hydr. Three way - Details see page 133
  • 38
    5
    335128
    HYD CONNECTOR; includes fig.39,40; (SN Break) Between 2909001 and 2916999
  • 38
    5
    386215
    HYD CONNECTOR; without fig.39,40; (SN Break) From 2917001
  • 39
    AR
    335136
    FERRULE; Use As Required
  • 40
    AR
    335135
    TUBE NUT M14 x 1.5; Coupler, Use As Required
  • 41
    6
    84814902
    HYD CONNECTOR; includes fig.42,43; (SN Break) Between 2909001 and 2916999
  • 41
    6
    395782
    HYD CONNECTOR M18 x 1.5 ORB x M18 x 1.5 ORB; without fig.42,43; (SN Break) From 2917001
  • 42
    AR
    150015
    FERRULE; Use As Required
  • 43
    AR
    86548976
    TUBE NUT M18 x 1.5; Coupler, Use As Required
  • 44
    6
    80337336
    HYD CONNECTOR; includes fig.45,46; (SN Break) Between 2909001 and 2916999
  • 44
    6
    394372
    HYD CONNECTOR M24 x 1.5 x M18 x 1.5 ORB; without fig.45,46; (SN Break) From 2917001
  • 45
    AR
    335169
    FERRULE; Use As Required
  • 46
    AR
    335171
    TUBE NUT M24 x 1.5; Coupler, Use As Required
  • 47
    1
    80334559
    SUPPORT; (SN Break) Between 2909001 and 2911999
  • 47
    1
    80380823
    SUPPORT; (SN Break) From 2912001
  • 48
    4
    43127
    BOLT Hex, M8 x 1.25 x 25mm, Full Thd, Cl 8.8, ZND; (SN Break) Between 2909001 and 2911999
  • 48
    4
    120104
    BOLT Hex, M8 x 1.25 x 20mm, Full Thd, Cl 8.8, ZND; (SN Break) From 2912001
  • 50
    4
    140045
    BELLEVILLE WASHER 10mm ID x 22mm OD x 1.6mm Thk; (SN Break) Between 3209001 and 3213999
  • 50
    4
    320177
    LOCK WASHER; Tooth lockwasher; (SN Break) From 3214001
  • 51
    4
    140017
    WASHER M10 x 20mm OD x 2mm Thk; (SN Break) Between 3209001 and 3213999
  • 51
    4
    331162
    WASHER; Plain; (SN Break) From 3214001
  • 52
    1
    326410
    HYDRAULIC VALVE; Steering valve Details see page 75; (SN Break) Between 3209001 and 3213999
  • 52
    1
    383941
    HYDRAULIC VALVE; Steering valve Details see page 75; (SN Break) From 3214001
  • 53
    4
    330309
    O-RING; O-ring; (SN Break) Between 2909001 and 2916999
  • 54
    1
    326411
    PLATE; Adaptor; (SN Break) Between 3209001 and 3213999
  • 54
    1
    393133
    ADAPTER; Adaptor; (SN Break) From 3214001
  • 55
    1
    330308
    BOLT; (SN Break) Between 2909001 and 2916999
  • 56
    2
    338004
    HYD CONNECTOR; includes fig.57,58; (SN Break) Between 2909001 and 2916999
  • 24
    5
    130002
    COTTER PIN; Cotter pin
  • 56
    2
    395019
    HYD CONNECTOR M18 x 1.5 ORB x M16 x 1.5 ORB; without fig.57,58; (SN Break) From 2917001
  • 57
    AR
    150014
    FERRULE; Use As Required
  • 58
    AR
    86548975
    PIPE UNION NUT M16 x 1.5; Coupler nut , Use As Required
  • 59
    2
    80360872
    HYD CONNECTOR; includes fig.61,62; (SN Break) Between 2909001 and 2916999
  • 59
    2
    395782
    HYD CONNECTOR M18 x 1.5 ORB x M18 x 1.5 ORB; without fig.61,62; (SN Break) From 2917001
  • 60
    1
    80354337
    RESTRICTOR VALVE; Orifice plate
  • 61
    AR
    150015
    FERRULE; Use As Required
  • 62
    AR
    86548976
    TUBE NUT M18 x 1.5; Coupler, Use As Required
  • 63
    1
    80334557
    CYLINDER; Main hydr. control valve Details see page 131; (SN Break) Between 2909001 and 2911999
  • 63
    1
    379663
    CONTROL VALVE; Main hydr. includes fig. Refer to a footnote Seal kit; (SN Break) From 2912001
  • 64
    3
    80150099
    PLUG; (SN Break) Between 2909001 and 2911999
  • 65
    1
    NS
    NOT SERVICED; Hydr. pipe Dia. 12 Not Serviced
  • 66
    1
    NS
    NOT SERVICED; Hydr. pipe Dia. 12 Not Serviced
  • 67
    1
    NS
    NOT SERVICED; Hydr. pipe Dia. 10 Not Serviced
  • 68
    1
    NS
    NOT SERVICED; Hydr. pipe Dia. 10 Not Serviced
  • 69
    1
    NS
    NOT SERVICED; Hydr. pipe Dia. 18 Not Serviced
  • 70
    1
    NS
    NOT SERVICED; Hydr. pipe Dia. 18 Not Serviced
  • 71
    1
    NS
    NOT SERVICED; Hydr. pipe Dia. 16 Not Serviced
  • 72
    1
    NS
    NOT SERVICED; Hydr. pipe Dia.8 Not Serviced
  • 73
    1
    NS
    NOT SERVICED; Hydr. pipe Dia. 12 Not Serviced; (SN Break) Between 2909001 and 2916999
  • 74
    1
    NS
    NOT SERVICED; Hydr. pipe Dia. 16 Not Serviced
  • 75
    1
    NS
    NOT SERVICED; Hydr. pipe Dia.8 Not Serviced
  • 76
    1
    NS
    NOT SERVICED; Hydr. pipe Dia.8 Not Serviced
  • 77
    1
    80338058
    HYD CONNECTOR; includes fig.33,34; (SN Break) Between 2909001 and 2916999
  • 77
    1
    379431
    FITTING; without fig.33,34; (SN Break) From 2917001
  • 78
    1
    NS
    NOT SERVICED; Hydr. pipe Dia. 18 Not Serviced
  • 79
    6
    330013
    CLAMP; Clamp
  • 80
    6
    332969
    SHIELD; Protection strip
  • 81
    1
    NS
    NOT SERVICED; Hydr. pipe Dia. 12 Not Serviced
  • 82
    2
    80150009
    HYD CONNECTOR; includes fig.61,62; (SN Break) Between 2909001 and 2916999
  • 82
    2
    150019
    FITTING; without fig.61,62; (SN Break) From 2917001
  • 83
    2
    308823
    NUT M28 x 1.5, Cl 8;
  • 84
    2
    80308805
    ACCUMULATOR; For 11 ft. - 12 ft. - 35 kg.; (SN Break) Between 3209001 and 3213999
  • 84
    2
    80308804
    ACCUMULATOR; Accumulator For 13 ft. - 55 kg.; (SN Break) Between 3209001 and 3213999
  • 84
    2
    80308804
    ACCUMULATOR; Accumulator For 15 ft. - 17 ft. - 19 ft. - 22 ft. - 55 kg.2x; (SN Break) Between 3209001 and 3213999
  • 85
    1
    NS
    NOT SERVICED; Hydr. pipe Dia. 12 Not Serviced
  • 86
    1
    NS
    NOT SERVICED; Hydr. pipe Dia. 12 Not Serviced
  • 87
    1
    80150009
    HYD CONNECTOR; includes fig.42,43; (SN Break) Between 2909001 and 2916999
  • 87
    1
    150019
    FITTING; without fig.42,43; (SN Break) From 2917001
  • 88
    1
    NS
    NOT SERVICED; Hydr. pipe Dia. 12 Not Serviced
  • 89
    1
    338038
    SUPPORT;
  • 90
    4
    80350717
    SHIELD; Protection strip
  • 91
    4
    80338035
    CLAMP;
  • 92
    1
    80338811
    SUPPORT;
  • 93
    1
    80353408
    CLAMP;
  • 94
    1
    80353361
    SEALING ELEMENT; Sealing
  • 95
    1
    150015
    FERRULE; (SN Break) Between 2909001 and 2916999
  • 96
    1
    80362452
    UNIVERSAL JOINT; Coupling
  • 97
    1
    376575
    NUT; Coupler nut; (SN Break) Between 2909001 and 2916999
  • 98
    1
    80335005
    HOSE; Hydraulic
  • 99
    1
    338036
    CLAMP; Clamp
  • 100
    2
    350718
    GUARD; Protection strip
  • 101
    6
    120102
    BOLT Hex, M6 x 1 x 40mm, Cl 8.8, Full Thd, ZND;
  • 102
    12
    140015
    WASHER 6.4mm ID x 14mm OD x 1.6mm Thk; Plain
  • 103
    12
    15896221
    NUT Hex, M6 x 1, Cl 10, ZND;
  • 104
    2
    80150008
    HYD CONNECTOR; includes fig.61,62; (SN Break) Between 2909001 and 2916999
  • 104
    2
    150018
    HYD CONNECTOR M18 x 1.5 x 28; Without fig. 61, 62; (SN Break) From 2917001
  • 105
    2
    150007
    HYD CONNECTOR; includes fig.57,58; (SN Break) Between 2909001 and 2916999
  • 105
    2
    150017
    HYD CONNECTOR M16 x 1.5 x M16 x 1.5; without fig.57,58; (SN Break) From 2917001
  • 106
    1
    NS
    NOT SERVICED; Hydr. pipe Dia. 12 Not Serviced
  • 107
    1
    80338006
    HYD CONNECTOR; includes fig.33,34; (SN Break) Between 2909001 and 2916999
  • 107
    1
    335173
    HYD CONNECTOR M26 x 1.5 x M26 x 1.5; without fig.33,34; (SN Break) From 2917001
  • 108
    3
    335177
    HYD CONNECTOR; includes fig.39,40; (SN Break) Between 2909001 and 2916999
  • 108
    3
    335172
    HYD CONNECTOR M14 x 1.5 x M14 x 1.5; Without fig.39, 40; (SN Break) From 2917001
  • 109
    2
    321603
    BUSHING; (SN Break) Between 2909001 and 2916999
  • 109
    2
    332673
    RING; Bushing; (SN Break) From 2917001
  • 110
    1
    NS
    NOT SERVICED; Hydr. pipe Dia. 12 Not Serviced
  • 111
    1
    323771
    CLAMP;
  • 112
    2
    80335020
    SUPPORT;
  • 113
    1
    80362319
    SUPPORT; (SN Break) Between 2909001 and 2916999
  • 113
    1
    80397850
    SUPPORT; (SN Break) From 2917001
  • 114
    4
    120100
    BOLT Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8, ZND;
  • 115
    1
    NS
    NOT SERVICED; Hydr. pipe Dia. 12 Not Serviced
  • 116
    4
    130014
    LOCK PIN; Cotter pin
  • 117
    2
    390056
    SPINDLE; Clevis pin
  • 118
    2
    308311
    HYD CONNECTOR; (SN Break) Between 2909001 and 2916999
  • 118
    2
    395782
    HYD CONNECTOR M18 x 1.5 ORB x M18 x 1.5 ORB; (SN Break) From 2917001
  • 119
    2
    150004
    ELBOW; (SN Break) Between 2909001 and 2919999
  • 119
    2
    418285
    ELBOW; (SN Break) From 2920001
  • 120
    2
    160164
    HYDRAULIC HOSE 9.91 mm ID x 345.00 mm;
  • 121
    4
    323206
    HYD TUBE 11 mm ID, 30 mm Length; Protection strip
  • 122
    2
    323222
    CHAIN; (SN Break) Between 2909001 and 2915999
  • 123
    2
    80331527
    CLAMP; (SN Break) Between 2909001 and 2915999
  • 124
    2
    80335028
    HYDRAULIC CYLINDER; Incl. figs.125 through 132
  • 126
    2
    80359747
    GASKET; Snap ring
  • 127
    2
    80359748
    O-RING; Seal ring
  • 128
    2
    80359749
    WASHER;
  • 129
    2
    80359750
    WASHER;
  • 130
    2
    80359751
    RING;
  • 131
    2
    80359752
    CLIP;
  • 132
    2
    80359753
    SCRAPER BLADE;
  • 133
    2
    332673
    RING; Bushing
  • 134
    2
    390058
    CLEVIS PIN;
  • 135
    1
    354679
    SUPPORT;
  • 136
    1

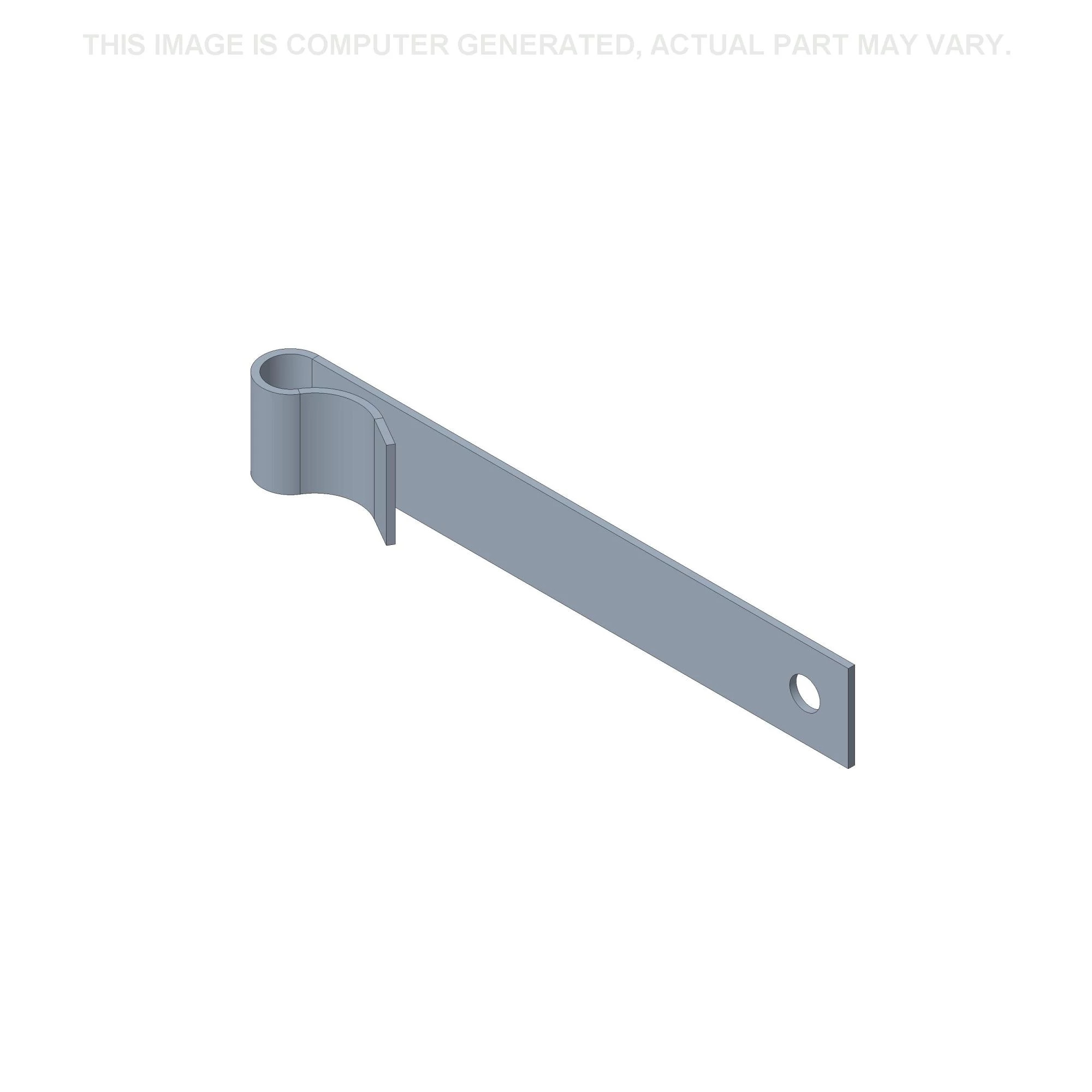

    332672
    HOOK; Spring
  • 137
    4
    120101
    BOLT Hex, M6 x 1 x 30mm, Cl 8.8, Full Thd, ZND;
  • 138
    4
    140040
    WASHER 6.6mm ID x 22mm OD x 2mm Thk, CST, ZND;
  • 139
    2
    80338039
    SUPPORT;
  • 140
    1
    80362311
    SPINDLE; Pivot
  • 141
    1
    130007
    COTTER PIN M4 x 25;
  • 142
    1
    140020
    WASHER 17.5mm ID x 30mm OD x 3mm Thk, CST, ZND;
  • 143
    1
    80364413
    ROD; Tie
  • 144
    1
    80360857
    CLAMP;
  • 145
    1
    360858
    GUARD; Protection strip
  • 146
    1
    347675
    PLATE; Support
  • 147
    1
    NS
    NOT SERVICED; Hydr. pipe Dia. 12 Not Serviced
  • 148
    1
    80373624
    DRAINCOCK/TAP SUPPLY; Cock includes fig.95,97; (SN Break) Between 2909001 and 2916999
  • 666
    1
    388775
    REPAIR KIT; Seal kit; (SN Break) From 2912001
  • 888
    1
    388776
    SEAL KIT; Repair; (SN Break) From 2912001
  • 149
    1
    80394773
    ACCUMULATOR; For 11 ft. - 30 kg; (SN Break) Between 2914001 and 2916999
  • 149
    1
    80308805
    ACCUMULATOR; For 12 ft. - 13 ft. - 35 kg.; (SN Break) Between 2914001 and 2916999
  • 150
    2
    80394769
    ACCUMULATOR; Accumulator For 15 ft. - 17 ft. - 19 ft. - 2 x 60 kg; (SN Break) Between 2914001 and 2916999
  • 150
    2
    80394770
    ACCUMULATOR; Accumulator For 22 ft. - 2 x 65 kg.; (SN Break) Between 2914001 and 2916999
  • 151
    1
    367681
    PLATE; Support; (SN Break) From 2917001
  • 152
    1
    NS
    NOT SERVICED; Hydr. pipe Dia. 12 Not Serviced; (SN Break) From 2917001
  • 154
    1
    396323
    HYD CONNECTOR; (SN Break) From 2917001
  • 155
    1
    80397803
    TIRE TUBE; Hydr. pipe 3/16''; (SN Break) From 2917001
  • 156
    1
    336722
    HYD CONNECTOR 3/8'' - 24 JIC x 3/8'' - 24 JIC; (SN Break) From 2917001
  • 157
    1
    338844
    GROMMET; Rubber grommet; (SN Break) Between 2917001 and 2917999
  • 157
    1
    399986
    GROMMET; Rubber grommet; (SN Break) From 2918001
  • 158
    1
    396928
    TIRE TUBE; Hydr. pipe 3/16''; (SN Break) From 2917001
  • 159
    3
    FOR336748
    CLAMP; (SN Break) From 2917001
  • 160
    1
    80396324
    HYD CONNECTOR; (SN Break) Between 2917001 and 2917999
  • 161
    1
    100033
    THIN NUT Thin, M24 x 1.5, Cl 04; (SN Break) From 2917001
  • 162
    1
    80393824
    GAUGE; Manometer; (SN Break) Between 2917001 and 2917999
  • 162
    1
    410544
    MEASURING INSTRUMENT; Manometer; (SN Break) From 2918001
  • 163
    1
    396098
    RESTRICTOR VALVE; Orifice plate; (SN Break) From 2917001
  • 164
    1
    396421
    HYD CONNECTOR M18 x 1.5 x M18 x 1.5; Nipple; (SN Break) From 2917001
  • 165
    1
    141390
    BALL; (SN Break) From 2917001
  • 166
    1
    390056
    SPINDLE; Clevis pin; (SN Break) Between 2909001 and 2916999
  • 166
    1
    80301475
    ROLL PIN; Clevis pin; (SN Break) From 2917001
  • 167
    1
    410089
    KIT; Repair includes fig.53 and 55; (SN Break) From 2917001
  • 168
    AR
    140110
    WASHER 31mm ID x 40mm OD x 3mm Thk; Plain, Use As Required; (SN Break) From 2917001
  • 169
    3
    80398262
    ACCUMULATOR; Accumulator For 11 ft. - 51 kg.; (SN Break) From 2917001
  • 169
    3
    80398263
    ACCUMULATOR; Accumulator For 12 ft. - 54 kg.; (SN Break) From 2917001
  • 169
    3
    398264
    ACCUMULATOR; Accumulator For 13 ft. - 57 kg.; (SN Break) From 2917001
  • 169
    3
    80398266
    ACCUMULATOR; Accumulator For 15 ft. - 64 kg.; (SN Break) From 2917001
  • 169
    3
    80398267
    ACCUMULATOR; Accumulator For 17 ft. - 67,5 kg.; (SN Break) From 2917001
  • 169
    3
    398268
    ACCUMULATOR; Accumulator For 19 ft. - 70 kg.; (SN Break) From 2917001
  • 169
    3
    398270
    ACCUMULATOR; Accumulator For 22 ft. - 79 kg.; (SN Break) From 2917001
  • 153
    1
    323597
    CABLE TIE 165mm OAL x 9mm Thk; Clamp; (SN Break) From 2917001
  • 49
    4
    43138
    BOLT Hex, M10 x 1.5 x 20mm, Full Thd, Cl 8.8, ZND; (SN Break) Between 3209001 and 3213999
  • 49
    4
    88434
    BOLT Hex, 3/8'' - 16 x 3/4'', Gr 5; (SN Break) From 3214001
Select All

Select

Ref.

1

Qty

1

Availability

Part #

322508

Description

KNOB; Ground speed vari-drive


Alts

Select

Ref.

2

Qty

1

Availability

Part #

322506

Description

KNOB; Header table


Alts

Select

Ref.

3

Qty

1

Availability

Part #

322507

Description

KNOB; Reel drive


Alts

Select

Ref.

4

Qty

1

Availability

Part #

370615

Description

LEVER; Handle


Alts

Select

Ref.

5

Qty

1

Availability

Part #

370617

Description

LEVER; Handle


Alts

Select

Ref.

6

Qty

1

Availability

Part #

370616

Description

LEVER; Handle


Alts

Select

Ref.

7

Qty

2

Availability

Part #

80130046

Description

COTTER PIN; Roll pin


Alts

Select

Ref.

8

Qty

1

Availability

Part #

336874

Description

SUPPORT;


Alts

Select

Ref.

9

Qty

5

Availability

Part #

16043224

Description

BOLT Hex, M8 x 1.25 x 16mm, Full Thd, Cl 8.8, DAC;


Alts

Select

Ref.

10

Qty

22

Availability

Part #

140016

Description

WASHER M8 x 16mm OD x 1.6mm Thk;


Alts

Select

Ref.

11

Qty

20

Availability

Part #

322358

Description

BELLEVILLE WASHER M8 Bolt Size x 18mm OD x 1.4mm Thk; Tooth lock


Alts

Select

Ref.

12

Qty

22

Availability

Part #

9706690

Description

NUT Hex, M8 x 1.25, Cl 8, ZND;


Alts

Select

Ref.

13

Qty

2

Availability

Part #

334707

Description

FLANGED BEARING;


Alts

Select

Ref.

14

Qty

1

Availability

Part #

373563

Description

LEVER;


Alts

Select

Ref.

15

Qty

1

Availability

Part #

336867

Description

SPINDLE;


Alts

Select

Ref.

16

Qty

3

Availability

Part #

322901

Description

PIN 10mm OD x 30mm L; Clevis


Alts

Select

Ref.

17

Qty

6

Availability

Part #

130003

Description

COTTER PIN 3mm OD x 30mm OAL;


Alts

Select

Ref.

18

Qty

3

Availability

Part #

373678

Description

YOKE; Clevis


Alts

Select

Ref.

19

Qty

1

Availability

Part #

80378478

Description

ROD;


Alts

Select

Ref.

20

Qty

12

Availability

Part #

100016

Description

NUT Hex, M10 x 1.5, Cl 8, ZND;


Alts

Select

Ref.

21

Qty

2

Availability

Part #

80378477

Description

ROD;


Alts

Select

Ref.

22

Qty

1

Availability

Part #

362869

Description

SPRING; Tension


Alts

Select

Ref.

23

Qty

3

Availability

Part #

335040

Description

CLEVIS PIN M8 x 28mm OAL; Clevis pin


Alts

Select

Ref.

25

Qty

4

Availability

Part #

80120099

Description

BOLT Hex, M6 x 16, 8.8;


Alts

Select

Ref.

26

Qty

4

Availability

Part #

322357

Description

BELLEVILLE WASHER M6 Bolt Size x 14mm OD x 1.3mm Thk;


Alts

Select

Ref.

27

Qty

1

Availability

Part #

80362304

Description

ROD;


Alts

Select

Ref.

28

Qty

2

Availability

Part #

362308

Description

LEVER;


Alts

Select

Ref.

29

Qty

2

Availability

Part #

130045

Description

PIN 5mm OD x 26mm L, Slotted;


Alts

Select

Ref.

30

Qty

6

Availability

Part #

120104

Description

BOLT Hex, M8 x 1.25 x 20mm, Full Thd, Cl 8.8, ZND;


Alts

Select

Ref.

31

Qty

3

Availability

Part #

140041

Description

WASHER M8 x 28mm OD x 3mm Thk;


Alts

Select

Ref.

32

Qty

1

Availability

Part #

80362520

Description

SUPPORT;


Alts

Select

Ref.

33

Qty

AR

Availability

Part #

335170

Description

PIPE UNION NUT; Coupler nut , Use As Required


Alts

Select

Ref.

34

Qty

AR

Availability

Part #

335168

Description

FERRULE; Use As Required


Alts

Select

Ref.

35

Qty

3

Availability

Part #

80334562

Description

HYD CONNECTOR; includes fig.33,34; (SN Break) Between 2909001 and 2916999


Alts

Select

Ref.

35

Qty

3

Availability

Part #

394373

Description

HYD CONNECTOR M26 x 1.5 x M18 x 1.5 ORB; without fig.33,34; (SN Break) From 2917001


Alts

Select

Ref.

36

Qty

22

Availability

Part #

722441

Description

GASKET; (SN Break) Between 2909001 and 2916999


Alts

Select

Ref.

37

Qty

1

Availability

Part #

336875

Description

CONTROL VALVE; Main hydr. Three way - Details see page 133


Alts

Select

Ref.

38

Qty

5

Availability

Part #

335128

Description

HYD CONNECTOR; includes fig.39,40; (SN Break) Between 2909001 and 2916999


Alts

Select

Ref.

38

Qty

5

Availability

Part #

386215

Description

HYD CONNECTOR; without fig.39,40; (SN Break) From 2917001


Alts

Select

Ref.

39

Qty

AR

Availability

Part #

335136

Description

FERRULE; Use As Required


Alts

Select

Ref.

40

Qty

AR

Availability

Part #

335135

Description

TUBE NUT M14 x 1.5; Coupler, Use As Required


Alts

Select

Ref.

41

Qty

6

Availability

Part #

84814902

Description

HYD CONNECTOR; includes fig.42,43; (SN Break) Between 2909001 and 2916999


Alts

Select

Ref.

41

Qty

6

Availability

Part #

395782

Description

HYD CONNECTOR M18 x 1.5 ORB x M18 x 1.5 ORB; without fig.42,43; (SN Break) From 2917001


Alts

Select

Ref.

42

Qty

AR

Availability

Part #

150015

Description

FERRULE; Use As Required


Alts

Select

Ref.

43

Qty

AR

Availability

Part #

86548976

Description

TUBE NUT M18 x 1.5; Coupler, Use As Required


Alts

Select

Ref.

44

Qty

6

Availability

Part #

80337336

Description

HYD CONNECTOR; includes fig.45,46; (SN Break) Between 2909001 and 2916999


Alts

Select

Ref.

44

Qty

6

Availability

Part #

394372

Description

HYD CONNECTOR M24 x 1.5 x M18 x 1.5 ORB; without fig.45,46; (SN Break) From 2917001


Alts

Select

Ref.

45

Qty

AR

Availability

Part #

335169

Description

FERRULE; Use As Required


Alts

Select

Ref.

46

Qty

AR

Availability

Part #

335171

Description

TUBE NUT M24 x 1.5; Coupler, Use As Required


Alts

Select

Ref.

47

Qty

1

Availability

Part #

80334559

Description

SUPPORT; (SN Break) Between 2909001 and 2911999


Alts

Select

Ref.

47

Qty

1

Availability

Part #

80380823

Description

SUPPORT; (SN Break) From 2912001


Alts

Select

Ref.

48

Qty

4

Availability

Part #

43127

Description

BOLT Hex, M8 x 1.25 x 25mm, Full Thd, Cl 8.8, ZND; (SN Break) Between 2909001 and 2911999


Alts

Select

Ref.

48

Qty

4

Availability

Part #

120104

Description

BOLT Hex, M8 x 1.25 x 20mm, Full Thd, Cl 8.8, ZND; (SN Break) From 2912001


Alts

Select

Ref.

50

Qty

4

Availability

Part #

140045

Description

BELLEVILLE WASHER 10mm ID x 22mm OD x 1.6mm Thk; (SN Break) Between 3209001 and 3213999


Alts

Select

Ref.

50

Qty

4

Availability

Part #

320177

Description

LOCK WASHER; Tooth lockwasher; (SN Break) From 3214001


Alts

Select

Ref.

51

Qty

4

Availability

Part #

140017

Description

WASHER M10 x 20mm OD x 2mm Thk; (SN Break) Between 3209001 and 3213999


Alts

Select

Ref.

51

Qty

4

Availability

Part #

331162

Description

WASHER; Plain; (SN Break) From 3214001


Alts

Select

Ref.

52

Qty

1

Availability

Part #

326410

Description

HYDRAULIC VALVE; Steering valve Details see page 75; (SN Break) Between 3209001 and 3213999


Alts

Select

Ref.

52

Qty

1

Availability

Part #

383941

Description

HYDRAULIC VALVE; Steering valve Details see page 75; (SN Break) From 3214001


Alts

Select

Ref.

53

Qty

4

Availability

Part #

330309

Description

O-RING; O-ring; (SN Break) Between 2909001 and 2916999


Alts

Select

Ref.

54

Qty

1

Availability

Part #

326411

Description

PLATE; Adaptor; (SN Break) Between 3209001 and 3213999


Alts

Select

Ref.

54

Qty

1

Availability

Part #

393133

Description

ADAPTER; Adaptor; (SN Break) From 3214001


Alts

Select

Ref.

55

Qty

1

Availability

Part #

330308

Description

BOLT; (SN Break) Between 2909001 and 2916999


Alts

Select

Ref.

56

Qty

2

Availability

Part #

338004

Description

HYD CONNECTOR; includes fig.57,58; (SN Break) Between 2909001 and 2916999


Alts

Select

Ref.

24

Qty

5

Availability

Part #

130002

Description

COTTER PIN; Cotter pin


Alts

Select

Ref.

56

Qty

2

Availability

Part #

395019

Description

HYD CONNECTOR M18 x 1.5 ORB x M16 x 1.5 ORB; without fig.57,58; (SN Break) From 2917001


Alts

Select

Ref.

57

Qty

AR

Availability

Part #

150014

Description

FERRULE; Use As Required


Alts

Select

Ref.

58

Qty

AR

Availability

Part #

86548975

Description

PIPE UNION NUT M16 x 1.5; Coupler nut , Use As Required


Alts

Select

Ref.

59

Qty

2

Availability

Part #

80360872

Description

HYD CONNECTOR; includes fig.61,62; (SN Break) Between 2909001 and 2916999


Alts

Select

Ref.

59

Qty

2

Availability

Part #

395782

Description

HYD CONNECTOR M18 x 1.5 ORB x M18 x 1.5 ORB; without fig.61,62; (SN Break) From 2917001


Alts

Select

Ref.

60

Qty

1

Availability

Part #

80354337

Description

RESTRICTOR VALVE; Orifice plate


Alts

Select

Ref.

61

Qty

AR

Availability

Part #

150015

Description

FERRULE; Use As Required


Alts

Select

Ref.

62

Qty

AR

Availability

Part #

86548976

Description

TUBE NUT M18 x 1.5; Coupler, Use As Required


Alts

Select

Ref.

63

Qty

1

Availability

Part #

80334557

Description

CYLINDER; Main hydr. control valve Details see page 131; (SN Break) Between 2909001 and 2911999


Alts

Select

Ref.

63

Qty

1

Availability

Part #

379663

Description

CONTROL VALVE; Main hydr. includes fig. Refer to a footnote Seal kit; (SN Break) From 2912001


Alts

Select

Ref.

64

Qty

3

Availability

Part #

80150099

Description

PLUG; (SN Break) Between 2909001 and 2911999


Alts

Select

Ref.

65

Qty

1

Availability

Part #

NS

Description

NOT SERVICED; Hydr. pipe Dia. 12 Not Serviced


Alts

Select

Ref.

66

Qty

1

Availability

Part #

NS

Description

NOT SERVICED; Hydr. pipe Dia. 12 Not Serviced


Alts

Select

Ref.

67

Qty

1

Availability

Part #

NS

Description

NOT SERVICED; Hydr. pipe Dia. 10 Not Serviced


Alts

Select

Ref.

68

Qty

1

Availability

Part #

NS

Description

NOT SERVICED; Hydr. pipe Dia. 10 Not Serviced


Alts

Select

Ref.

69

Qty

1

Availability

Part #

NS

Description

NOT SERVICED; Hydr. pipe Dia. 18 Not Serviced


Alts

Select

Ref.

70

Qty

1

Availability

Part #

NS

Description

NOT SERVICED; Hydr. pipe Dia. 18 Not Serviced


Alts

Select

Ref.

71

Qty

1

Availability

Part #

NS

Description

NOT SERVICED; Hydr. pipe Dia. 16 Not Serviced


Alts

Select

Ref.

72

Qty

1

Availability

Part #

NS

Description

NOT SERVICED; Hydr. pipe Dia.8 Not Serviced


Alts

Select

Ref.

73

Qty

1

Availability

Part #

NS

Description

NOT SERVICED; Hydr. pipe Dia. 12 Not Serviced; (SN Break) Between 2909001 and 2916999


Alts

Select

Ref.

74

Qty

1

Availability

Part #

NS

Description

NOT SERVICED; Hydr. pipe Dia. 16 Not Serviced


Alts

Select

Ref.

75

Qty

1

Availability

Part #

NS

Description

NOT SERVICED; Hydr. pipe Dia.8 Not Serviced


Alts

Select

Ref.

76

Qty

1

Availability

Part #

NS

Description

NOT SERVICED; Hydr. pipe Dia.8 Not Serviced


Alts

Select

Ref.

77

Qty

1

Availability

Part #

80338058

Description

HYD CONNECTOR; includes fig.33,34; (SN Break) Between 2909001 and 2916999


Alts

Select

Ref.

77

Qty

1

Availability

Part #

379431

Description

FITTING; without fig.33,34; (SN Break) From 2917001


Alts

Select

Ref.

78

Qty

1

Availability

Part #

NS

Description

NOT SERVICED; Hydr. pipe Dia. 18 Not Serviced


Alts

Select

Ref.

79

Qty

6

Availability

Part #

330013

Description

CLAMP; Clamp


Alts

Select

Ref.

80

Qty

6

Availability

Part #

332969

Description

SHIELD; Protection strip


Alts

Select

Ref.

81

Qty

1

Availability

Part #

NS

Description

NOT SERVICED; Hydr. pipe Dia. 12 Not Serviced


Alts

Select

Ref.

82

Qty

2

Availability

Part #

80150009

Description

HYD CONNECTOR; includes fig.61,62; (SN Break) Between 2909001 and 2916999


Alts

Select

Ref.

82

Qty

2

Availability

Part #

150019

Description

FITTING; without fig.61,62; (SN Break) From 2917001


Alts

Select

Ref.

83

Qty

2

Availability

Part #

308823

Description

NUT M28 x 1.5, Cl 8;


Alts

Select

Ref.

84

Qty

2

Availability

Part #

80308805

Description

ACCUMULATOR; For 11 ft. - 12 ft. - 35 kg.; (SN Break) Between 3209001 and 3213999


Alts

Select

Ref.

84

Qty

2

Availability

Part #

80308804

Description

ACCUMULATOR; Accumulator For 13 ft. - 55 kg.; (SN Break) Between 3209001 and 3213999


Alts

Select

Ref.

84

Qty

2

Availability

Part #

80308804

Description

ACCUMULATOR; Accumulator For 15 ft. - 17 ft. - 19 ft. - 22 ft. - 55 kg.2x; (SN Break) Between 3209001 and 3213999


Alts

Select

Ref.

85

Qty

1

Availability

Part #

NS

Description

NOT SERVICED; Hydr. pipe Dia. 12 Not Serviced


Alts

Select

Ref.

86

Qty

1

Availability

Part #

NS

Description

NOT SERVICED; Hydr. pipe Dia. 12 Not Serviced


Alts

Select

Ref.

87

Qty

1

Availability

Part #

80150009

Description

HYD CONNECTOR; includes fig.42,43; (SN Break) Between 2909001 and 2916999


Alts

Select

Ref.

87

Qty

1

Availability

Part #

150019

Description

FITTING; without fig.42,43; (SN Break) From 2917001


Alts

Select

Ref.

88

Qty

1

Availability

Part #

NS

Description

NOT SERVICED; Hydr. pipe Dia. 12 Not Serviced


Alts

Select

Ref.

89

Qty

1

Availability

Part #

338038

Description

SUPPORT;


Alts

Select

Ref.

90

Qty

4

Availability

Part #

80350717

Description

SHIELD; Protection strip


Alts

Select

Ref.

91

Qty

4

Availability

Part #

80338035

Description

CLAMP;


Alts

Select

Ref.

92

Qty

1

Availability

Part #

80338811

Description

SUPPORT;


Alts

Select

Ref.

93

Qty

1

Availability

Part #

80353408

Description

CLAMP;


Alts

Select

Ref.

94

Qty

1

Availability

Part #

80353361

Description

SEALING ELEMENT; Sealing


Alts

Select

Ref.

95

Qty

1

Availability

Part #

150015

Description

FERRULE; (SN Break) Between 2909001 and 2916999


Alts

Select

Ref.

96

Qty

1

Availability

Part #

80362452

Description

UNIVERSAL JOINT; Coupling


Alts

Select

Ref.

97

Qty

1

Availability

Part #

376575

Description

NUT; Coupler nut; (SN Break) Between 2909001 and 2916999


Alts

Select

Ref.

98

Qty

1

Availability

Part #

80335005

Description

HOSE; Hydraulic


Alts

Select

Ref.

99

Qty

1

Availability

Part #

338036

Description

CLAMP; Clamp


Alts

Select

Ref.

100

Qty

2

Availability

Part #

350718

Description

GUARD; Protection strip


Alts

Select

Ref.

101

Qty

6

Availability

Part #

120102

Description

BOLT Hex, M6 x 1 x 40mm, Cl 8.8, Full Thd, ZND;


Alts

Select

Ref.

102

Qty

12

Availability

Part #

140015

Description

WASHER 6.4mm ID x 14mm OD x 1.6mm Thk; Plain


Alts

Select

Ref.

103

Qty

12

Availability

Part #

15896221

Description

NUT Hex, M6 x 1, Cl 10, ZND;


Alts

Select

Ref.

104

Qty

2

Availability

Part #

80150008

Description

HYD CONNECTOR; includes fig.61,62; (SN Break) Between 2909001 and 2916999


Alts

Select

Ref.

104

Qty

2

Availability

Part #

150018

Description

HYD CONNECTOR M18 x 1.5 x 28; Without fig. 61, 62; (SN Break) From 2917001


Alts

Select

Ref.

105

Qty

2

Availability

Part #

150007

Description

HYD CONNECTOR; includes fig.57,58; (SN Break) Between 2909001 and 2916999


Alts

Select

Ref.

105

Qty

2

Availability

Part #

150017

Description

HYD CONNECTOR M16 x 1.5 x M16 x 1.5; without fig.57,58; (SN Break) From 2917001


Alts

Select

Ref.

106

Qty

1

Availability

Part #

NS

Description

NOT SERVICED; Hydr. pipe Dia. 12 Not Serviced


Alts

Select

Ref.

107

Qty

1

Availability

Part #

80338006

Description

HYD CONNECTOR; includes fig.33,34; (SN Break) Between 2909001 and 2916999


Alts

Select

Ref.

107

Qty

1

Availability

Part #

335173

Description

HYD CONNECTOR M26 x 1.5 x M26 x 1.5; without fig.33,34; (SN Break) From 2917001


Alts

Select

Ref.

108

Qty

3

Availability

Part #

335177

Description

HYD CONNECTOR; includes fig.39,40; (SN Break) Between 2909001 and 2916999


Alts

Select

Ref.

108

Qty

3

Availability

Part #

335172

Description

HYD CONNECTOR M14 x 1.5 x M14 x 1.5; Without fig.39, 40; (SN Break) From 2917001


Alts

Select

Ref.

109

Qty

2

Availability

Part #

321603

Description

BUSHING; (SN Break) Between 2909001 and 2916999


Alts

Select

Ref.

109

Qty

2

Availability

Part #

332673

Description

RING; Bushing; (SN Break) From 2917001


Alts

Select

Ref.

110

Qty

1

Availability

Part #

NS

Description

NOT SERVICED; Hydr. pipe Dia. 12 Not Serviced


Alts

Select

Ref.

111

Qty

1

Availability

Part #

323771

Description

CLAMP;


Alts

Select

Ref.

112

Qty

2

Availability

Part #

80335020

Description

SUPPORT;


Alts

Select

Ref.

113

Qty

1

Availability

Part #

80362319

Description

SUPPORT; (SN Break) Between 2909001 and 2916999


Alts

Select

Ref.

113

Qty

1

Availability

Part #

80397850

Description

SUPPORT; (SN Break) From 2917001


Alts

Select

Ref.

114

Qty

4

Availability

Part #

120100

Description

BOLT Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8, ZND;


Alts

Select

Ref.

115

Qty

1

Availability

Part #

NS

Description

NOT SERVICED; Hydr. pipe Dia. 12 Not Serviced


Alts

Select

Ref.

116

Qty

4

Availability

Part #

130014

Description

LOCK PIN; Cotter pin


Alts

Select

Ref.

117

Qty

2

Availability

Part #

390056

Description

SPINDLE; Clevis pin


Alts

Select

Ref.

118

Qty

2

Availability

Part #

308311

Description

HYD CONNECTOR; (SN Break) Between 2909001 and 2916999


Alts

Select

Ref.

118

Qty

2

Availability

Part #

395782

Description

HYD CONNECTOR M18 x 1.5 ORB x M18 x 1.5 ORB; (SN Break) From 2917001


Alts

Select

Ref.

119

Qty

2

Availability

Part #

150004

Description

ELBOW; (SN Break) Between 2909001 and 2919999


Alts

Select

Ref.

119

Qty

2

Availability

Part #

418285

Description

ELBOW; (SN Break) From 2920001


Alts

Select

Ref.

120

Qty

2

Availability

Part #

160164

Description

HYDRAULIC HOSE 9.91 mm ID x 345.00 mm;


Alts

Select

Ref.

121

Qty

4

Availability

Part #

323206

Description

HYD TUBE 11 mm ID, 30 mm Length; Protection strip


Alts

Select

Ref.

122

Qty

2

Availability

Part #

323222

Description

CHAIN; (SN Break) Between 2909001 and 2915999


Alts

Select

Ref.

123

Qty

2

Availability

Part #

80331527

Description

CLAMP; (SN Break) Between 2909001 and 2915999


Alts

Select

Ref.

124

Qty

2

Availability

Part #

80335028

Description

HYDRAULIC CYLINDER; Incl. figs.125 through 132


Alts

Select

Ref.

126

Qty

2

Availability

Part #

80359747

Description

GASKET; Snap ring


Alts

Select

Ref.

127

Qty

2

Availability

Part #

80359748

Description

O-RING; Seal ring


Alts

Select

Ref.

128

Qty

2

Availability

Part #

80359749

Description

WASHER;


Alts

Select

Ref.

129

Qty

2

Availability

Part #

80359750

Description

WASHER;


Alts

Select

Ref.

130

Qty

2

Availability

Part #

80359751

Description

RING;


Alts

Select

Ref.

131

Qty

2

Availability

Part #

80359752

Description

CLIP;


Alts

Select

Ref.

132

Qty

2

Availability

Part #

80359753

Description

SCRAPER BLADE;


Alts

Select

Ref.

133

Qty

2

Availability

Part #

332673

Description

RING; Bushing


Alts

Select

Ref.

134

Qty

2

Availability

Part #

390058

Description

CLEVIS PIN;


Alts

Select

Ref.

135

Qty

1

Availability

Part #

354679

Description

SUPPORT;


Alts

Select

Ref.

136

Qty

1

Availability

Part #

332672

Description

HOOK; Spring


Alts

Select

Ref.

137

Qty

4

Availability

Part #

120101

Description

BOLT Hex, M6 x 1 x 30mm, Cl 8.8, Full Thd, ZND;


Alts

Select

Ref.

138

Qty

4

Availability

Part #

140040

Description

WASHER 6.6mm ID x 22mm OD x 2mm Thk, CST, ZND;


Alts

Select

Ref.

139

Qty

2

Availability

Part #

80338039

Description

SUPPORT;


Alts

Select

Ref.

140

Qty

1

Availability

Part #

80362311

Description

SPINDLE; Pivot


Alts

Select

Ref.

141

Qty

1

Availability

Part #

130007

Description

COTTER PIN M4 x 25;


Alts

Select

Ref.

142

Qty

1

Availability

Part #

140020

Description

WASHER 17.5mm ID x 30mm OD x 3mm Thk, CST, ZND;


Alts

Select

Ref.

143

Qty

1

Availability

Part #

80364413

Description

ROD; Tie


Alts

Select

Ref.

144

Qty

1

Availability

Part #

80360857

Description

CLAMP;


Alts

Select

Ref.

145

Qty

1

Availability

Part #

360858

Description

GUARD; Protection strip


Alts

Select

Ref.

146

Qty

1

Availability

Part #

347675

Description

PLATE; Support


Alts

Select

Ref.

147

Qty

1

Availability

Part #

NS

Description

NOT SERVICED; Hydr. pipe Dia. 12 Not Serviced


Alts

Select

Ref.

148

Qty

1

Availability

Part #

80373624

Description

DRAINCOCK/TAP SUPPLY; Cock includes fig.95,97; (SN Break) Between 2909001 and 2916999


Alts

Select

Ref.

666

Qty

1

Availability

Part #

388775

Description

REPAIR KIT; Seal kit; (SN Break) From 2912001


Alts

Select

Ref.

888

Qty

1

Availability

Part #

388776

Description

SEAL KIT; Repair; (SN Break) From 2912001


Alts

Select

Ref.

149

Qty

1

Availability

Part #

80394773

Description

ACCUMULATOR; For 11 ft. - 30 kg; (SN Break) Between 2914001 and 2916999


Alts

Select

Ref.

149

Qty

1

Availability

Part #

80308805

Description

ACCUMULATOR; For 12 ft. - 13 ft. - 35 kg.; (SN Break) Between 2914001 and 2916999


Alts

Select

Ref.

150

Qty

2

Availability

Part #

80394769

Description

ACCUMULATOR; Accumulator For 15 ft. - 17 ft. - 19 ft. - 2 x 60 kg; (SN Break) Between 2914001 and 2916999


Alts

Select

Ref.

150

Qty

2

Availability

Part #

80394770

Description

ACCUMULATOR; Accumulator For 22 ft. - 2 x 65 kg.; (SN Break) Between 2914001 and 2916999


Alts

Select

Ref.

151

Qty

1

Availability

Part #

367681

Description

PLATE; Support; (SN Break) From 2917001


Alts

Select

Ref.

152

Qty

1

Availability

Part #

NS

Description

NOT SERVICED; Hydr. pipe Dia. 12 Not Serviced; (SN Break) From 2917001


Alts

Select

Ref.

154

Qty

1

Availability

Part #

396323

Description

HYD CONNECTOR; (SN Break) From 2917001


Alts

Select

Ref.

155

Qty

1

Availability

Part #

80397803

Description

TIRE TUBE; Hydr. pipe 3/16''; (SN Break) From 2917001


Alts

Select

Ref.

156

Qty

1

Availability

Part #

336722

Description

HYD CONNECTOR 3/8'' - 24 JIC x 3/8'' - 24 JIC; (SN Break) From 2917001


Alts

Select

Ref.

157

Qty

1

Availability

Part #

338844

Description

GROMMET; Rubber grommet; (SN Break) Between 2917001 and 2917999


Alts

Select

Ref.

157

Qty

1

Availability

Part #

399986

Description

GROMMET; Rubber grommet; (SN Break) From 2918001


Alts

Select

Ref.

158

Qty

1

Availability

Part #

396928

Description

TIRE TUBE; Hydr. pipe 3/16''; (SN Break) From 2917001


Alts

Select

Ref.

159

Qty

3

Availability

Part #

FOR336748

Description

CLAMP; (SN Break) From 2917001


Alts

Select

Ref.

160

Qty

1

Availability

Part #

80396324

Description

HYD CONNECTOR; (SN Break) Between 2917001 and 2917999


Alts

Select

Ref.

161

Qty

1

Availability

Part #

100033

Description

THIN NUT Thin, M24 x 1.5, Cl 04; (SN Break) From 2917001


Alts

Select

Ref.

162

Qty

1

Availability

Part #

80393824

Description

GAUGE; Manometer; (SN Break) Between 2917001 and 2917999


Alts

Select

Ref.

162

Qty

1

Availability

Part #

410544

Description

MEASURING INSTRUMENT; Manometer; (SN Break) From 2918001


Alts

Select

Ref.

163

Qty

1

Availability

Part #

396098

Description

RESTRICTOR VALVE; Orifice plate; (SN Break) From 2917001


Alts

Select

Ref.

164

Qty

1

Availability

Part #

396421

Description

HYD CONNECTOR M18 x 1.5 x M18 x 1.5; Nipple; (SN Break) From 2917001


Alts

Select

Ref.

165

Qty

1

Availability

Part #

141390

Description

BALL; (SN Break) From 2917001


Alts

Select

Ref.

166

Qty

1

Availability

Part #

390056

Description

SPINDLE; Clevis pin; (SN Break) Between 2909001 and 2916999


Alts

Select

Ref.

166

Qty

1

Availability

Part #

80301475

Description

ROLL PIN; Clevis pin; (SN Break) From 2917001


Alts

Select

Ref.

167

Qty

1

Availability

Part #

410089

Description

KIT; Repair includes fig.53 and 55; (SN Break) From 2917001


Alts

Select

Ref.

168

Qty

AR

Availability

Part #

140110

Description

WASHER 31mm ID x 40mm OD x 3mm Thk; Plain, Use As Required; (SN Break) From 2917001


Alts

Select

Ref.

169

Qty

3

Availability

Part #

80398262

Description

ACCUMULATOR; Accumulator For 11 ft. - 51 kg.; (SN Break) From 2917001


Alts

Select

Ref.

169

Qty

3

Availability

Part #

80398263

Description

ACCUMULATOR; Accumulator For 12 ft. - 54 kg.; (SN Break) From 2917001


Alts

Select

Ref.

169

Qty

3

Availability

Part #

398264

Description

ACCUMULATOR; Accumulator For 13 ft. - 57 kg.; (SN Break) From 2917001


Alts

Select

Ref.

169

Qty

3

Availability

Part #

80398266

Description

ACCUMULATOR; Accumulator For 15 ft. - 64 kg.; (SN Break) From 2917001


Alts

Select

Ref.

169

Qty

3

Availability

Part #

80398267

Description

ACCUMULATOR; Accumulator For 17 ft. - 67,5 kg.; (SN Break) From 2917001


Alts

Select

Ref.

169

Qty

3

Availability

Part #

398268

Description

ACCUMULATOR; Accumulator For 19 ft. - 70 kg.; (SN Break) From 2917001


Alts

Select

Ref.

169

Qty

3

Availability

Part #

398270

Description

ACCUMULATOR; Accumulator For 22 ft. - 79 kg.; (SN Break) From 2917001


Alts

Select

Ref.

153

Qty

1

Availability

Part #

323597

Description

CABLE TIE 165mm OAL x 9mm Thk; Clamp; (SN Break) From 2917001


Alts

Select

Ref.

49

Qty

4

Availability

Part #

43138

Description

BOLT Hex, M10 x 1.5 x 20mm, Full Thd, Cl 8.8, ZND; (SN Break) Between 3209001 and 3213999


Alts

Select

Ref.

49

Qty

4

Availability

Part #

88434

Description

BOLT Hex, 3/8'' - 16 x 3/4'', Gr 5; (SN Break) From 3214001


Alts
