TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-

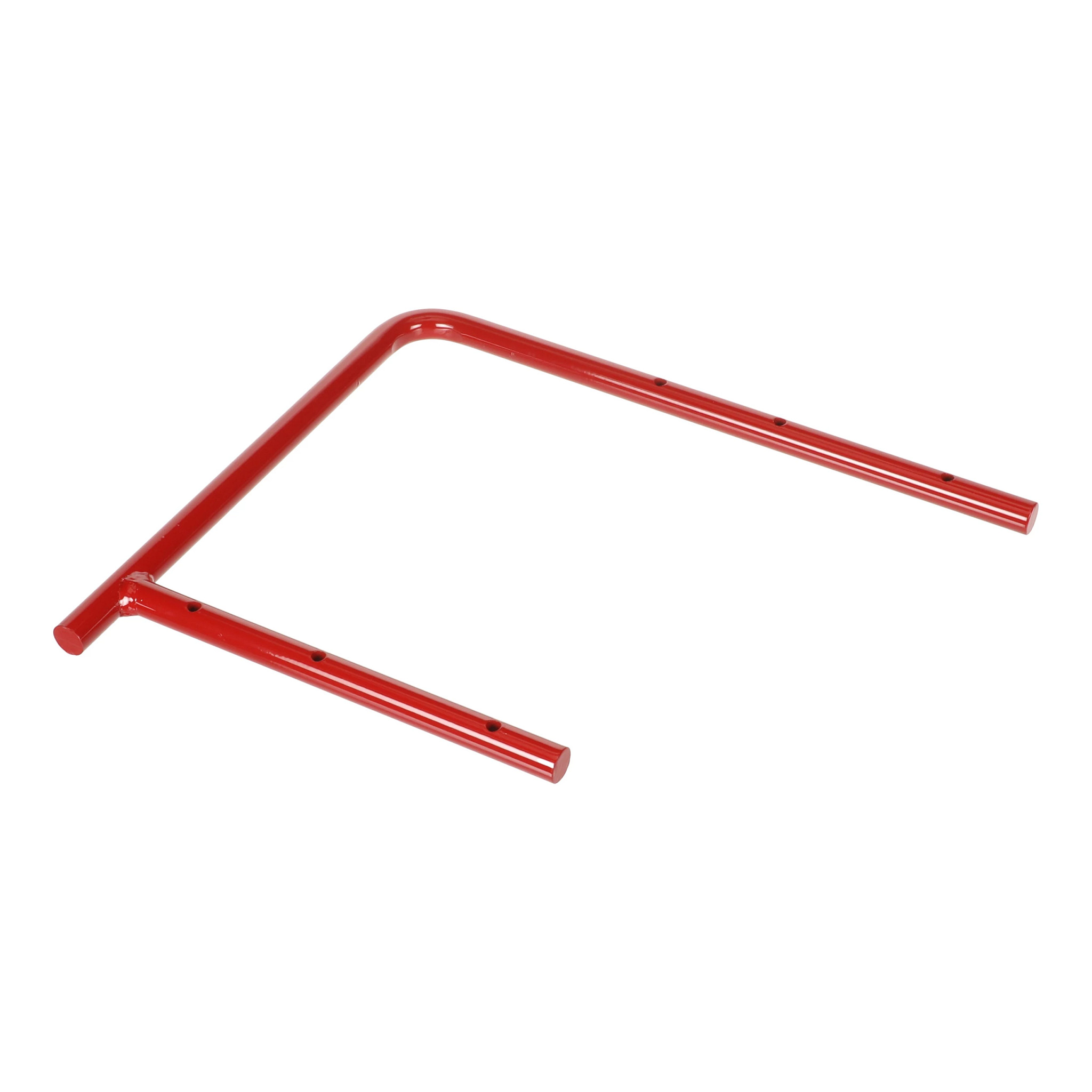

11FRAME; When replacing Frame Weld Assy. on & BSN 378403 also order (1 each) P/N 284845, 284846 & (4 pieces) 43302.
-
2LUBE NIPPLE FITTING LUBE 1/4-28 SPCL TAP; Nipple, Lube, Straight, 1/4''-28
-
21SKID/SHOE; Skid, LH
-
31SKID/SHOE; Skid, RH
-
44COTTER PIN; Pin, Cotter, Hair, 1/8'' Thk. x 3-1/4'' Lg.
-
52PIN; Hitch, (CAT 1) Lower Connecting Pins.
-
52LOCK PIN 9.53mm OD x 38.1mm L; Pin, 3/8'' x 1 1/2'', Slotted
-
61SPACER;
-
6A1WASHER 0.78'' ID x 1.25'' OD x 0.06'' Thk; Special 25/32'' x 1 1/4'' x .06'' Thk
-
71IDLER WHEEL; Idler Assy., Includes: Ref. 8
-
1BOLT Hex, Tap, 1/2'' - 13 x 2.50'', Gr 5; HH, Tap, G5, 1/2''-13 x 2''
-
1LOCK WASHER 1/20.507 CST ZND; WASHER, LOCK, 1/2''
-
1NUT 1/2''-13, G5;
-
81BUSHING 19.2mm ID x 22.4mm OD x 20mm L;
-
91CLEVIS PIN 5/8'' x 1.72'' L; PIN, CLEVIS, 5/8'' x 1.72'' L
-
91COTTER PIN PIN COTTER 1/8 X 1 STL ZND; PIN, SPLIT (COTTER), 1/8'' x 1'' L
-
102SPACER; Washer, Rubber
-
111STRAP;
-
121RIVET; Pin, Clevis, 5/8'' x 2-1/2''
-
1COTTER PIN 3/16'' OD x 1-1/4'' OAL; Pin, Split (Cotter), 3/16'' x 1-1/4''
-
131SPRING NUT; Spring
-

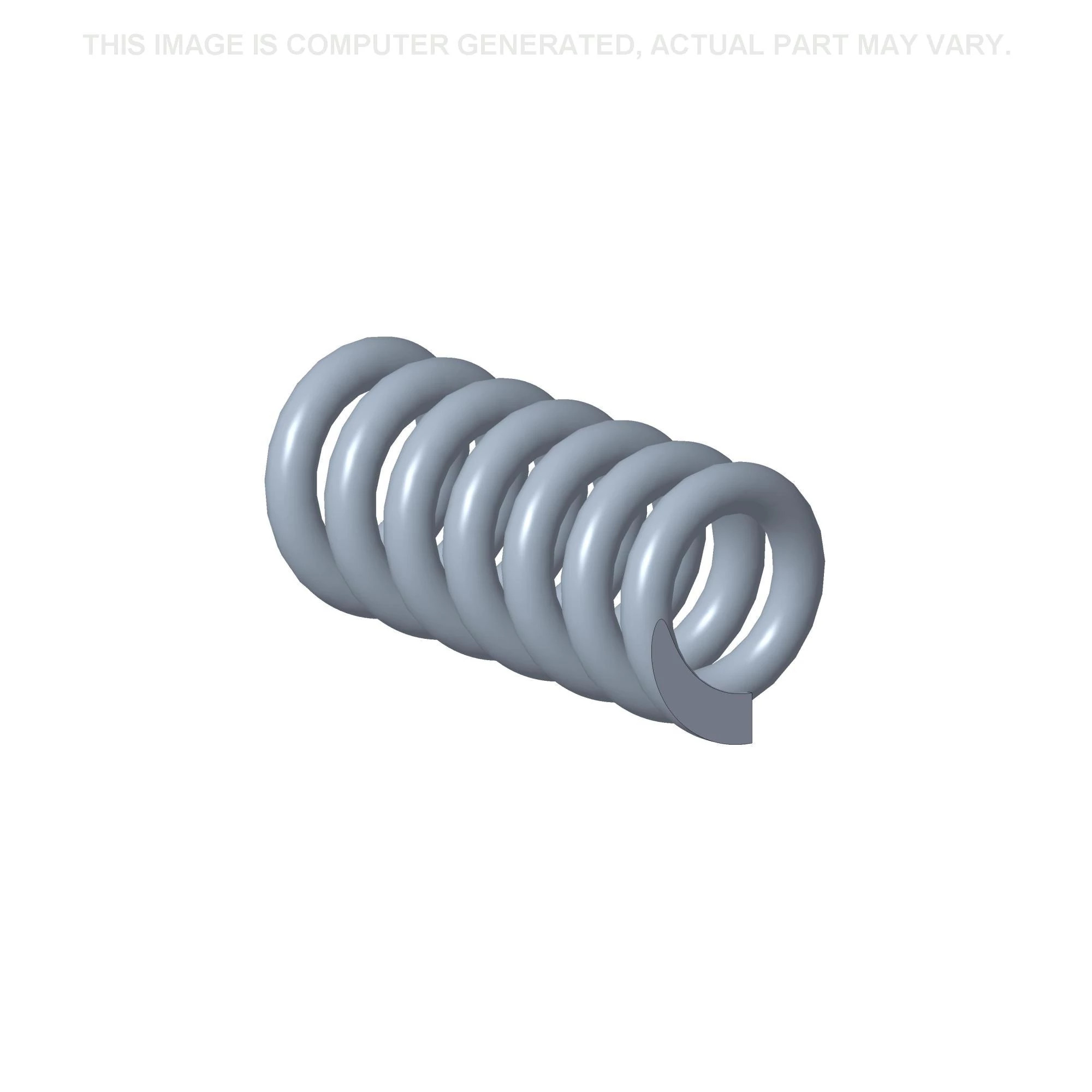

141SPRING;
-
151SPRING NUT; Spring
-
161NUT Hex, 5/8'' - 11, Gr 5; G5, 5/8''-11
-
171PIN 44.45mm OD x 22.35mm L; Ball, Pivot
-

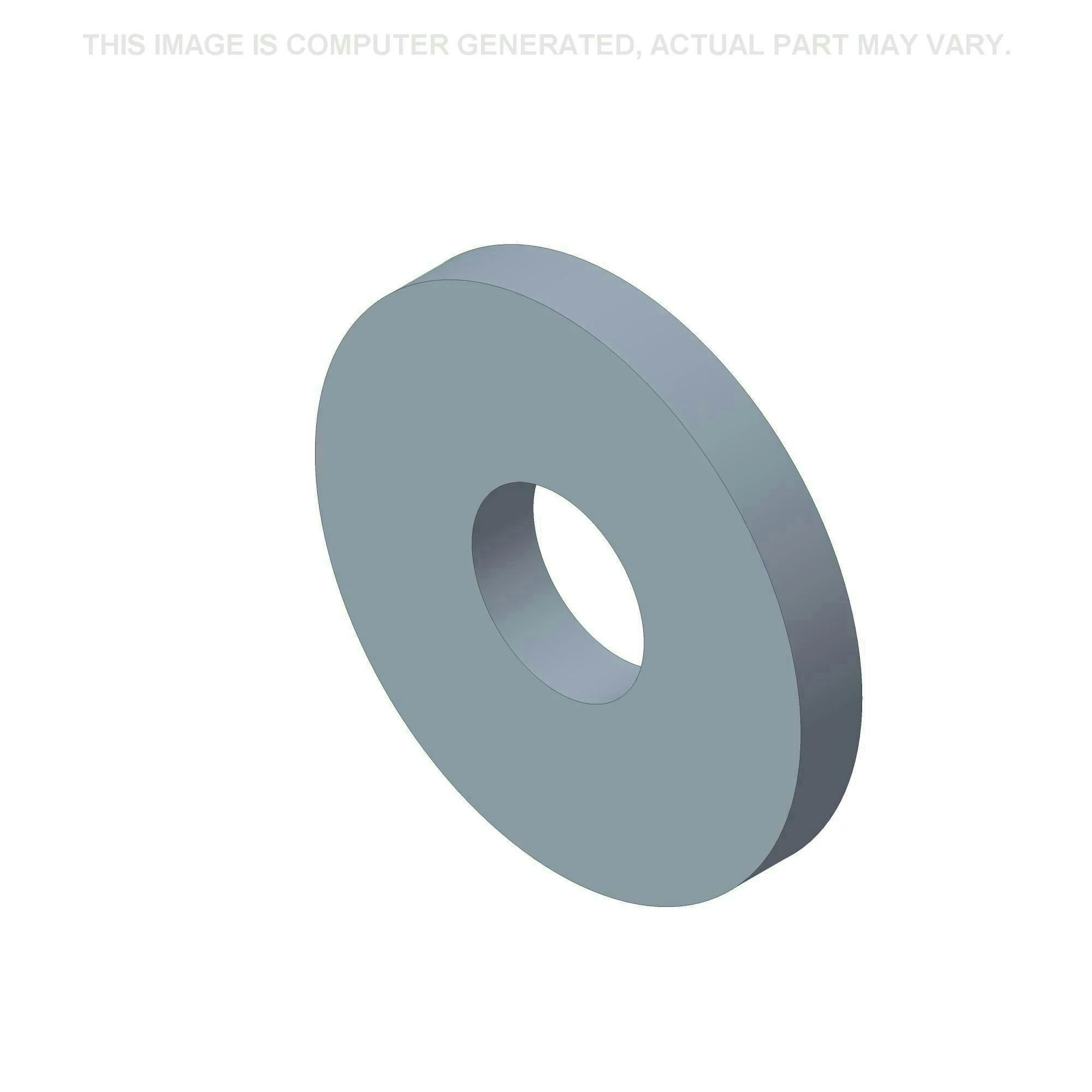

181WASHER 16.7mm ID x 41.3mm OD x 4.78mm Thk; Special
-
191SHAFT Hex, 5/8 - 11 x 6.5, Gr 8;
-
201FRAME; Base
-
1LUBE NIPPLE FITTING LUBE 1/4-28 SPCL TAP; Nipple, Lube, Straight, 1/4''-28
-
212STRAP;
-
4BOLT Hex, 1/2'' - 13 x 3 3/4'', Gr 5; Screw, Cap, HH, G5, 1/2''-13 x 3-3/4''
-
4LOCK WASHER 1/20.507 CST ZND; WASHER, LOCK, 1/2''
-
4NUT 1/2''-13, G5;
-
221DEFLECTOR;
-
2BOLT Hex, 3/8'' - 16 x 1'', Gr 5;
-
2LOCK WASHER 3/8 0.381 CST ZND; WASHER, LOCK, 3/8''
-
2NUT 3/8'' - 16, Gr 5; G5, 3/8''-16
-
232SPRING;
-
241WASHER; Special
-
251BOLT Hex, 1/2'' - 13 x 7'', Gr 5; Hex, G5, 1/2''-13 x 7''
-
2WASHER 0.53'' ID x 1.06'' OD x 0.1'' Thk; SAE, 1/2''
-
1NUT 1/2''-13, G5;
-
1JAM NUT 1/2'' - 13, Gr 2; Jam, G2, 1/2''-13
-
261LATCH; Breakway
-
1LUBE NIPPLE 1/4'' - 28; Fitting, Lube, 1/4'', Straight, Short (No Ball Check)
-
271ARM; Breakway
-
ARWASHER 0.81'' ID x 1.47'' OD x 0.13'' Thk; SAE, 3/4''
-
2SLOTTED NUT 3/4''-16; Nut, Slotted, G2, 3/4''-16
-
2COTTER PIN 1/8'' x 1 1/2''; Pin, Split (Cotter), 1/8'' x 1-1/2''
-
281SPACER;
-
291CLEVIS PIN 19.05mm OD x 95.25mm L; Pin, Clevis, 3/4'' x 1-3/4''
-
302COTTER PIN 0.148'' OD x 2.75'' OAL, Internal; PIN, SPLIT (COTTER), , Hair Int, 7/32'' x 2.75'' x 0.148''
-
311PLATE; Pole Mount Assy.
-
321EMBLEM; Slow Moving Vehicle
Select All
Select
Ref.
1Qty
1Availability
Part #
86527956Description
FRAME; When replacing Frame Weld Assy. on & BSN 378403 also order (1 each) P/N 284845, 284846 & (4 pieces) 43302.Img
Alts
Select
Ref.
Qty
2Availability
Part #
87414Description
LUBE NIPPLE FITTING LUBE 1/4-28 SPCL TAP; Nipple, Lube, Straight, 1/4''-28Img
Alts
Select
Ref.
4Qty
4Availability
Part #
86000109Description
COTTER PIN; Pin, Cotter, Hair, 1/8'' Thk. x 3-1/4'' Lg.Img
Alts
Select
Ref.
5Qty
2Availability
Part #
63725Description
PIN; Hitch, (CAT 1) Lower Connecting Pins.Img
Alts
Select
Ref.
5Qty
2Availability
Part #
87590Description
LOCK PIN 9.53mm OD x 38.1mm L; Pin, 3/8'' x 1 1/2'', SlottedImg
Alts
Select
Ref.
6AQty
1Availability
Part #
249100Description
WASHER 0.78'' ID x 1.25'' OD x 0.06'' Thk; Special 25/32'' x 1 1/4'' x .06'' ThkImg
Alts
Select
Ref.
7Qty
1Availability
Part #
64126Description
IDLER WHEEL; Idler Assy., Includes: Ref. 8Img
Alts
Select
Ref.
Qty
1Availability
Part #
9849637Description
BOLT Hex, Tap, 1/2'' - 13 x 2.50'', Gr 5; HH, Tap, G5, 1/2''-13 x 2''Img
Alts
Select
Ref.
Qty
1Availability
Part #
80679Description
LOCK WASHER 1/20.507 CST ZND; WASHER, LOCK, 1/2''Img
Alts
Select
Ref.
8Qty
1Availability
Part #
64161Description
BUSHING 19.2mm ID x 22.4mm OD x 20mm L;Img
Alts
Select
Ref.
9Qty
1Availability
Part #
72811Description

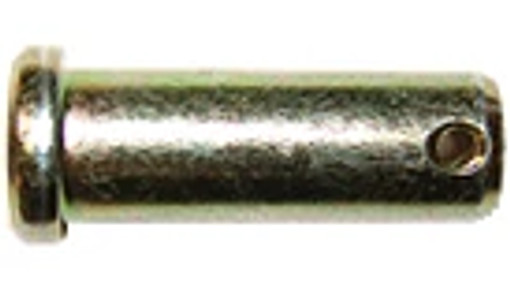

CLEVIS PIN 5/8'' x 1.72'' L; PIN, CLEVIS, 5/8'' x 1.72'' LImg
Alts
Select
Ref.
9Qty
1Availability
Part #
80755Description
COTTER PIN PIN COTTER 1/8 X 1 STL ZND; PIN, SPLIT (COTTER), 1/8'' x 1'' LImg
Alts
Select
Ref.
12Qty
1Availability
Part #
63828Description
RIVET; Pin, Clevis, 5/8'' x 2-1/2''Img
Alts
Select
Ref.
Qty
1Availability
Part #
87398Description
COTTER PIN 3/16'' OD x 1-1/4'' OAL; Pin, Split (Cotter), 3/16'' x 1-1/4''Img
Alts
Select
Ref.
16Qty
1Availability
Part #
280374Description
NUT Hex, 5/8'' - 11, Gr 5; G5, 5/8''-11Img
Alts
Select
Ref.
17Qty
1Availability
Part #
86978720Description

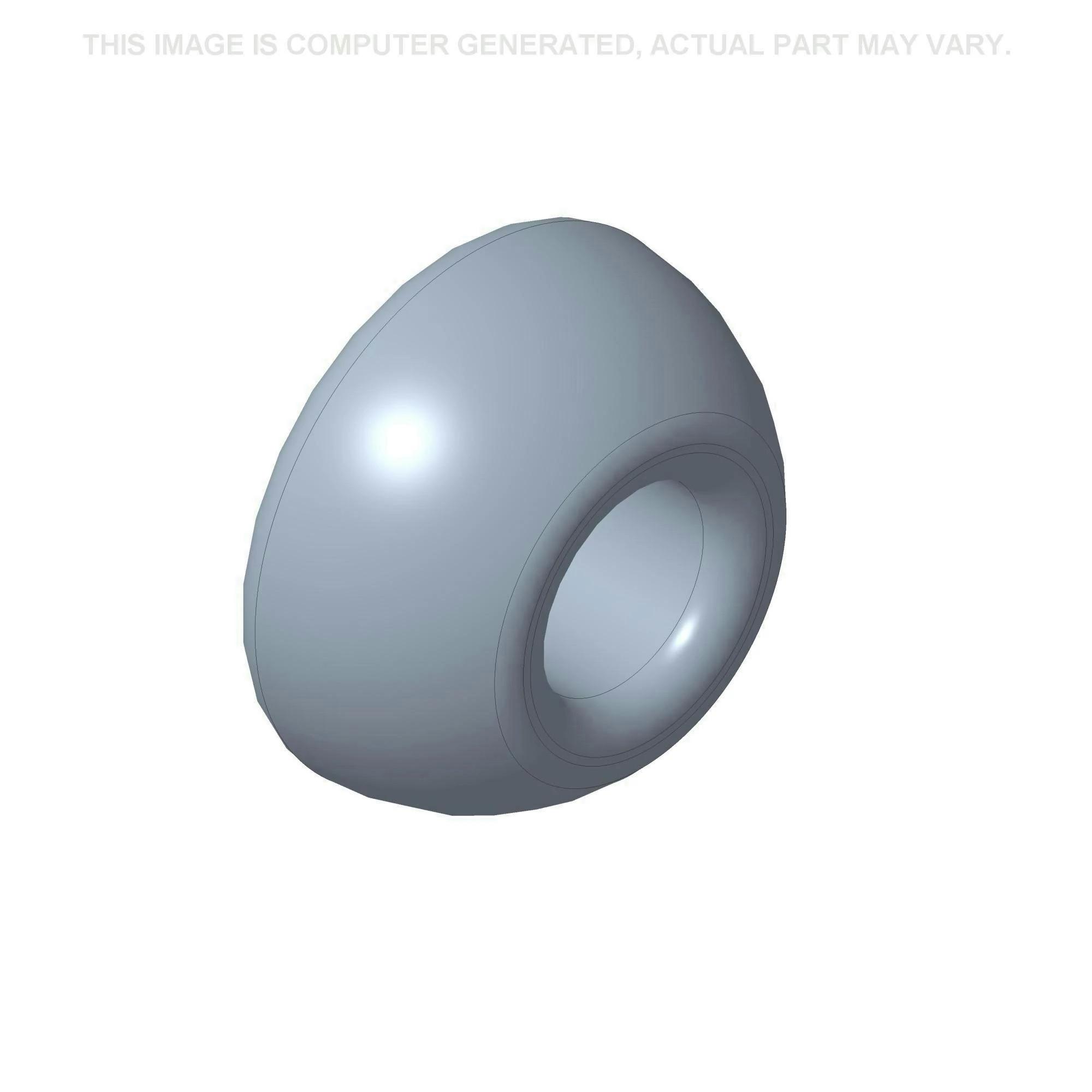

PIN 44.45mm OD x 22.35mm L; Ball, PivotImg
Alts
Select
Ref.
18Qty
1Availability
Part #
33298Description
WASHER 16.7mm ID x 41.3mm OD x 4.78mm Thk; SpecialImg
Alts
Select
Ref.
19Qty
1Availability
Part #
65705Description
SHAFT Hex, 5/8 - 11 x 6.5, Gr 8;Img
Alts
Select
Ref.
Qty
1Availability
Part #
87414Description
LUBE NIPPLE FITTING LUBE 1/4-28 SPCL TAP; Nipple, Lube, Straight, 1/4''-28Img
Alts
Select
Ref.
Qty
4Availability
Part #
86505992Description
BOLT Hex, 1/2'' - 13 x 3 3/4'', Gr 5; Screw, Cap, HH, G5, 1/2''-13 x 3-3/4''Img
Alts
Select
Ref.
Qty
4Availability
Part #
80679Description
LOCK WASHER 1/20.507 CST ZND; WASHER, LOCK, 1/2''Img
Alts
Select
Ref.
Qty
2Availability
Part #
80680Description
LOCK WASHER 3/8 0.381 CST ZND; WASHER, LOCK, 3/8''Img
Alts
Select
Ref.
Qty
2Availability
Part #
9628503Description
NUT 3/8'' - 16, Gr 5; G5, 3/8''-16Img
Alts
Select
Ref.
25Qty
1Availability
Part #
86505996Description
BOLT Hex, 1/2'' - 13 x 7'', Gr 5; Hex, G5, 1/2''-13 x 7''Img
Alts
Select
Ref.
Qty
2Availability
Part #
87364Description
WASHER 0.53'' ID x 1.06'' OD x 0.1'' Thk; SAE, 1/2''Img
Alts
Select
Ref.
Qty
1Availability
Part #
9638005Description

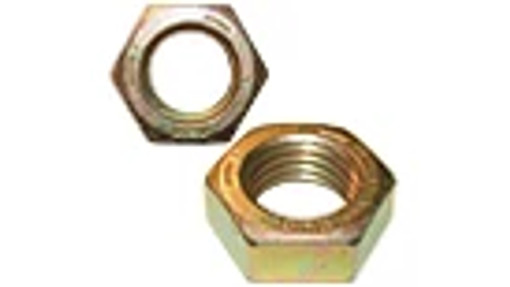

JAM NUT 1/2'' - 13, Gr 2; Jam, G2, 1/2''-13Img
Alts
Select
Ref.
Qty
1Availability
Part #
88775Description
LUBE NIPPLE 1/4'' - 28; Fitting, Lube, 1/4'', Straight, Short (No Ball Check)Img
Alts
Select
Ref.
Qty
ARAvailability
Part #
87381Description
WASHER 0.81'' ID x 1.47'' OD x 0.13'' Thk; SAE, 3/4''Img
Alts
Select
Ref.
Qty
2Availability
Part #
88886Description

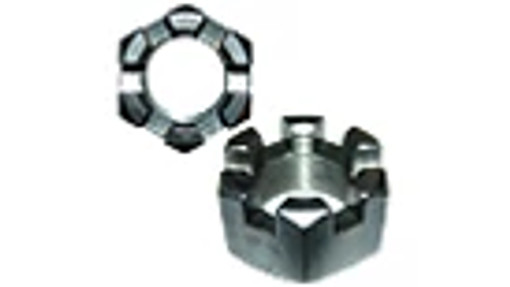

SLOTTED NUT 3/4''-16; Nut, Slotted, G2, 3/4''-16Img
Alts
Select
Ref.
Qty
2Availability
Part #
80708Description
COTTER PIN 1/8'' x 1 1/2''; Pin, Split (Cotter), 1/8'' x 1-1/2''Img
Alts
Select
Ref.
29Qty
1Availability
Part #
63794Description
CLEVIS PIN 19.05mm OD x 95.25mm L; Pin, Clevis, 3/4'' x 1-3/4''Img
Alts
Select
Ref.
30Qty
2Availability
Part #
86627125Description
COTTER PIN 0.148'' OD x 2.75'' OAL, Internal; PIN, SPLIT (COTTER), , Hair Int, 7/32'' x 2.75'' x 0.148''Img
Alts
