11SLIP CLUTCH; Clutch Assy., 4 plates, Includes: Ref. 2 thru 16, Replacement For The 2 Plate Clutch;Used On & ASN 856624
-
21SEAL; Ring, Sealing;Used On & ASN 856624
-
32SNAP RING M72, Int, PHC; RING, SNAP, M72, Int;Used On & ASN 856624
-
42RING 56mm ID x 72mm OD x 3mm Thk; Washer;Used On & ASN 856624
-
51HUB; Used On & ASN 856624
-
62SPRING, LEAF; Used On & ASN 856624
-
72KEY; .24'' x .51'' x 1.95'' (6mm x 13mm x 49.5mm);Used On & ASN 856624
-
81WASHER; Used On & ASN 856624
-
91CIRCLIP M35, Int, PHC; SNAP RING, M35, Int;Used On & ASN 856624
-
101RING; Setting;Used On & ASN 856624
-
111SPRING Pack; Pack, for 2 plate clutch;Used On & BSN 856623
-
111CLUTCH PACK; Pack, Spring, for 4 plate clutch;Used On & ASN 856624
-

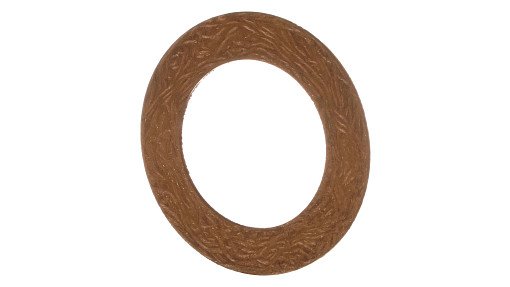

122CLUTCH DISC; Friction Disc;Used On & ASN 856624
-
131HOUSING; & Drive Plate Weld Assy.;Used On & ASN 856624
-
131HOUSING; & Drive Plate Weld Assembly, for 4 plate clutch
-
13A1CLUTCH PLATE 88.5mm ID x 160.5mm OD x 6mm Thk; Driven Plate for 4 plate clutch
-
13B1DISC; Drive Plate for 4 plate clutch
-
141SEALING RING; Seal, Shaft, Rotary;Used On & ASN 856624
-
151RING; Used On & ASN 856624
-
161SLIP CLUTCH; Housing, Clutch, for 2 plate clutch;Used On & BSN 856623
-
161HOUSING; Clutch, for 4 plate clutch;Used On & ASN 856624
-
171SPACER 13.4mm ID x 25.4mm OD x 11.1mm OAL; Used On & ASN 856624
-
181BELLEVILLE WASHER 10mm ID x 22mm OD x 1.6mm Thk; WASHER, BELLEVILLE, M10;Used On & ASN 856624
-
191BOLT Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd; HH, CL 8.8, M10 x 1.5 x 40;Used On & ASN 856624
-
201HUB; Assy., Replaces, 540 & 1000 RPM;Used On & BSN 856623
-
212KIT; Quick, Detachable, Yoke, Pin, 540 & 1000 RPM, Includes: 9601707, Pin & 9601708, Spring;Used On & BSN 856623
-
222SPRING; Services P/N 769085 Hub, 540 & 1000 RPM;Used On & BSN 856623
-
232LOCK WASHER; X-Washer, Retaining;Used On & BSN 856623
-
242DOG; Clutch, 540 & 1000 RPM;Used On & BSN 856623
-

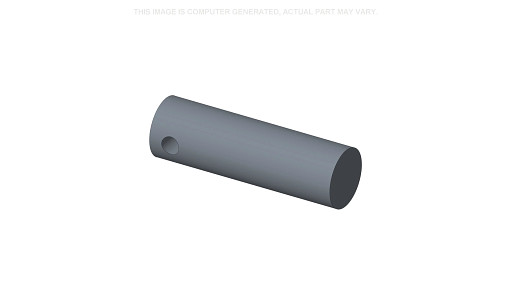

252PIN 12.7mm OD x 41.27mm L; 1/2'' x 1-5/8'', 540 & 1000 RPM;Used On & BSN 856623
-
2COTTER PIN 1/8'' x 1 3/4''; PIN, SPLIT (COTTER), 1/8'' x 1-3/4'', 540 & 1000 RPM;Used On & BSN 856623
-
261WASHER; Hardened, 1-1/8'', 540 & 1000 RPM;Used On & BSN 856623
-
271HOUSING; Clutch, 540 & 1000 RPM, Includes: (2) Bushings;Used On & BSN 856623
-
2DRIVE BUSHING; Bushing, 540 & 1000 RPM;Used On & BSN 856623
-

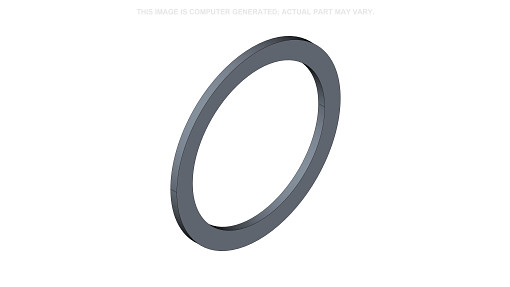

281WASHER; Sintered, 2-1/2'', 540 & 1000 RPM;Used On & BSN 856623
-
293DISC; Friction, 540 & 1000 RPM;Used On & BSN 856623
-
302PLATE; 540 & 1000 RPM;Used On & BSN 856623
-
311PLATE; 540 & 1000 RPM;Used On & BSN 856623
-
321HUB; Assy., 540 & 1000 RPM, Includes: 2 Bushings;Used On & BSN 856623
-
ARBUSHING; Used On & BSN 856623
-

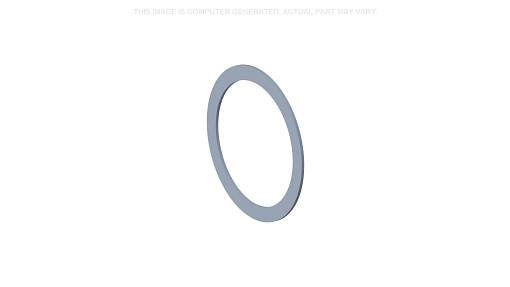

33ARWASHER 64.29mm ID x 82.55mm OD x 1.7mm Thk; .060'' Thick (1.5mm), 540 & 1000 RPM;Used On & BSN 856623
-
1WASHER; .105'' Thick (2.7mm), 540 & 1000 RPM;Used On & BSN 856623
-

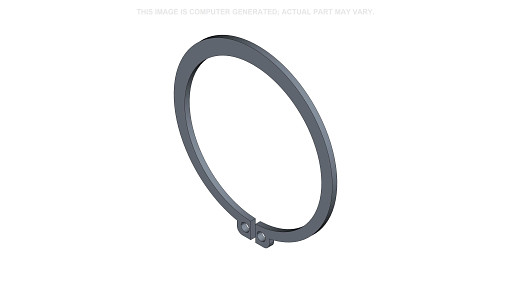

341SNAP RING #250, Ext; Ring, Snap, , 540 & 1000 RPM #250, Ext;Used On & BSN 856623
-
35ARSHIM .015'' Thk; 540 & 1000 RPM .015'' Thk;Used On & BSN 856623
-
ARWASHER 0.53'' ID x 1.06'' OD x 0.1'' Thk; SAE, 1/2'', 540 & 1000 RPM;Used On & BSN 856623
-
368SPRING; Compression, 540 & 1000 RPM;Used On & BSN 810202
-
368SPRING; Compression, 540 & 1000 RPM;Used On & ASN 810203
-
378WASHER; Hardened, 3/8'', 540 & 1000 RPM;Used On & BSN 856623
-
388SPACER; 540 & 1000 RPM;Used On & BSN 856623;When This Spacer Is Used Clutches BSN 810202 Use Longer Bolt #280177 & Additional Washer #87364 Or #769247.
-
398BOLT Hex, 3/8'' - 16 x 4 1/2'', Gr 5; 540 & 1000 RPM Hex, 3/8''-16 x 4 1/2'', G5;Used On & BSN 810202
-
398BOLT Hex, 3/8'' - 16 x 5'', Gr 5; Screw, Cap, HH, G5, 3/8''-16 x 5'', 540 & 1000 RPM;Used On & ASN 810203
-
40ARWASHER 12.95mm ID x 20.57mm OD x 0.38mm Thk; .015'' (.38mm), 540 & 1000 RPM;Used On & BSN 856623
-
ARSHIM .005'' Thk; (.13mm), 540 & 1000 RPM .005'' Thk;Used On & BSN 856623
-
411WASHER 0.53'' ID x 1.62'' OD x 0.25'' Thk; Hardened, 1/2'', 540 & 1000 RPM;Used On & BSN 856623
-
421SCREW 5/32''; Cap, HH, CL 8.8, Drill Thru, M12 x 1.75 x 30, 540 & 1000 RPM;Used On & BSN 856623
-
1LOCK WASHER 1/20.507 CST ZND; WASHER, LOCK, 1/2'';Used On & BSN 856623
-
1LUBE NIPPLE 45 Degree, 1/4'' NPT x 4/5'' L, Drive; Fitting, Lube, 1/4'', 45?;Used On & BSN 856623
