58.100.012 - MAIN DRIVE SHAFT
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    84212231
    BRACKET;
  • 3
    4
    86620027
    FLANGED BEARING 80.02mm ID x 147.6mm OD x 4mm Thk;

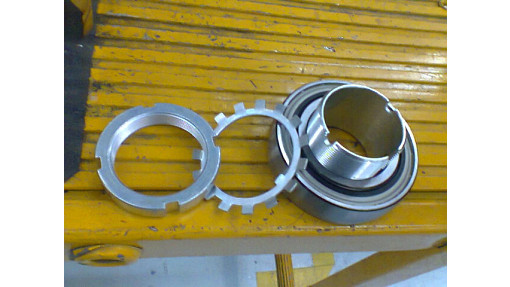

  • 4
    1
    84240146
    BEARING Ball, 40mm ID x 80mm OD x 38mm W; MAINTENANCE PART
  • 5
    14
    140046
    BELLEVILLE WASHER M12 Bolt Size x 27mm OD x 1.8mm Thk;
  • 6
    11
    9706685
    NUT Hex, M12 x 1.75, Cl 8, ZND;
  • 7
    1
    84267177
    SHIELD;
  • 8
    10
    120044
    CARRIAGE BOLT M12 x 1.75 x 30mm, Cl 8.8;
  • 9
    1
    84057307
    BALL BEARING 40mm ID x 80mm OD x 42.9mm W; MAINTENANCE PART
  • 10
    1
    84176439
    SPROCKET ASSY.; MAINTENANCE PART
  • 11
    3
    120044
    CARRIAGE BOLT M12 x 1.75 x 30mm, Cl 8.8;

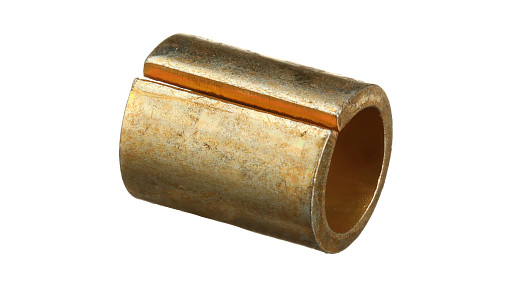

  • 12
    1
    86553411
    SPACER 13.49mm ID x 18.97mm OD x 23.88mm L;

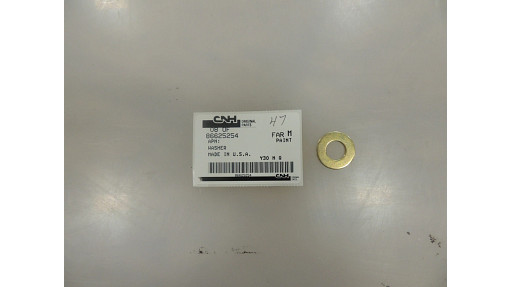

  • 13
    2
    86625254
    RONDELLE 13.5mm ID x 28mm OD x 2.5mm Thk, CST, ZND;

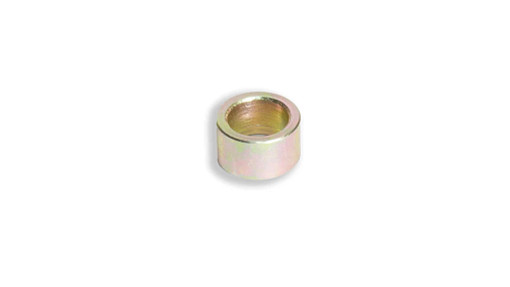

  • 14
    1
    86622548
    SPACER 13.55mm ID x 19.01mm OD x 10.79mm L;
  • 15
    1
    87033816
    CLIP;
  • 16
    1
    86508581
    BOLT Hex, M12 x 1.75 x 90mm, Cl 8.8;
  • 17
    1
    87026147
    SPRING;
  • 18
    1
    170056
    KEY 12mm W x 50mm OAL;
  • 19
    4
    86511324
    RONDELLE 13mm ID x 24mm OD x 2.5mm Thk;
  • 23
    1
    9850033
    SEAL;
  • 24
    1
    84313189
    HOOK;
  • 25
    2
    120104
    BOLT Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd;
  • 26
    2
    322358
    BELLEVILLE WASHER M8 Bolt Size x 18mm OD x 1.4mm Thk; (SN Break) Up to 051; (Prod Date) From 01-Sep-2013
  • 26
    12
    322358
    BELLEVILLE WASHER M8 Bolt Size x 18mm OD x 1.4mm Thk; (SN Break) From 052; (Prod Date) From 01-Sep-2013
  • 31
    1
    84972786
    FLEXIBLE SHEATH;
