22 - FEEDER GROUP
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    746054
    ARM; Feeder bar assy For 940 models.;See model notes for code W for S/N information.
  • 1
    1
    754896
    BAR; Feeder assy For 940 models.;See model notes for code OO for S/N information.
  • 1
    1
    923083
    BAR; Feeder assy For 940 models.;See model notes for code MM for S/N information.
  • 1
    1
    80744796
    BAR; Feeder assy For 945 models.;See model notes for code W for S/N information.
  • 1
    1
    80754897
    BAR; Feeder assy For 945 models.;See model notes for code OO for S/N information.
  • 1
    1
    80923084
    BAR; Feeder assy For 945 models.;See model notes for code MM for S/N information.
  • 2
    4
    44680
    BALL BEARING 20mm ID x 42mm OD x 12mm W; Bearing For 940 945 models.
  • 3
    2
    86629515
    SPACER 20.68mm ID x 25.53mm OD x 51.89mm L; For 940 945 models.
  • 4
    1
    80724068
    TUBE; Tube w/a, outer For 940 models.;See model notes for code C for S/N information.
  • 4
    1
    748110
    TIRE TUBE; Tube w/a, outer For 940 models.;See model notes for code D for S/N information.
  • 4
    1
    80726373
    BAR; Tube w/a, outer For 945 models.;See model notes for code C for S/N information.
  • 4
    1
    80748111
    TUBE; Tube w/a, outer For 945 models.;See model notes for code D for S/N information.
  • 5
    1
    80412422
    SCREW; Hex. cap For 940 945 models. M8 x 150 mm;See model notes for code W for S/N information.
  • 6
    1
    80746029
    SUPPORT; Finger top, rear For 940 945 models.;See model notes for code A for S/N information.
  • 6
    1
    80748315
    SUPPORT; Finger top, rear For 940 945 models.;See model notes for code S for S/N information.
  • 6
    1
    80748311
    SUPPORT; Finger top, rear For 940 945 models.;See model notes for code Z for S/N information.
  • 7
    2
    80746060
    FINGER; Feeder , straight For 945 models.;See model notes for code A for S/N information.
  • 7
    2
    748452
    FINGER; Feeder , straight For 945 models.;See model notes for code Y for S/N information.
  • 8
    4
    120061
    BOLT Hex, M8 x 1.25 x 60mm, 22mm Thread L, Cl 8.8, ZND; For 940, 945 models;See model notes for code C for S/N information.
  • 9
    18
    378243
    WASHER 8.4mm ID x 21mm OD x 1.6mm Thk; For 945 models
  • 10
    8
    565433
    RING; Bea abutment For 940 945 models.;See model notes for code C for S/N information.
  • 11
    12
    564192
    ROLLER; assembly For 940 945 models.;See model notes for code C for S/N information.
  • 11
    4
    564192
    ROLLER; assembly For 940 945 models.;See model notes for code D for S/N information.
  • 12
    4
    80565434
    SPACER; For 940 945 models.;See model notes for code C for S/N information.
  • 13
    1
    86508571
    BOLT Hex, M8 x 1.25 x 90mm, 22mm Thread L, Cl 8.8, ZND; For 940, 945 models
  • 14
    18
    86629542
    LOCK NUT Hex, M8 x 1.25, Cl 8, ZND; For 945 models
  • 15
    2
    746027
    FINGER; Feeder , straight For 945 models.;See model notes for code W for S/N information.
  • 16
    1
    9706690
    NUT Hex, M8 x 1.25, Cl 8, ZND; For 940, 945 models
  • 17
    1
    624381
    LUG; Finger top, front For 940 945 models.;See model notes for code A for S/N information.
  • 17
    1
    748310
    FINGER; top, front For 940 945 models.;See model notes for code Y for S/N information.
  • 18
    2
    725214
    FINGER; adjustable For 940 945 models.;See model notes for code W for S/N information.
  • 20
    2
    100037
    LOCK NUT Hex, M10 x 1.5, Cl 8, ZND; For 940, 945 models
  • 21
    1
    80744580
    TUBE; Tube w/a, inner For 940 models.;See model notes for code C for S/N information.
  • 21
    1
    80747965
    TUBE; Tube w/a, inner For 940 models.;See model notes for code NN for S/N information.
  • 21
    1
    923040
    TUBE; Tube w/a, inner For 940 models.;See model notes for code MM for S/N information.
  • 21
    1
    80744798
    TUBE; Tube w/a, inner For 945 models.;See model notes for code C for S/N information.
  • 21
    1
    80747967
    TUBE; Tube w/a, inner For 945 models.;See model notes for code NN for S/N information.
  • 21
    1
    80923041
    TUBE; Tube w/a, inner For 945 models.;See model notes for code MM for S/N information.
  • 22
    2
    394629
    WASHER 10.5mm ID x 24mm OD x 3mm Thk; For 940, 945 models
  • 23
    2
    412183
    CARRIAGE BOLT Short Sq Nk, M10 x 35mm, Cl 8.8; For 940, 945 models;See model notes for code W for S/N information.
  • 24
    1
    535579
    CLIP; Retainer, bolt head For 940 945 models.
  • 25
    2
    564335
    BOLT Hex, M8 x 1.25 x 36mm, 8mm Thread L, Cl 8.8, ZND; Special bolt For 940 945 models.

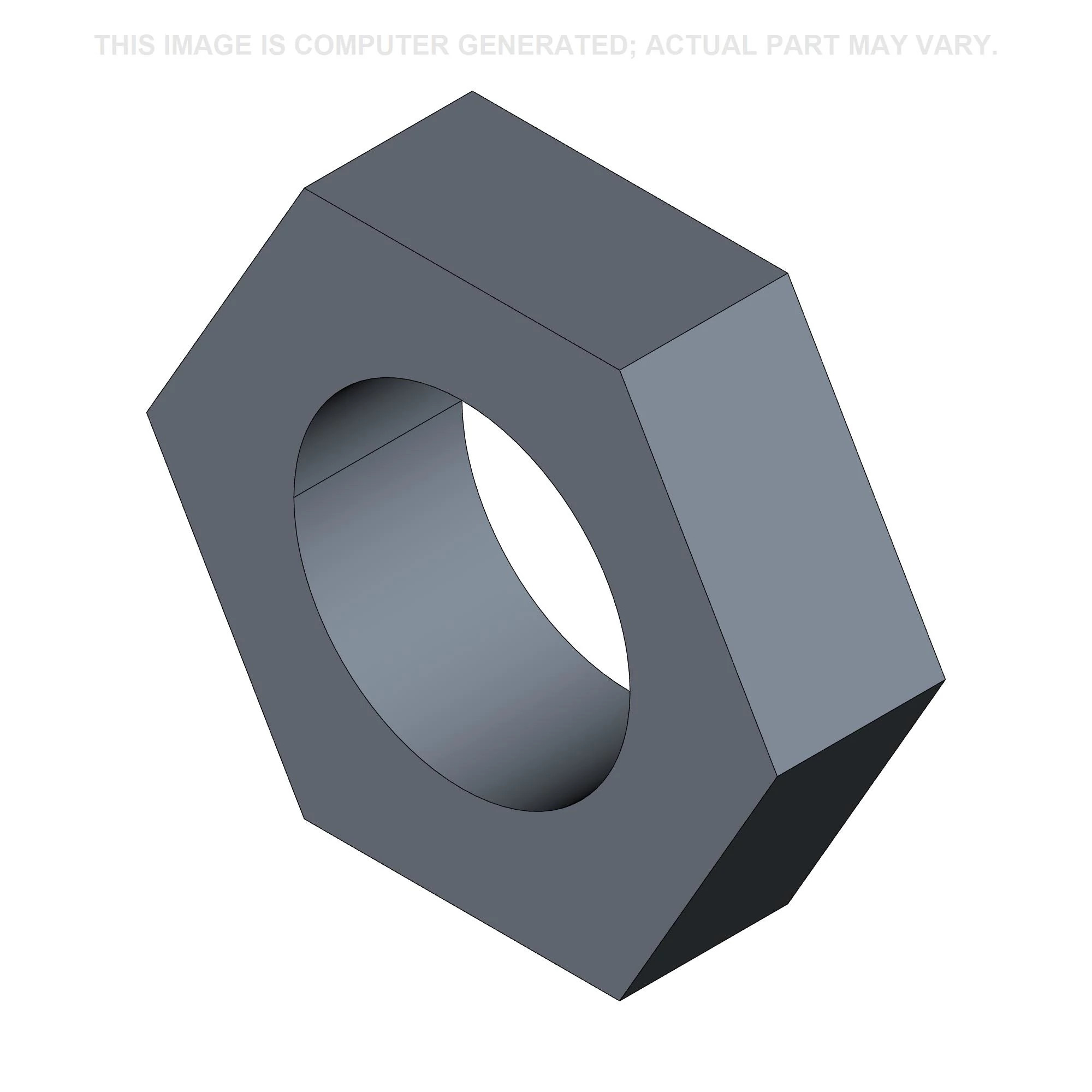

  • 26
    2
    100097
    JAM NUT Thin, M8 x 1.25, Cl 04; For 940, 945 models
  • 27
    2
    724088
    LUG; End finger For 940 945 models.;See model notes for code LL for S/N information.
  • 28
    4
    308761
    CARRIAGE BOLT M8 x 1.25 x 25mm, Cl 8.8; For 940, 945 models;See model notes for code LL for S/N information.
  • 29
    1
    563841
    BEARING ASSY; Wood bearing For 940 945 models.
  • 30
    2
    563782
    SPACER; For 940 945 models.
  • 31
    4
    86512444
    CARRIAGE BOLT M8 x 1.25 x 40mm, Full Thd, Cl 8.8; For 940, 945 models
  • 32
    1
    724091
    BAR; Hay guard For 940 models.;See model notes for code LL for S/N information.
  • 32
    1
    726367
    GUARD; Hay For 945 models.;See model notes for code LL for S/N information.
  • 33
    1
    120061
    BOLT Hex, M8 x 1.25 x 60mm, 22mm Thread L, Cl 8.8, ZND; For 940, 945 models;See model notes for code LL for S/N information.
  • 34
    1
    80744590
    SUPPORT; Hay guard For 940 945 models.;See model notes for code C for S/N information.
  • 34
    1
    748220
    SUPPORT; Hay guard For 940 945 models.;See model notes for code NN for S/N information.
  • 36
    12
    140045
    BELLEVILLE WASHER 10mm ID x 22mm OD x 1.6mm Thk; For 940, 945 models
  • 37
    4
    120070
    BOLT Hex, M10 x 1.5 x 60mm, 26mm Thread L, Cl 8.8, ZND; For 940, 945 models;See model notes for code D for S/N information.
  • 38
    8
    457158
    BUSHING; Spacer ring For 940 945 models.;See model notes for code D for S/N information.
  • 39
    8
    456561
    SEAL; Seal ring For 940 945 models.;See model notes for code D for S/N information.

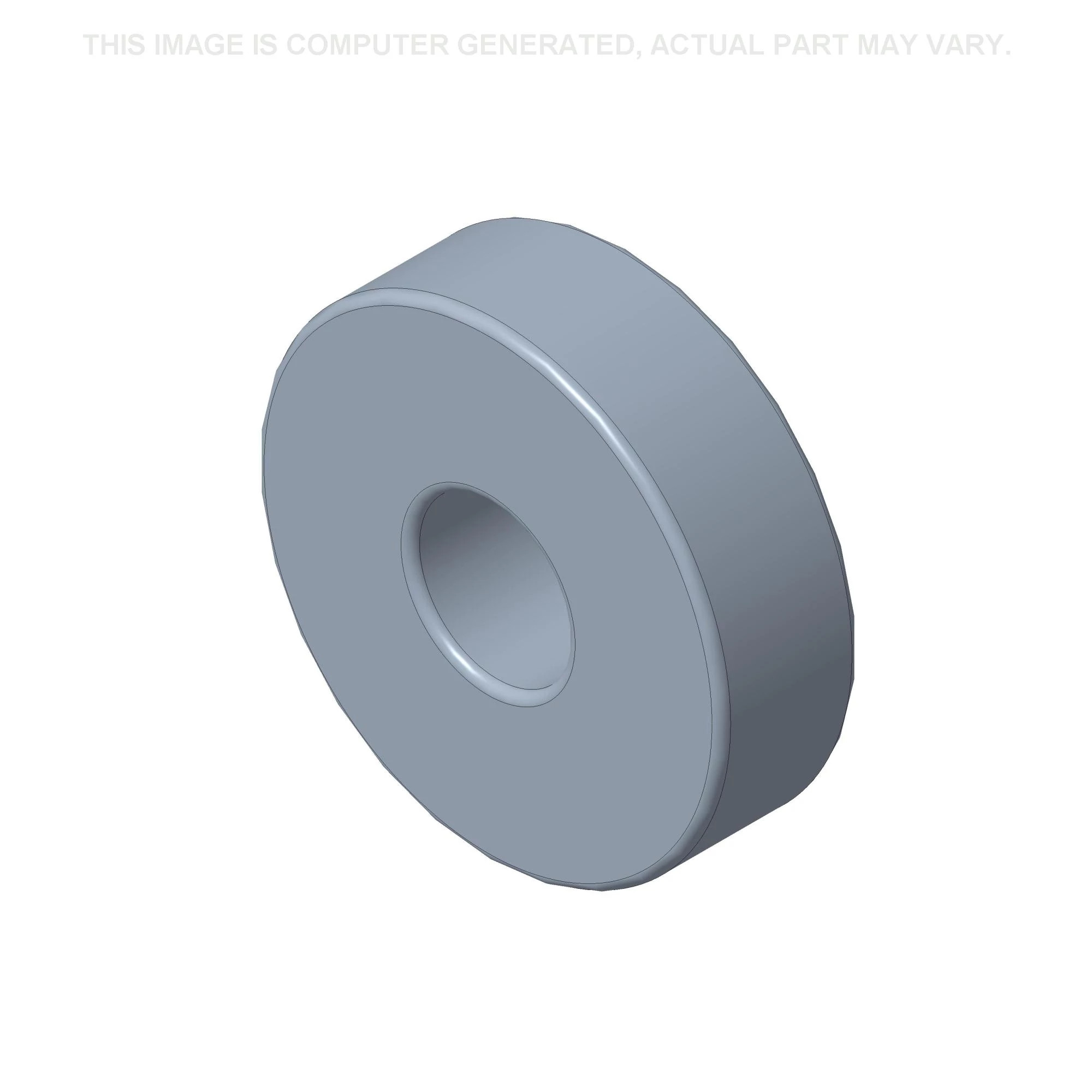

  • 40
    8
    748669
    BALL BEARING 10mm ID x 30mm OD x 9mm W; Bearing For 940 945 models.;See model notes for code D for S/N information.
  • 41
    4
    456266
    SPACER; For 940 945 models.;See model notes for code D for S/N information.
  • 42
    4
    456265
    ROLLER; Roll For 940 945 models.;See model notes for code D for S/N information.
  • 43
    8
    331160
    LOCKING RING 10.5mm ID x 18mm OD x 0.5mm Thk; Plain For 940 945 models. Dia. 10 mm;See model notes for code D for S/N information.
  • 44
    4
    100037
    LOCK NUT Hex, M10 x 1.5, Cl 8, ZND; For 940, 945 models;See model notes for code D for S/N information.
  • 45
    4
    86508571
    BOLT Hex, M8 x 1.25 x 90mm, 22mm Thread L, Cl 8.8, ZND; For 945 models;See model notes for code C for S/N information.
  • 45
    4
    412215
    BOLT Hex, M8 x 1.25 x 100mm, 22mm Thread L, Cl 8.8, ZND; For 945 models;See model notes for code D for S/N information.
  • 46
    1
    442025
    RING; Bushing For 940 models.;See model notes for code NN for S/N information.
  • 46
    5
    378243
    WASHER 8.4mm ID x 21mm OD x 1.6mm Thk; For 945 models;See model notes for code NN for S/N information.
  • 47
    2
    447336
    WASHER 11mm ID x 25mm OD x 3.99mm Thk; Plain For 940 945 models.;See model notes for code LL for S/N information.
  • 49
    6
    140042
    WASHER 11mm ID x 34mm OD x 3mm Thk, CST, ZND; For 945 models;See model notes for code V for S/N information.
  • 50
    6
    87340
    LOCK WASHER Helical Spring, 0.759'' ID, CST, ZND; For 945 models;See model notes for code V for S/N information.
  • 51
    6
    80740290
    FINGER; For 945 models.;See model notes for code V for S/N information.
  • 52
    3
    80300660
    SCREW; Carriage bolt For 945 models.;See model notes for code V for S/N information.
  • 53
    3
    916073
    SUPPORT; Bracket For 945 models.;See model notes for code V for S/N information.
  • 54
    3
    80916074
    SUPPORT; Bracket For 945 models.;See model notes for code V for S/N information.
  • 55
    3
    120201
    BOLT Hex, M10 x 35mm, Cl 8.8, Full Thd; For 940, 945 models;See model notes for code V for S/N information.
  • 56
    6
    919076
    BOLT; Shear For 945 models.;See model notes for code V for S/N information.
  • 57
    3
    734729
    RING; Bushing For 945 models.;See model notes for code V for S/N information.
  • 58
    1
    922723
    SUPPORT; Hay guard For 940 945 models. Used only when fig. 59 is installed;See model notes for code LL for S/N information.
  • 58
    1
    918647
    SUPPORT; Hay guard For 940 945 models.;See model notes for code MM for S/N information.
  • 59
    1
    918663
    PROFILE; Hay guard For 940 models.;See model notes for code MM for S/N information.
  • 59
    1
    80918645
    PROFILE; Hay guard For 945 models.;See model notes for code MM for S/N information.
  • 60
    2
    80922720
    RING; Bushing For 940 945 models.;See model notes for code MM for S/N information.
  • 61
    2
    86507486
    CARRIAGE BOLT M8 x 1.25 x 20mm, Cl 8.8; For 940, 945 models
  • 62
    2
    322358
    BELLEVILLE WASHER M8 Bolt Size x 18mm OD x 1.4mm Thk; For 940, 945 models
  • 63
    6
    378244
    WASHER 10.5mm ID x 24mm OD x 2mm Thk; For 940, 945 models
  • 64
    9
    100016
    NUT Hex, M10 x 1.5, Cl 8, ZND; For 940, 945 models
  • 19
    4
    11106231
    BOLT Hex, M10 x 1.5 x 25mm, Full Thd, Cl 10.9, ZND; For 940, 945 models
  • 35
    2
    43138
    BOLT Hex, M10 x 1.5 x 20mm, Full Thd, Cl 8.8, ZND; For 940, 945 models
  • 48
    4
    43138
    BOLT Hex, M10 x 1.5 x 20mm, Full Thd, Cl 8.8, ZND; For 945 models
