01.070.1 - Dual Front Caster Wheel Assembly (1610 Models)
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    GE-402
    BRAKE DISC;
  • 2
    1
    1680
    SLOTTED NUT 1 1/2''-12, G2;
  • 3
    1
    1678
    BEARING, ROLLER, CYL; #3984
  • 4
    1
    3304
    BEARING CUP; #3920
  • 5
    1
    GD-687A

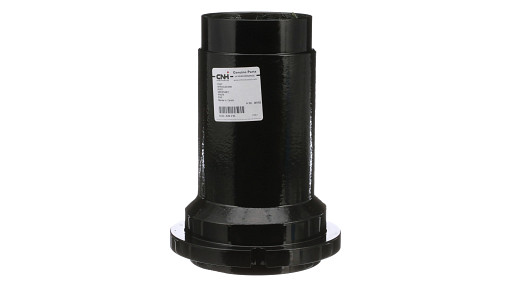

    PIVOT; assembly, caster fork;Includes 3304, 5768 and GD-687
  • 5
    1
    6752
    BEARING SET; c/w cones, seals, and dust cap;Includes 1678, 5765, 5769 and 1683
  • 6
    1
    GE-408A
    BRAKE PAD; assembly and backing plate;Includes 5921, GE-408 and GE-406
  • 7
    1
    5921
    SCREW; cap 3/8''-16 x 3/4'' fh hx-skt
  • 8
    1
    GE-408
    BRAKE PAD; seeder dual caster
  • 10
    1
    GE-406
    BRAKE PAD; backing plate
  • 11
    1
    GE-407A
    SPRING; rod assembly
  • 12
    1
    2115
    LOCK WASHER; 3/8''
  • 13
    1
    88206
    BOLT Hex, 3/8'' - 16 x 1'', Gr 5;
  • 14
    1
    88959
    BOLT Hex, 3/8'' - 16 x 3-1/2'', Gr 5;
  • 15
    1
    GE-405
    BRAKE PLATE; housing cover
  • 16
    1
    87506208
    COMPRESSION SPRING; 5/16'' wire 7/8'' id x 3l
  • 17
    1
    2427-1
    NUT; 3/4''-10, GB
  • 18
    1
    2026
    BOLT Hex, 3/8''-16 x 2 1/2'', G5;
  • 19
    1
    GD-500.56
    DECAL; important remove nuts
  • 20
    1
    3443
    WASHER 0.75'' ID x 1.25'' OD x 0.07'' Thk; 3/4'' id 14ga
  • 21
    1
    1541
    NUT 3/4''-10, G5;
  • 22
    1
    GE-413

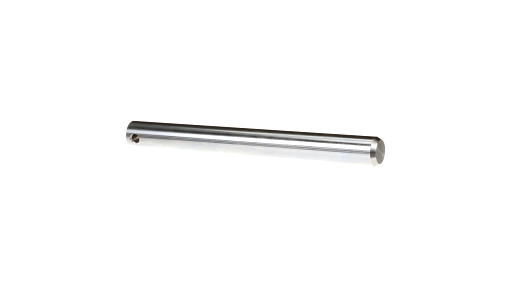

    PIVOT PIN 31.8mm OD x 314.3mm L; dual caster walkbeam
  • 23
    1
    1549
    LOCK NUT 3/8''-16, GB;
  • 24
    1
    6992
    SPINDLE; front caster pivot 3 1/4'' x 17.63'' SP
  • 25
    1
    6636
    BUSHING; composite 1 1/2'' x 1 1/4'' x 1''
  • 26
    1
    TC-615A

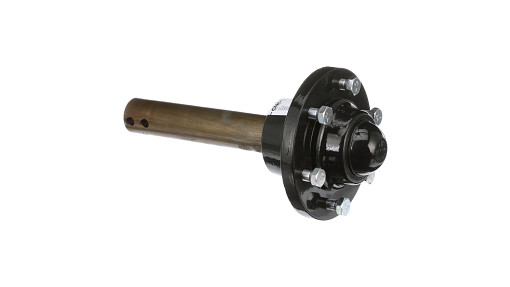

    HUB; & SPINDLE ASSEMBLY, H615;Refer to Dual Front Caster Hub and Spindle page for details
  • 27
    1
    87505450

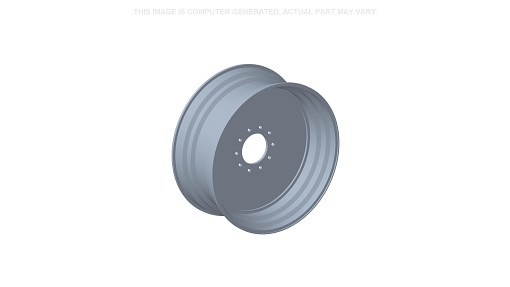

    RIM; 15X10LB 6 hole +1 1/8'' offset
  • 28
    1
    G49036
    WHEEL BOLT Wheel, 9/16 - 18 x 1.75, Gr 5;
  • 30
    1
    5756
    TYRE/TIRE; 36 X 13.5-15 - 4 PLY
  • 31
    1
    5770\S
    WHEEL ASSY; 15 X 10 6 HOLE WITH 36-13.5 4PL;Includes 1615, 1863\S and 5756
  • 32
    1
    1615
    PNEUMATIC VALVE; stem tr/415
  • 33
    1
    6667
    SET SCREW; 1/4''-28 x 1/4'' hl hex skt blk cp
  • 34
    1
    1551
    LOCK NUT;
  • 35
    1
    GE-412
    BEAM; walking dual caster
  • 36
    1
    2364
    BOLT Hex, 1/2''-13 x 3 1/4'', G5;
  • 37
    1
    280286
    NUT 1''-8, GB; 1''-8, GB;Option for North American Market after April, 2004
  • 38
    1
    GE-410

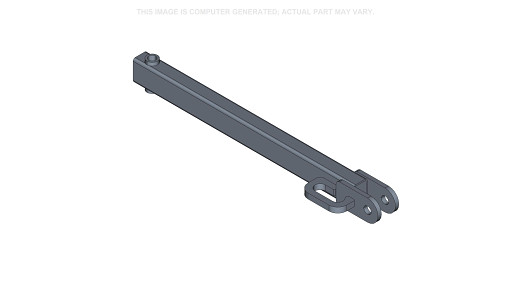

    HITCH; transport - dual front caster;Option for North American Market after April, 2004;Includes GD-300.15
  • 40
    1
    18681
    BOLT Hex, 1'' - 8 x 6 1/2'', Gr 5; Option for North American Market after April, 2004
  • 41
    1
    GE-401A
    HOUSING; PIVOT, DUAL CASTER ASSEMBLY;Includes GE-500.56, 2427, 6992, two 6636 and 1422
  • 42
    1
    88421
    BOLT Hex, 3/4'' - 10 x 5'', Gr 5;
  • 43
    1
    432-1640
    COTTER PIN 1/4'' x 2 1/2'';
  • 44
    1
    1514
    BOLT Hex, 1/2'' - 13 x 2'', Gr 5;
  • 45
    1
    80679
    LOCK WASHER 1/20.507 CST ZND;
  • 46
    1
    GE-403
    CLIP; BRAKE DISC
  • 47
    1
    5765
    SEAL; 4 3/8'' id x 5 3/4'' od x 7/16'' thick
  • 48
    1
    5768
    BEARING CUP; #572
  • 50
    1
    5769
    ROLLER BEARING; #580
  • 51
    1
    CC-109
    WASHER; flat 1 5/8'' id 3 1/16'' od
  • 52
    1
    87561764
    ADAPTER; ring caster
  • 52
    1
    300767A1
    CAP; vacuum manifold end
