TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
01BOX; METER ASSEMBLY, FRONT;Not sold as assembly - order individual components
-
01BOX; METER ASSEMBLY, REAR;Not sold as assembly - order individual components
-
11BOX; METER
-
21ROLLER; assembly, meter, coarse;Includes two 22084, five 4928, two 5888, two 6100, GD-782 and GH-274
-
21ROLLER; ASSEMBLY, METER 4 RUN FINE;Includes two 22084, four 5656, two 5727, two 5888, three 6093, two 6100, GD-782 and GH-274
-
21ROLLER; ASSEMBLY, METER 5 RUN FINE;Includes two 22084, five 5656, two 5724, two 5888, four 6092, two 6100, GD-782 and GH-274
-
21ROLLER; ASSEMBLY, METER 6 RUN FINE;Includes two 22084, six 5656, two 5726, two 5727, two 5888, two 6100, GD-782 and GH-274
-
21ROLLER; ASSEMBLY, METER 8 RUN FINE;Includes two 22084, eight 5656, two 5724, seven 5742, two 5888, two 6100, GD-782 and GH-274
-
31AGITATOR;
-
41DRIVE; AGITATOR
-
51PIN; agitator support
-
61BLOCK; bearing, agitator
-
71DRIVE; METER BOX AGITATOR
-
81LINK; agitator drive;* See Note
-
91BALL BEARING; 8 mm x 22 mm x 7 mm wide;* See Note
-
91LINK; ASSEMBLY, AGITATOR DRIVE;Includes GD-109 and two 4658
-
101KEY; 1/4'' sq x 1'' long
-
111BLADE; WIPER
-
121LOCKING DEVICE; CLEANOUT DOOR - FRONT
-
121LOCKING DEVICE; CLEANOUT DOOR - REAR
-
131ADJUSTER; clamp door
-
141DOOR; CLEANOUT ASSEMBLY;Includes GD-539 and 56.625 inches of 3863
-
151SHAFT; DIVIDER BLADE
-
161SPACER; DIVIDER BLADE - 4 RUN
-
161SPACER; DIVIDER BLADE - 3 RUN or 5 RUN
-
161SPACER; DIVIDER BLADE - 6 RUN
-
161SPACER; DIVIDER BLADE - 8 RUN
-
171BLADE; divider, meter, single shoot
-
171BLADE; divider, meter, long, double shoot
-
181FLANGED BEARING; METER BEARING
-
181BEARING ASSY; ASSEMBLY, METER BEARING;Includes 4482, 3427, 1298 and 6417
-
191SEAL; 3'' id x 3 1/2'' od x 3/8'' thick
-
201O-RING 1'' ID x 1.25'' OD x 0.125'';
-
211LUBE NIPPLE 1/4''-28 NPT x .54'' lg;
-
221FUSE HOLDER; Close Nipple, 1/4'' mpt, Malb
-
231HOSE; .5 IN X 14.5 IN
-
241ELBOW; FITTING, HYDRAULIC - 90 DEGREE STREET
-
251SET SCREW; 1/4''-20'' x 1/4'' hl hex sk
-
261SEAL; .5 IN ID X .75 IN OD X .125 IN THICK
-
271BALL BEARING; SINGLE ROW RADIAL
-
281WASHER 1 1/32'' x 1 1/2'' x .030'';
-
291SENSOR; pick-up, atuater wheel, 4 magnet
-
301LOCK PIN 1/4'' x 1 1/4'', Slotted;
-
311ROLL PIN 1/4'' x 1'', Slotted; 1/4'' x 1''
-
331BOLT Hex, 1/2'' - 13 x 1'', Gr 5;
-
341NUT 1/2''-13, G5;
-
351BOLT 1/2''-13 x 1.813'' OAL, Gr 5;
-
361WASHER 7/16'';
-
371LOCK NUT;
-
381BOLT Hex, 3/8 - 16 x 2, Gr 2; 3/8''-16 x 2'' G2 all thread
-
391LOCK NUT 3/8''-16, GB;
-
401WING NUT 3/8''-16; .375 UNC YZD
-
411KNOB; PLASTIC BALL .5 IN UNC THRU HOLE BRASS INSERT
-
421BOLT Hex, 5/16'' - 18 x 3/4'', Gr 5;
-
431BOLT Hex, 5/16'' - 18 1'', Full Thd, Gr 5;
-
441BOLT Hex, 5/16''-18 x 1 1/4'', G5;
-
451BOLT Hex, 5/16'' - 18 x 1-3/4'', Gr 5;
-
461WASHER 5/16'' SAE;
-
481WASHER 1/4'';
-
491LUBE NIPPLE 90 Degree, 1/4'' NPT x .75'' lg;
-
501NUT 5/16''-18, G5;
-
511JAM NUT Jam, 5/16''-18, G5;
-
521LOCK NUT 5/16''-18, GC;
-
531BOLT Hex, 1/4''-20 x 1 1/4'', G5;
-
541LOCK NUT 1/4''-20, GB;
-
551FLANGE NUT Flg, 5/16''-18, G5; flange 5/16''-18, G5
-
561SENSOR; SHAFT
-
571BRACKET; SHAFT SENSOR
-
581SCREW; #8-32 x 1'' rh sq
-
591LOCK WASHER #8;
-
601NUT #8-32;
-
611WASHER 0.19'' ID x 0.44'' OD x 0.05'' Thk; #8
-
621BOLT; LOCKING, CAM
-
631SPACER; WIPER ADJUSTMENT CAM
-
641CAM; WIPER ADJUSTMENT, LEFT
-
651CAM; WIPER ADJUSTMENT, RIGHT
-
661GAUGE; FEELER ASSEMBLY;Sold as assembly only
-
1001DECAL; grease 50 hours;Not Shown
Select All
Select
Ref.
0Qty
1Availability
Part #
GE-322ADescription
BOX; METER ASSEMBLY, FRONT;Not sold as assembly - order individual componentsImg
Alts
Select
Ref.
0Qty
1Availability
Part #
GE-323ADescription
BOX; METER ASSEMBLY, REAR;Not sold as assembly - order individual componentsImg
Alts
Select
Ref.
2Qty
1Availability
Part #
GD-782ADescription
ROLLER; assembly, meter, coarse;Includes two 22084, five 4928, two 5888, two 6100, GD-782 and GH-274Img
Alts
Select
Ref.
2Qty
1Availability
Part #
GD-783ADescription
ROLLER; ASSEMBLY, METER 4 RUN FINE;Includes two 22084, four 5656, two 5727, two 5888, three 6093, two 6100, GD-782 and GH-274Img
Alts
Select
Ref.
2Qty
1Availability
Part #
GD-784ADescription
ROLLER; ASSEMBLY, METER 5 RUN FINE;Includes two 22084, five 5656, two 5724, two 5888, four 6092, two 6100, GD-782 and GH-274Img
Alts
Select
Ref.
2Qty
1Availability
Part #
GD-785ADescription
ROLLER; ASSEMBLY, METER 6 RUN FINE;Includes two 22084, six 5656, two 5726, two 5727, two 5888, two 6100, GD-782 and GH-274Img
Alts
Select
Ref.
2Qty
1Availability
Part #
GD-786ADescription
ROLLER; ASSEMBLY, METER 8 RUN FINE;Includes two 22084, eight 5656, two 5724, seven 5742, two 5888, two 6100, GD-782 and GH-274Img
Alts
Select
Ref.
9Qty
1Availability
Part #
4658Description

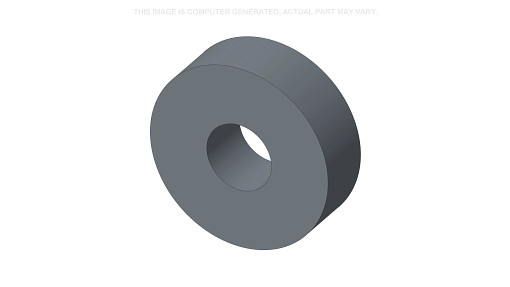

BALL BEARING; 8 mm x 22 mm x 7 mm wide;* See NoteImg
Alts
Select
Ref.
9Qty
1Availability
Part #
GD-109ADescription
LINK; ASSEMBLY, AGITATOR DRIVE;Includes GD-109 and two 4658Img
Alts
Select
Ref.
12Qty
1Availability
Part #
GD-535Description
LOCKING DEVICE; CLEANOUT DOOR - FRONTImg
Alts
Select
Ref.
12Qty
1Availability
Part #
GD-536Description
LOCKING DEVICE; CLEANOUT DOOR - REARImg
Alts
Select
Ref.
14Qty
1Availability
Part #
GD-539ADescription
DOOR; CLEANOUT ASSEMBLY;Includes GD-539 and 56.625 inches of 3863Img
Alts
Select
Ref.
16Qty
1Availability
Part #
GD-436Description
SPACER; DIVIDER BLADE - 3 RUN or 5 RUNImg
Alts
Select
Ref.
17Qty
1Availability
Part #
GE-339Description
BLADE; divider, meter, single shootImg
Alts
Select
Ref.
17Qty
1Availability
Part #
GE-340Description
BLADE; divider, meter, long, double shootImg
Alts
Select
Ref.
18Qty
1Availability
Part #
GD-260ADescription
BEARING ASSY; ASSEMBLY, METER BEARING;Includes 4482, 3427, 1298 and 6417Img
Alts
Select
Ref.
19Qty
1Availability
Part #
6417Description
SEAL; 3'' id x 3 1/2'' od x 3/8'' thickImg
Alts
Select
Ref.
20Qty
1Availability
Part #
4482Description
O-RING 1'' ID x 1.25'' OD x 0.125'';Img
Alts
Select
Ref.
21Qty
1Availability
Part #
1298Description
LUBE NIPPLE 1/4''-28 NPT x .54'' lg;Img
Alts
Select
Ref.
22Qty
1Availability
Part #
3427Description
FUSE HOLDER; Close Nipple, 1/4'' mpt, MalbImg
Alts
Select
Ref.
24Qty
1Availability
Part #
6422Description
ELBOW; FITTING, HYDRAULIC - 90 DEGREE STREETImg
Alts
Select
Ref.
25Qty
1Availability
Part #
87577835Description
SET SCREW; 1/4''-20'' x 1/4'' hl hex skImg
Alts
Select
Ref.
26Qty
1Availability
Part #
3962Description
SEAL; .5 IN ID X .75 IN OD X .125 IN THICKImg
Alts
Select
Ref.
28Qty
1Availability
Part #
3244Description
WASHER 1 1/32'' x 1 1/2'' x .030'';Img
Alts
Select
Ref.
29Qty
1Availability
Part #
5689Description
SENSOR; pick-up, atuater wheel, 4 magnetImg
Alts
Select
Ref.
30Qty
1Availability
Part #
1928Description
LOCK PIN 1/4'' x 1 1/4'', Slotted;Img
Alts
Select
Ref.
31Qty
1Availability
Part #
1371Description
ROLL PIN 1/4'' x 1'', Slotted; 1/4'' x 1''Img
Alts
Select
Ref.
33Qty
1Availability
Part #
87909Description
BOLT Hex, 1/2'' - 13 x 1'', Gr 5;Img
Alts
Select
Ref.
35Qty
1Availability
Part #
87689Description
BOLT 1/2''-13 x 1.813'' OAL, Gr 5;Img
Alts
Select
Ref.
38Qty
1Availability
Part #
3288Description
BOLT Hex, 3/8 - 16 x 2, Gr 2; 3/8''-16 x 2'' G2 all threadImg
Alts
Select
Ref.
41Qty
1Availability
Part #
6448Description
KNOB; PLASTIC BALL .5 IN UNC THRU HOLE BRASS INSERTImg
Alts
Select
Ref.
42Qty
1Availability
Part #
413-512Description
BOLT Hex, 5/16'' - 18 x 3/4'', Gr 5;Img
Alts
Select
Ref.
43Qty
1Availability
Part #
9635884Description
BOLT Hex, 5/16'' - 18 1'', Full Thd, Gr 5;Img
Alts
Select
Ref.
44Qty
1Availability
Part #
2837Description
BOLT Hex, 5/16''-18 x 1 1/4'', G5;Img
Alts
Select
Ref.
45Qty
1Availability
Part #
9707515Description
BOLT Hex, 5/16'' - 18 x 1-3/4'', Gr 5;Img
Alts
Select
Ref.
49Qty
1Availability
Part #
1299Description
LUBE NIPPLE 90 Degree, 1/4'' NPT x .75'' lg;Img
Alts
Select
Ref.
53Qty
1Availability
Part #
1383Description
BOLT Hex, 1/4''-20 x 1 1/4'', G5;Img
Alts
Select
Ref.
55Qty
1Availability
Part #
3901Description
FLANGE NUT Flg, 5/16''-18, G5; flange 5/16''-18, G5Img
Alts
Select
Ref.
61Qty
1Availability
Part #
280299Description
WASHER 0.19'' ID x 0.44'' OD x 0.05'' Thk; #8Img
Alts
Select
Ref.
66Qty
1Availability
Part #
GE-297ADescription
GAUGE; FEELER ASSEMBLY;Sold as assembly onlyImg
Alts
Select
Ref.
100Qty
1Availability
Part #
6566Description
DECAL; grease 50 hours;Not ShownImg
Alts
