L-02 - WHEELS AND WHEEL WEIGHTS, FRONT WHEELS
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    2
    48701D
    SHIELD; front wheel dust
  • 2
    2
    370254R91

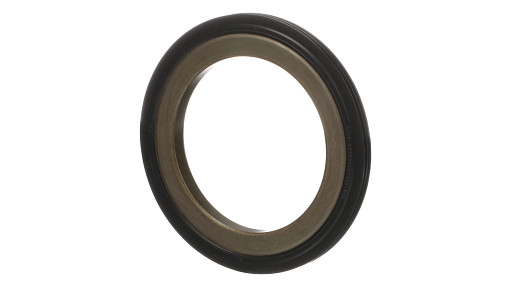

    OIL SEAL 57.02mm ID x 82.55mm OD x 6.86mm Thk; front wheel oil
  • 3
    2
    G15215
    ROLLER BEARING; BEARING ASSY, front wheel inner cone
  • 4
    2
    48703D
    RETAINER; front wheel oil seal
  • 5
    2
    619387R1
    BEARING CUP; BEARING, front wheel inner cup
  • 6
    2
    391823R11
    HUB; ASSY, front wheel, also order fitting, 443566, Farmall tractors except those equipped w/adjustable wide front axle having 50 to 74 inch tread
  • 6
    1
    391823R11GV
    HUB; Value, Hub Assy.
  • 2
    80722
    LUBE NIPPLE 3/16'' x .55'' lg, Drive; FITTING, 3/16 str. drive type lub.
  • 6
    2
    391824R11
    HUB ASSY.; HUB ASSY, front wheel, also order fitting, 19700R91, all international tractors and Farmall tractors w/adjustable wide front axle having 50 to 74 inch tread
  • 2
    19700R91
    FITTING; 3/16 45 deg. angle drive type lub.
  • 7
    2
    618024R1
    BEARING CUP 65.113mm OD x 13.97mm W; Front wheel outer
  • 8
    2
    618023R91

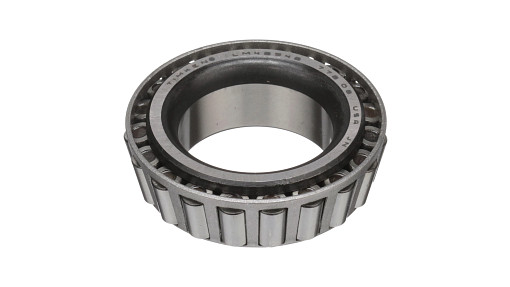

    BEARING CONE 34.93mm ID x 18.2mm W; BEARING ASSY, front wheel outer cone
  • 9
    2
    370255R2

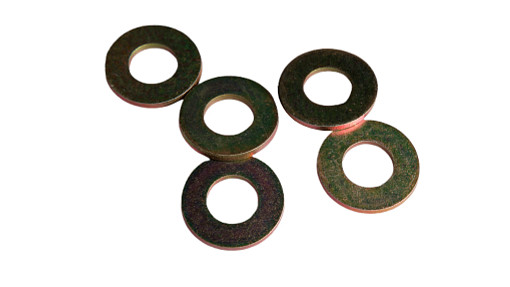

    WASHER 22.63mm ID x 47.75mm OD x 4.18mm Thk; front wheel outer bearing retainer
  • 10
    2
    427645
    SLOTTED NUT 7/8''-14, G5; NUT, front wheel
  • 2
    108643
    COTTER PIN 5/32'' x 1 3/8''; Pin, Split (Cotter), 5/32'' x 1 3/8''
  • 11
    2
    369860R1

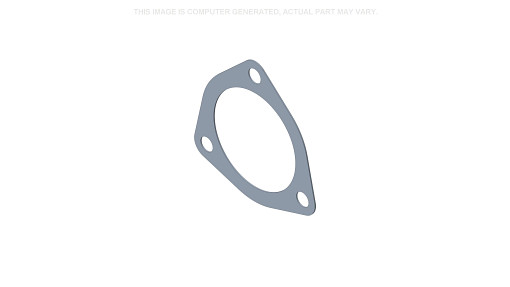

    GASKET 0.79mm Thk; front wheel hub cap
  • 12
    2
    369859R1
    CAP; front wheel hub
  • 6
    21533R1
    BOLT; SCREW, 5/16-18 x 5/8 CDP hex-hd. cap
  • 6
    80681
    LOCK WASHER 5/16'' ID x 19/32'' OD x 1/8'' Thk; WASHER, LOCK, 5/16''
  • 13
    2
    370777R92
    RIM; WHEEL ASSY, front, disc type 4.25KA-16DC rim for 6.00-16 or 6.50-16 tire, all Farmall tractors except hi-clear
  • 13
    2
    371735R3
    WHEEL; ASSY, front, disc type 6LB-15DC rim for 7.50 L-15 tire, all Farmall tractors except hi-clear
  • 13
    2
    389988R91
    WHEEL; ASSY, front, disc type WH8L-16 rim for 10.00-16 tire, International tractors & Farmall tractors with adj. wide tread front axle
  • 13
    1
    383906R91
    WHEEL; ASSY, front, disc type WH10L-16, 11.00-16 tire, Farmall tractors w/serial no. 37236 and below, having adj wide tread front axle
  • 13
    1
    400573R1
    WHEEL; ASSY, front, disc type 5.50F x 19 DC int rim for 7.50-18 tire, Farmall tractors
  • 14
    2
    370779R91
    WHEEL; ASSY, front, disc type, 5.50F-20DC rim for 7.50-20 tire, all Farmall hi-clear tractors
  • 15
    12
    51485D
    BOLT 9/16'' - 18 x 1 7/32''; front wheel mounting, Farmall tractors except hi-clear
  • 15
    12
    382966R1
    BOLT (SPREADER) Hex Csk, 9/16'' - 18 x 1.47''; BOLT, front wheel mounting, Farmall hi-clear tractors
  • 15
    16
    51485D
    BOLT 9/16'' - 18 x 1 7/32''; front wheel mounting, International tractors
  • 15
    16
    393363R1
    BOLT Hex, 9/16'' - 18 x 1.22''; front wheel mounting, for Farmall and International tractors with WH8L-16 wheel and 10.00-16 or 11.00-16 tire
  • 1
    371418R91
    KIT; front wheel bearing overhaul, consists of (1) cone 618023R91, (1) cone 619386R91, (1) cup 618024R1, (1) cup 619387R1, (1) gasket 369860R1, (1) oil seal 370254R91, (1) retainer 48703D
  • AR
    364343R92
    WHEEL; Rim for the 7.50 x 16'' Tire
