TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
11GASKET; Output Retainer
-
21RETAINER; Output
-
31OIL SEAL; Output
-
41RING; Speed
-
51COUPLING FLANGE; Yoke, 8.5C Output, Front Axle
-
6ARSHIM 0.2mm Thk;
-
6ARSHIM 0.25mm Thk;
-
6ARSHIM 0.3mm Thk;
-
6ARSHIM 0.35mm Thk;
-
6ARSHIM 0.5mm Thk;
-
6ARSHIM 0.7mm Thk;
-
71GASKET; Collector
-
83BOLT Hex, M12 x 1.25 x 35mm, Cl 10.9, Full Thd;
-
91RETAINING PLATE; Output Yoke
-
10ARSHIM 0.1mm Thk;
-
10ARSHIM 0.3mm Thk;
-
111O-RING; Output Yoke
-
121SNAP RING 0.562'', Int, #56;
-
131CHECK VALVE 4.45mm;
-
142BOLT Hex, M14 x 1.5 x 35mm, Cl 8.8, Full Thd;
-
151RETAINING PLATE; Input Yoke
-
16ARSHIM 0.1mm Thk;
-
16ARSHIM 0.3mm Thk;
-
16ARSHIM 0.7mm Thk;
-
171O-RING 0.21'' Thk x 1.725'' ID, -327, Cl 5, 75 Duro; Input Yoke
-
181COUPLING FLANGE; Yoke, 8.5C Input, Engine
-
191OIL SEAL; Input Yoke
-
2014HEX PLUG M14 x 1.5, ORB; Incl 21
-
2114O-RING 2.2mm Thk x 11.3mm ID, Cl 6;
-
221RETAINER; Input
-
231GASKET; Input Retainer
-
24ARSHIM 0.2mm Thk;
-
24ARSHIM 0.25mm Thk;
-
24ARSHIM 0.3mm Thk;
-
24ARSHIM 0.35mm Thk;
-
24ARSHIM 0.5mm Thk;
-
2524BOLT Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd;
-
261ADAPTER; Pump
-
271SNAP RING M28, Int;
-
281SNAP RING; Pump Adapter
-
291COUPLING; Pump
-
301RETAINER; 2nd Shaft Bearing
-
311GASKET; 2nd Shaft Retainer
-
326LOCK WASHER M10;
-
332BOLT Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd;
-
344BOLT Hex, 12 - 24 x 24, SST; Valve
-
351PLATE; Valve
-
361GASKET; Valve Plate
-
371PLATE; Valve
-
381GASKET; 3rd Shaft Bearing
-
391O-RING; Retainer
-
401RETAINER; 3rd Shaft
-
412BOLT Hex, M8 x 1.25 x 40mm, Cl 8.8, Full Thd;
-
42ARSHIM 0.2mm Thk;
-
42ARSHIM 0.25mm Thk;
-
42ARSHIM 0.3mm Thk;
-
42ARSHIM 0.35mm Thk;
-
431MANIFOLD VALVE; Clutch
-
442BOLT Hex, M8 x 1.25 x 20mm;
-
451PLATE; Valve Retainer
-
461SOLENOID PWM; Proportional
-
461CORE-SOLENOID PWM; Proportional
-
461CORE-SOLENOID PWM; Proportional
-
461CORE-SOLENOID PWM; Proportional
-
461CORE-SOLENOID PWM; Proportional
-
1REMAN-ELECTRIC ACTUATOR SOLENOID - PWM; Reman Solenoid
-
1CORE-SOLENOID SOLENOID - PWM; Return Number
Select All
Select
Ref.
5Qty
1Availability
Part #
362598A1Description

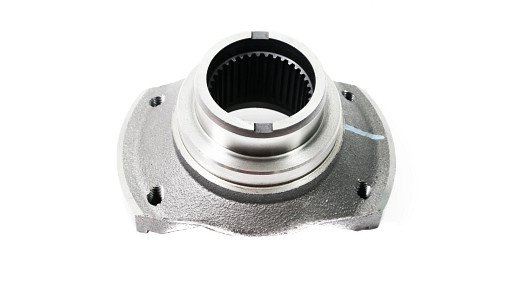

COUPLING FLANGE; Yoke, 8.5C Output, Front AxleImg
Alts
Select
Ref.
8Qty
3Availability
Part #
514-853Description
BOLT Hex, M12 x 1.25 x 35mm, Cl 10.9, Full Thd;Img
Alts
Select
Ref.
14Qty
2Availability
Part #
514-915Description
BOLT Hex, M14 x 1.5 x 35mm, Cl 8.8, Full Thd;Img
Alts
Select
Ref.
17Qty
1Availability
Part #
428162A1Description
O-RING 0.21'' Thk x 1.725'' ID, -327, Cl 5, 75 Duro; Input YokeImg
Alts
Select
Ref.
18Qty
1Availability
Part #
362563A1Description

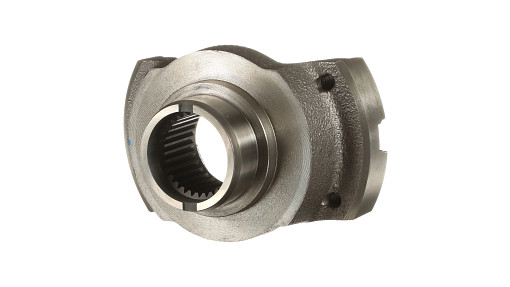

COUPLING FLANGE; Yoke, 8.5C Input, EngineImg
Alts
Select
Ref.
20Qty
14Availability
Part #
220064A1Description
HEX PLUG M14 x 1.5, ORB; Incl 21Img
Alts
Select
Ref.
21Qty
14Availability
Part #
637-63113Description
O-RING 2.2mm Thk x 11.3mm ID, Cl 6;Img
Alts
Select
Ref.
25Qty
24Availability
Part #
514-730Description
BOLT Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd;Img
Alts
Select
Ref.
33Qty
2Availability
Part #
514-712Description

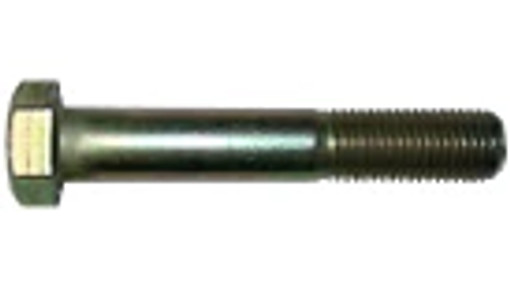

BOLT Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd;Img
Alts
Select
Ref.
34Qty
4Availability
Part #
84315320Description

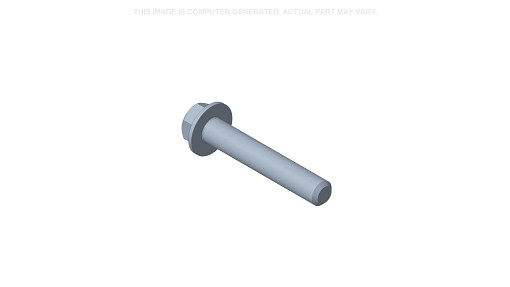

BOLT Hex, 12 - 24 x 24, SST; ValveImg
Alts
Select
Ref.
41Qty
2Availability
Part #
614-8040Description
BOLT Hex, M8 x 1.25 x 40mm, Cl 8.8, Full Thd;Img
Alts
Select
Ref.
46Qty
1Availability
Part #
87421157CDescription
CORE-SOLENOID PWM; ProportionalImg
Alts
Select
Ref.
46Qty
1Availability
Part #
87357396CDescription
CORE-SOLENOID PWM; ProportionalImg
Alts
Select
Ref.
46Qty
1Availability
Part #
87440439CDescription
CORE-SOLENOID PWM; ProportionalImg
Alts
Select
Ref.
46Qty
1Availability
Part #
86989388CDescription
CORE-SOLENOID PWM; ProportionalImg
Alts
Select
Ref.
Qty
1Availability
Part #
84173878RDescription

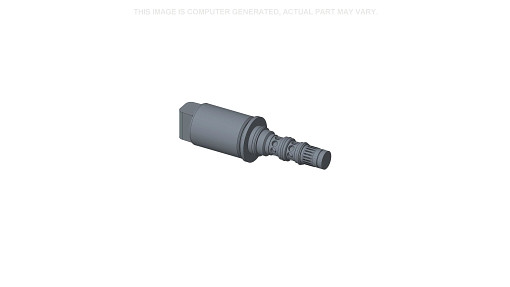

REMAN-ELECTRIC ACTUATOR SOLENOID - PWM; Reman SolenoidImg
Alts
Select
Ref.
Qty
1Availability
Part #
84173878CDescription
CORE-SOLENOID SOLENOID - PWM; Return NumberImg
Alts
