8-006 - HYDRAULIC PUMP, FILTER AND PIPES
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    INSTRUCTION; PUMP - hydraulic, with multi control valve (See Figure 8-10)
  • 2
    1
    GASKET; - control valve
  • 3
    2
    BOLT Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd; BOLT, Hex, M12 x 35, 10.9, Full Thd
  • 4
    1
    BOLT Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd; (Early Production) Hex, M12 x 35, 8.8, Full Thd
  • 4
    1

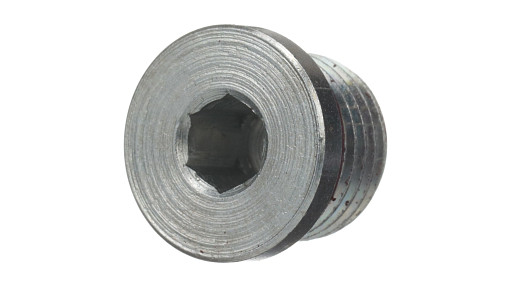

    HEX SOCKET PLUG 9/16'' - 18 ORB; (Later Production), Incl. Ref. 5 Hex Soc, 9/16''-18 ORB
  • 6
    1
    HEX SOCKET PLUG 9/16'' - 18 ORB; Incl. Ref: 7 Hex Soc, 9/16''-18 ORB
  • 8
    1
    SUCTION PIPE; PIPE - suction
  • 9
    1
    FITTING; ADAPTER - pump
  • 10
    1
    O-RING 38mm ID x 3mm Width; - 38 x 3 mm
  • 11
    1
    O-RING 0.116'' Thk x 1.171'' ID, -916, Cl 6, 90 Duro; 16-1, 90 Duro, 1.171'' ID x .118'' Thk
  • 12
    1
    HOSE; - connecting
  • 13
    2
    HOSE CLAMP #16, 0.81'' - 1.5'', Type F Worm; CLAMP, HOSE, , Adj. #16, 0.81/1.50 Type F Worm
  • 14
    1
    CONNECTOR, ELEC; CONNECTOR - return, straight
  • 14
    1
    FITTING; VALVE - check, auxiliary return (Bruning) (With Push/Pull Couplers), Includes Ref: 15
  • 15
    1
    O-RING 0.116'' Thk x 1.048'' ID, -914, Cl 6, 90 Duro; 14-1, 90 Duro, 1.048'' ID x .116'' Thk
  • 16
    1
    INSTRUCTION; FILTER - assembly, hydraulic (See Figure 8-20)
  • 17
    4
    BOLT Hex, M10 x 1.5 x 60mm, Cl 8.8;
  • 18
    4
    BOLT Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd; - hex, full threads, 10 - 1.5 x 35 mm
  • 19
    8
    LOCK WASHER M10;
  • 20
    2

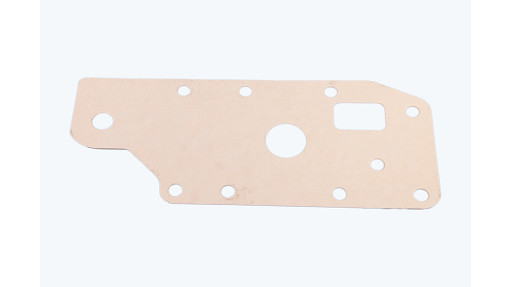

    SEAL 0.25mm Thk; GASKET - filter manifold
  • 21
    1
    PLATE ASSY.; PLATE - filter adapter
  • 22
    1
    HYD CONNECTOR 1'' - 14 Male ORFS x 7/8'' - 14 Male ORB; CONNECTOR, HYD., , Includes Ref. 23, 24 1''-14 ORFS x 7/8''-14 ORB
  • 23
    1
    O-RING 0.07'' Thk x 0.614'' ID, -16, Cl 6, 90 Duro;
  • 24
    1
    O-RING 0.097'' Thk x 0.755'' ID, -910, Cl 6, 90 Duro; 10-1, 90 Duro, .755'' ID x .097'' Thk
  • 25
    1
    PIPE; - lift, front
  • 26
    1
    PIPE; - lift, middle
  • 27
    1
    PIPE; - lift, rear
  • 28
    3

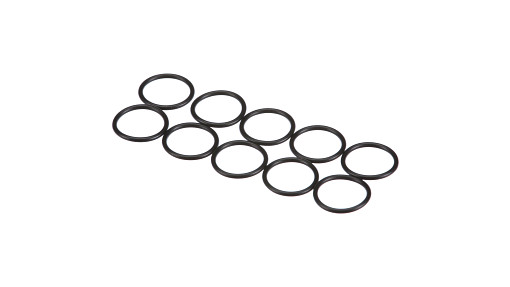

    O-RING 1.78mm Thk x 15.6mm ID, 90 Duro;
  • 29
    2
    BOLT Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd; - hex, full threads, 8 - 1.25 x 25 mm
  • 30
    1
    BRACKET; SUPPORT - assembly
  • 31
    1
    BOLT Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd; - hex, full threads, 12 - 1.75 x 25 mm
  • 32
    1

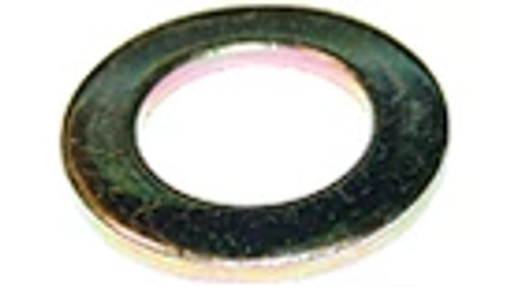

    WASHER 13.5mm ID x 24mm OD x 2.5mm Thk, CST, ZND; - flat, 13.5 x 24 x 2.5 mm
  • 33
    1
    CLAMP; - pipe, double
  • 34
    1
    BOLT Hex, M6 x 1 x 35mm, Cl 8.8;
  • 35
    1
    VALVE; - assembly, lube relief (JJF1000600 - ), Includes Ref: 36-40
  • 36
    1
    NOT SOLD SEPARAT; VALVE - poppet
  • 37
    1
    COMPRESSION SPRING; - valve
  • 38
    1
    CIRCLIP; RING - retaining
  • 39
    1
    HEX SOCKET PLUG 1 5/16''-12 ORB; ( - JJF1026700) Hex Soc, 1 5/16''-12 ORB
  • 40
    1
    O-RING 0.118'' Thk x 1.475'' ID, -920, Cl 6, 90 Duro; 20-1, 90 Duro, 1.475'' ID x .118'' Thk
  • 35
    1
    VALVE; - assembly, lube relief ( - JJF1000599), Includes Ref: 36-39
  • 36
    1
    SPOOL; VALVE - poppet
  • 37
    1
    VALVE SPRING; SPRING - valve
  • 38
    1
    O-RING 0.118'' Thk x 1.475'' ID, -920, Cl 6, 90 Duro; 20-1, 90 Duro, 1.475'' ID x .118'' Thk
  • 39
    1

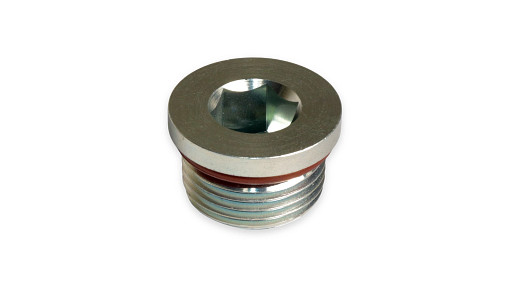

    HEX SOCKET PLUG 1-1/16'' - 12 ORB; Incl. Ref: 40 Hex Soc, 1 1/16''-12 ORB
  • 40
    1
    O-RING 0.116'' Thk x 0.924'' ID, -912, Cl 6, 90 Duro; 12-1, 90 Duro, .924 ID x .116'' Thk
  • 42
    1
    SCREW M6 x 16mm, Gr 8; - set
  • 43
    1
    SWITCH; - low temperature
  • 44
    1
    HYD TUBE 8 mm OD, 50, 35 mm Length; TUBE - drain, power beyond
  • 45
    2
    HYD CONNECTOR 11/16'' - 16 Male ORFS x 9/16'' - 18 Male ORB; Straight, Incl Ref 46, 47 11/16''-16 ORFS x 9/16''-18 ORB
  • 46
    1
    O-RING 0.07'' Thk x 0.364'' ID, -12, Cl 6, 90 Duro;
  • 5
    1
    O-RING 0.078'' Thk x 0.468'' ID, -906, Cl 6, 90 Duro; 6-1, 90 Duro, .468'' ID x .078'' Thk
  • 7
    1
    O-RING 0.078'' Thk x 0.468'' ID, -906, Cl 6, 90 Duro; 6-1, 90 Duro, .468'' ID x .078'' Thk
  • 47
    1
    O-RING 0.078'' Thk x 0.468'' ID, -906, Cl 6, 90 Duro; 6-1, 90 Duro, .468'' ID x .078'' Thk
Select All

Select

Ref.

1

Qty

1

Availability

Part #

REF

Description

INSTRUCTION; PUMP - hydraulic, with multi control valve (See Figure 8-10)


Alts

Select

Ref.

2

Qty

1

Availability

Part #

139883A1

Description

GASKET; - control valve


Alts

Select

Ref.

3

Qty

2

Availability

Part #

628-12035

Description

BOLT Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd; BOLT, Hex, M12 x 35, 10.9, Full Thd


Alts

Select

Ref.

4

Qty

1

Availability

Part #

614-12035

Description

BOLT Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd; (Early Production) Hex, M12 x 35, 8.8, Full Thd


Alts

Select

Ref.

4

Qty

1

Availability

Part #

9625178

Description

HEX SOCKET PLUG 9/16'' - 18 ORB; (Later Production), Incl. Ref. 5 Hex Soc, 9/16''-18 ORB


Alts

Select

Ref.

6

Qty

1

Availability

Part #

9625178

Description

HEX SOCKET PLUG 9/16'' - 18 ORB; Incl. Ref: 7 Hex Soc, 9/16''-18 ORB


Alts

Select

Ref.

8

Qty

1

Availability

Part #

1533037C1

Description

SUCTION PIPE; PIPE - suction


Alts

Select

Ref.

9

Qty

1

Availability

Part #

1531614C1

Description

FITTING; ADAPTER - pump


Alts

Select

Ref.

10

Qty

1

Availability

Part #

T103357

Description

O-RING 38mm ID x 3mm Width; - 38 x 3 mm


Alts

Select

Ref.

11

Qty

1

Availability

Part #

237-6016

Description

O-RING 0.116'' Thk x 1.171'' ID, -916, Cl 6, 90 Duro; 16-1, 90 Duro, 1.171'' ID x .118'' Thk


Alts

Select

Ref.

12

Qty

1

Availability

Part #

1531600C1

Description

HOSE; - connecting


Alts

Select

Ref.

13

Qty

2

Availability

Part #

214-1416

Description

HOSE CLAMP #16, 0.81'' - 1.5'', Type F Worm; CLAMP, HOSE, , Adj. #16, 0.81/1.50 Type F Worm


Alts

Select

Ref.

14

Qty

1

Availability

Part #

T100045

Description

CONNECTOR, ELEC; CONNECTOR - return, straight


Alts

Select

Ref.

14

Qty

1

Availability

Part #

1343779C1

Description

FITTING; VALVE - check, auxiliary return (Bruning) (With Push/Pull Couplers), Includes Ref: 15


Alts

Select

Ref.

15

Qty

1

Availability

Part #

237-6014

Description

O-RING 0.116'' Thk x 1.048'' ID, -914, Cl 6, 90 Duro; 14-1, 90 Duro, 1.048'' ID x .116'' Thk


Alts

Select

Ref.

16

Qty

1

Availability

Part #

REF

Description

INSTRUCTION; FILTER - assembly, hydraulic (See Figure 8-20)


Alts

Select

Ref.

17

Qty

4

Availability

Part #

814-10060

Description

BOLT Hex, M10 x 1.5 x 60mm, Cl 8.8;


Alts

Select

Ref.

18

Qty

4

Availability

Part #

614-10035

Description

BOLT Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd; - hex, full threads, 10 - 1.5 x 35 mm


Alts

Select

Ref.

19

Qty

8

Availability

Part #

892-11010

Description

LOCK WASHER M10;


Alts

Select

Ref.

20

Qty

2

Availability

Part #

139882A2

Description

SEAL 0.25mm Thk; GASKET - filter manifold


Alts

Select

Ref.

21

Qty

1

Availability

Part #

1340757C1

Description

PLATE ASSY.; PLATE - filter adapter


Alts

Select

Ref.

22

Qty

1

Availability

Part #

201-103

Description

HYD CONNECTOR 1'' - 14 Male ORFS x 7/8'' - 14 Male ORB; CONNECTOR, HYD., , Includes Ref. 23, 24 1''-14 ORFS x 7/8''-14 ORB


Alts

Select

Ref.

23

Qty

1

Availability

Part #

238-6016

Description

O-RING 0.07'' Thk x 0.614'' ID, -16, Cl 6, 90 Duro;


Alts

Select

Ref.

24

Qty

1

Availability

Part #

237-6010

Description

O-RING 0.097'' Thk x 0.755'' ID, -910, Cl 6, 90 Duro; 10-1, 90 Duro, .755'' ID x .097'' Thk


Alts

Select

Ref.

25

Qty

1

Availability

Part #

1531041C2

Description

PIPE; - lift, front


Alts

Select

Ref.

26

Qty

1

Availability

Part #

1531040C2

Description

PIPE; - lift, middle


Alts

Select

Ref.

27

Qty

1

Availability

Part #

1531039C3

Description

PIPE; - lift, rear


Alts

Select

Ref.

28

Qty

3

Availability

Part #

T102297

Description

O-RING 1.78mm Thk x 15.6mm ID, 90 Duro;


Alts

Select

Ref.

29

Qty

2

Availability

Part #

614-8025

Description

BOLT Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd; - hex, full threads, 8 - 1.25 x 25 mm


Alts

Select

Ref.

30

Qty

1

Availability

Part #

1531746C2

Description

BRACKET; SUPPORT - assembly


Alts

Select

Ref.

31

Qty

1

Availability

Part #

614-12025

Description

BOLT Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd; - hex, full threads, 12 - 1.75 x 25 mm


Alts

Select

Ref.

32

Qty

1

Availability

Part #

895-11012

Description

WASHER 13.5mm ID x 24mm OD x 2.5mm Thk, CST, ZND; - flat, 13.5 x 24 x 2.5 mm


Alts

Select

Ref.

33

Qty

1

Availability

Part #

T101168

Description

CLAMP; - pipe, double


Alts

Select

Ref.

34

Qty

1

Availability

Part #

814-6035

Description

BOLT Hex, M6 x 1 x 35mm, Cl 8.8;


Alts

Select

Ref.

35

Qty

1

Availability

Part #

107451A2

Description

VALVE; - assembly, lube relief (JJF1000600 - ), Includes Ref: 36-40


Alts

Select

Ref.

36

Qty

1

Availability

Part #

NSS

Description

NOT SOLD SEPARAT; VALVE - poppet


Alts

Select

Ref.

37

Qty

1

Availability

Part #

107454A2

Description

COMPRESSION SPRING; - valve


Alts

Select

Ref.

38

Qty

1

Availability

Part #

107452A1

Description

CIRCLIP; RING - retaining


Alts

Select

Ref.

39

Qty

1

Availability

Part #

218-5214

Description

HEX SOCKET PLUG 1 5/16''-12 ORB; ( - JJF1026700) Hex Soc, 1 5/16''-12 ORB


Alts

Select

Ref.

40

Qty

1

Availability

Part #

237-6020

Description

O-RING 0.118'' Thk x 1.475'' ID, -920, Cl 6, 90 Duro; 20-1, 90 Duro, 1.475'' ID x .118'' Thk


Alts

Select

Ref.

35

Qty

1

Availability

Part #

1976963C3

Description

VALVE; - assembly, lube relief ( - JJF1000599), Includes Ref: 36-39


Alts

Select

Ref.

36

Qty

1

Availability

Part #

1340768C1

Description

SPOOL; VALVE - poppet


Alts

Select

Ref.

37

Qty

1

Availability

Part #

1340769C1

Description

VALVE SPRING; SPRING - valve


Alts

Select

Ref.

38

Qty

1

Availability

Part #

237-6020

Description

O-RING 0.118'' Thk x 1.475'' ID, -920, Cl 6, 90 Duro; 20-1, 90 Duro, 1.475'' ID x .118'' Thk


Alts

Select

Ref.

39

Qty

1

Availability

Part #

9841223

Description

HEX SOCKET PLUG 1-1/16'' - 12 ORB; Incl. Ref: 40 Hex Soc, 1 1/16''-12 ORB


Alts

Select

Ref.

40

Qty

1

Availability

Part #

237-6012

Description

O-RING 0.116'' Thk x 0.924'' ID, -912, Cl 6, 90 Duro; 12-1, 90 Duro, .924 ID x .116'' Thk


Alts

Select

Ref.

42

Qty

1

Availability

Part #

1531588C1

Description

SCREW M6 x 16mm, Gr 8; - set


Alts

Select

Ref.

43

Qty

1

Availability

Part #

1983380C1

Description

SWITCH; - low temperature


Alts

Select

Ref.

44

Qty

1

Availability

Part #

1531044C1

Description

HYD TUBE 8 mm OD, 50, 35 mm Length; TUBE - drain, power beyond


Alts

Select

Ref.

45

Qty

2

Availability

Part #

201-101

Description

HYD CONNECTOR 11/16'' - 16 Male ORFS x 9/16'' - 18 Male ORB; Straight, Incl Ref 46, 47 11/16''-16 ORFS x 9/16''-18 ORB


Alts

Select

Ref.

46

Qty

1

Availability

Part #

238-6012

Description

O-RING 0.07'' Thk x 0.364'' ID, -12, Cl 6, 90 Duro;


Alts

Select

Ref.

5

Qty

1

Availability

Part #

237-6006

Description

O-RING 0.078'' Thk x 0.468'' ID, -906, Cl 6, 90 Duro; 6-1, 90 Duro, .468'' ID x .078'' Thk


Alts

Select

Ref.

7

Qty

1

Availability

Part #

237-6006

Description

O-RING 0.078'' Thk x 0.468'' ID, -906, Cl 6, 90 Duro; 6-1, 90 Duro, .468'' ID x .078'' Thk


Alts

Select

Ref.

47

Qty

1

Availability

Part #

237-6006

Description

O-RING 0.078'' Thk x 0.468'' ID, -906, Cl 6, 90 Duro; 6-1, 90 Duro, .468'' ID x .078'' Thk


Alts
