TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Select All
Ref.
Qty
Part #
Alts
Description
-
11INSTRUCTION; VALVE ASSEMBLY - solenoid, See Figure 8-24
-
21ELBOW 90 Degree Elbow, 11/16'' - 16 Female ORFS x 9/16'' - 18 Male ORB; - 90 degree adjustable swivel, 9/16 x 11/16 inch thread, Includes: Ref. 3 and 4
-
41O-RING 0.07'' Thk x 0.364'' ID, -12, Cl 6, 90 Duro; Face end -012, 90 Duro, .364'' ID x .070'' Thk
-
72HYD CONNECTOR 11/16'' - 16 Male ORFS x 9/16'' - 18 Male ORB; Adapter - straight, Incl Ref. 8 and 9 11/16''-16 ORFS x 9/16''-18 ORB
-
91O-RING 0.07'' Thk x 0.364'' ID, -12, Cl 6, 90 Duro; Face end -012, 90 Duro, .364'' ID x .070'' Thk
-
111HYD TUBE; TUBE - supply
-
121HYD TUBE; TUBE - return
-
141TEE 13/16''-16 ORFS x 13/16''-16 Sw Run; - swivel, 13/16 x 13/16 x 13/16 inch thread, Includes: Ref. 15
-
152O-RING 0.07'' Thk x 0.489'' ID, -14, Cl 6, 90 Duro; Face end -014, 90 Duro, .489'' ID x .070'' Thk
-
161ELBOW 90 Degree Elbow, 13/16'' - 16 Male ORFS x 9/16'' - 18 Male ORB; - 90? Adj, 9/16 x 13/16 inch thread, Incl Ref 17 and 18
-
181O-RING 0.07'' Thk x 0.489'' ID, -14, Cl 6, 90 Duro; Face end -014, 90 Duro, .489'' ID x .070'' Thk
-
31O-RING 0.078'' Thk x 0.468'' ID, -906, Cl 6, 90 Duro; 6-1, 90 Duro, .468'' ID x .078'' Thk, Boss end
-
81O-RING 0.078'' Thk x 0.468'' ID, -906, Cl 6, 90 Duro; 6-1, 90 Duro, .468'' ID x .078'' Thk, Seal
-
171O-RING 0.078'' Thk x 0.468'' ID, -906, Cl 6, 90 Duro; 6-1, 90 Duro, .468'' ID x .078'' Thk, Boss end
Select All
Select
Ref.
1Qty
1Availability
Part #
REFDescription
INSTRUCTION; VALVE ASSEMBLY - solenoid, See Figure 8-24Img
Alts
Select
Ref.
2Qty
1Availability
Part #
201-322Description

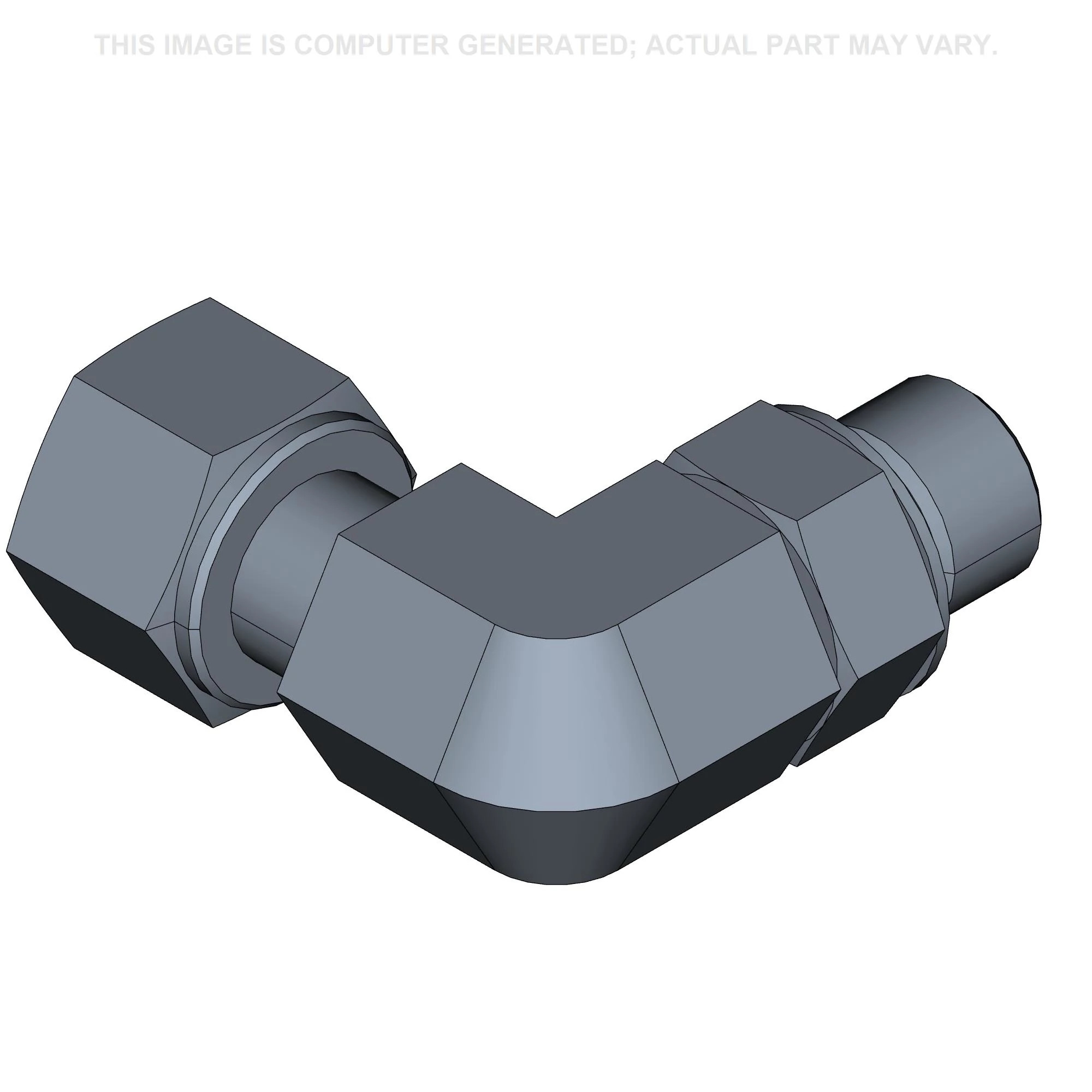

ELBOW 90 Degree Elbow, 11/16'' - 16 Female ORFS x 9/16'' - 18 Male ORB; - 90 degree adjustable swivel, 9/16 x 11/16 inch thread, Includes: Ref. 3 and 4Img
Alts
Select
Ref.
4Qty
1Availability
Part #
238-6012Description

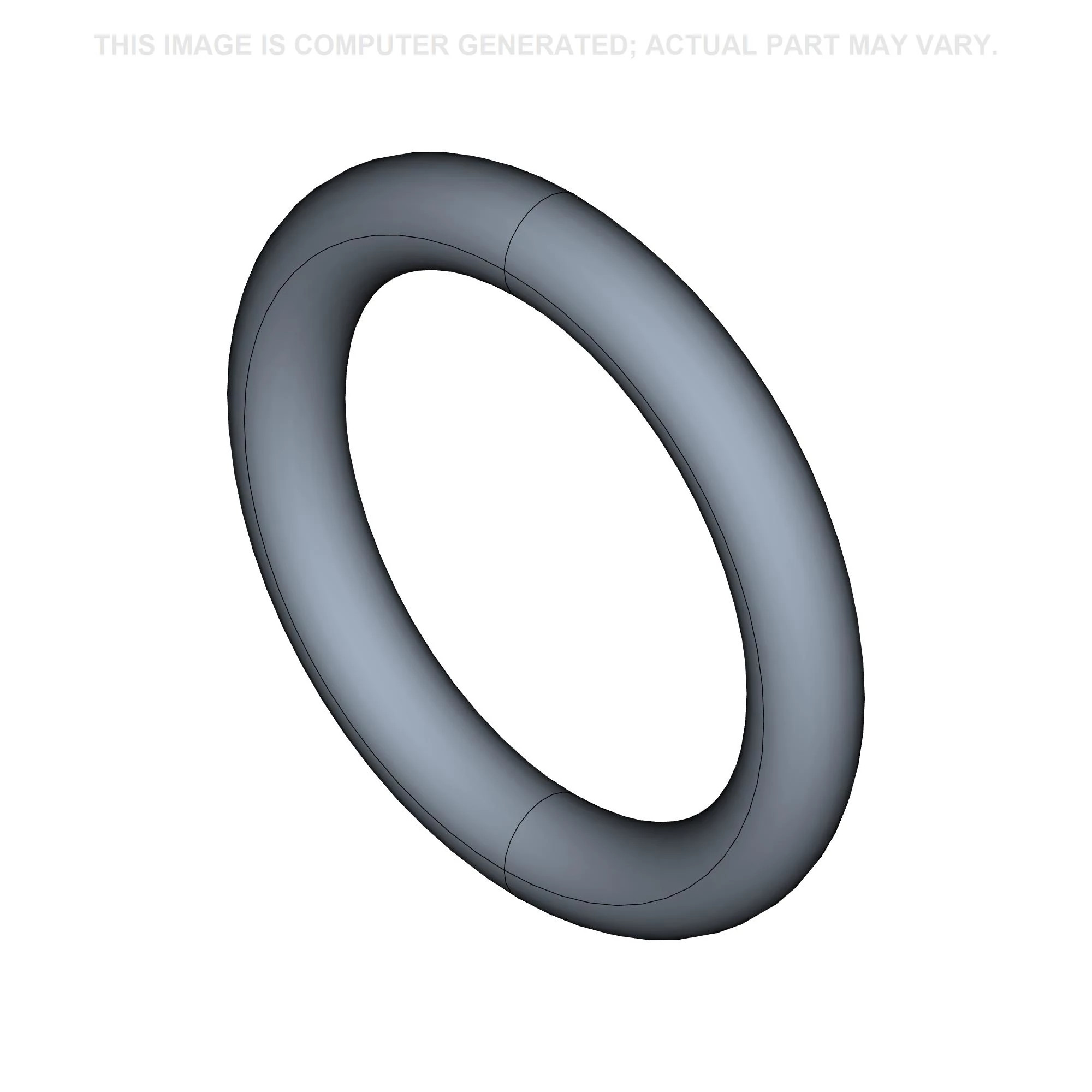

O-RING 0.07'' Thk x 0.364'' ID, -12, Cl 6, 90 Duro; Face end -012, 90 Duro, .364'' ID x .070'' ThkImg
Alts
Select
Ref.
7Qty
2Availability
Part #
201-101Description
HYD CONNECTOR 11/16'' - 16 Male ORFS x 9/16'' - 18 Male ORB; Adapter - straight, Incl Ref. 8 and 9 11/16''-16 ORFS x 9/16''-18 ORBImg
Alts
Select
Ref.
9Qty
1Availability
Part #
238-6012Description
O-RING 0.07'' Thk x 0.364'' ID, -12, Cl 6, 90 Duro; Face end -012, 90 Duro, .364'' ID x .070'' ThkImg
Alts
Select
Ref.
14Qty
1Availability
Part #
201-416Description
TEE 13/16''-16 ORFS x 13/16''-16 Sw Run; - swivel, 13/16 x 13/16 x 13/16 inch thread, Includes: Ref. 15Img
Alts
Select
Ref.
15Qty
2Availability
Part #
238-6014Description

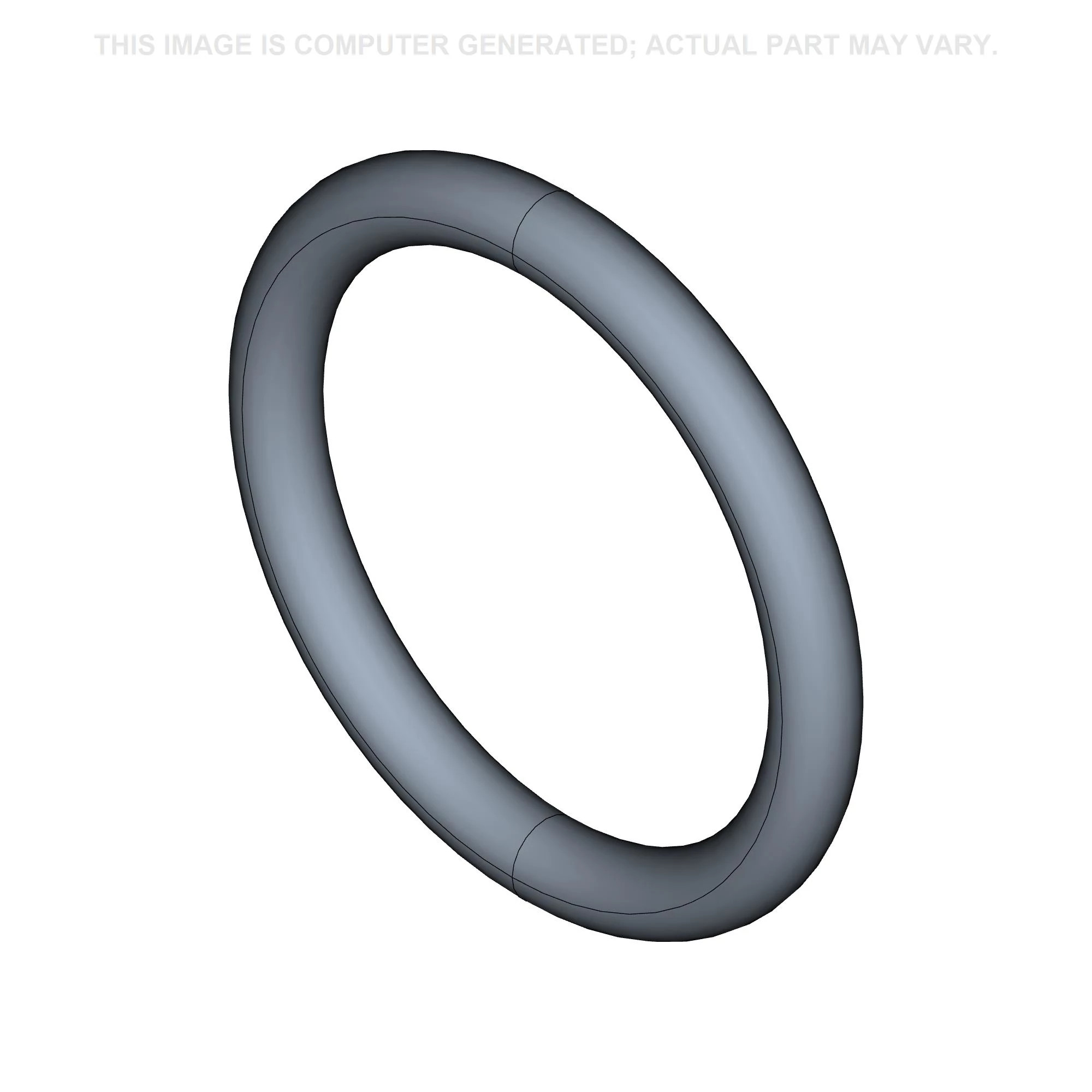

O-RING 0.07'' Thk x 0.489'' ID, -14, Cl 6, 90 Duro; Face end -014, 90 Duro, .489'' ID x .070'' ThkImg
Alts
Select
Ref.
16Qty
1Availability
Part #
201-332Description

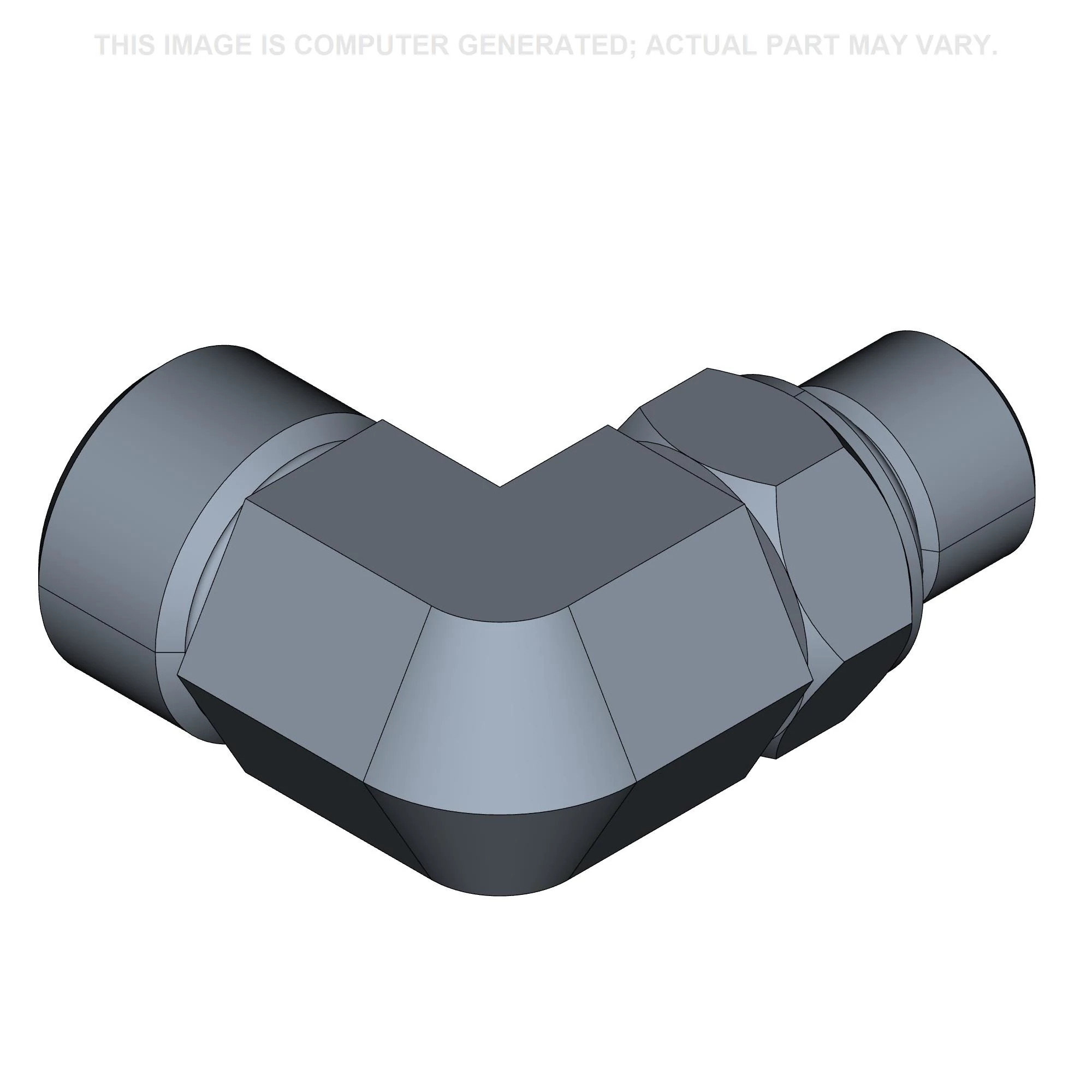

ELBOW 90 Degree Elbow, 13/16'' - 16 Male ORFS x 9/16'' - 18 Male ORB; - 90? Adj, 9/16 x 13/16 inch thread, Incl Ref 17 and 18Img
Alts
Select
Ref.
18Qty
1Availability
Part #
238-6014Description
O-RING 0.07'' Thk x 0.489'' ID, -14, Cl 6, 90 Duro; Face end -014, 90 Duro, .489'' ID x .070'' ThkImg
Alts
Select
Ref.
3Qty
1Availability
Part #
237-6006Description
O-RING 0.078'' Thk x 0.468'' ID, -906, Cl 6, 90 Duro; 6-1, 90 Duro, .468'' ID x .078'' Thk, Boss endImg
Alts
Select
Ref.
8Qty
1Availability
Part #
237-6006Description
O-RING 0.078'' Thk x 0.468'' ID, -906, Cl 6, 90 Duro; 6-1, 90 Duro, .468'' ID x .078'' Thk, SealImg
Alts
Select
Ref.
17Qty
1Availability
Part #
237-6006Description
O-RING 0.078'' Thk x 0.468'' ID, -906, Cl 6, 90 Duro; 6-1, 90 Duro, .468'' ID x .078'' Thk, Boss endImg
Alts
