11CYLINDER; ASSY, draft control
-
21CYLINDER BLOCK; CYLINDER ASSY, draft control
-
31LARGE PIN; PIN, drop retarding lever
-
41LOCK VALVE; POPPET, check valve
-
51VALVE SPRING; SPRING, check valve
-
61PLUG; ASSY, check valve
-
71O-RING 0.097'' Thk x 0.755'' ID, -910, Cl 6, 90 Duro; for 5/8 OD tubing, check valve plug
-
81PISTON; ASSY, draft control, replaces 382603R1
-
91O-RING 4.35'' ID x 0.21'' Width; draft control piston
-
101WASHER; WASHER, draft control piston o-ring backup
-
111LOCK VALVE; VALVE ASSY, poppet relief, Farmall tractor serial no. 33162 & below, International tractor serial no. 7100 & below
-
111LOCK VALVE; VALVE ASSY, poppet relief, Farmall tractor serial no. 33163 & above, International tractor serial no. 7101 & above
-
121O-RING 0.103'' Thk x 0.862'' ID, -118, Cl 6, 90 Duro; poppet relief valve
-
131NO LONGER SERVICED; VALVE ASSY, draft control, will work for 382607R92
-
2NO LONGER SERVICED;
-
1BOLT Hex, 3/8'' - 16 x 2 1/2'', Gr 5; 3/8-16 x 2-1/4 hex-hd cap, Used only w/valve, 382607R92
-
3LOCK WASHER 3/8''; WASHER, LOCK, 3/8''
-
1BOLT Hex, 3/8'' - 16 x 2'', Gr 5; Used only w/valve, 394445R91 Hex, 3/8''-16 x 2'', G5
-
143RING; valve to cylinder small seal
-
151RING; valve to cylinder large seal
-
161ROD; ACTUATOR ASSY, valve spool
-
171SPRING; valve spool
-
181SNAP RING; RING, actuator retaining
-
191RETAINER; PLUG, spool bore
-
201SNAP RING 1.00'', Int, #100; Spool bore plug 1.00'', Int, #100
-
211VALVE; drop poppet
-
221O-RING 0.103'' Thk x 1.049'' ID, -121, Cl 6, 90 Duro; 1-1/16 x 1-1/4 x 3/32, drop poppet valve
-
231SPRING; drop poppet valve
-
241PLUG; drop poppet valve
-
251SNAP RING 1.375'', Int, #137; Ring, Snap, , drop poppet valve plug 1.375'', Int, #137
-
261O-RING 0.07'' Thk x 1.114'' ID, -24, Cl 6, 90 Duro; 1-1/8 x 1-1/4 x 1/16, drop poppet valve plug
-
271LOCK VALVE; SEAT ASSY, drop valve adjustable, Farmall tractor serial no. 33162 & below, International tractor serial no. 7100 & below
-
271SEAT/SLOT; SEAT ASSY, drop valve adj, Farmall tractor serial no. 33163 & above, International tractor serial no. 7101 & above
-
281BALL; 3/16 cr-stl
-
291SPRING; drop valve ball
-
301SCREW 5/16'' - 24 x 0.618''; PLUG, drop valve spring
-
311O-RING 0.064'' Thk x 0.239'' ID, -902, Cl 6, 90 Duro; 15/64 x 23/64 x 1/16
-
321O-RING 0.103'' Thk x 0.424'' ID, -11, Cl 6, 90 Duro; 7/16 x 5/8 x 3/32, drop valve adj seat, inner
-
331O-RING 0.737'' ID x 0.103'' Width; 3/4 x 15/16 x 3/32, drop valve adj seat, outer
-
341ROD; drop valve actuating
-
351NUT; drop valve adj seat
-
361VALVE; ASSY, drop control, also order lub tube, 385942R91
-
1NO LONGER SERVICED; 1/4-20 x 1-1/2 hex-soc-hd cap
-
1BOLT Hex, 1/4'' - 20 x 2 1/4'', Gr 5; SCREW, 1/4-20 x 2-1/4 hex-hd cap
-
1LOCK WASHER 1/4''; WASHER, LOCK, 1/4''
-
372O-RING 0.103'' Thk x 0.674'' ID, -115, Cl 5, 75 Duro; 11/16 x 7/8 x 3/32, drop control valve
-
381NOT SOLD SEPARAT; PISTON, drop control valve, not serviced separately, order valve assy, 391913R91
-
391NOT SOLD SEPARAT; SPRING, drop control valve, not serviced separately, order valve assy, 391913R91
-
401NOT SOLD SEPARAT; PLUG ASSY, spring retainer, not serviced separately, order valve assy, 391913R91
-
421NOT SOLD SEPARAT; SPOOL, variable orifice, not serviced separately, order valve assy, 391913R91
-
431SPRING; spool return
-
441BUSHING; drop control valve
-
451SNAP RING #43, .337'' Dia, E-Type; Ring, Retaining, , spool #43, .337'' Dia, E-Type
-
461ROD; spool actuating
-
1NUT #10-32, GB; no. 10-32 elastic stop
-
1WASHER #10; 7/32 x 7/16 x .049
-
471SPRING; spool actuating rod
-
481O-RING 0.103'' Thk x 0.612'' ID, -114, Cl 6, 90 Duro; 5/8 x 13/16 x 3/32, drop control valve spool
-
491LEVER; BELLCRANK ASSY, drop control valve
-
1NO LONGER SERVICED; PIN, 1/16 x 1/2 cot.
-
1WIRE CONNECTOR Female, 6 Pole; 15/64 x 17/32 x .049
-
501SNAP RING #43, .337'' Dia, E-Type; Ring, Retaining, , drop control valve bellcrank #43, .337'' Dia, E-Type
-
511ANCHOR; spring
Select All
Select
Ref.
1Qty
1Availability
Part #
382596R93Description
CYLINDER; ASSY, draft controlImg
Alts
Select
Ref.
2Qty
1Availability
Part #
382597R21Description
CYLINDER BLOCK; CYLINDER ASSY, draft controlImg
Alts
Select
Ref.
3Qty
1Availability
Part #
382598R1Description
LARGE PIN; PIN, drop retarding leverImg
Alts
Select
Ref.
4Qty
1Availability
Part #
385555R1Description
LOCK VALVE; POPPET, check valveImg
Alts
Select
Ref.
5Qty
1Availability
Part #
385556R1Description
VALVE SPRING; SPRING, check valveImg
Alts
Select
Ref.
7Qty
1Availability
Part #
364885R1Description
O-RING 0.097'' Thk x 0.755'' ID, -910, Cl 6, 90 Duro; for 5/8 OD tubing, check valve plugImg
Alts
Select
Ref.
8Qty
1Availability
Part #
397229R1Description

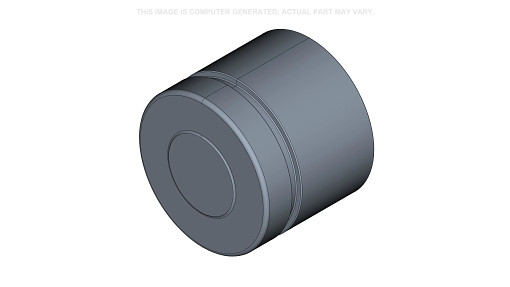

PISTON; ASSY, draft control, replaces 382603R1Img
