E10 - SELECTAMATIC HYDRAULIC SYSTEM, CONTROL LEVER AND QUADRANT - ALL MODELS
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1A
    1
    K929786
    HOUSING; (except 885)
  • 1B
    1
    K913745
    HOUSING; (885)
  • 1
    219-8
    LUBE NIPPLE FITTING LUBE; NIPPLE, LUBE, , ANF, Housing 1/4''-28 NPT x .54'' lg
  • 2
    1
    K903026
    GASKET; housing to axle case
  • 3
    2
    K600217
    BOLT; 5/16 UNC x 3 in, housing to axle case
  • 4
    1
    9635884
    BOLT Hex, 5/16'' - 18 1'', Full Thd, Gr 5; SETSCREW, 5/16 UNC x 1 in, housing to axle case
  • 3
    K19481
    SPRING WASHER; SPRING WASHER, 5/16 in, housing to axle case
  • 5
    1
    K910860
    WASHER; COVER
  • 6
    1
    K909559
    GASKET 1.59mm Thk;
  • 7
    4
    K604477
    SCREW; 5/16 UNC x 5/8 in
  • 4
    K19481
    SPRING WASHER; SPRING WASHER, 5/16 in
  • 8
    1
    K910721
    KNOB; AND SHAFT
  • 9
    2
    K909573
    DISC; FRICTION DISC
  • 10
    1
    K24887
    SPRING;
  • 11
    2
    K19472
    WASHER; 3/8 in
  • 12
    1
    K623930
    SPRING; PIN
  • 13
    1
    K913263
    QUADRANT;
  • 14
    1
    413-518
    BOLT Hex, 5/16'' - 18 x 1-1/8'', Gr 5; SETSCREW, 5/16 UNC x 1-1/8 in, special, quadrant to housing
  • 15
    2
    K602845
    BOLT Hex Hd, 5/16''-18 x 3/4''; SETSCREW, 5/16 UNC x 3/4 in, special, quadrant to housing
  • 3
    K19481
    SPRING WASHER; SPRING WASHER, 5/16 in
  • 16
    2
    K947403
    BRACKET; FINGER GUIDE
  • 17
    2
    K921826
    SERRATED NUT; HAND NUT, 5/16 UNF
  • 18
    2
    K909577
    STUD; 5/16 UNF, special
  • 19
    1
    K913935
    SPRING; CARRIER PLATE AND SPRING
  • 20
    1
    K624582
    RETAINER; CLIP, carrier
  • 1
    K19470
    WASHER; 1/4 in, carrier
  • 1
    K626682
    WASHER; 5/16 in, carrier
  • 1
    9635082
    NUT 5/16'' - 18, Gr 5; 5/16 UNC, carrier plate to quadrant
  • 21
    1
    K913637
    STOP; ABUTMENT PLATE
  • 22
    2
    K604575
    SCREW; 5/16 UNC x 5/8 in
  • 2
    K19481
    SPRING WASHER; SPRING WASHER, 5/16 in
  • 23
    1
    K913268
    LEVER; CONTROL LEVER
  • 24
    1
    K909581
    SHAFT;
  • 25
    1
    K623942
    PIN; SPRING PIN
  • 26
    1
    K621811
    PIN; DOWEL, 3/16 x 1 in
  • 27
    2
    K909582
    WASHER; FRICTION WASHER
  • 28
    1
    K950864
    PLATE; FRICTION PLATE, replaces K909583
  • 29
    2
    K626740
    WASHER; BELLEVILLE WASHER
  • 1
    K626686
    WASHER; 1/2 in
  • 1
    86632558
    JAM NUT Jam, 1/2''-13, G5; LOCKNUT, 1/2 UNC
  • 1
    K607804
    NUT; CAPPED NUT, 1/2 UNC
  • 30
    1
    K909584
    FORK;
  • 31
    1
    K623940
    PIN; SPRING PIN
  • 32
    1
    K903370
    PIN;
  • 33
    1
    K909585
    ROD; CONNECTING ROD
  • 34
    1
    K625161
    SPRING;
  • 35
    2
    K903367
    COLLAR;
  • 36
    1

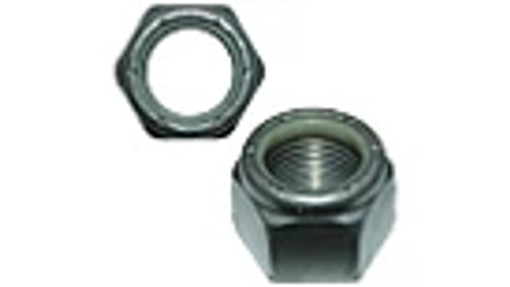

    231-1435
    LOCK NUT 5/16''-18, GB; NYLOC NUT, 5/16 UNC
  • 37
    1
    K914834
    STUD; 1/4 UNC, special (U730 (911471) (catch unit) (optional equipment)
  • 1
    K607514
    NUT; 1/4 UNC (optional equipment)
  • 38
    1
    K914835
    BUSHING; BUSH (optional equipment)
  • 39
    1
    K900380
    O-RING 0.487'' ID x 0.693'' OD x 0.103''; 'O' RING, 1/2 in internal dia. (optional equipment)
  • 40
    1
    K914833
    WASHER; CATCH (optional equipment)
  • 1
    K626682
    WASHER; 5/16 in (optional equipment)
  • 41
    1
    K623424
    RING; SEALING RING, 1/2 in internal dia.
  • 42
    1
    K627068
    BUSHING; PLASTIC SLEEVE
