FARMALL 95 - TRACTOR - TI... 00 - GENERAL 0.05.4[05] - MAINTENANCE ...
0.05.4[05] - MAINTENANCE PARTS - PUMPS
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    1
    47129337
    HYDRAULIC PUMP Gear, Tandem, 19.5 CC / 11.5 CC; On Engine;Valid with FARMALL 90-TRACTOR - TIER 3, FARMALL 95-TRACTOR - TIER 3, JX90-TRACTOR TIER 3, JX95-TRACTOR TIER 3 Models
  • 1
    1
    87472285C
    CORE-HYDRAULIC PUMP DOUBLE, 25.45 CC + 14.62 CC; On Engine;Valid with FARMALL 90-TRACTOR - TIER 3, FARMALL 95-TRACTOR - TIER 3, JX90-TRACTOR TIER 3, JX95-TRACTOR TIER 3 Models,D5996 After Date May 2009,Valid with VAR. 330690
  • 1
    1

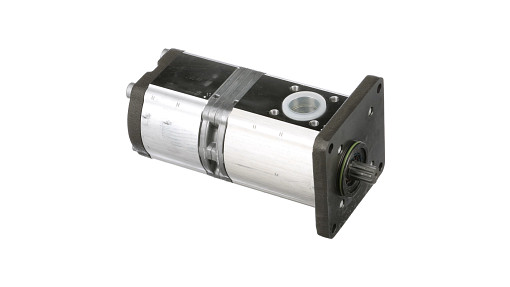

    87472285
    HYDRAULIC PUMP DOUBLE, 25.45 CC + 14.62 CC; On Engine;Valid with FARMALL 90-TRACTOR - TIER 3, FARMALL 95-TRACTOR - TIER 3, JX90-TRACTOR TIER 3, JX95-TRACTOR TIER 3 Models,D5996 After Date May 2009,Valid with VAR. 330690
  • 1
    1
    87601808C
    CORE-HYDRAULIC PUMP HYDRAULIC PUMP; On Engine;Valid with FARMALL 90-TRACTOR - TIER 3, FARMALL 95-TRACTOR - TIER 3, JX90-TRACTOR TIER 3, JX95-TRACTOR TIER 3 Models,D5996 After Date May 2009,Valid with VAR. 330690
  • 1
    1
    87601805C
    CORE-HYDRAULIC PUMP HYDRAULIC PUMP; On Engine;Valid with FARMALL 90-TRACTOR - TIER 3, FARMALL 95-TRACTOR - TIER 3, JX90-TRACTOR TIER 3, JX95-TRACTOR TIER 3 Models,D5996 After Date May 2009,Valid with VAR. 330690
  • 1
    1
    87472285R
    REMAN-HYD PUMP DOUBLE, 25.45 CC + 14.62 CC; On Engine;Valid with FARMALL 90-TRACTOR - TIER 3, FARMALL 95-TRACTOR - TIER 3, JX90-TRACTOR TIER 3, JX95-TRACTOR TIER 3 Models,D5996 After Date May 2009,Valid with VAR. 330690
  • 1
    1
    87386049C
    CORE-HYDRAULIC PUMP DOUBLE, 25.45 CC + 14.62 CC; On Engine;Valid with FARMALL 90-TRACTOR - TIER 3, FARMALL 95-TRACTOR - TIER 3, JX90-TRACTOR TIER 3, JX95-TRACTOR TIER 3 Models,D5996 After Date May 2009,Valid with VAR. 330690
  • 1
    1
    47129337R
    REMAN-HYD PUMP DOUBLE, 19.55 CC + 11.26 CC; Reman On Engine
  • 1
    1
    47129337C
    CORE-HYDRAULIC PUMP DOUBLE, 19.55 CC + 11.26 CC; Core Return
  • 2
    1
    5164616
    HYDRAULIC STEERING; Steering Column;Valid with FARMALL 90-TRACTOR - TIER 3, FARMALL 95-TRACTOR - TIER 3, JX90-TRACTOR TIER 3, JX95-TRACTOR TIER 3 Models,D7009 After Date 24 June 2011,Valid with STD
  • 2
    1
    5165251
    STEERING CYLINDER; Steering Column;D7009 After Date 24 June 2011,Valid with FARMALL 90-TRACTOR - TIER 3, FARMALL 95-TRACTOR - TIER 3, JX90-TRACTOR TIER 3, JX95-TRACTOR TIER 3 Models,Valid with VAR. 335540
  • 2
    1
    5164614
    STEERING CYLINDER; Steering Column;Valid with FARMALL 90-TRACTOR - TIER 3, FARMALL 95-TRACTOR - TIER 3, JX90-TRACTOR TIER 3, JX95-TRACTOR TIER 3 Models,Valid with STD,D7009 After Date 24 June 2011
  • 2
    1
    5164277C
    CORE-VALVE HYD CORE-VALVE HYD; Steering Column;Valid with FARMALL 90-TRACTOR - TIER 3, FARMALL 95-TRACTOR - TIER 3, JX90-TRACTOR TIER 3, JX95-TRACTOR TIER 3 Models,Valid with VAR.335539,D7009 After Date 24 June 2011
  • 2
    1

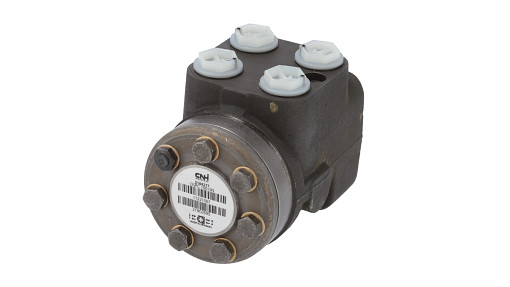

    5164277R
    REMAN-HYD VALVE REMAN-HYD VALVE; Steering Column;Valid with FARMALL 90-TRACTOR - TIER 3, FARMALL 95-TRACTOR - TIER 3, JX90-TRACTOR TIER 3, JX95-TRACTOR TIER 3 Models,Valid with VAR.335539,D7009 After Date 24 June 2011
  • 2
    1

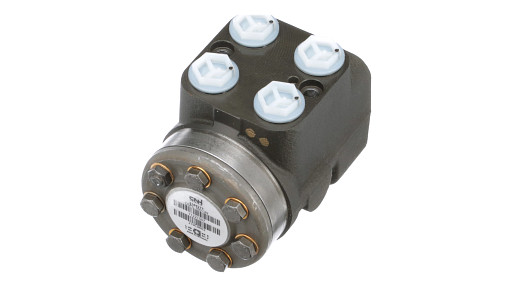

    5164277
    HYDRAULIC STEERING; Steering Column;Valid with FARMALL 90-TRACTOR - TIER 3, FARMALL 95-TRACTOR - TIER 3, JX90-TRACTOR TIER 3, JX95-TRACTOR TIER 3 Models,Valid with VAR.335539,D7009 After Date 24 June 2011
  • 2
    1
    5094204C
    CORE-VALVE HYD CORE-VALVE HYD; Steering Column;Valid with FARMALL 90-TRACTOR - TIER 3, FARMALL 95-TRACTOR - TIER 3, JX90-TRACTOR TIER 3, JX95-TRACTOR TIER 3 Models,Valid with VAR.335539,D7009 After Date 24 June 2011
  • 2
    1

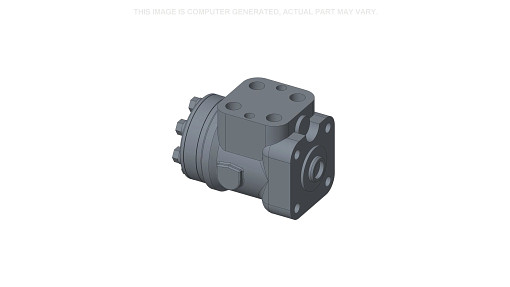

    84174896
    HYDRAULIC STEERING; Steering Column;Valid with FARMALL 90-TRACTOR - TIER 3, FARMALL 95-TRACTOR - TIER 3, JX90-TRACTOR TIER 3, JX95-TRACTOR TIER 3 Models,Valid with VAR. 330120, 331120
Select All

Select

Ref.

1

Qty

1

Availability

Part #

47129337

Description

HYDRAULIC PUMP Gear, Tandem, 19.5 CC / 11.5 CC; On Engine;Valid with FARMALL 90-TRACTOR - TIER 3, FARMALL 95-TRACTOR - TIER 3, JX90-TRACTOR TIER 3, JX95-TRACTOR TIER 3 Models


Alts

Select

Ref.

1

Qty

1

Availability

Part #

87472285C

Description

CORE-HYDRAULIC PUMP DOUBLE, 25.45 CC + 14.62 CC; On Engine;Valid with FARMALL 90-TRACTOR - TIER 3, FARMALL 95-TRACTOR - TIER 3, JX90-TRACTOR TIER 3, JX95-TRACTOR TIER 3 Models,D5996 After Date May 2009,Valid with VAR. 330690


Alts

Select

Ref.

1

Qty

1

Availability

Part #

87472285

Description

HYDRAULIC PUMP DOUBLE, 25.45 CC + 14.62 CC; On Engine;Valid with FARMALL 90-TRACTOR - TIER 3, FARMALL 95-TRACTOR - TIER 3, JX90-TRACTOR TIER 3, JX95-TRACTOR TIER 3 Models,D5996 After Date May 2009,Valid with VAR. 330690


Alts

Select

Ref.

1

Qty

1

Availability

Part #

87601808C

Description

CORE-HYDRAULIC PUMP HYDRAULIC PUMP; On Engine;Valid with FARMALL 90-TRACTOR - TIER 3, FARMALL 95-TRACTOR - TIER 3, JX90-TRACTOR TIER 3, JX95-TRACTOR TIER 3 Models,D5996 After Date May 2009,Valid with VAR. 330690


Alts

Select

Ref.

1

Qty

1

Availability

Part #

87601805C

Description

CORE-HYDRAULIC PUMP HYDRAULIC PUMP; On Engine;Valid with FARMALL 90-TRACTOR - TIER 3, FARMALL 95-TRACTOR - TIER 3, JX90-TRACTOR TIER 3, JX95-TRACTOR TIER 3 Models,D5996 After Date May 2009,Valid with VAR. 330690


Alts

Select

Ref.

1

Qty

1

Availability

Part #

87472285R

Description

REMAN-HYD PUMP DOUBLE, 25.45 CC + 14.62 CC; On Engine;Valid with FARMALL 90-TRACTOR - TIER 3, FARMALL 95-TRACTOR - TIER 3, JX90-TRACTOR TIER 3, JX95-TRACTOR TIER 3 Models,D5996 After Date May 2009,Valid with VAR. 330690


Alts

Select

Ref.

1

Qty

1

Availability

Part #

87386049C

Description

CORE-HYDRAULIC PUMP DOUBLE, 25.45 CC + 14.62 CC; On Engine;Valid with FARMALL 90-TRACTOR - TIER 3, FARMALL 95-TRACTOR - TIER 3, JX90-TRACTOR TIER 3, JX95-TRACTOR TIER 3 Models,D5996 After Date May 2009,Valid with VAR. 330690


Alts

Select

Ref.

1

Qty

1

Availability

Part #

47129337R

Description

REMAN-HYD PUMP DOUBLE, 19.55 CC + 11.26 CC; Reman On Engine


Alts

Select

Ref.

1

Qty

1

Availability

Part #

47129337C

Description

CORE-HYDRAULIC PUMP DOUBLE, 19.55 CC + 11.26 CC; Core Return


Alts

Select

Ref.

2

Qty

1

Availability

Part #

5164616

Description

HYDRAULIC STEERING; Steering Column;Valid with FARMALL 90-TRACTOR - TIER 3, FARMALL 95-TRACTOR - TIER 3, JX90-TRACTOR TIER 3, JX95-TRACTOR TIER 3 Models,D7009 After Date 24 June 2011,Valid with STD


Alts

Select

Ref.

2

Qty

1

Availability

Part #

5165251

Description

STEERING CYLINDER; Steering Column;D7009 After Date 24 June 2011,Valid with FARMALL 90-TRACTOR - TIER 3, FARMALL 95-TRACTOR - TIER 3, JX90-TRACTOR TIER 3, JX95-TRACTOR TIER 3 Models,Valid with VAR. 335540


Alts

Select

Ref.

2

Qty

1

Availability

Part #

5164614

Description

STEERING CYLINDER; Steering Column;Valid with FARMALL 90-TRACTOR - TIER 3, FARMALL 95-TRACTOR - TIER 3, JX90-TRACTOR TIER 3, JX95-TRACTOR TIER 3 Models,Valid with STD,D7009 After Date 24 June 2011


Alts

Select

Ref.

2

Qty

1

Availability

Part #

5164277C

Description

CORE-VALVE HYD CORE-VALVE HYD; Steering Column;Valid with FARMALL 90-TRACTOR - TIER 3, FARMALL 95-TRACTOR - TIER 3, JX90-TRACTOR TIER 3, JX95-TRACTOR TIER 3 Models,Valid with VAR.335539,D7009 After Date 24 June 2011


Alts

Select

Ref.

2

Qty

1

Availability

Part #

5164277R

Description

REMAN-HYD VALVE REMAN-HYD VALVE; Steering Column;Valid with FARMALL 90-TRACTOR - TIER 3, FARMALL 95-TRACTOR - TIER 3, JX90-TRACTOR TIER 3, JX95-TRACTOR TIER 3 Models,Valid with VAR.335539,D7009 After Date 24 June 2011


Alts

Select

Ref.

2

Qty

1

Availability

Part #

5164277

Description

HYDRAULIC STEERING; Steering Column;Valid with FARMALL 90-TRACTOR - TIER 3, FARMALL 95-TRACTOR - TIER 3, JX90-TRACTOR TIER 3, JX95-TRACTOR TIER 3 Models,Valid with VAR.335539,D7009 After Date 24 June 2011


Alts

Select

Ref.

2

Qty

1

Availability

Part #

5094204C

Description

CORE-VALVE HYD CORE-VALVE HYD; Steering Column;Valid with FARMALL 90-TRACTOR - TIER 3, FARMALL 95-TRACTOR - TIER 3, JX90-TRACTOR TIER 3, JX95-TRACTOR TIER 3 Models,Valid with VAR.335539,D7009 After Date 24 June 2011


Alts

Select

Ref.

2

Qty

1

Availability

Part #

84174896

Description

HYDRAULIC STEERING; Steering Column;Valid with FARMALL 90-TRACTOR - TIER 3, FARMALL 95-TRACTOR - TIER 3, JX90-TRACTOR TIER 3, JX95-TRACTOR TIER 3 Models,Valid with VAR. 330120, 331120


Alts
